EG12-02B-18 - Pizza oven Vevor - Free user manual and instructions

USER MANUAL EG12-02B-18 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Electric Pizza oven

MODEL:EG12-02B-20

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:EG12-02B-20

Line drawing of a simple wooden box with four legs and a side panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

When using electrical appliances, basic safety precautions should always be followed including:

1. Remove and safely discard any packing materials and promotional la before using the oven for the first time.
2. To avoid choking hazard for young children, remove and safely dis of the protective cover fitted on the power plug.
3. Do not use the appliance near the edge of a countertop or table. the surface is stable, level, heat-resistant and clean.
4. Do not use on a cloth-covered surface, near curtains or other flange materials.
5. A fire may occur if the oven is covered or touches flammable ma including curtains, draperies, walls, and the like, when in operation.
6. Do not use the appliance on(or close to) a hot gas or electric but where it could touch a heated oven or surface.
7. Do not let the power cord hang over the edge of a table or cou

hot surfaces or become knotted.

1. To avoid electric shock, do not immerse the cord, plug or motor water (or other liquids).

2. The outer housing of the oven may be hot during and after cook. Please do not touch hot surfaces. Always keep the power cord of th and those of other appliances near the oven, clear from the oven ho

3. The oven is not suitable to be used in a small appliance enclos Ensure to leave adequate space all around the oven. Minimum space inches/10cm is recommended.

4. Do not touch hot surfaces.

5. To avoid burns, use extreme caution when removing the included pan or pizza stone as they might be very hot.

6. Do not place cardboard, plastic, paper, or other flammable materials the oven.

7. Do not cover any part of the oven with metal foil. This will cause overheating of the oven.

8. We recommend using the dedicated pizza stone with the oven, although other cast iron/ carbon steel pans that fit are also suitable usage.

9. Do not use non-stick or coated pans in the oven.

10. Oversized food and metal utensils must not be inserted in the o they may create fire or risk of electric shock.

11. To avoid any direct contact with the oven, a pizza peel should I at all times when inserting a pizza into the cavity, unless cooking a pizza.

12. The use of accessories and attachments not recommended or sup with this oven may cause injuries.

13. Do not store any materials, other than manufacturers recommend accessories, in this oven when not in use.

14. This appliance is for household use only. Do not use in any typ moving vehicles.

15. If the appliance is to be cleaned, moved, assembled or stored, a switch the unit off and allow it to cool completely, before unplugging

the power outlet.

1. Do not clean with metal scouring pads. Pieces can break off the and touch electrical parts, creating a risk of electric shock.

2. Close supervision is necessary when the appliance is used by or children.

3. Longer detachable power- supply cords or extension cords are available and may be used if care is exercised in their use.

4. It is recommended to regularly inspect the appliance and power (

5. Do not use the appliance if there is damage to the power cord or after the appliance malfunctions or has been damaged in any way. Immediately stop use and call Westinghouse Consumer Support.

6. We recommend operating the oven on a dedicated circuit separate from other appliances. Consult a licensed and qualified electrician if you are unsure.

7. This appliance is equipped with a power cord having a grounding with a grounding plug. The appliance must be grounded using a 3-hc properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

8. Do not, under any circumstances, cut or remove the third (ground prong from the power cord or use an adapter.

9. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance properly grounded.

10. The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electric appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circle supplying the appliance.

See your electrician for professional advice.

WARNING

To prevent electric shock, unplug before cleaning.

SHORT CORD INSTRUCTIONS

1. This appliance is fitted with a short power supply cord to reduce injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord.
2. If an extension cord is used,
   1) the marked electrical rating of the cord set or extension cord show at least as great as the electrical rating of the appliance,
   2) the cord should be arranged so that it will not drape over the cord or table-top where it can be pulled on by children or tripped over unintentionally and
   3) the extension cord must include a 3-prong grounding plug.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

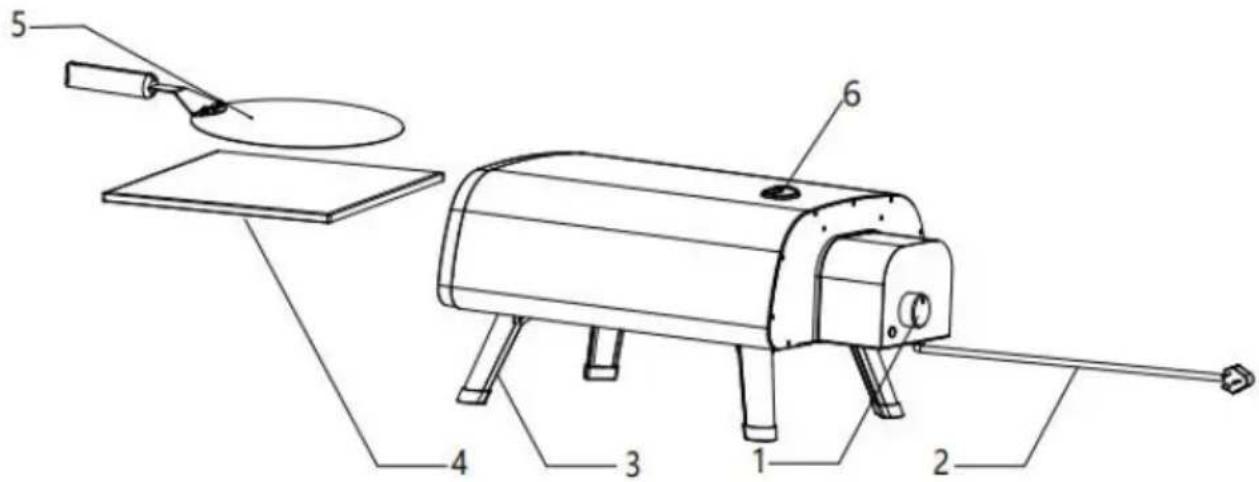

DESCRIPTION OF PARTS

COMPONENTS & DIAGRAM

Technical diagram of a portable electric stove with labeled components from 1 to 6

Device Overview and Operating Elements

1. TEMP dial
2. Power cord
3. Stand feet (foldable)
4. Pizza stone
5. Thermometer
6. Pizza peel

HOW TO USE

BEFORE FIRST USE

Functions

In order to remove any protective substances on the heating elements necessary to run the oven empty for 20 minutes. Ensure the area is ventilated as the oven may emit vapors. These vapors are safe and detrimental to the performance of the oven.

1. Remove and safely discard any packing material, promotional labels tape from the oven.

2. Remove the pizza stone from its packaging and place the pizza s the oven cavity.

3. Wipe the interior of the oven with a soft, damp sponge.

4. Place the oven on a clean, flat, stable surface. Clear the space moving your oven into position. Remove any flammable objects and materials, including table cloths. Think about ventilation when choosing suitable place for your oven. Very high cooking temperatures can sometimes cause food to burn, which can produce smoke. Ensure the a minimum distance of 4" (10cm) of space on both sides of the oven (15cm) above.

5. Unwind the power cord completely and insert the power plug into grounded power outlet.

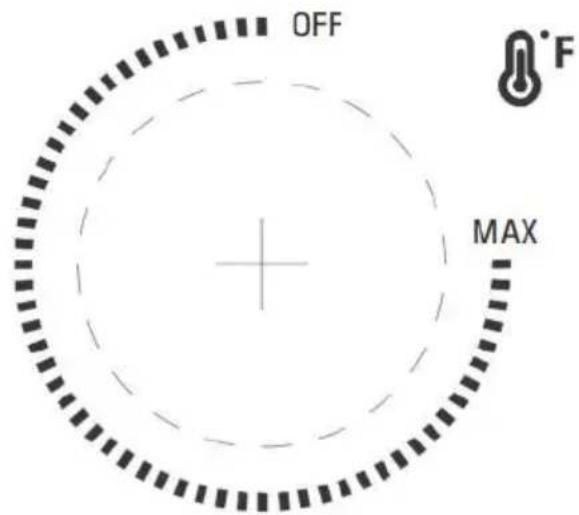

6. Turn the dial to Max to start the oven.

OFF MAX

1. Let the oven run for 20 minutes.
2. The oven is now ready to use.

NOTE

When you intend to transport the product; remove the pizza stone from inside the oven and pack separately to avoid breakage.

NOTE

Make sure the oven is preheated before placing the pizza in the cav NOTE

For high temperature cooking functions, we recommend you monitor air stay close to the oven as your food can quickly become overdone a eventually ignite. See Troubleshooting for more information.

WARNING

After cooking, allow the oven to cool completely before unplugging from the wall.

IMPORTANT NOTICE

Your pizza oven requires a full 20-amp electric power outlet to opera properly.

Running it on a lower current outlet/circuit breaker may cause the gri and/or circuit to trip. To prevent power loss:

• An exterior outlet with a standard 20-amp circuit breaker is recommended.
• Unplug any other electrical devices, like patio lights, powered by the exterior outlet/circuit breaker before plugging in your grill.

If power is lost during use:

• Identify and unplug any other electrical devices that lost power at the same time and reset the breaker.
• Try using a different electrical outlet, if available. Check your owner manual for recommended use of extension cords. If your circuit break continues to trip during use, consult a qualified electrician.

CLEANING AND CARE

• The appliance should not require any interior cleaning. Any food rest should burn off when in use. You can use the brush to sweep away debris on the stone.
  • Over time the interior of the device may discolor slightly. This is completely normal.
• Don't use oven cleaners or metal scourers to clean your pizza ove because they will damage the machine, Wipe the outer body with a damp sponge.

A non-abrasive liquid cleanser or mild spray solution may be used to build-up of stains. Apply the cleanser to the sponge, not the oven s before cleaning.

- To clean the outside of your pizza oven, wait until it's cool, unplug use a lightly damp cloth to wipe the oven body. Dry with a clean to away.

- Let all surfaces dry thoroughly prior to inserting the power plug into power outlet and turning the oven on.

STORING

You can use the pizza oven outside. Store indoors in dry conditions not in use.

Only store the pizza stone inside the oven — don't store food or ot items in the oven cavity.

Do not lean on or put items on top of your device. Doing so could your oven.

Pizza Stone

1. DO NOT use the pizza stone over an open flame.
2. Avoid extreme temperature change to the stone. DO NOT place from foods onto the stone if using temperatures in excess of 170^ C.
3. The stone is fragile and can break if bumped or dropped.
4. The stone is very hot during use and stays hot for a long time
5. DO NOT cool the stone with water or use it when damp.
6. To clean off burned food marks, wait until the stone is cool, use hands to carefully take it out of the oven, remove any loose or large then flip it over and slide it gently back in. The debris on the under the stone will burn away the next time you use your appliance.
7. If your stone breaks: Turn your oven off, let it cool and unplug if you remove the broken baking stone.

TROUBLESHOOTING

Problem	Possible reason	Solution
The appliance produces smoke when it is on.	Food is touching the heating element.	Switch off the product and position the food until it is touching the heating element
	The food is smoking without touching the heating element.	Interrupt the grilling process immediately and allow the device to cool. Do not reh the food.
The appliance is not responding or does not heat up.	Plug is not plugged	Insert the plug into the ma socket.
	The appliance is not switched on.	Push the power button at back of the appliance.
	Timer has finished counting.	Turn on the appliance agai
	The fuse is broken.	Contact the authorized service agent.
	The appliance has overheated.	If the appliance overheats, will automatically turn off th heating system for safety. Stop using the appliance a contact the authorized service agent.
