Brand	Vevor
Model	FY-P0-1
Product Type	Electric Pizza Oven
Usage	Commercial
Power Supply	220-240 V ~ 50/60 Hz, 1500 W (model FY-P0-1)
Dimensions (L × D × H)	475 × 560 × 210 mm
Weight	Approximately 8 kg
Thermostat	Temperature adjustment from 0 to 350 °C
Timer	Up to 30 min, with audible signal
Heating Elements	Upper and lower heating tubes
Indicator Lights	Power-on indicator and heating indicator
Overheating Protection	Yes, with manual reset
Housing Material	Painted steel
Included Accessories	Baking rack, rack support, carrying bag
Cleaning	Unplug before cleaning. Clean the rack with a mild detergent. Wipe the interior with a damp cloth. Do not immerse in water.
Recommended Preheating Temperature	350 °C for 8 minutes
Typical Cooking Time (pizza)	12 minutes at 200 °C
Spare Parts Available	Heating tube, thermostat, switch, power cord, etc.
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - FY-P0-1 Vevor

How to use the FY-P0-1 pizza oven?

Plug in the appliance, turn on the power switch, set the thermostat to the desired temperature (e.g., 350 °C for preheating). Wait until the heating indicator turns off (temperature reached), place the pizza in the oven, set the timer, and remove the pizza after the audible signal while wearing protective gloves.

What is the electrical power of the FY-P0-1 model?

The FY-P0-1 model operates on 220-240 V with a power of 1500 W. A grounded outlet is mandatory.

How to clean the Vevor pizza oven?

Always unplug the appliance before cleaning. Use a mild detergent for the baking rack. Wipe the interior with a damp cloth. Never immerse the oven in water and avoid touching electrical components.

What to do if the oven does not heat?

First check that the power cord is properly plugged in. If the heating indicator does not light up, the thermostat or heating element may be defective. Refer to the troubleshooting chapter in the manual or contact Vevor support.

How to set the timer?

Turn the timer knob clockwise to the desired time (maximum 30 minutes). An audible signal sounds at the end of the countdown. Note that the timer does not cut the power: you must manually turn off the thermostat and switch.

Can the oven be used outdoors?

No, this pizza oven is designed for commercial indoor use only. Do not use it outdoors or near sources of heat or moisture.

What temperature to cook a pizza?

Preheat the oven to 350 °C for 8 minutes, then place the pizza and reduce the temperature to 200 °C. The cooking time is about 12 minutes. Adjust according to desired doneness.

What to do in case of overheating?

The oven is equipped with an overheating protection device. If it triggers, the power is cut off. Unplug the appliance, let it cool down, then perform a manual reset: unscrew the black cap of the temperature limiter and press the red pointer. If the problem persists, contact a technician.

Can I use aluminum foil in the oven?

No, never place aluminum foil, cardboard, or plastic inside the oven, as this could cause overheating or a fire.

Where to find spare parts?

Spare parts such as heating tubes, thermostats, switches, and power cords are available. Contact Vevor after-sales service via www.vevor.com/support to obtain the appropriate parts.

USER MANUAL FY-P0-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

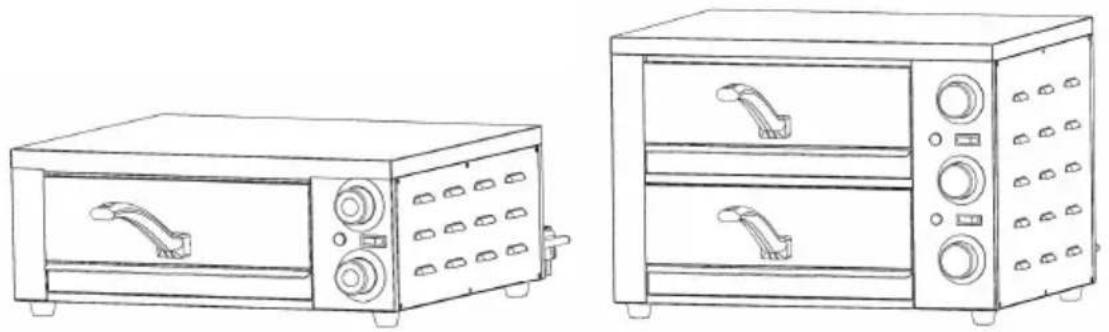

Electric Pizza Oven

MODEL: FY-P0-1, FY-P0-2

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: FY-P0-1, FY-P0-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, user must read the instructions manual carefully.

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate recycling collection in the European Union. This applies to the product and all accessories marked with this symbol. Products such as these may not be discarded with normal domestic waste and must be taken to a collection point for recycling electric and electronic devices.

A. Important Safety Instructions

Before using this product, please read the safety instructions carefully and operate in accordance with the regulations:

1. Please read carefully before use
2. This equipment must use a socket with a safety ground!
3. For commercial use only!
4. Do not touch the heating surface!
5. To prevent electric shock, please ensure that the power cord, plug, and other electrical components do not come into contact with water or other liquids!
6. Please disconnect the plug before cleaning!
7. Before loading or unloading parts, please let the appliance cool down to prevent burns!
8. Do not use electrical appliances if the power cord is damaged!
9. Do not use the machine if it is damaged or malfunctions!
10. Not suitable for outdoor use!
11. Do not place it near electrical appliances or gas heat sources!
12. Turn off the thermostat and timer first, and then unplug it!
13. Do not use electrical appliances for purposes other than those for which they were designed!
14. Do not put metal objects or oversized food in the pizza oven, as this can cause fire alarms and electrical short circuits!
15. Do not place task items on the top of the pizza oven during use.
16. Do not let the pizza oven come into contact with any flammable

materials during use, such as curtains, rags, wooden boards, etc.!

1. Do not use metal-based rags to clean the pizza oven, as they may damage electrical components and cause an electric shock!
2. Never put paper, cardboard, or plastic in the pizza oven!
3. Do not wrap the inner pot with tin foil, as it may cause overheating.
4. Resetting the timer to zero can cut off the power of the pizza oven.
5. Note: Parts not recommended by the manufacturer may cause damage to the pizza oven!
6. Children over eight years old or people with disabilities can use the pizza oven under correct guidance and supervision and fully understand the dangers of use. Do not let children use the pizza oven as a toy. Children cannot use it without supervision. Clean or maintain this pizza oven!
7. If the power cord is damaged, you must contact the manufacturer's after-sales agency for replacement to avoid possible dangers. The break may be burnt or even catch fire, so do not let the pizza oven near flammable objects such as curtains!
8. When using the pizza oven in public places such as shops, fast-food restaurants, hotels, etc., check the voltage and socket to ensure that it matches the electrical specifications of the pizza oven!
9. Place the pizza oven on a horizontal surface to allow for air flow. Please pay attention during use. Do not leave the pizza oven unsupervised while it is working!
10. Please unplug the plug before cleaning, and wipe the plug dry before plugging it back in to prevent ignition and short circuit.
11. It is normal for the door and shell of the pizza oven to heat up during use. Please pay attention to safety and avoid burns.

Instructions before use:

Before using your pizza oven for the first time, please follow the instructions.

1. Use a small amount of detergent to clean the handle and grilling (note: do not use salt water or corrosive detergents).
2. Gently wipe the inner pot with a damp cloth. When cleaning the oven, be careful not to touch the electrical components, and do not immerse the pizza oven in water.
3. After cleaning, dry all the above parts, put them back in the pizza oven, close it, and preheat at the highest temperature for 5 minutes.
4. Turn off the electric heating tube and open the pizza oven to expel remaining smoke. The heating tube is lubricated and rust-proofed. The residual grease can be burned off after first use. Slight smoke is normal.

C. Technical Parameters

Product Name	Pizza oven	Pizza oven
Number	FY-PO-1	FY-PO-2
Voltage/Power	120V /1500W	120V / 1700W
	220-240V/1500W	220-240V / 2260W
Dimensions	475*560*210mm	475*560*335mm

D. Things to note during use:

Before turning on the pizza oven, first turn the thermostat to set the cooking temperature, and then turn the thermostat to set the desired cooking time.

This pizza oven cannot be used with external temperature control or remote control systems.

Note: During cooking, make sure no metal objects come into contact with electrical components to avoid electric shock and short circuit.

Note: The heated food is very hot. Wear protective gloves before touching it to avoid burns.

Operating procedures

1. Plug in the power supply, turn on the power switch, and the switch indicator light will light up.
2. Rotate the thermostat to the required temperature. At this time, the heating indicator light turns on and the machine enters the heating mode. When the temperature in the furnace rises to the set temperature, the thermostat disconnects, the machine stops heating, and the heating indicator light goes out. When the temperature in the furnace is lowered below the set temperature, the thermostat will automatically enter the heating mode and the heating indicator light will light up. This cycle is repeated to ensure that the temperature in the furnace is constant within the set range.
3. When the heating indicator light turns on, you can put the food in the oven for baking, and set the timer to the required time. At this time, the machine starts counting down. When the time reaches the set time, the machine will issue a "ding" sound to remind you that the baking is up and the food needs to be removed. Note: The temperature in the furnace is very high, please wear protective gloves to avoid burns!
4. Please note that the timer only serves as a reminder and will not cut off the power supply. Therefore, when the time is up, the food should be taken out in time to avoid burning or fire.
5. After use, turn off the thermostat, then turn off the power switch, and finally pull out the power plug from the socket.
6. This machine is equipped with an overheating protection device. When the thermostat fails, the overheating protection device will automatically cut off the power supply. If the machine's overheating protection device is turned on, please be sure to find a professional maintenance personnel for inspection, and wait until the fault is eliminated before proceeding. Manual reset action.
7. The manual reset method is to unscrew the black cover of the red device and press the red pointer inside.

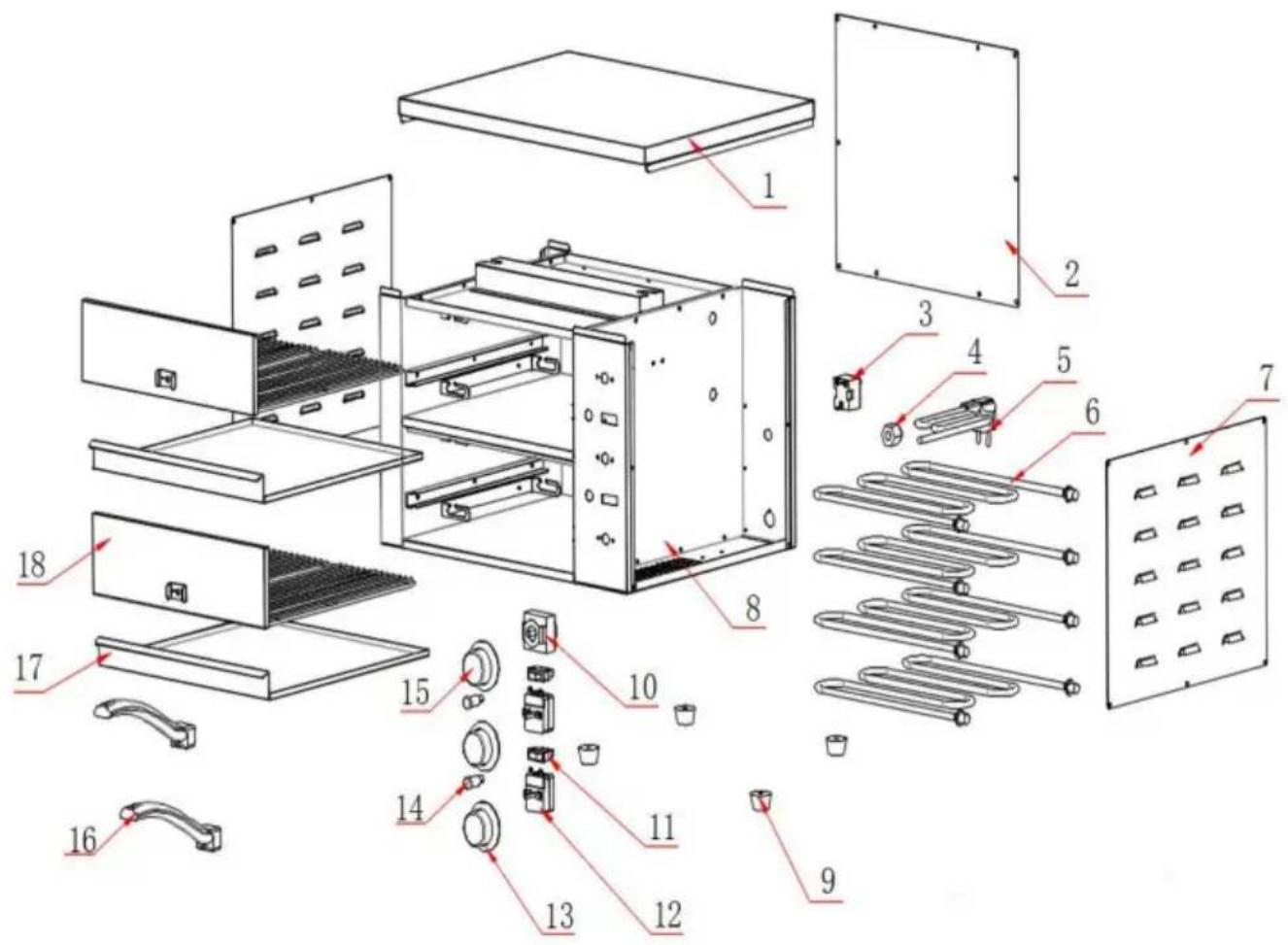

E. Product exploded view

No.	Spare parts name	No.	Spare parts name
1	Top cover	10	Timer
2	Rear panel	11	Switch
3	Temperature limiter	12	Temperature controller
4	Ply-yarn drill	13	Temperature control knob
5	Power cord	14	Indicator light
6	Heating tube	15	Timer knob
7	Side panel	16	Handle
8	Outer shell	17	Ditty-bag
9	Under-chassis	18	Net rack

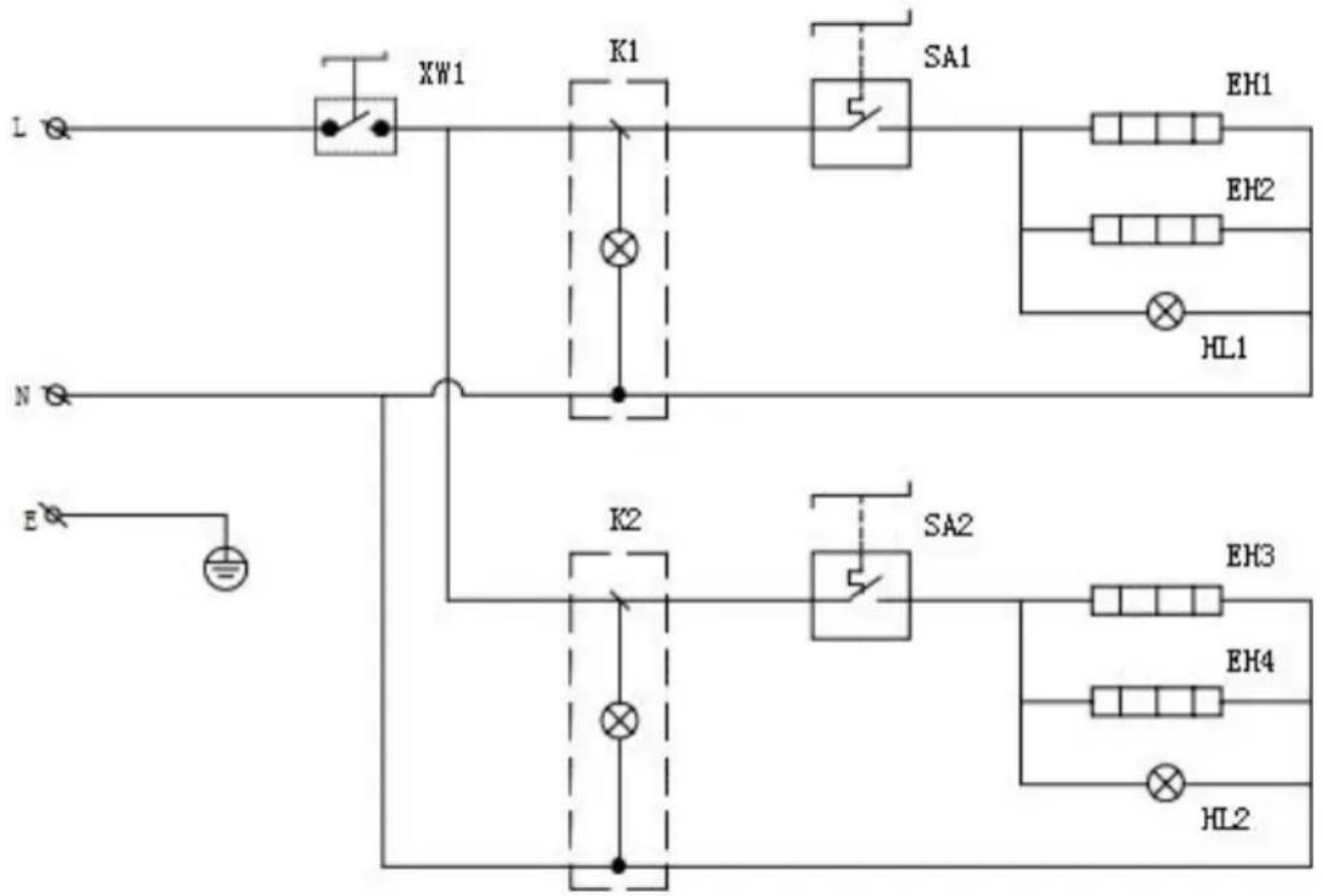

F. Electrical schematic diagram

XW1----Temperature Limiter

K1, K2----Power Switch

SA1, SA2----Thermostat

EH1, EH2----Lower Heating Tube

HL1, HL2----Heating Indicator Light

EH3, EH4----Upper Heating Tube

G. General troubleshooting:

Fault Phenomenon	Reason	Method Of Exclusion
Turn on the power, turn of the power switch, the swit light is on, the heating indicator light is not on, a the temperature inside the machine does not rise.	1.The thermostat is damaged	1.Replace thermostat
Turn on the power, turn of the power switch, the swit light is on, turn the thermostat, the indicator is always on, the temperature rises and the heating can be controlled.	1. Thermostat failure	1. Replace thermostat
Turn on the power and tu on the switch. The switch light does not light up and machine does not heat up	1. The power cord is not plugged in properly;2. The power switch is broken;	1. Check the power socket and plug in the plug;2. Replace the power switch;
When the power is turned the switch light is on and heating indicator light is or but no heating occurs.	1. The heating pipe wiring is loose;2. The heating tube is burned out;	1. Check the heating pipe connection line;2. Replace the heating tube.

H. Bake pizza temperature reference

Model	Preheating temperature	Preheating time	Adjust the temperature after the pizza is in	Pizza time	Voltage
FY-PO -1	200°C	8 minutes	350°C	12 minutes	220-240V
	200°C	10 minutes	350°C	12 minutes	120V
FY-P0 -2	200°C	10 minutes	350°C	12 minutes	220-240V
	200°C	13 minutes	350°C	12 minutes	120V
