Electric Pizza oven

MODEL: FY-1EP-2, FY-1EP-1, FY-EP-1, FY-EP-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: FY-1EP-2, FY-1EP-1, FY-EP-1, FY-EP-2

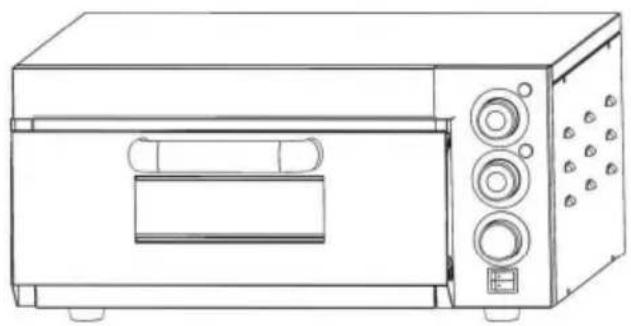

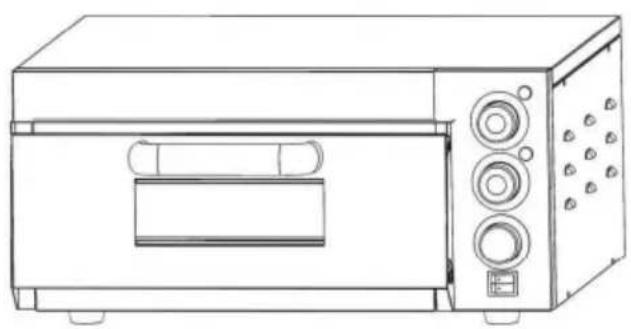

Line drawing of a two-tiered kitchen oven with control panel and side-mounted fans (no text or symbols)

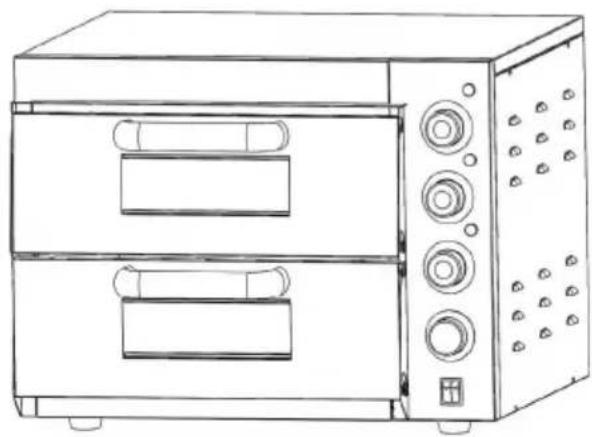

Line drawing of a microwave oven with control panel and side-mounted dish (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic v must be taken to a collection point for recycling electr electronic devices

A. Important safety instructions

Before using this product, please read the safety instructions carefully operate in accordance with the regulations:

1. Please read carefully before use

2. This equipment must use a socket with a safety ground!

3. For commercial use only!

4. Do not touch the heating surface!

5. To prevent electric shock, please ensure that the power cord, plug other electrical components do not come into contact with water or of liquids!

6. Please disconnect the plug before cleaning!

7. Before loading or unloading parts, please let the appliance cool dc prevent burns!

8. Do not use electrical appliances if the power cord is damaged!

9. Do not use the machine if it is damaged or malfunctions!

10. Not suitable for outdoor use!

11. Do not place it near electrical appliances or gas heat sources!

12. Turn off the thermostat and timer first, and then unplug it!

13. Do not use electrical appliances for purposes other than those fo

which they were designed!

1. Do not put metal objects or oversized food in the pizza oven, a cause fire alarms and electrical short circuits!

2. Do not place task items on the top of the pizza oven during us

3. Do not let the pizza oven come into contact with any flammable materials during use, such as curtains, rags, wooden boards, etc.!

4. Do not use gold-based rags to clean the pizza oven, as they m electrical components and cause an electric shock!

5. Never put paper, cardboard or plastic in the pizza oven!

6. Do not wrap the inner pot with tin foil, as it may cause overheat

7. Resetting the timer to zero can cut off the power of the pizza (

8. Note: Parts not recommended by the manufacturer may cause data to the pizza oven!

9. Children over eight years old or people with disabilities can use pizza oven under correct guidance and supervision and fully understand the dangers of use. Do not let children use the pizza oven as a to: Children cannot use it without supervision. Clean or maintain this pizz oven!

10. If the power cord is damaged, you must contact the manufacturer after-sales agency for replacement to avoid possible dangers. The break may be burnt or even catch fire, so do not let the pizza oven near flammable objects such as curtains!

11. When using the pizza oven in public places such as shops, fast restaurants, hotels, etc., check the voltage and socket to ensure that matches the electrical specifications of the pizza oven!

12. Place the pizza oven on a horizontal surface to allow for air flow. Please pay attention during use. Do not leave the pizza oven unsupper while it is working!

13. Please unplug the plug before cleaning, and wipe the plug dry b plugging it back in to prevent ignition and short circuit.

14. It is normal for the door and shell of the pizza oven to heat up use. Please pay attention to safety and avoid burns.

Instructions before use:

B.Before using your pizza oven for the first time, please follow instructions

1. Use a small amount of detergent to clean the handle and grilling (note: do not use salt water or corrosive detergents).
2. Gently wipe the inner pot with a damp cloth. When cleaning the oven, be careful not to touch the electrical components, and do not immerse the pizza oven in water.
3. After cleaning, dry all the above parts, put them back in the pizza close it, and preheat at the highest temperature for 5 minutes.

4. Turn off the electric heating tube and open the pizza oven to exp remaining smoke. The heating tube is lubricated and rust-proofed. The residual grease can be burned off after first use. Slight smoke is nor

5. Technical Parameters

Model	Measurement(mm)	Power(W)	Voltage(V)	Weight(kg)
FY-1EP-2	520*430*430mm	1800W	120V	24.5kg
		2700W	220V~240V
FY-1EP-1	517*470*266mm	1300W	120V	15.9kg
		1800W	220V~240V
FY-EP-1	515*560*267mm	1700W	120V	19kg
		2000W	220V~240V
FY-EP-2	559*475*433mm	2700W	120V	30.40kg
		3000W	220V~240V

2. Control Panel

Fire surface temperature selection Temperature selection primer Timer Surface fire indicator rimer indicator Power switch Light switch

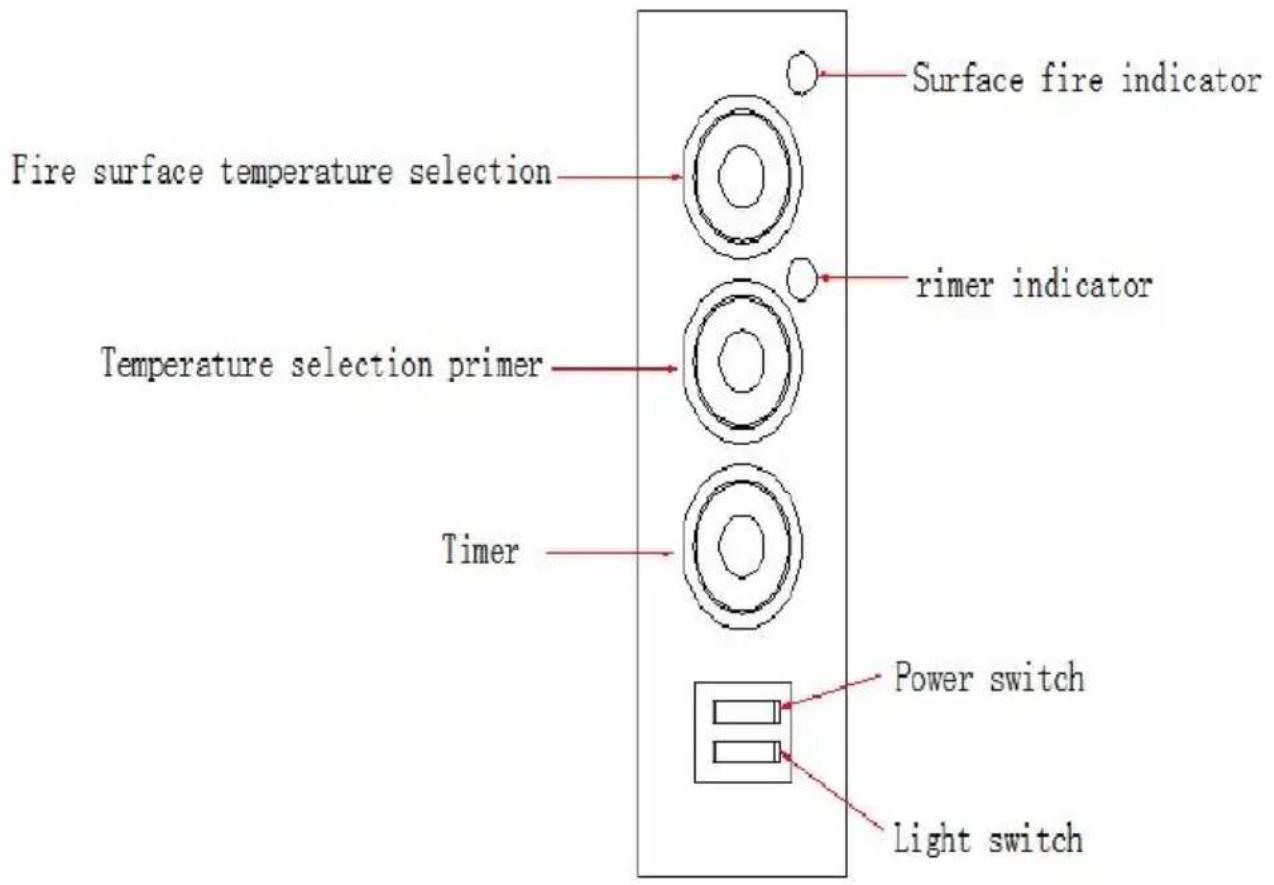

FY-1EP-1, FY-EP-1

Surface fire indicator Fire surface temperature selection Middle-fire indicator Middle fire temperature selection rimer indicator Temperature selection primer Timer Light switch Power switch

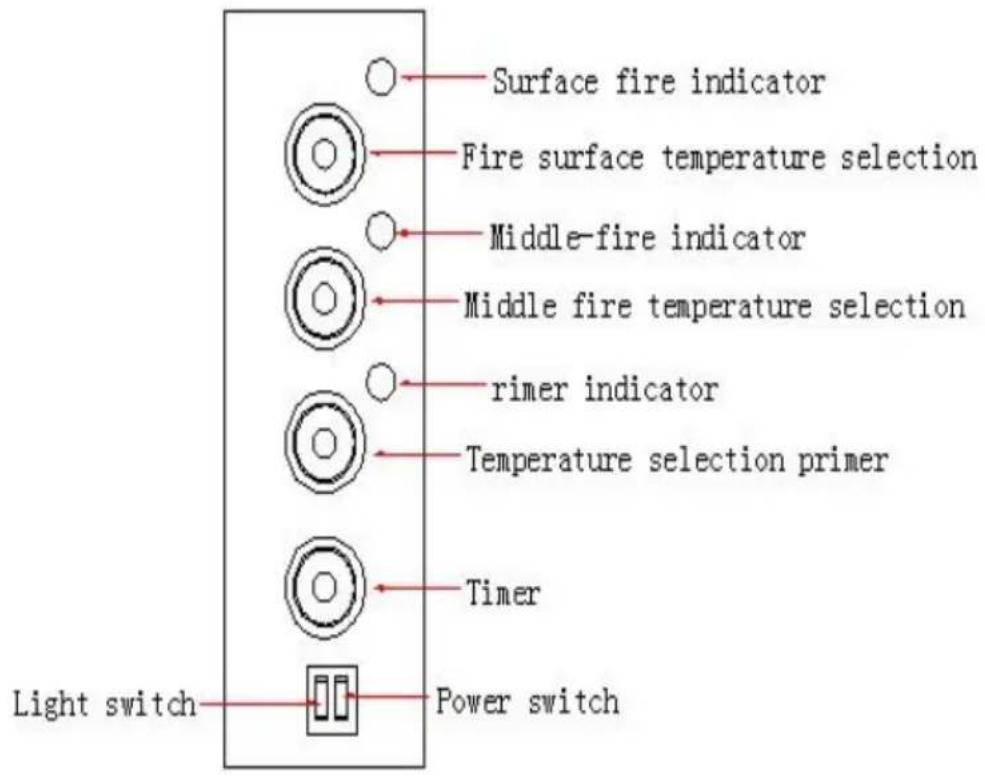

FY-1EP-2, FY-EP-2

3.Instructions

A. Illuminating light switch controls the illuminating light in the oven.
B. Turn on the power switch. Regulate the bottom heater thermostat needed temperature to heat.(the timer just remind not interrupt)The thermostat will keep a constant temperature when the temperature reaches set temperature.
C. Turn off the power switch. Regulate the bottom heater thermostat needed temperature. Then regulate the timer to needed time. It will s heating when time out.(suggestion: if using timer, please increase the temperature to set temperature)
D. The bottom heater thermostat is to control bottom element and bo indicator. The middle heater thermostat is to control middle element a middle indicator. The top heater thermostat is to control top element top indicator.
E. The max temperature can reach to 350^ C and the temperature increasing very fast.
F. You must preheat the temperature to 200-300°C before putting the in this oven.

4. Fault Treatment:

Fault	Cause	Overcome
Power switch turned on, indicator light, but temperature not increased in the oven	1. thermostat damaged2. element damaged	1.change thermostat2. change element
Power switched, turn the thermostat, temperature can not be controlled.	Thermostat damaged	Change thermostat
Power wired, press the switch, indicator not light	Indicator damaged	Change indicator
Power wired, indicator not light, temperature not increased	Power not wired, fuse damaged	Inspect power and wire, change fuse

5. Installation instruction:

A. The used voltage must be same as rated voltage.
B. You must pull in enough power beside the equipment.
C. There is landing bolt at back of the equipment. You must connec copper core wire (>2.5mm2) with safe earth wire.
D. You must inspect the wire, the voltage, and the lading wire to be they are all safe and well done.

6.Bake pizza temperature reference

Model	Preheating temperature	Preheating time	Adjust the temperature after the pizza is in	Pizza time	Voltage
FY-1E P-1	200°C	16 minutes	350°C	7 minutes	220-240 V
	200°C	20 minutes	350°C	7 minutes	120V
FY-1E P-2	200°C	20minutes	350°C	7 minutes	220-240 V
	200°C	24 minutes	350°C	7 minutes	120V
FY-EP-1	200°C	15minutes	350°C	7 minutes	220-240 V
	200°C	18minutes	350°C	7 minutes	120V
FY-EP-2	200°C	19minutes	350°C	7 minutes	220-240 V
	200°C	24minutes	350°C	7 minutes	120V
