USER MANUAL ML26×30-2 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
MIRROR CABINET
MODEL: ML14X24-1 / ML16X24-1 / ML16.5X27.5-1 / ML20X30-1 / ML24X30-1 / ML40X25.5-3 / ML26X30-2
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR
MIRROR CABINET
| MODEL | MODEL | ||
| ML14X24-1 | ML40X25.5-3 | ||
| ML16X24-1 ML16.5X27.5-1 ML20X30-1 ML24X30-1 | ML26X30-2 |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SECURITY &WARNINGS
WARNING
Risk of personal injury, the mirror must be properly grounded.
Total / Maximum shelf load 34lbs / 15.2kg.
Use this furnishing only for it's intended use as described in these instruction not use attachments not recommended by the manufacturer. Never drop or in any object into any opening. Do not use outdoors.
Suitable for Bathroom Zones and non bathroom/dry areas.
Avoid using hard or pointed items to strike the mirror glass.
When cleaning the mirror, please follow these steps:
- Use a soft, non-abrasive cloth to clean the mirror. Avoid using rough or abrasive materials that may damage the surface.
- Do not use any cleaning agents that may cause irritation or damage to the mirror's finish. Instead, use any of the recommended cleansers to remove dirt grime.
SAVE THESE INSTRUCTIONS
PARAMETER LIST
| Model | W×H | Door | Color | Mirror | Installation |
| ML14X24-1 | 14"X24" | 1PCS | Black | 2PCS | surface mounted or recessed mount |
| ML16X24-1 | 16"X24" | 1PCS | Black | 1PCS | |
| ML16.5X27.5-1 | 16.5"X27.5" | 1PCS | Black | 1PCS | |
| ML20X30-1 | 20"X30" | 1PCS | Black | 1PCS | |
| ML24X30-1 | 24"X30" | 1PCS | Black | 1PCS | |
| ML40X25.5-3 | 40"X25.5" | 3PCS | Black | 3PCS | |
| ML26X30-2 | 26"X30" | 2PCS | Black | 7PCS |
PART LIST
When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.
| Model | Cabinet | Mounting Brackets | Expansion Tube | Self-Tapping Screw | Plug |
| ML14X24-1 | 1 | 2 | 8 | 8 | 8 |
| ML16X24-1 | 1 | 2 | 8 | 8 | 16 |
| ML16.5X27.5-1 | 1 | 2 | 8 | 8 | 12 |
| ML20X30-1 | 1 | 2 | 8 | 8 | 16 |
| ML24X30-1 | 1 | 2 | 8 | 8 | 24 |
| ML40X25.5-3 | 1 | 2 | 8 | 8 | 8 |
| ML26X30-2 | 1 | 2 | 8 | 8 | 8 |
INSTALLATION METHOD
BEFORE INSTALLATION
To ensure the best experience, please read carefully and follow the instruction provided below before assembling and installing the product.
1. Important Safety Instructions:
Assembly by two or more adults is highly recommended, so as to ensure preinstallation.
Before installing, adding, or changing any components. Make sure that the fixin location can support the weight of the entire fixture (e.g. solid stone or brick). To prevent injury, the mirror must be installed as the instructions provided.
2. Pre-assembly :
Inspect the product immediately upon receipt for any transit damage or missir parts.
3. Before Installation
Please check and make sure that the mirror is functioning properly.
1. SURFACE-MOUNT INSTALLATION
Installation Tools (the following tools are not included in the package, you ne prepare them yourself)
| Level Ruler | Marker | Hammer | Tape Measure | ||
| Electric Drill | Phillips Screwdriver | Safety Goggles | |||

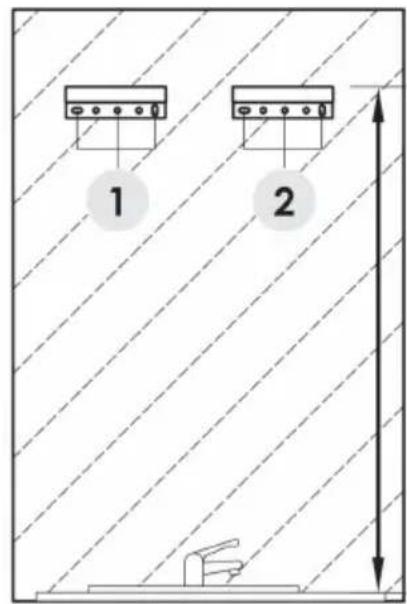

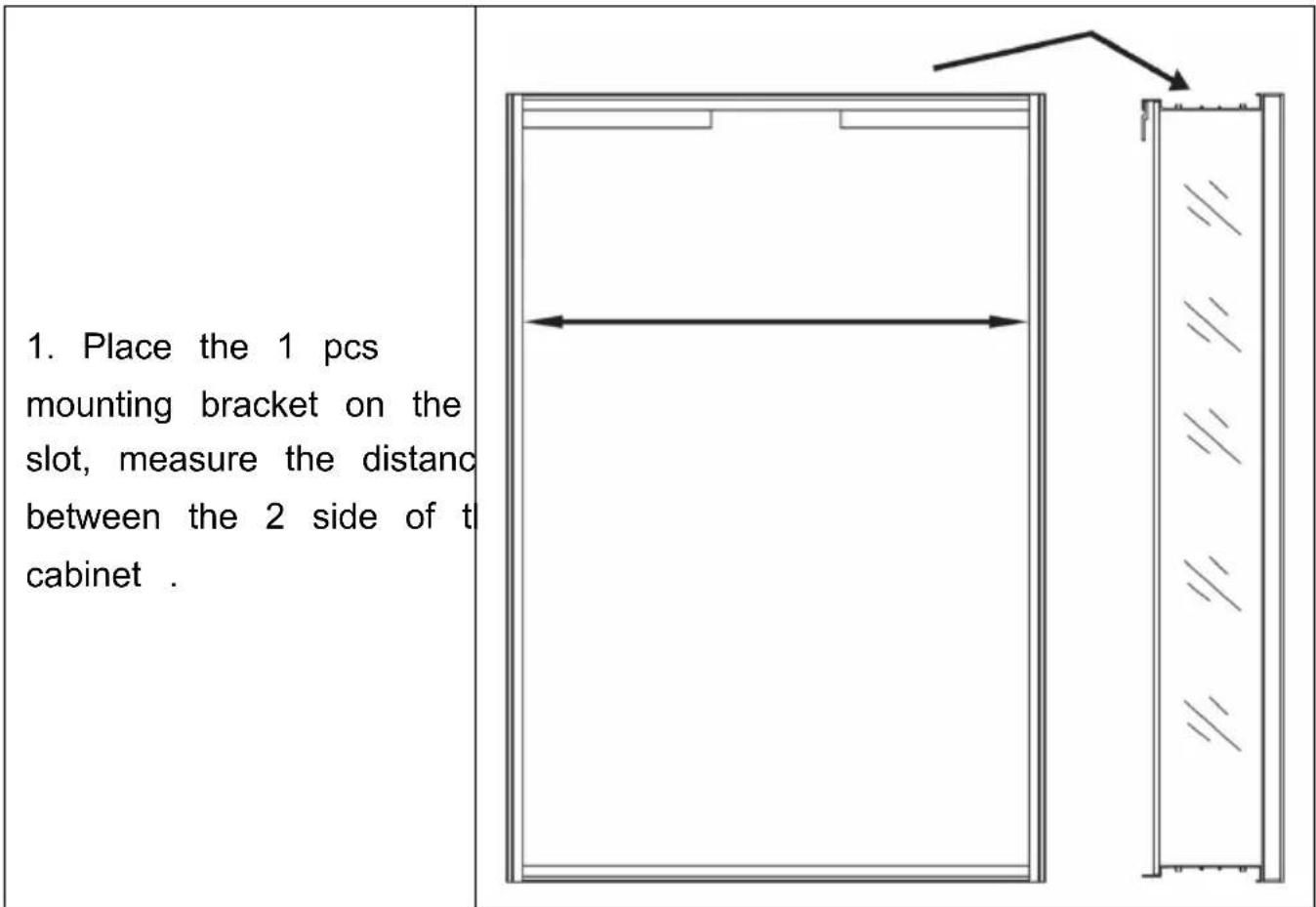

- Place the Mirror Cabinet against the wall and mark the placement the cabinet.Draw a line the wall with a level and marker to indicate where the cabinet upper is and mark spots (12) for the lower brackets.

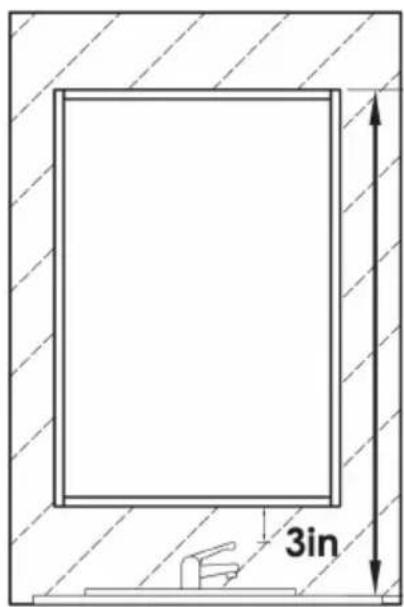

NOTE: Please hang the cabinet at least 3 inches above the faucet.

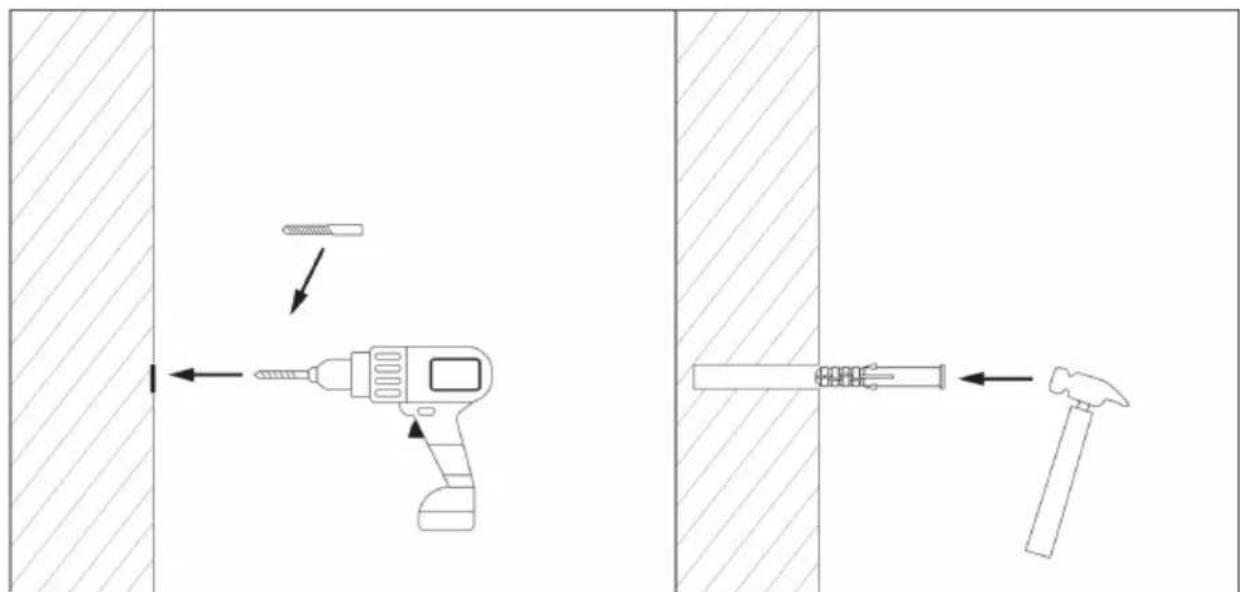

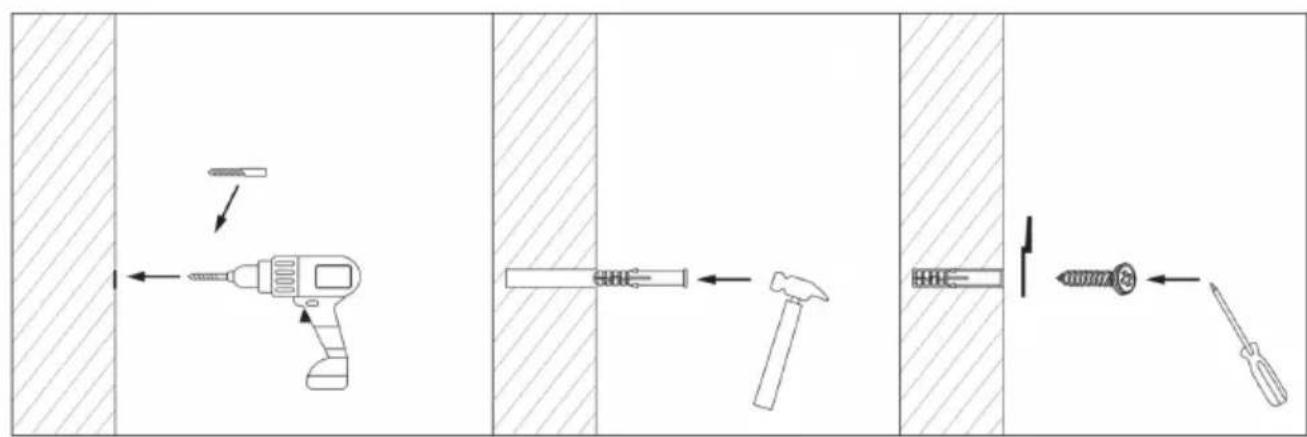

- Use an electric drill to punch holes at the marked spots (①), then apply the 6 wall anchors with a hammer (②).
| Thickness Of Wall: | Recommended Drill Bite: |
| >5/8" (16mm) | 5/16"(8mm) drill bit,drilling depth in 131/32"(50mm) |
| 5/16"(8) - 5/8"(16mm) | 25/64"(10mm) drill bit |
| <5/16" (8mm) | Unapplicable |
NOTE: Please wear goggles and pay attention to your safety while dr

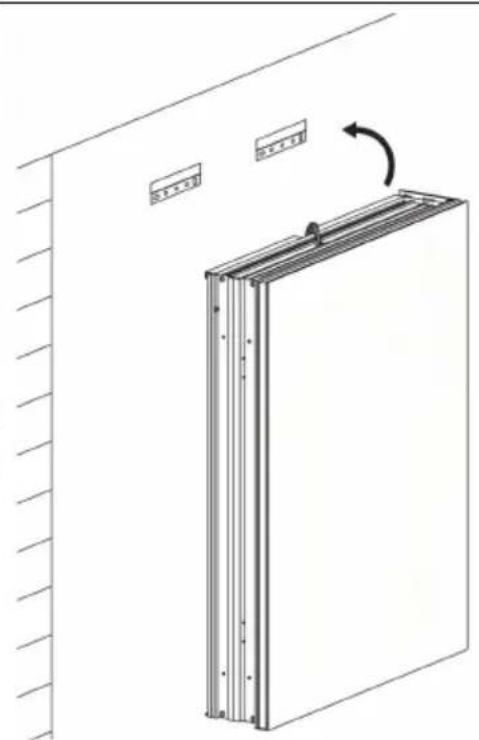

- Wall mounted the mirror cabinet.
NOTE: The cabinet can be hung upside down switch between left and right door openings.

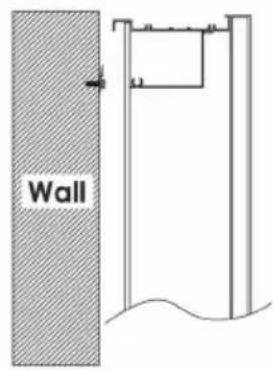

SIDE VIEW

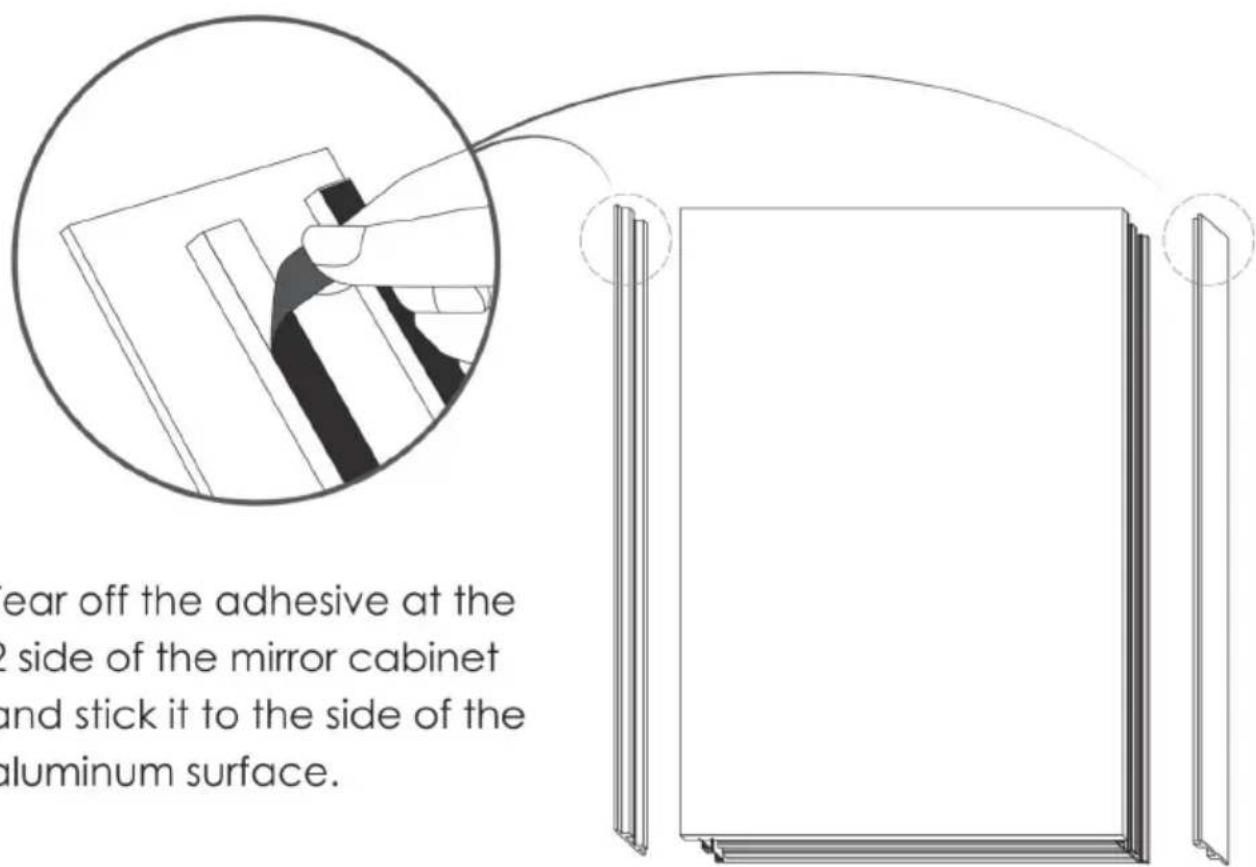

NOTE: The step just for model : ML40X25.5-3.

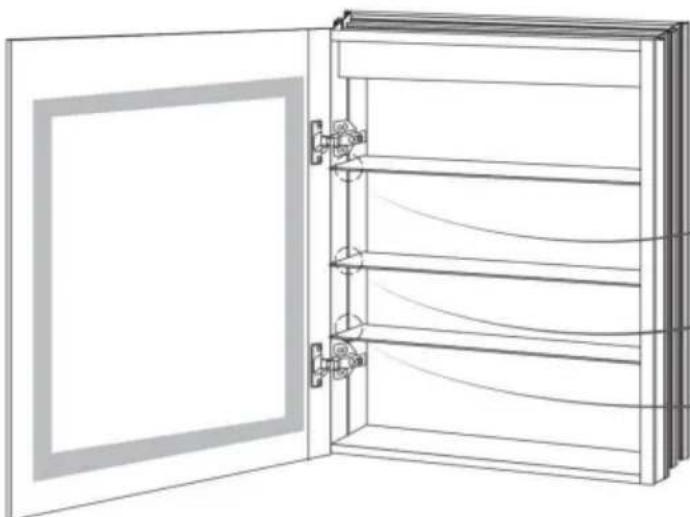

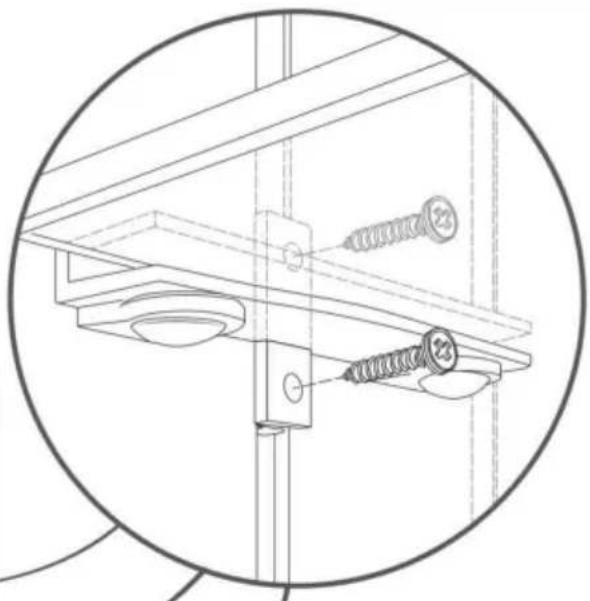

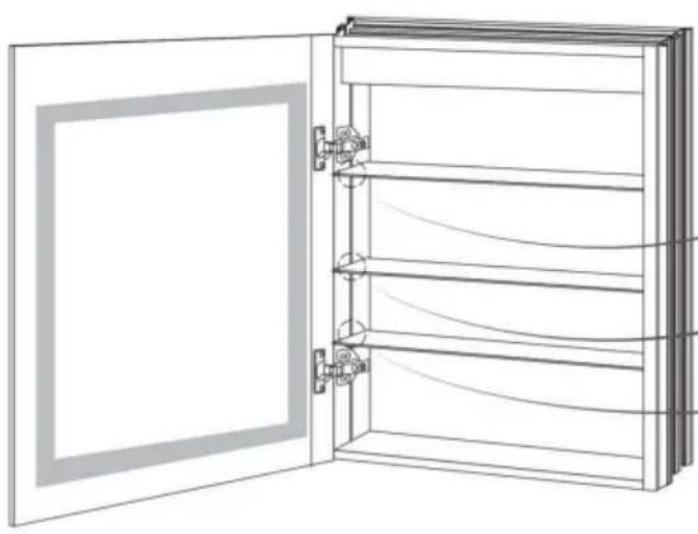

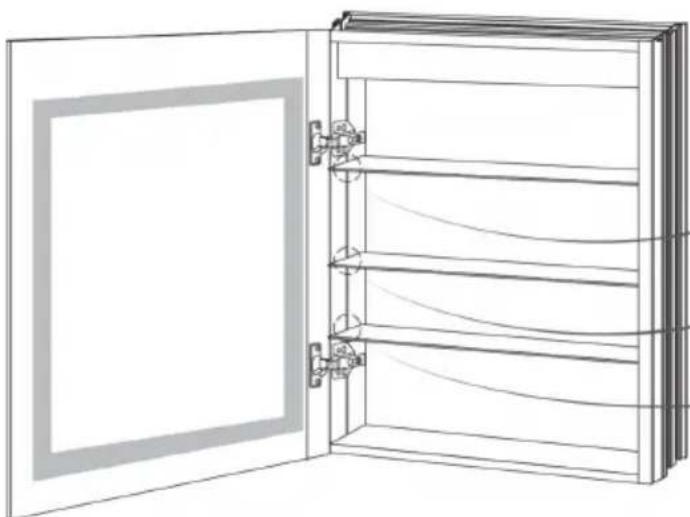

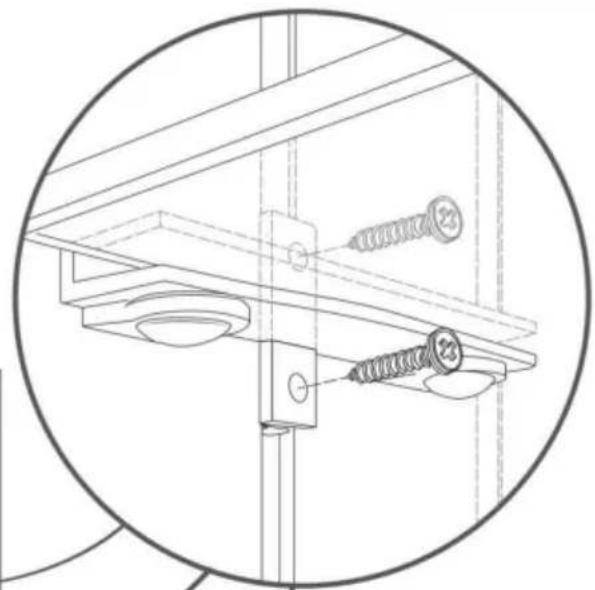

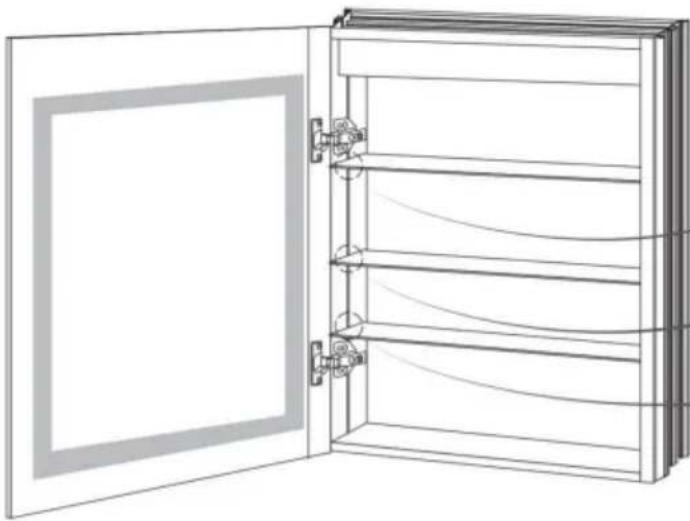

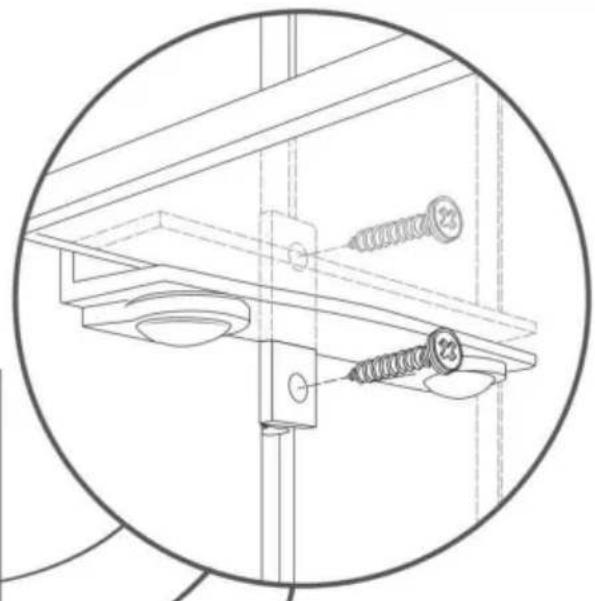

Using the +screwdriver to adjusting the tightness of the screws on the shelves.
NOTE: The step just for model : ML14X24-1 / ML40X25.5-3 / ML26X30-2.
2. RECESS-MOUNT INSTALLATION

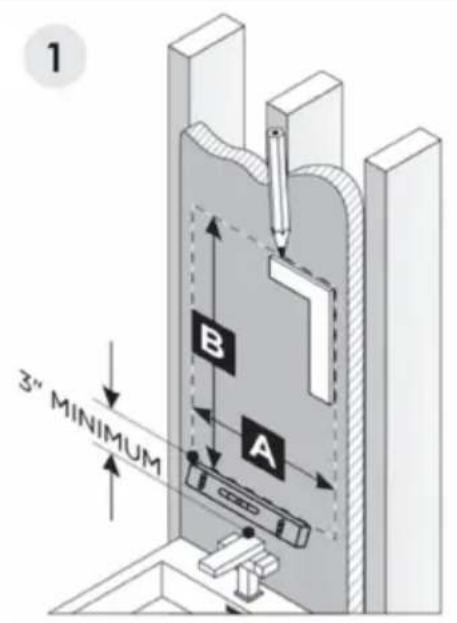

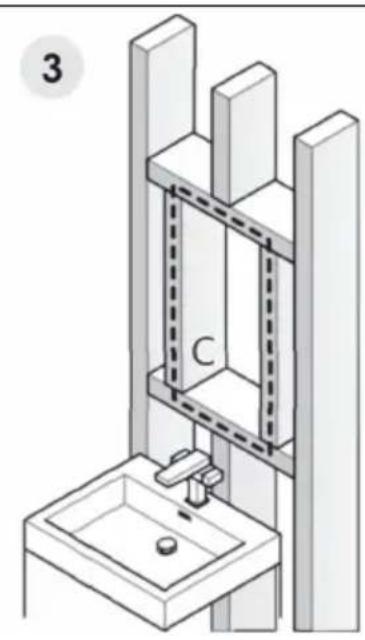

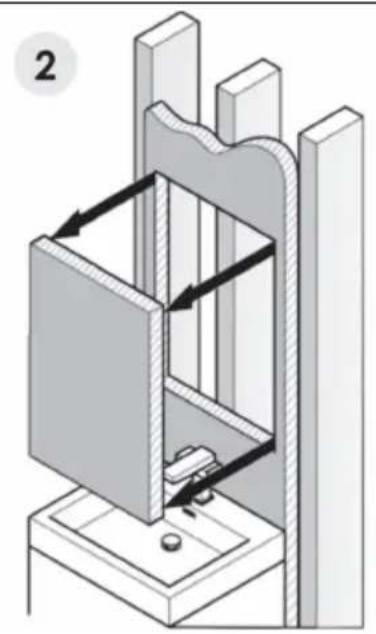

- Make an outline for the cabinet (①), cut the marked perimeter through the drywall (②), and frame the cutout opening (③).
| A | B | C | |
| ML14X24-1 | 13.5"(342mm) | 23.6"(600mm) | 4.2"(106mm) |
| ML16X24-1 | 14.8"(376mm) | 20"(508mm) | 3.5"(88mm) |
| ML16.5X27.5-1 | 15.3"(388mm) | 23.9"(608mm) | 3.5"(88mm) |
| ML20X30-1 | 18.8"(477mm) | 26"(660mm) | 3.5"(88mm) |
| ML24X30-1 | 23.2"(590mm) | 26"(661mm) | 3.5"(88mm) |
| ML40X25.5-3 | 39.6"(1006mm) | 22.8"(578mm) | 4.2"(106mm) |
| ML26X30-2 | 25.5"(648mm) | 29.6"(752mm) | 4.2"(106mm) |
| NOTE: Suggest 5-10mm larger than A、B、C. | |||
a. Mark the center stud;
b. Saw it for cabinet to rest on;
c. Add additional 2 studs on the top and at the bottom of the open the cabinet;
d.Two more studs on both sides for the cabinet to be secured on.
4 STEPS TO FRAME THE CUTOUT OPENING

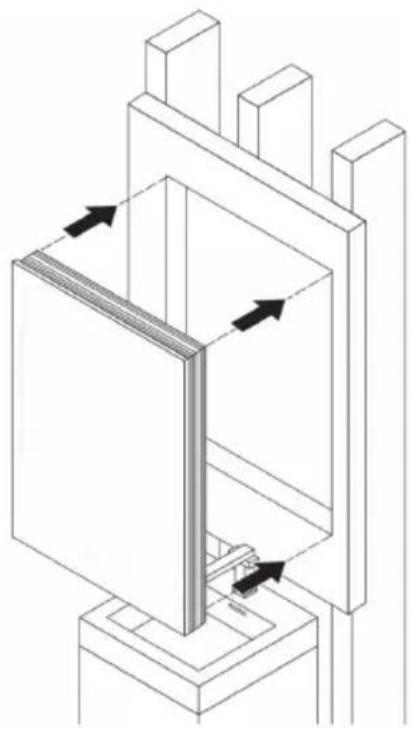

- Position cabinet in cutout opening.

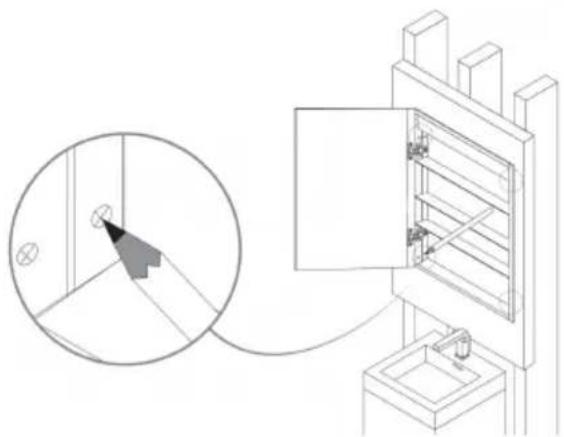

- Use a pencil to set the p
- Punch holes at marked points and whack expansion tube into the

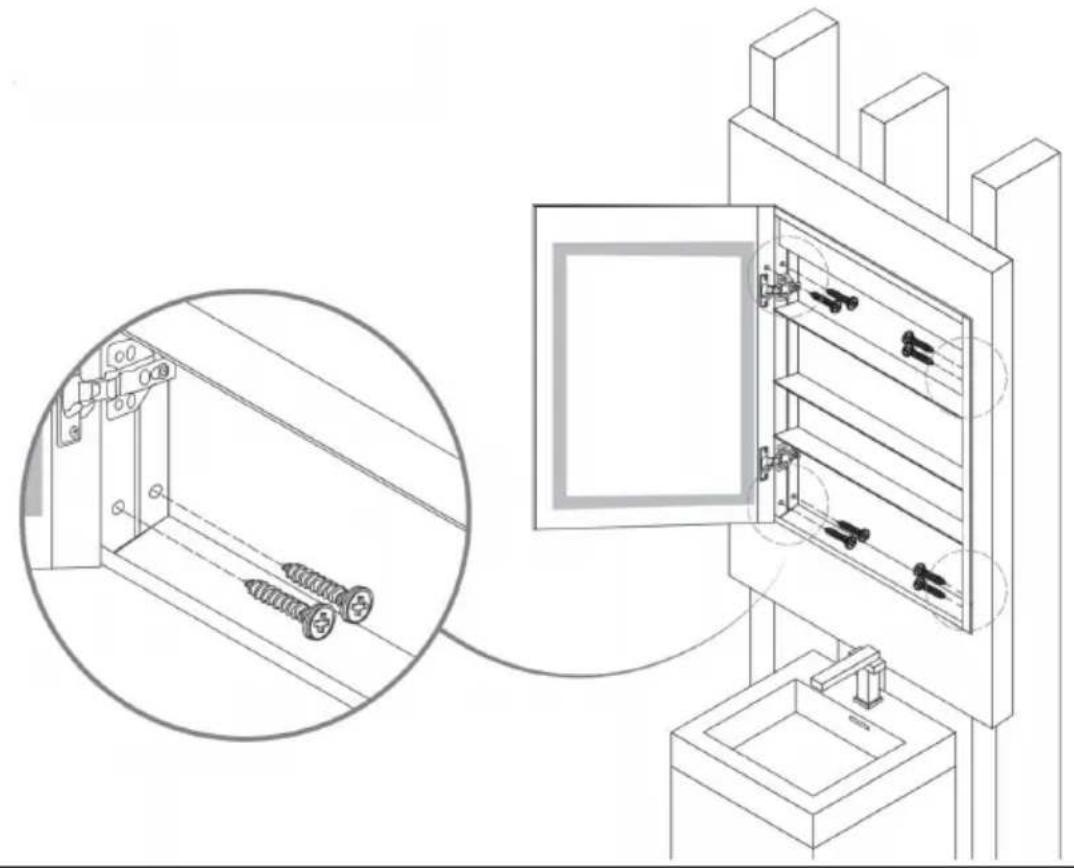

- Secure it to the studs using screws.
RECESS-MOUNT INSTALLATIONO

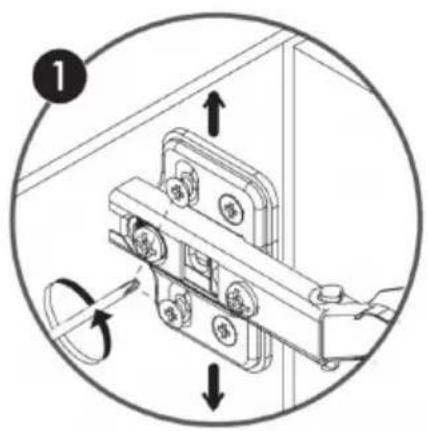

Open the "DTC" cover in the direction of the arrow.
Turn screw ① to adjust the depth of door overlay;

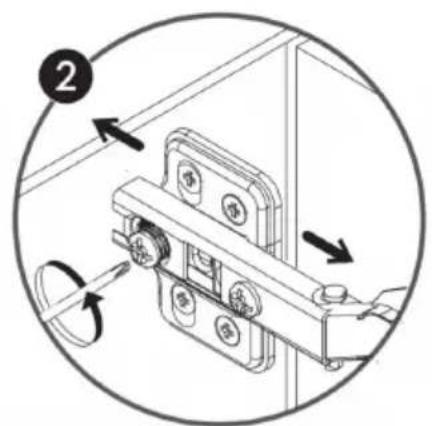

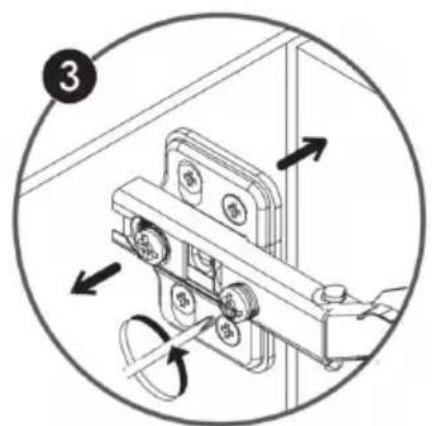

Turn front screw ② to adjust the gap between the door and cabinet; Turn the eccentric screw ③ to release the mounting plate from the cabinet, allowing the door to be moved up and down.
