HYOG-500VA - Electrical Transformer Vevor - Free user manual and instructions

Product Type	Step-down/Step-up Electrical Transformer
Brand	Vevor
Model	HYOG-500VA
Rated Power	500 VA
Input Voltage	AC 110 V ± 15 % or AC 220 V ± 15 % (switch selectable)
Output Voltage	AC 110 V ± 15 % and AC 220 V ± 15 % (dual outlets)
Overload Protection	5 A circuit breaker and internal fuse
Operating Temperature	-30 °C to 55 °C
Operating Relative Humidity	5 % to 95 %
Dimensions (approx.)	20 x 15 x 15 cm
Weight (approx.)	5 kg
Housing Material	Steel and flame-retardant plastic
Main Functions	Voltage conversion, dual output outlets, overload and short circuit protection
Maintenance and Cleaning	Unplug before cleaning; wipe with a dry cloth; periodically check the fuse and circuit breaker
Safety	High voltage – do not disassemble; use on compatible mains; do not exceed rated power
Spare Parts and Repairability	Replaceable standard fuse (5 A); resettable circuit breaker; repair by a qualified professional
General Information	CE compliant; recycling per WEEE directive; made in China

Frequently Asked Questions - HYOG-500VA Vevor

How to choose the input voltage?

Use the toggle switch on the panel: position 220 for mains voltage 220-240 V, position 110 for 100-120 V. Always check compatibility before connecting.

Can I plug in multiple devices at the same time?

Yes, but the total power must not exceed 500 VA (300 W recommended). Use both output outlets (110 V and 220 V) respecting the current limit.

What to do if the transformer does not work?

First check the internal fuse (5 A) and the overload circuit breaker. If the circuit breaker is tripped, press the reset button. If the fuse is blown, replace it with an identical one.

Can the transformer be used outdoors?

No, it is designed for indoor use only. Protect it from moisture and weather.

What is the difference between HYMG and HYOG?

The HYMG and HYOG models share the same main technical characteristics. The difference may lie in the housing design or accessories. Refer to the product sheet for exact details.

How to maintain the transformer?

Unplug it before any cleaning. Wipe the housing with a dry cloth. Regularly check the condition of the fuse and circuit breaker. Do not open the housing.

Can I use a 220 V device on a 110 V outlet?

Yes, the transformer converts voltage. Plug your 220 V device into the 220 V output socket (if input is 110 V) or vice versa. Make sure the device power does not exceed 500 VA.

The transformer makes noise: is this normal?

A slight hum is normal (core vibrations). If the noise becomes loud or unusual, unplug it and contact after-sales service.

How to recycle the transformer at end of life?

In accordance with the WEEE directive, do not dispose of it with household waste. Take it to a collection point for electrical and electronic equipment.

What to do in case of breakdown?

If the circuit breaker or fuse does not solve the problem, do not attempt repair yourself. Contact your dealer or a qualified technician.

USER MANUAL HYOG-500VA Vevor

VOLTAGE CONVERTER

MODEL: HYMG-500VA/ HYMG-1000VA/ HYMG-1500VA/

HYOG-500VA/ HYOG-1000VA/ HYOG-1500VA

VEVOR

VOLTAGE CONVERTER

MODEL: HYMG-500VA/ HYMG-1000VA/ HYMG-1500VA/ HYOG-500VA/ HYOG-1000VA/ HYOG-1500VA

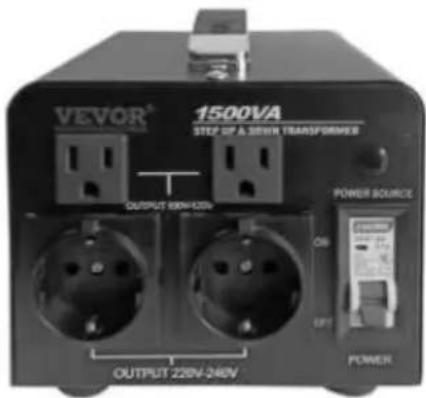

(The picture is for reference only, please refer to the actual object)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

ATTENTION

The voltage input range of this product can be selected by toggle switch. Please check that the voltage of the mains and the switching voltage of the product should be consistent before powering on.

1. PRODUCT PARAMETERS

Model	HYMG-500VA	HYMG-1000VA	HYMG-1500VA	HYOG-500VA	HYOG-1000VA	HYOG-1500VA
Input voltage	AC110V±15% or AC 220V±15%
Output voltage	AC110V±15% and AC 220V±15%
Output power	500VA	1000VA	1500VA	500VA	1000VA	1500VA
Overload protector	5A	10A	15A	5A	10A	15A
Operating temperature	-30°C~55°C
relative humidity	5%~95%

2. INSTRUCTIONS FOR USE OF THE PRODUCT

Set the input toggle switch of the product to a position consistent with the mains voltage. (As shown in the figure below).

A. Set the input toggle switch of the product to a position consistent with the mains voltage (as shown in the figure below).

If the input voltage is 220V-240V, switch to position 220. If the input voltage is 100V-120V, switch to position 110.

B. Insert the input power cord into the end of the product, and then plug the power cord into the mains outlet.

Note: Before plugging into the mains, please check whether the position of the input voltage transfer switch is consistent with the mains voltage. C. Please use the load according to the voltage of the panel output. The load power must be less than the nominal power of the device. Recommended load power is 60% of the rated power.

Because the equipment itself has a certain loss, the load power must be less than the nominal power of the equipment, otherwise there is a risk of damage to the equipment.

Notes:

a. This equipment is equipped with an overcurrent fuse (500VA or 150) which will blow when the load exceeds the load of the equipment. If you find that there is no output, check the replacement fuse.

b. This equipment has an overload protection switch. When the load exceeds the load of the equipment, the overload protection switch will automatically spring up and disconnect the output. When the overload is solved, you can press the overload protection switch by hand to resume work.

c. This equipment is equipped with an air switch. When the load is overloaded for a long time, or the load is short-circuited, the air switch immediately turns off the output, thereby protecting the equipment from damage. When the load fault is lifted, close the air switch again and it can work normally.

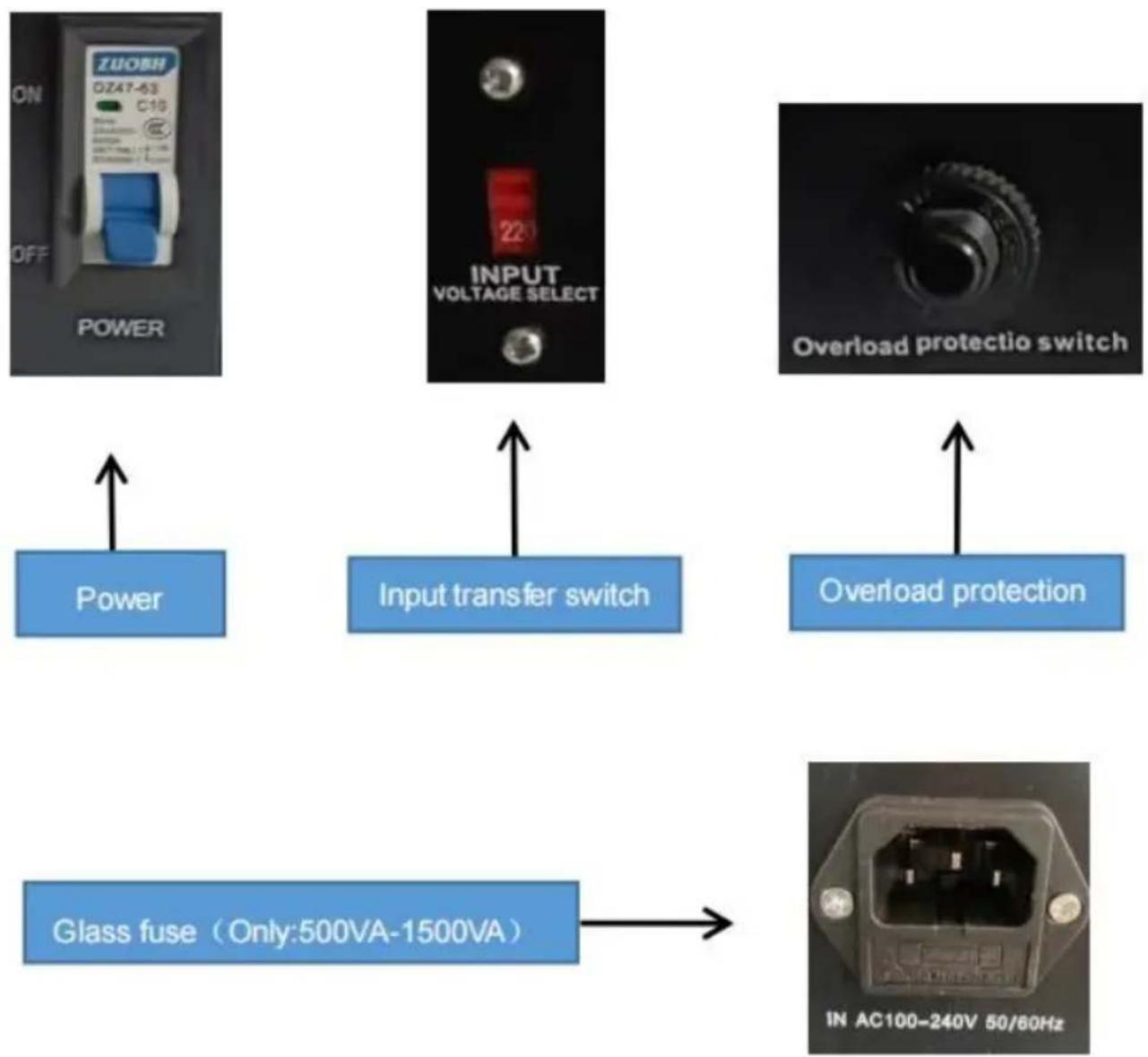

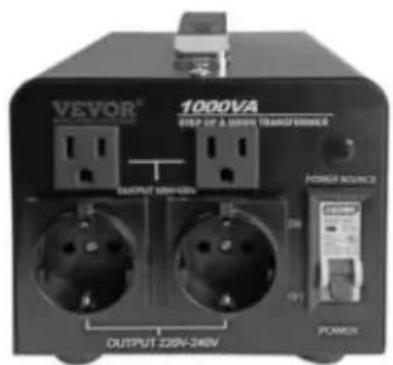

Device panel:

Warning:

This equipment is a high voltage device. Please do not attempt to disassemble this equipment at any time to avoid danger. After a device failure, if the external switch fails to restart the device, please contact the reseller for handling.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
