HYOG-1000VA - Electrical Transformer Vevor - Free user manual and instructions

Product Type	Step-down/Step-up Electrical Transformer
Model	HYOG-1000VA
Brand	Vevor
Input Voltage	AC 110V ±15% or AC 220V ±15% (selectable)
Output Voltage	AC 110V ±15% and AC 220V ±15% (simultaneously)
Rated Power	1000 VA
Overload Protection	10A circuit breaker, overcurrent fuse, protection switch
Operating Temperature	-30°C to 55°C
Relative Humidity	5% to 95%
Switching Type	Toggle switch for input voltage selection
Recommended Load	60% of rated power (600 VA)
Housing Material	Metal and resistant plastic
Dimensions	Not specified in manual, approximately 20 x 15 x 15 cm (estimate)
Weight	Not specified, approximately 5 kg (estimate)
Main Functions	Voltage conversion 110V↔220V, overload and short-circuit protection
Maintenance and Cleaning	Unplug before cleaning, use a dry cloth; periodically check the fuse and connections
Safety	Do not disassemble, high voltage; use with a load below rated power; respect the mains voltage
Spare Parts and Repairability	Replaceable fuse; contact the dealer for any malfunction (external switch ineffective)
General Information	Compliant with European directive 2012/19/EC (WEEE); manufacturer: Shanghaimuxinmuyeyouxiangongsi

Frequently Asked Questions - HYOG-1000VA Vevor

What is the input voltage of the HYOG-1000VA transformer?

The transformer accepts an input voltage of 110 V ±15% or 220 V ±15% depending on the position of the toggle switch.

How to select the input voltage?

Use the toggle switch on the panel: set it to 220 for 220-240 V input, or 110 for 100-120 V. Ensure the position matches your mains before plugging in.

Can the transformer provide 110 V and 220 V at the same time?

Yes, the output sockets deliver both 110 V ±15% and 220 V ±15% simultaneously, depending on the connected load.

What is the maximum power I can use?

The rated power is 1000 VA. It is recommended not to exceed 60% (600 VA) for continuous use. The circuit breaker trips at 10 A.

What to do if the transformer no longer provides output voltage?

First, check the overcurrent fuse (located inside) and replace if necessary. Then, check the circuit breaker: if it is tripped, reduce the load and press to reset. Also check the air switch which may have cut off in case of a short circuit.

Can I connect a 2000 W device to this transformer?

No, the maximum power is 1000 VA (approximately 1000 W for a resistive load). Too high a load will trigger the protection and may damage the transformer.

Can the transformer be used outdoors?

It is designed for indoor use. The temperature range is -30°C to 55°C and humidity 5% to 95%, but it must be protected from rain and direct moisture.

How to maintain the transformer?

Unplug it before any cleaning. Wipe the housing with a dry cloth. Periodically check the fuse and connections. Do not attempt to open it: dangerous high voltage.

What to do if the circuit breaker trips frequently?

This indicates an overload or a fault in the connected device. Reduce the total load and check the connected devices. If the problem persists, unplug everything and test the transformer with no load. If the circuit breaker still trips, contact the dealer.

Is the transformer compatible with sensitive electronic devices?

This transformer is a step-down/step-up type without voltage regulation. For sensitive devices (computers, audio), use a voltage regulator or an uninterruptible power supply. The output voltage can vary by ±15%.

USER MANUAL HYOG-1000VA Vevor

Affordable. Reliable. Home Improvement.

VOLTAGE CONVERTER

MODEL: HYMG-500VA/ HYMG-1000VA/ HYMG-1500VA/

HYOG-500VA/ HYOG-1000VA/ HYOG-1500VA

VEVOR

Affordable. Reliable. Home Improvement.

VOLTAGE CONVERTER

MODEL: HYMG-500VA/ HYMG-1000VA/ HYMG-1500VA/ HYOG-500VA/ HYOG-1000VA/ HYOG-1500VA

(The picture is for reference only, please refer to the actual object)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

ATTENTION

The voltage input range of this product can be selected by toggle sv please check that the voltage of the mains and the switching voltage product should be consistent before powering on.

1.PRODUCT PARAMETERS

Model	HYMG-500VA	HYMG-1000VA	HYMG-1500VA	HYOG-500VA	HYOG-1000VA	HYOG-1500VA
Input voltage	AC110V±15% or AC 220V±15%
Output voltage	AC110V±15% and AC 220V±15%
Output power	500VA	1000VA	1500VA	500VA	1000VA	1500VA
Overload protector	5A	10A	15A	5A	10A	15A
Operating temperature	-30°C~55°C
relative humidity	5%~95%

2.Instructions for use of the product

Set the input toggle switch of the product to a position consistent with mains voltage.(As shown in the figure below).

A. Set the input toggle switch of the product to a position consistent the mains voltage.(As shown in the figure below).

The input voltage is 220V-240V rule Switch to position 220 The input voltage is 100V-120V rule Switch to position 110

B. Insert the input power cord into the end of the product, and then the plug of the power cord into the mains outlet.

☆Note: Before plugging in the mains, please check whether the position of the input voltage transfer switch is consistent with the mains voltage C. Please use the load according to the voltage of the panel output s the load power must be less than the nominal power of the device, recommended load power is 60% of the rated power.

Because the equipment itself has a certain loss, the load use power must be less than the nominal power of the equipment, otherwise there is a risk of damage to the equipment.

Notes:

a. This equipment is equipped with an overcurrent fuse (500VA or 150 which will blow when the load exceeds the load of the equipment. W you find that there is no output, check the replacement fuse.

b. This equipment has an overload protection switch, when the load exceeds the load of the equipment, the overload protection switch will automatically spring up and disconnect the output; When the load ove is solved, you can press the overload protection by hand to open it resume work.

c. This equipment is equipped with an air switch, when the load is overloaded for a long time, or the load is short-circuited, the air switch immediately turn off the output, thereby protecting the equipment from damage. When the load fault is lifted, close the air again and open can work normally.

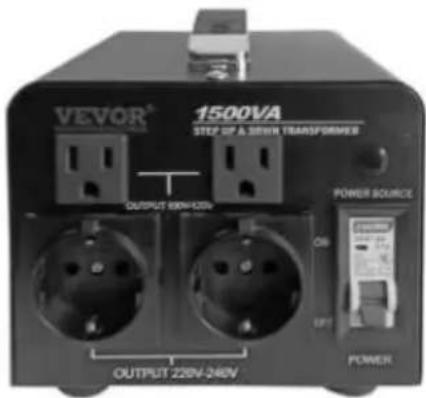

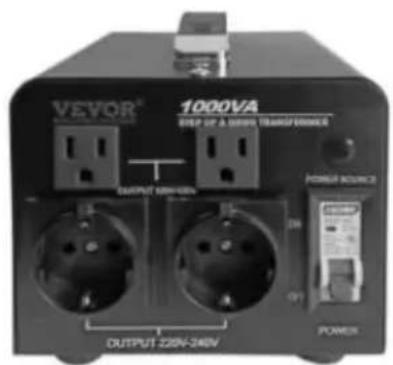

Device panel:

Warning:

This equipment is a high voltage device, please do not attempt to disassemble this equipment at any time to avoid danger. After a device failure, if the external switch fails to restart the device, please contact reseller for handling.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
