BARN LIGHTS

MODEL:

GT-GCD-SS-1/ GT-GCD-U1/ GT-GCD-E1/ GT-GCD-U2-S

GT-GCD-SS-2/ GT-GCD-U2/ GT-GCD-E2/ GT-GCD-E2-S

MODEL: GT-GCD-SS-1/ GT-GCD-U1 / GT-GCD-E1/GT-GCD-U2-S GT-GCD-SS-2/ GT-GCD-U2 / GT-GCD-E2/ GT-GCD-E2-S

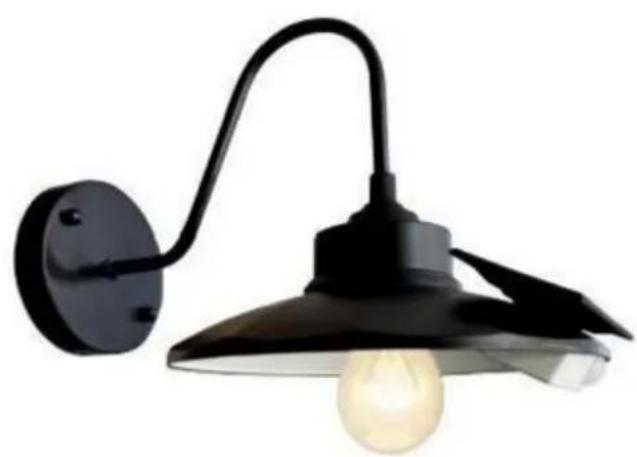

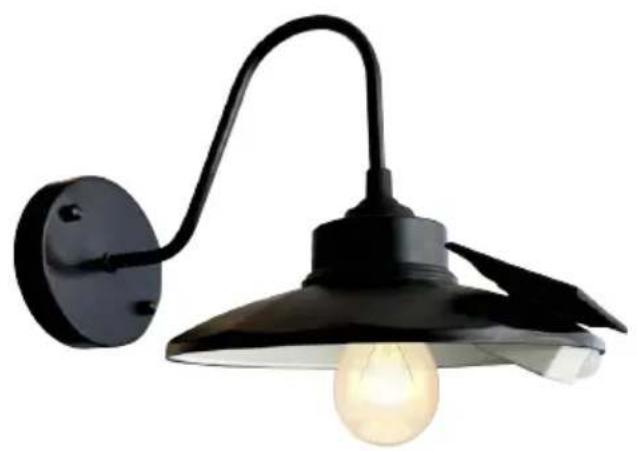

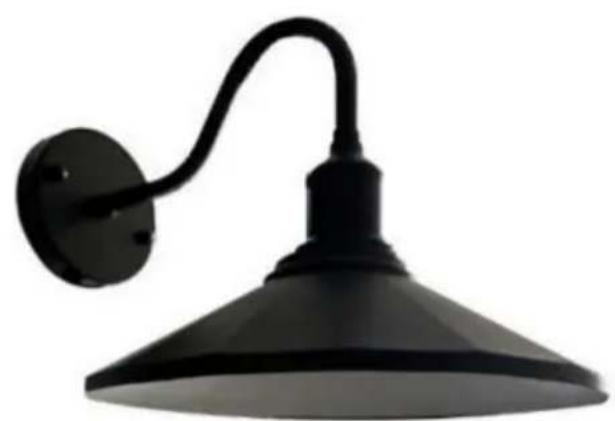

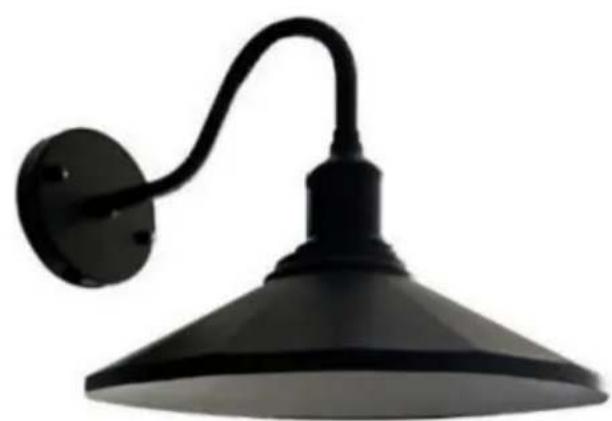

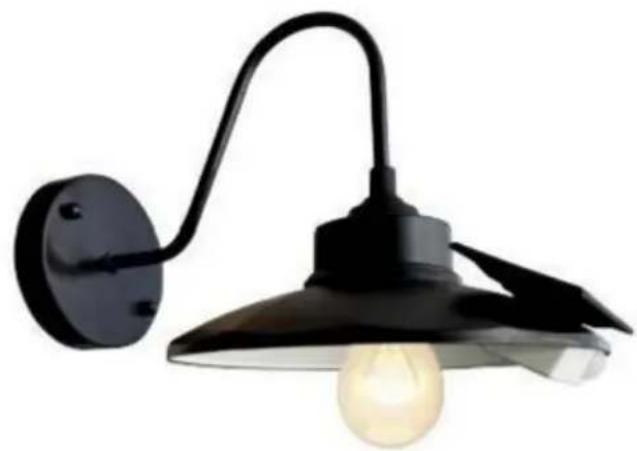

Black wall-mounted lamp with a conical shade and lit bulb, mounted on a wall (no text or symbols visible)

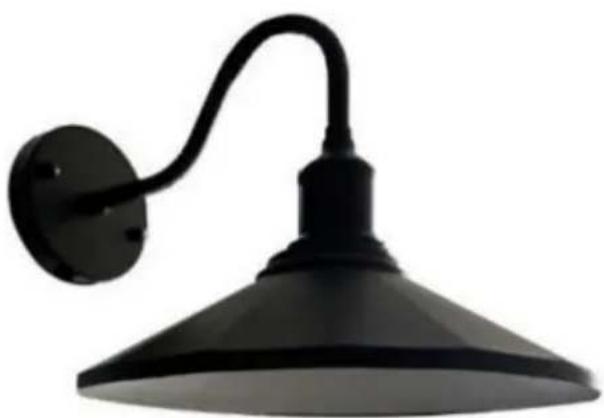

Black adjustable shelf lamp with curved arm and bulb (no text or symbols)

The picture is for reference only, please refer to the actual object

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

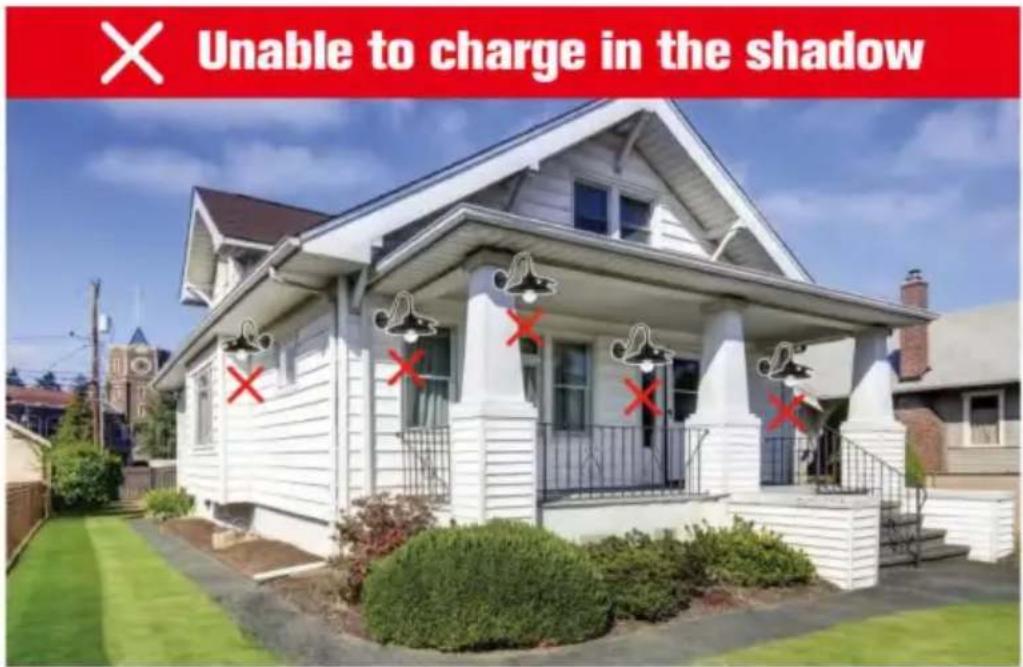

Unable to charge in the shadow

Do not install in a location without direct sunlight, if the photovoltaic panel cannot receive sunlight, the solar lamp will not work properly at night.

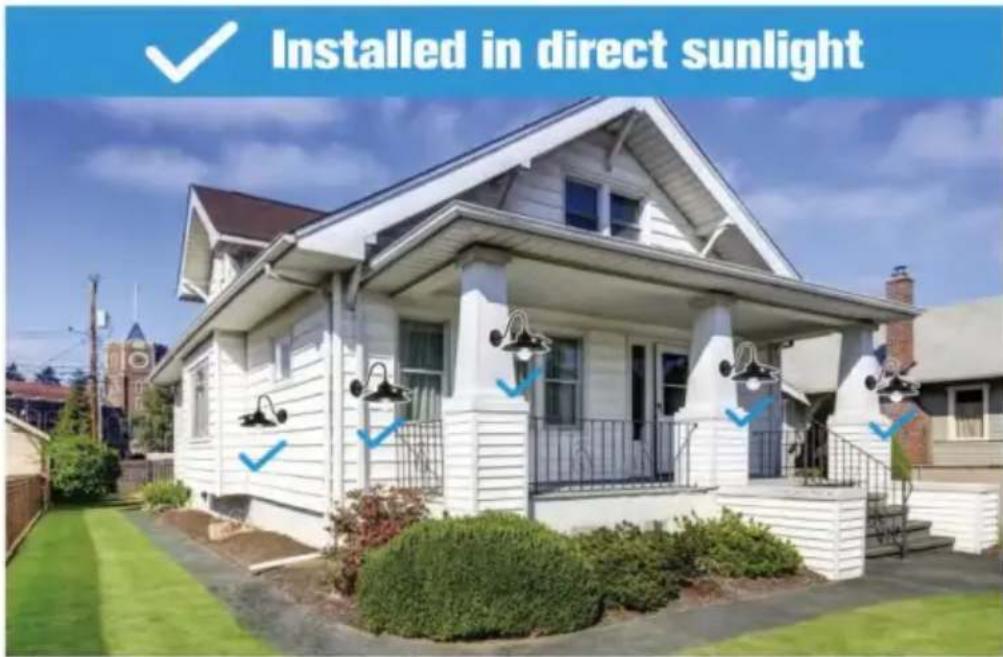

Installed in direct sunlight

HOW TO INSTALL?

MODEL: GT-GCD-U1 / GT-GCD-E1 / GT-GCD-U2-S GT-GCD-U2 / GT-GCD-E2 / GT-GCD-E2-S

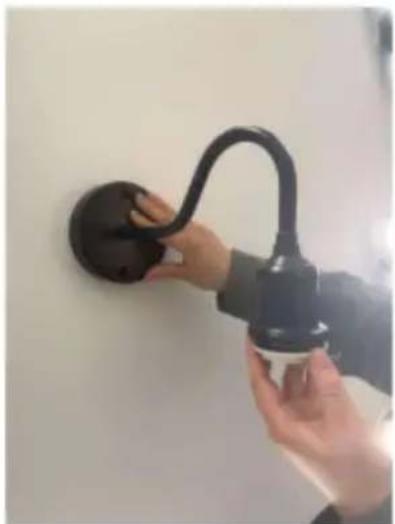

1. As show in the figure, fix the bottom to the wall with expansion screws.

2. Tighten with a black nut.

Close-up of hands assembling a small mechanical component on a white surface (no text or symbols visible)

Person installing or adjusting a black wall-mounted device on a white surface (no text or symbols visible)

A small black cylindrical object on a plain white surface, no text or symbols visible.

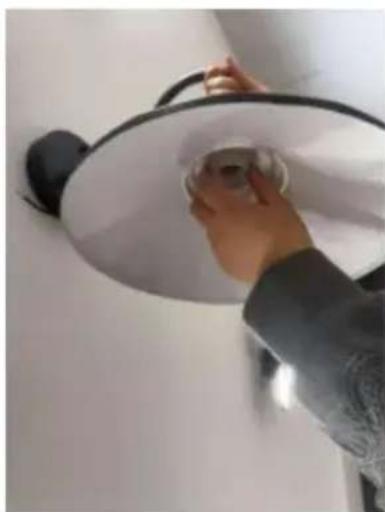

1. Remove the white plastic ring, place the lampshade, and then tighten the white plastic ring.

Person installing a black hose on a wall-mounted pipe (no text or symbols visible)

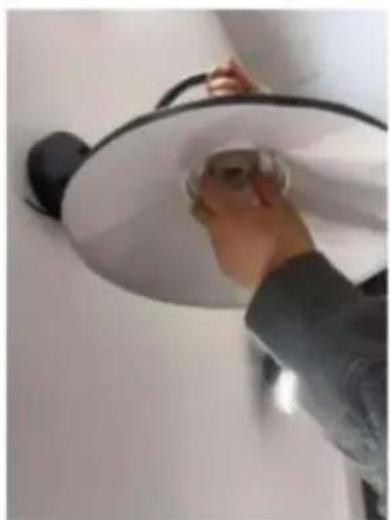

Person using a ceiling lamp to clean or install a white lamp (no text or symbols visible)

Close-up of a white plastic ring on a plain surface (no text or symbols visible)

HOW TO INSTALL?

MODEL:GT-GCD-SS-1/ GT-GCD-SS-2

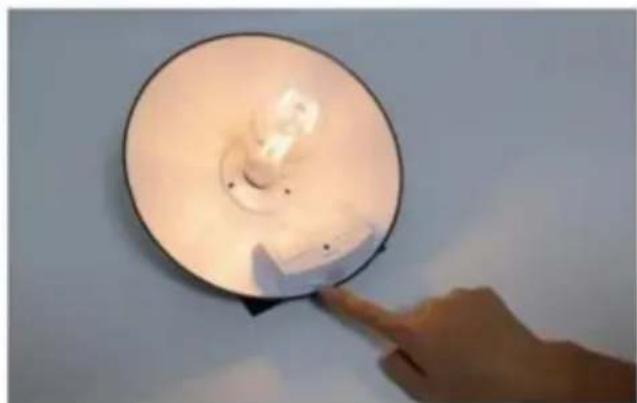

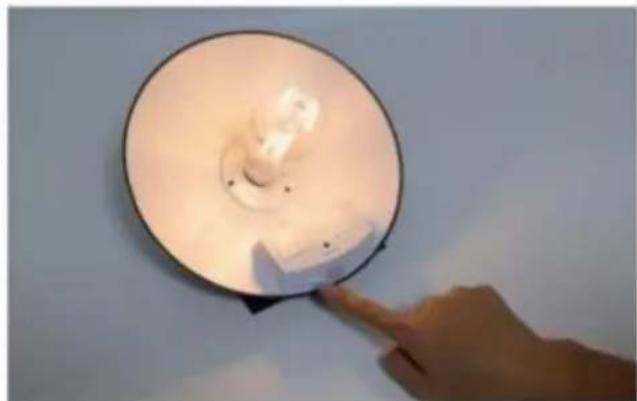

Hand pointing at a circular device with a glowing internal structure, no visible text or symbols

1. Cover the solar panel or place the light in a dark environment, turn on the switch to check if the light work normally.

Two-step photo showing hands using a tool to clean or repair a black circular object, with magnified detail of the top section (no text or symbols visible)

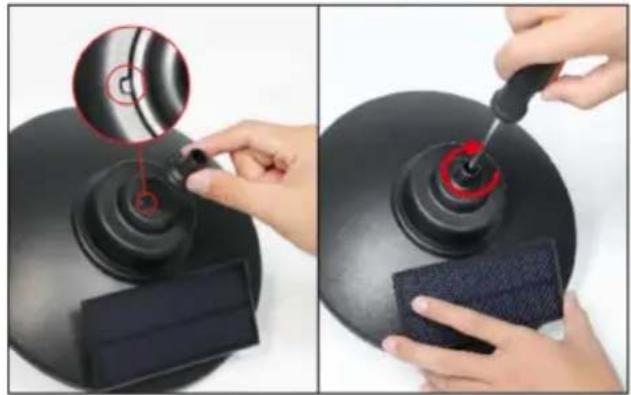

1. As show in the figure, justify groove part to fix the connector.

Close-up of hands holding a black cable with a spool, against a white background (no text or symbols visible)

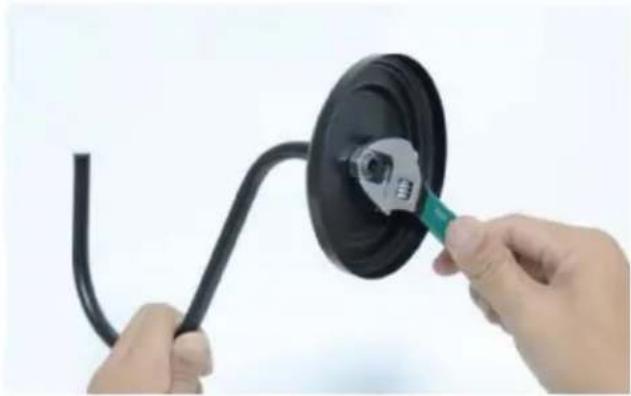

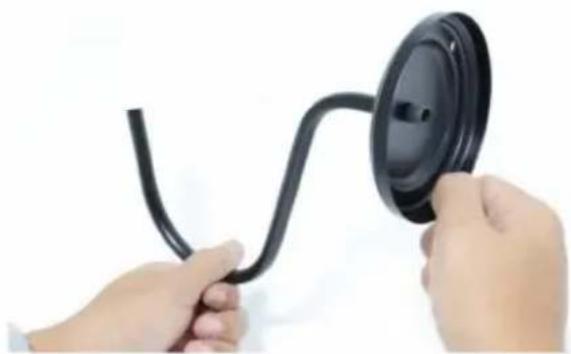

1. Thread the bracket through the mounting base.

Close-up of hands holding a black cable with a green clip inserted into the speaker (no text or symbols visible)

1. Fix the bracket and base together with nuts.

Two-panel image showing a hand using a screwdriver to adjust a black lamp on a wall, with a magnified inset highlighting the component (no text or symbols present)

1. Use long screws to fix the base at the position you need to install, unplug the blue cover, and connect the light head with the bracket.

Close-up of hands using a screwdriver to adjust a black mechanical component, with an inset showing a close-up of the tool (no text or symbols visible)

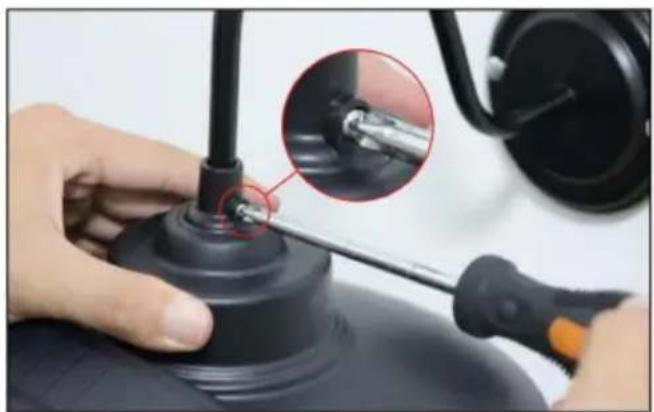

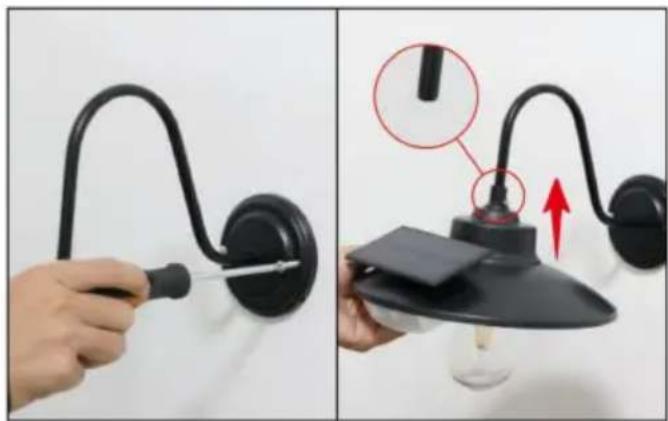

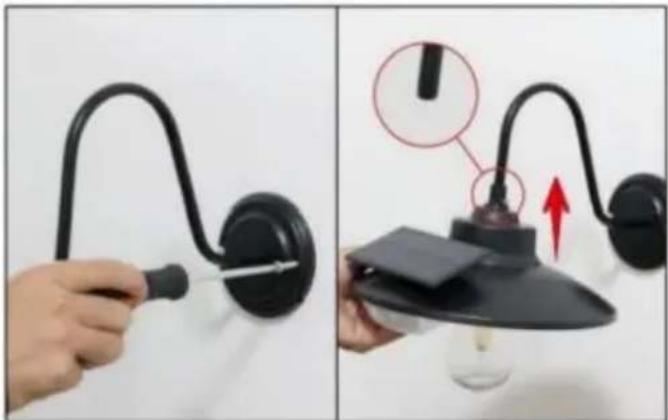

1. Fix the light head and the bracket firmly with screws.

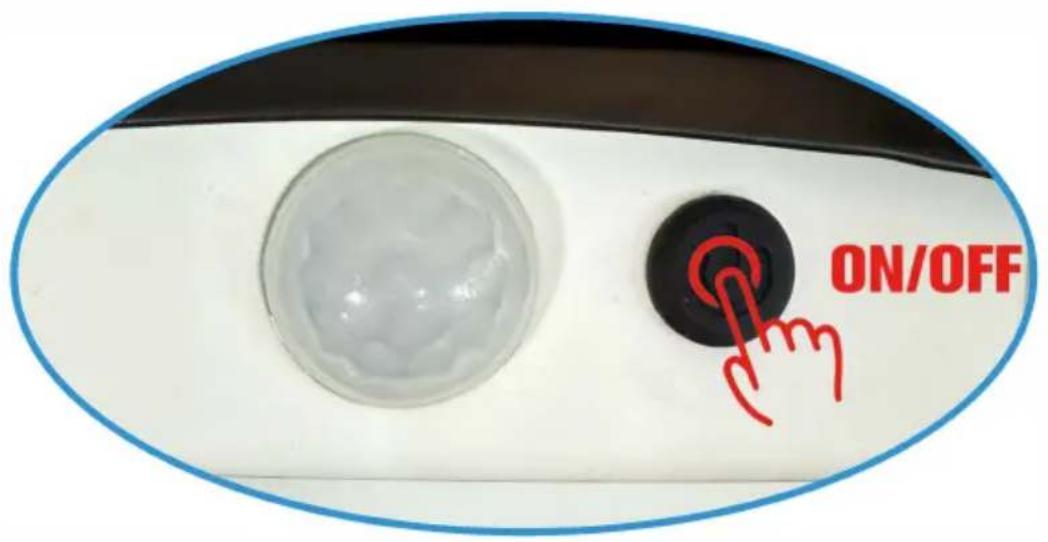

Select mode by pressing the white button.

ON/OFF

x1 - Mode1 (50%)

Press black button to turn on the switch, and the first mode is auto dusk to dawn, the light will keep dim light all night, regardless of whether motion is detected by the sensing range of the light.

x2 - Mode2 50%-100%-50%

When motion is detected nearby, the light will display 100% brightness, if no motion is detected within 20s, it will display 50% brightness.

x3 - Mode3 OFF-100%-OFF

At night the lamp will remains OFF until the sensor detects nearby movement then turn to 100% brightness, light will turn OFF after no motion is detected within 20 seconds.

NOTE: When using it for the first time, if the wall lantern does not light up, please place the wall lantern in direct sunlight to charge it for 8 hours.

Why does my light not come on at night?

(1) Make sure the switch is ON (White button). Light can only be charged when the switch is turned on.
(2) Make sure that the location you install does not have shade or eaves to block the sun.
(3) Make sure that there are no other light sources above the solar panel at night, such as street lights.

Does the solar panel require the direct sun to charge?

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set the solar panel facing South at an appropriate angle. The solar panel must not be installed in a shaded or part-shaded location.

What type of battery does my solar hanging light require to operate?

The solar barn light requires one Lithium-Ion 3.7V 2000 mAh battery, battery model: 18650.

Can I use any regular bulb for the solar barn light?

Only bulbs purchased through Aulanto can be used for this product.

NOTE: If it still does not work after the above operations, please contact: [e-mail], we will replace it for you free of charge.

IF THE LIGHT DOES NOT TURN ON AT DUSK AFTER 6-8 HOURS OF CHARGING:

Hand holding a pipette inspecting a circular sample with a yellow droplet and small dots (no text or symbols visible)

Hand holding a small white object next to a circular white object with a small yellow dot, against a plain white background (no text or symbols visible)

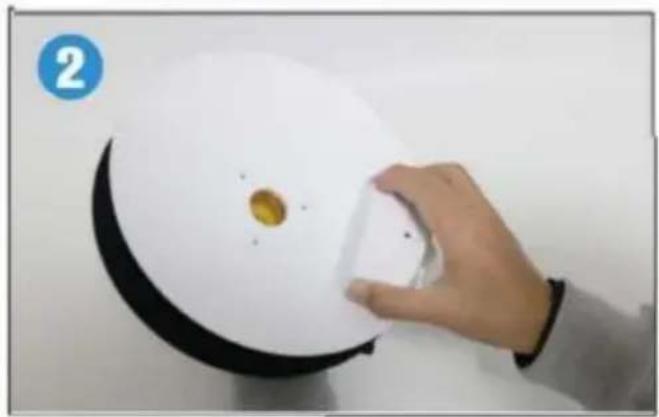

Close-up of a black circular device with internal components and wiring, no visible text or symbols

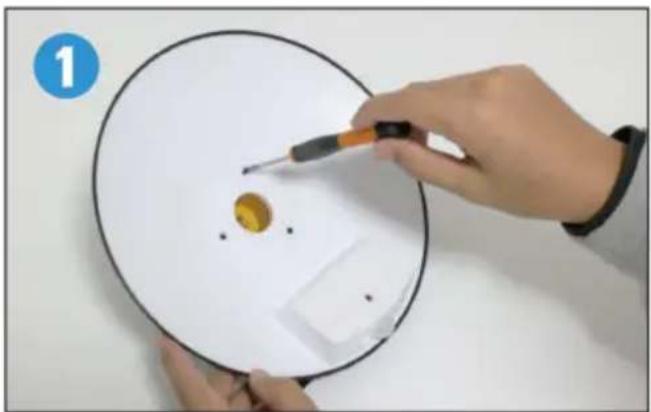

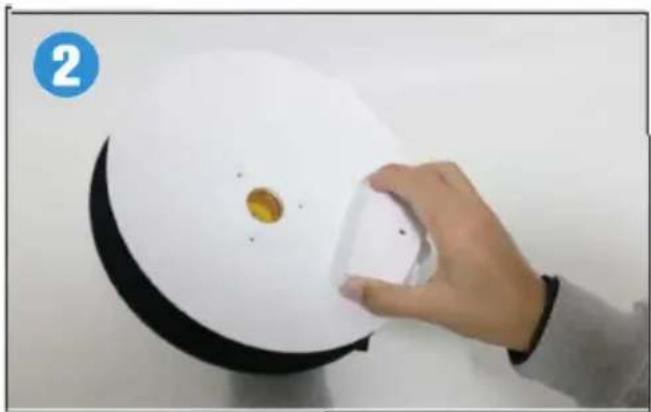

1: Unscrew the three fixing screws as shown in the picture.
2: Uncover the lampshade gently upward.

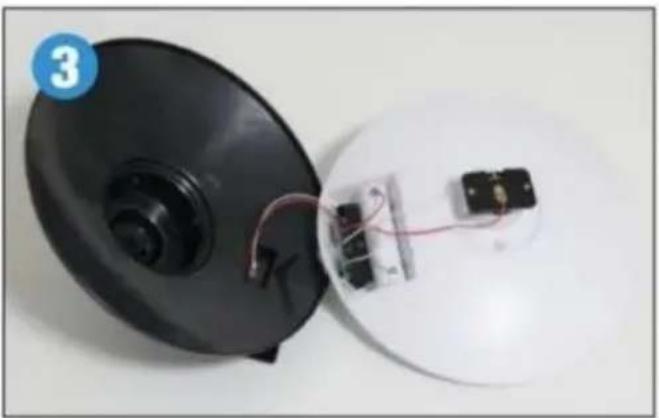

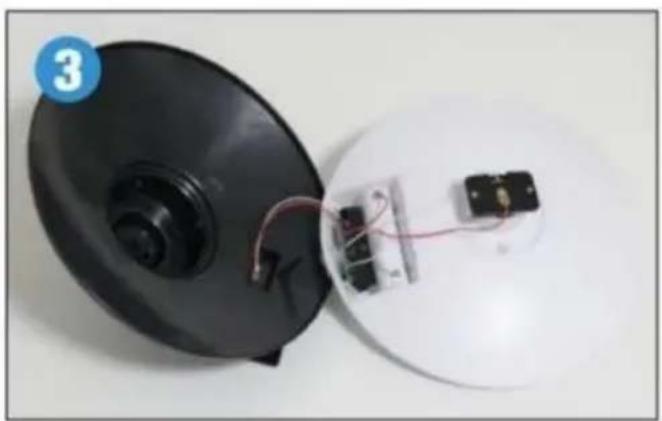

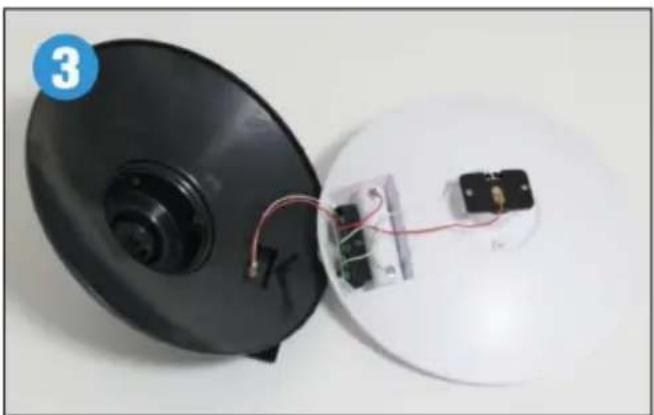

3: Check whether the internal circuit is off, loose, etc.

SPECIFICATION

Model	Input	Lampshade size	Waterproof class
GT-GCD-U1	AC120V 60Hz	11.5 "	IP54
GT-GCD-E1	AC230V 50Hz
GT-GCD-U2	AC120V 60Hz
GT-GCD-E2	AC230V 50Hz
GT-GCD-U2-S	AC120V 60Hz
GT-GCD-E2-S	AC230V 50Hz
GT-GCD-SS-1	DC3.6V 1.1AMax 4W	9.5 "
GT-GCD-SS-2

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOO NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC
