USER MANUAL FC370MT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

VEGETABLE CUTTER

Model:FC370MT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:FC370MT

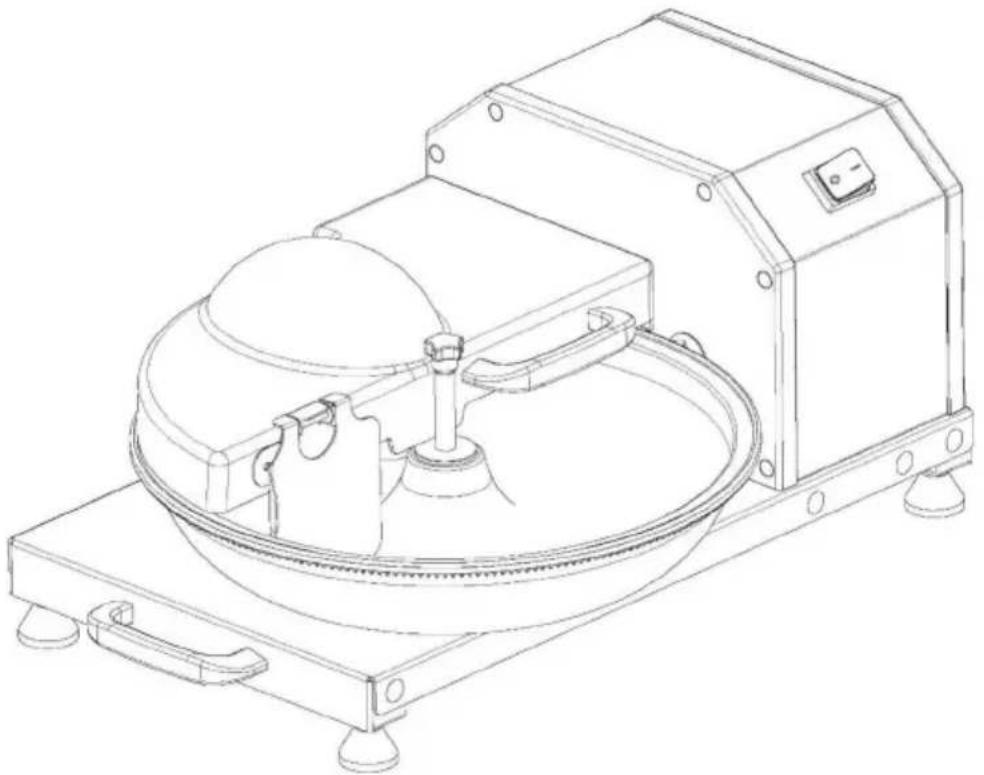

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices.
	FCC Information:CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operatio WARNING: Changes or modifications to this product no expressly approved by the party.responsible for compliant could void the user's authority to operate the product. Note: This product has been tested and found to com the limits for a Class B digital device pursuant to Par FCC Rules, These limits are designed to provide reason protection against harmful interference in a residential installation.This product generates, uses and can radiate radio fre energy, and if not installed and used in accordance wi instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or tele reception,which can be determined by turning the produ and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differer that to which the receiver is connected.Consult the dealer or an experienced radio/TV technic assistance.

Dear Customer,

Thank you for purchasing this appliance. Please take a few minutes before starting operation of the appliance and read the following operating instructions.

1. Intended use

1.1 This machine is designed for commercial used only and must not used for household.
1.2 The machine is not intended to process for meet, skin, shells or scales. Neither use this machine to cut vegetable or fruit with nut or skin. Otherwise, it might lead to damage of the machine, property or personal injury.
1.3 The machine is intended for commercial and indoor use by trained skilled personnel familiar with these instructions.

The machine body is built in aluminum and stainless steel for easy cleaning and maintenance. It has safety features compliant with the applicable safety Directives.

2. Safety regulations

2.1 Safety regulations

2.1.1 This appliance is intended for commercial use only and must not be used for household.

2.1.2 The appliance must only be used for the purpose for which it intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.

2.1.3 Keep the appliance and electrical plug away from water and an other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.

2.1.4 Never attempt to open the casing of the appliance yourself.

2.1.5 Do not insert any objects in the casing of the appliance.

1.1.6 Do not touch the plug with wet or damp hands.

2.1.7 Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qua personnel only.

2.1.8 Never use a damaged appliance! Disconnect the appliance from electrical outlet and contact the retailer if it is damaged.

2.1.9 Do not immerse the electrical parts of the appliance in water of liquids. Never hold the appliance under running water.

2.1.10 Regularly check the power plug and cord for any damage. If power plug or power cord is damaged, it must be replaced by a seal agent or similarly qualified persons in order to avoid danger or injury.

2.1.11 Make sure the cord does not come in contact with sharp or objects and keep it away from open fire. To pull the plug out of the always pull on the plug and not on the cord.

2.1.12 Ensure that the cord (or extension cord) is positioned so that not cause a trip hazard.

2.1.13 Always keep an eye on the appliance when in use.

2.1.14 Warning! As long as the plug is in the socket the appliance is connected to the power source.

2.1.15 Turn off the appliance before pulling the plug out of the socke

2.1.16 Never carry the appliance by the cord.
2.1.17 Do not use any extra devices that are not supplied along with appliance.
2.1.18 Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
2.1.19 Connect the power plug to an easily accessible electrical outlet that in case of

emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet

2.1.20 Always turn the appliance off before disconnecting the plug.
2.1.21 Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user could damage the appliance. Only use original parts and accessories.
2.1.22 This appliance is not intended for use by persons (including cl with reduced physical, sensory or mental capabilities, or lack of exper and knowledge.
2.1.23 This appliance must not be used by children under any circumstances.
2.1.24 Keep the appliance and its cord out of reach of children.
2.1.25 Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cle
2.1.26 Never leave the appliance unattended during use.

2.2 Special Safety Regulations

2.2.1 The appliance is intended for commercial and indoor use by train and skilled personnel familiar with these instructions.
2.2.2 This machine is designed for vegetable or fruit cutting in restaura canteens and similar catering establishments.
2.2.3 Any other use might lead to damage to the appliance or personal injury.
2.2.4 Do not place the appliance on a heating object (gasoline, electric charcoal cooker, etc.) Keep the appliance away from any hot surfaces open flames. Always operate the appliance on a level, stable, clean,

heat-resistant and dry surface.

2.2.5 Danger of injury! Care is needed when operating or cleaning. We protective gloves (not supplied) if necessary.

2.2.6Caution! Securely route the power cord if necessary, in order to prevent unintentional tripping over and falling.

2.2.7 Do not use the appliance before it is properly assembled.

2.2.8 This appliance is not intended to be operated by means of an e-timer or separate remote-control system.

2.2.9 Never bypass any safety interlocks on the appliance.

2.2.10 WARNING: ALWAYS switch off the appliance and unplug from electrical power supply before cleaning, maintenance or storage.

2.2.11 WARNING: ALWAYS keep hands, long hair and clothing away from the moving parts.

2.2.12 WARNING: Take great care when handling the cutting blade. We protective gloves (not supplied) if necessary.

2.2.13 Allow at least 15cm spacing around the appliance for ventilation purpose during use.

2.2.14 Do not wash the appliance with water or waterjet. Washing with water can cause leakage and increase the risk of electric shock. No are dishwasher safe.

2.2.15 Do not move the appliance while it is under operation. Unplug appliance when moving and hold it at the bottom.

2.2.16 Special care should be taken when moving or transporting the appliance due to heavy weight. With at least 2 people or using a trace assistance. Move the machine slowly, carefully and never be inclined at 45^ .

2.2.17 This appliance is equipped with a cord having a grounding wire a grounding plug, the plug must be plugged into an outlet that is pr installed and grounded.

3.PRODUCT DESCRIPTION

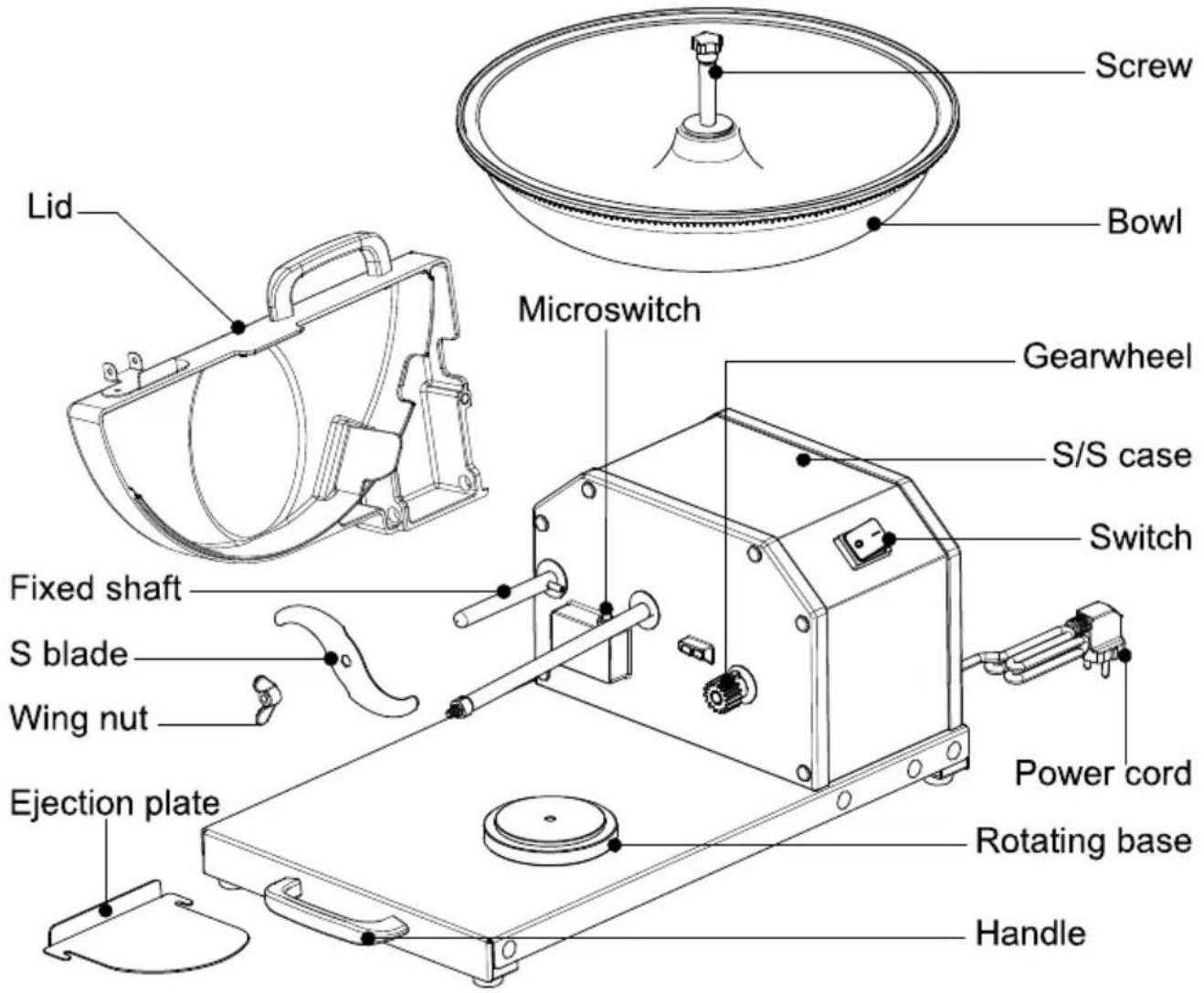

3.1 Parts of description

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

3.2 Main technical parameters

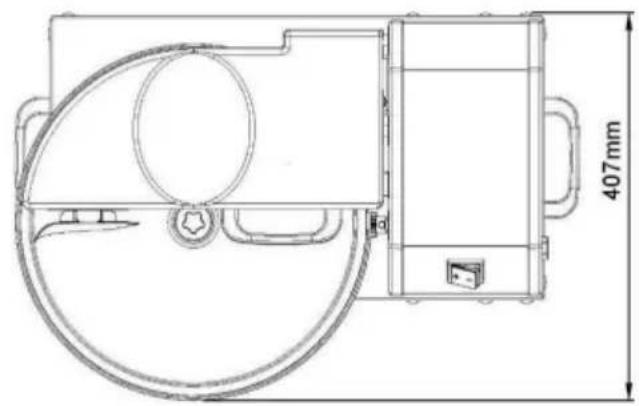

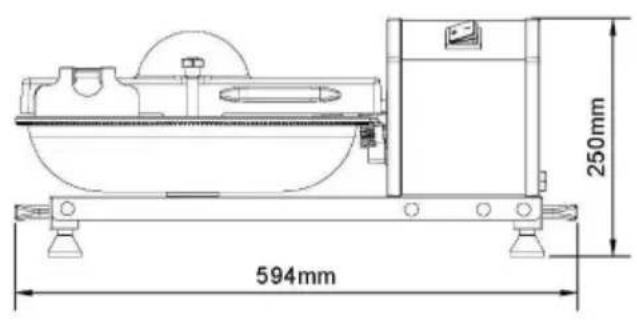

250mm 594mm

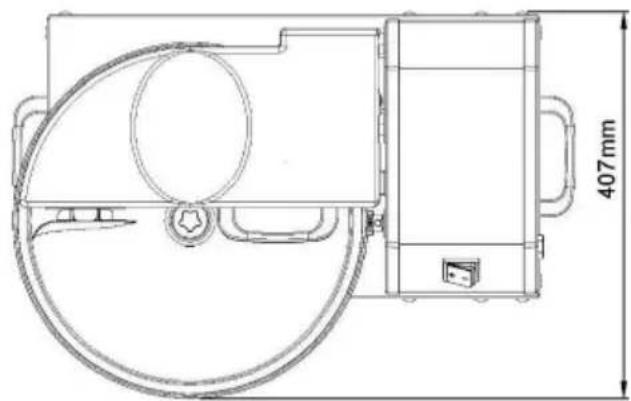

Technical line drawing of a mechanical device with a 407 mm height dimension label (no text or symbols on the diagram itself)

MODEL	VOLTAGE	POWER	SPEED
FC370MT	220V-240V~50/60Hz, 115V~60Hz	250W	3000 cuts/min

4. INTRODUCTION

4.1 Preparation for first use

4.1.1 Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appli 4.1.2 Remove all the packing material and protection film (if applicable). Keep the packaging for future storage.

4.1.3 Clean the appliance, see: 4.6 Cleaning.

4.1.4 Place the appliance on a level and steady surface, unless mention otherwise.

4.1.5 Make sure there is enough clearance around the appliance for ventilation purposes.

4.1.6 Position the appliance in such a way that the plug is accessible times.

4.1.7 Make sure the power outlet ratings correspond to the specification printed on the rating plate.

4.1.8 Make sure that the machine is connected to a grounding system.

4.1.9 Even if safety systems are installed on the machine, prevent approaching moving parts with hands and do not touch the machine wet or damp hands.

4.1.10 It is strongly recommended that the operator contact the after center if there is any problem or malfunction occurred. Please do not dismantle the machine or in place of unauthorized parts.

4.2 The manufacturer will be not responsible for following cases:

4.2.1 If the machine is tampered or safety functions are installed by non-authorized staff.

4.2.2 If the components are replaced by unauthorized parts.

4.2.3 If the instruction in this manual is not carefully followed.

4.2.4 If the machine surfaces are treated with unsuitable substance or solvent.

4.3 Safety devices

4.3.1 Micro-switch: The micro-switch is equipped with a magnet mechan

The appliance stops automatically when the upper lid or the outlet lid opened during operation.

4.4 INSTALLATION

4.4.1 Packing and unpacking
4.4.1.1 Remove all packaging materials. Keep the packaging for future storage.
4.4.1.2 Ensure the packages you received includes following items: vegetable cutter unit, five standard cutting discs (one disc is equipped appliance), ejector, brush, pusher, instruction manual.
4.4.1.3 After unpacking all accessories, lay them on a flat and stable surface.
4.4.1.4 Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not appliance but contact your dealer.
4.4.1.5 Clean the disc, drain disc and other parts which contact with f BE CAREFUL! the blade of disc is very sharp. (Use gloves if necessary not supplied)
4.4.1.6 Position the appliance in such a way that the plug is always accessible.
4.4.2 Installation area

The selected machine work setting must be sufficiently lit and have a electric power outlet. The workplace must be sufficiently large, perfectly level and dry. The machine should be installed in non-explosive environments. In any case, installation should be carried out by taking account any applicable industrial safety regulations in force.

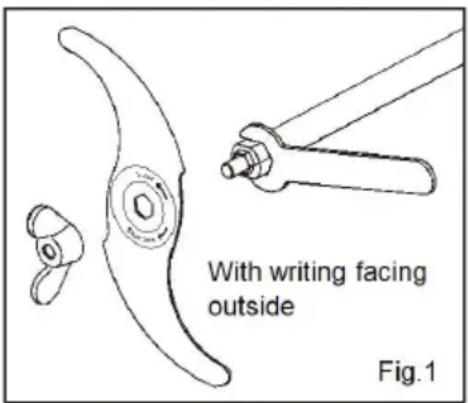

With writing facing outside Fig.1

4.4.3 Assembling instructions

Attention: Always unplug the appliance from the electrical power outlet before starting assembling or disassembling.

4.4.3.1 Place the machine on a steady and flat table.

4.4.3.2 Make sure the switch is on "OFF" position.

4.4.3.3 Install the S blade with wrench, as Fig.1.

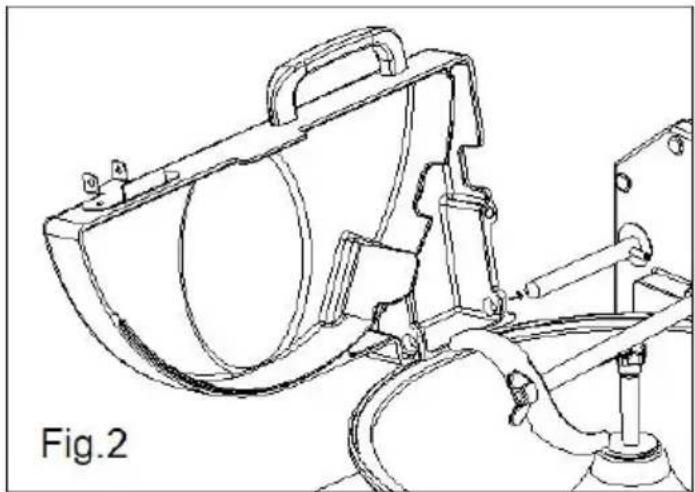

4.4.3.4 Install the lid on the fixed shaft, as Fig 2.

Technical line drawing of a mechanical device with no visible text or symbols

4.4.4 Electric connection

DANGER-CAUTION: Electric connection to the power outlet should be operated by skilled personnel. Check for the perfect efficiency of the grounding system. Make sure that the line voltage (V) and frequency correspond to the machine ratings (refer to the machine identification and wiring diagram). The machine comes equipped with an electric ca with plug. Plug the machine into a main wall switch with differential.

4.5OPERATING

4.5.1Preparation

4.5.1.1 Make sure the appliance is unplugged from the electrical power supply, the switch is on "OFF" position. Check the cross knife and h plate is properly installed into appliance.

4.5.1.2 Before you start with the operation, you should make sure that shaft is rotating in a clockwise direction. Otherwise, the appliance will cut the vegetable.

4.5.1.3 Prepare vegetable appropriately sized pieces(4-5cm) for cutting.

4.5.1.4 Place the appliance on a horizontal, stable, dry and heat resistant surface with 4 suction cup rubber feet firmly placed on the surface.

4.5.1.5 Prepare a plate or basin for processed vegetable.

4.5.2 Operating

4.5.2.1 Assemble the blade and lid

4.5.2.2 Close the lid

4.5.2.3 Connect the power plug to a socket outlet.

4.5.2.4 Press the switch to “-” position to start.

4.5.2.5 Feed the materials into the bowl to start rotating and cutting.

4.5.2.6 Put down the ejection plate and take out the materials, when materials size meets requirement.

4.5.2.7 When materials are finished, press down switch “O” position to unplug the appliance and clean it.

Note 1: Don't put the materials bigger than 5cm.

Note 2: Feed the materials after starting appliance, otherwise, knife w blocked.

WARNING: Never push the vegetables down with your hand or finger, matter which feed chute you are using. Always use the handle or the pusher.

4.6Cleaning

4.6.1 It is important to keep the appliance clean and in good working condition to ensure optimum quality of the products and long life of the appliance.

4.6.2 Never immerse the appliance in water or other liquids.

4.6.3 To clean the motor housing, unplug the appliance and clean with damp cloth or sponge with some mild soap solution. Dry with a dry

4.6.4 Never use abrasive sponges or detergents, steel wool or metal utensils to clean the interior or exterior parts of the appliance.

WARNING: Take care during cleaning when handling the rollers due to sharp edges. Wear protective gloves (not supplied) if necessary.

4.7Storage

4.7.1 Before reassembling, make sure that all parts are dry. Before stop remove all residues from the appliance (incl. the basins), disconnect it the supply and clean the appliance and its accessories thoroughly. Use white Vaseline oil (or any similar product) to protect all parts of the 4.7.2 To protect the appliance from dust, cover it with a cloth that allows circulation inside the appliance.

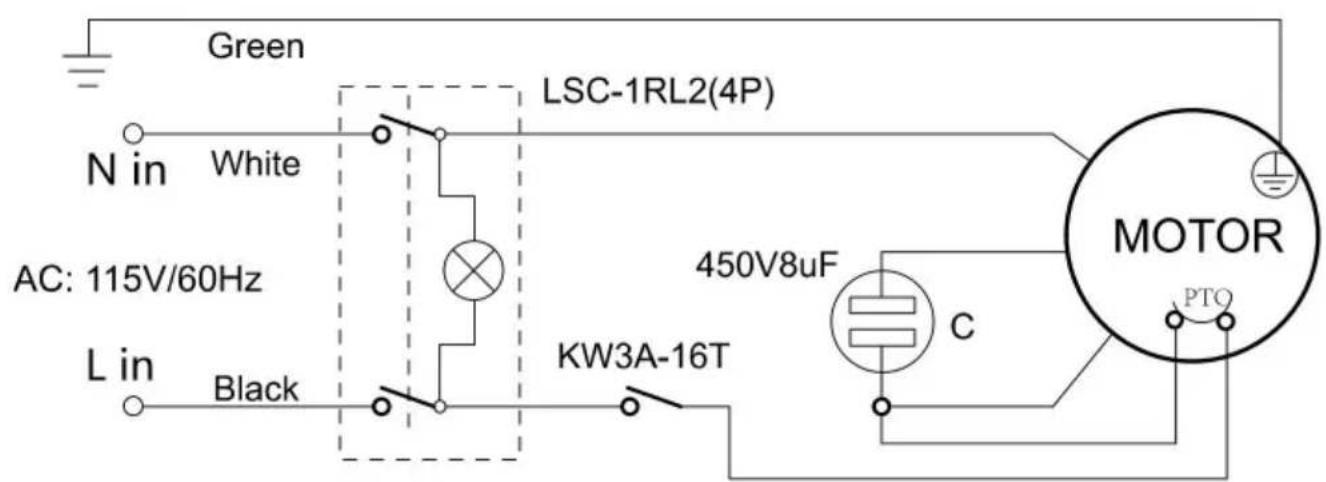

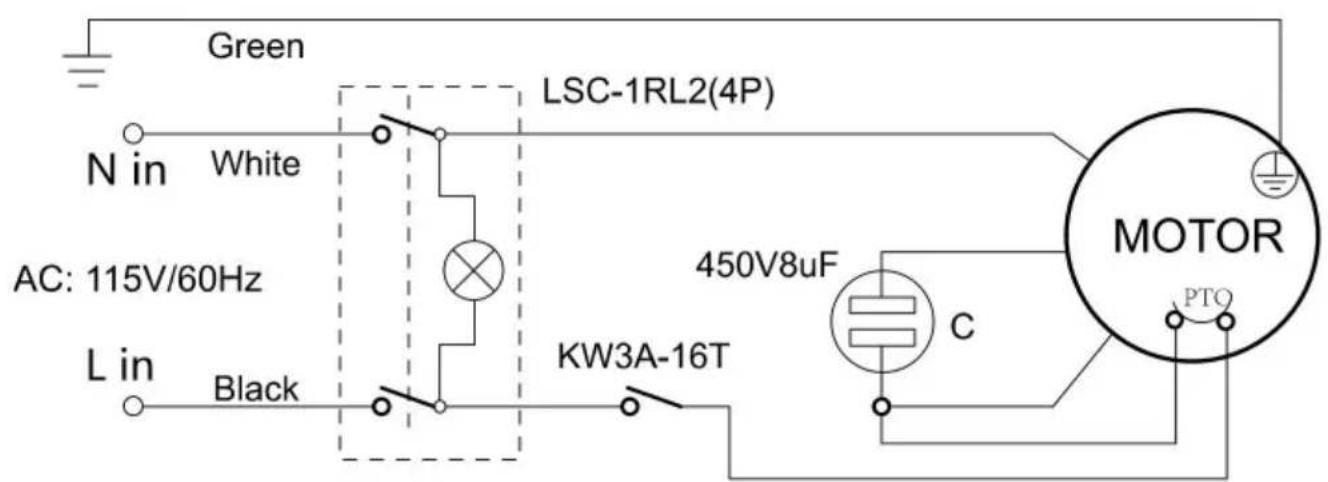

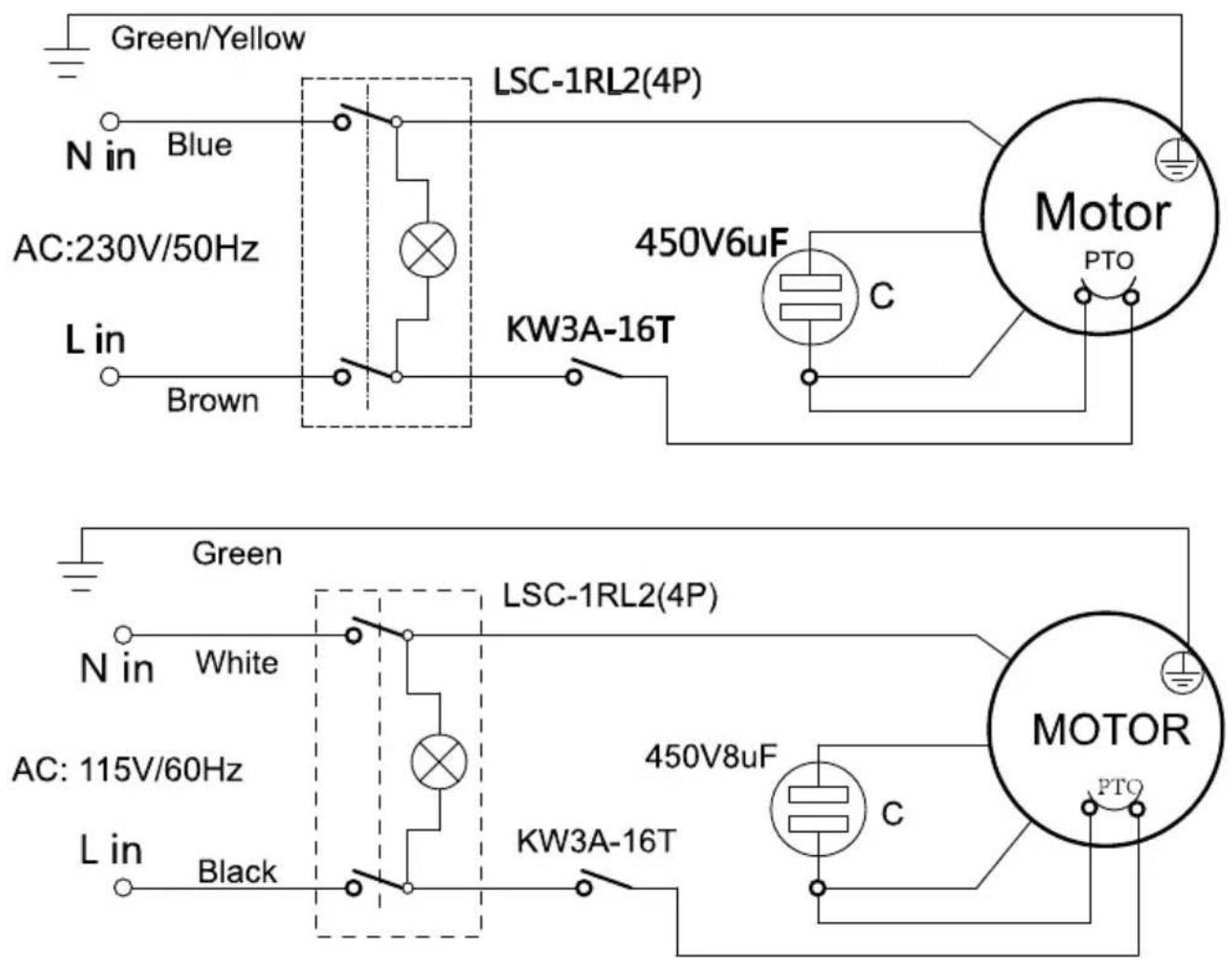

5.Circuit diagram

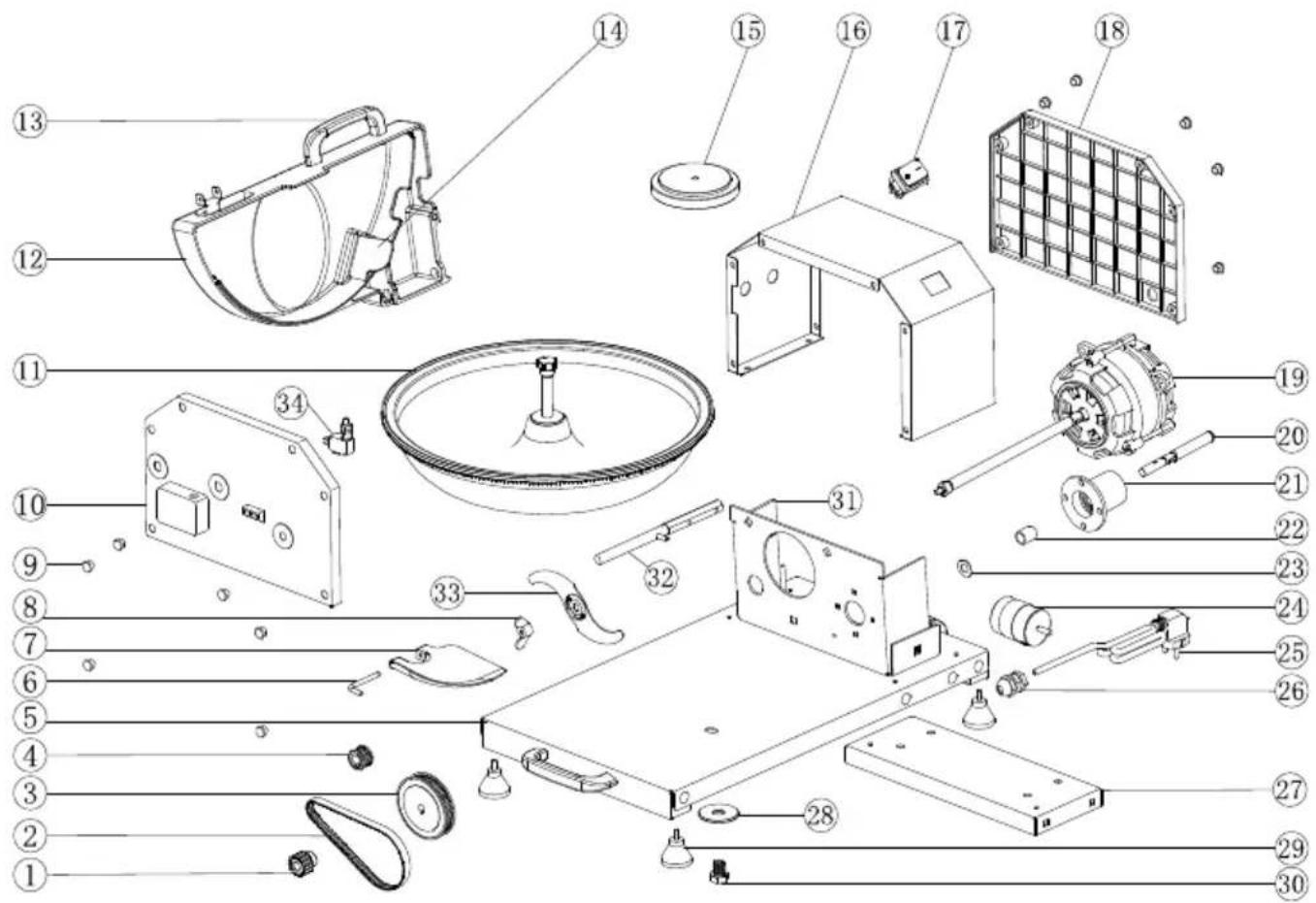

6. Exploded view and spare parts lists

Exploded view diagram of a mechanical assembly with numbered parts for identification

No.	English Name	No.	English Name	No.	English Name
1	Gearwheel	13	Handle	25	Power cord
2	Belt	14	Stirring plate	26	Cable tie
3	Big gearwheel	15	Rotating base	27	Reinforced plate
4	Little gearwheel	16	S/S case	28	Rotating base gaske
5	Bottom plate	17	Switch	29	Feet
6	Fixed pin	18	Back cover	30	Rotating base screw
7	Ejection plate	19	Motor	31	Motor support plate
8	Wing nut	20	Driven shaft	32	Fixed shaft
9	Nut cap	21	Bearing base	33	S blade
10	Front cover	22	Bearing bush	34	Microswitch
11	Bowl	23	Washer
12	Lid	24	Capacitor

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF C MW3A-16T Motor PTO

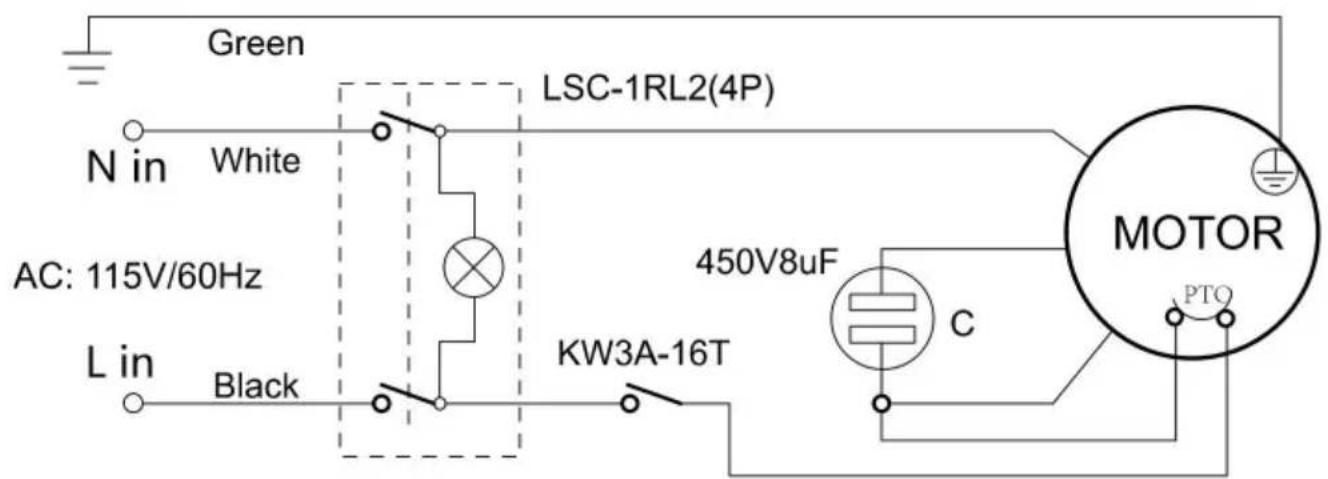

Green N in White LSC-1RL2(4P) AC: 115V/60Hz L in Black KW3A-16T 450V8uF C MOTOR PTQ

Exploded view diagram of a mechanical assembly with numbered parts for identification

www.vevor.com/support

GEMÜSESCHNEIDER

Modell:FC370MT

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF KW3A-16T C Motor PTO N in White AC: 115V/60Hz L in Black LSC-1RL2(4P) 450V8uF C MOTOR PTO

Exploded view diagram of a mechanical assembly with numbered parts for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

TAGLIERINA PER VERDURE

Modello: FC370MT

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Ejection plate Power cord Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

MODELLO	VOLTAGGIO	ENERGIA	VELOCITÀ
FC370MT 3000	220V-240V~tagli/min50/60Hz, 115V~60Hz	250W

4. INTRODUZIONE

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF KW3A-16T C Motor PTO N in White AC: 115V/60Hz L in Black LSC-1RL2(4P) 450V8uF C MOTOR PTO

Exploded view diagram of a mechanical assembly with numbered parts for identification

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

www.vevor.com/support

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

MODELO	VOLTAJE	FUERZA	VELOCIDAD
FC370MT	220 V-240 V~50/60 Hz, 115 V ~ 60 Hz	250 W	3000 cortes/min

4. INTRODUCCIÓN

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

4.4.4 Conexión eléctrica

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF KW3A-16T C Motor PTO N in White AC: 115V/60Hz L in Black LSC-1RL2(4P) 450V8uF C MOTOR PTO

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

MODEL	WOLTAŻ	MOC	PRĘDKOŚĆ
	220V-240V~50/60Hz, 115V~60Hz	250 W	3000 cię ć/minFC370MT

4. WSTEP

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF C MW3A-16T Motor PTO

Green N in White AC: 115V/60Hz L in Black LSC-1RL2(4P) 450V8uF C MOTOR PTQ

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

3. PRODUCTBESCHRIJVING

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

MODEL	SPANNING	STROOM	SNELHEID
	220V-240V~50/60 Hz, 115 V~60 Hz	250W	3000 sneden/minFC

4.INLEIDING

With writing facing outside Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF KW3A-16T C Motor PTO N in White AC: 115V/60Hz L in Black LSC-1RL2(4P) 450V8uF C MOTOR PTO

Exploded view diagram of a mechanical assembly with numbered parts for identification

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

GRÖNSAKSKÄRARE

Modell: FC370MT

Technical line drawing of a mechanical device with a dome-shaped component and control panel (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Screw Bowl Lid Microswitch Gearwheel S/S case Switch Fixed shaft S blade Wing nut Power cord Ejection plate Rotating base Handle

250mm 594mm

Technical line drawing of a mechanical device with a 407mm height dimension label (no text or symbols on the diagram itself)

MODELL	SPÄNNING	DRIVA	HASTIGHET
FC370MT	220V-240V~50/60Hz, 115V~60Hz	250W	3000 snitt/min

4. INTRODUKTION

With writing facing outside Fig.1

4.4.3 Monteringsanvisningar

Technical line drawing of a mechanical assembly with no visible text or symbols

4.4.4 Elanslutning

Green/Yellow N in Blue AC:230V/50Hz L in Brown LSC-1RL2(4P) 450V6uF C KW3A-16T Motor PTO

Green N in White LSC-1RL2(4P) AC: 115V/60Hz L in Black KW3A-16T 450V8uF C MOTOR PTQ

Exploded view diagram of a mechanical assembly with numbered parts for identification

www.vevor.com/support
