D40TW-G - Refrigerator Vevor - Free user manual and instructions

Product Type	Refrigerated seasoning table
Brand	Vevor
Model	D40TW-G
Storage temperature	2 to 8 °C
Voltage/Frequency	220-240 V / 50 Hz
Total power	140 W
Refrigerant	R290
Dimensions (L × W × H)	955 × 404 × 280 mm
Net weight	31.5 kg
Recommended use	Food stores, kitchens, hotels for refrigeration and display
Materials	Curved safety glass, polyurethane foam, copper tube
Included accessories	User manual, quality certificate and warranty card
Safety	Three-pin plug with mandatory grounding; do not use dangerous products
Maintenance and cleaning	Cut off power before cleaning; do not rinse; clean interior/exterior in case of prolonged stoppage
Repairability	Contact a professional or after-sales service; do not disassemble yourself
Warranty	1 year (glass excluded)
Manufacturing	China
After-sales service contact	www.vevor.com/support

Frequently Asked Questions - D40TW-G Vevor

What is the recommended storage temperature?

The storage temperature is between 2 and 8 °C.

How to properly install the refrigerator?

Place the appliance in a well-ventilated, cool, dry place, away from heat and sunlight. The floor must be flat and firm. Leave at least 10 cm space around the appliance for condenser radiation.

What to do if the compressor does not work?

First check that the appliance is plugged in and that the outlet is powered. If the problem persists, contact a professional or after-sales service.

Why is there condensation on the glass?

High ambient humidity can cause dew drops on the outer surface of the glass. Wipe with a soft dry cloth or activate the defogging function if available.

How to clean the appliance?

Before any cleaning, cut off the power supply. Do not use rinsing water; wipe with a damp cloth. For prolonged stoppage, clean the interior and exterior, dry thoroughly and place in a dry place.

Can I repair a technical problem myself?

No. Only qualified professional personnel may intervene on the electrical or refrigeration system. Any unauthorized intervention may cause accidents and void the warranty.

What to do in case of prolonged stoppage?

Perform a complete cleaning, dry the appliance and place it in a dry, ventilated place. Regularly check for rodents. Before restarting, inspect the electrical cables to ensure they are not damaged.

What foods can I store in this refrigerator?

It is designed for refrigeration and display of fresh food. Avoid placing hot food directly on the surface to avoid overloading the system.

How to contact Vevor after-sales service?

Visit the website www.vevor.com/support to obtain technical assistance and the electronic warranty certificate.

What is the warranty period?

The product benefits from a one-year warranty from the delivery date, covering quality defects (excluding glass). Parts damaged by improper use are not covered.

USER MANUAL D40TW-G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

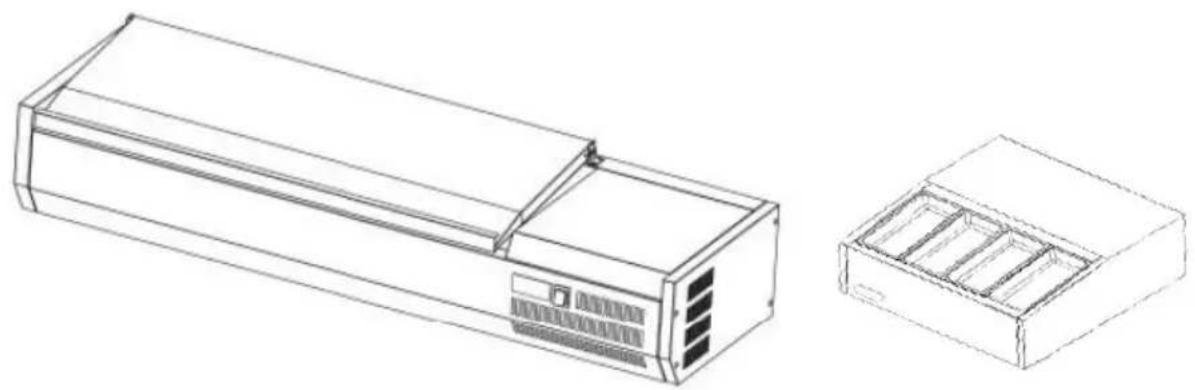

REFRIGERATED SEASONING TABLE

MODEL: D40TW-G, D48TW-G, D55TW-G, D60TW-G, D71TW-G, D27TW-G

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: D40TW-G, D48TW-G, D55TW-G, D60TW-G, D71TW-G, D27TW-G

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Content

I. Main Technical Parameters II. Cautions III. Precautions for Use IV. Common Faults and Troubleshooting V. Non-Faults VI. Electrical Schematic Diagram VII. After-Sale Service VIII. Appendix with Shipment

Preface

Dear users:

1. Welcome to use the Sushi FG showcase series manufactured by our company. It is designed for sites like various food and cuisine stores and mainly used for refrigeration and display of articles. The refrigeration temperature is 2°C or below.
2. The product is designed scientifically and properly in structure, energy-saving, clean, and better fresh-keeping with direct cooling structure design, featuring fast cooling and uniform temperature inside.

The glass case is made of closely lapped hot-bent safety glass sheet, thoroughly transparent. Products in this series feature a good-looking appearance, practicality, proper design, fast refrigeration, low power consumption, low noise, healthiness, and uniform temperature.

1. All materials, components, and refrigeration units for the product are sourced from internationally professional famous brand manufacturers to ensure their quality.
2. The product adopts direct cooling copper tube polyurethane integral foam, which is safe, electricity-saving, nice-looking, widely applied, and makes the counter face temperature more uniform.
3. This product has a humanized design and increases the display function of the commodities. It is nice and decent, so it plays a certain decorative effect in the places where it is used.
4. The executive components of the refrigeration system and the controlling components of the electrical equipment are brand-name products from abroad, ensuring the operation of the product is stable and reliable. The reasonable system design improves the heat exchange efficiency. Thus, the cooling inside the cabinet is faster, the temperature is lower, and it is more energy-efficient.

In order to use our product better and prolong its service life, carefully read the operation manual of this product before using.

I. Main Technical Parameters

Model	Storage temperature	voltage/frequency	Input total power	Refrigerant	Dimensions (length×width ×height mm)	Net weight (kg)
D40T W-G	2°C~8°C	220V~240V 50Hz	140W	R290	955*404*280	31.5
D48T W-G			140W		1130*404*280	35
D55T W-G			150W		1305*404*280	39
D60T W-G			155W		1480*404*28 0	43
D71T W-G			165W		1655*404*28 0	22.5
D27T W-G			145W		760*670*280	26

II. Cautions

1. Must use a separate single-phase triple-pole power socket with the earth port (E) reliably earthed. Note: do not use running water or gas as the earthing terminal. Otherwise, if the electric system has troubles, there is no earthing protection, which will threaten personal and property safety. Remember that our company will not bear any responsibilities for accidents and losses caused by electric damage due to non-compliance with the above requirement when operating and using.
2. Do not directly put the power line on the passage. There should be a trough plate with certain strength for shielding or a groove with a cover to avoid damage from heavy loads and sharp tools.
3. Never put hazards that are volatile, corrosive, radioactive, flammable, explosive, poisonous, or polluting the food in the cabinet.
4. Remember to cut off the power before cleaning the product or changing the lamp. Do not rinse it to avoid the electrical appliance being damp, soaked, or having other accidents.
5. Once the product has electric and refrigeration system troubles, non-professional electricians and personnel without sufficient refrigeration technology and rich experience shall not randomly fiddle with, disassemble, or repair it, to avoid causing more serious accidents and even data loss that will lead to more losses.

III. Precautions for use

1. Push and place gently when carrying, with inclination not exceeding

degrees.

1. The product should be placed in a well-ventilated area, kept away from heat and dust. Direct sun exposure should be avoided as it may affect the refrigeration effect. The ground should be even and firm. The distance of the cabinet's periphery from walls and other objects should be no less than 10 cm to ensure good heat radiation from the condenser. The showcase should be placed in a designated area to prevent displacement due to external force.
2. The showcase should be operated for a period of time to confirm that the refrigeration system is in normal condition before each use. After the temperature inside is reduced to the normal level, food can be placed into the refrigeration tray for refrigeration.
3. Do not place too much hot food on the showcase's surface, as this may cause an instantaneous overload.
4. For long-term discontinuation, clean the product thoroughly inside and out. Then dry it and place it in a dry, cool, and ventilated area. Check frequently to prevent damage from rats. When restarting the equipment, check the electrical lines to see if they have been bitten or damaged by rats. After strict inspection and confirmation, the equipment can be restarted for use.
5. Non-professionals shall not randomly open or replace components or electrical elements in the freezer and refrigeration units.
6. Ask professional maintenance personnel to replace damaged power cords to avoid danger.
7. If you cannot repair the failure by yourself, please ask professional personnel to resolve it in a timely manner, or inform our technical personnel to repair the failure.

IV. Common Faults and Troubleshooting

If you think the product has problems, check and troubleshoot according to the following table. If the problem persists, please contact our company or sales department. Non-professionals should not randomly dismantle or

maintain product structures, electrical elements, or the refrigeration system. Checking and troubleshooting must be done by professional technicians; otherwise, accidents may easily occur, leading to greater losses. Once the product is found to be electrified, cut off the power immediately and then contact professionals for inspection and repair.

Common Troubleshooting

Faults	Fault Causes	Scope of Examination	Troubleshooting
Compressor or not working	Power off	Check by multimeter	Switch on
	Plug loose	Check	Plug in tightly
	Starter relay socket loose	Dismount shroud for check	Plug the pin tight
Over high temperature Inside the showcase	The storied goods are too much inside the showcase.		Reduce food
	Ambient temperature too high	Test by thermometer	Change ambient temperature
Too loud noise	The showcase is not placed stable.	Check	Placed stable
	Fan and compressor castors footing loose	Check	Fasten the footing screws

V. Non-faults

1. When the compressor operates, the surface will be hot. In normal compressor operation, the surface temperature will be high. This is a normal phenomenon. Do not touch with hands.
2. There is moisture condensation on the glass surface. With high environment temperature and humidity, it is easy for dewdrops to appear on the external surface of the glass. Please wipe it dry timely using soft cloth or start the heating wire demisting function.
3. The room temperature is lower than the controlling temperature of the temperature controller, so the compressor breaks down. Because the room temperature is lower than the temperature of the temperature controller, the data collected by the temperature sensor is not enough to start the compressor.

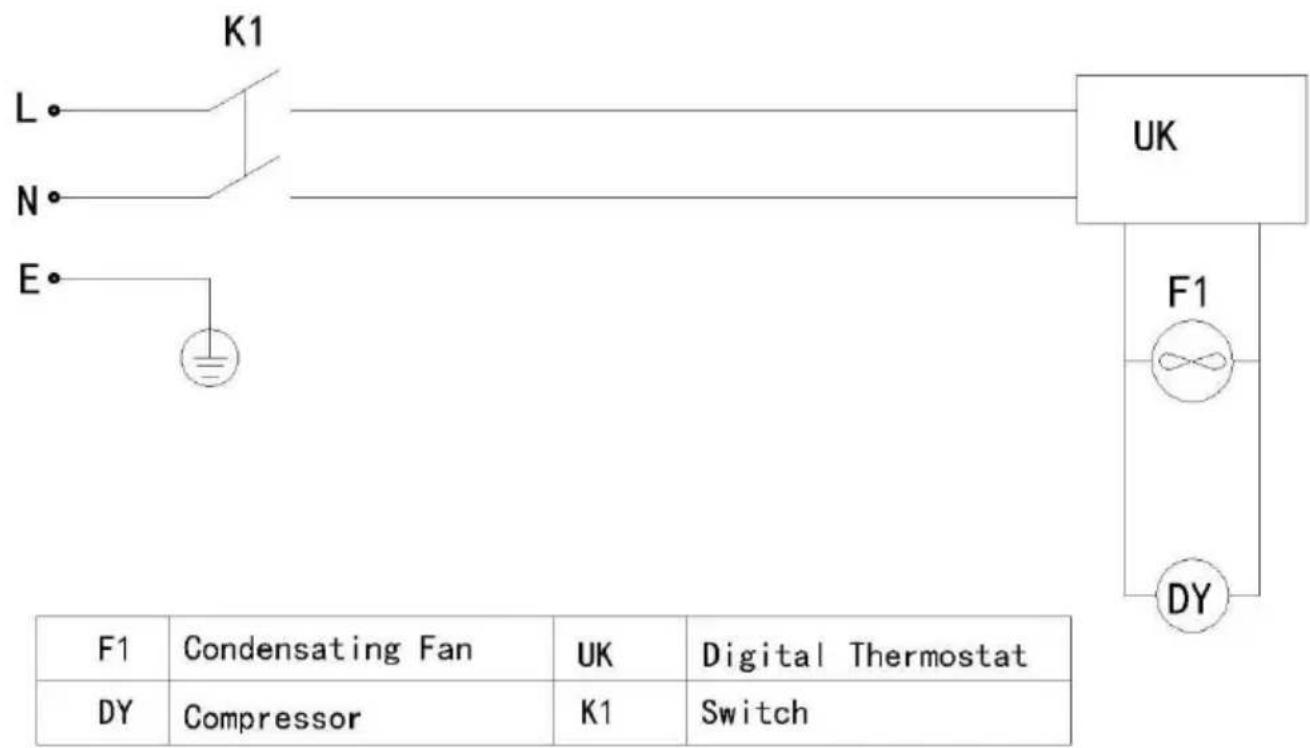

VI. Electrical schematic diagrams

VII. After-Sale Service

On the condition that the user follows the user manual, the product will have a one-year warranty since the delivery date, and our company will be responsible for replacement and repair of the damaged components caused by poor quality during the period (glass damage excluded).

Proper fees will be charged after repairing damaged products caused by the following reasons:

1. Not following the user manual.
2. Randomly using unmatched components for replacement.
3. Voltage fluctuation value exceeds permissible scope or other natural factors.

VIII. Appendix with Shipment

1. 1. Product instruction. 2. Quality certificate and warranty card.
