USER MANUAL GB-PO12R Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

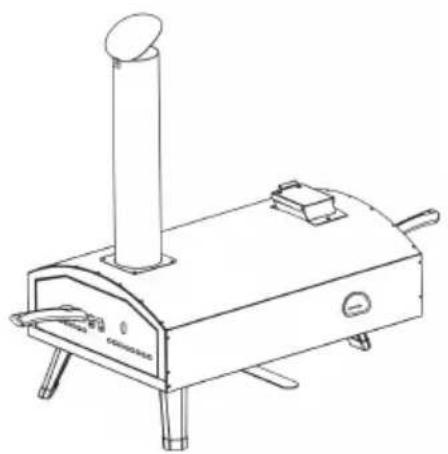

MODEL:GB-PO12

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

Warnings

• This pizza oven is FOR OUTDOOR USE only and shall not be used, building, garage, under overhangs or any other enclosed area.
• DO NOT leave a lit pizza oven unattended. Keep children and pets from the pizza oven at all times.

PROP 65 WARNING:

This product can expose you to chemicals including Chromium (hexava compounds), which are known to the State of California to cause car and birth defects or other reproductive harm. For more information visit www.P65Warnings.

ca.gov.

IMPORTANT SAFETY

Please read this manual carefully and before installing or using yourpizza oven to ensure This manual should be retained for your informa

LOCATION OF PIZZA OVEN

Remember that your pizza oven is an outdoor appliance. Ensure your pizza oven is positioned safely away garages or any other enclosed: This outdoor cooking gas appliance is not approved to be installed in any recreational pizza ovens are intended for single-family/residential use only.

Minimum clearance from sides and back of unit to combustible construction, 36 inches from back and sides.

When determining a suitable location, take into account concerns such exposure to wind, proximity to Proper location and use is also essential ensure safe and continued trouble-free operation. Any non-approved alterations made to the pizza oven will void its warranty.

INSTALLATION WARNINGS

Please read all installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

Warnings

This pizza oven is for outdoor use only. The manufacturer cannot be responsible for damage or injury caused by improper use of this appl

FUEL CONCERNS & EXPLOSION HAZARDS

Do not store or use gasoline or other flammable vapors and liquids(th not connected for use) in the vicinity of this or any other appliance. the area clear

and free from combustible materials, gasoline, and other flammable va and liquids, Failure to do so can result in death, explosion or fire.

Keep an ABC fire extinguisher accessible at all times, and never attack extinguish a grease fire with water or other liquids. Do not attempt to unopened containers on the pizza oven. Pressure may build up and the container to explode. Never use charcoal or any other solid fuel pizza oven.

PROPER USE PIZZA OVEN

This pizza oven is NOT intended for commercial use. Do not operate pizza oven in a building, garage, or any other enclosed areas. This co result in carbon

monoxide buildup, which may cause injury or death. pizza ovens are designed or intended for installation near a window or vent that feeds the house.

Consult the AHJ (Authority Having Jurisdiction) or a contractor in your if you have any uncertainty regarding local codes.

GENERAL WARNING

• Do not touch hot surfaces.

• Use insulated oven mitts when operating the pizza oven.

• Never lean over the cooking surface when lighting or operating the oven.

• Close supervision is necessary when this or any pizza oven is use children.

Keep children away from the grill during operation and until it has co-off.

• Never operate this pizza oven while under the influence of alcohol drugs.
• Do not store anything in the pizza oven. Make sure food is not for the

pizza oven body; forgotten items could melt or catch fire when the piz oven is

turned on. Never use the pizza oven in WINDY conditions. If located consistently windy area (oceanfront, mountaintop, etc.), a wind break w be required. Winds blowing into the back can result in poor performa and/or cause the control panel and knobs to get dangerously hot.

To prevent injuries, do not use accessories that are not recommended the

manufacturer. The use of accessories, regulators, or components not recommended by the appliance manufacturer may cause injuries and void warranty.

PACKAGE CONTENTS

1. Body X 1
2. Chimney X 1
3. Chimney cap X 1
4. Door X 1
5. Pellet inlet X 1
6. Handle X 2
7. Pizza stone X 1
8. Pellet box X 1
9. Pellet box grate X 1
10. Pellet spoon X 1

11. Pellet inlet handle X 1

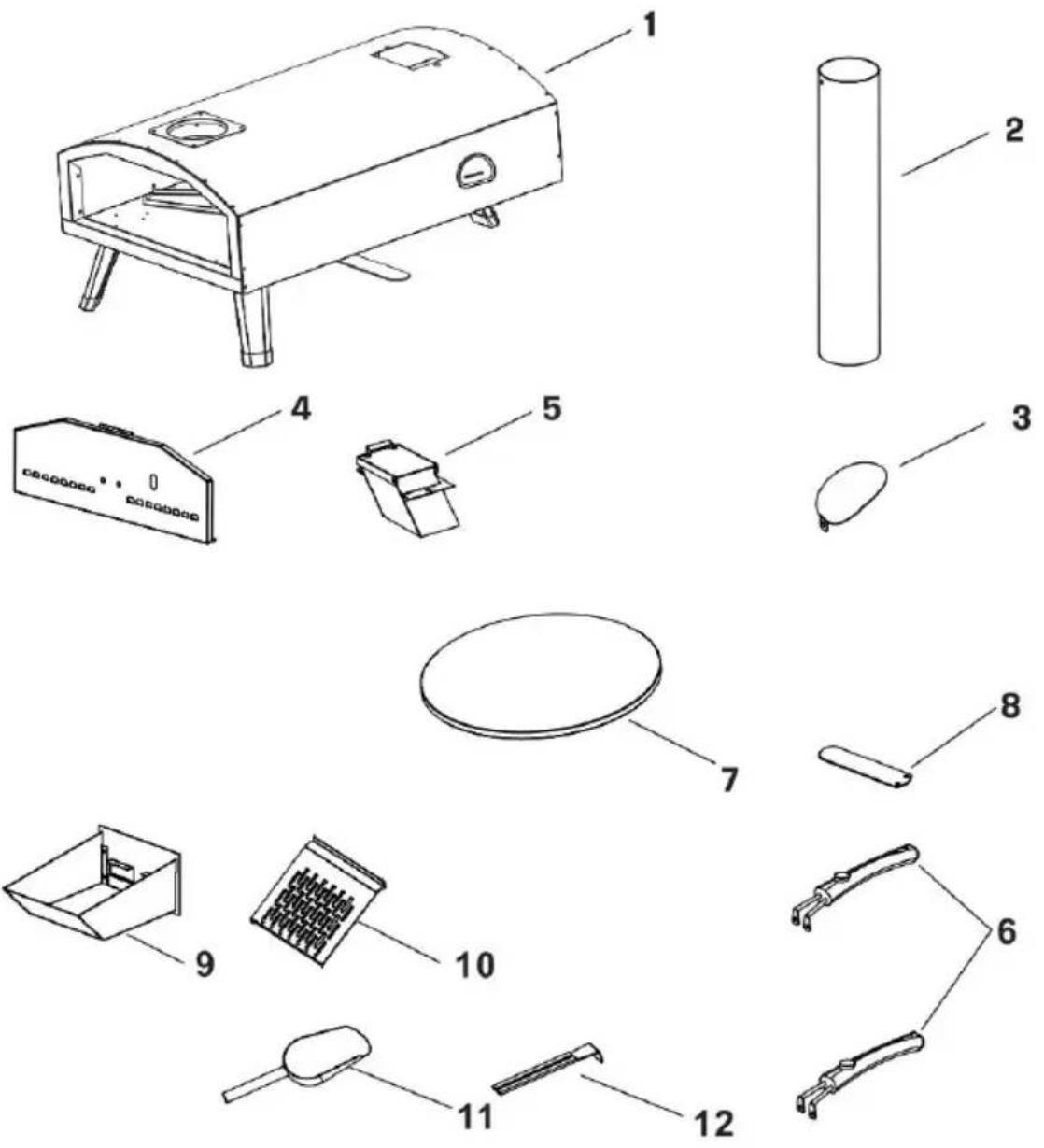

Spare part

1. Body X 1
2. Chimney X 1
3. Chimney cap X 1
4. Door X 1
5. Pellet inlet X 1
6. Handle X 2

7. Pizza stone X 1

8. Rotating handle X 1

9. Pellet box X 1
10. Pellet box grate X 1
11. Pellet spoon X 1
12. Pellet inlet handle X 1

PREPARATION

Before beginning assembly of product, make sure all parts are present Compare parts

with package contents list on previous page and hardware contents be If any part

is missing or damaged, do not attempt to assemble the product. Con customer

service for replacement parts.

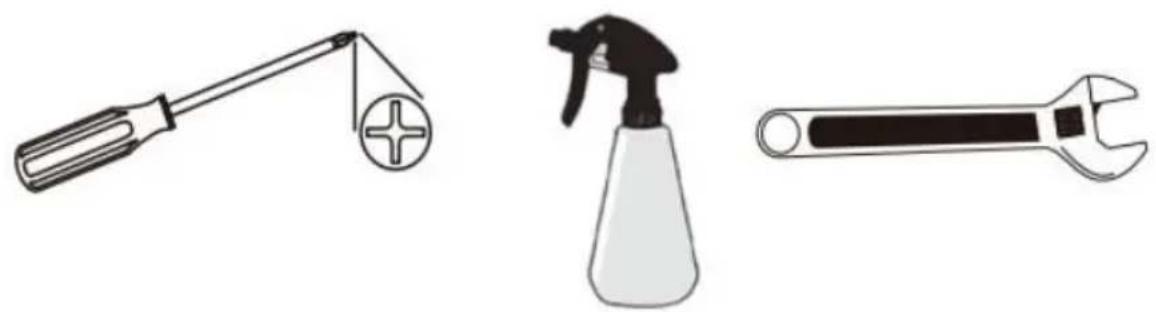

Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray

bottle, Adjustable wrench.

Illustration of three different tools: a screwdriver with a plus symbol, a spray gun, and a wrench (no text or symbols present)

CAUTION:

Some parts may contain sharp edges. Wear protective gloves if necessary. Read and follow all safety statements, warnings, assembly instructions use and care instructions before attempting to assemble and use.

ASSEMBLY INSTRUCTIONS

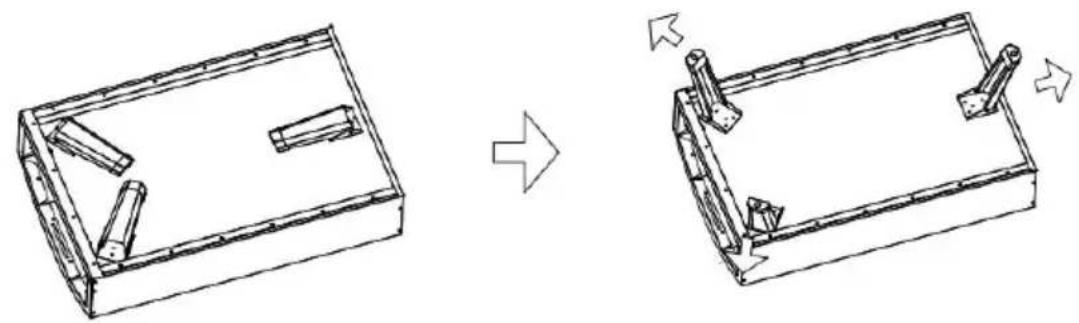

1. Unfold legs

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

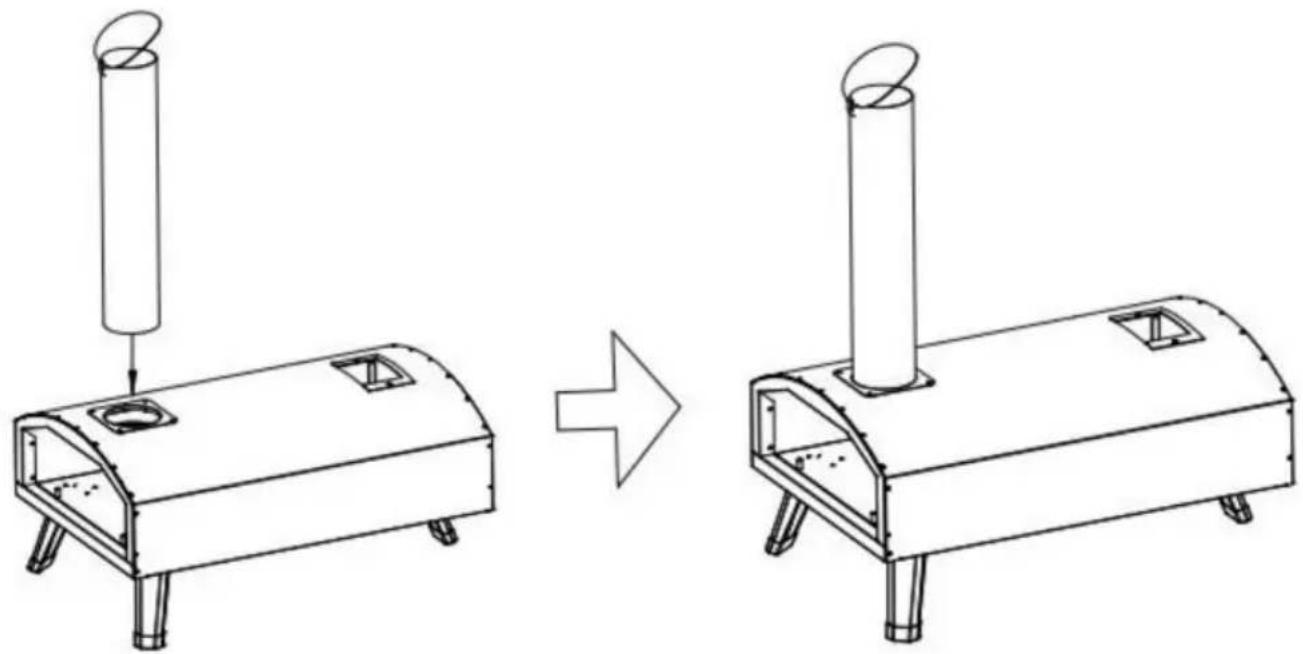

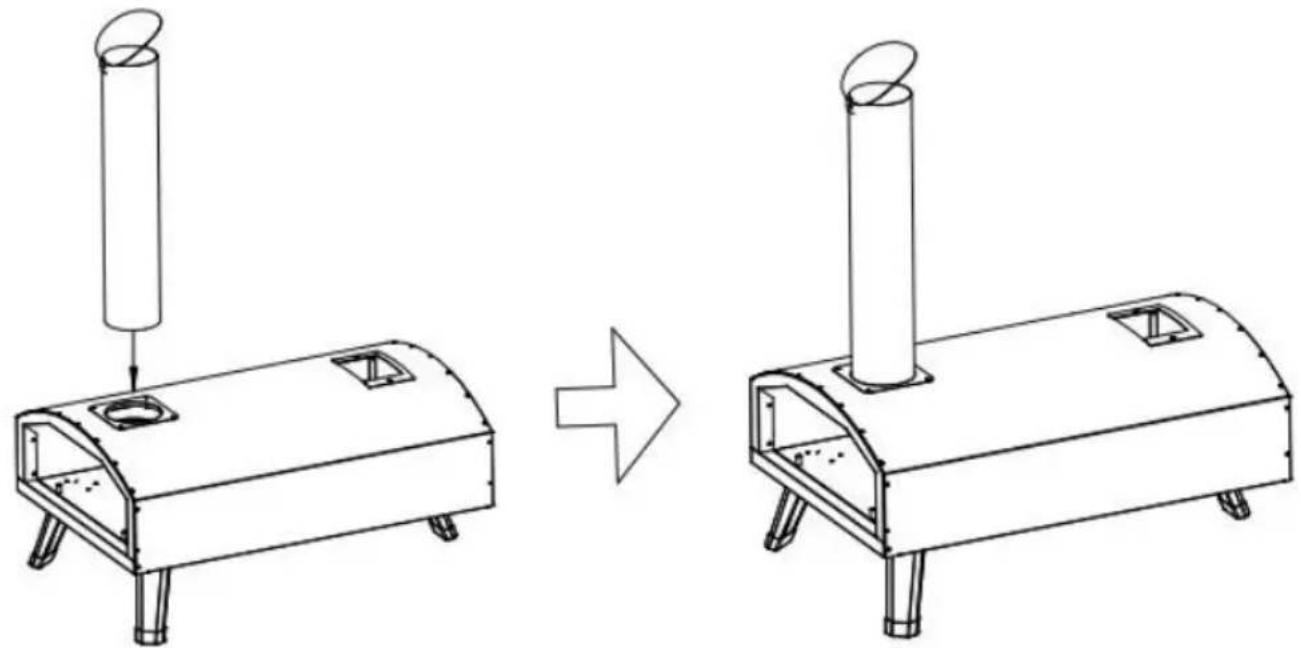

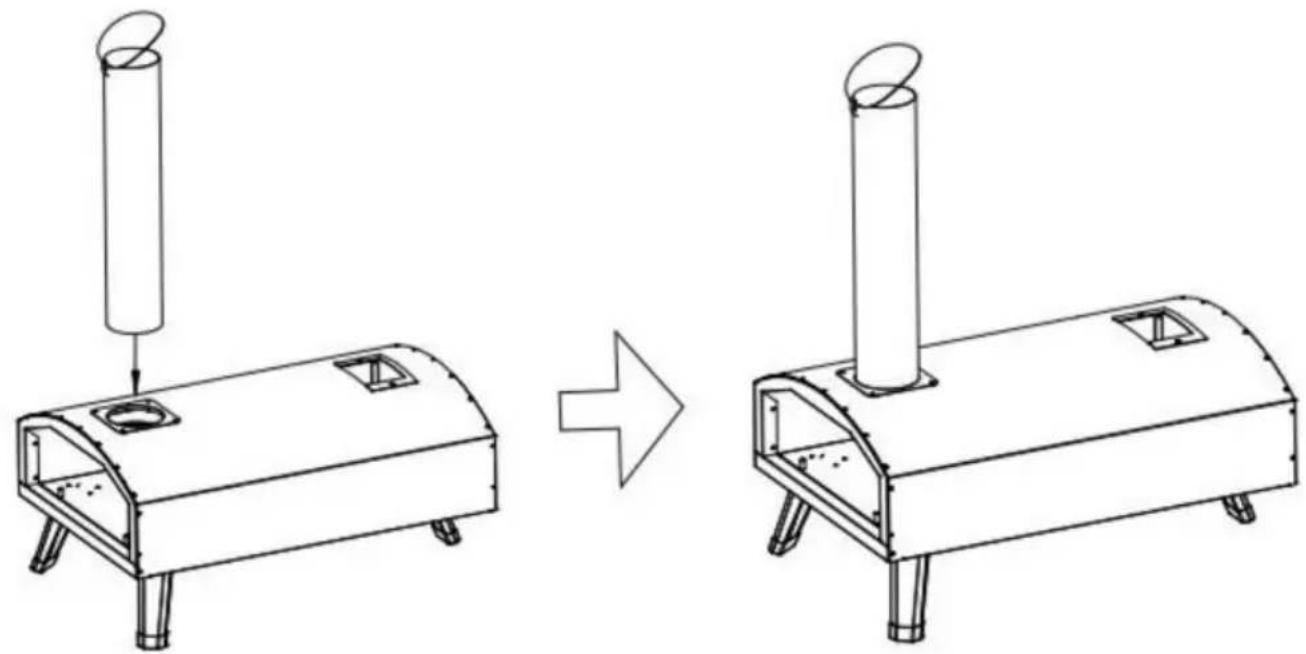

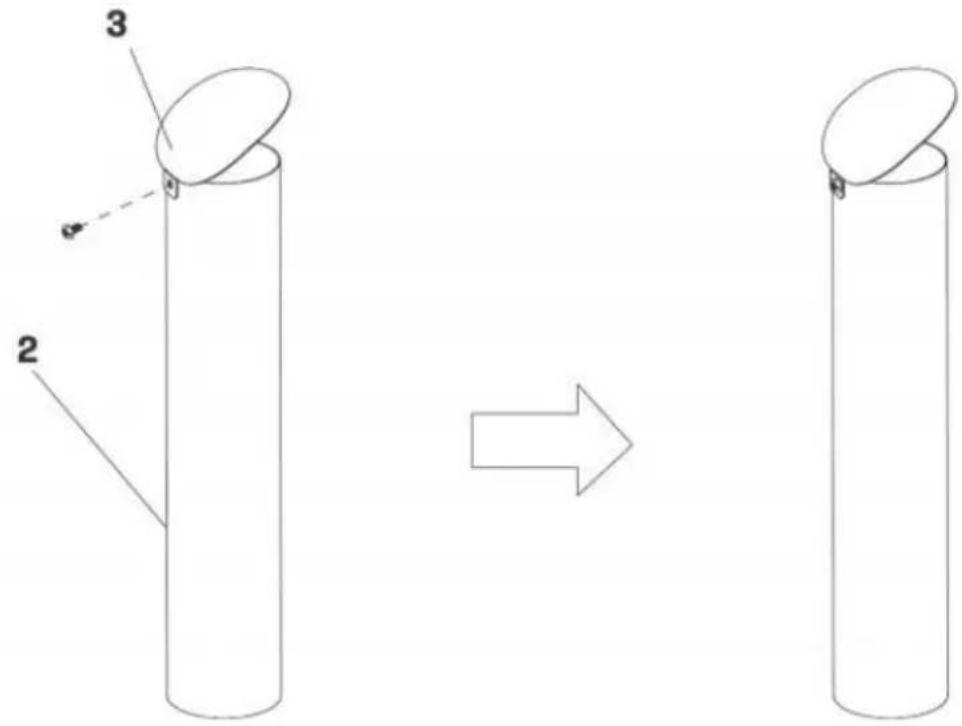

2. Install the chimney

The screw has been pre-installed on the chimney. Unscrew & reinstall to attached

chimney piece.

A M5*12MM 1 PCS

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

3. Install the chimney

Diagram showing a device being processed from a cylindrical component to a base, with no visible text or symbols.

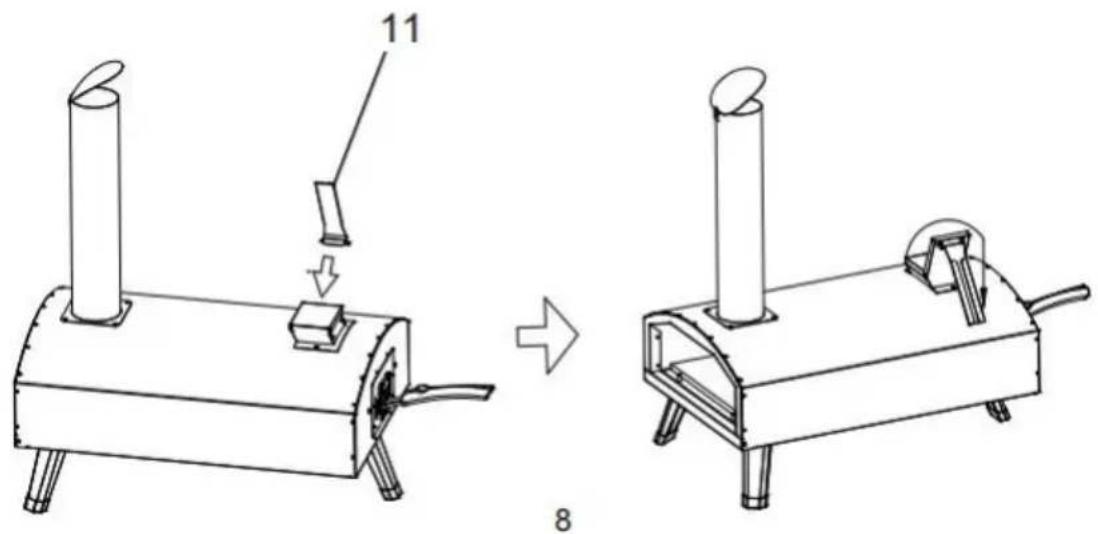

1. Install the pellet inlet parts The screws and nuts have been pre-installed on the body. Unscrew & reinstall to the pizza oven. A M5*12MM 2 PCS

Technical diagram showing a device being processed from a base to a final product, with labeled component '5' and directional arrow.

5.There is a handle to open and close the cover when you add

11 8

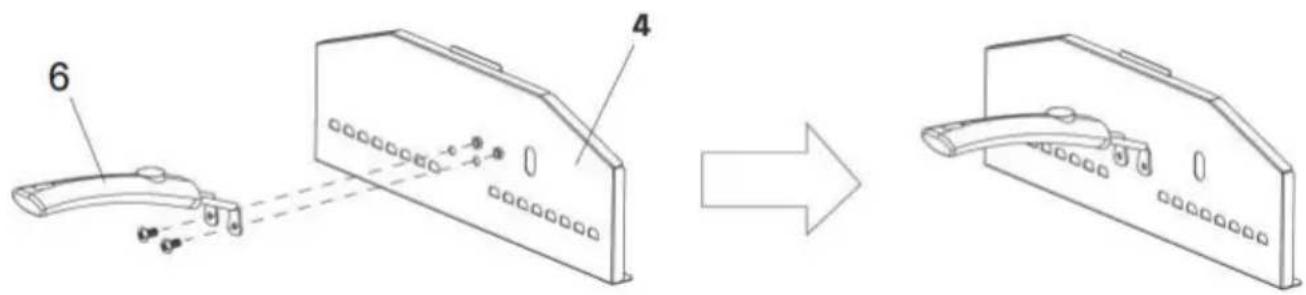

6. Install the door

The screws and nuts have been pre-installed on the handles. Unscrew reinstall to the door.

B M4*12MM 2 PCS

C M4 Nut 2 PCS

Technical diagram showing a device component assembly with labeled parts and a transformation arrow indicating process.

7. USE WOOD PELLET

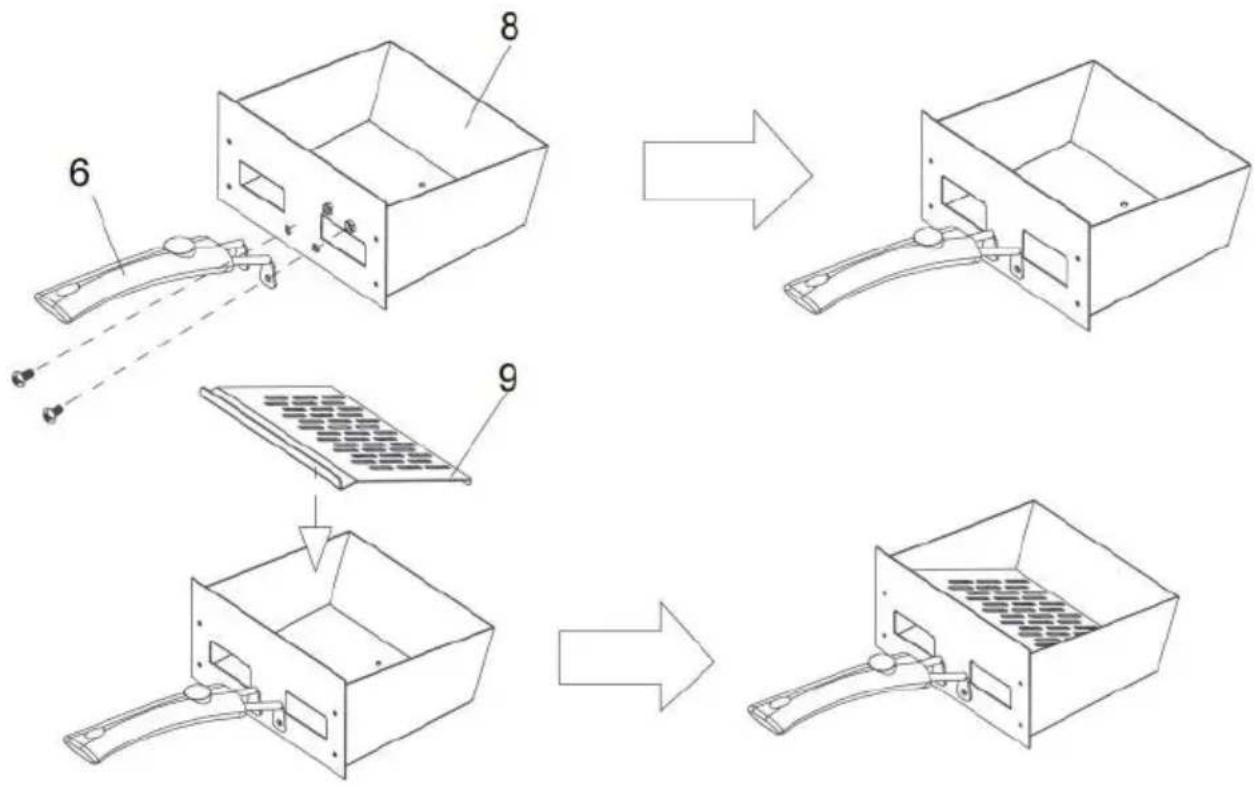

7.1 Install the pellet box

The screws and nuts have been pre-installed on the handles. Unscrew reinstall to the pellet basket.

B M4*12CM 2PCS

C M4 Nut 2 PCS

Technical diagram showing a multi-step assembly of a device with labeled parts and directional arrows indicating process flow.

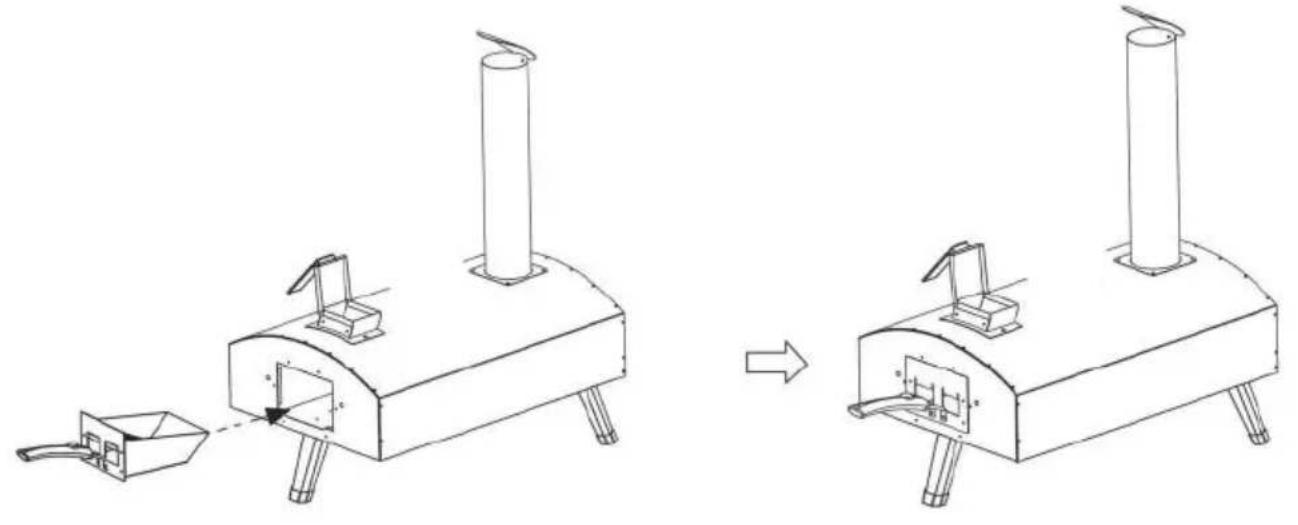

1. 2 Put the pellet box into the pizza oven.

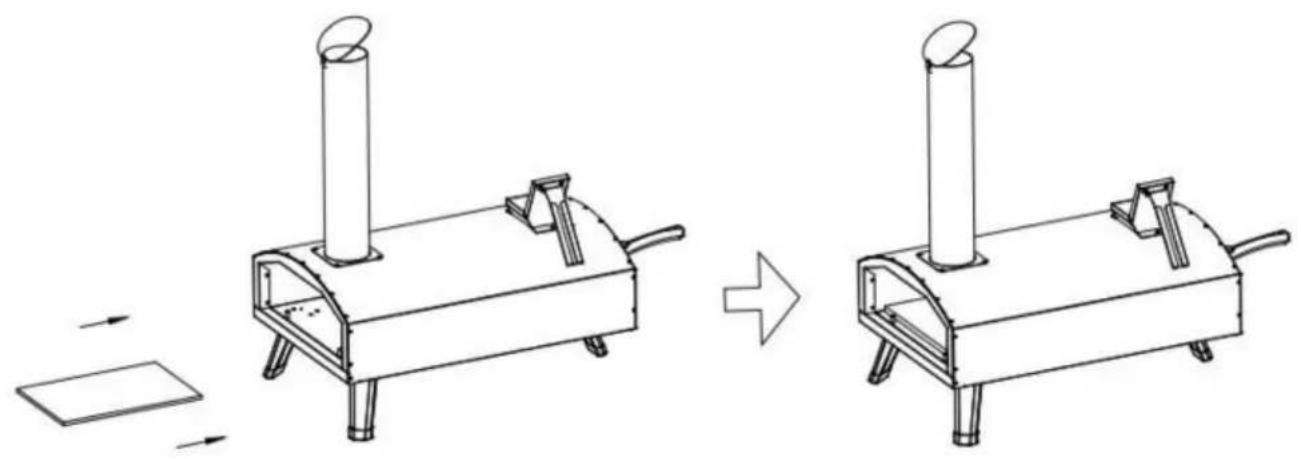

1. Install the pizza stone.

Line drawing of a portable stove with two cylindrical vats, one being rotated (no text or symbols)

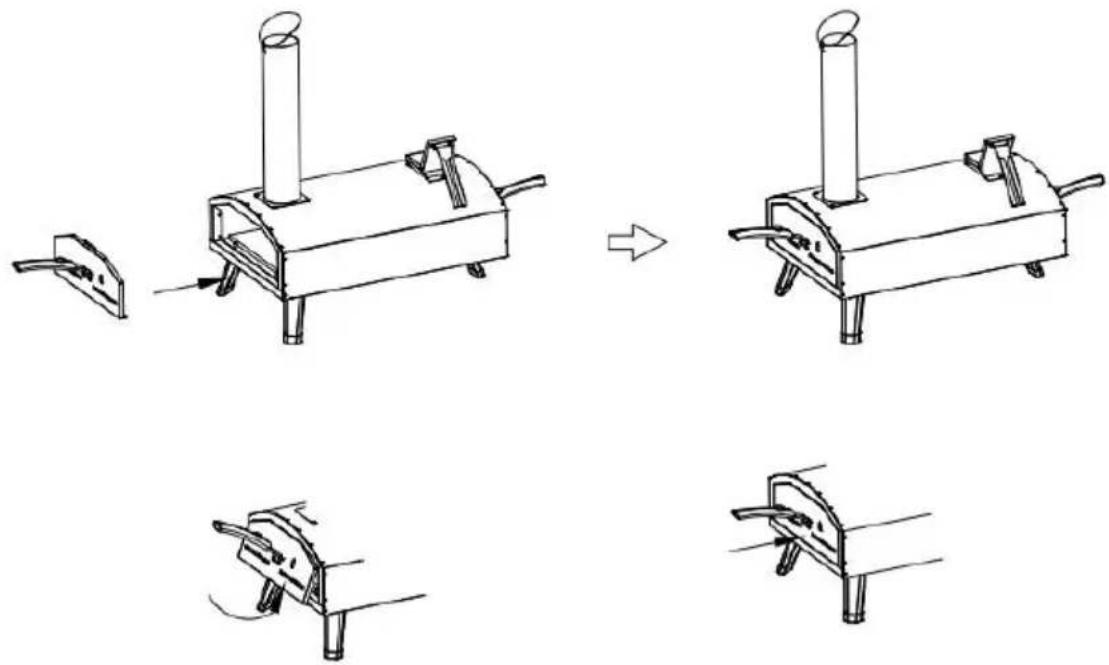

1. Attach the door.

Line drawings of a portable stove with cylindrical and rectangular components, showing structural changes (no text or symbols)

How to use the pizza oven

1. Use around 400g pellet put into the carbon box.
2. Use flame gun to burn the pellet, around 2-3 mins, the pellet will burned.3. If make the pizza, put the pizza stone in the inner, prehea mins. Put pizza inside, 60 seconds turn around, base on the pizza thickness to burner more 90 to 120 seconds.
3. Use BBQ function, Preheat 5 mins, prepare the food in the tin po the food inside, base on different food to turn around it.

Replenishing the pellet

• During cooking, keep the pellet in hopper assembly at more than h capacity of the hopper assembly.
• To replenish the pellet during use, use the handle to open the hop assembly lid, then use the hopper shovel to take some pellets and p them into the hopper assembly. Place the hopper assembly lid back a hopper assembly with the handle.
  • Make sure oven gloves or mitts are used.

Remark:

• when you cook around 20mins later, have better to add some more in the carbon box.
  • Take out a little of the carbon box.
• Please dispose all plastic bags carefully and keep it away from chi
  • Always use heat resistant gloves when handling the product.
• Use flame gun to make fast burn again.
  • Take a few moments to familiarize yourself with the contents & be starting check all holes are clear of any paint residue.

Water:

• Water can damage the inside of your oven. You must ensure that water enters the oven chamber, either through the oven door opening through the chimney.
• Always place the provided metal door in the oven opening when n use to stop water from entering through the opening into the oven c

• Do not install the oven at a backward-leaning angle, where water is enter the oven and pool, causing damage.
• Do not ice or wet-mop the oven floor.
• Water is not required to clean the cooking floor, The oven operates high temperatures. The high heat act as an automatic "self-cleaning" mbumming off all spilled or stuck-on foods. If stuck-on food is a problem during cooking, you can remove it with a brass oven brush As a preventative measure, non dough based foods should always be placed appropriate cookware before being placed in the oven.

Maintenance and Cleaning Instructions:

CAUTION: All cleaning and maintenance should be carried out when pizza oven is cool.

OUTSIDE SURFACE

Use mild detergent or baking soda and hot water solution. Non-abrasi scouring powder can be used on stubborn stains, then rinse with water the inside surface of the pizza oven lid has the appearance of pealir baked on grease build-up has turned to carbon and is flaking off. Cl thoroughly with strong hot soapy water solution. Rinse with water and to completely dry. NEVER USE OVEN CLEANER.

INTERIOR OF BARBECUE BOTTOM

Remove residue using brush, scraper and/or cleaning pad then wash a soapy water solution.

Rinse with water and allow to dry.

COOKING GRID

Use a mild soapy water solution. Non-abrasive scouring power can be used on stubborn stains then rinse with water.

INTERIOR OF BARBECUE BOTTOM

Remove residue using brush, scraper and/or cleaning pad then wash

a soapy water solution Rinse with water and allow to dry. it should the carbon deposition after use.

WARNING!

Danger of suffocation! The oven is intended for outdoor use only. it not be used in building, garages or other closed areas.

Toxic fumes may form, which can lead to suffocation.

Warning sign with pictograms and symbols, showing a person sleeping under a triangular warning sign and four scenarios of heating or cooking.

Reference cookbook:

For reference (adjust the time for different thickness)
Food	Time
Pizza(thin)	1-2 mins
Steak	3 mins (medium)
Sausage	4 mins
Pork	6 mins
Sheep frame	6 mins
Chicken wing	6 mins
Bread	15 mins

IMPORTANT SAFETYINSTRUCTIONS

WARNING

Hazardous fire or explosion may result if instructions are ignored. It is the consumer's responsibility to see that the barbecue is properly assembled, installed, and taken care of. Failure to follow instructions i manual could result in bodily injury and/orproperty damage.

• Read the instructions before using the pizza oven.
• Retain this use & care guide for future reference
• Use outdoors only.
• Warning accessible parts may be very hot. Keep young children aw
• Do not move the pizza oven during use.
• Do not modify the pizza oven.
• This pizza oven must be kept away from flammable materials during use. The pellet will be very hot so take suitable precautions.
• Do not leave the handle on the pizza oven.
• Never touch metal parts that may be hot.
• Do not cook before the fuel has a coating of ash.

General Safety Guidelines

Must be read in full prior to use

Please read the general safety guidelines fully before assembling, installing and using/servicing your pizza oven. Failure to comply with a provisions of the present legal disclaimer could result in property damage, serious bodily injury or even death.

1. Pizza oven is designed for outdoor use only. The pizza oven must always be placed outdoors. away from structures and never inside a building or a garage or in proximity to any enclosed area. Place you

oven on a sturdy, level, stable and non-flammable surface and keep and free from flammable or combustible materials, gasoline and other flammable vapors and liquids.

1. Be aware of any local laws or regulations that may specify a req distance between out door cookers and any structures, or that may li outdoor flame of any type during drought or hazard periods.

2. Do not install or use your pizza oven in or on boats or recreatio vehicles.

3. Do not use your pizza oven in high winds.

4. Your pizza oven is not intended to, and should never be used as heater.

5. Toxic fumes can accumulate and may cause asphyxiation.

6. Flames can blow outside of the metal enclosure: a. at the back where fire is;

b.from the top of the hatch when the lid is opened;c.from the front o oven when you open the door; or

d.from the top of the chimney.

1. Please keep away from the pizza oven's openings and warn others around you.

2. Improper installation, adjustment, alteration, service or maintenance of your pizza oven may cause injury or property damage. Therefore, do use your pizza oven unless it is completely assembled and all parts securely fastened and tightened.

3. When using the pellet burner:

The length of pellets used can greatly affect the temperature of your oven. The recommended pellet length should be no longer than 1.25" (3cm). Longer pellets have a slower feed rate which can cause your oven to burn colder. When changing or refiling pellets be aware of the average length and adjust your pizza oven setting accordingly. Only up pellets intended for use in cooking.

1. When using the charcoal/wood burner: Add the kindling gradually to reach an optimum temperature. Adding too much kindling will enlarge fire, risking damage to you or your pizza oven.

2. When using your pizza oven, there is a risk for your hands to be Protective heat resistant gloves should be worn at all times to avoid and you should never set hot items on or near combustible surfaces. NOT touch any metal parts when your pizza oven is operating. Only the wooden handles to open the door and lift the fuel hatch.

3. Never leave your pizza oven unattended. Do not leave your pizza unattended with the lid open while lit. Be aware of hazards (dry leave decking and other combustible materials) that may be in proximity to pizza oven while it is in use as they may present a fire hazard if a are allowed to come into contact.

4. Keep all electrical cords away from your pizza oven.Pizza oven (being used)ranges from 100'f(50 °C) to 1200'f(650 °C).

5. Pizza oven is safe and hazard free when used as intended and according to safety guidelines.and will provide years of trouble-free use and enjoyment. It is the users'responsibility to main-tain safe operation the pizza oven and to exercise reasonable standards of care at all time 16. Whilst every effort has made in manufacture of your barbecue to remove any sharp edge, you should handle all components with care avoid accidental injury.

WARNING

NOTE FOR CONSUMER: Retain for future Reference

This pizza oven is designed for use outdoors, away from any flamma materials. It is important that there are no overhead obstructions and there is a minimum distance of 122cm (4 ft.)from the side or rear of appliance. It is important that the ventilation openings of the appliance not obstructed. The barbecue must be used on a level, stable surface appliance shall be positioned or protected against direct penetration by trickling water(e.g. rain).

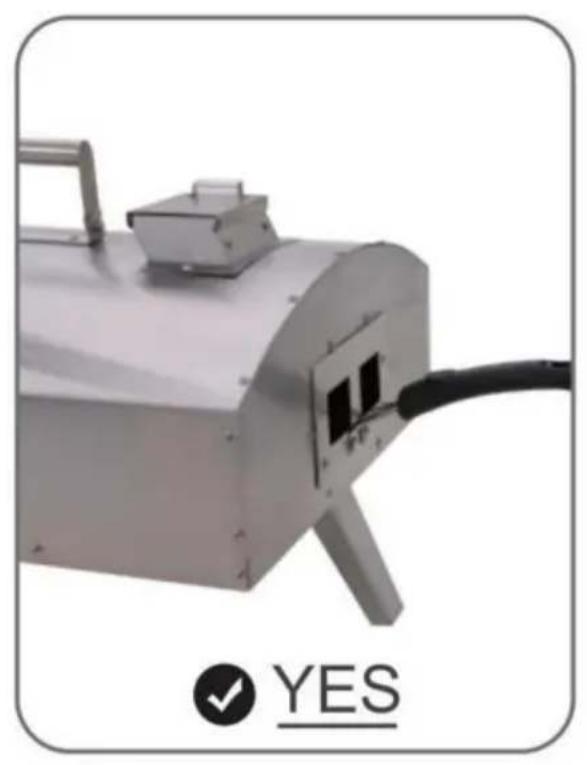

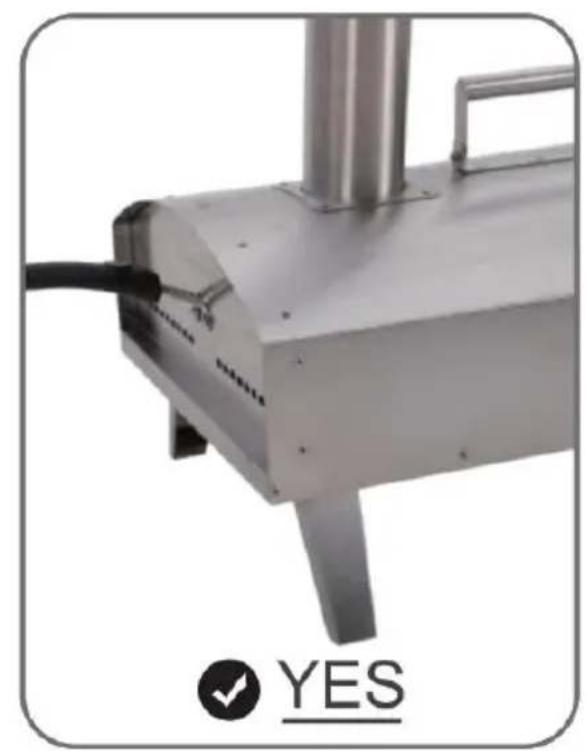

IMPORTANT REMINDER

Industrial machine component with visible pipes and a black cable, labeled 'YES' (no other text or symbols)

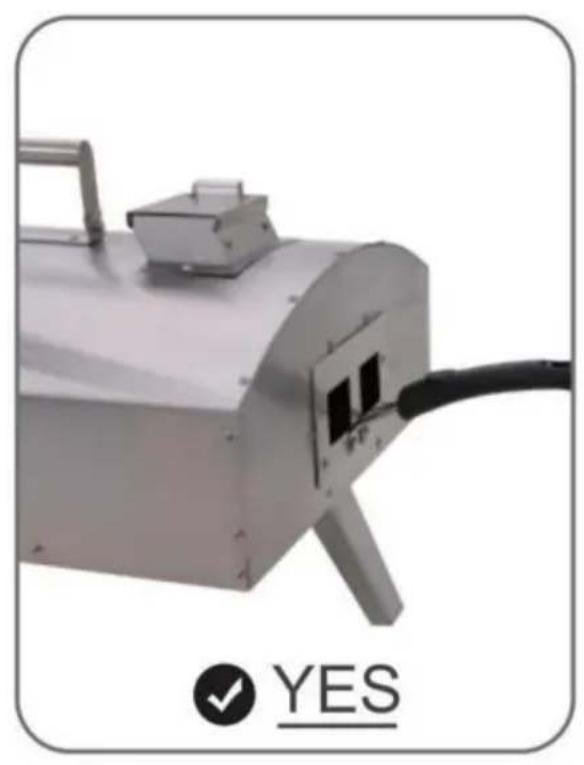

Industrial machine with black cable and labeled 'YES' (no other text or symbols)

Exterior view of a metal mailbox with a hand holding a tray and a black tool, no visible text or symbols on the main subject.

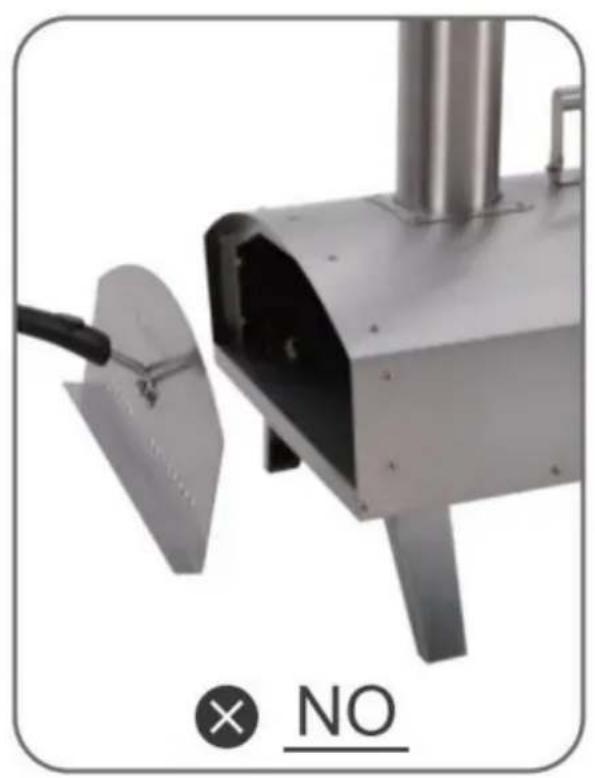

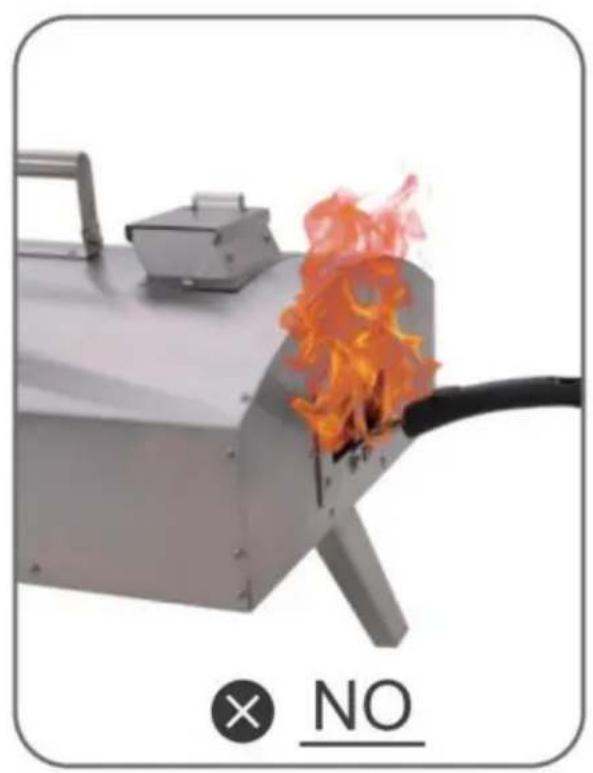

NO

Please make sure the door is closed during baking except when putt fetching food, otherwise fire may come out from the back of oven and hard to keep the baking temperature inside oven.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

CONTENU DU COLIS 1. Corps X

1 2. Cheminée

X 1 3. Chapeau de

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

PRUDENCE:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled components and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. UTILISER DES GRANULÉS DE

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawing of a two-step industrial machine setup, showing transformation from a simple base to a multi-stage assembly (no text or symbols present)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a second (no text or symbols)

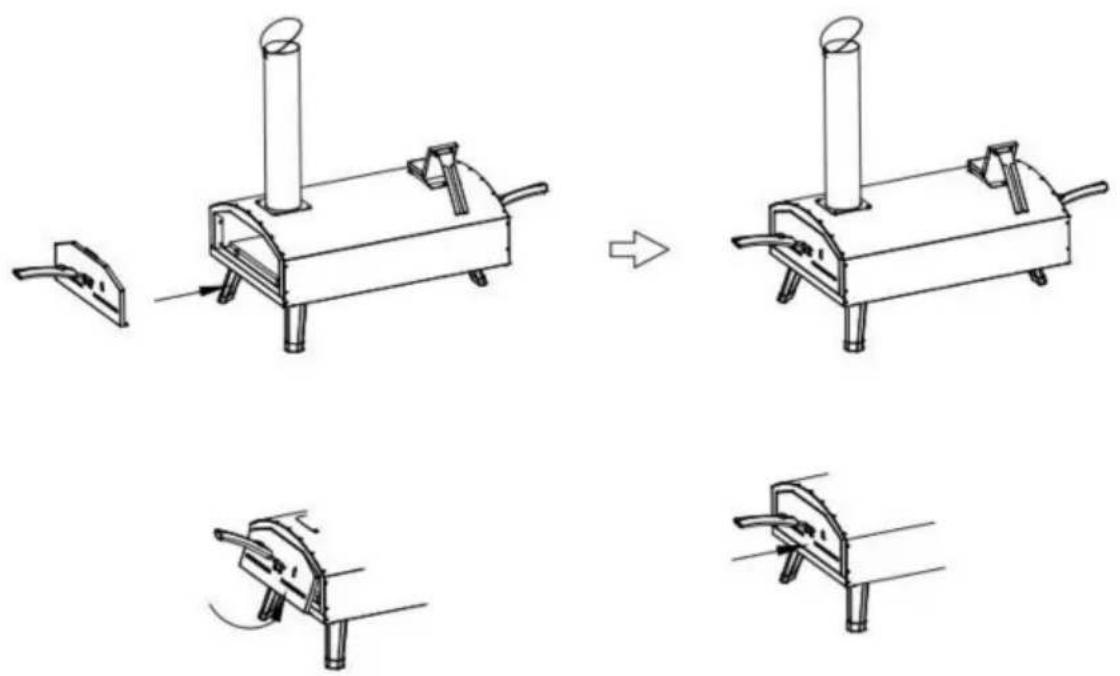

1. Fixez la porte.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning panel with pictograms and symbols, showing a person sleeping under a triangular warning sign and four scenarios of cooking or heating.

Close-up of a metallic industrial machine with a black cable and a 'YES' button (no readable text or symbols on the device itself)

Industrial machine with a black cable and a checkmark 'YES' below it (no visible text or symbols on the device itself)

Exterior view of a metal mailbox with a shovel and spool, no visible text or symbols on the main subject.

NO

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

VORSICHT:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled component '5' and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. VERWENDUNG VON

HOLZPELLETS 7.1 Installieren

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawing of a two-step industrial machine setup, showing transformation from a simple base to a multi-stage assembly (no text or symbols present)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a second (no text or symbols)

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning panel with pictograms and symbols, showing a person in a triangular warning sign and four scenarios of heating or cooking.

Referenz-Kochbuch:

Close-up of a metallic industrial machine with a black cable and a 'YES' button (no readable text or symbols on the device itself)

Industrial machine with a black cable and a checkmark 'YES' below it (no readable text or symbols on the device itself)

Exterior view of a metal mailbox with a shovel and spool, no visible text or symbols on the main subject.

NO

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

ATTENZIONE:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled components and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. UTILIZZARE PELLET DI

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawing of a two-step industrial machine setup, showing transformation from a simple base to a multi-stage assembly (no text or symbols present)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a tray (no text or symbols)

1. Fissare la porta.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning sign with pictograms and symbols, including a person sleeping in a triangular warning triangle and four house icons with checkmarks.

Close-up of a metallic industrial device with a black cable and a 'YES' button, no visible text or symbols on the device itself.

Industrial machine with a black cable and a checkmark 'YES' below it (no readable text or symbols on the device itself)

Exterior view of a metal mailbox with a spool and a black handle, no visible text or symbols on the main subject.

NO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

www.vevor.com/support

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

PRECAUCIÓN:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

2. Instale la chimenea El

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

3. Instalar la chimenea

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled component '5' and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. UTILIZAR PELLETS DE

MADERA 7.1 Instalar la caja

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawings of a two-step industrial machine setup, showing front and side views (no text or symbols)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a tray (no text or symbols)

1. Coloque la puerta.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning panel with pictograms of a person and four scenes: cooking, heating, gathering, and tree making.

Close-up of a metallic industrial device with a black cable and a 'YES' button, no visible text or symbols on the device itself.

Industrial machine with a black cable and a checkmark 'YES' below it (no readable text or symbols on the device itself)

Exterior view of a metal mailbox with a spool and a black handle, no visible text or symbols on the main subject.

NO

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

PIEC DO PIZZY OPALANY DREWNEM

MODEL: GB-PO12

PIEC DO PIZZY OPALANY DREWNEM

MODEL: GB-PO12

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

OSTROŻNOŚĆ:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

2. Zainstaluj komin Śruba

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

3. Zainstaluj komin

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled component '5' and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. UŻYJ PELLETU DRZEWNEGO 7.1

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawings of a two-step industrial machine setup, showing front and side views (no text or symbols)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a tray (no text or symbols)

1. Zamontuj drzwi.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning panel with pictograms of a person and four scenes: cooking, heating, gathering, and tree making.

Close-up of a metallic industrial device with a black cable and a 'YES' button, no visible text or symbols on the device itself.

Industrial machine with a black cable and a checkmark 'YES' below it (no visible text or symbols on the device itself)

Exterior view of a metal mailbox with a spool and a black handle, no visible text or symbols on the main subject.

NO

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

WAARSCHUWING PROP 65:

INSTALLATIEWAARSCHUWINGEN

ALGEMENE WAARSCHUWING

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

VOORZICHTIGHEID:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final product, with labeled component '5' and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow.

7. GEBRUIK HOUTPELLET

7.1 Installeer de pelletbox De

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawing of a two-step industrial machine setup, showing transformation from a simple base to a multi-stage assembly (no text or symbols present)

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a tray (no text or symbols)

1. Bevestig de deur.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

Warning panel with pictograms of a person and four scenes: cooking, heating, gathering, and tree making.

Close-up of a metallic industrial device with a black cable and a 'YES' button, no visible text or symbols on the device itself.

Industrial machine with a black cable and a checkmark 'YES' below it (no visible text or symbols on the device itself)

Exterior view of a metal mailbox with a spool and a black handle, no visible text or symbols on the main subject.

NO

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable stove with a cylindrical top and side legs (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Illustration of three different tools: a screwdriver, a spray gun, and a wrench (no text or symbols present)

FÖRSIKTIGHET:

Technical line drawing of a mechanical assembly with two views showing internal components (no text or symbols)

2. Montera skorstenen

Diagram showing a 3D cylinder being folded into a 2D cylinder, with labeled parts and an arrow indicating transformation.

3. Montera skorstenen

Diagram showing a device being processed from a base to a top, with no visible text or symbols.

Technical diagram showing a device being processed from a base to a final output, with labeled component '5' and directional arrow.

Technical diagram showing a device component before and after assembly, with labeled parts and directional arrow indicating process.

Technical diagram showing the assembly of a computer drive into a box, with numbered components and directional arrows indicating process flow.

Line drawing of a two-step industrial machine setup, showing transformation from a simple base to a multi-stage assembly (no text or symbols present)

8. Montera pizzastenen.

Line drawing of a portable stove with two cylindrical tanks, one being added to a box and the other to a second (no text or symbols)

9. Fäst luckan.

Line drawings of a portable stove with three different mounting fixtures, showing structural changes (no text or symbols)

INTERIÖR AV GRILLBOTTEN

INTERIÖR AV GRILLBOTTEN

Warning panel with pictograms and symbols, showing a person in a triangular warning sign and four scenarios of heating or cooking.

Referens kokbok:

Close-up of a metallic industrial device with a black cable and a 'YES' button, no visible text or symbols on the device itself.

Industrial machine with a black cable and a checkmark 'YES' below it (no readable text or symbols on the device itself)

Exterior view of a metal mailbox with a spool and a black handle, no visible text or symbols on the main subject.

NO

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
