Product Type	Display Refrigerator
Brand	Vevor
Model	D27TW-G
Operating Temperature	2°C to 8°C
Power Supply	220-240 V ~ 50 Hz
Power Consumption	145 W
Refrigerant	R290 (propane)
Dimensions (W × D × H)	760 × 670 × 280 mm
Net Weight	26 kg
Cooling Type	Direct cooling (static)
Glass Material	Curved tempered safety glass
Intended Use	Display and preservation of food (sushi, ready meals)
Installation	On flat and firm floor, away from heat and direct sunlight
Minimum distance wall/obstacle	10 cm around the appliance for ventilation
Maximum tilt during transport	45°
Cleaning	Unplug before cleaning; use a soft dry cloth; do not rinse with water
Defrosting	Manual (stop and clean ice if necessary)
Lighting	Interior lamp (refer to manual for replacement)
Warranty	1 year (excluding glass and damage due to misuse)
After-sales service	Technical support: www.vevor.com/support
Country of Origin	China

Frequently Asked Questions - D27TW-G Vevor

Why does the compressor not start?

First check the power supply and the plug. Make sure the ambient temperature is higher than the set temperature. If the problem persists, contact technical support.

The temperature inside the display case is too high. What should I do?

Reduce the amount of stored food, especially if it is hot. Check that the ambient temperature is not excessive and that the display case is not exposed to sunlight. Let the appliance run for a few hours after each loading.

Why is there condensation on the glass?

In case of high ambient humidity, condensation may appear on the outer surface of the glass. Wipe it with a soft dry cloth. Activate the defogging function if your model has it.

The refrigerator is making an abnormal noise. Is this normal?

Check that the appliance is stable on the floor. Operating noises from the compressor and fan are normal, but excessive noise may come from looseness. Tighten the base screws if necessary.

How to clean the display case correctly?

Always unplug the appliance before cleaning. Use a soft dry or slightly damp cloth. Never spray water directly onto the appliance. Dry thoroughly before reconnecting.

What is the minimum distance to be maintained around the appliance?

Leave a space of at least 10 cm between the display case and walls or other objects to ensure good heat dissipation from the condenser.

Can I store hot food in the display case?

It is not recommended to introduce large quantities of hot food, as this can overload the cooling system and increase internal temperature. Allow food to cool to room temperature before placing it in the display case.

How to maintain the appliance during prolonged non-use?

Thoroughly clean the inside and outside, dry it, then store it in a dry and ventilated place. Regularly check for rodents. Before reusing, inspect the power cord.

Can I replace a part or repair the appliance myself?

Only a qualified professional should work on electrical components or the refrigeration circuit. Any unauthorized intervention voids the warranty and may be dangerous.

How to get technical support or a spare part?

Visit www.vevor.com/support to contact technical support and request an electronic warranty certificate. Spare parts can be ordered via customer service.

USER MANUAL D27TW-G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

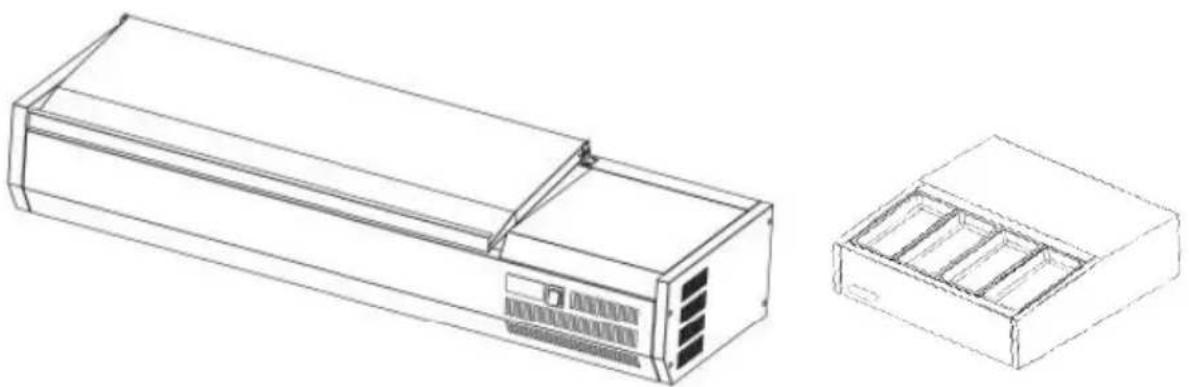

REFRIGERATED SEASONING TABLE

MODEL: D40TW-G, D48TW-G, D55TW-G, D60TW-G, D71TW-G, D27TW-G

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: D40TW-G, D48TW-G, D55TW-G, D60TW-G, D71TW-G, D27TW-G

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices

Content

I. Main Technical Parameters II. Cautions III. Precautions for use IV. Common faults and troubleshooting V. Non-faults VI. Electrical Schematic Diagram VII. After-Sale Service VIII. Appendix with Shipment

Preface

Dear users:

1. Welcome to use the Sushi FG showcase series manufactured by our company. It is designed for sites like various food and cuisine stores and is mainly used for refrigeration and display of articles. The refrigeration temperature is 2°C or below.
2. The product is designed scientifically and properly in structure, energy-saving, clean, and with better fresh keeping due to direct cooling structure design, featuring fast cooling and uniform temperature inside.

The glass case is made of closely lapped hot-bent safety glass sheets that are thoroughly transparent. Products in this series feature a good-looking appearance, practicality, proper design, fast refrigeration, low power consumption, low noise, healthiness, and uniform temperature.

1. All materials, components, and refrigeration units for the product are sourced from internationally professional, famous brand manufacturers to ensure their quality.
2. The product adopts direct cooling copper tube polyurethane integral foam, which is safe, electricity-saving, nice-looking, widely applied, and makes the counter face temperature more uniform.
3. This product has a humanized design and increases the display function of the commodities. It is nice and decent, so it plays a certain decorative effect in the places where it is used.
4. The executive components of the refrigeration system and the controlling components of the electrical equipment are from abroad brand-name products, ensuring the operation of the product is stable and reliable. The reasonable system design improves the heat exchange efficiency. Thus, the cooling inside the cabinet is faster, the temperature is lower, and it is more energy-efficient.

In order to use our product better and prolong its service life, carefully read the operation manual of this product before using.

I. Main Technical Parameters

Model	Storage temperature	voltage/frequency	Input total power	Refrigerant	Dimensions (length×width ×height mm)	Net weight (kg)
D40TW-G	2℃~8℃	220V~240V50Hz	140W	R290	955*404*280	31.5
D48TW-G			140W		1130*404*280	35
D55TW-G			150W		1305*404*280	39
D60T W-G			155W		1480*404*28 0	43
D71T W-G			165W		1655*404*28 0	22.5
D27T W-G			145W		760*670*280	26

II. Cautions

1. Must use a separate single-phase triple-pole power socket with the earth port (E) reliably earthed. Note: do not use running water or gas as the earthing terminal. Otherwise, if the electric system has troubles, there is no earthing protection, which will threaten personal and property safety. Remember that our company will not bear any responsibilities for accidents and losses caused by electric damage due to non-compliance with the above requirement when operating and using.
2. Do not directly place the power line on the passage. There should be a trough plate with certain strength for shielding or a groove with a cover to avoid damage from heavy loads and sharp tools.
3. Never put hazards which are volatile, corrosive, radioactive, flammable explosive, poisonous, or polluting the food in the cabinet.
4. Remember to cut off the power before cleaning the product or changing the lamp. Do not rinse it in case of the electrical appliance being damp, soaked, or having other accidents.
5. Once the product has electric and refrigeration system troubles, non-professional electricians and personnel without sufficient refrigeration technology and rich experience shall not randomly fiddle with, disassemble, or repair it, in case of causing more serious accidents and even damage, which will lead to more losses.

III. Precautions for Use

1. Push and place gently when carrying, with inclination not exceeding

degrees.

1. The product should be placed in a ventilated area, away from heat and dust. Direct sun exposure should be avoided as it may affect the refrigeration effect. The ground should be even and firm. The distance of the cabinet's periphery from walls and other objects should be no less than 10 cm to ensure good heat radiation from the condenser. The showcase should be placed in a specified area to prevent displacement due to external force.
2. The showcase should be operated for a period of time to confirm that the refrigeration system is in normal condition before each use. After the temperature inside is reduced to normal, food can be placed into the refrigeration tray for refrigeration.
3. Do not place too much hot food on the showcase's surface, as this may cause an instantaneous overload.
4. For long-term discontinuation, clean the product internally and externally. Then dry it and place it in a dry, cool, and ventilated place. Check frequently to prevent damage from rats. When restarting the equipment, check the electrical lines to see if they have been bitten or damaged by rats. After strict inspection and confirmation, the equipment can be restarted for use.
5. Non-professionals shall not randomly open or replace components or electrical elements in the freezer and refrigeration units.
6. Ask professional maintenance personnel to replace damaged power cords to avoid danger.
7. If you cannot repair the failure by yourself, please ask professional personnel to resolve it in a timely manner, or inform our technical personnel to repair the failure.

IV. Common Faults and Troubleshooting

If you think the product has troubles, check and troubleshoot according to the following form. If it still fails, please contact our company or sales department. Non-professionals should not randomly dismantle or

maintain product structures, electrical elements, or the refrigeration system. Check and troubleshooting must be done by professional technicians, otherwise accidents can easily occur, leading to bigger losses. Once the product is found to be electrified, please cut off power immediately and then contact professionals for check and repair.

Common Troubleshooting

Faults	Fault Causes	Scope of Examination	Troubleshooting
Compressor not working	Power off	Check by multimeter	Switch on
	Plug loose	Check	Plug in tightly
	Starter relay socket loose	Dismount shroud for check	Plug the pin tight
Over high temperature Inside the showcase	The storied goods are too much inside the showcase.		Reduce food
	Ambient temperature too high	Test by thermometer	Change ambient temperature
Too loud noise	The showcase is not placed stable.	Check	Placed stable
	Fan and compressor castors footing loose	Check	Fasten the footing screws

V. Non-faults

1. When the compressor operates, the surface will be hot. In normal compressor operation, the surface temperature will be high. This is a normal phenomenon. Do not touch with hands.
2. There is moisture condensation on the glass surface. With high ambient temperature and humidity, it is easy for dewdrops to appear on the external surface of the glass. Please wipe it dry promptly with a soft cloth or start the heating wire demisting function.
3. The room temperature is lower than the controlling temperature of the temperature controller, causing the compressor to break down. Because the room temperature is lower than the temperature set on the controller, the data collected by the temperature sensor is insufficient to start the compressor.

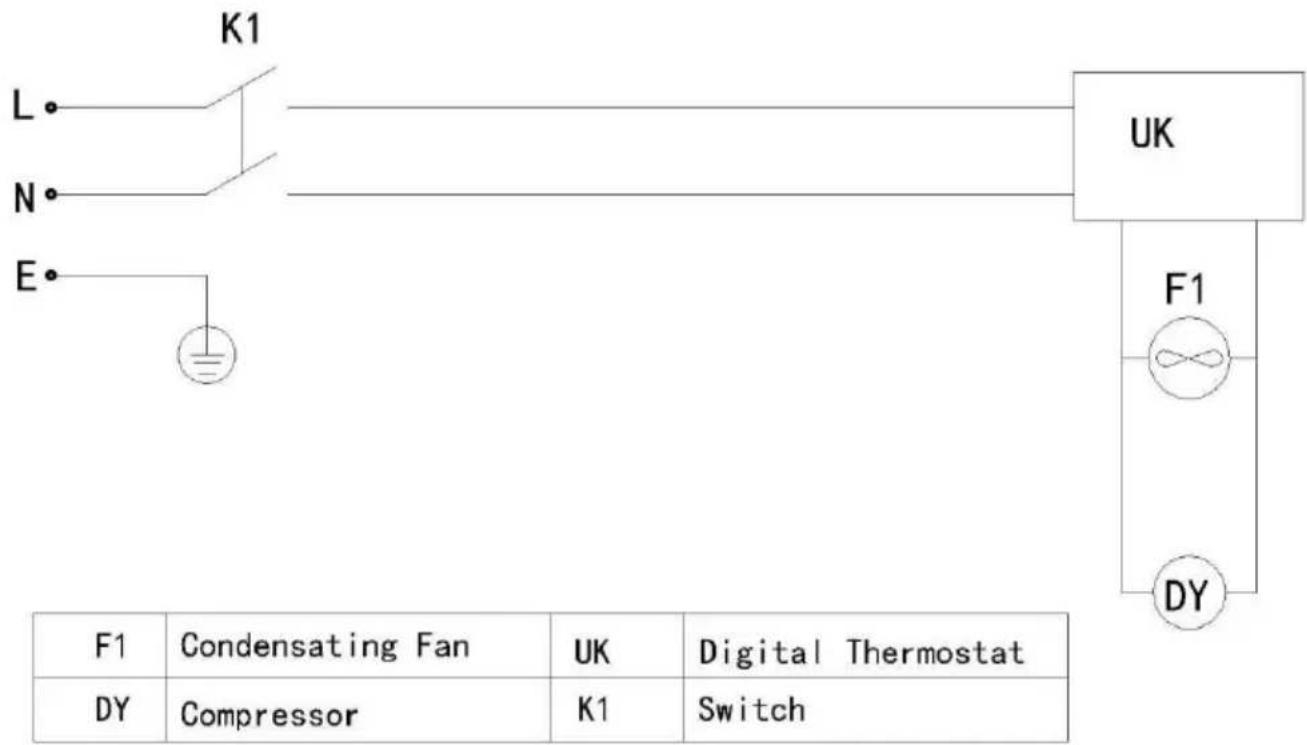

VI. Electrical Schematic Diagrams

VII. After-Sale Service

Provided that the user follows the user manual, the product will have a one-year warranty from the delivery date. Our company will be responsible for the replacement and repair of damaged components caused by poor quality during this period (glass damage excluded).

Proper fees will be charged for repairing damaged products caused by the following reasons:

1. Not following the user manual.
2. Randomly using unmatched components for replacement.
3. Voltage fluctuation exceeding the permissible range or other natural factors.

VIII. Appendix with Shipment

1. 1. Product instruction. 2. Quality certificate and warranty card.
