USER MANUAL YFBH-64D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multifunctional Weightlifting bed

MODEL:YFBH-64D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Weightlifting bed

MODEL: YFBH-64D

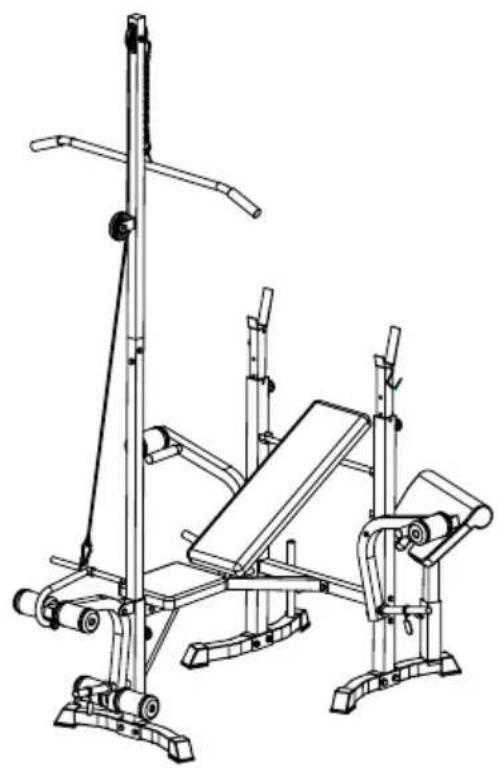

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you at there are any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment. This manual is for customer service to make better. Written with this equipment. Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method of this misuse of any other methods caused by misuse The Company does not give guarantee of any kind, including (but not limited to) the marketability offered to Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable for any € contained in this material, or for any accidental or consequential damages resulting from the provision, actual performance or use of this manual.

This manual contains proprietary information protected by patent law. All rights reserved. Without the written consent of the Company, this manual is not allowed to be photocopied, copied, or translated any part into another language.

The content contained in the manual may be changed without the user's noti

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of the performance of the equipment only if the assembly operation, returning, improvement and maintenance are carried out by personnel approved by the Company, the electrical equipment concerned conforms to national standards, at the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) are in regular use and repair condition, free of manufacturing process and raw materials faults for one year from the date of shipment. None of our inspections is perfect.

Precautions for use

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

• Do not use it if you are pregnant.
  ·Before beginning any exercise program consult your physician.
• Read all instruction before using this product.
• Keep children and pets away from sit-up bench while in use. Children should not use. The sit-up bench without adult supervision.
• Inspect and tighten all parts each time before using this sit-up bench.
• Please clean this machine using damped wipes only.Do not use any cleansers.Please Consult with customer service if you have any questions.This product should be placed on a flat surface when using.Place an anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembled.

·If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

- Store idle equipment out of reach of children and do not allow anyone unfamiliar with the equipment to use it. This tool is dangerous in the hands of untrained users.

- When using the product, the crowd of onlookers must keep adistance of 3 meters to avoid accidental injury.

SAVE THESE INSTRUCTIONS

PART LIST

NO.	DESCRIPTION QTY NO.	DESCRIPTION	QTY
1.	Rear Base Tube 2 31. ○25 End Cap	10
2.	Connect Tube 1 32. ○19 End Cap 2
3.	Right Stand Frame 1 33. Handle Grip		4
4.	Backrest Adjustable	1	34. ○19x50 End Cover	2
5.	Left Stand Frame	1 35. Small Foam	2
6.	Barbell Support	2 36. Quick Pin	3
7.	Arm Mat Tube	1 37. Pulley	2
8.	Right Butterfly Arm	1 38. Bushing	2
9.	Left Butterfly Arm	1 39. Snap Hook	3
10.	Insert Frame	1 40. Chain	1
11.	Weight Plate Tube	1 41. Cable	1
12.	Main Frame	1 42. Spring Cilper	3
13.	Front Stand Frame 1 43. Safety Hook Right	1
14.	Front Base	1 44. Safety Hook Left	1
15.	Support Tube	1 45. M6 Washer	2
16.	Backrest Tube	2 46. M6 Nut	2
17.	Handle Bar	4 47. M10 x 65 Bolt 10
18.	Leg Frame	1 48. M10 x 130 Bolt	3
19.	Foam Tube	2 49. M10 x 55 Bolt 5
20.	Lat J Hook	1 50. M10 x 45 Bolt	2
21.	Small Handle Bar	1	51. M10 x 50 Bolt	1
22.	Lat Upper Frame	1	52. M10 x 60 Bolt	1
23.	Lat Stand Frame	1 53. M10 x 20 Bolt 8
24.	Lat Bar	1 54. M8 x	20 Bolt	8
25.	Seat	1 55. M8 x	40 Bolt	4
26.	Backrest	1 56. M8 x	20 Allen Bolt	1
27.	Arm Mat	1 57. M10	Washer	50
28.	Big Foam	6 58. M8 Washer	12
29.	Foot Cap	6 59. M10 Nut	20
30.	☐38 End Cap	7

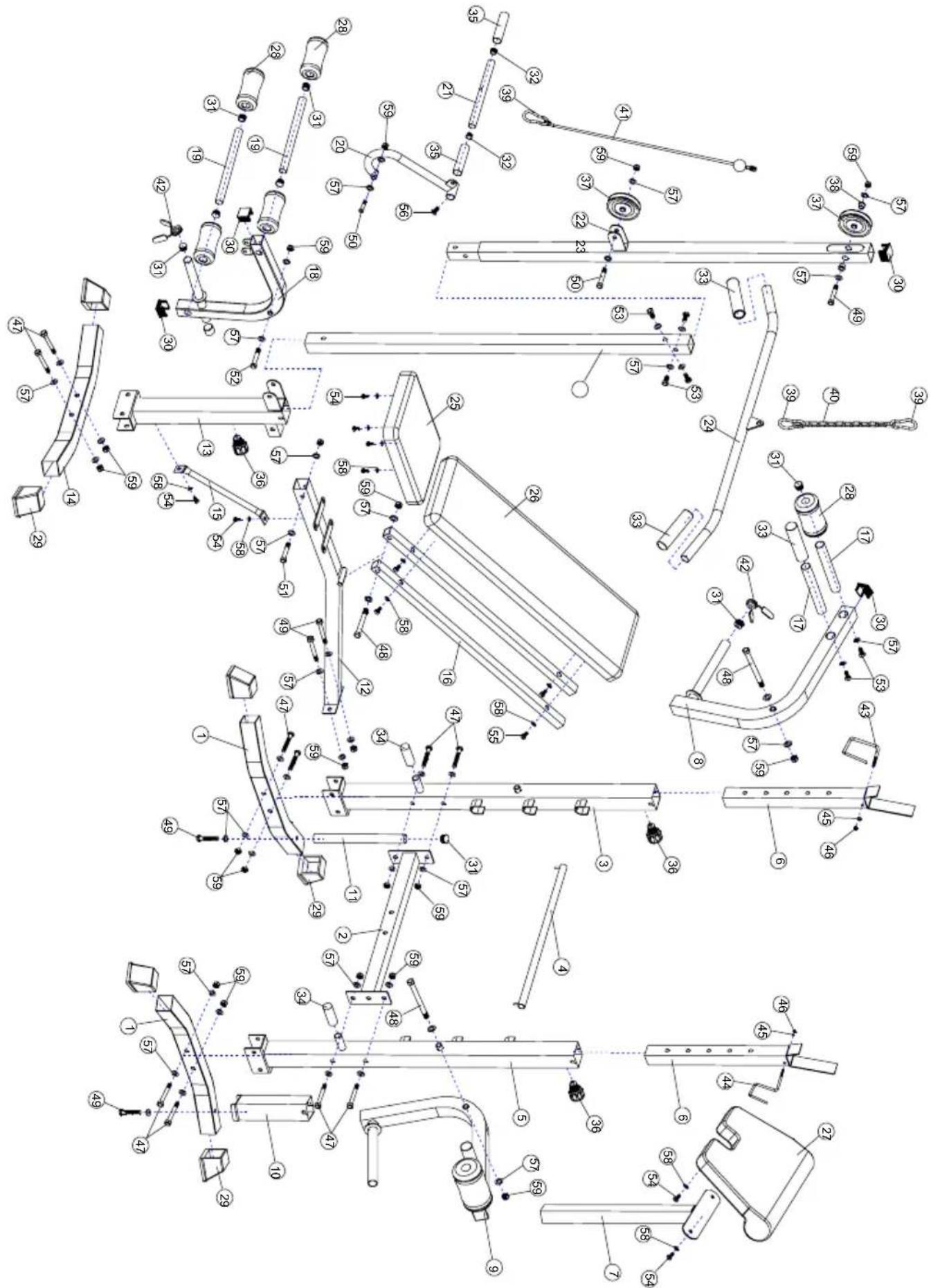

PART LIST

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

PART LIST

1.	2.1PC2PCS	3.1PC		4.1PC
5.1PC		6.2PCS	7.1PC	8.1PC
9.1PC	10.1PC	11.1PC	12.1PC
1PC	14.1PC	15.1PC	2PCS	17.4PCS
18.1PC	19.2PCS	20.1PC	21.1PC
23.1PC	24.1PC	25.1PC	21PC
28.6PCS	29.6PCS	30.7PCS	31.10PCS	32.2PCS
33.4PCS	34.2PCS	35.2PCS	36.3PCS	37.2PCS

PART LIST

38.		39.	40		41.	42.
		3PCS2PC	...	1PC	3PCS
43.		44.	45.	46.	47.
			[B-DY]	[0200]
	1PC	1PC	M6 2PC2M6	M10x65		10PCS
48.	49.	50.	51.		52.
	3PCSM	10x130	5PCSM10x55	2PCSM10x45	1PCM10x50	1PCM10x60
53.		54.	55.	56.	57.
				[344K]
	M10x20	8PCS	M8x20	8PCS	M8x40	4PCS
58.	59.	12PCSM8	20PCSM10

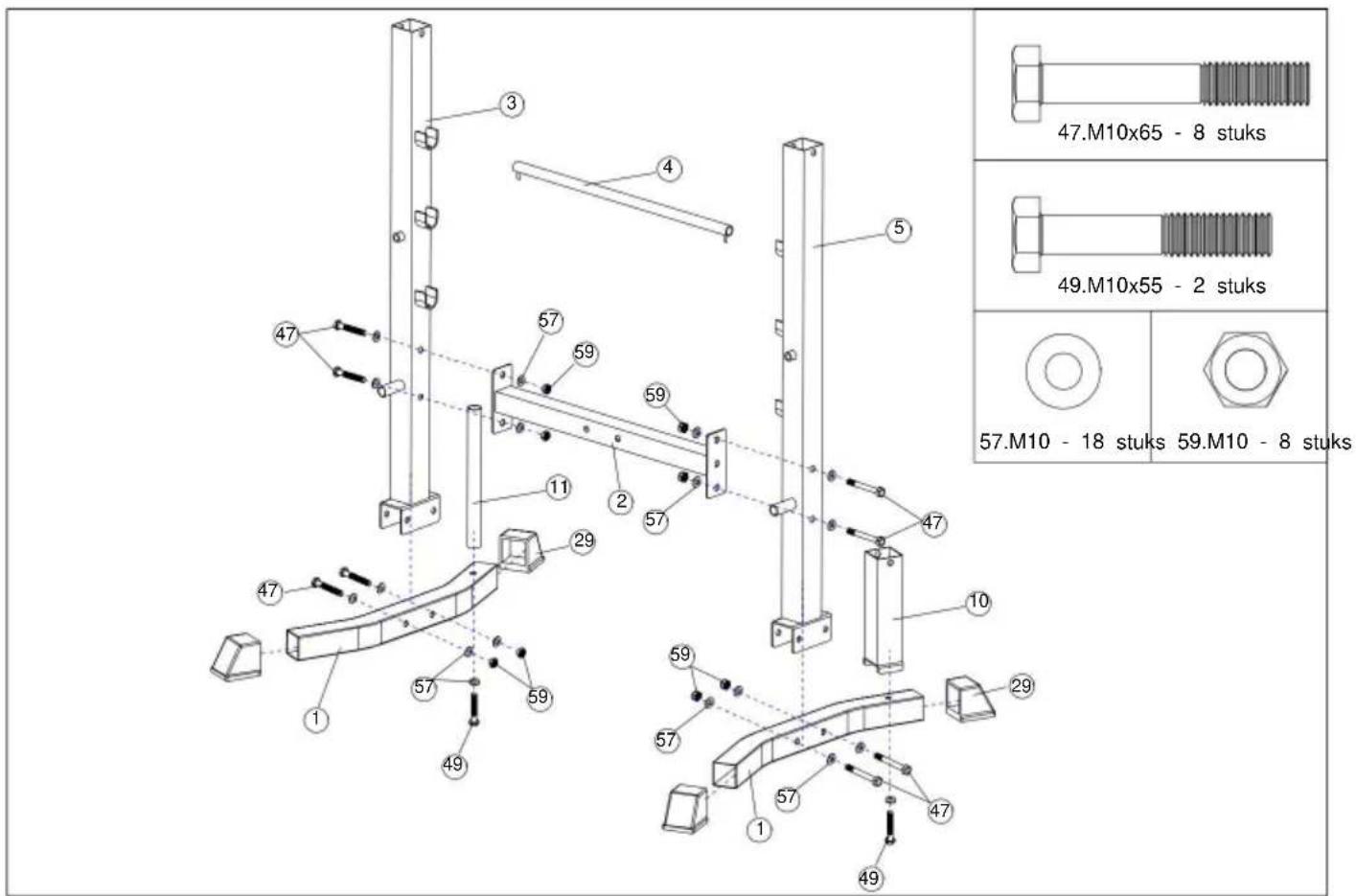

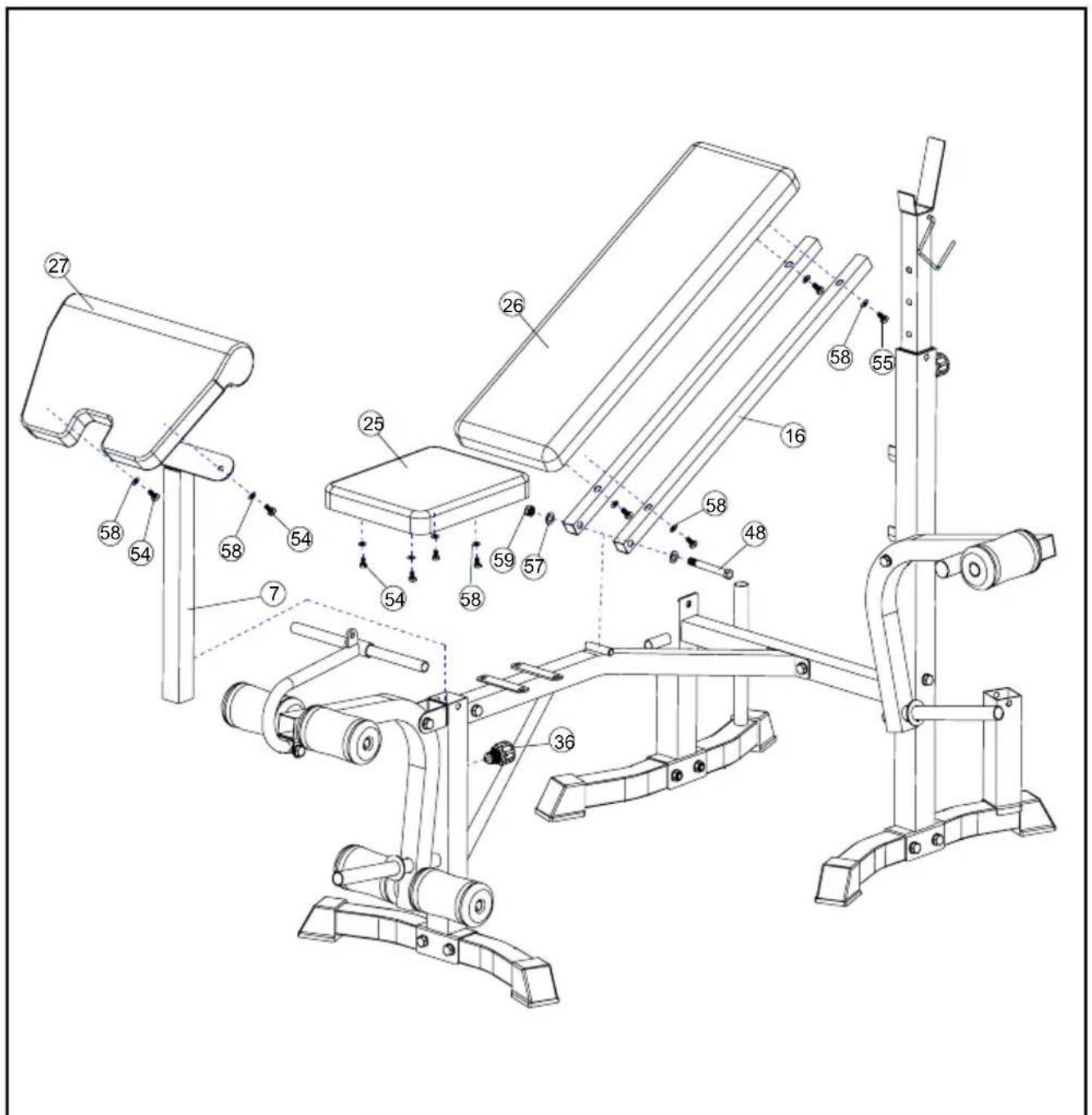

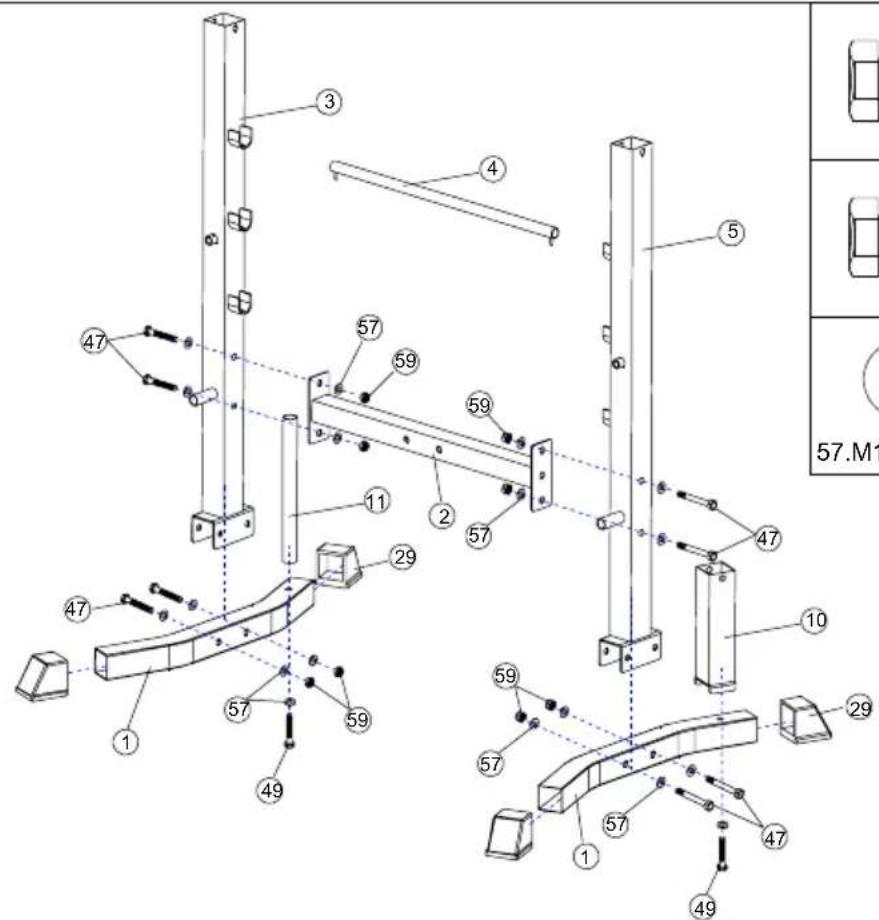

Installation steps

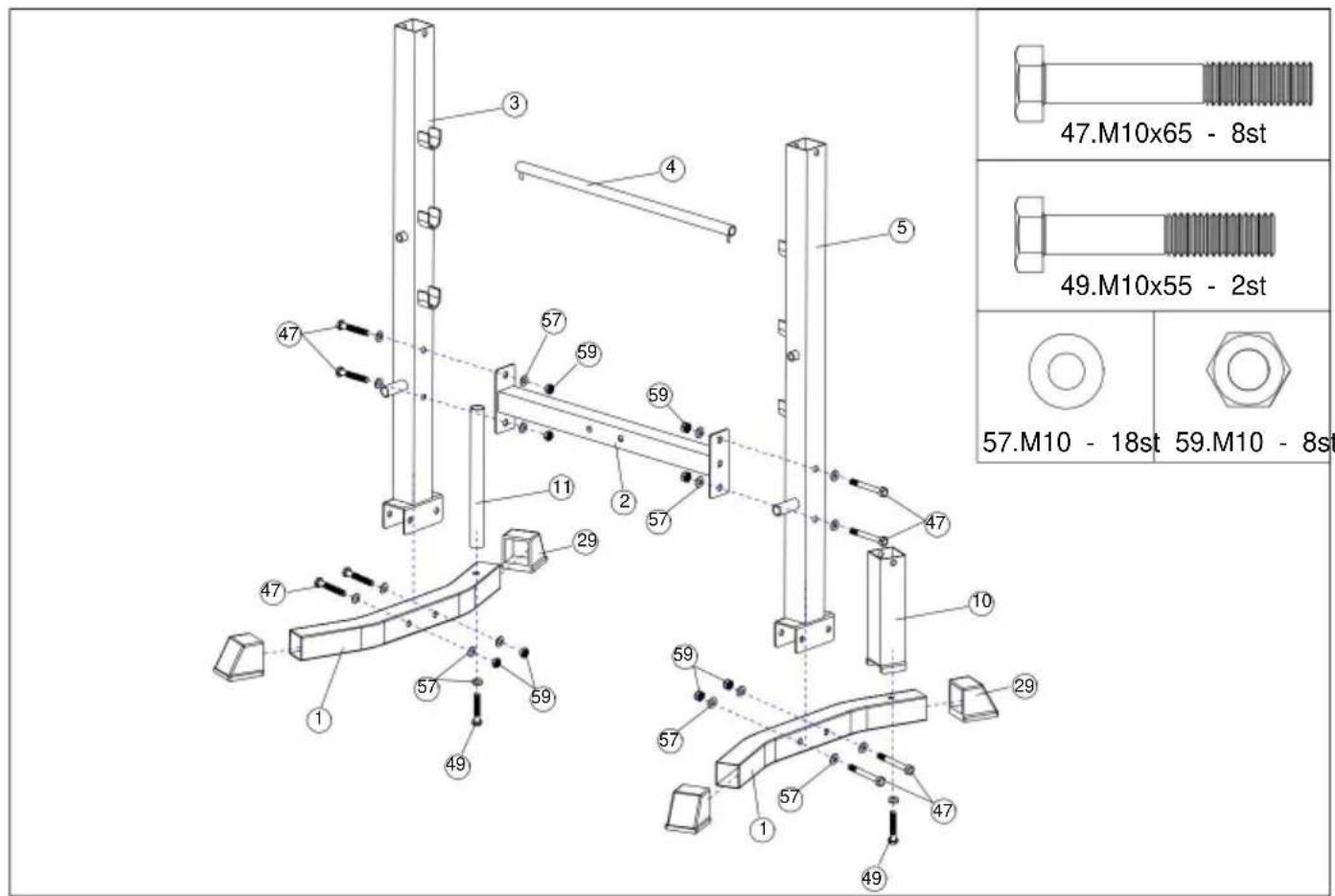

Technical diagram of a mechanical assembly with numbered components and labeled parts, including a zoomed-in view.

57.M10 - 18pcs

59.M10 - 8pcs

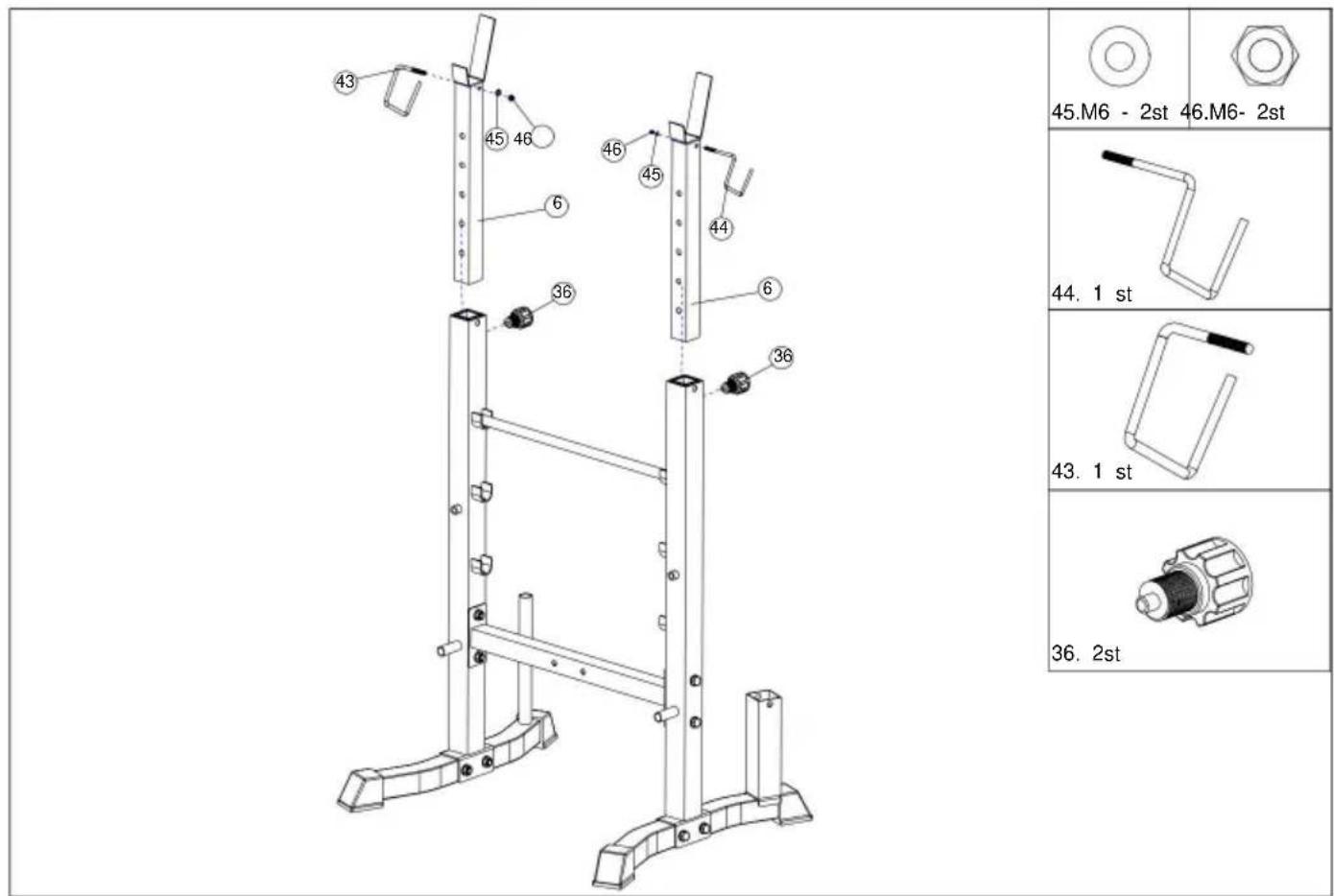

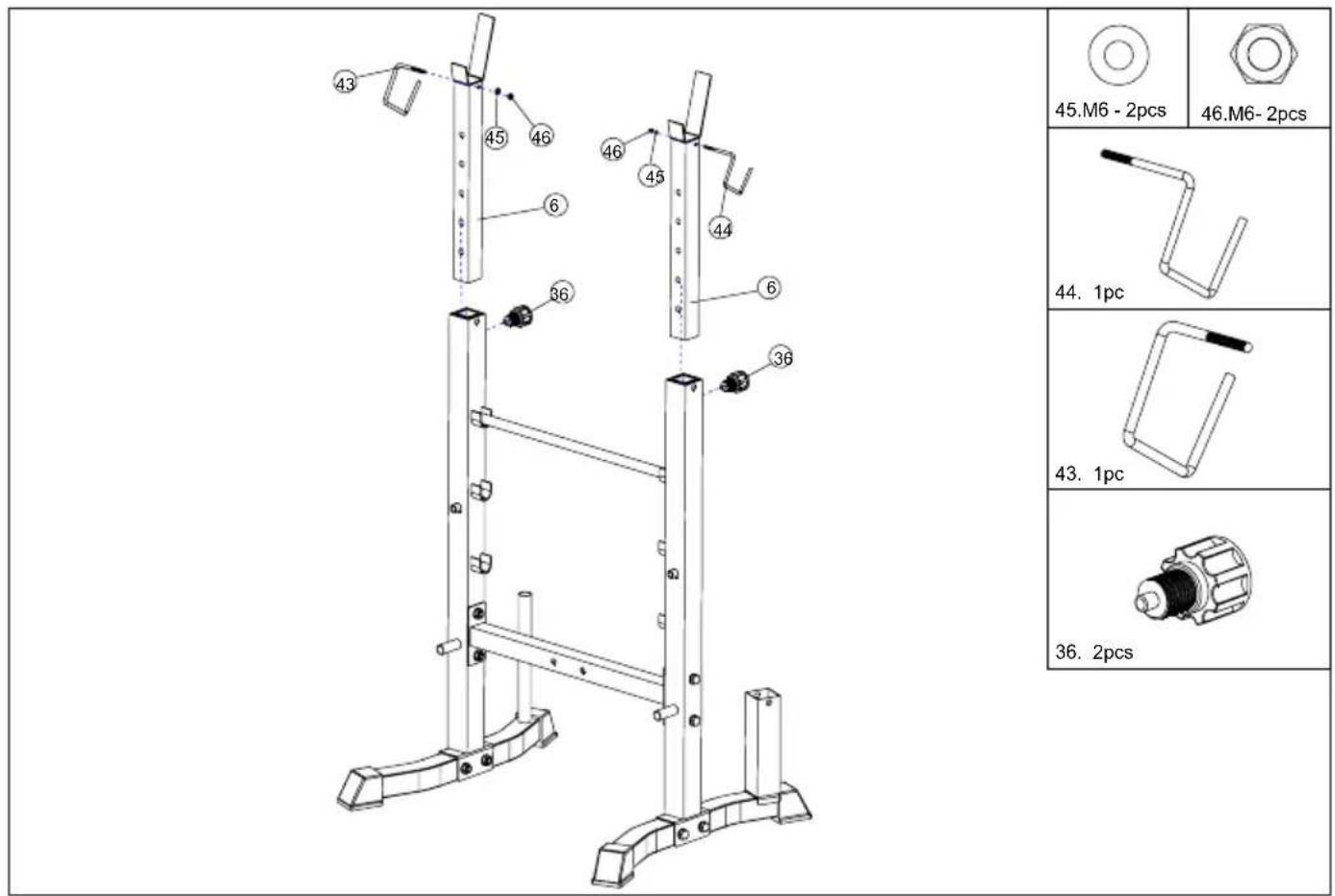

43 45 46 45.M6 - 2pcs 46.M6- 2pcs 44. 1pc 43. 1pc 36. 2pcs

Installation steps

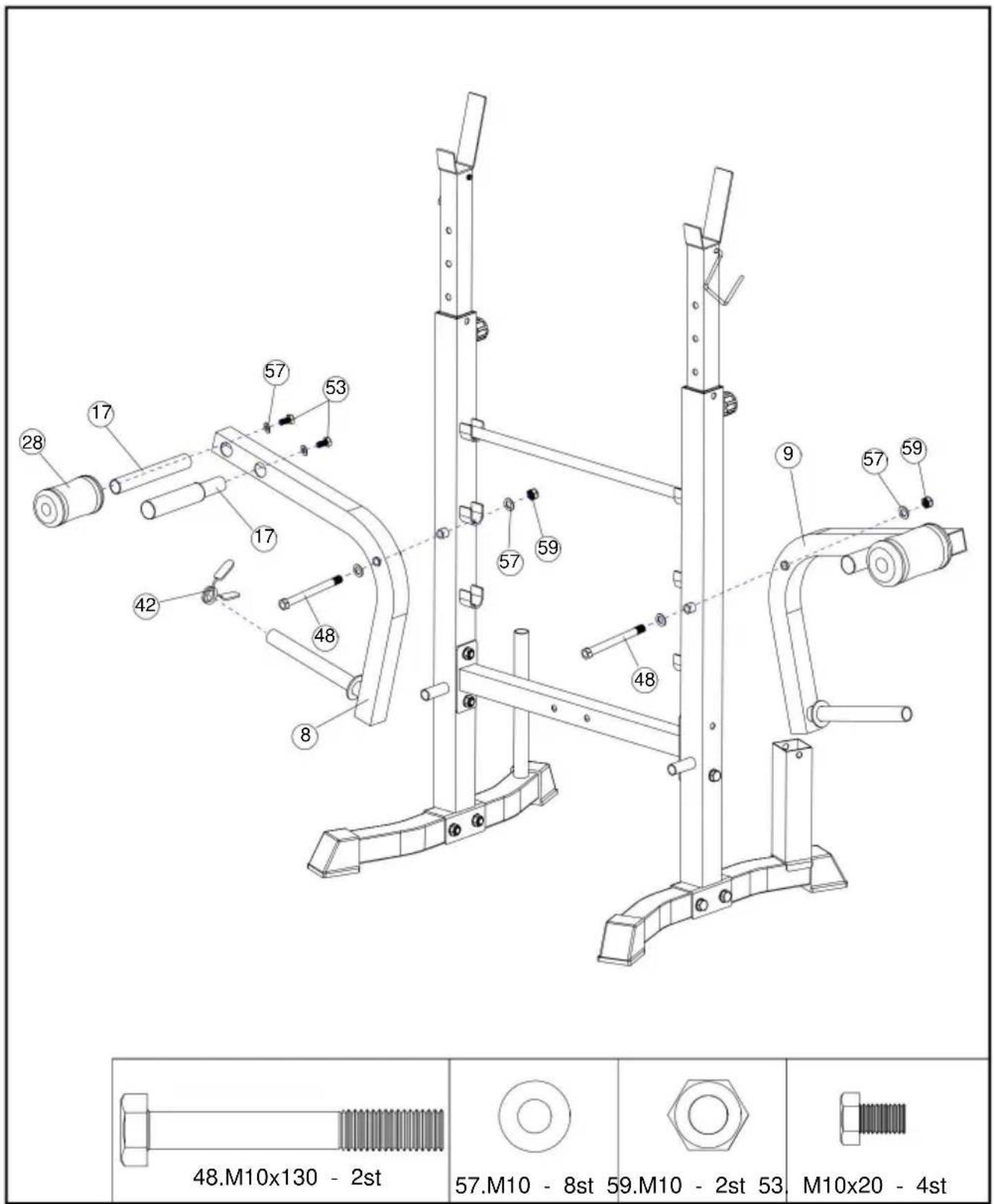

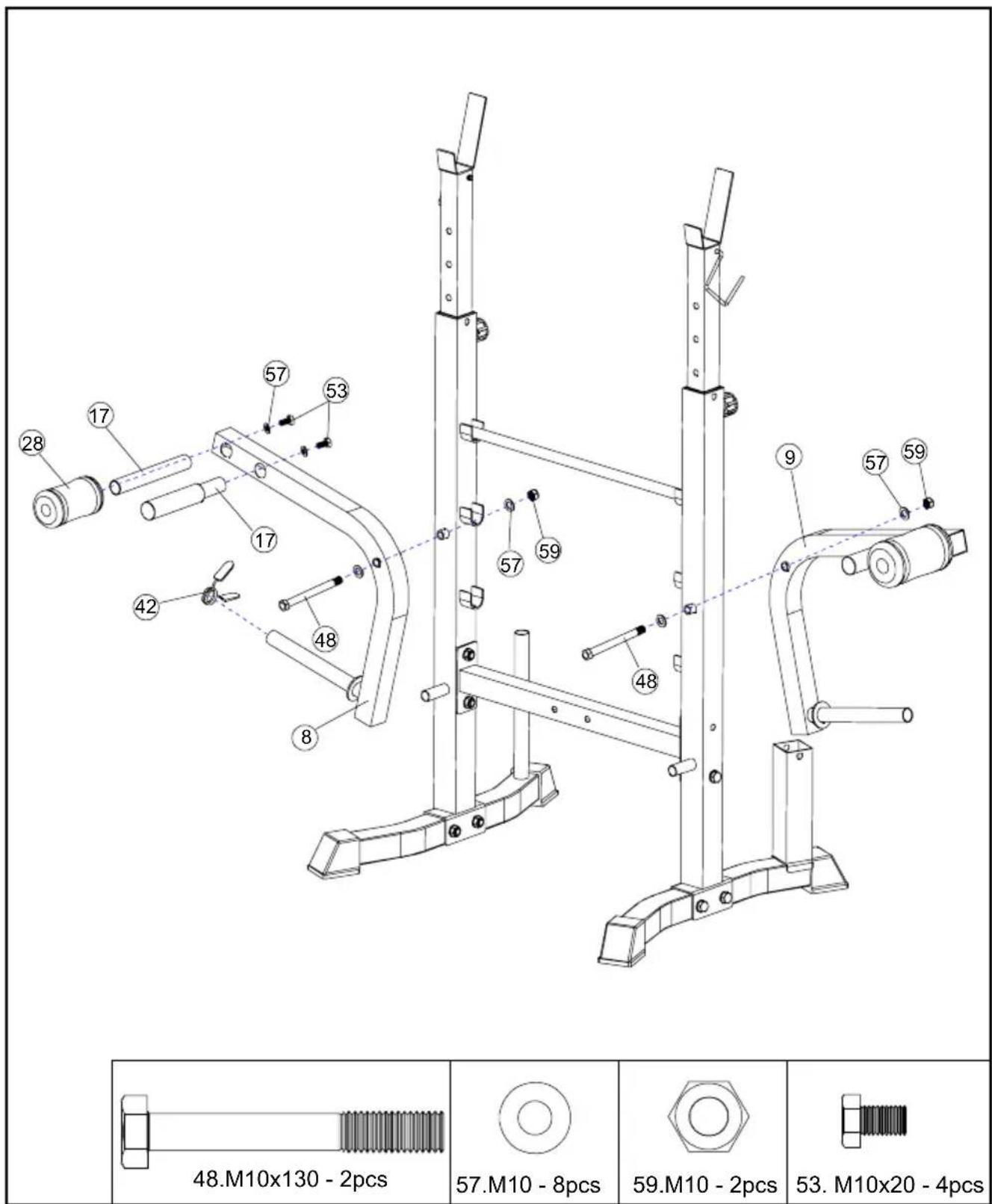

48.M10x130 - 2pcs 57.M10 - 8pcs 59.M10 - 2pcs 53. M10x20 - 4pcs

48.M10x130 - 2pcs	57.M10 - 8pcs	59.M10 - 2pcs	53. M10x20 - 4pcs

Installation steps

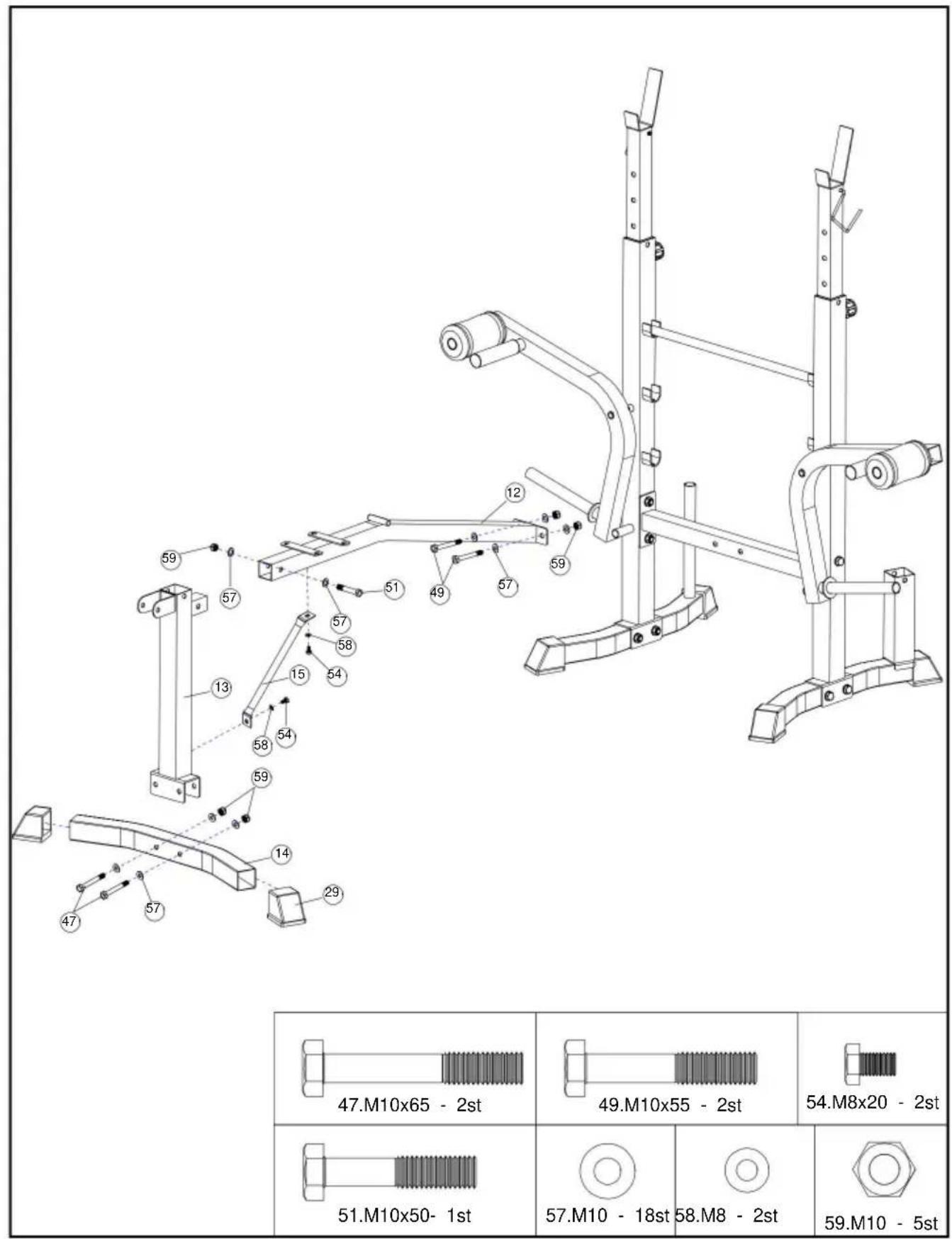

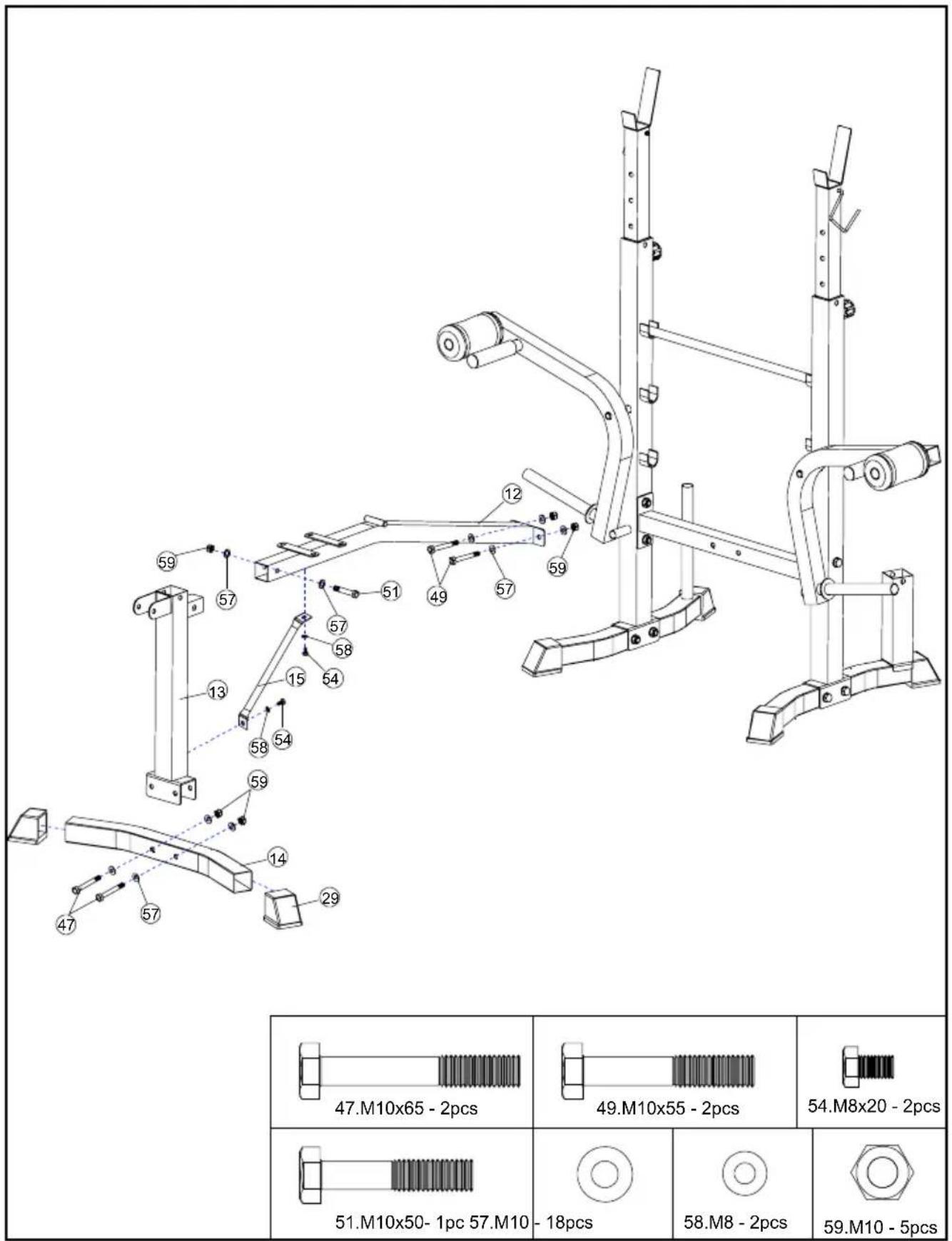

47.M10x65 - 2pcs 51.M10x50- 1pc 57.M10 - 18pcs 58.M8 - 2pcs 59.M10 - 5pcs

Installation steps

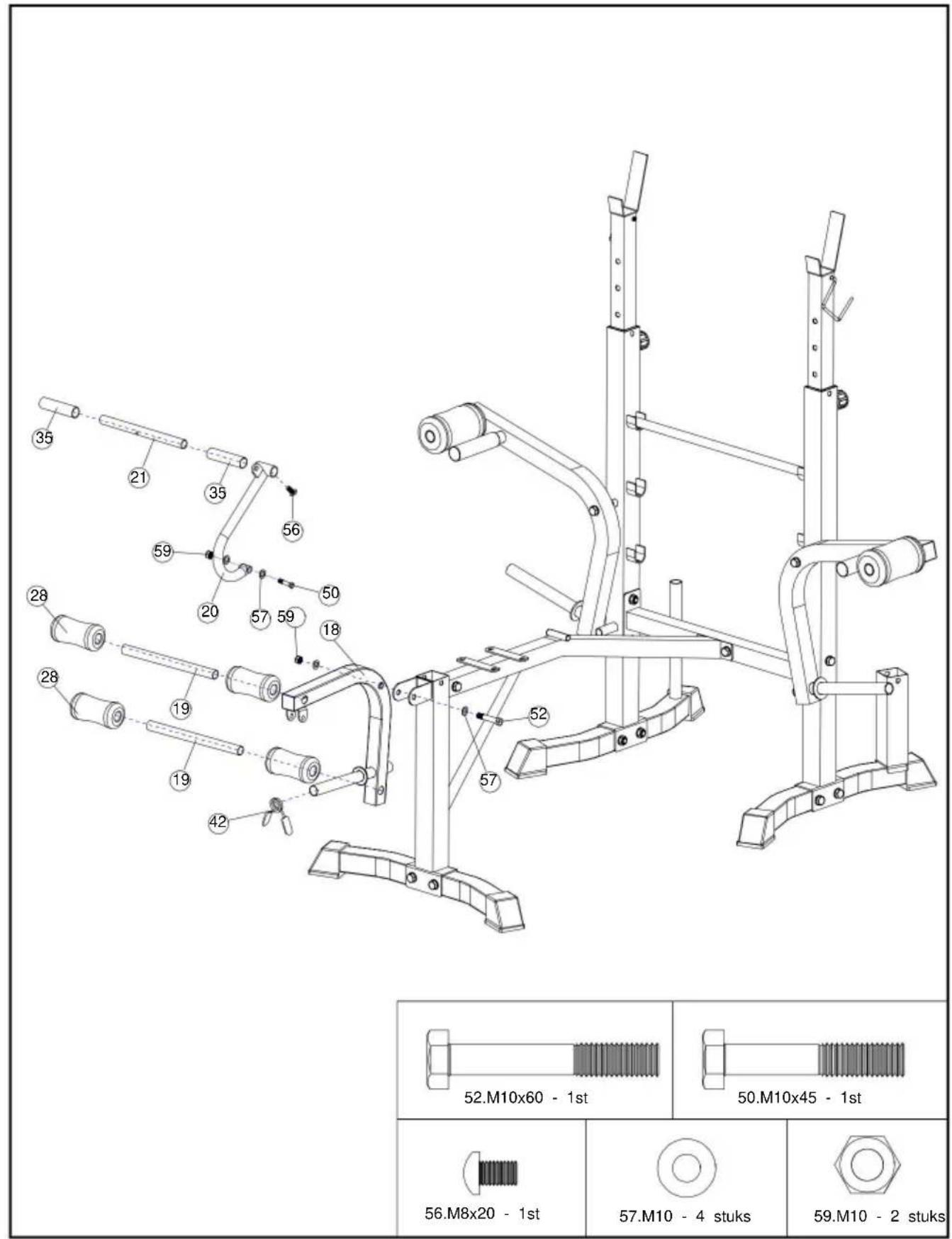

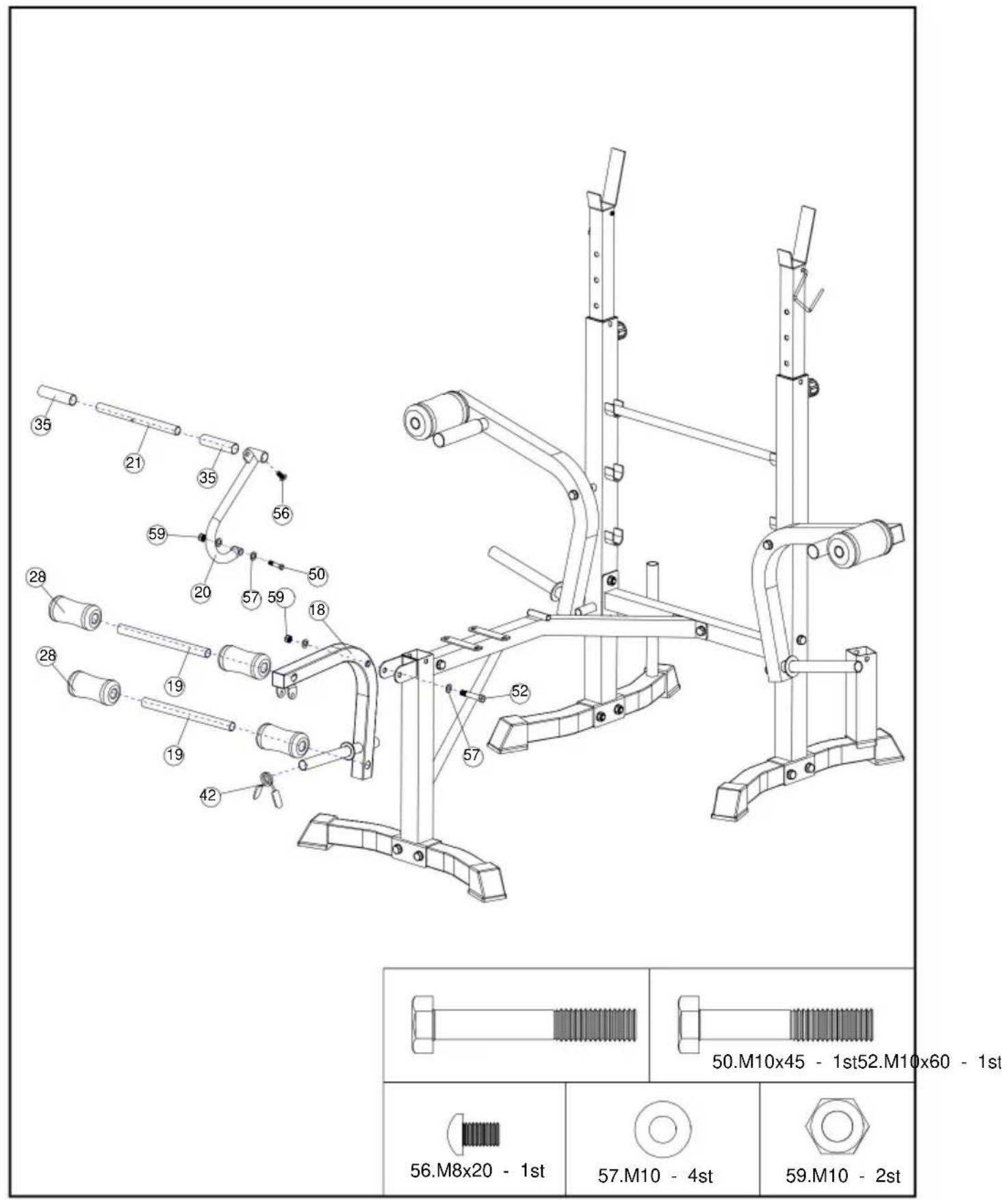

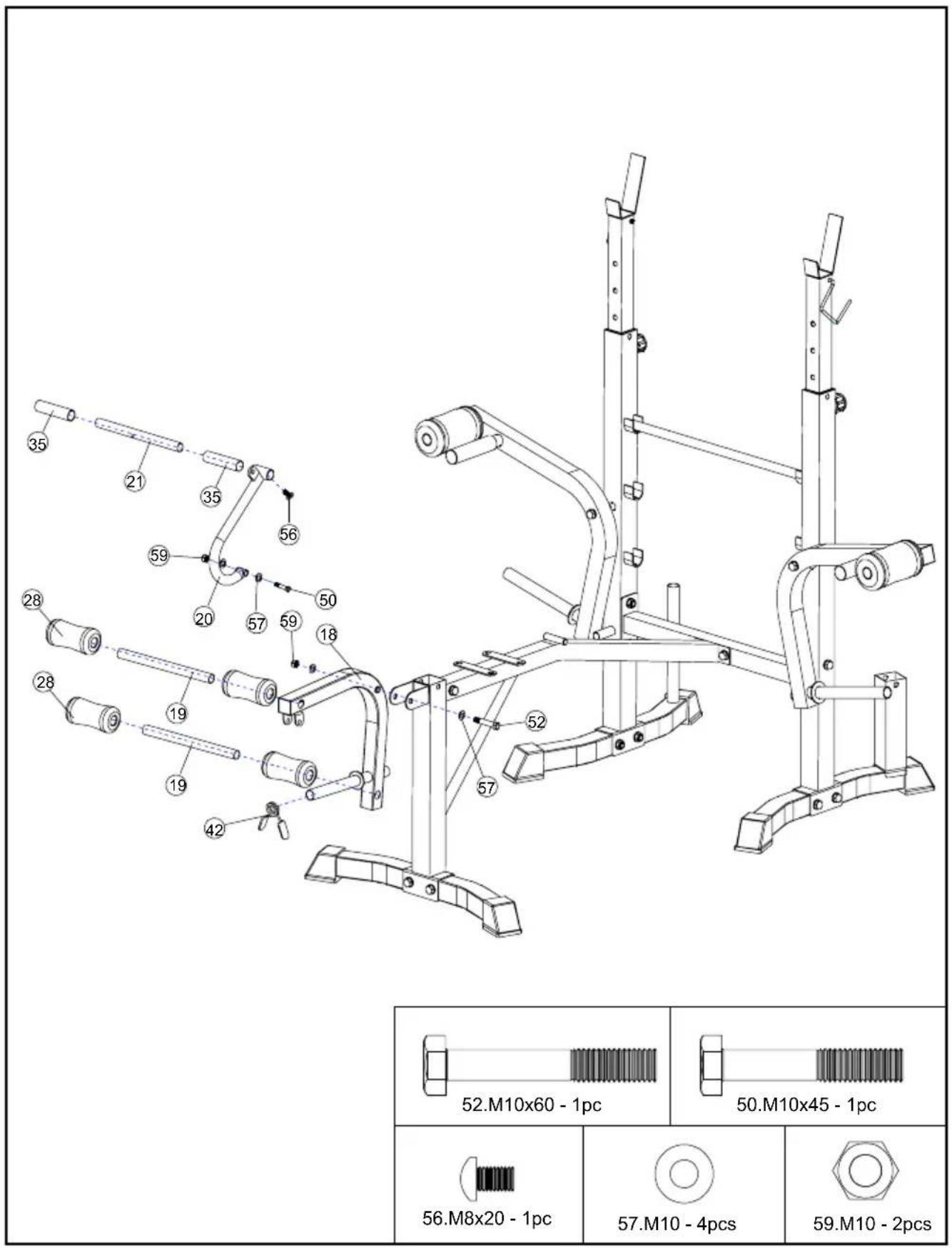

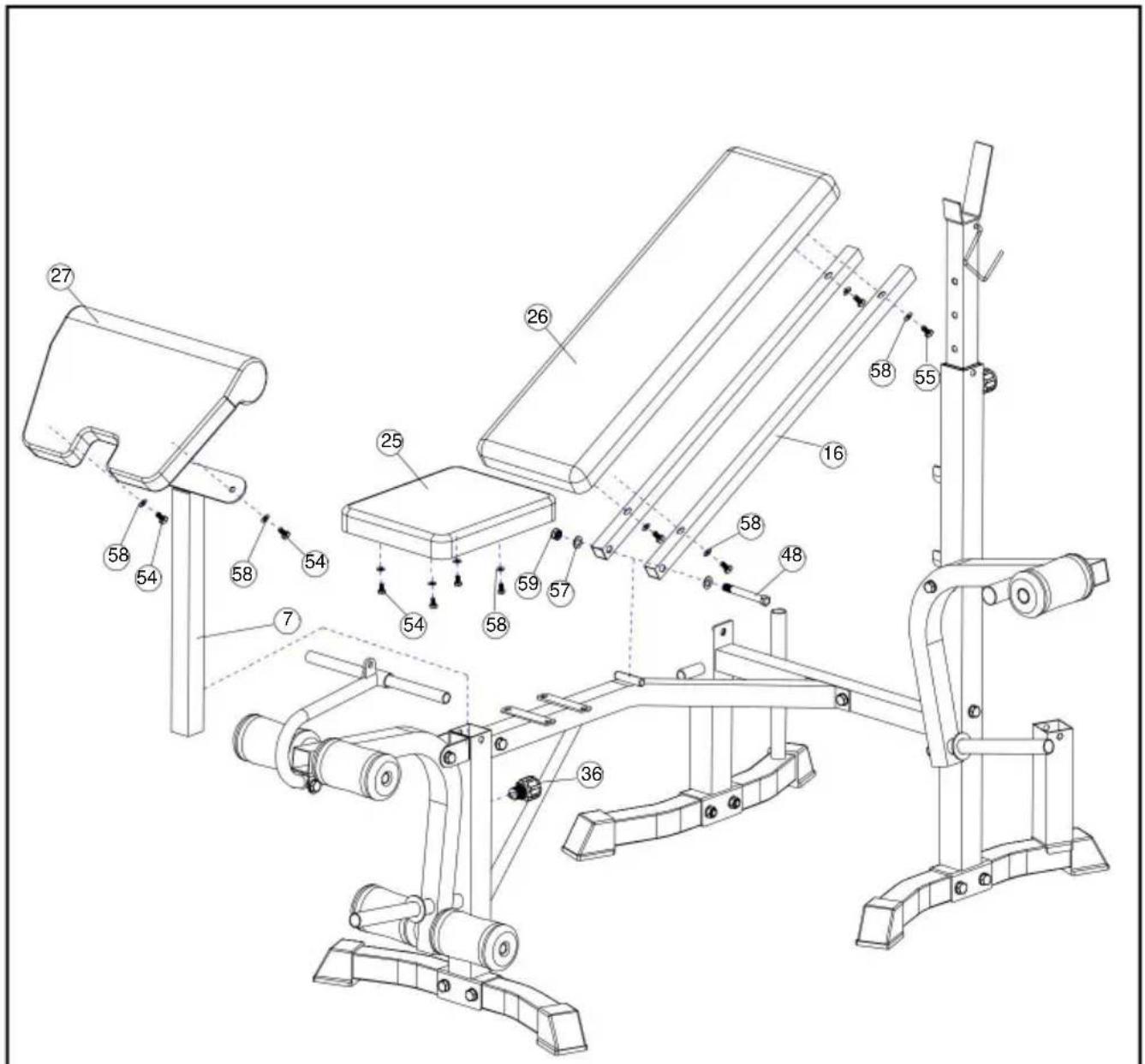

35 21 35 56 59 50 28 20 57 59 18 28 19 19 42 52 57 52.M10x60 - 1pc 50.M10x45 - 1pc 56.M8x20 - 1pc 57.M10 - 4pcs 59.M10 - 2pcs

Installation steps

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

48.M10x130 - 1pc		57.M10 - 2pcs		59.M10 - 1pc
54.M8x20 - 6pcs	55.M8x40 - 4pcs		58.M8 - 10pcs

Installation steps

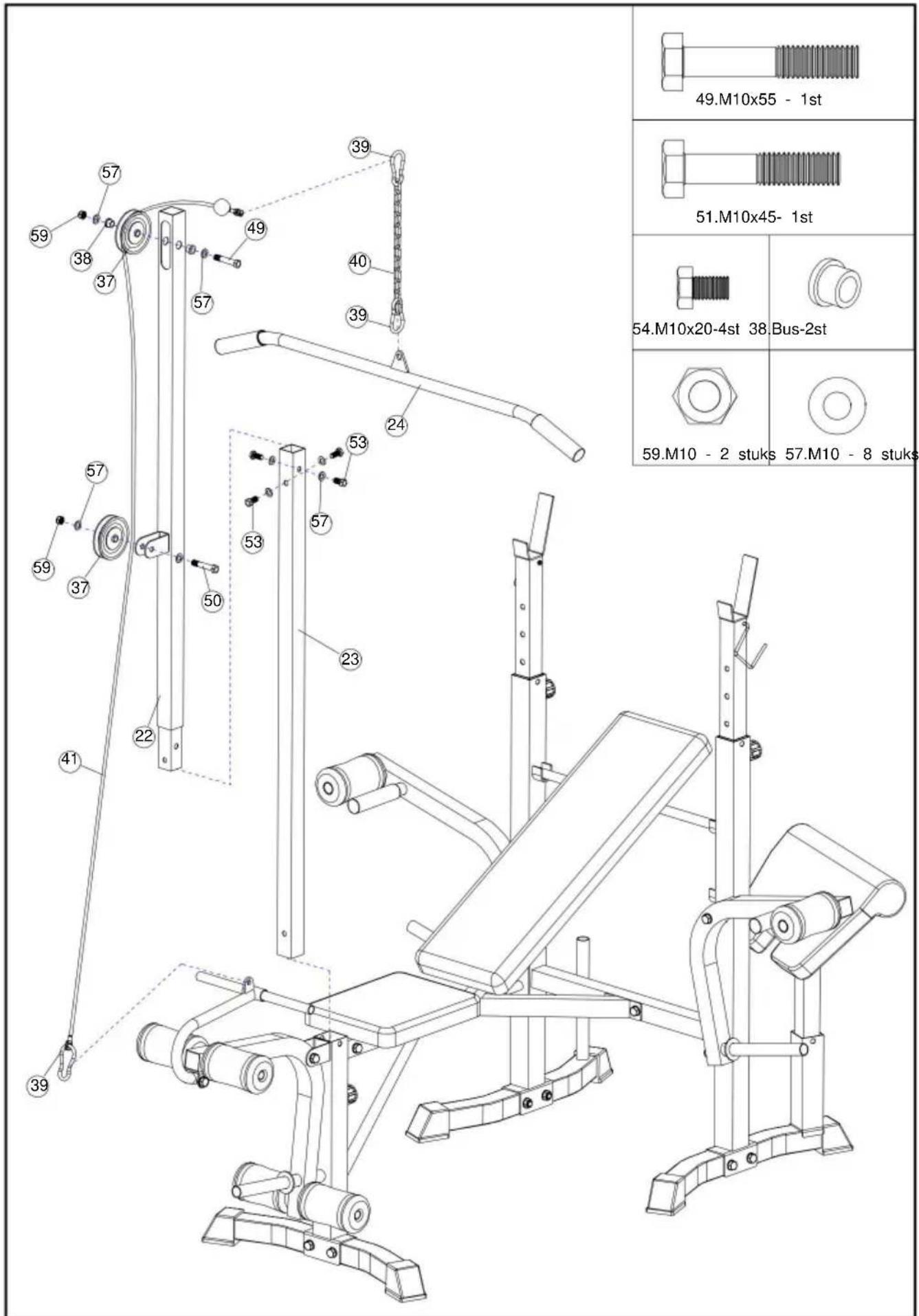

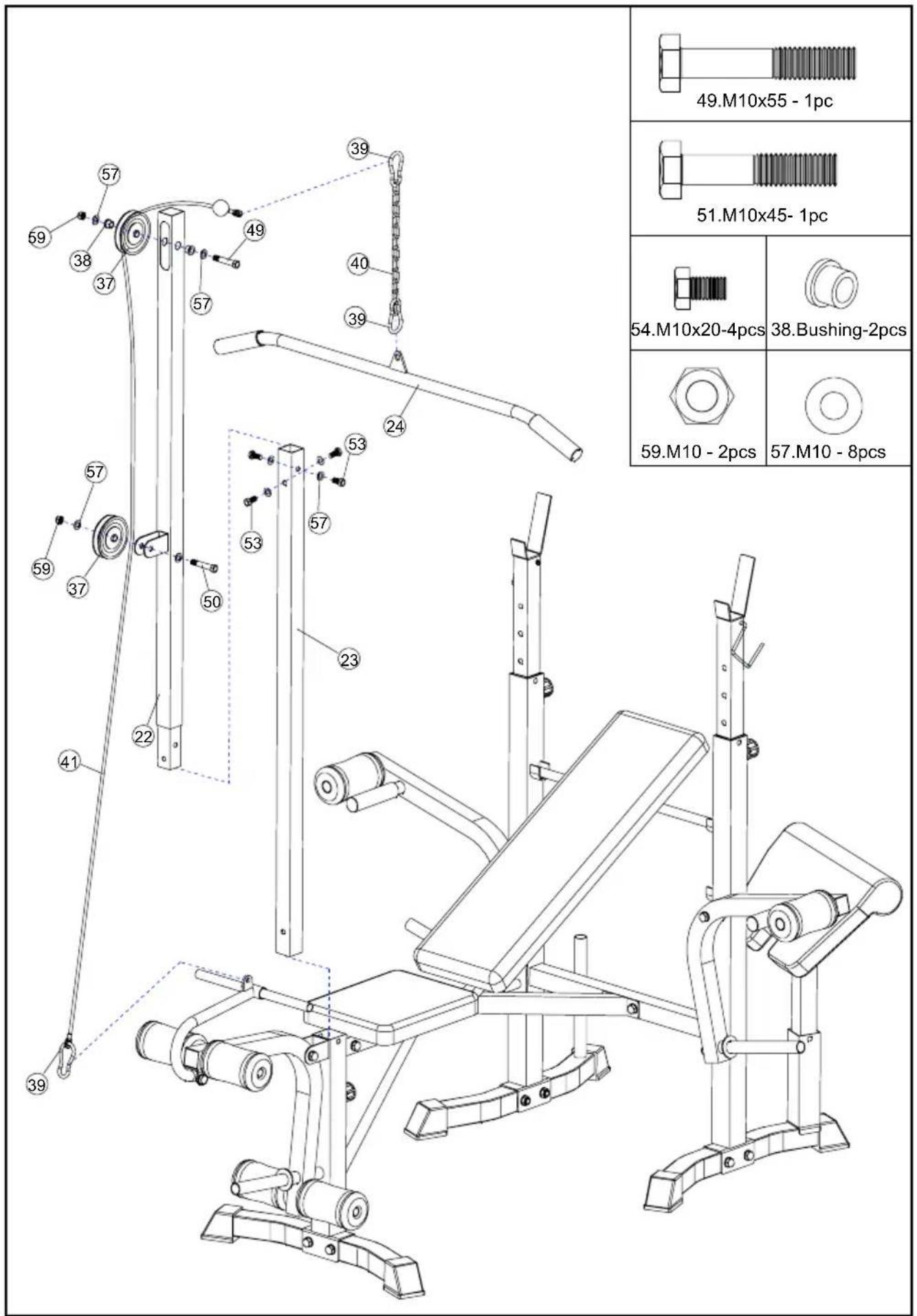

49.M10x55 - 1pc 51.M10x45- 1pc 54.M10x20-4pcs 38.Bushing-2pcs 59.M10 - 2pcs 57.M10 - 8pcs

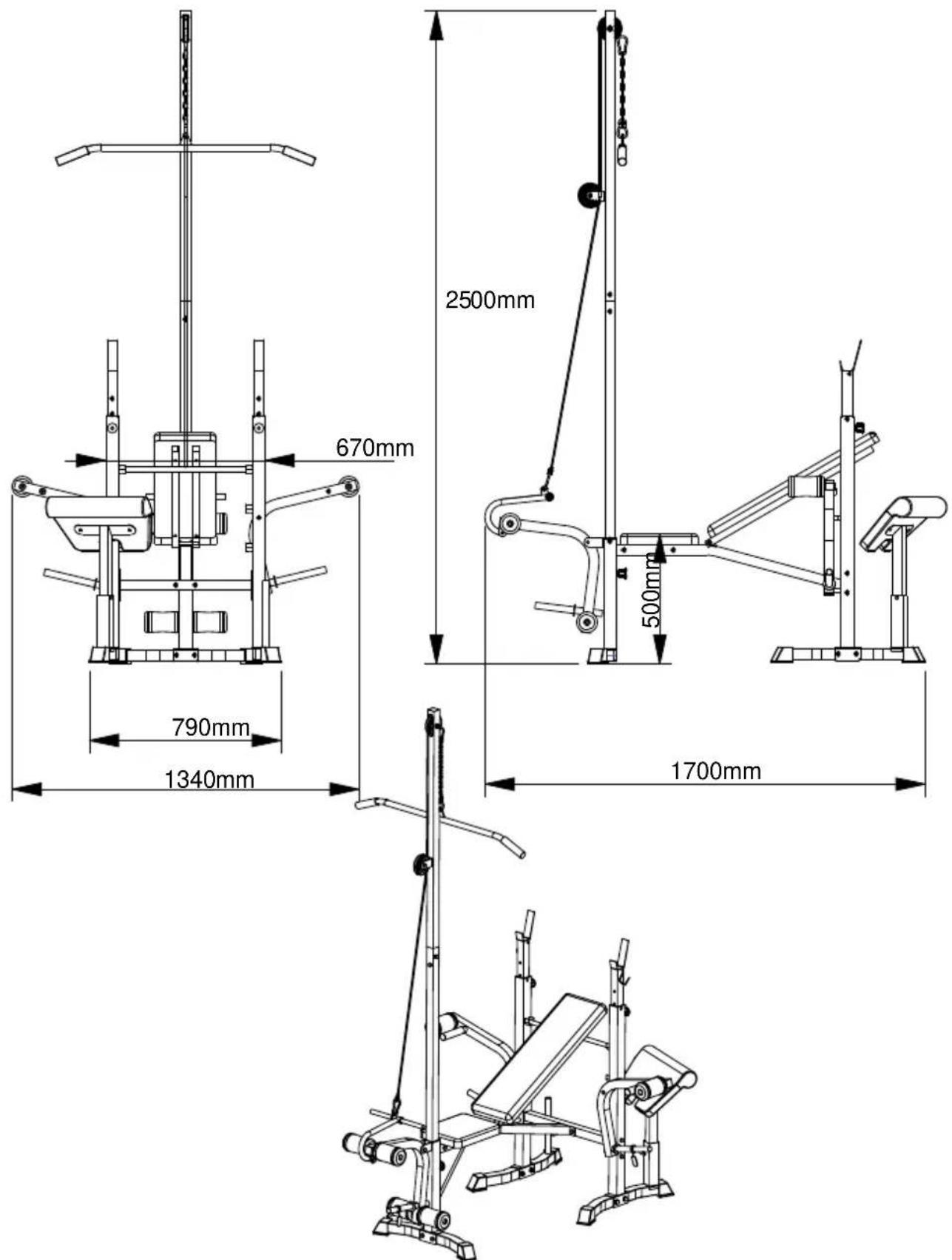

PRODUCT SIZE CHART

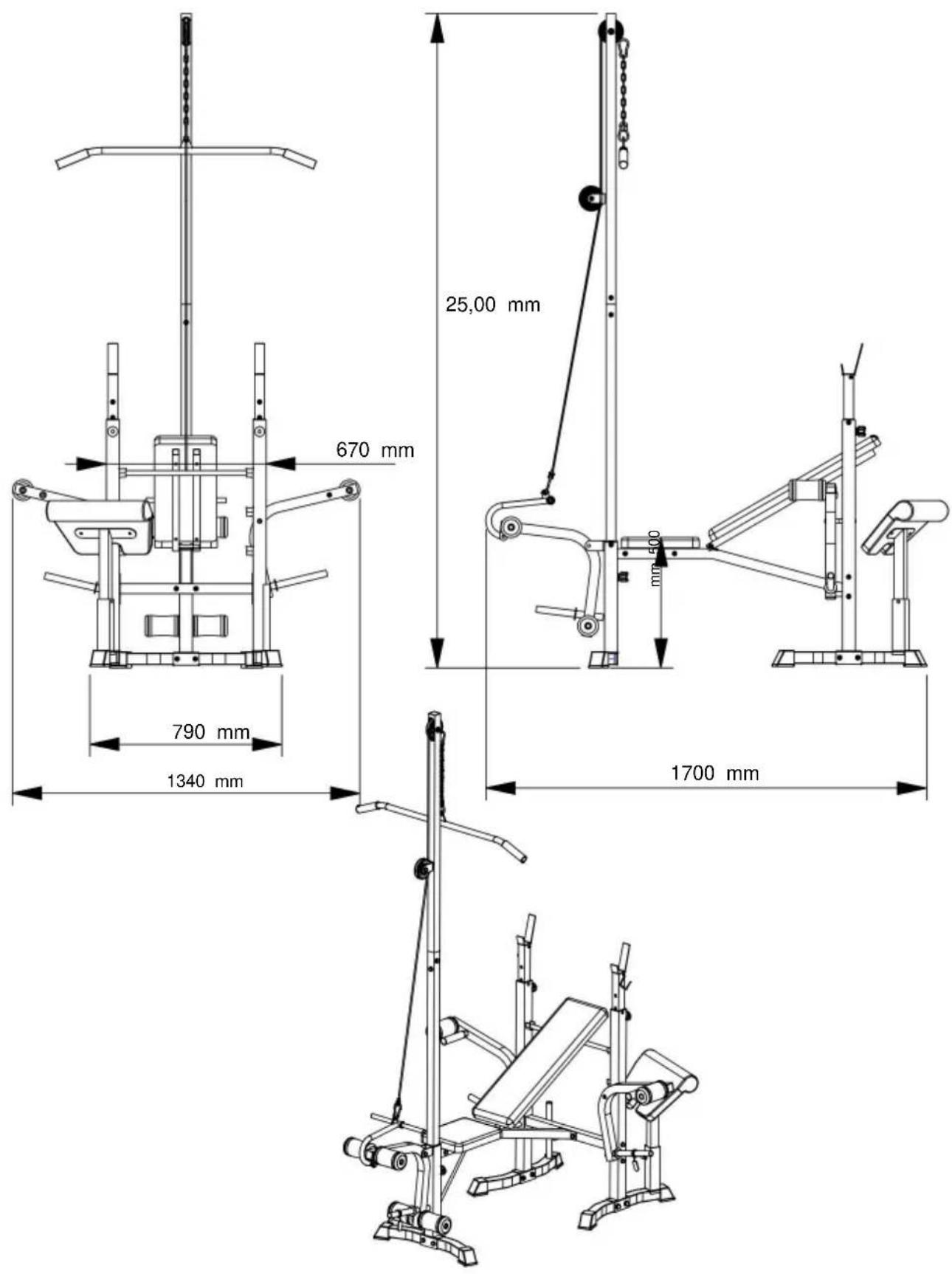

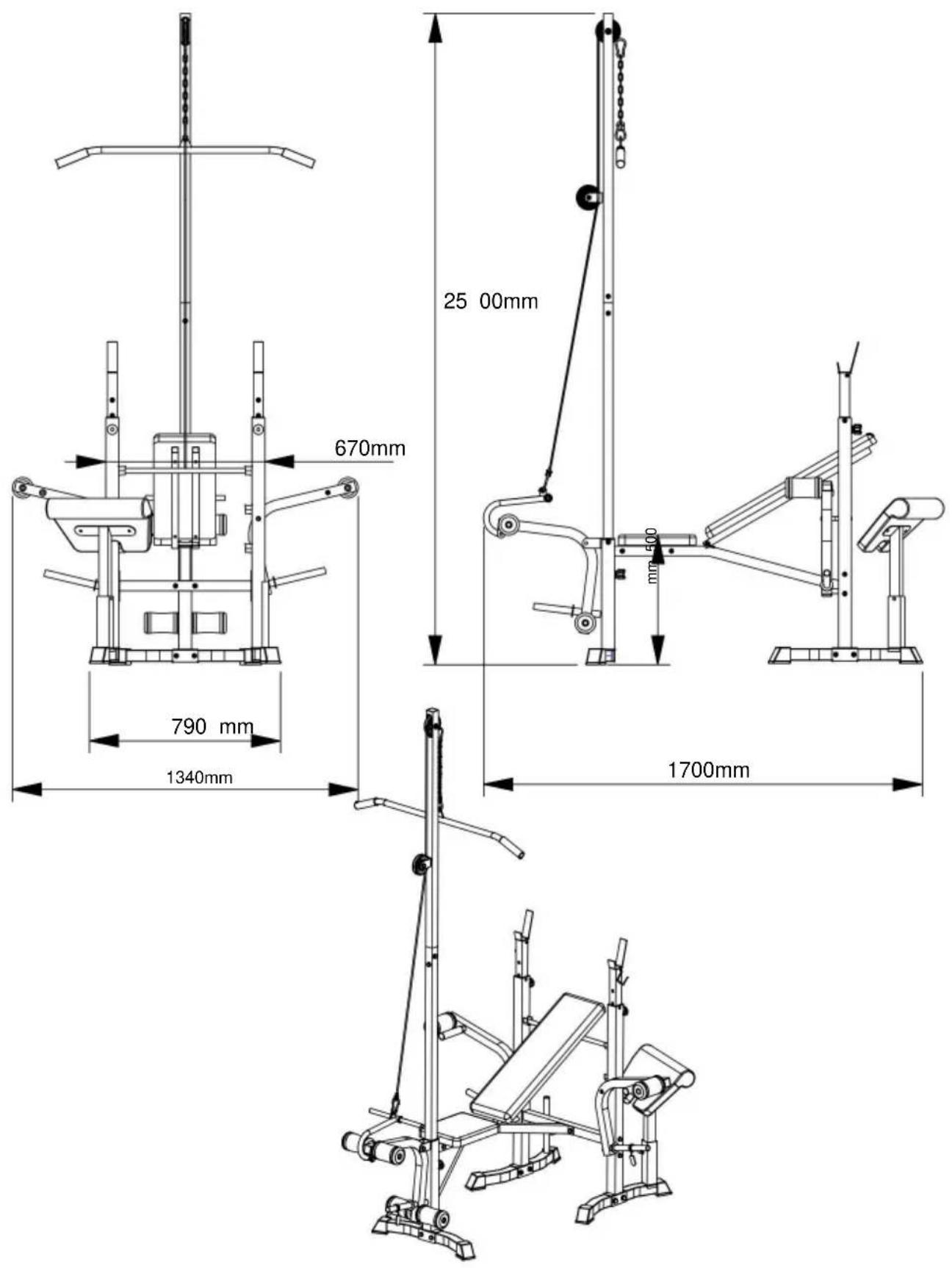

2500mm 670mm 790mm 1340mm 500mm 1700mm

Maximum Weight Capacity: 600 LBS.

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tighten the screws.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anahei Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical schematic diagram of a mechanical assembly with numbered components and exploded view annotations

LISTE DES PIÈCES

Technical diagram of a mechanical assembly with numbered components and labeled parts in Chinese

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

Technical schematic diagram of a mechanical assembly with numbered components and exploded view annotations

TEILELISTE

Technical diagram of a mechanical assembly with numbered components and a corresponding parts list table showing bolt specifications.

Technical diagram of a gym equipment with numbered components and labeled parts

Technical diagram of a gym equipment with numbered components and corresponding mechanical parts in German.

PRODUKTGRÖSSENTABELLE

670 mm 25,00 mm 790 mm 1340 mm 1700 mm

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

Technical schematic diagram of a mechanical assembly with numbered components and assembly lines

ELENCO DEI PEZZI

1.2 PZ	2.1 pz.	3.1 pz.		4.1 pz.
5.1 pz.		6.5 pz.	7.1 pz.	8.1 pz.
9.1 pz.	10.1 pz.	11.1 pz.	12.1 pz.
12.1 pz.	14.1 pz.	15.1 pz.	16.2 pz.	17.4 PZ
18pz.	19.2 PZ	20.1 pz.	21.1 pz.	2
23.1 pz.	24.1 pz.	25.1 pz.	21 pz.	2
28.6 PZ	29.6 PZ	30.7 PZ	31.10 PZ	32.2 PZ
33.[772T]4 PZ	34.[0450]2 PZ	35. 37.[4T3S]2 PZ	36.3 PZ	2 PZ

ELENCO DEI PEZZI

38.2 PZ	39.3 PZ	40.	41.1 pz.	42.3 PZ
43.1 pz.	44.1 pz.	45.[3550]M6 2 PZ	46.[XODK]M6 2 PZ	47.M10x65 10 PZ
48.M10x130 3PZ	49.M10x55 5 PZ	50.M10x45 2PZ	51.M10x50 1 pz.	52.M10x60 1 pz.
53.M10x20 8PZ	54.[2XZA]M8x20 8 PZ	55.56.M8x40 4 PZ	57.[XY7B]M8x20 1 pz.	57.M10 50 PZ
58.M8 12 PZ	59.M10 20 PZ

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

		57.M	ezzo
54.M8x20 - 6 pezzi	55.M8x40 - 4 pezzi		58.M8 - 10 pezzi

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

Technical schematic diagram of a mechanical assembly with numbered components and exploded view annotations

LISTA DE PIEZAS

Technical diagram of a gym equipment with numbered components and labeled parts

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical schematic diagram of a mechanical assembly with labeled components and assembly steps

LISTA CZEŚCI

Technical diagram of a mechanical assembly with numbered components and dimensional specifications for two types of bolts.

Kroki instalacji

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Technical schematic diagram of a mechanical assembly with numbered components and assembly lines

ONDERDELENLIJST

1.2 STUKS	2.1 STUK	3.1 STUK		4.1 STUK
5.1 STUK		6.2 STUKS	7.1 STUK	8.1 STUK
9.1 STUK	10.1 STUK	11.	12.1 STUK
12.1 STUK	14.1 STUK	15.1 STUK	16.2 STUKS	17.4 STUKS
18STUK	19.2 STUKS	20.	21.1 STUK	2
23.1 STUK	24.1 STUK	25.1 STUK	2	2
28.6 STUKS	29.6 STUKS	30. 32.7 STUKS	31.10STUKS	[6AZT]2 STUKS
33.4 STUKS	[000H]2 STUKS	35.[STXK]2 STUKS	36.3 STUKS	37.34.2 STUKS

ONDERDELENLIJST

38.2 STUKS	39.3 STUKS	40.	41.1 STUK	42.3 STUKS
43.1 STUK	44.1 STUK	45[M6 2 STUKS]	46[M6 2 STUKS]	47.M10x65 10STUKS
M10x130 3STUKS	49.48.M10x55 5STUKS	50.M10x45 2STUKS	51.M10x50 1 STUK	52.M10x60 1 STUK
53.	54.[meat]M8x20 8STUKS	[YSZX]M8x40 4 STUKS	56.[meat]M8x20 1 STUKM10x20 8STUKS	57.55.M10 50STUKS
58.M8 12STUKS	59.M10 20STUKS

Installatiestappen

47.M10x65 - 8 stuks 49.M10x55 - 2 stuks 57.M10 - 18 stuks 59.M10 - 8 stuks

43 45 46 6 46 45 44 36 6 36 45.M6 - 2 stuks 46.M6 - 2 stuks 44. 1 stuk 43. 1 stuk 36. 2 stuks

Installatiestappen

48.M10x130 - 2 stuks 57.M10 - 8 stuks 59.M10 - 2 stuks 53. M10x20 - 4 stuks

Installatiestappen

47.M10x65 - 2 stuks 51.M10x50- 1st 49.M10x55 - 2 stuks 54.M8x20 - 2 stuks 57.M10 - 18 stuks 58.M8 - 2 stuks 59.M10 - 5 stuks

Installatiestappen

Technical diagram of a mechanical assembly with numbered components and corresponding parts labeled in millimeters.

Installatiestappen

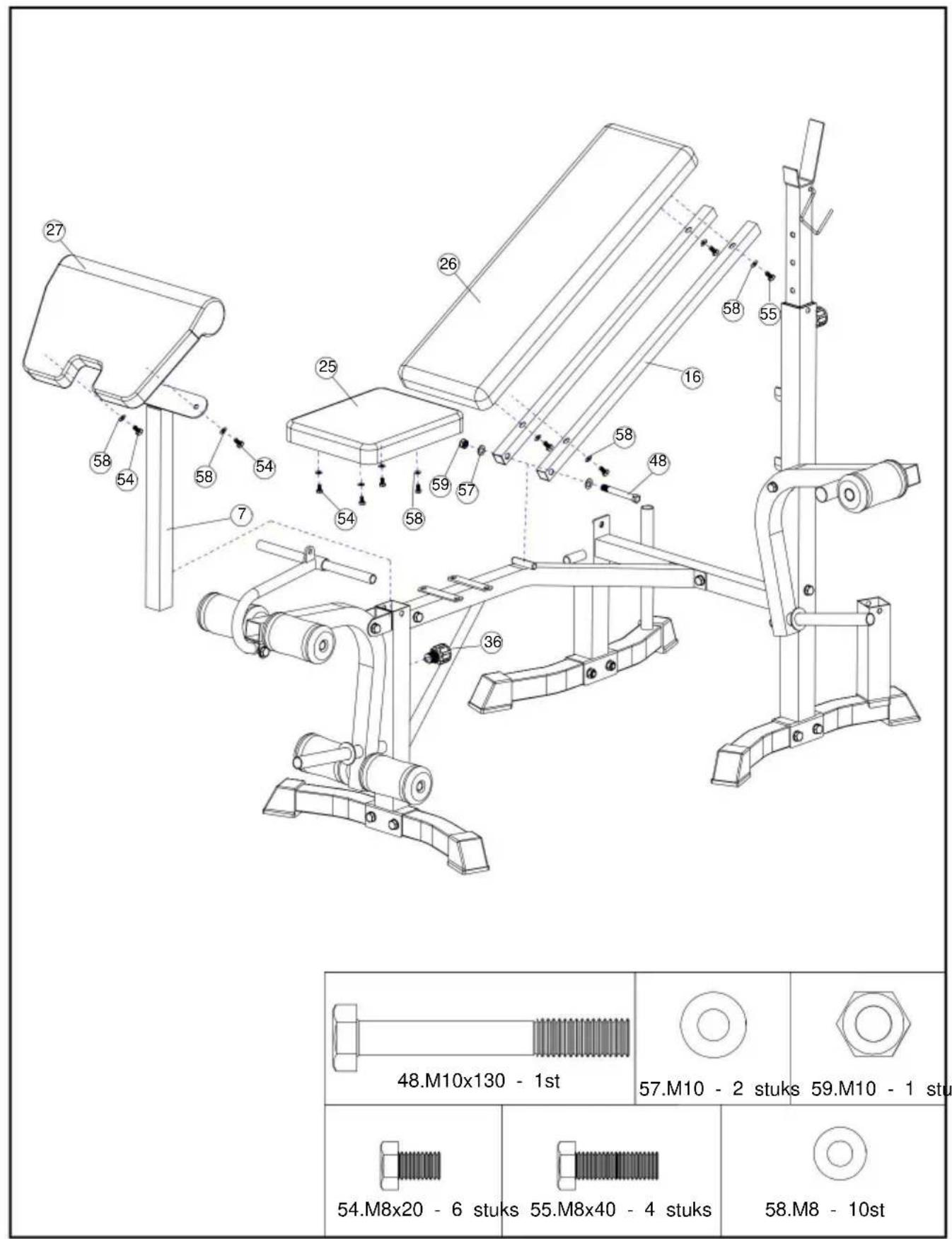

48.M10x130 - 1st 57.M10 - 2 stuks 59.M10 - 1 stu 54.M8x20 - 6 stuks 55.M8x40 - 4 stuks 58.M8 - 10st

Installatiestappen

49.M10x55 - 1st 51.M10x45- 1st 54.M10x20-4st 38.Bus-2st 59.M10 - 2 stuks 57.M10 - 8 stuks

PRODUCTMAATTABEL

670mm 25 00mm 790 mm 1340mm 1700mm

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a gym bench with adjustable arms and legs (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical schematic diagram of a mechanical assembly with numbered components and assembly lines

DELLISTA

1.2 st	2.1 st	3.1 st		4.1 st
5.1 st		6.6 st	7.1 st	8.1 st
9.1 st	10.1 st	11.1 st	12.1 st
12.1 st	14.1 st	15.1 st	162 st	17.4 st
181 st	19.2 st	20.1 st	21.1 st	2
23.1 st	241 st	25.1 st	21 st	2
28.6 st	29.6 st	30.7 st	31.10 st	32.2 st
33.4 st	34.[TSZ]2 st	35.2 st	36.3 st	37.2 st

DELLISTA

38.2 st	39.3 st	40.	41.1 st	42.3 st
43.1 st	44.1 st	45.[66C7]M6 2 st	46.[873H]M6 2 st	47.M10x65 10 st
48.M10x130 3st	49.M10x55 5st	50.M10x45 2st	51.M10x50 1 st 1 st	52.M10x60
53.	54.M8x20 8 st	55.M8x40 4 st	56.M8x20 1 stM10x20 8st	57.[C73B]M10 50st
58.M8 12st	59.M10 20st

Installationssteg

47.M10x65 - 8st 49.M10x55 - 2st 57.M10 - 18st 59.M10 - 8st

43 45 46 6 46 45 44 36 6 36 45.M6 - 2st 46.M6- 2st 44. 1 st 43. 1 st 36. 2st

Installationssteg

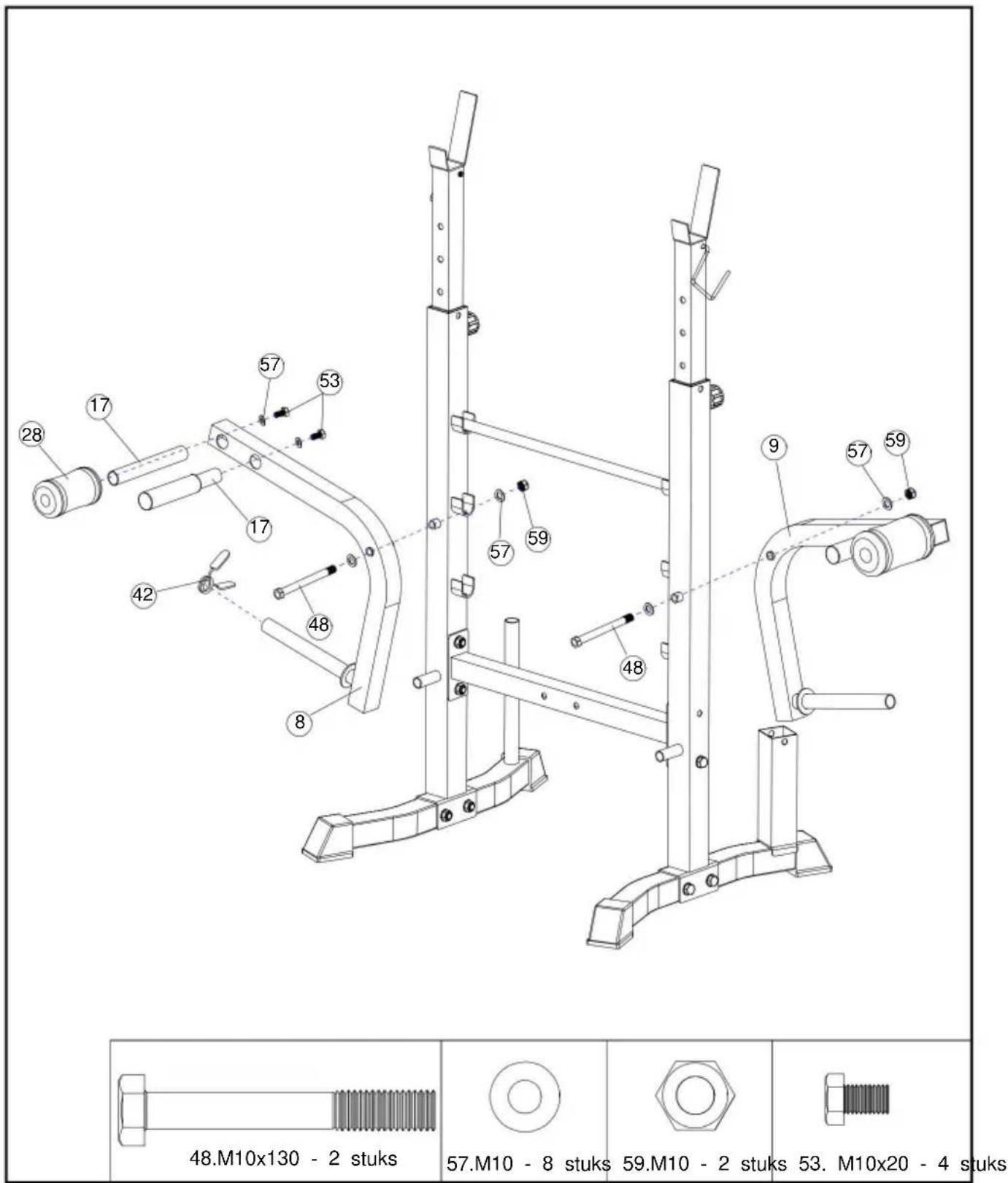

48.M10x130 - 2st 57.M10 - 8st 59.M10 - 2st 53 M10x20 - 4st

Installationssteg

47.M10x65 - 2st 51.M10x50- 1st 57.M10 - 18st 58.M8 - 2st 59.M10 - 5st

Installationssteg

Technical diagram of a mechanical assembly with numbered components and a detailed inset showing bolt specifications.

Installationssteg

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

48.M10x130 - 1st		57.M10 - 2st		59.M10 - 1st

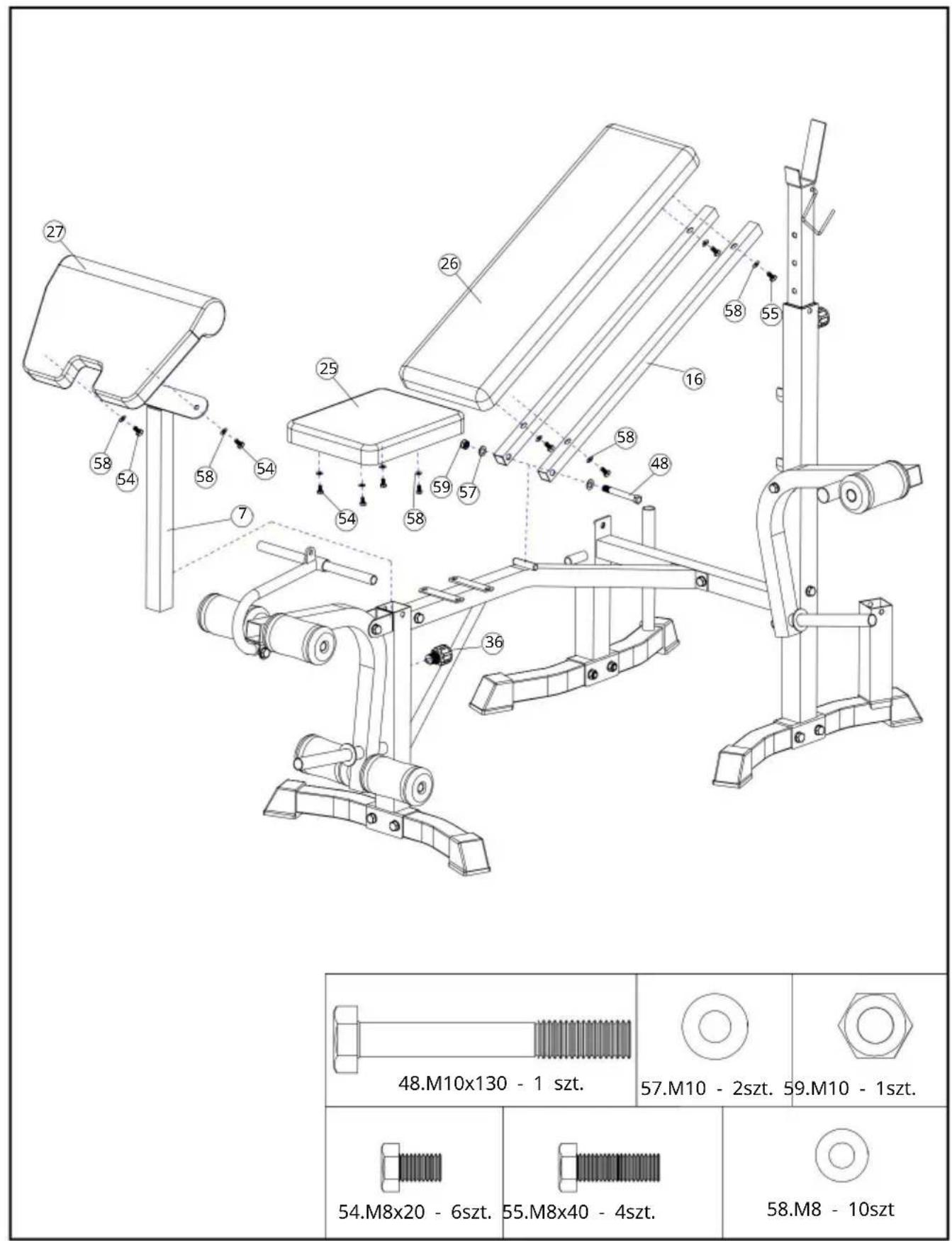

54.M8x20 - 6st	55.M8x40 - 4st		58.M8 - 10st

Installationssteg

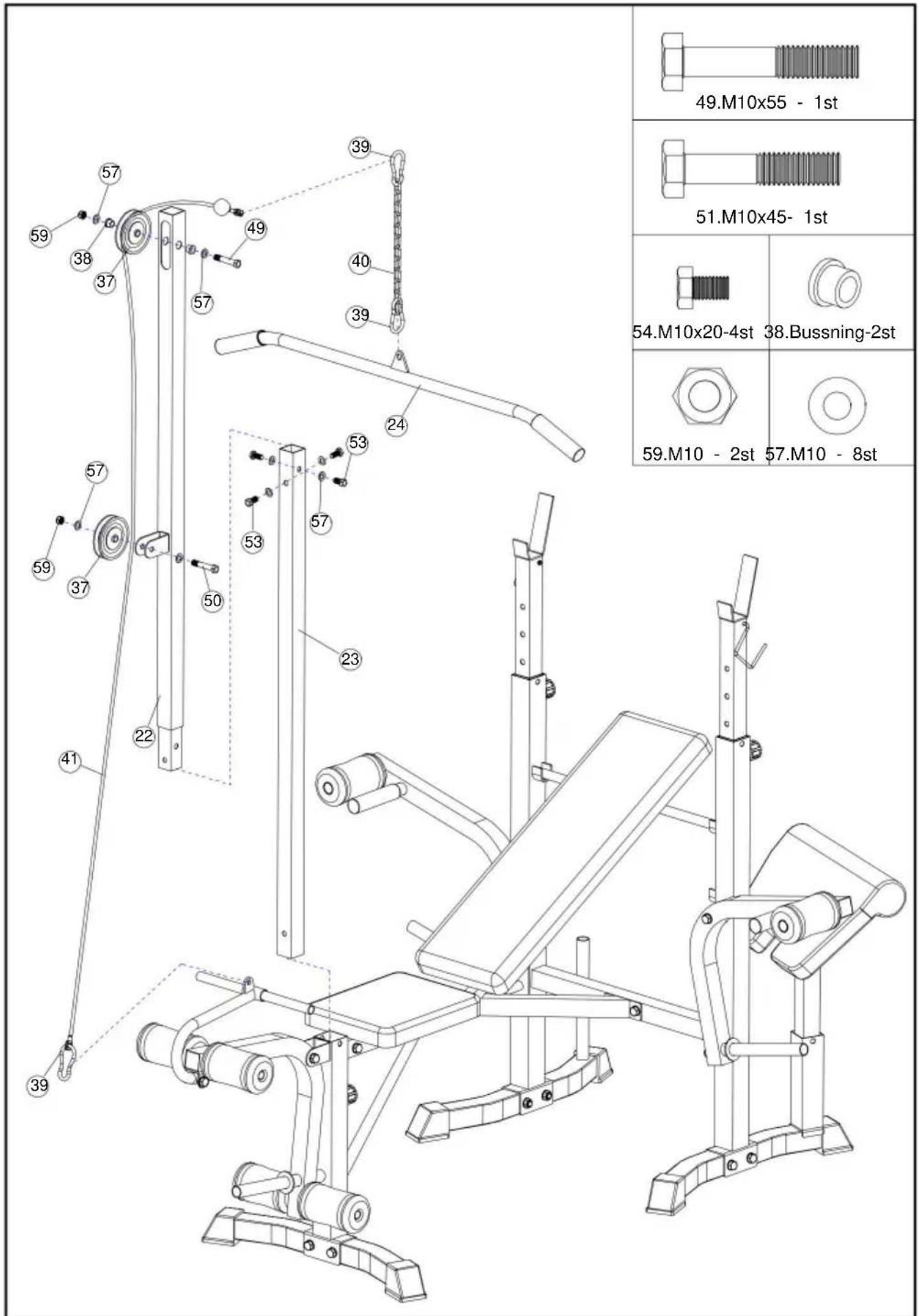

49.M10x55 - 1st 51.M10x45- 1st 54.M10x20-4st 38.Bussning-2st 59.M10 - 2st 57.M10 - 8st

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE
