USER MANUAL SJ1015 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

No chair Roman chair

MODEL: SJ1015

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SJ1015

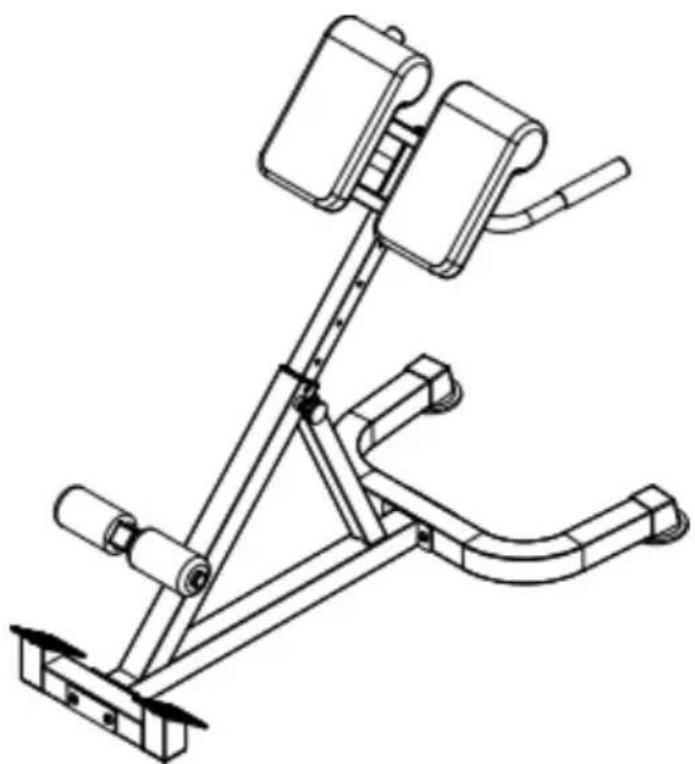

Line drawing of a stationary exercise machine with lever and support components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

Do not use it if you are pregnant
- Before beginning any exercise program consult your physician.
- Read all instruction before using this product.

- Keep children and pets away from sit-up bench while in use. Children should not use. The product. without adult supervision.

• Inspect and tighten all parts each time before using this sit-up be
• Please clean this machine using damped wipes only.Do not use a cleansers.Please Consult with customer service if you have any questions.
• This product should be placed on a flat surface when using. Place anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembl

- If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

- Before use, always ensure that your product is positioned on a solid, hard-flat surface.

- Store idle equipment out of reach of children and do not allow a unfamiliar with the equipment to use it. This tool is dangerous in hands of untrained users.

- When using the product, the crowd of onlookers must keep adistan of 3 meters to avoid accidental injury

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set for example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour before sleep.
3. Please make exercise plans

Part List

No	Description	Qty	No	Description	Qty
01	Main Frame	1	13	Spacer	1
02	Foot Tube	1	14	Square End Cap 25x25mm	4
03	Base Tube	1	15	Hand Grip	2
04	Adjustable Tube	1	16	Adjustable Knob	1
05L	Left Handle Bar	1	17	Allen Bolt M10x70mm	4
05R	Right Handle Bar	1	18	Flat Washer M10	4
06	Foam Tube	1	19	Nylon Nut M10	4
07	Support Plate	2	20	Carriage Bolt M8x55mm	2
08	Cushion	2	21	Flat Washer M8	6
09	End Cap	2	22	Nylon Nut M8	2
10	Square End Cap 50x50mm	2	23	Allen Bolt M8x40mm	4
11	Round End Cap 25mm	2	24	Foam	2
12	Square End Cap 38x38mm	2

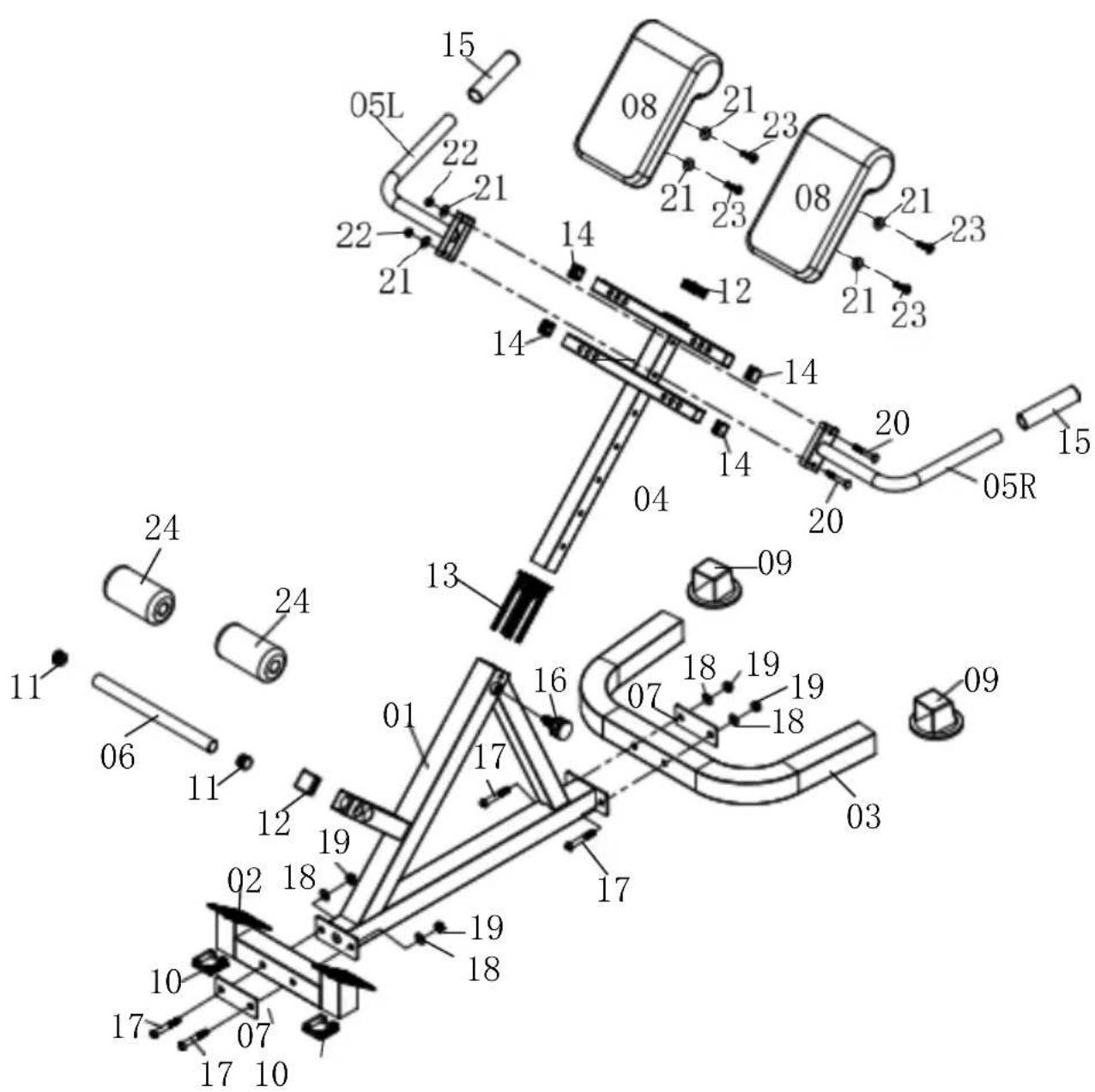

Exploded Diagram

Please note that not all of the parts and hardware you see here will used while you are

assembling the machine because some of these are already pre-instal

Technical diagram of a mechanical assembly with numbered components and labeled parts

Part List

1.1 PC	2.1 PC	3.1 PC	4.1 PC
5L.1 PC	5R.1 PC	6.1 PC	7.2 PCS
8.2 PCS	9.2 PCS	10.2 PCS	11.2 PCS
12.2 PCS	13.1 PC	14.4 PCS	15.2 PCS
16.1 PC	17.4 PCS	18.4 PCS	19.[HB2X]4 PCS
20.2 PCS	21.6 PCS	22.2 PCS	23.[HS43]4 PCS

Part List

24. 2 PCS

NOTE: To avoid misalignment due to over-tightening, please do not use wrench at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

Step 1:

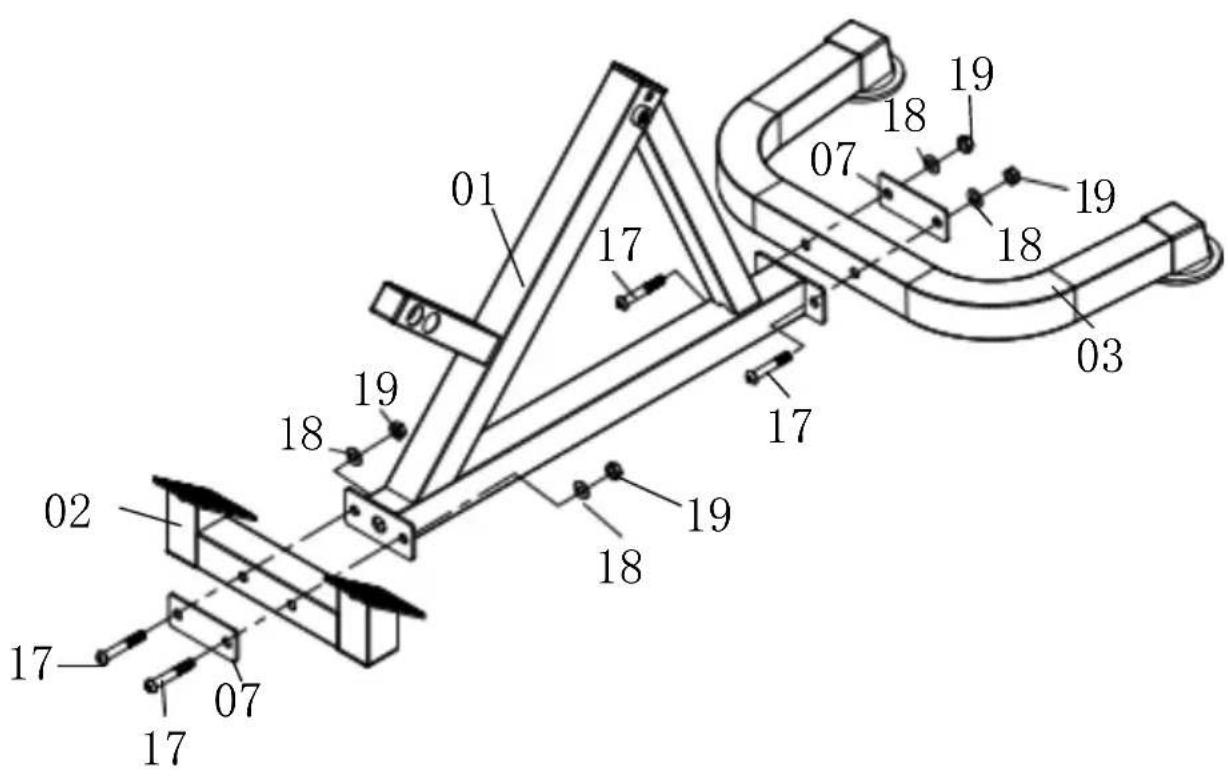

A) Attach Foot Tube (02) to Main Frame (01) with Support Plate (07) two Allen Bolts (17), two Flat Washers (18) and two Nylon Nuts (19) B) Attach Base Tube (03) to Main Frame (01) with Support Plate (01) using two Allen Bolts (17), two Flat Washers (18) and two Nylon Nuts (19).

Technical diagram of a mechanical linkage system with numbered components and assembly details

Step 2:

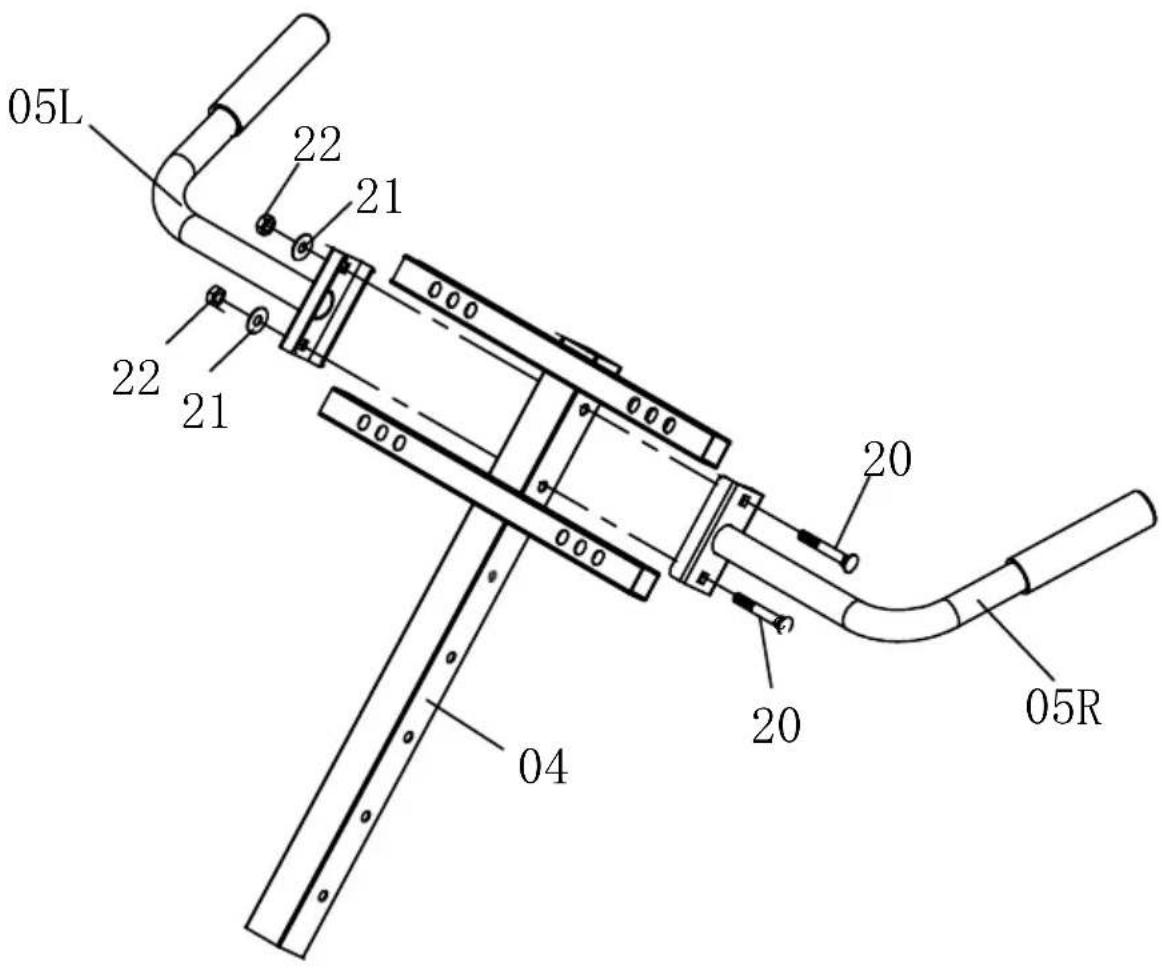

Attach the Left Handle bar (05L) and Right Handle bar (05R) to Adjustable Tube (04) using two Carriage Bolts (20), two Flat Washers (21) and two Nylon Nut (22).

Please ensure the correct direction.

05L 22 21 22 21 20 20 04 05R

Step 3:

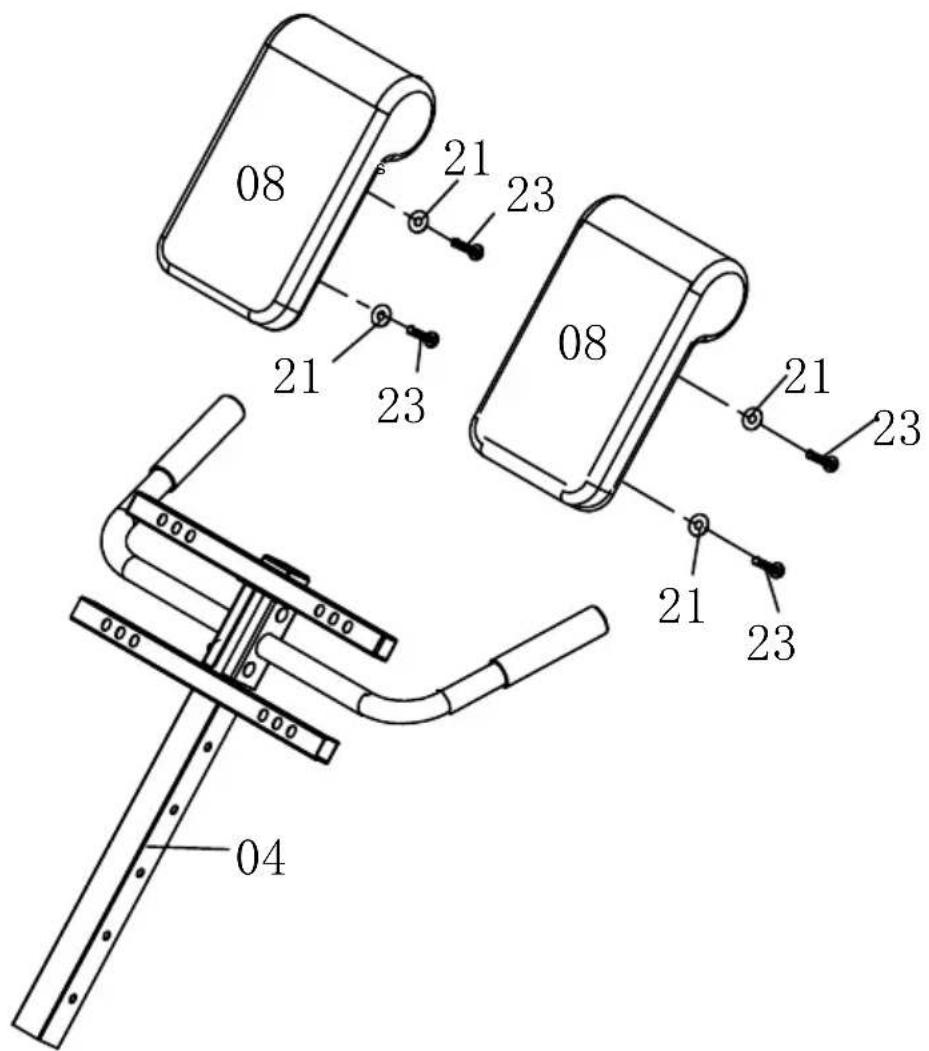

Attach two Cushions (08) to Adjustable Tube (04) using two Allen Bolts (23), and four Flat Washers (21).

08 21 23 21 23 08 21 23 21 23 04

Step 4:

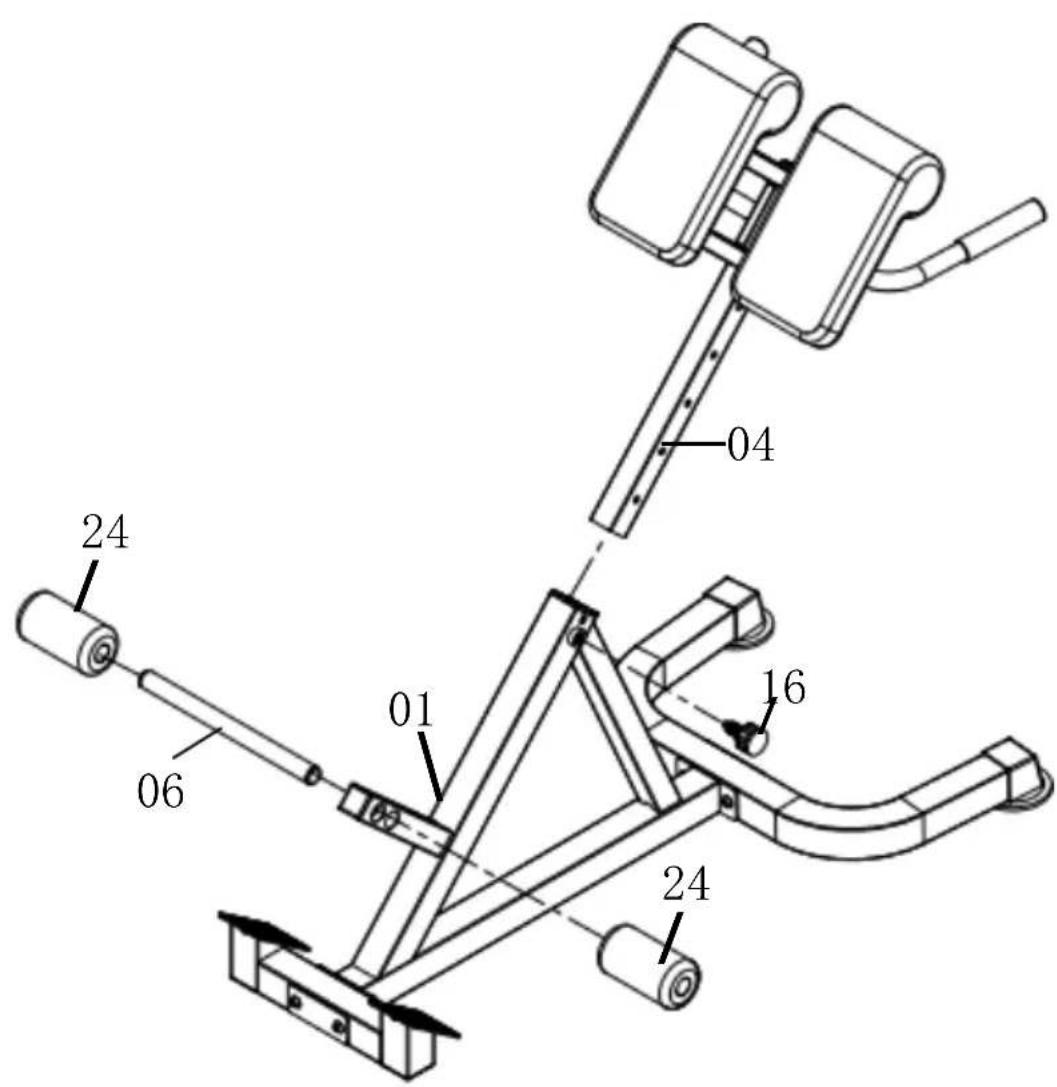

Insert the Adjustable Tube assembly to Main Frame (01) using Adjust Knot (16).

Attach the Foam Tube (06) to Main Frame (01), then slide two Foar to each end of Foam Tube (06).

04 24 01 16 06 24

THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assemb complete.

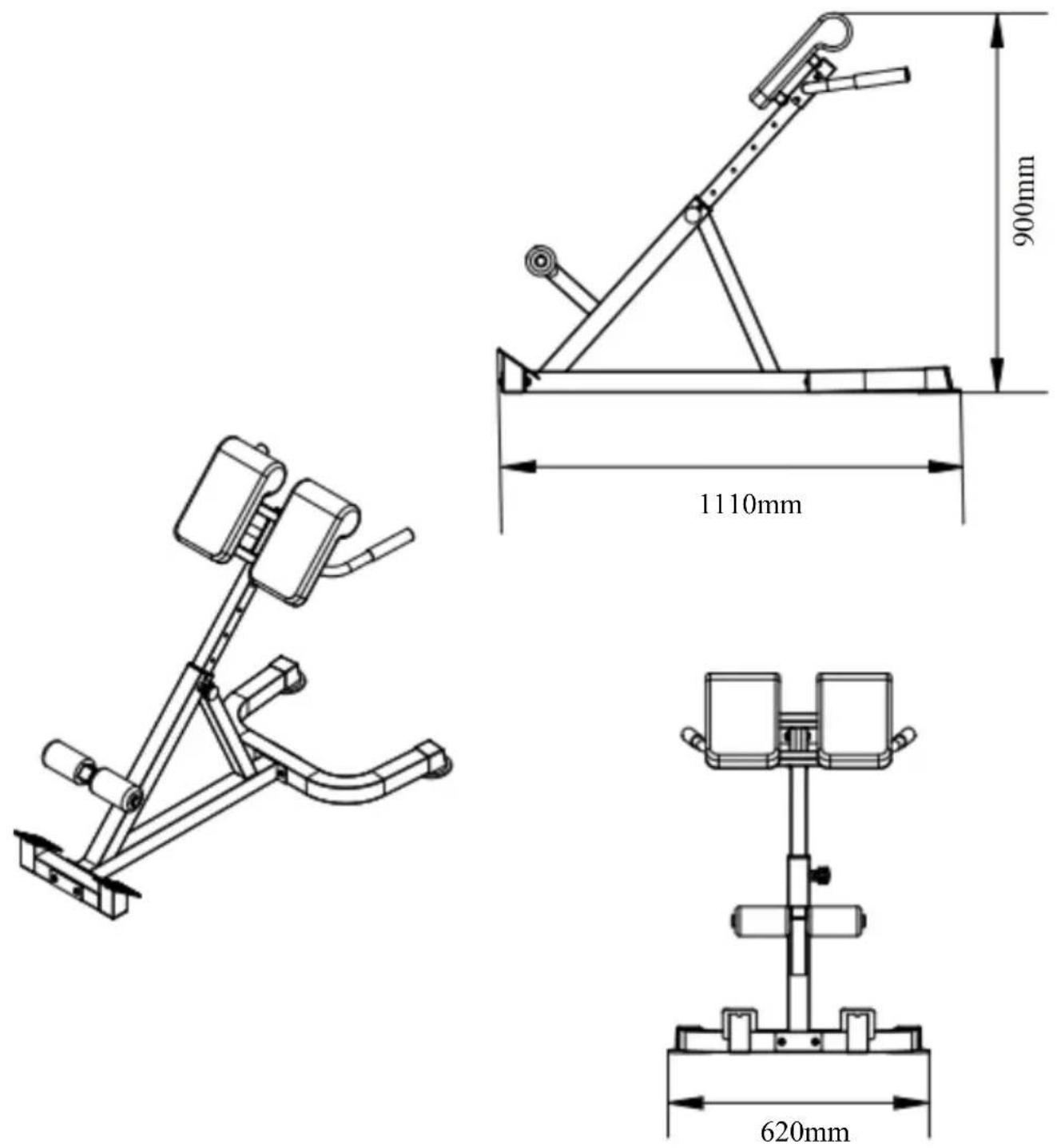

Product size chart

NOTE: The Maximum Weight Capacity for this product is 300 lbs or 136kgs. Only one person should use this piece of equipment at one

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a stationary exercise machine with lever arms and support legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Liste des pièces

Technical diagram of a mechanical linkage system with numbered components and assembly details

Étape 2 :

Technical line drawing of a mechanical exercise apparatus with no visible text or symbols

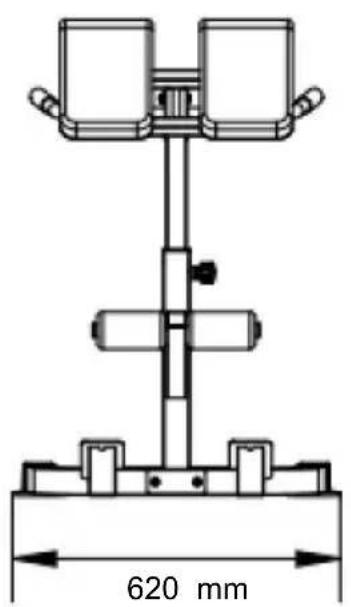

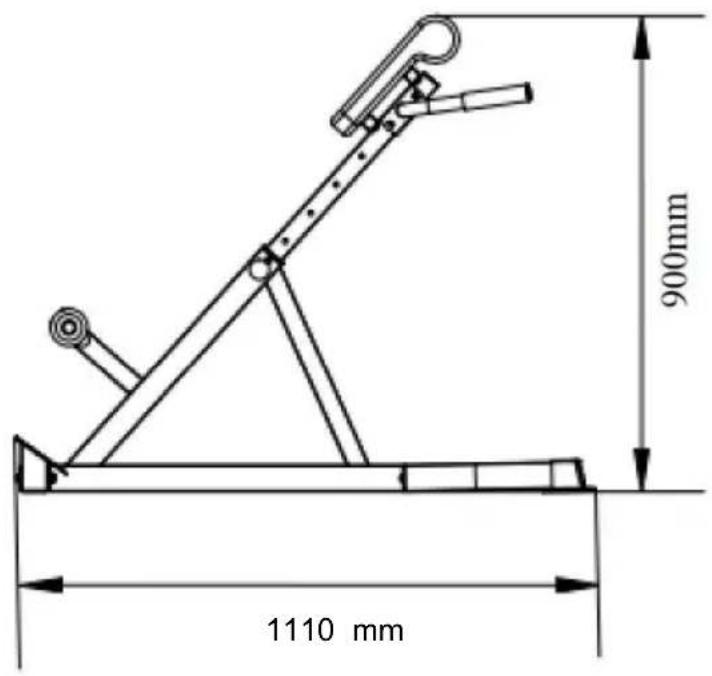

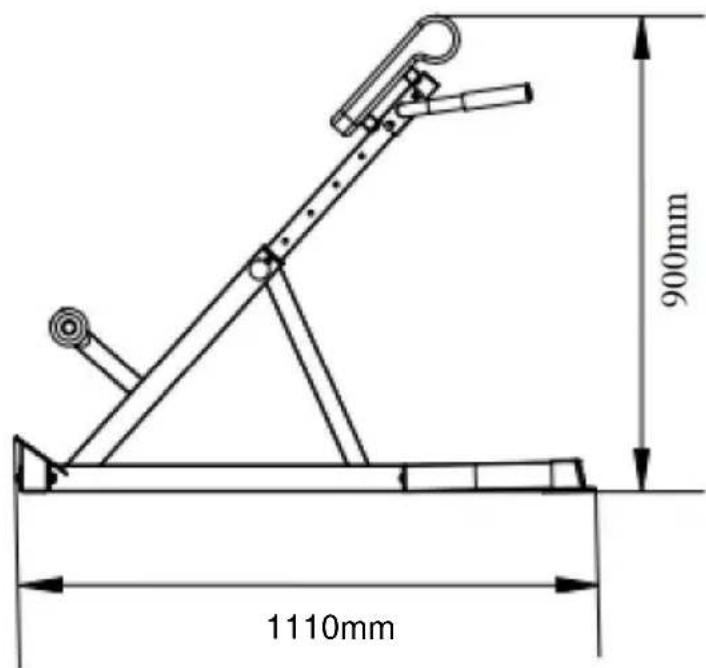

900mm 1110 mm

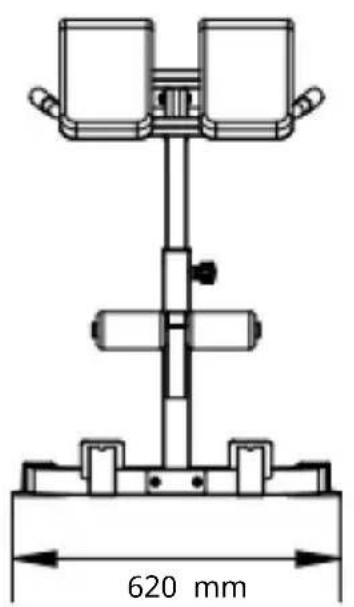

620 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited

Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a stationary exercise machine with lever and support components (no text or symbols)

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Stückliste

Technical diagram of a mechanical linkage system with numbered components and assembly details

Schritt

Technical line drawing of a mechanical exercise apparatus with no visible text or symbols

900mm 1110 mm

620 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

Technical line drawing of a stationary exercise machine with lever and support components (no text or symbols)

Prohibition sign showing a person crossed out of the diagonal line, indicating no movement or restriction (no text present)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Elenco delle parti

1.1 pz.	2.1 pz.	3.1 pz.	4.1 pz.
5 ltr.1 pz.	5R.1 pz.	6.1 pz.	7.2 PZ
8.2 PZ	9.2 PZ	10.	11.2 PZ2 PZ
12.2 PZ	13.1 pz.	14.4 PZ	15.2 PZ
16.	17.4 PZ	18.4 PZ	19.4 PZ1 pz.
20.2 PZ	21.6 PZ	22.2 PZ	23.4 PZ

Elenco delle parti

24.

2 PZ

Technical diagram of a mechanical linkage system with numbered components and assembly details

Fase 2:

Technical line drawing of a mechanical exercise apparatus with articulated arms and legs (no text or symbols)

900mm 1110mm

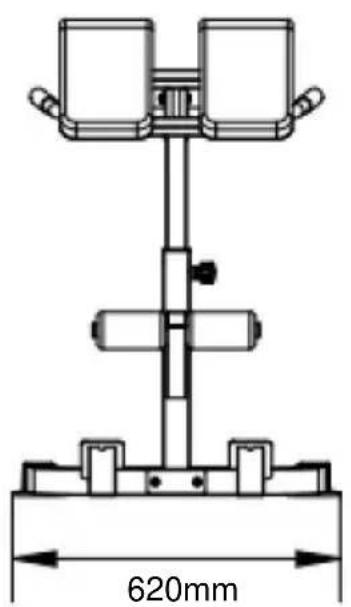

620mm

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli

USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

Sin silla Silla romana

MODELO:SJ1015

Technical line drawing of a stationary exercise machine with lever arms and support legs (no text or symbols)

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Lista de piezas

Technical diagram of a mechanical linkage system with numbered components and assembly details

Paso 2:

London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Technical line drawing of a stationary exercise machine with lever and support components (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Prohibition sign showing a person crossed out of the diagonal line, indicating no movement or restriction (no text present)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Lista czę sci

Technical diagram of a mechanical linkage system with numbered components and assembly details

Krok 2:

Technical line drawing of a mechanical exercise apparatus with articulated arms and a control panel (no text or symbols)

900mm 1110 mm

620 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a stationary exercise machine with lever and support components (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Onderdelenlijst

1.1 stuk	2.1 stuk	3.1 stuk	4.1 stuk
5L.1 stuk	5R.1 stuk	6.1 stuk	7.2 STUKS
8.2 STUKS	9.2 STUKS	10.2 STUKS	11.2 STUKS
12.2 STUKS	13.1 stuk	14.4 STUKS	15.2 STUKS
16. 18.1 stuk	17.4 STUKS	4 STUKS	19.4 STUKS
20.2 STUKS	21.6 STUKS	22.2 STUKS	23.4 STUKS

Onderdelenlijst

24.2 STUKS

Technical diagram of a mechanical linkage system with numbered components and assembly details

Stap 2:

Technical line drawing of a mechanical exercise apparatus with no visible text or symbols

900mm 1110mm

620mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Ingen stol romersk stol

MODELL:SJ1015

Technical line drawing of a stationary exercise machine with lever and support components (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Prohibition sign showing a person crossed out of a diagonal line, no text or symbols present

Technical diagram of a mechanical assembly with numbered components and labeled parts

Dellista

1.1 PC	2.1 PC	3.1 PC	4.1 PC
5L.1 PC	5R.1 PC	6.1 PC	7.2 st
8.2 st	9.2 st	10.2 st	11.2 st
12.2 st	13.1 PC	14.4 st	15.2 st
16.1 PC	17.4 st	18.4 st	19.4 st
20.2 st	21.6 st	22.2 st	23.4 st

Dellista

24.

2 st

Technical diagram of a mechanical linkage system with numbered components and assembly details

Steg 2:

Technical line drawing of a mechanical exercise apparatus with no visible text or symbols

900mm 1110 mm

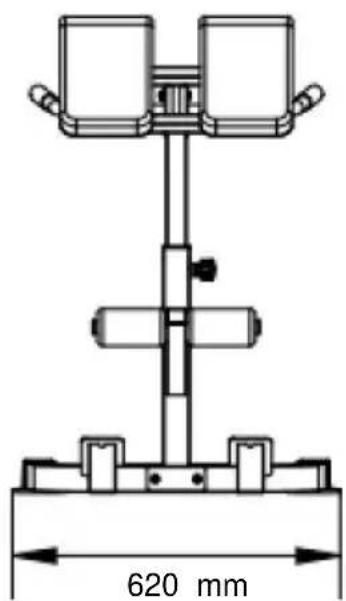

620 mm
