USER MANUAL TC80 Vevor

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STAND

MODEL:TC80

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STANI

MODEL:TC80

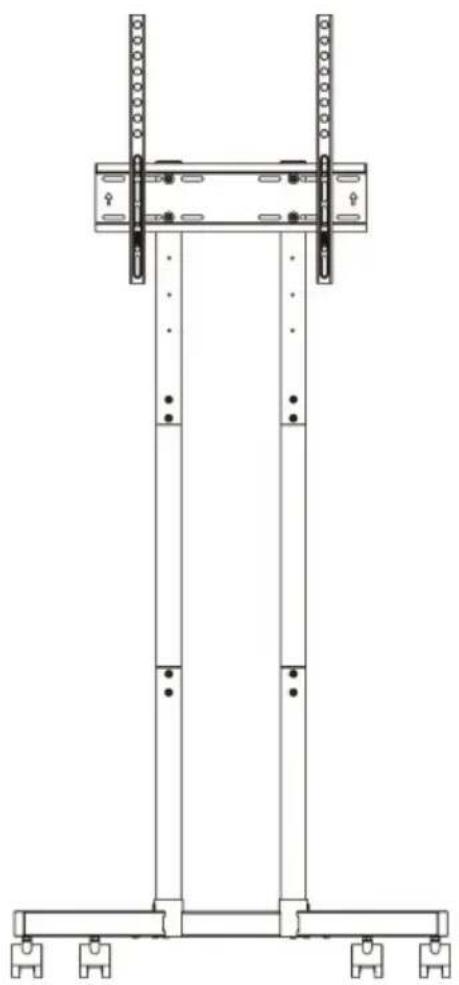

Technical line drawing of a vertical structural frame with mounting feet and support columns (no text or symbols)

100×100 100×400

100×200 200×400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Before installation, please ensure that your TV stand mounting ho dimensions, and weight can meet the specifications and standards the TV stand. If you have any questions or questions about the instructions and warnings, please contact us for help..

Important:

1. When installing the support, please use professional safety devices and tools in accordance with the requirements of the assembly instructions. Improper installation may cause the TV to fall or serious injury.
2. Before installation, ensure that the support surface can safely support the weight of the device and all accessories.
3. Please do not exceed the intended load capacity, otherwise it may cause serious injury or property damage.
4. This product contains small parts, swallowing them may cause choking hazards. Please keep out of reach of children.
5. This product is only suitable for indoor use, outdoor use may cause product damage and personal injury risk.

Maintenance:

Please check the connection between the bracket and the TV periodic to ensure it remains stable, and verify that the screws have not loos fallen off due to long-term use (at least once every three months). If security risks are identified, replace or reinforce the parts promptly.

SAVE THIS MANUAL

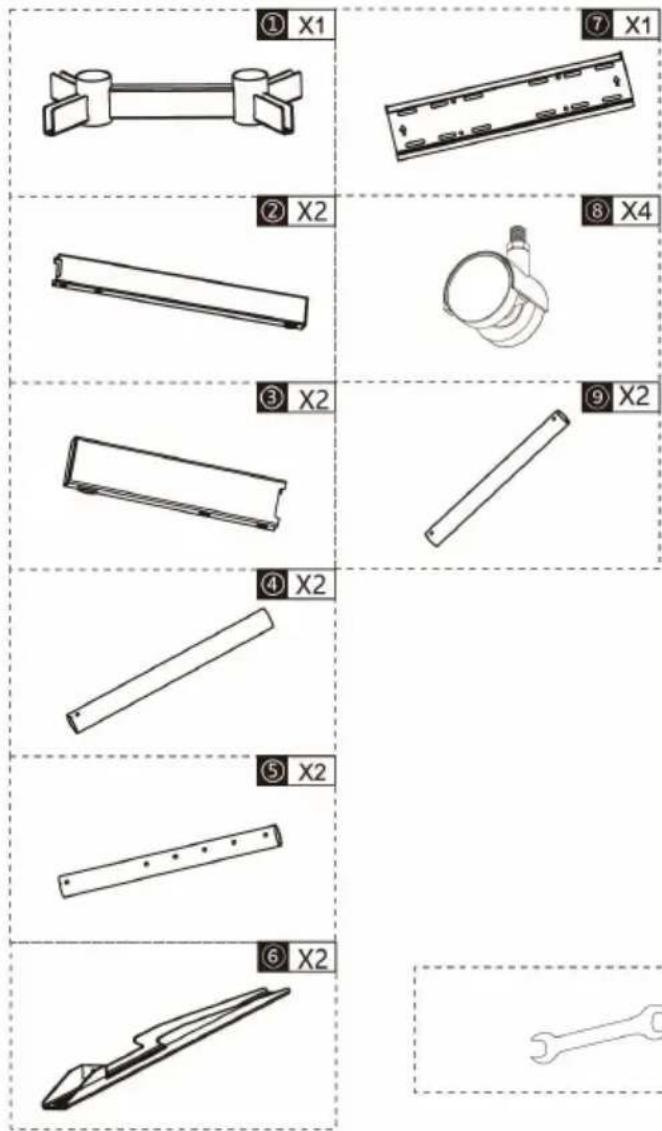

PARTS LIST

PART LIST

Plastic Washer

Steel Washer

① X1 ② X2 ③ X2 ④ X2 ⑤ X2 ⑥ X2

1 X1

X1
10+13

M6×10
A X26

M6X25
B X2

M6×35×2
C X4

M6X30
D X2

M6X50
E X4

M6×16×1
F×8

M6
G X4

H X1
4mm

FOR TV INSTALLATION

Spacer with 3 holes
TV10 X4

1

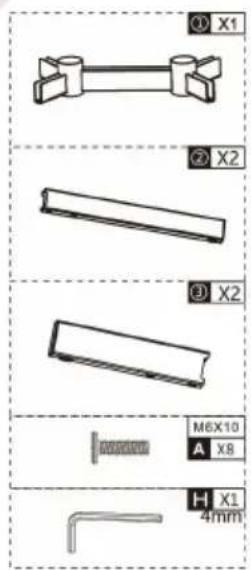

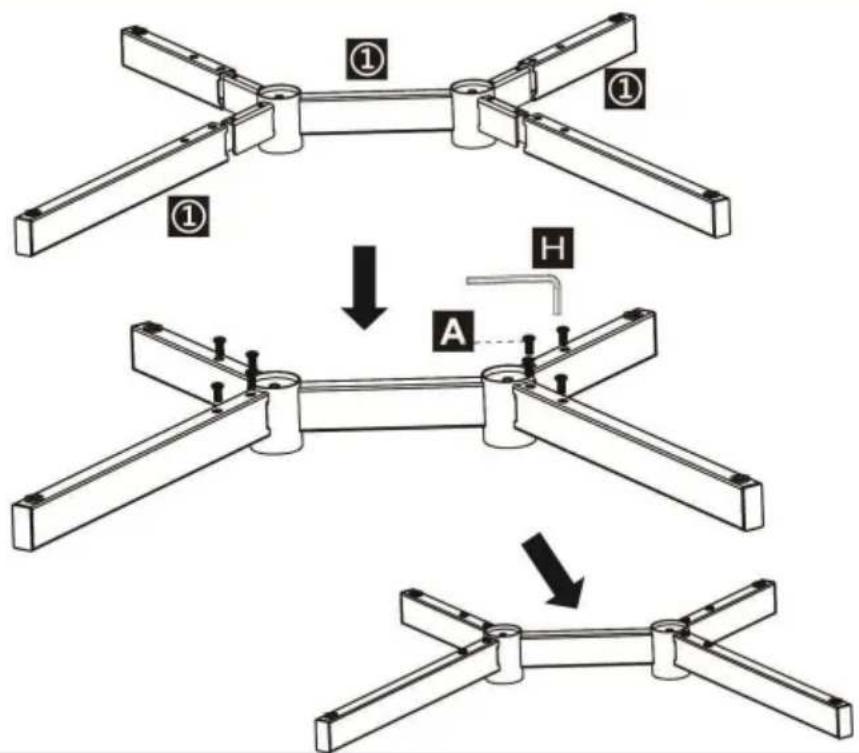

① X1 ② X2 ③ X2 M6X10 A X8 H X1 4mm

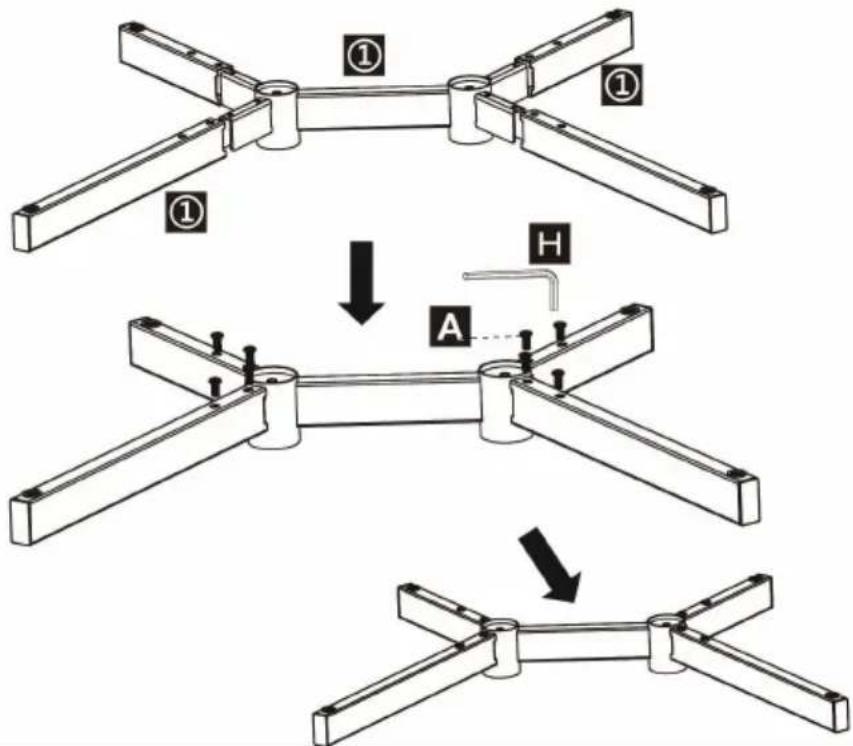

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating process steps.

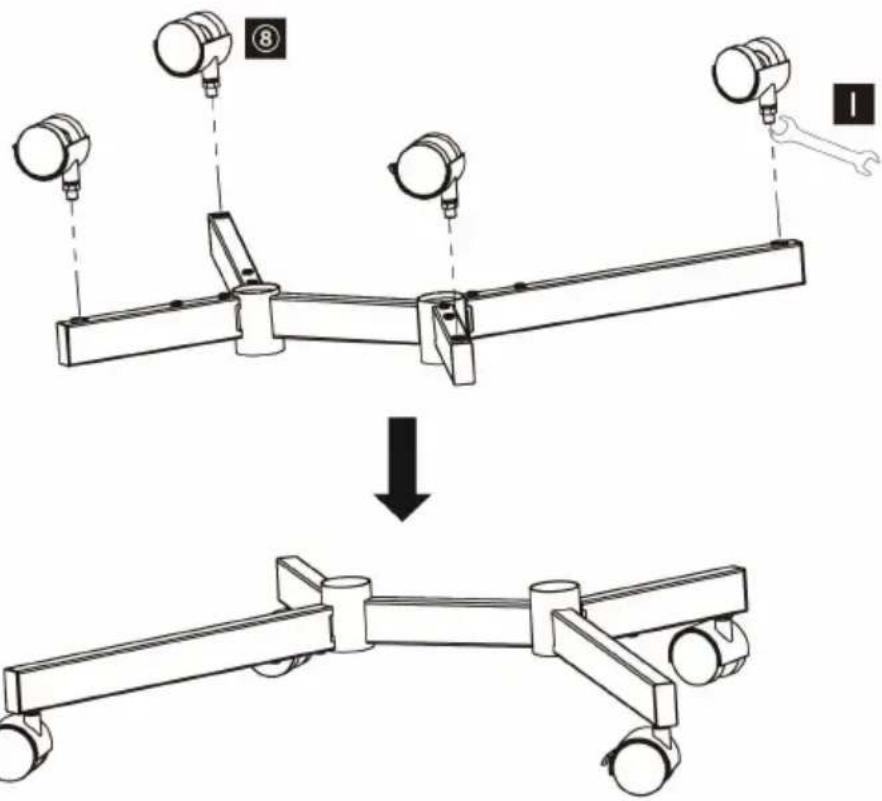

⑧ X4 1 X1 10+14°

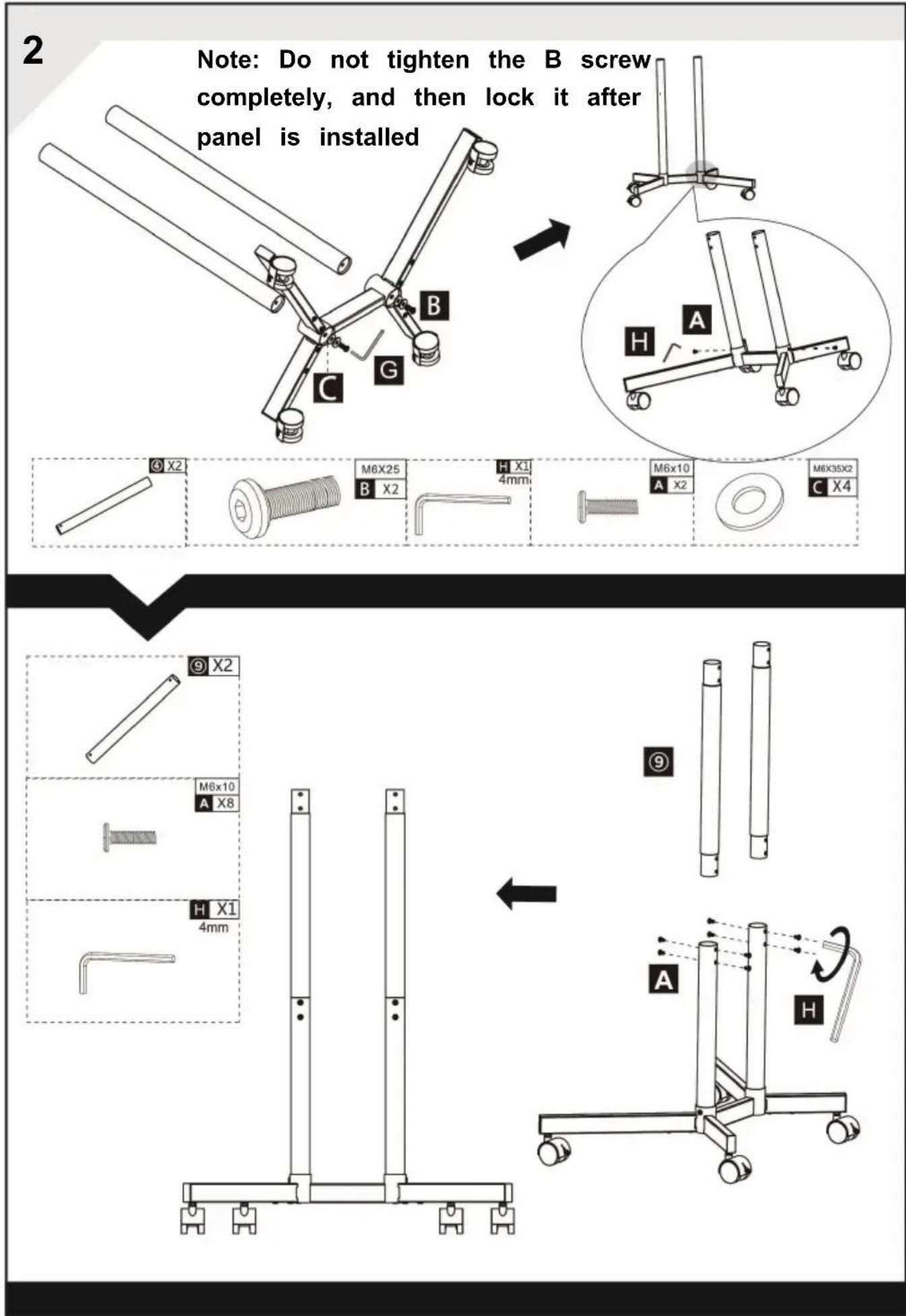

Technical diagram showing mechanical assembly steps with labeled components and directional arrow

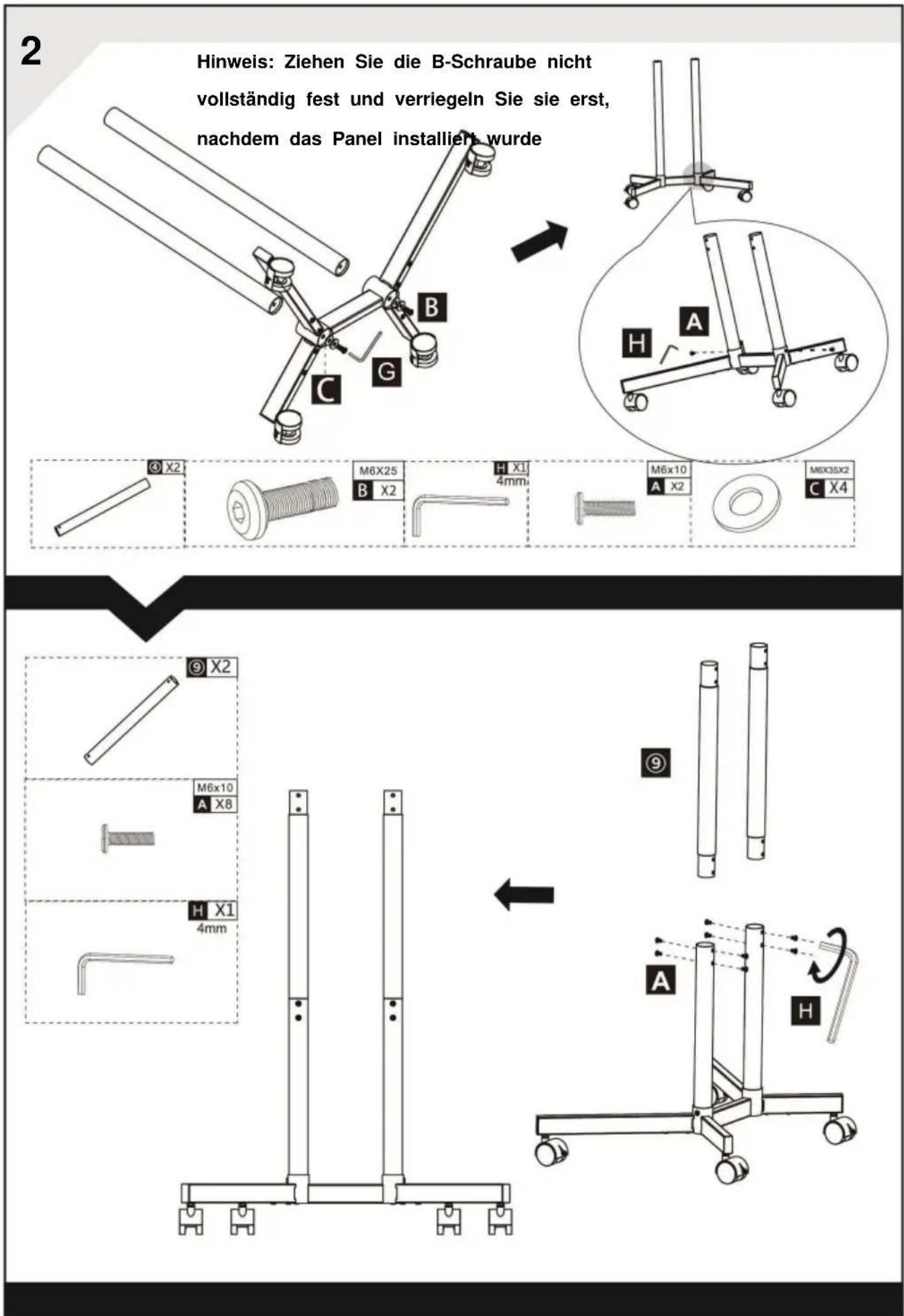

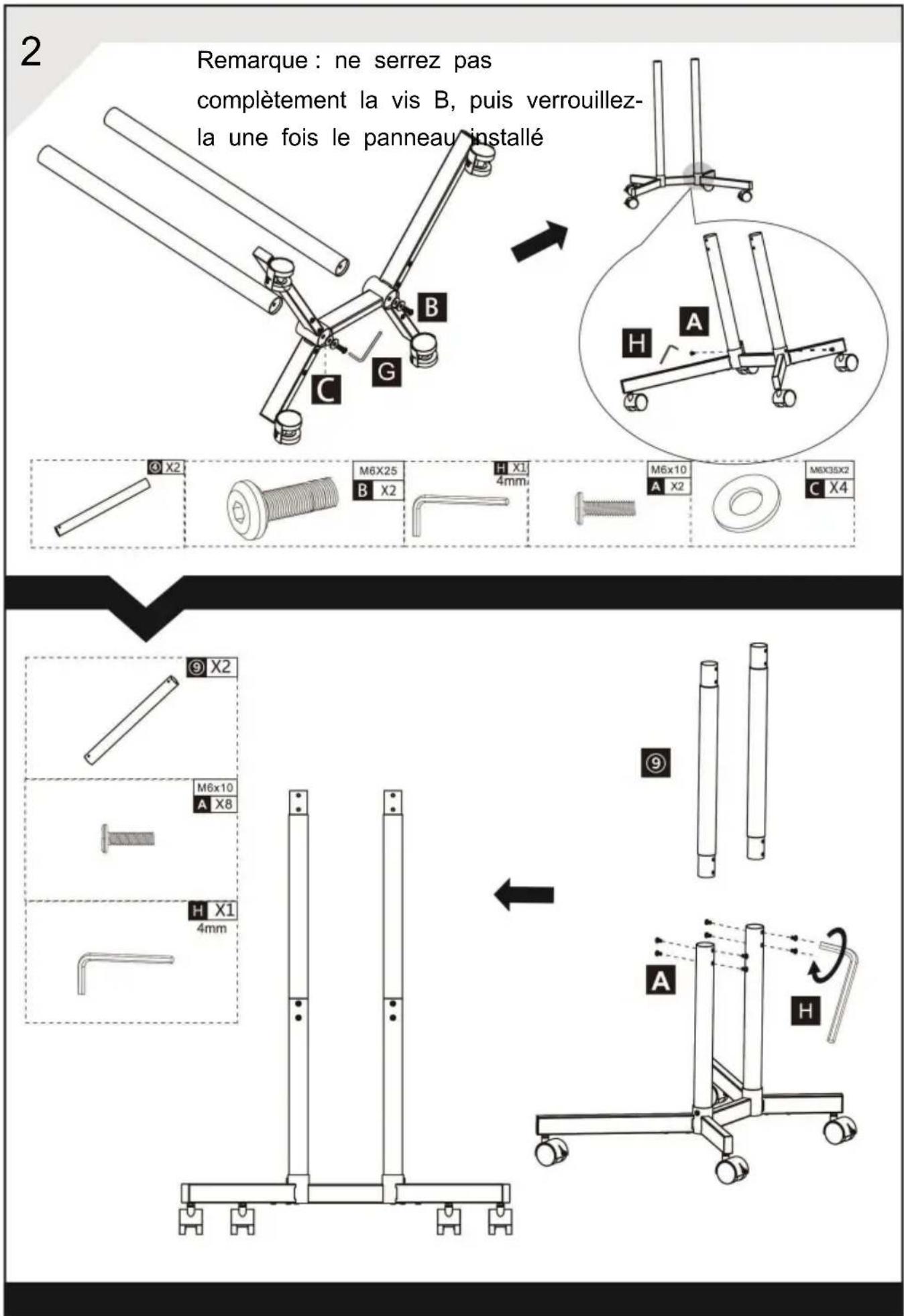

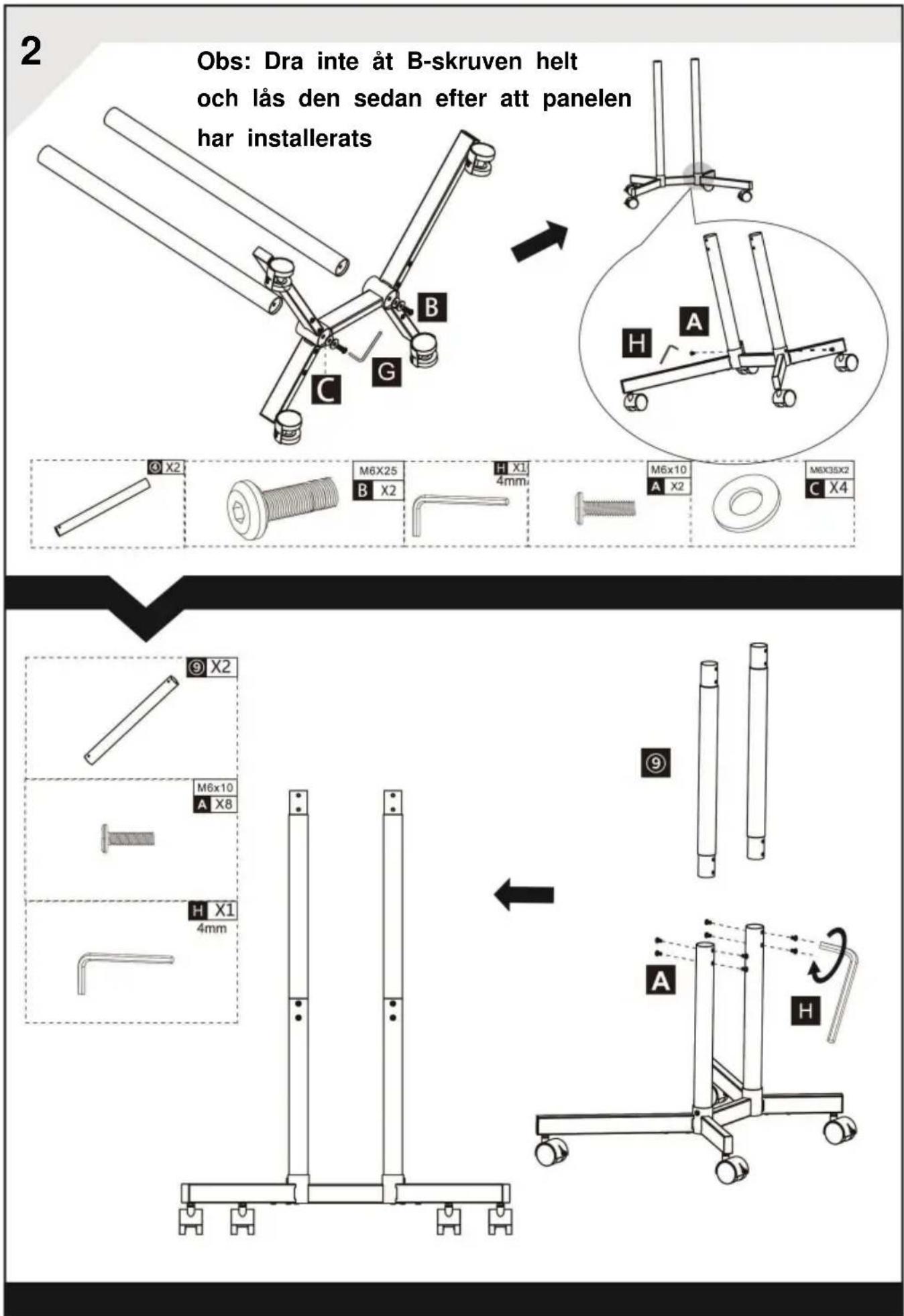

Note: Do not tighten the B screw completely, and then lock it after panel is installed H A C G X2 M6X25 H X1 M6x10 M6X35X2 B X2 4mm A X2 C X4 ⑨ X2 M6x10 A X8 H X1 4mm ⑨ A H

3

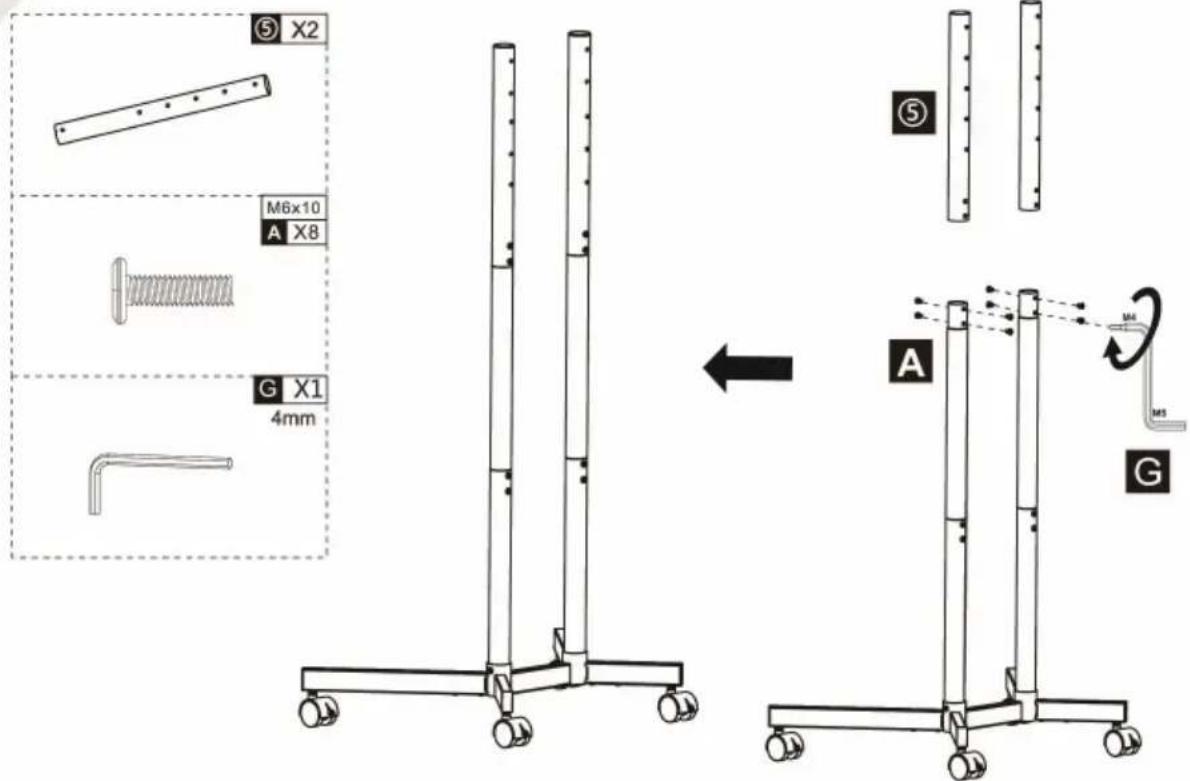

⑤ X2 M6x10 A X8 G X1 4mm ⑤ A G MA MS

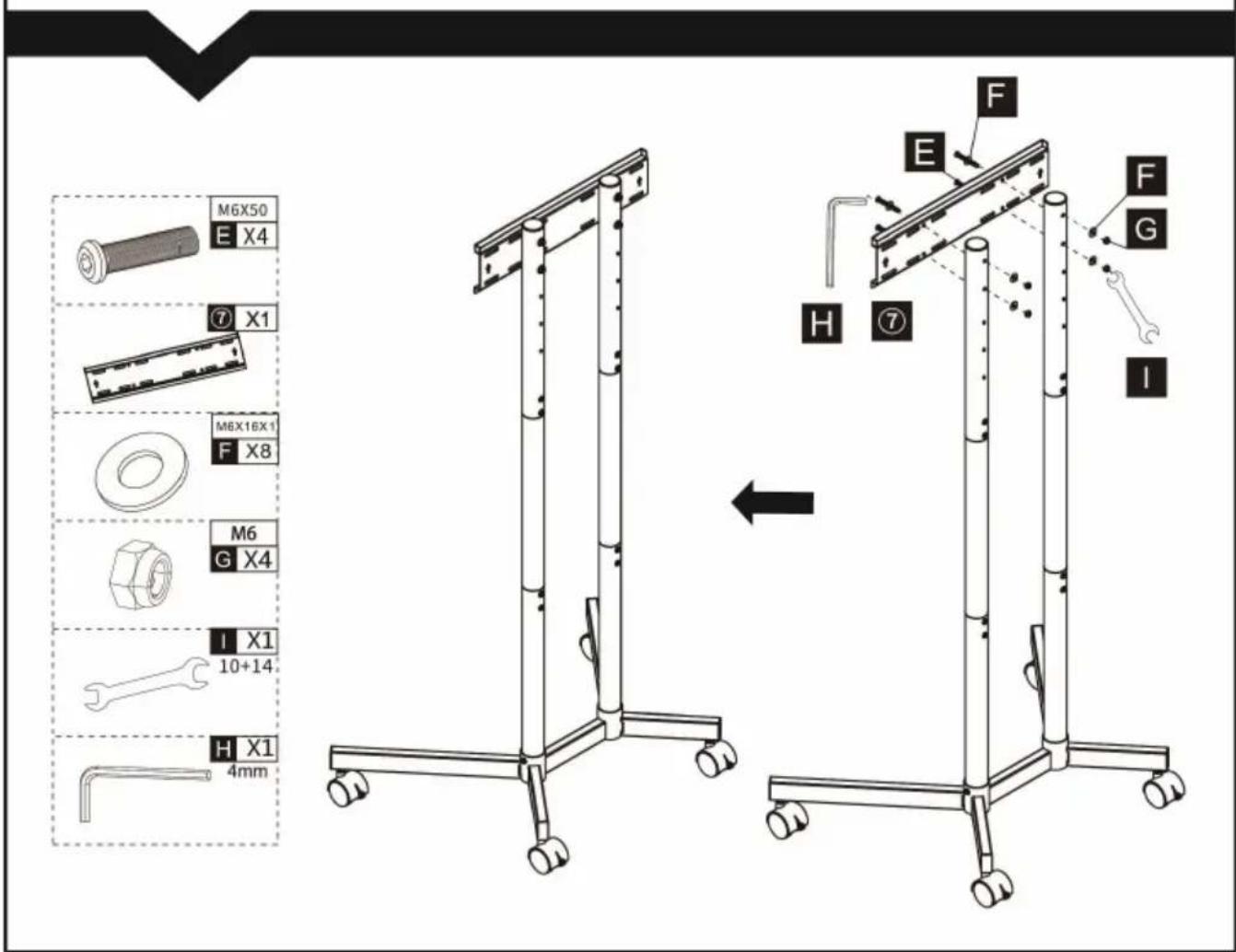

M6X50 E X4 ⑦ X1 M6X16X1 F X8 M6 G X4 I X1 10+14 H X1 4mm E F H ⑦ F G I

4

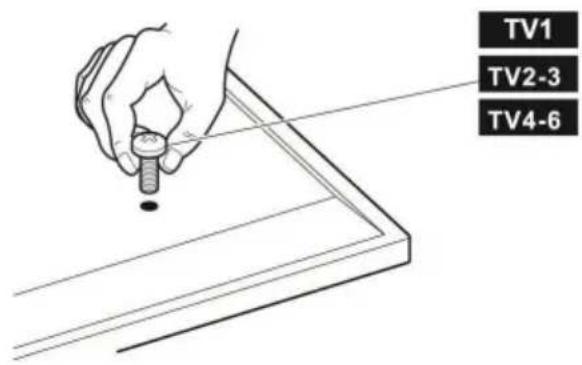

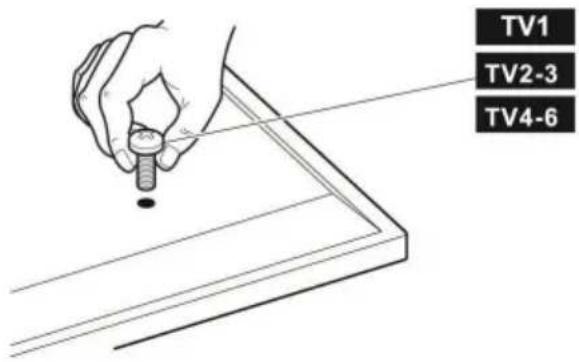

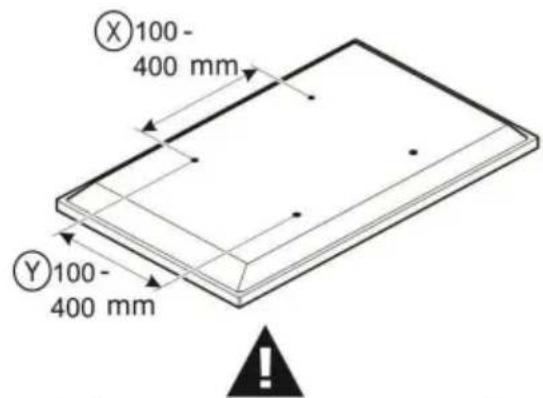

Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height ⬤ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes, no text or symbols present

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

Please keep for future reference.

5

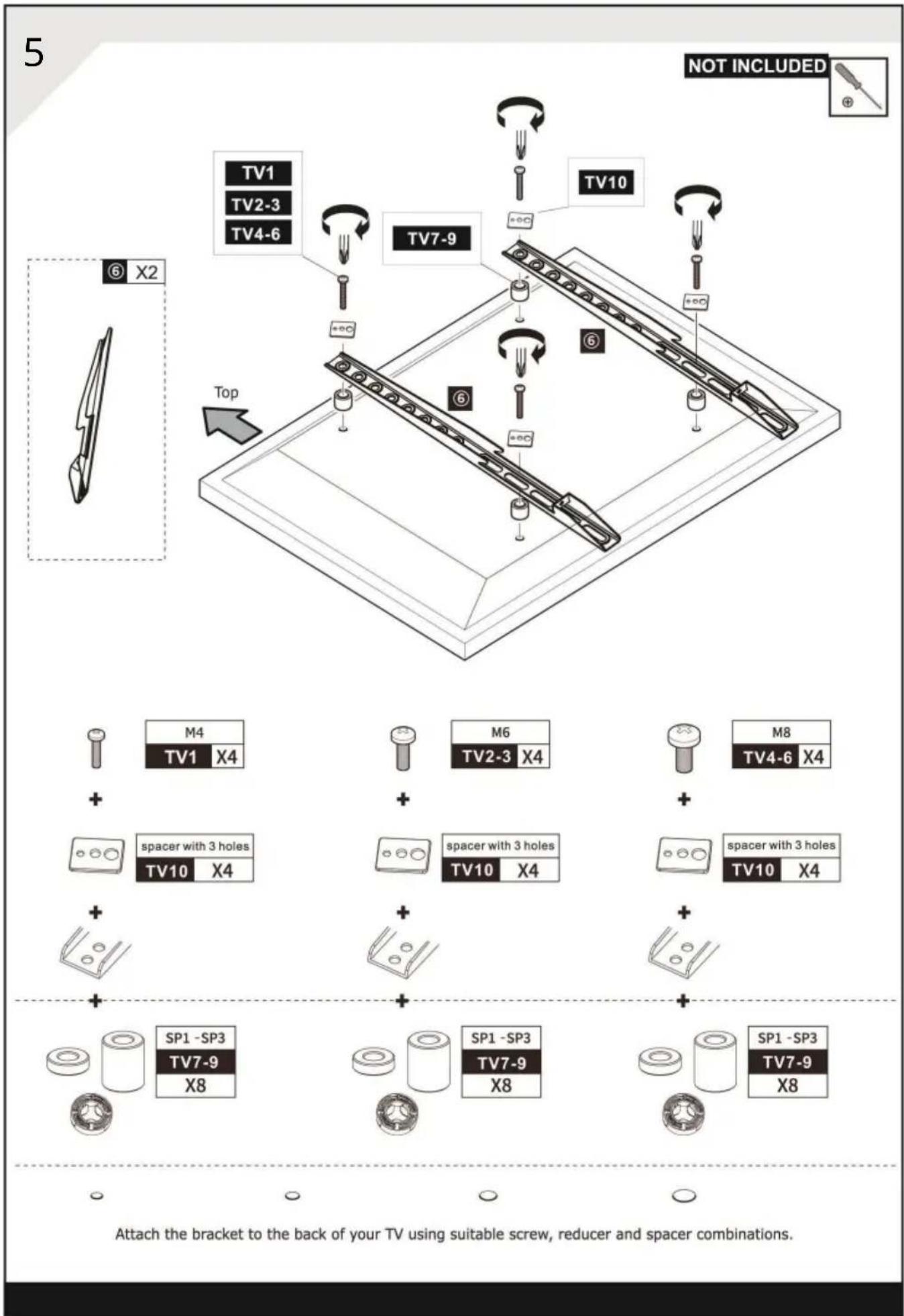

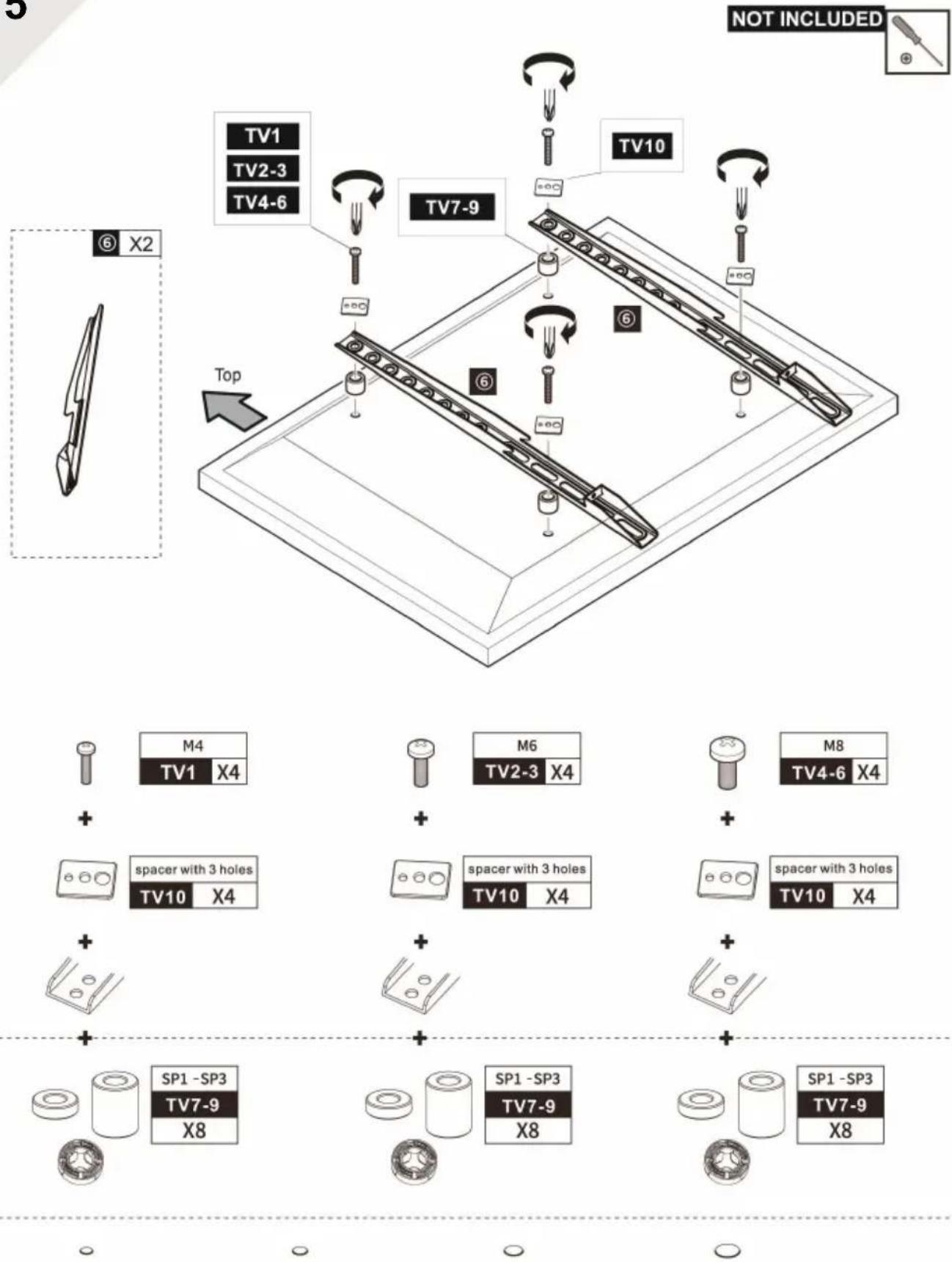

NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top M4 TV1 X4 + spacer with 3 holes TV10 X4 + spacer with 3 holes TV10 X4 + spacer with 3 holes TV10 X4 SP1 -SP3 TV7-9 X8 SP1 -SP3 TV7-9 X8 SP1 -SP3 TV7-9 X8

Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6

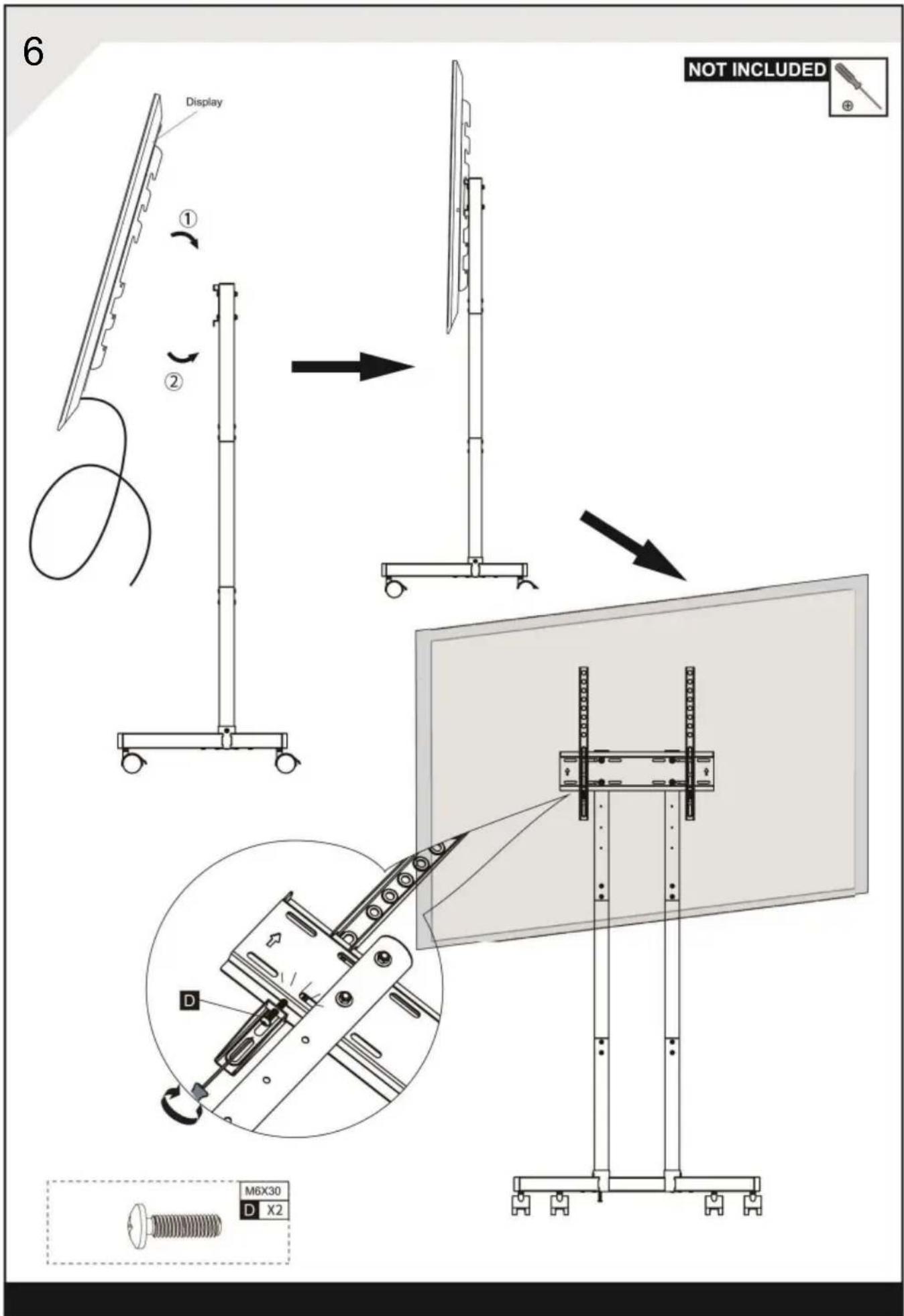

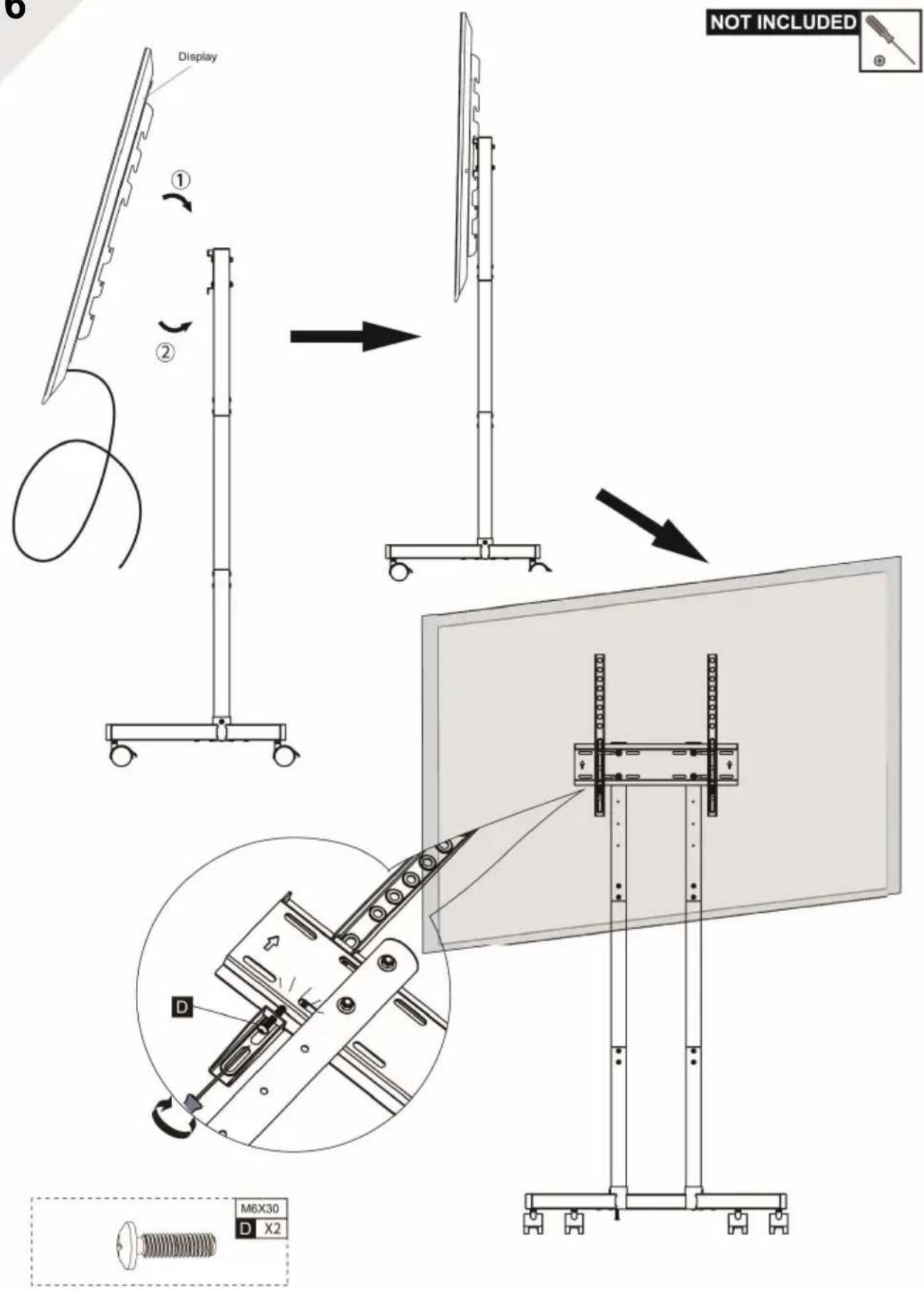

NOT INCLUDED Display ① ② M6X30 D X2

PRODUCT PARAMETER

Model	TC80
Safe Loading Weight	88 LBS
Product Size	470*420*1365mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : TC80

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : TC80

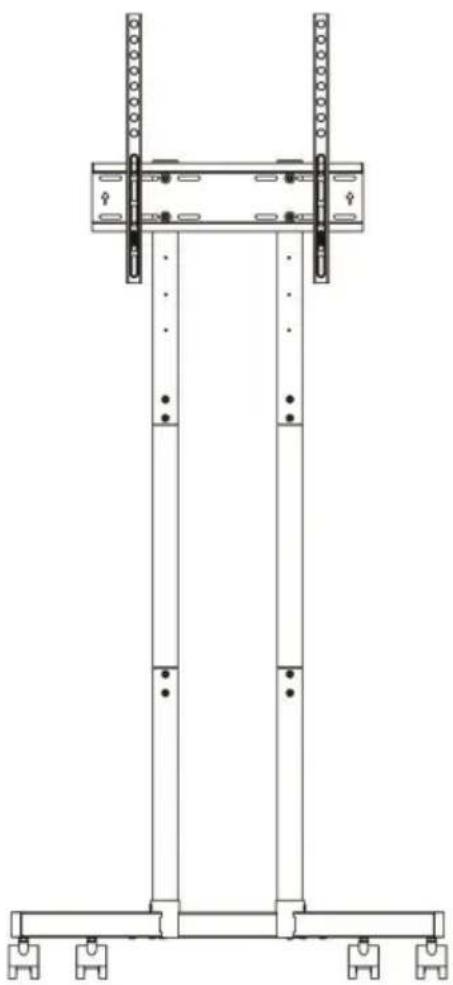

Technical line drawing of a structural support frame with vertical columns and mounting feet (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

Spacer with 3 holes TV10 X4

ÉTAPE D'ASSEMBLAGE

1 ① ① ① H A M6X10 A X8 H X1 4mm ⑧ X4 ⑪ X1 10+14

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and central slot (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 NOT INCLUDED Display ① ② D M6X30 D X2

PARAMÈTRE DU PRODUIT

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

69, rue Mainzer Landstr.,

Affordable. Reliable. Home Improvement.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Technical line drawing of a structural support frame with vertical columns and mounting feet (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

Technical diagram illustrating three-step assembly of a mechanical component with labeled parts and directional arrows.

⑧ X4 1 X1 10+14

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes, no text or symbols present

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 NOT INCLUDED Display ① ② D M6X30 D X2

PRODUKTPARAMETER

YH CONSULTING LIMITED. C/O YH Consulting

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:TC80

elettronica www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:TC80

Technical line drawing of a vertical structural frame with mounting feet and support columns (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes, no text or symbols present

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 NOT INCLUDED Display ① ② D M6X30 D X2

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Strada, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:TC80

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:TC80

Technical line drawing of a vertical structural frame with mounting feet and support columns (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

1 X1

L
L
L
L
L
L
L
L
L
L

PASO DE MONTAJE

1 ① ① ① H A M6X10 A X8 H X1 4mm ⑧ X4 ⑪ X1 10+14

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and central slot (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 Display ① ② NOT INCLUDED M6X30 D X2

PARÁMETRO DEL PRODUCTO

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Calle Mainz Landstr.69,

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:TC80

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:TC80

Technical line drawing of a vertical structural frame with mounting feet and support columns (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

Spacer with 3 holes TV10 X4

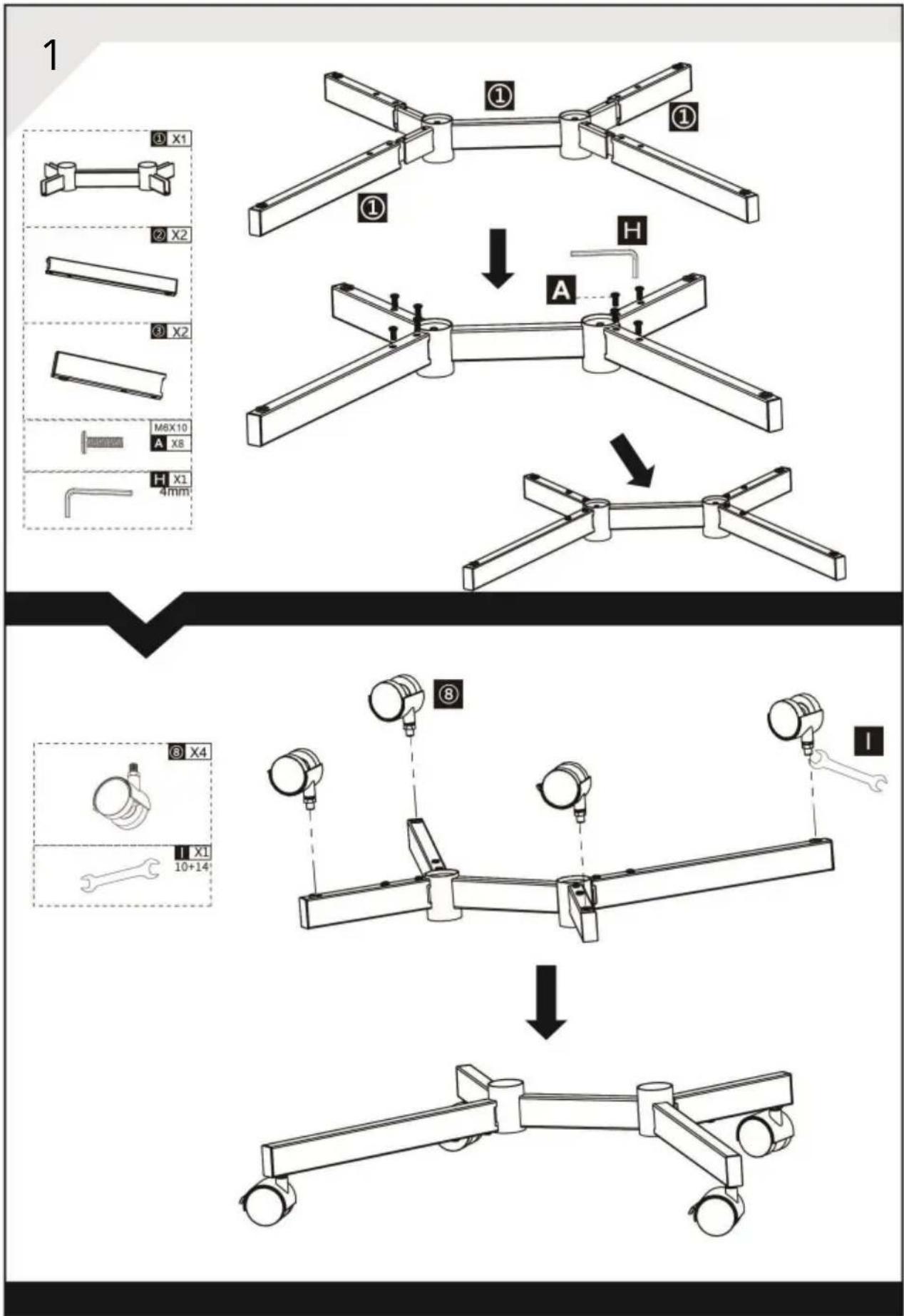

KROK MONTAŻU

1 ① ① ① H A M6X10 A X8 H X1 4mm ⑧ X4 ⑪ X1 10+14

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 Display ① ② NOT INCLUDED M6X30 D X2

PARAMETR PRODUKTU

YH CONSULTING LIMITED. C/O YH Consulting

Biuro Limited 147, Centurion House, Londyn

Droga, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:TC80

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:TC80

Technical line drawing of a structural support frame with vertical columns and mounting feet (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

1 X1

L
L
L
L
L
L
L
L
L
L

MONTAGESTAP

1

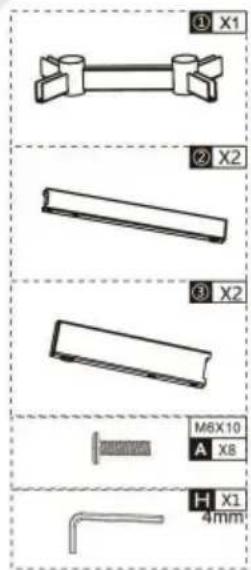

① X1 ② X2 ③ X2 M6X10 A X8 H X1 4mm

Technical diagram illustrating three-step assembly of a mechanical component with labeled parts and directional arrows.

⑧ X4 1 X1 10+14

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 NOT INCLUDED Display ① ② D M6X30 D X2

PRODUCTPARAMETER

Model	TC80
Veilig laadgewicht	88 pond
Productgrootte	470*420*1365mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting

Beperkt kantoor 147, Centurion House, Londen

Weg, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL: TC80

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL: TC80

Technical line drawing of a vertical structural frame with mounting feet and support columns (no text or symbols)

100×100 100×400

100x200 200x400

200x200 300x400

200x300 400x400

300×300

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC80

1 X1

L
L
L
L
L
L
L
L
L
L

MONTERINGSTEG

1

① X1 ② X2 ③ X2 M6X10 A X8 H X1 4mm

Technical diagram illustrating three-step assembly of a mechanical component with labeled parts and directional arrows.

⑧ X4 1 X1 10+14

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

4
Measure the TV fixing holes Width and Height

X100- 400 mm Y100- 400 mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular base with four circular holes, no text or symbols present

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 ⑥ X2 Top ⑥ M4 TV1 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 + + spacer with 3 holes TV10 X4 + + spacer with 3 holes TV10 X4 + + SP1 -SP3 TV7-9 X8 + + SP1 -SP3 TV7-9 X8 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 NOT INCLUDED Display ① ② D M6X30 D X2

PRODUKTPARAMETER

Modell	TC80
Säker lastvikt	88 LBS
Produktstorlek	470*420*1365 mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
