USER MANUAL SP-12 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
SUBMERSIBLE PUMP
MODEL: SP-12
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: SP-12

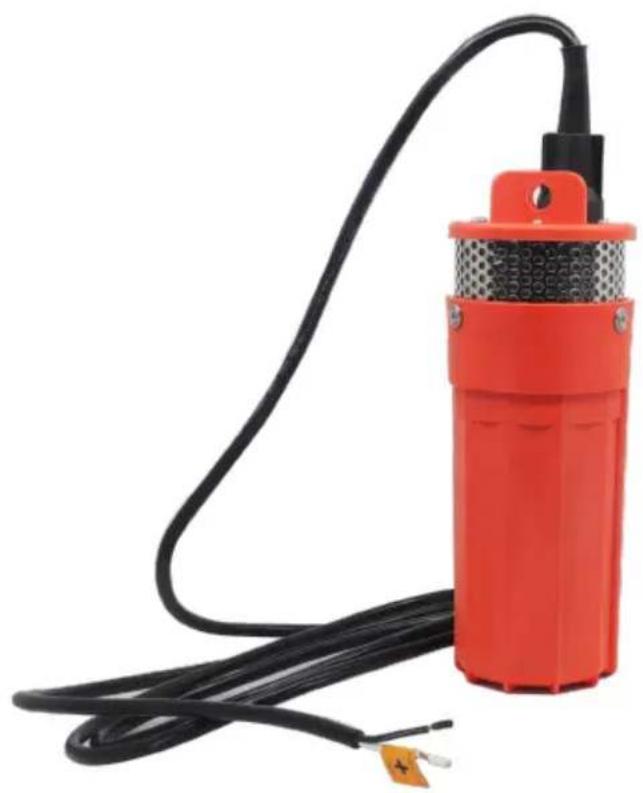

NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read instructions manual carefully. |
 | This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation. |
 | This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices |
WARNING
DO NOT use any Submersible pump for petrol/gasoline, petroleum products.solvents, thinners or ANY other flammable liquid with flash point below 82°(180°F). NOT FOR USE where flammable vapors are present.
BEFORE CONNECTING OR OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.
PRODUCT OVERVIEW
- DC deep well electric pump 12V adopts carbon brush DC motor; Sin the DC carbon brush motor has the structure of ac motor, it can easy to maintain a series of advantages, and has the dc motor run power Many advantages, such as high rate, no excitation loss and g speed regulation performance, are increasingly popular in various field of the national economy.
- The electric pump is made of high-quality diaphragm and metal, which has the characteristics of low power consumption, large head, compa structure, low noise, light and durable, and easy maintenance. DC 1 electric pump is suitable for power supply of corresponding voltage, kinds of ships and aquaculture. The water supply and drainage of grassland animal husbandry and mining enterprises is an ideal portal water-carrying tool.
INSTRUCTIONS FOR USE
- Before use, check that the supply voltage is consistent with the pur the voltage tolerance is ± 5% .
- When using additional cables, the wire diameter of the drawer wire should be thick enough.
- Before use, check whether the bolts are loose and whether there is damage or bad contact between the power cord and the insertion of
-
The lift and release of the electric pump should be tied to the lift and hand put, do not pull the cable..
●Water if there is sand and other sundries, the electric pump should placed in a basket or with prevention. Dirt and sundries are set ar to prevent water pump from blocking.
●After 500 hours of power operation, the pump shall be removed For maintenance, the seals shall be checked, the brush powder of commutator shall be cleaned, and the bearing butter and carbon brush shall be replaced. -
Before use, please determine the positive and negative poles of the water pump and the power supply, and the positive and negative pole the water pump should correspond to the positive and negative pole the power supply. (Connect the positive and negative electrodes, and press the screws on the inside of the outlet to fix the screws and them forward).
- Check the voltage of the solar photovoltaic panel/battery before use, voltage of the water pump needs to be matched with the voltage of solar photovoltaic panel/battery.
- The water depth of the pump shall not exceed 20 meters, otherwise water pressure is too high and the oil seal cannot bear it, which to the water inflow of the motor(Household electricity is strictly prohibited)!
TECHNICAL SPECIFICATIONS
| Voltage Range | 12V-14.8V DC 5% |
| Rated Power | 96W |
| Maximum Head | 230FT |
| Maximum Flow Rate | 1.6GPM |
| Spout Specifications | 1/2 inch(Barbed) |
| Rated Speed | 2600 rpm |
| Pump Body Material | Engineering Plastics |
TROUBLESHOOTING
| The fault Phenomenon | The cause of the Problem | Fault elimination |
| The electric pump won't give water | 1.Power supply cut off or ba contact.2.The impeller or screw is by Debris3.Low inlet water level | 1.Check whether the line socke in good contact.2.Remove impurities in the filter screen and pump3.Put the pump in water with water level higher than the fi screen |
| Reduced water output | 1.Low power supply, not up rated Speed.2.Strainer or diaphragm Blocked by debris3.the additional wire diameter is too small.the resistance is too large.4.The water outlet is higher than the maximum head of pump.5.impeller or screw wear.6.carbon brush wear,spring elasticity is insufficient. | 1.improve the power supply.2.Remove debris from the inside of the filter and diaphragm3.Replace the cable with a thio enough diameter, but not more than the diameter of the inlet the pump.4.Lower the discharge head of water pipe.5.adjust the impeller or screw pump body clearance or repla impeller or screw blade.6.Replace the carbon brush. |
| Abnormal sound | bearing wear clearance is to large. | Update the internal bearings |
- Submersible Pump *1
- Instruction Manual *1
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H London Road. Staines-upon-Thames. Surrey. TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODÈLE : SP-12
