ROOF CARGO BOX

MODEL: WP3005/WP3020/WP3001/WP3027/WP3023

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROOF CARGO BOX

MODEL: WP3005/WP3020/WP3001/WP3027/WP3023

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL DETAILS BEFORE ASSEMBLY AND USE OF THE ROOF CARGO BOX.

1. It is not recommended to install and disassemble repeatedly after installing the Roof Cargo Box. Please check regularly whether all bolts and nuts are locked. After driving 50 kilometers, you need to get out of the car to confirm firmness of the equipment.
2. When installing the luggage compartment of the vehicle, be careful not to have the situation shown in the above picture.
3. Not for use by children.
4. Do not modify this product by yourself.

Save the instructions.

PRODUCT PAREMETERS

Model	Colour	Cargo Volume	Weight Limit	Item Weight
WP3005	Black	8 cu.ft	165	26 lbs
WP3020	Black	11 cu.ft	165	33 lbs
WP3001	Black	14 cu.ft	165	34 lbs
WP3027	Black	18 cu.ft	165	44 lbs
WP3023	Black	22 cu.ft	165	46 lbs

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

NO	PICTURE	PART NAME	QTY
1		Cargo Box	1
2		U-shaped screw	4
3		Nut	8
4		Cushion	4
5		Strap	2
6		Strap Fixer	4
7		Key	2
8		Seal	2/4
Note:The quantity of seal:WP3005/WP3020/WP3001 is 2 pcs \ WP3027/WP3023 is 4 pcs.

WARNING: Installation Precautions:

Sketch of a SUV with roof-mounted equipment, no visible text or symbols

Roof Cargo Box front high and rear/low front and high rear.

Sketch of a SUV with roof rack and cross symbol (no text or labels)

The front and rear positions of Roof Cargo Box are reversed.

Step 1:

Two people work together to put the suitcase lightly on the roof of the position of the cross bar according to the hole position at the bo suitcase, and adjust it to a suitable position.

Illustration of a person loading a car onto a roof onto a vehicle, with an arrow indicating airflow or change direction (no text or symbols)

Step 2:

Open the suitcase, and hook the 4 U-shaped screws on the bottom of cross bar to connect the suitcase.

Technical line drawing of two identical mechanical support components with mounting brackets (no text or symbols)

Step 3:

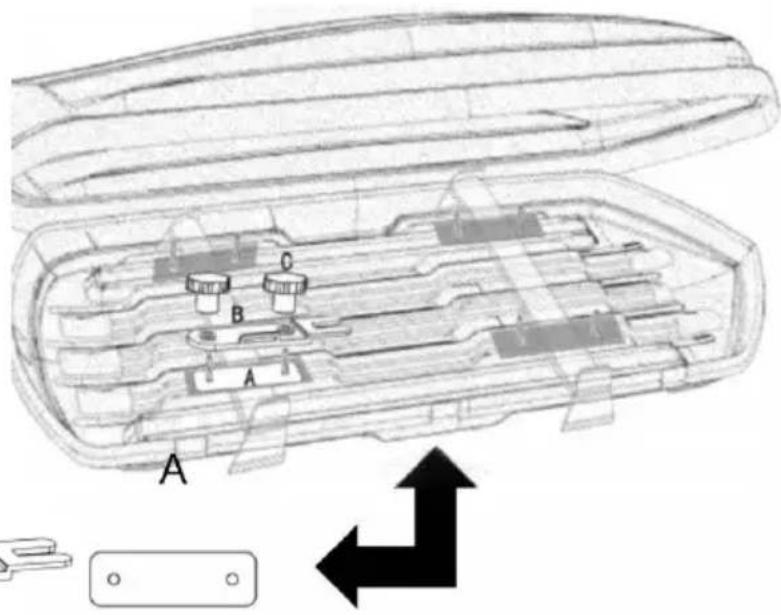

On the protruding U-shaped screws inside the suitcase, each buffer pad and strap parts in turn(the strap fixing holes face inward).

Technical diagram of a device casing with labeled components A, B, C and directional arrows indicating movement or assembly.

B

Step 4:

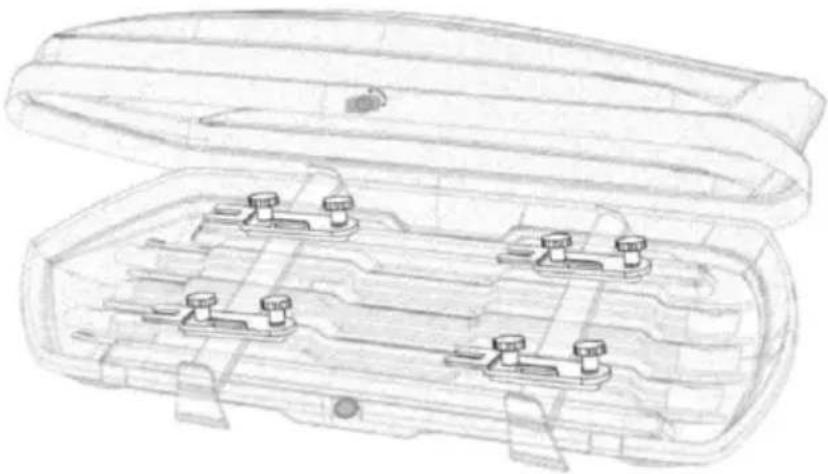

Use 8 nuts to lock the U-shaped screws in turn and the nuts and screw both sides must be kept balance.

Technical line drawing of a mechanical device with multiple mounting brackets and a closed casing (no text or symbols)

Step 5:

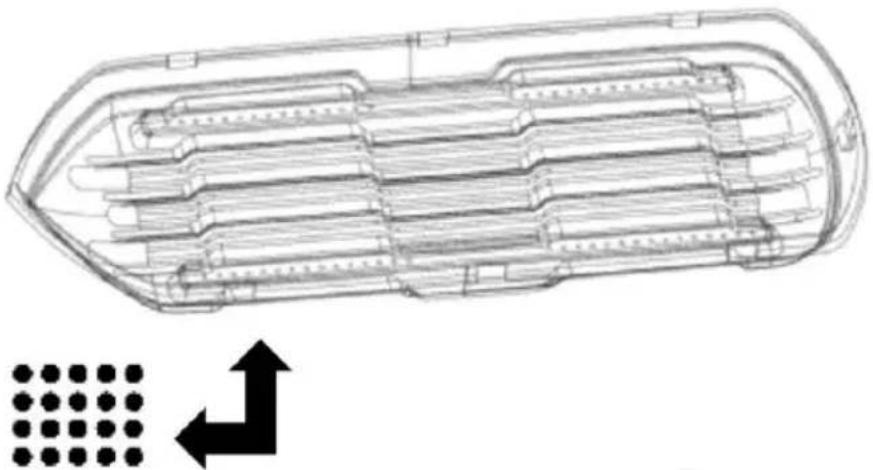

Stick the seal on th inside of the suitcas to the hole at the bottom for sealing a waterproofing.

Technical line drawing of a boat hull with internal compartments and a directional arrow indicating flow or movement (no text or symbols)

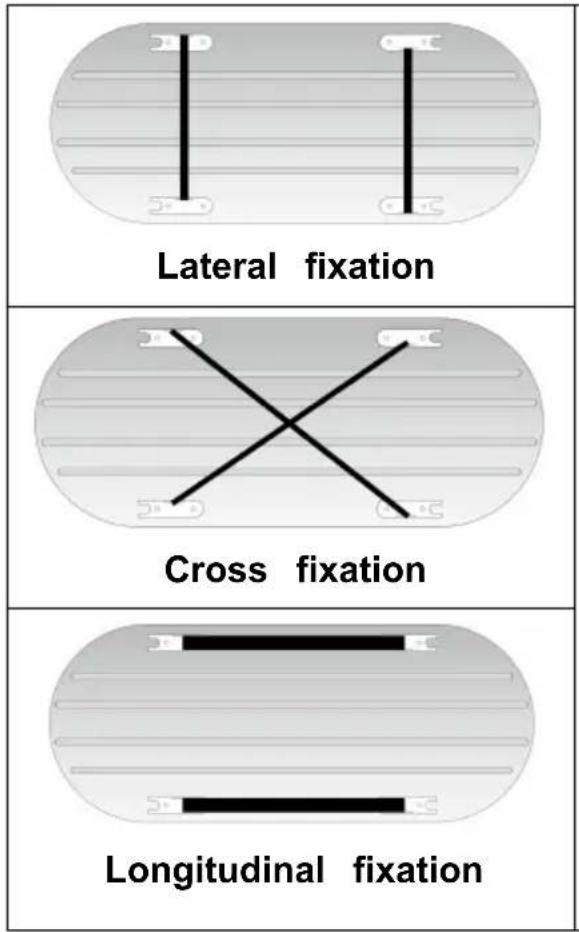

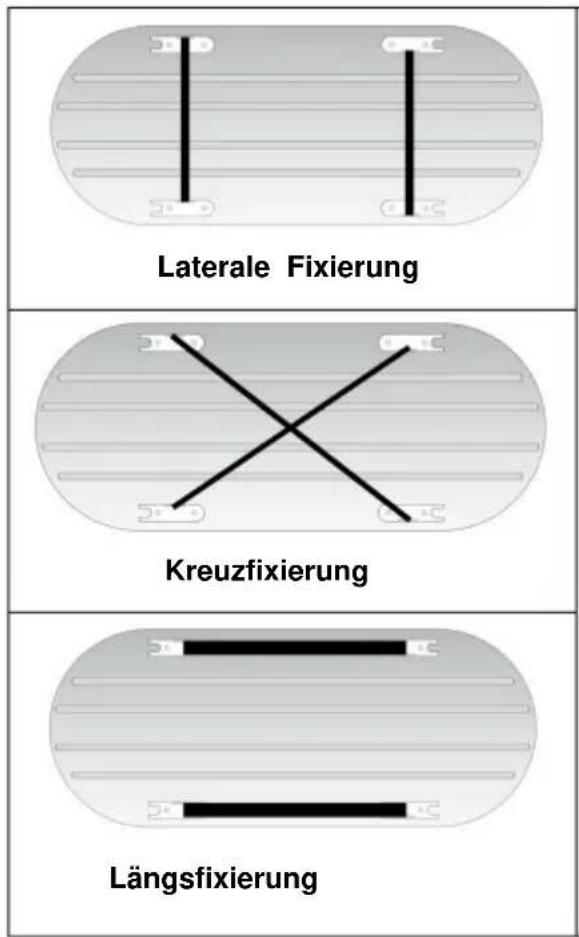

Lateral fixation Cross fixation Longitudinal fixation

Step 6:

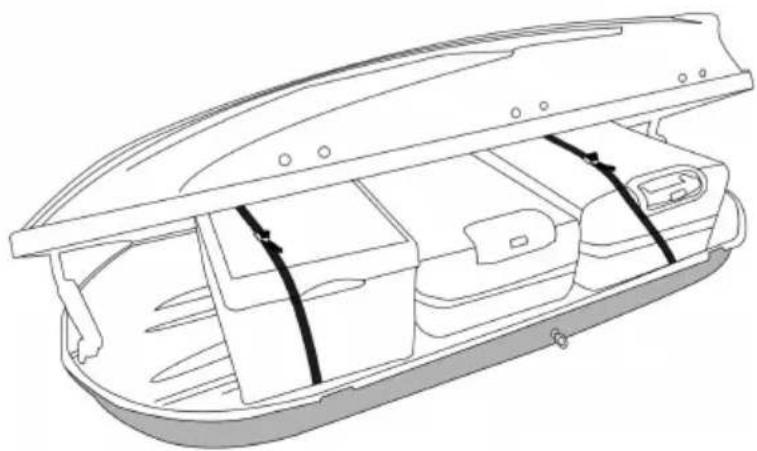

1. The straps should be passed from bottom top to secure the luggage.
2. To fasten the baggage, press the baggage and pull the strap end outward.
3. Each strap should pass through the corresponding two fasteners.

Line drawing of a boat hull with internal compartments and structural ribs (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Sketch of a SUV with roof truss and a cross symbol (no text or labels)

Sketch of a modern SUV with roof-mounted equipment, no visible text or symbols

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating airflow or change (no text or symbols)

Étape 2 :

Technical line drawing of two identical mechanical support components with mounting brackets (no text or symbols)

Étape 3 :

Technical diagram of a device casing with labeled components A, B, C and directional arrows indicating movement or assembly.

B

Étape 4:

Technical line drawing of a mechanical component with multiple mounting holes and internal compartments (no text or symbols)

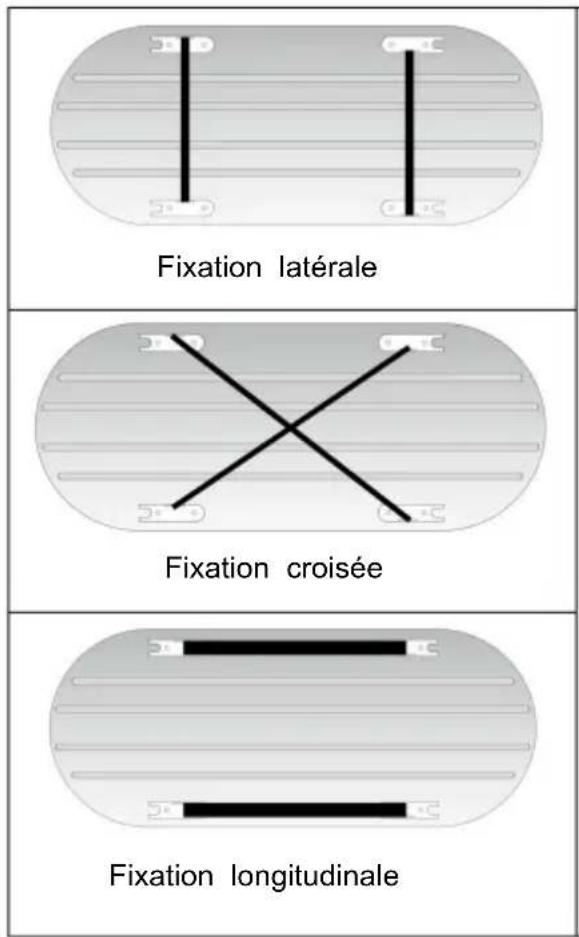

Étape 5 :

Technical line drawing of a boat hull with multiple lanes (no text or symbols)

Two black geometric shapes: a dot grid on the left and an upward-right arrow on the right (no text or symbols)

Line drawing of a boat's internal compartments and hull (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a modern SUV with roof-mounted roof and wheels, shown in perspective (no text or symbols)

INSTALLATIONSMETHODEN

Sketch of a SUV with roof-mounted roof and a cross symbol (no text or labels)

Sketch of a modern SUV with roof-mounted equipment, no visible text or symbols

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating speed change (no text or symbols)

Schritt 2:

Technical line drawing of two identical mechanical support components with mounting brackets (no text or symbols)

Schritt 3:

Technical line drawing of a mechanical component with multiple mounting brackets and a closed casing (no text or symbols)

Schritt 5:

Technical line drawing of a boat hull with multiple lanes (no text or symbols)

Two black geometric shapes: a dot grid on the left and an upward-right arrow on the right (no text or symbols)

Line drawing of a car rear bumper with internal compartments and mounting fixtures (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

HO BISOGNO DI AIUTO? CONTATTACI!

Sketch of a SUV with roof-mounted roof and a cross symbol (no text or labels)

Sketch of a modern SUV with roof-mounted equipment, no visible text or symbols

Illustration of a car with two people on top, showing a roof cover and a vehicle silhouette (no text or symbols)

Technical line drawing of two identical mechanical support components (no text or symbols)

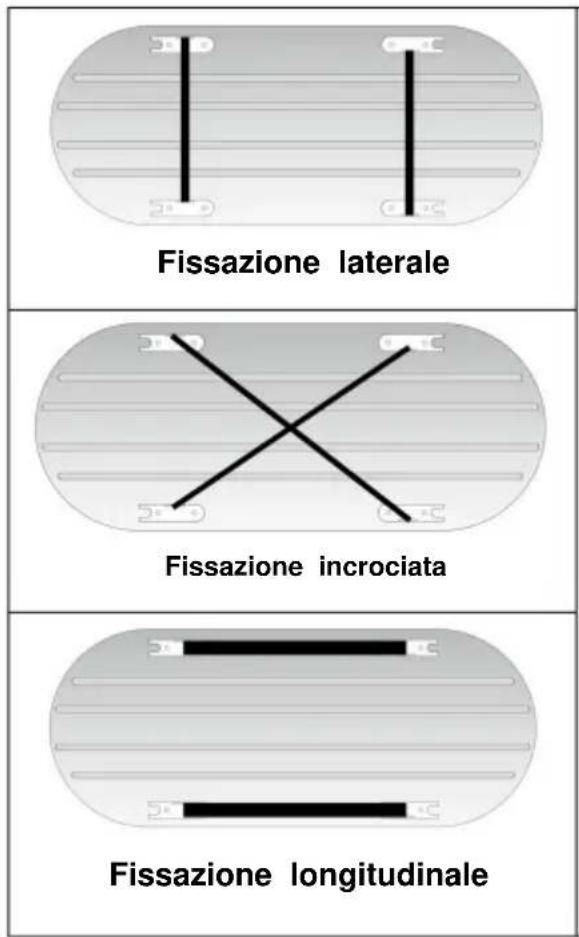

Passaggio

Technical line drawing of a mechanical component with multiple mounting brackets and a closed casing (no text or symbols)

Passaggio 5:

Technical line drawing of a boat hull with multiple lanes (no text or symbols)

Two black geometric shapes: a dot grid on the left and an upward-right arrow on the right (no text or symbols)

Line drawing of a car rear bumper with internal compartments and mounting fixtures (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Magonza Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

Sketch of a SUV with roof rack and 'X' symbol (no text or labels)

Sketch of a SUV with roof-mounted equipment, no visible text or symbols

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating airflow or change (no text or symbols)

Paso 2:

Technical line drawing of two identical mechanical support components (no text or symbols)

Paso 3: En

Technical diagram of a device casing with labeled components A, B, C and directional arrows indicating movement or assembly.

B

Etapa 4:

Technical line drawing of a mechanical component with multiple mounting brackets and a closed casing (no text or symbols)

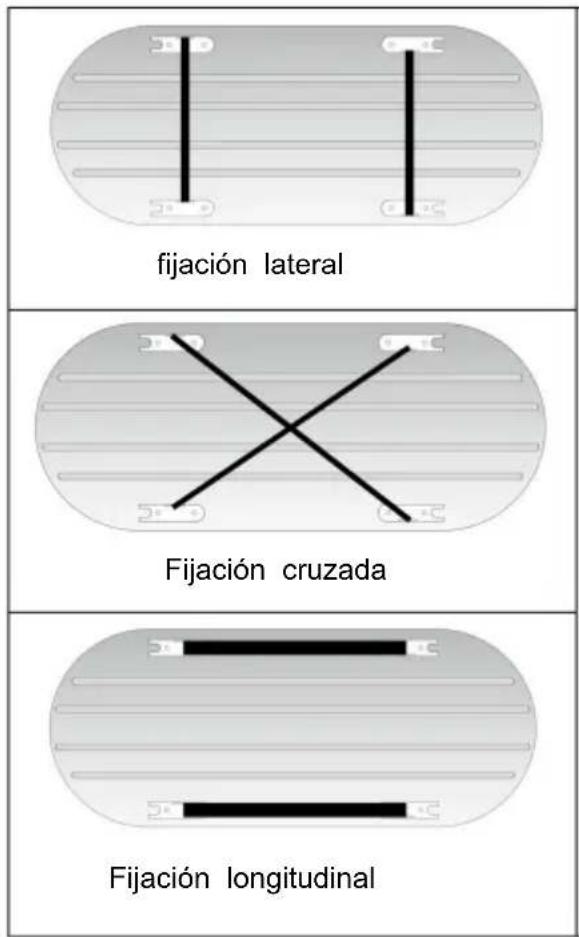

Paso 5:

Technical line drawing of a vehicle chassis with internal compartments and a directional arrow indicating movement (no text or symbols)

Line drawing of a car rear bumper with internal compartments and mounting fixtures (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200.000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

YH CONSULTING LIMITADO.

C/O YH Consulting Limited Oficina 147, Centurión

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Sketch of a SUV with roof truss and a cross symbol (no text or labels)

Sketch of a SUV with roof rack and cross symbol (no text or labels)

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating airflow or change (no text or symbols)

Krok 2:

Technical line drawing of two identical mechanical support components with mounting brackets (no text or symbols)

Krok 3:

Technical diagram of a device casing with labeled components A, B, C and directional arrows indicating movement or assembly.

B

Krok 4:

Technical line drawing of a mechanical device with multiple mounting brackets and a closed casing (no text or symbols)

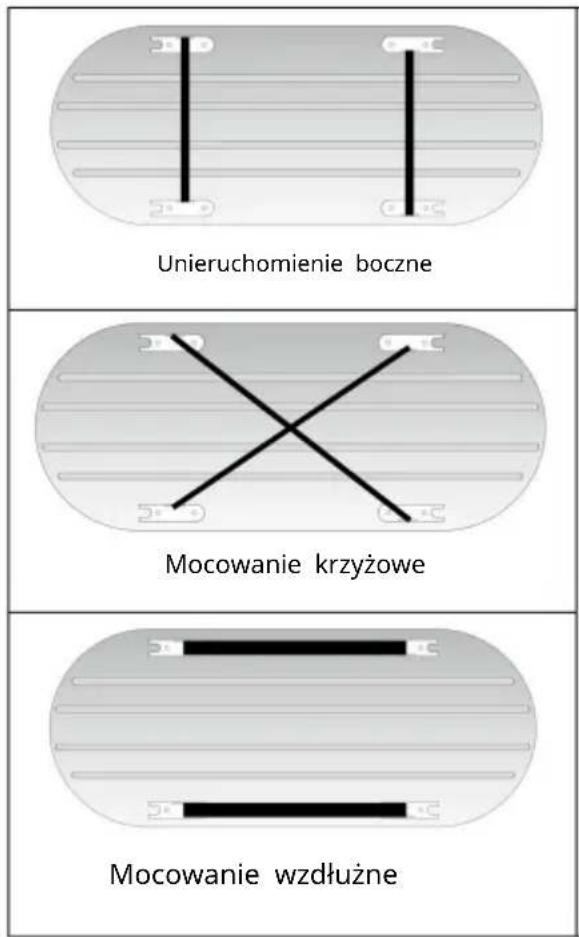

Krok 5:

Technical line drawing of a boat hull with horizontal stripes and an arrow indicating upward motion (no text or symbols)

Line drawing of a boat's internal compartments and hull (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200 000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

DAKBERGKIST

MODEL: WP3005/WP3020/WP3001/WP3027/WP3023

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

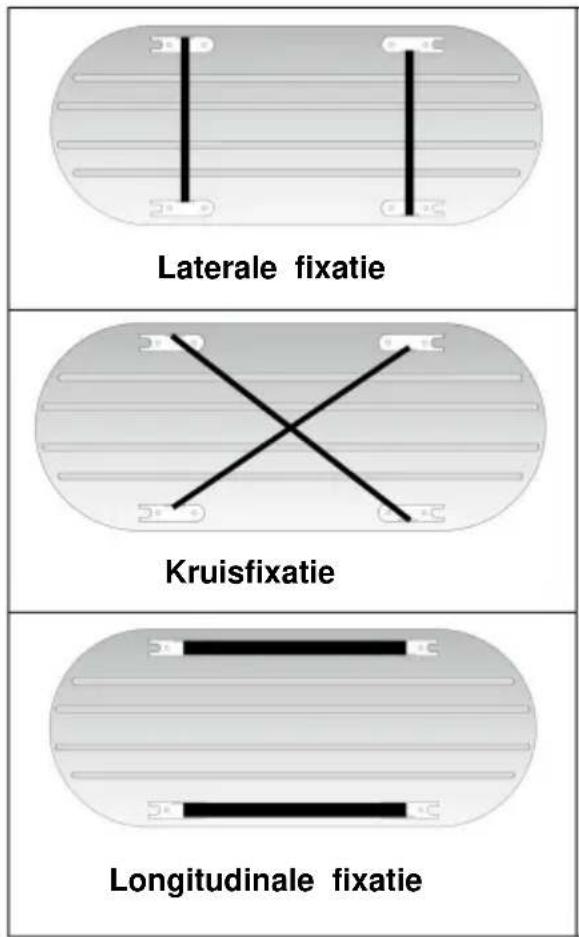

HULP NODIG? NEEM CONTACT MET ONS OP!

Sketch of a modern SUV with roof-mounted roof, no visible text or symbols

Sketch of a SUV with roof rack and cross symbol (no text or labels)

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating speed change (no text or symbols)

Stap 2:

Technical line drawing of two identical mechanical support components (no text or symbols)

Stap 3:

Technical diagram of a device casing with labeled components A, B, C and directional arrows indicating movement or assembly.

B

Stap 4:

Technical line drawing of a mechanical component with multiple mounting brackets and a closed casing (no text or symbols)

Stap 5:

Technical line drawing of a boat hull with multiple lanes (no text or symbols)

Two black geometric shapes: a dot grid on the left and an upward-right arrow on the right (no text or symbols)

Line drawing of a car rear bumper with internal compartments and mounting holes (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200.000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern SUV with roof rack and wheels, no text or symbols present

BEHÖVS HJÄLP? KONTAKTA OSS!

LÄS OCH FÖRSTÅ ALLA DETALJER INNAN

MONTERING OCH ANVÄNDNING AV TAKLASTER.

Sketch of a SUV with roof truss, no visible text or symbols

Sketch of a SUV with roof rack and cross symbol (no text or labels)

Illustration of a person loading a car roof onto a vehicle, with an arrow indicating speed change (no text or symbols)

Steg 2:

Technical line drawing of two identical mechanical support components (no text or symbols)

Steg 3:

Technical line drawing of a mechanical component with multiple mounting brackets and a closed casing (no text or symbols)

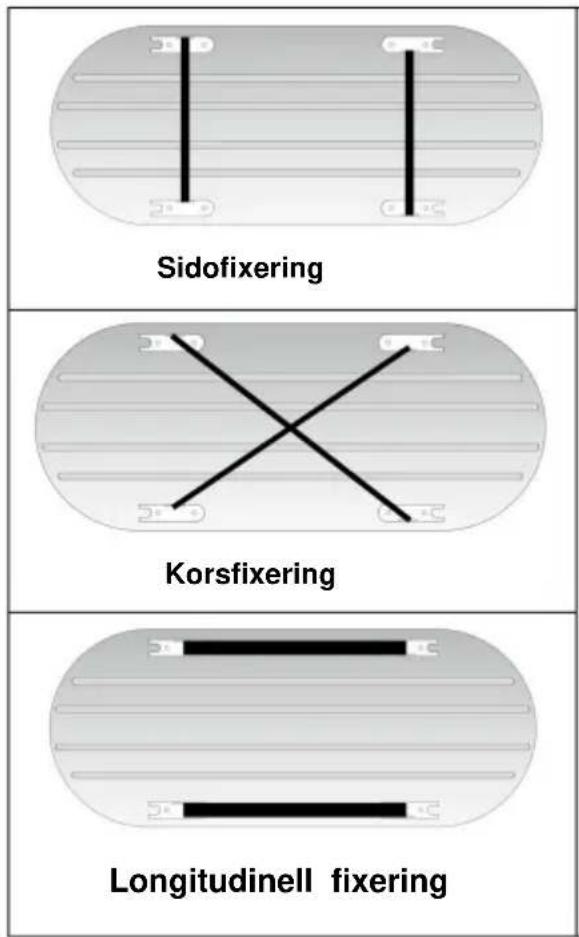

Steg 5:

Technical line drawing of a boat hull with horizontal stripes and an arrow indicating upward motion (no text or symbols)

Sidofixering Korsfixering Longitudinell fixering

Steg 6:

Line drawing of a car rear bumper with internal compartments and mounting holes (no text or symbols)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200 000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
