UNIVERSAL TV STAND

MODEL:TC105

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

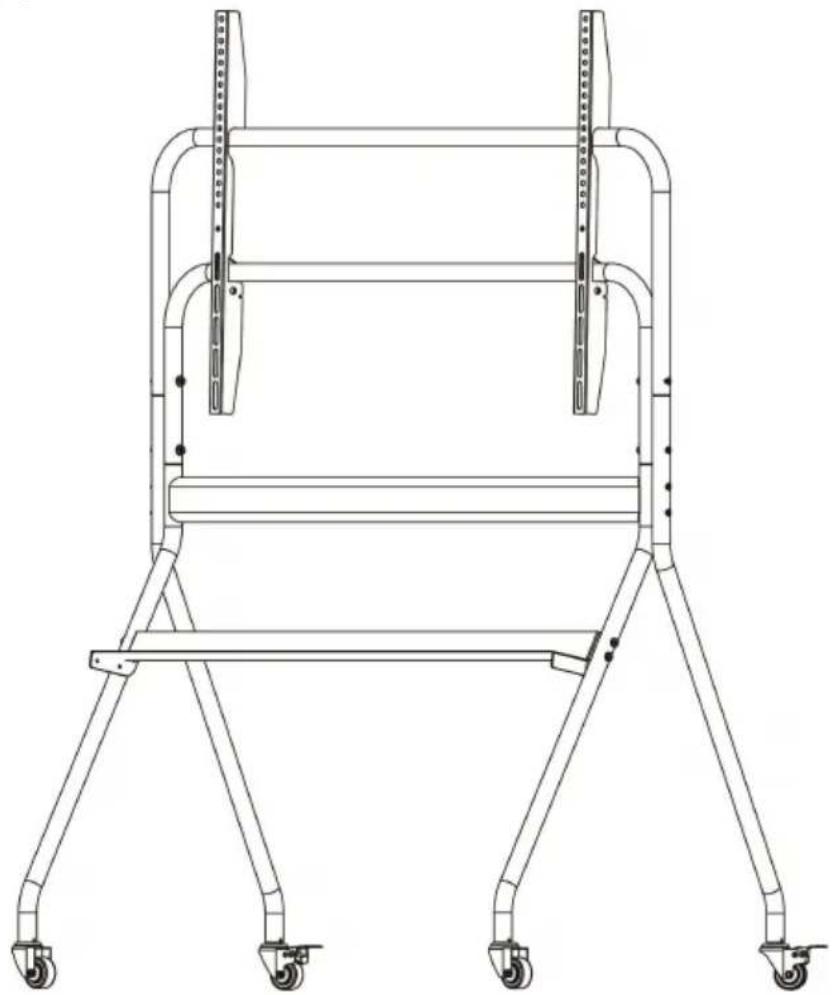

UNIVERSAL TV STANI

MODEL:TC105

Technical line drawing of a four-legged robotic platform with wheels and railings (no text or symbols)

200x200 300x400

200×300 400×400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Before installation, please ensure that your TV stand mounting ho dimensions, and weight can meet the specifications and standards the TV stand. If you have any questions or questions about the instructions and warnings, please contact us for help..

Important:

1. When installing the support, please use professional safety devices and tools in accordance with the requirements of the assembly instructions. Improper installation may cause the TV to fall or serious injury.
2. Before installation, ensure that the support surface can safely support the weight of the device and all accessories.
3. Please do not exceed the intended load capacity, otherwise it may cause serious injury or property damage.
4. This product contains small parts, swallowing them may cause choking hazards. Please keep out of reach of children.
5. This product is only suitable for indoor use, outdoor use may cause product damage and personal injury risk.

Maintenance:

Please check the connection between the bracket and the TV periodic to ensure it remains stable, and verify that the screws have not loos fallen off due to long-term use (at least once every three months). If security risks are identified, replace or reinforce the parts promptly.

SAVE THIS MANUAL

PARTS LIST

PART LIST

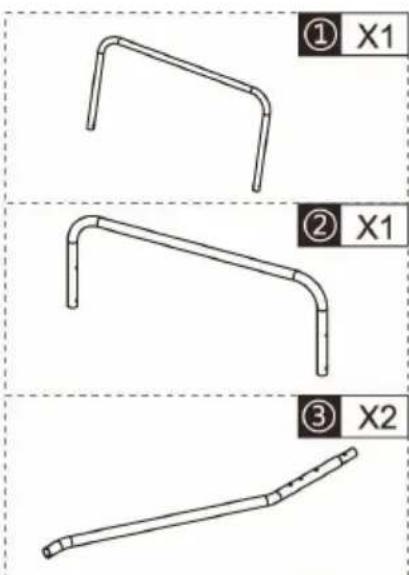

① X1 ② X1 ③ X2

Plastic Washer

Steel Washer

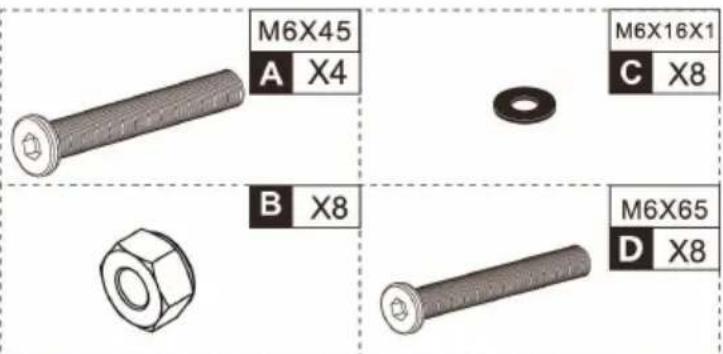

M6X45 A X4 M6X16X1 C X8 B X8 M6X65 D X8

Simple line drawing of a mechanical component with no text or symbols

M6X10

E X2

Simple line drawing of a diagonal rod with no text or symbols

Simple line drawing of a rectangular mechanical part with no text or symbols

FOR TV INSTALLATION

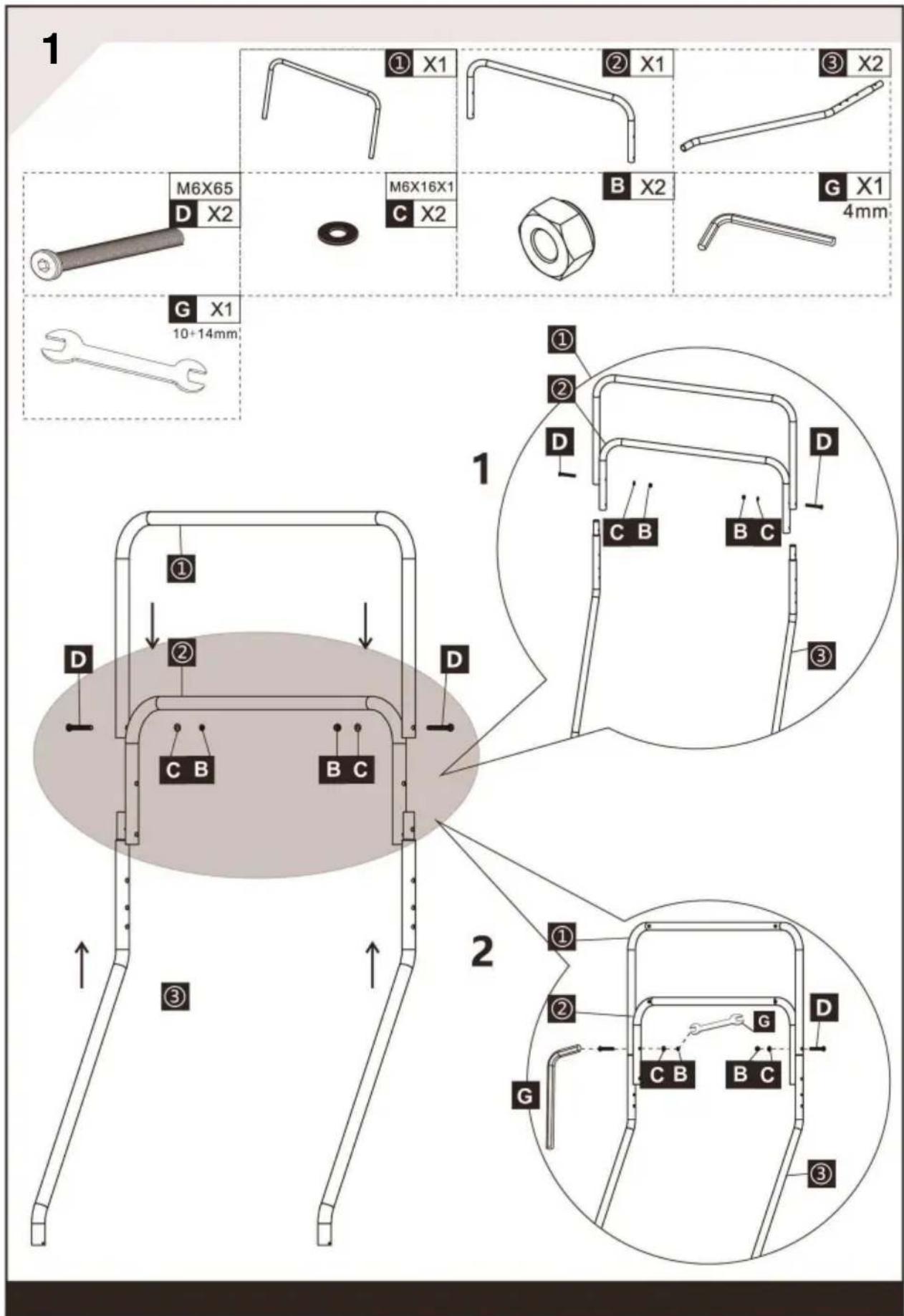

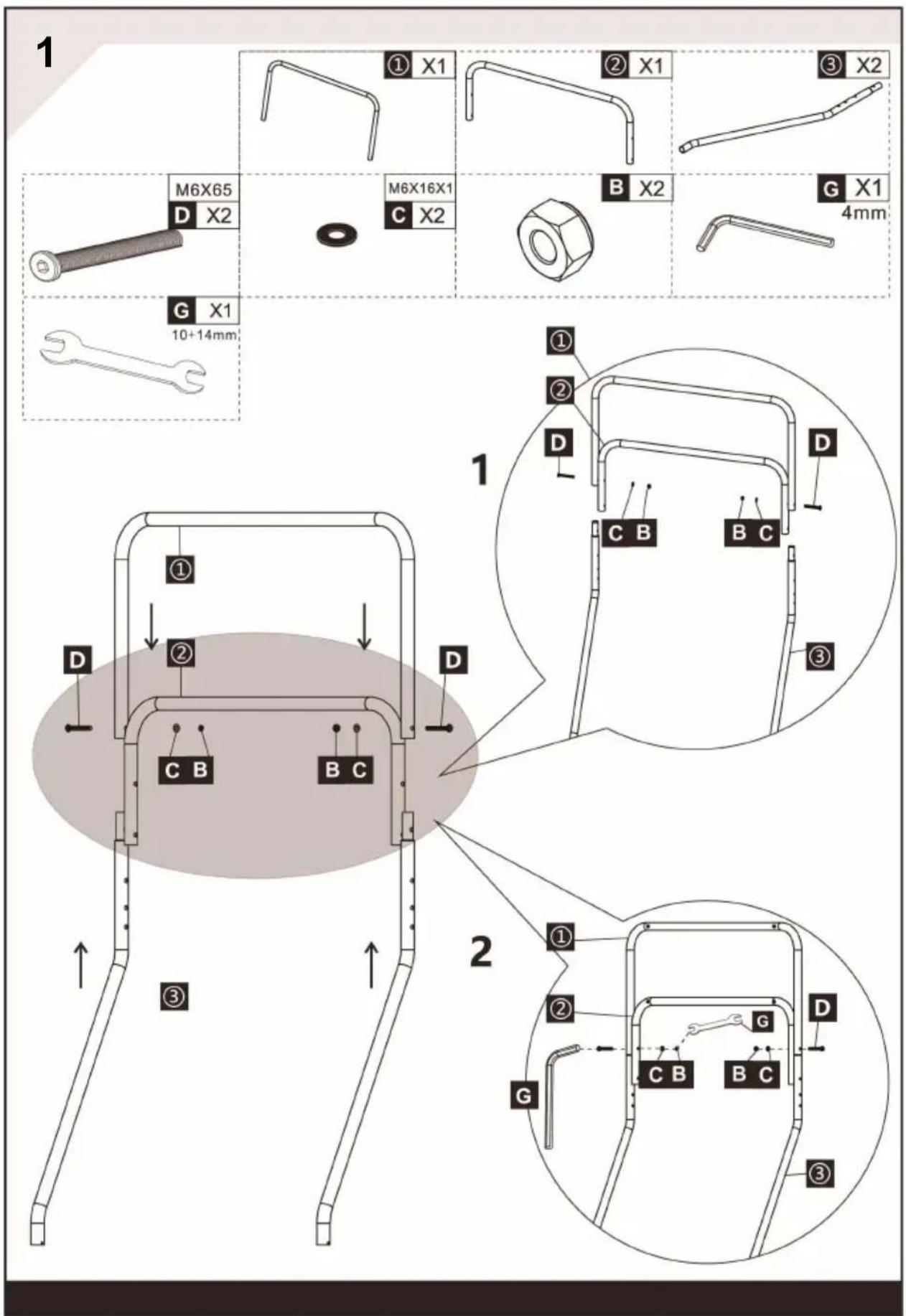

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm ① ② D D C B B C ③ ① ② D G C B B C ③

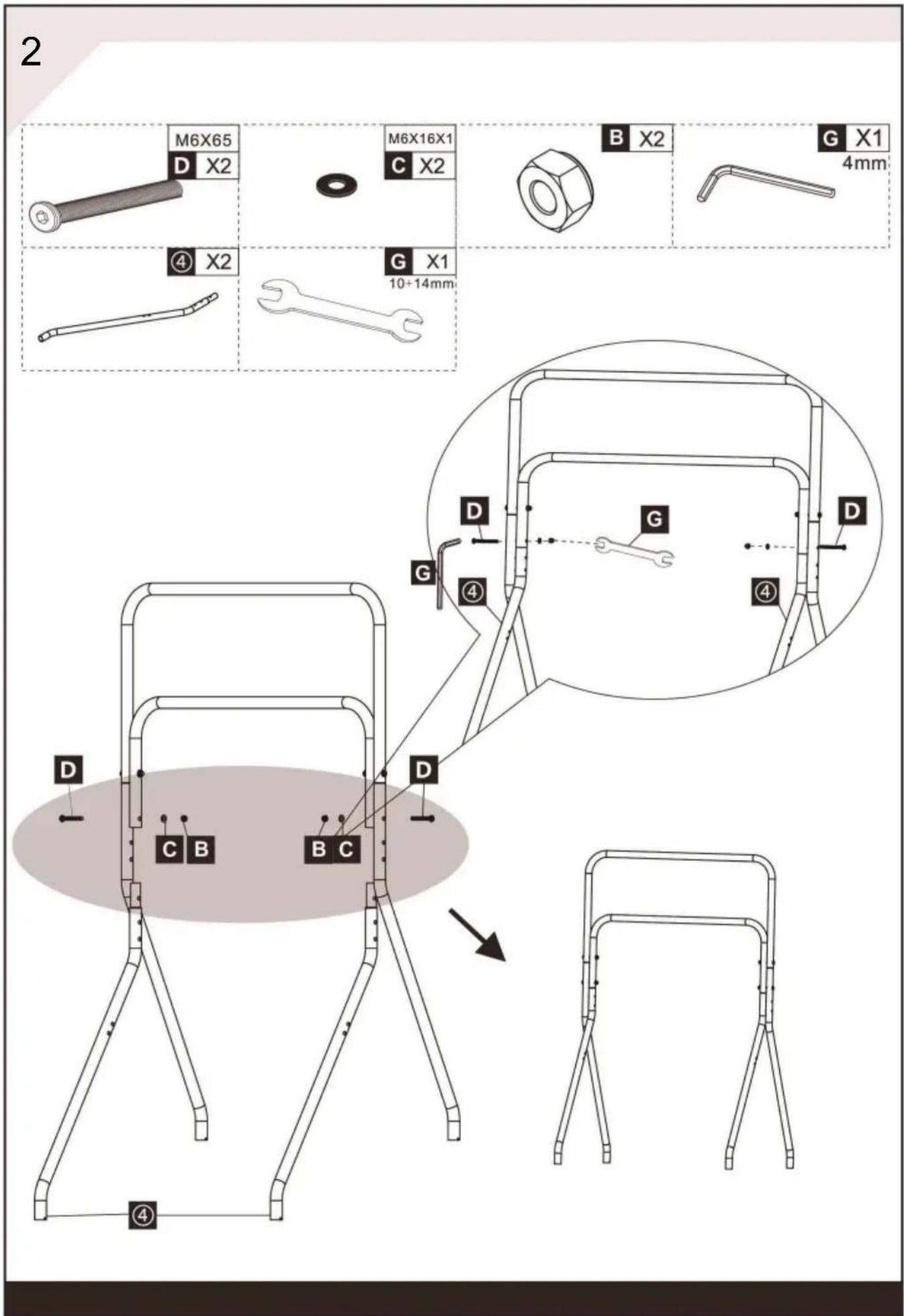

2

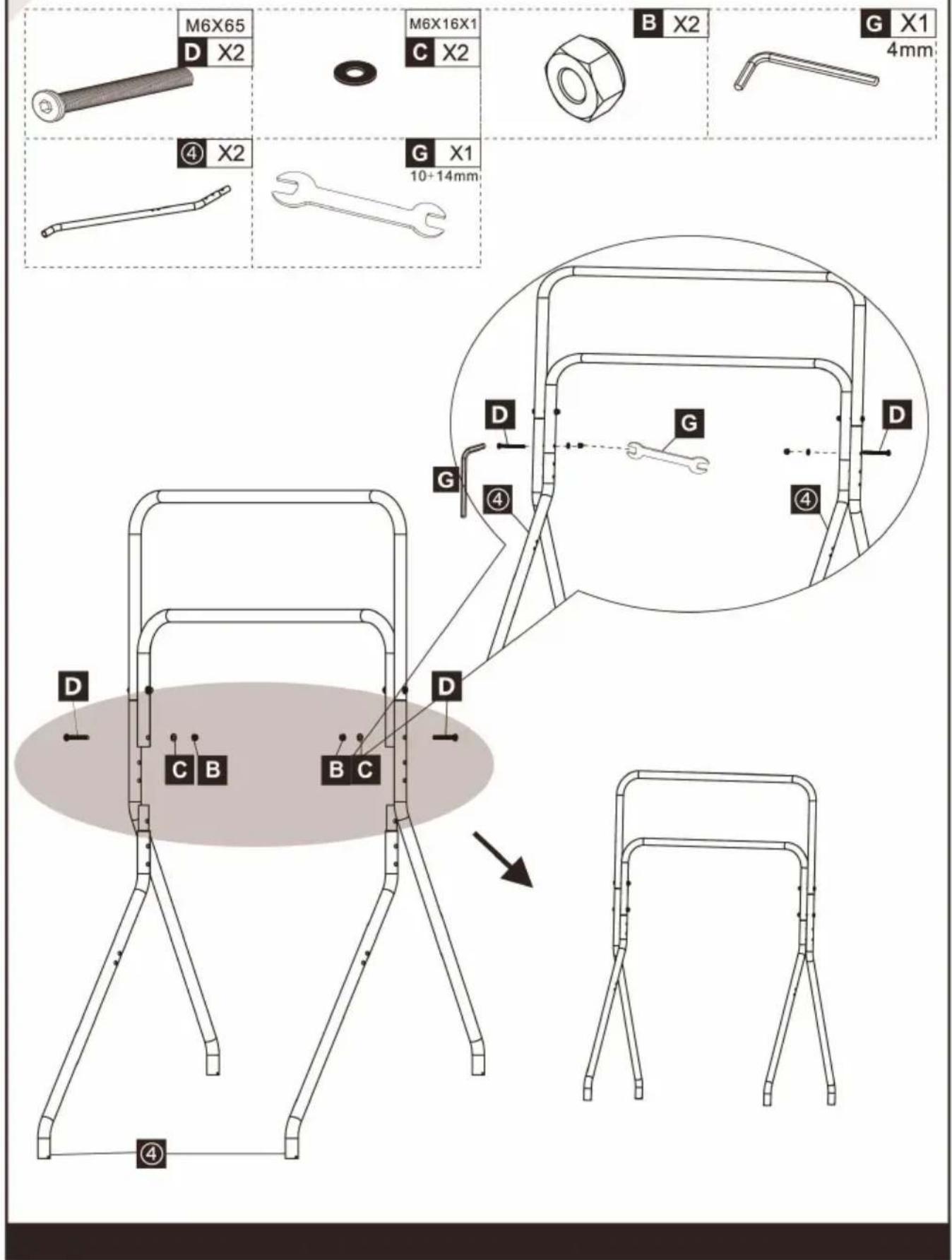

M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D C B B C D G ④ D ④

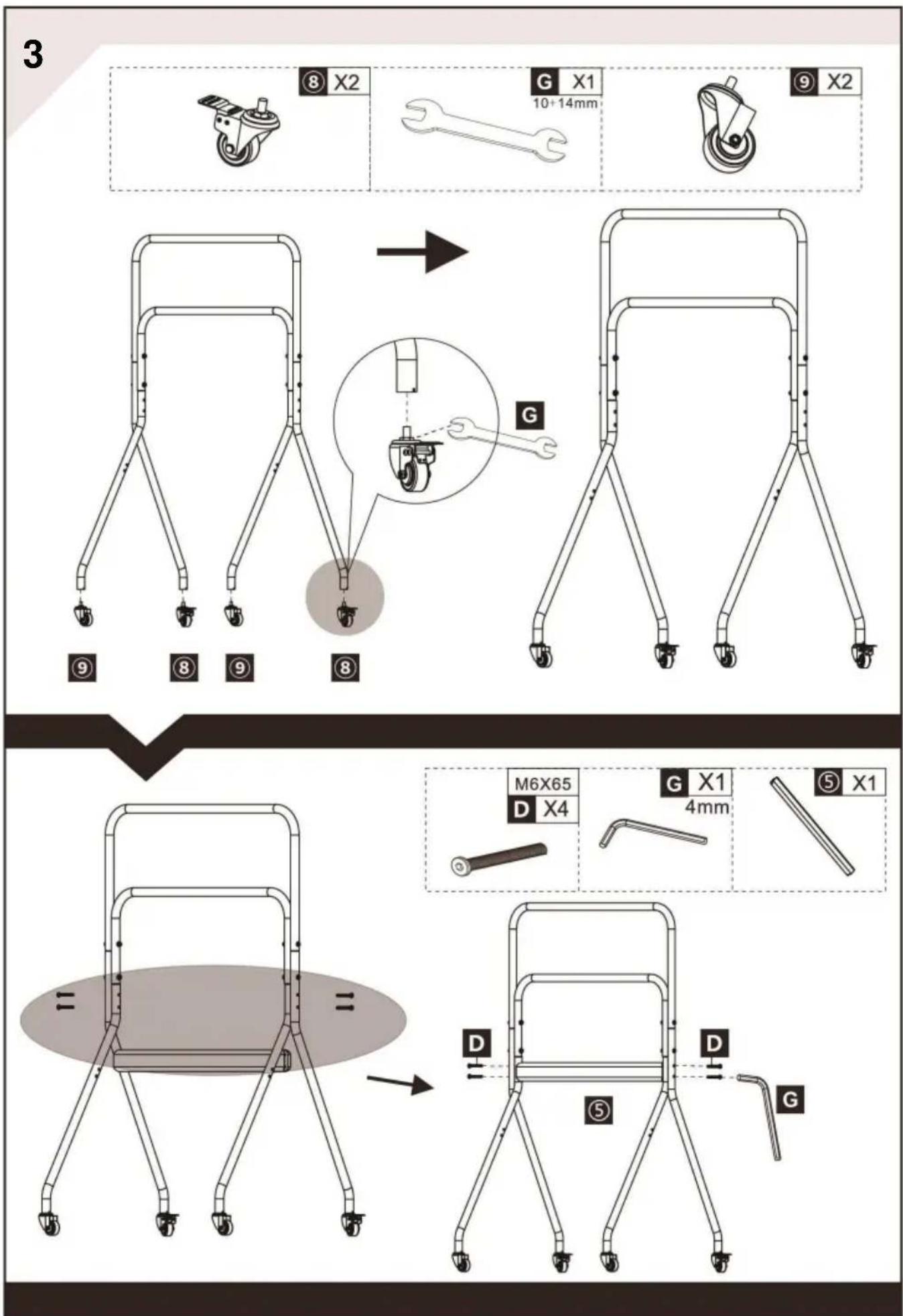

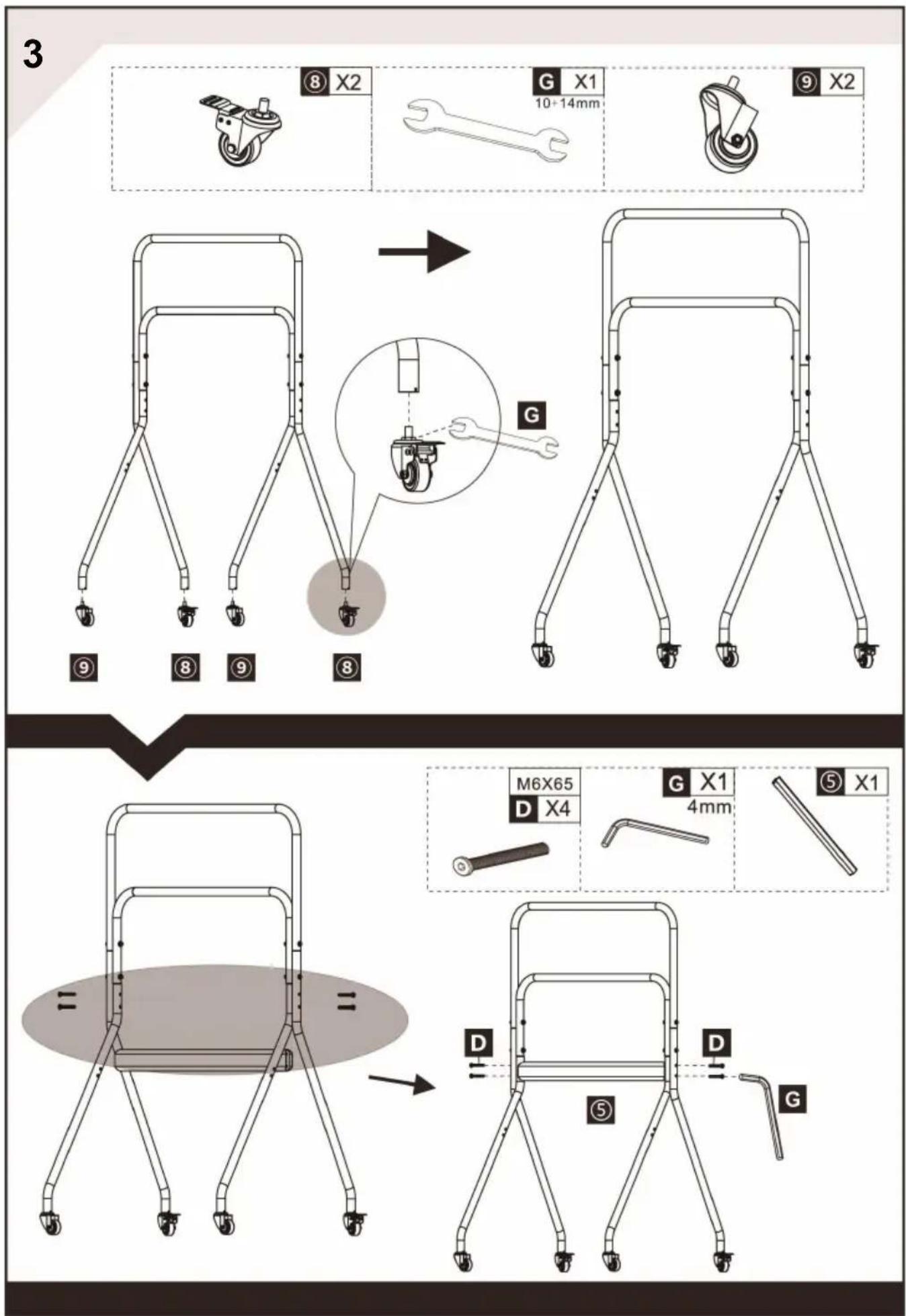

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ ⑨ ⑧ M6X65 D X4 G X1 4mm ⑤ X1 ⑥ D ⑤ G

4

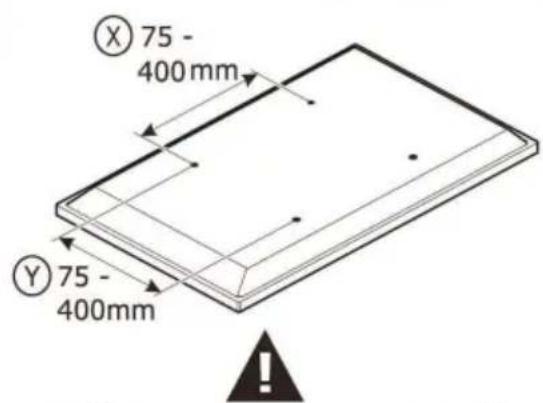

Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

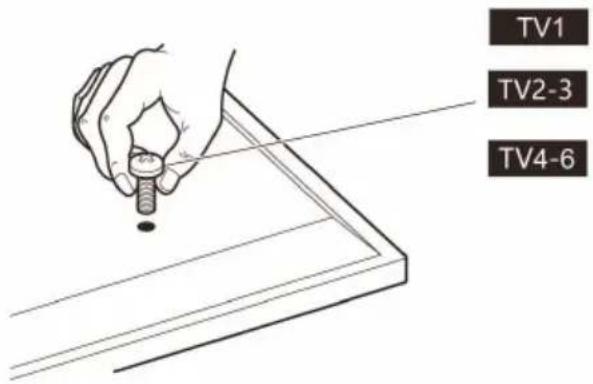

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

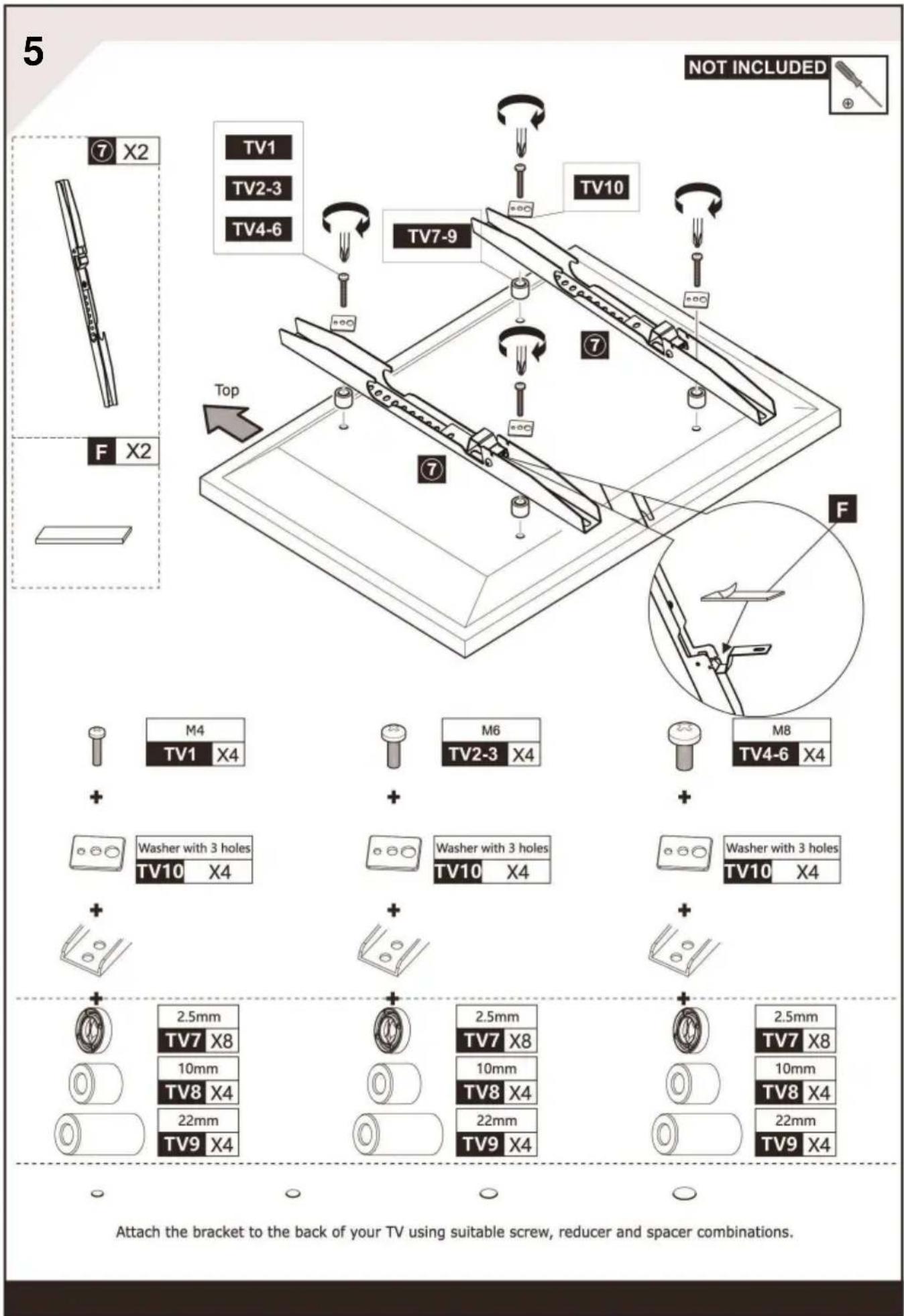

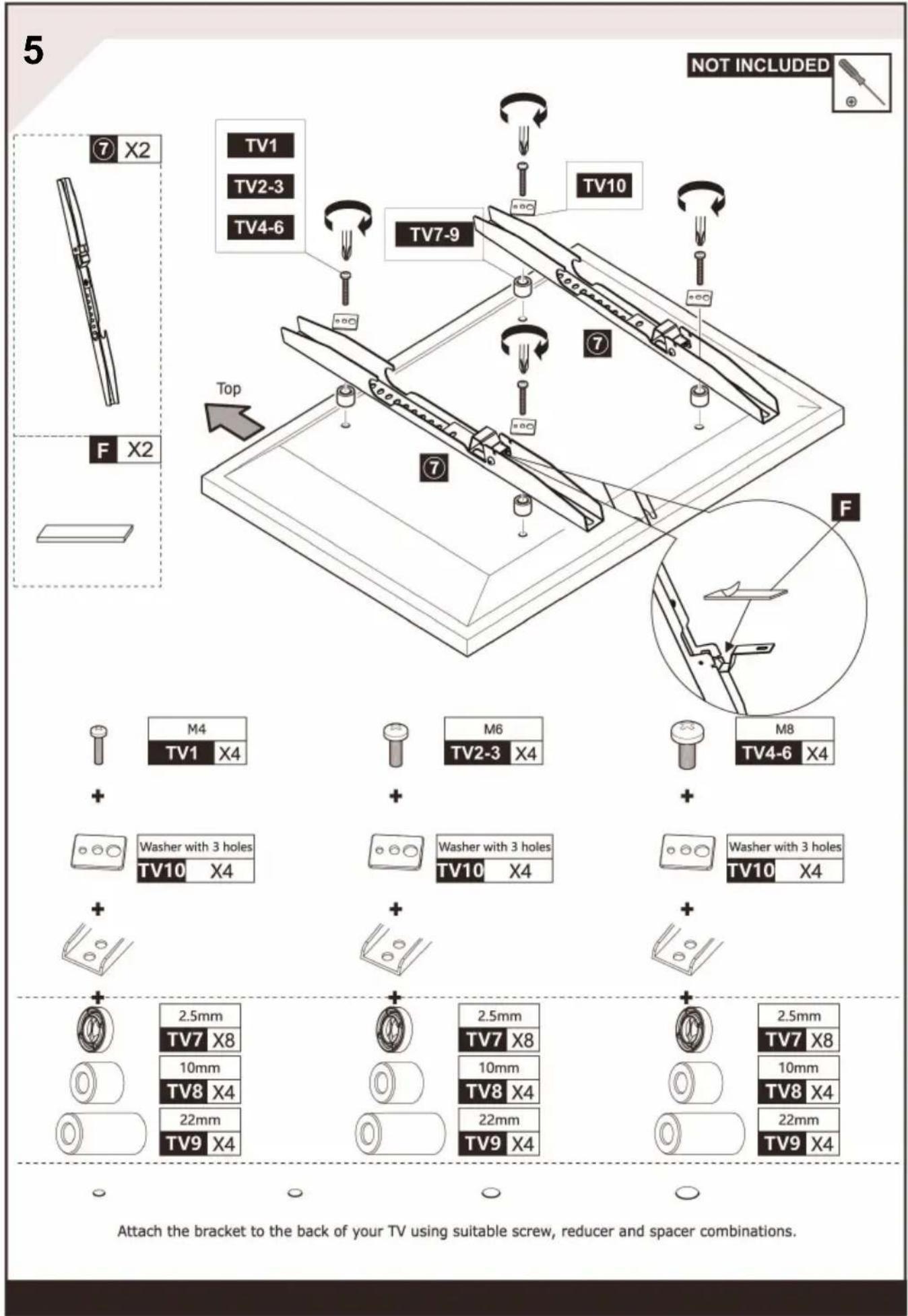

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 M6 TV2-3 X4 M8 TV4-6 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

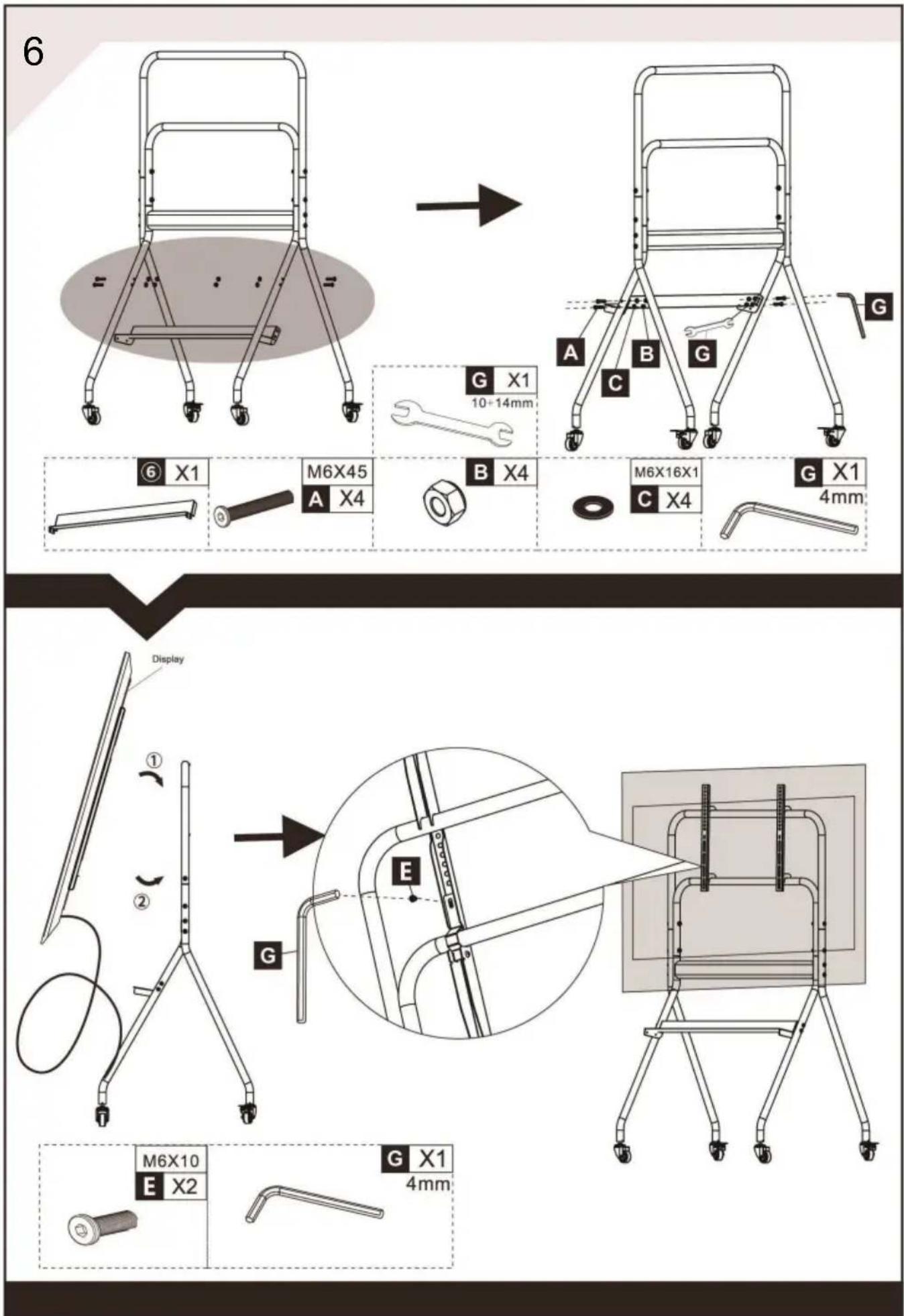

6 G X1 10+14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PRODUCT PARAMETER

Model	TC105
Safe Loading Weight	198 LBS
Product Size	1130*635*1520mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : TC105

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

ÉTAPE D'ASSEMBLAGE

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm 1 ① ② D D C B B C ③ ① ② D ③ 2 ① ② G C B B C ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ G M6X65 D X4 G X1 4mm ⑤ X1 D D G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

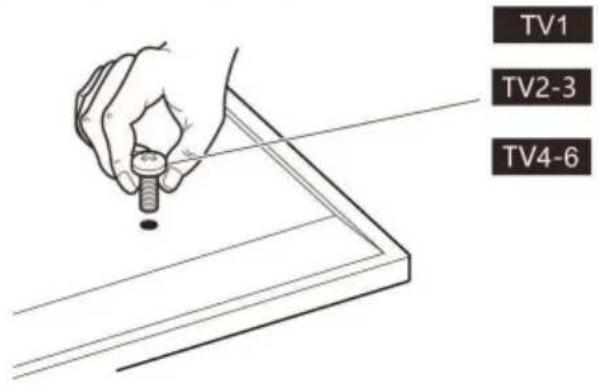

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and four mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PARAMÈTRE DU PRODUIT

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT

DE LA CE

E-CrossStu GmbH

69, rue Mainzer Landstr.,

Affordable. Reliable. Home Improvement.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Technical line drawing of a multi-level mechanical device with wheels and structural supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

MONTAGESTRITT

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm ① ② D D C B B C ③ ① ② D G C B B C ③ ② ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ G M6X65 D X4 G X1 4mm ⑤ X1 D D G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a small square cutout and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PRODUKTPARAMETER

YH CONSULTING LIMITED. C/O YH Consulting

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:TC105

elettronica www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a flanged end and hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

FASE DI MONTAGGIO

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm ① ② D D C B B C ③ ① ② D G C B B C ③ ② ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ ⑨ ⑧ M6X65 D X4 G X1 4mm ⑤ X1 ⑥ D ⑤ G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a small square cutout and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Strada, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:TC105

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

PASO DE MONTAJE

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm 1 ① ② D D C B B C ③ ① ② D ③ 2 ① ② G C B B C ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ ⑨ ⑧ M6X65 D X4 G X1 4mm ⑤ X1 ⑥ D ⑤ G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PARÁMETRO DEL PRODUCTO

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Calle Mainz Landstr.69,

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:TC105

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a flanged end and hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

KROK MONTAŻU

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm 1 ① ② D D C B B C ③ ① ② D ③ 2 ① ② G C B B C ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

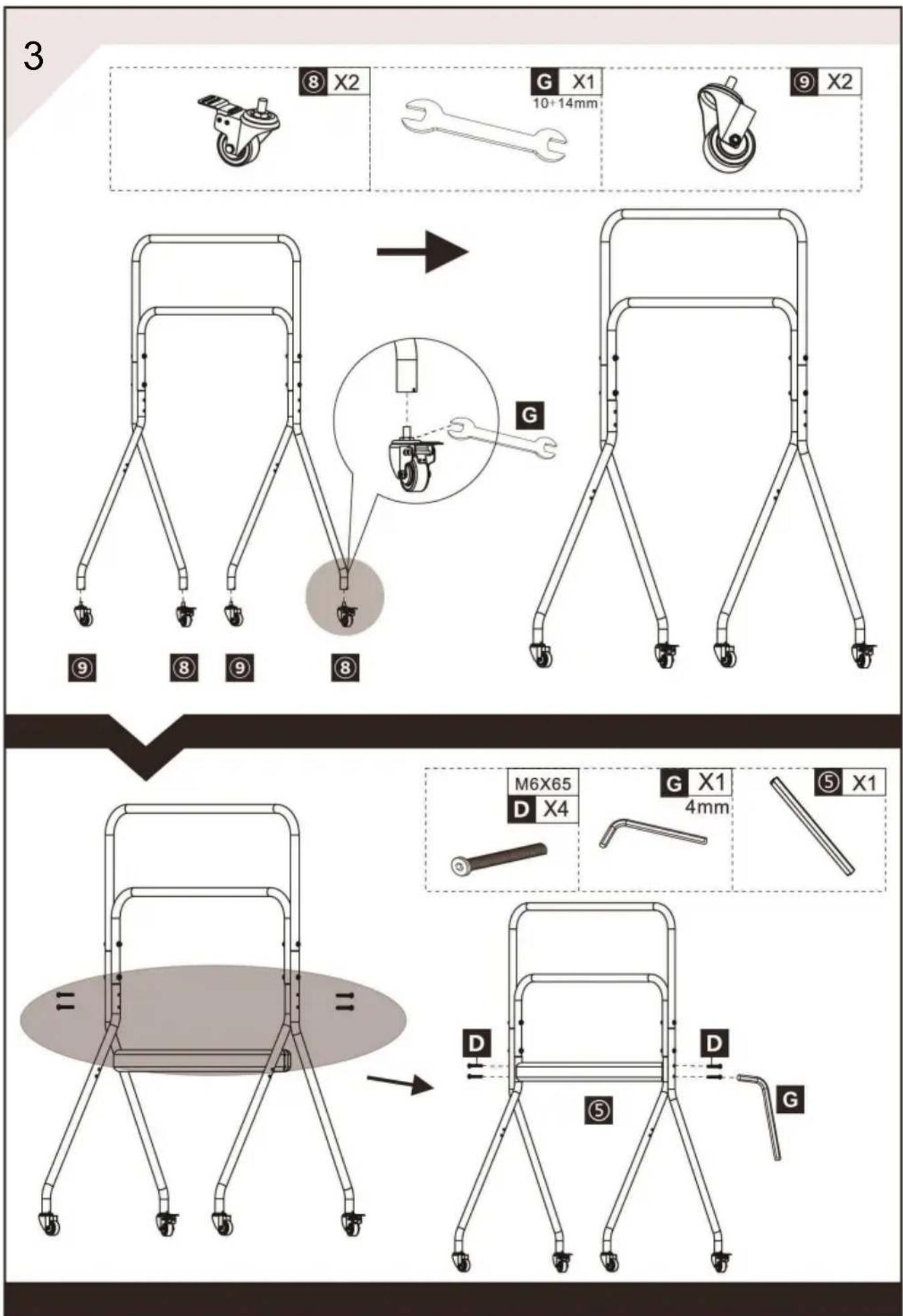

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ G M6X65 D X4 G X1 4mm ⑤ X1 D D G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PARAMETR PRODUKTU

YH CONSULTING LIMITED. C/O YH Consulting

Biuro Limited 147, Centurion House, Londyn

Droga, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:TC105

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

MONTAGESTAP

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm ① ② D D C B B C ③ ① ② D G C B B C ③ ② ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ G M6X65 D X4 G X1 4mm ⑤ X1 D D G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PRODUCTPARAMETER

Model	TC105
Veilig laadgewicht	198 pond
Productgrootte	1130*635*1520mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting

Beperkt kantoor 147, Centurion House, Londen

Weg, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL:TC105

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL:TC105

Technical line drawing of a four-legged robotic platform with wheels and vertical supports (no text or symbols)

200x200 300x400

200x300 400x400

200x400 400x600

300x300 600x800

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

TC105

Simple line drawing of a bent pipe or support structure (no text or symbols)

② X1

Simple line drawing of a bent pipe or rod with no text or symbols

③ X2

Simple line drawing of a bent pipe or rod with no text or symbols

④ X2

⑤ X1

⑥ X1

⑥ X1

M6X16

2.5mm

Illustration of a cylindrical mechanical bolt with a hexagonal nut (no text or symbols)

M6X45
A X4

B X8

⑦ X2

⑧ X2

⑨ X2

Plastic Washer
Steel Washer

M6X16X1
C X8
M6X65
D X8

M6X10
E X2

F X2

G X1
4mm

G X1
10+14mm

FOR TV INSTALLATION

M4X30

M6X16

M6X35

M8X16

M8X35

M8X50

2.5mm

10mm

22mm

Washer with 3 holes

MONTERINGSTEG

1 ① X1 ② X1 ③ X2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm G X1 10+14mm ① ② D D C B B C ③ ① ② D G C B B C ③ ② ③

2 M6X65 D X2 M6X16X1 C X2 B X2 G X1 4mm ④ X2 G X1 10+14mm D G ④ D G ④ D C B B C ④

3 ⑧ X2 G X1 10+14mm ⑨ X2 ⑨ ⑧ G M6X65 D X4 G X1 4mm ⑤ X1 D D G

4
Measure the TV fixing holes Width and Height

X 75 - 400 mm Y 75 - 400mm

If width Ⓕ is greater than 400mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

TV1 TV2-3 TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central square cutout and mounting holes (no text or symbols)

No Spacers

Isometric line drawing of a layered electronic component with mounting holes (no text or symbols)

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

please keep for future reference.

5 NOT INCLUDED TV1 TV2-3 TV4-6 TV7-9 TV10 Top F X2 M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 Washer with 3 holes TV10 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 + 2.5mm TV7 X8 10mm TV8 X4 22mm TV9 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

6 G X1 10-14mm A B G ⑥ X1 M6X45 B X4 M6X16X1 G X1 A X4 C X4 4mm Display ① ② E G M6X10 G X1 E X2 4mm

PRODUKTPARAMETER

Modell	TC105
Säker lastvikt	198 LBS
Produktstorlek	1130*635*1520mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
