USER MANUAL SJ1016 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Short stool Roman chair

MODEL:SJ1016

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SJ1016

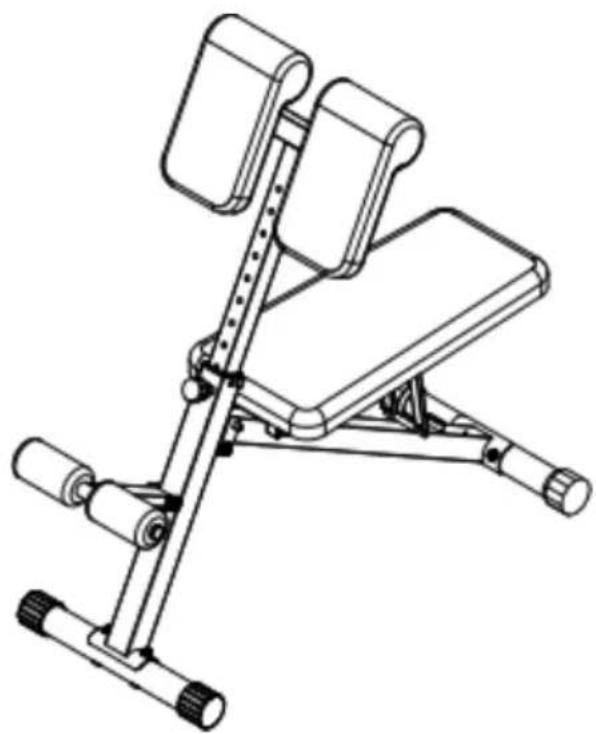

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

• Do not use it if you are pregnant
• Before beginning any exercise program consult your physician.
• Read all instruction before using this product.
• Keep children and pets away from sit-up bench while in use. Children should not use. The product. without adult supervision.

- Inspect and tighten all parts each time before using this sit-up be

- Please clean this machine using damped wipes only.Do not use a cleansers.Please Consult with customer service if you have any questions.

- This product should be placed on a flat surface when using. Place anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembl

- If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

- Before use, always ensure that your product is positioned on a solid, hard-flat surface.

- Store idle equipment out of reach of children and do not allow a unfamiliar with the equipment to use it. This tool is dangerous in hands of untrained users.

- When using the product, the crowd of onlookers must keep adistan of 3 meters to avoid accidental injury

Prohibition symbol of a person crossed out with a diagonal line, enclosed in a circle (no text or numbers present)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set for example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour before sleep.
3. Please make exercise plans.

Part List

No	Description	Qty	No	Description	Qty
01	Front Upright tube	1	15	Cushion	2
02	Rear Support tube	1	16	Backrest Cushion	1
03	Base Tube	2	17	Carriage Bolt M8x65m	4
04	Backrest Cushion Tube	2	18	Allen Bolt M10x165mm	2
05	Adjustable Tube	1	19	Allen Bolt M10x65mm	2
06	Backrest Cushion Support Tube	1	20	Lock Pin M10x60mm	1
07	Foam Frame	1	21	Allen Bolt M8x40 mm	4
08	End Cap 50mm (Rear)	2	22	Allen Bolt M8x55mm	4
09	Spacer 50vs38mm	1	23	Flat Washer M8	8
10	Square End Cap 25x25mr	4	24	Flat Washer M10	8
11	Round End Cap 25mm	2	25	Nylon Nut M10	4
12	Foam	2	26	Arc Washer M8	4
13	Square End Cap 38x38mr	4	27	Nylon Nut M8	4
14	Adjustable Knob	1	28	End Cap 50mm (Fron	2

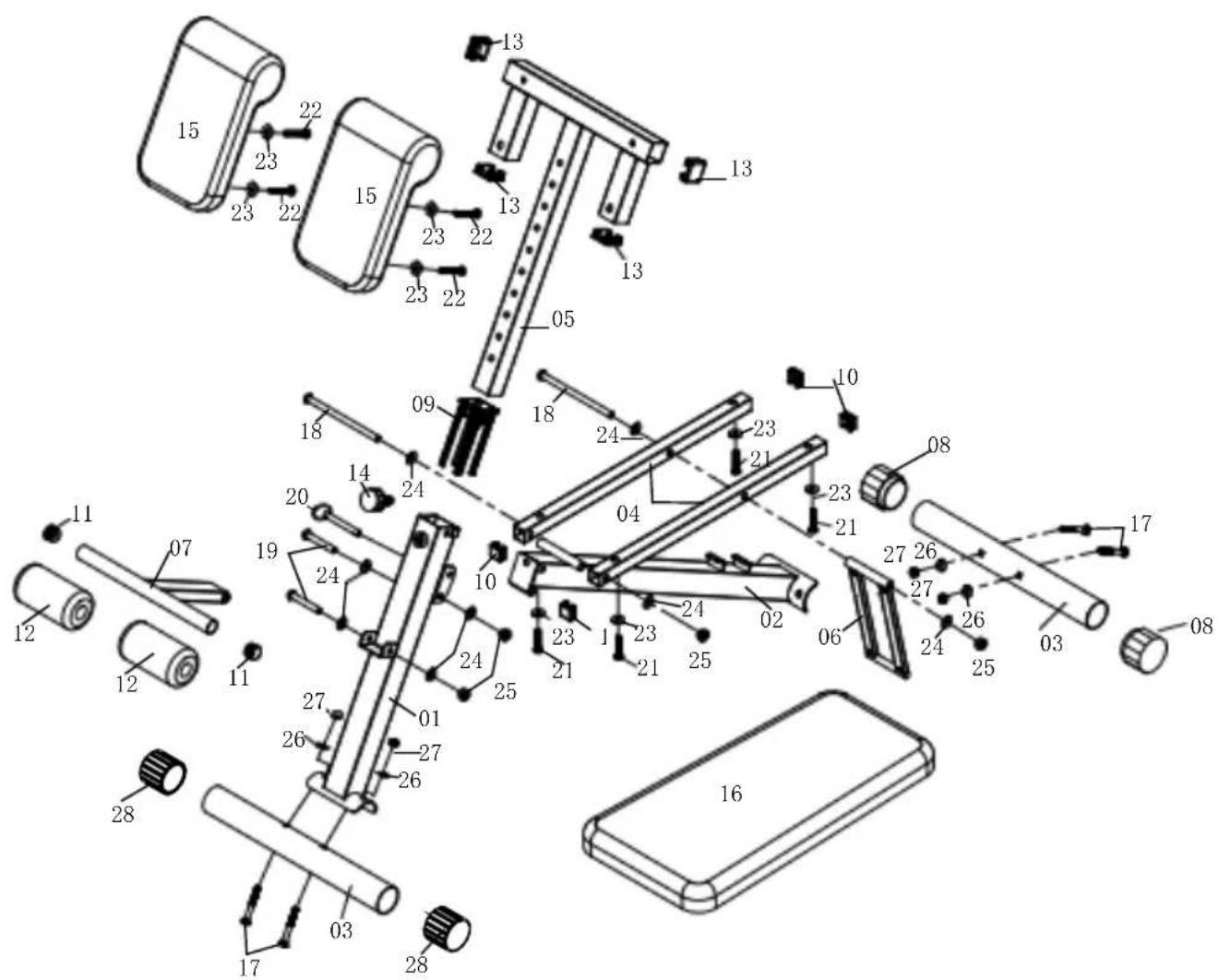

Exploded Diagram

Please note that not all of the parts and hardware you see here will used while you are

assembling the machine because some of these are already pre-instal

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Part List

1.1 PC	2.1 PC	3.2 PCS	4.2 PCS
5.1 PC	6.1 PC	7.1 PC	8.2 PCS
9.1 PC	10.[ZYBG]4 PCS	11.[SC48]2 PCS	12.2 PCS
13.4 PCS	14.1 PC	15.2 PCS	16.1 PC
17.4 PCS	18.2 PCS	19.2 PCS	20.1 PC
21. 22. 23. 24.4 PCS	4 PCS 8 PCS 8 PCS	[CCC]

Part List

25.[0240]4 PCS

26.[M85C]4PCS

27.4PCS

28.2PCS

NOTE: To avoid misalignment due to over-tightening, please do not use wrench at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

Step 1:

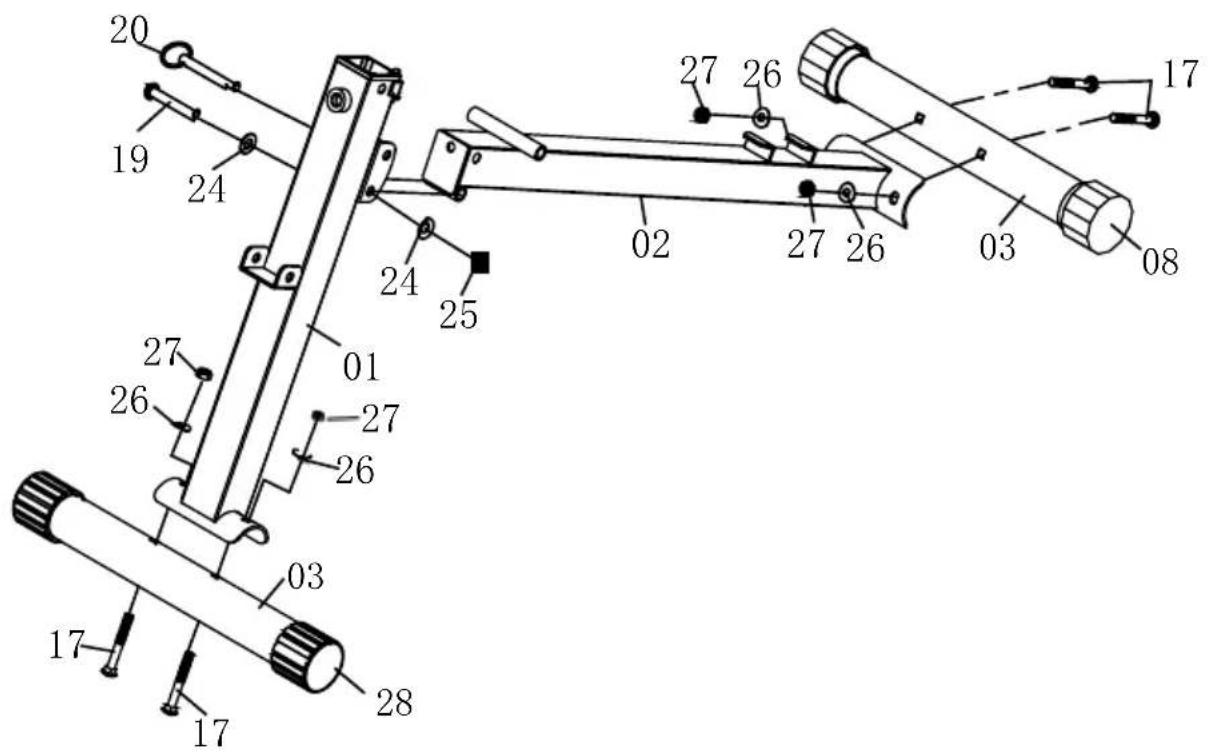

A) Attach Base Tube (03) has pre-assembled rear End Caps (08) to Rear Support Tube (02) using two Carriage Bolts (17), two Arc Washers (26) and two Nylon Nuts (27).

B) Attach Base Tube (03) has pre-assembled front End Caps (28) to Front Upright Tube (01) using two Carriage Bolts (17), two Arc Washers (26) and two Nylon Nuts (27).

C) Attach assembled Rear Support Tube (02) to Front Upright Tube (19), using one Allen Bolt (19), two Flat Washers (24) and one Nylon Nut (25), then insert the Lock Pin (20)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Step 2:

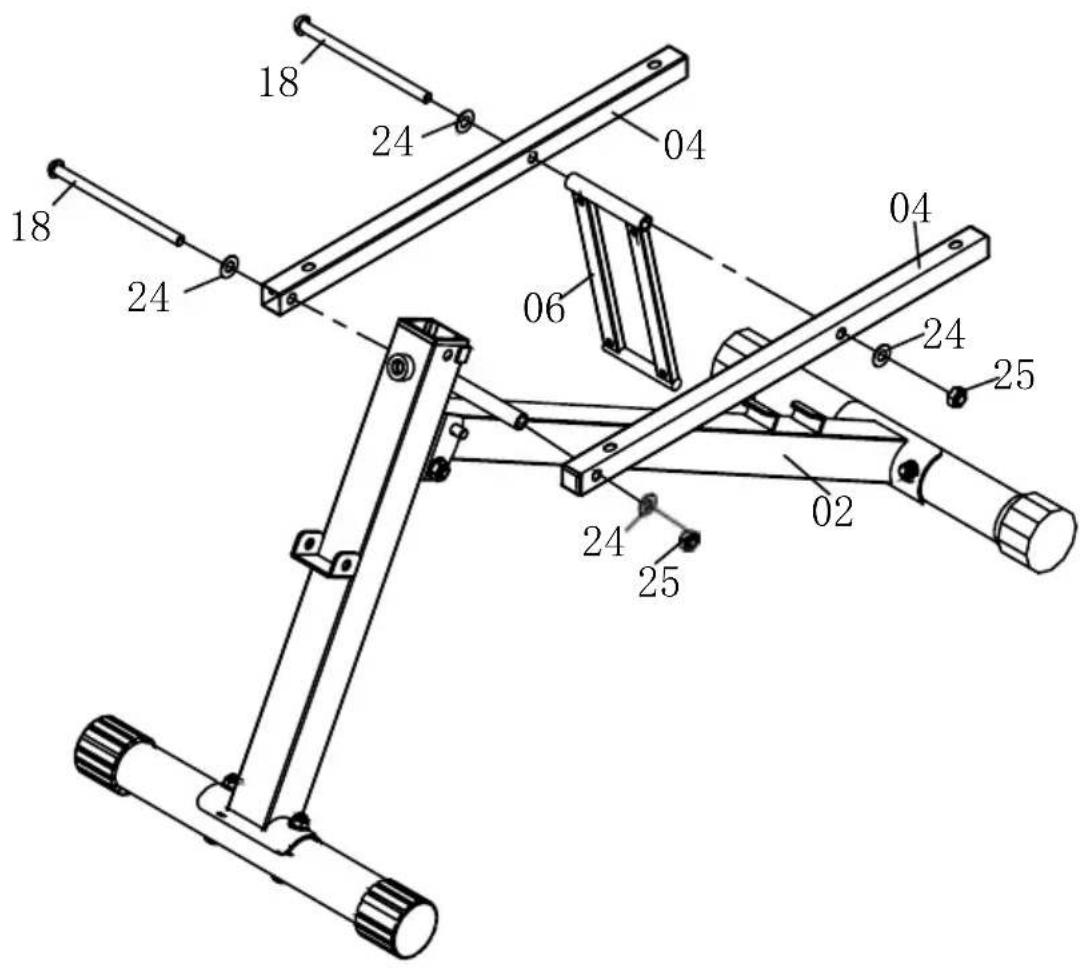

A) Attach both Backrest Cushion Tubes (04) to the welding part on the Rear Support Tube (02) using one Allen Bolt (18), two Flat Washers (24) and one Nylon Nut (25).

B) Attach Backrest Cushion Support Tubes (06) to Backrest Cushion Tubes (04) using one Allen Bolt (18), two Flat Washers (24) and on Nylon Nut (25).

18 24 04 18 24 06 04 24 25 24 25 02

Step 3:

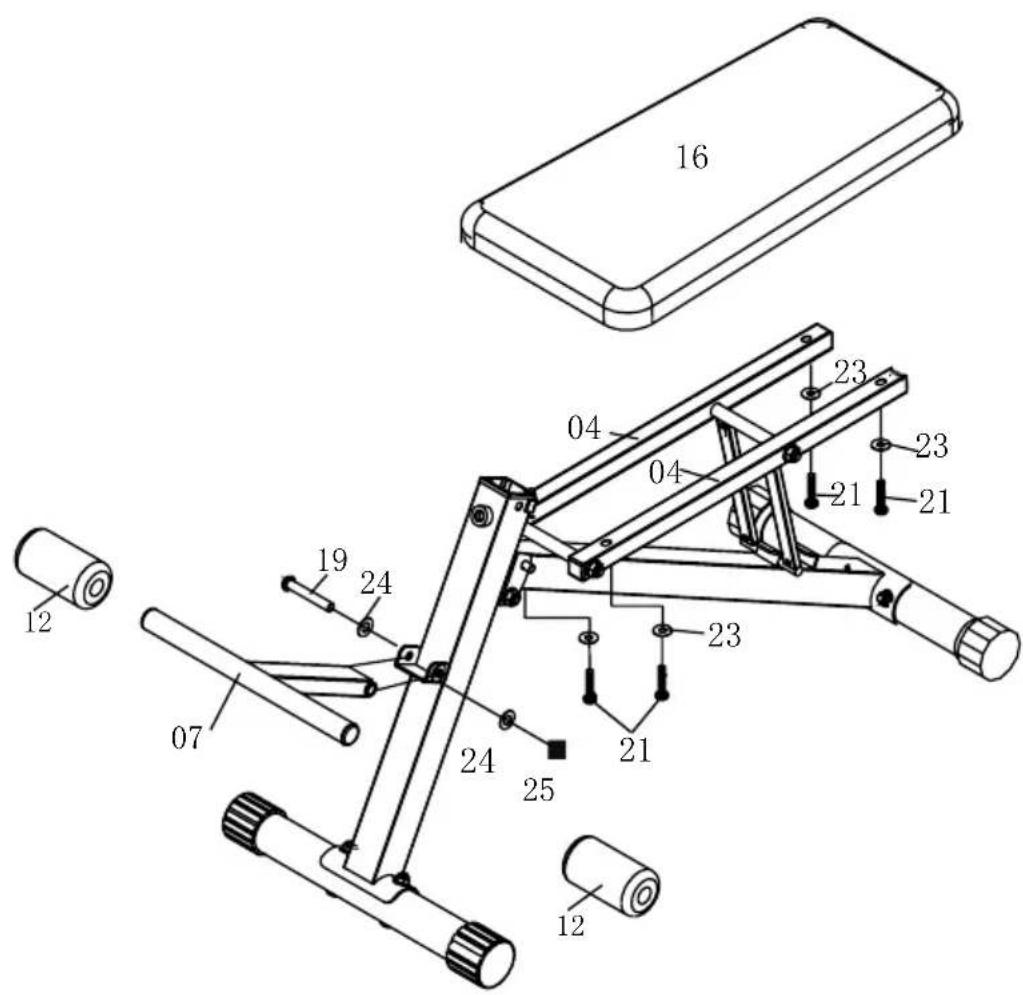

A) Attach Backrest Cushion (16) to Backrest Cushion Tubes (04) using four Allen Bolts (21) and four Flat Washers (23).

B) Attach Foam Frame (07) to Front Upright Tube (01) using one Allen Bolt (19), two Flat Washers (24) and one Nylon Nut (25). Insert two Foams (12) to each end of Foam Frame (07)

16 04 23 04 23 21 21 19 24 23 21 25 24 25 12 07 12

Step 4:

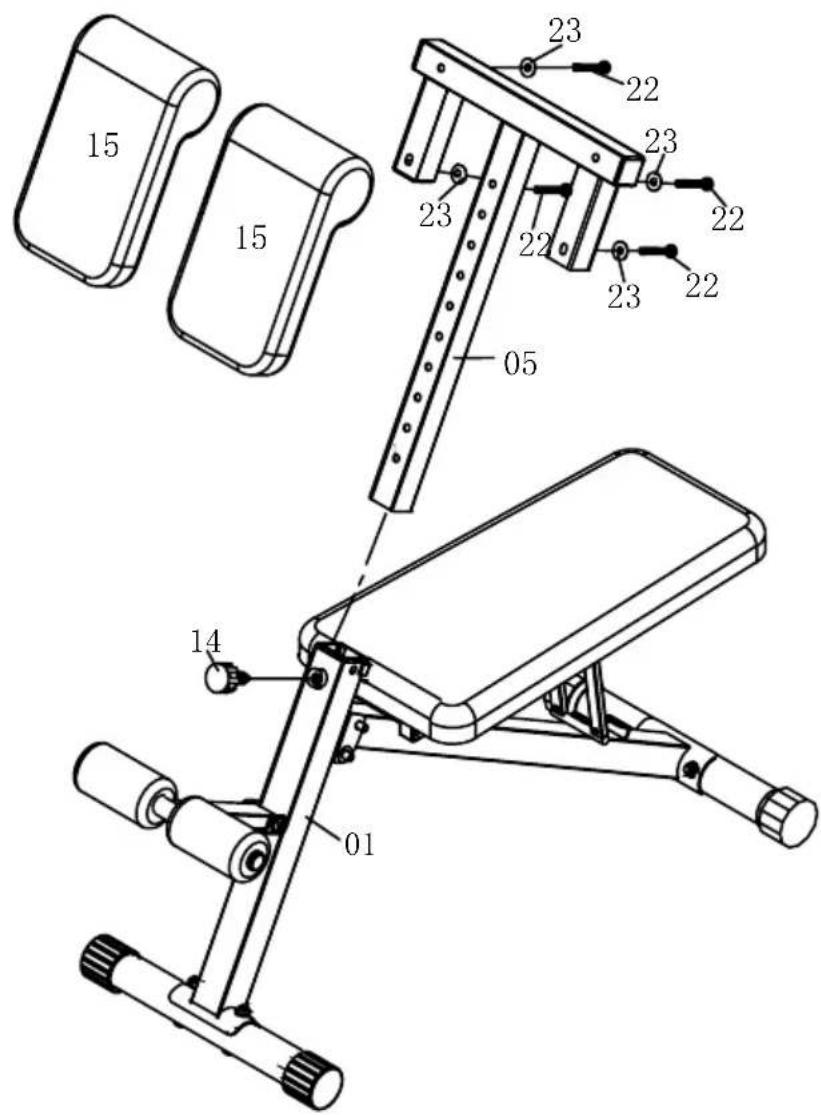

Attach two Cushion (16) to Adjustable Tube (05) using four Allen Bol (22) and four Flat Washers (23).

B) Insert Adjustable Tube assembled (05) to Front Upright Tube (01) secure with Adjustable Knob (14).

15 15 23 22 23 22 23 22 05 14 01

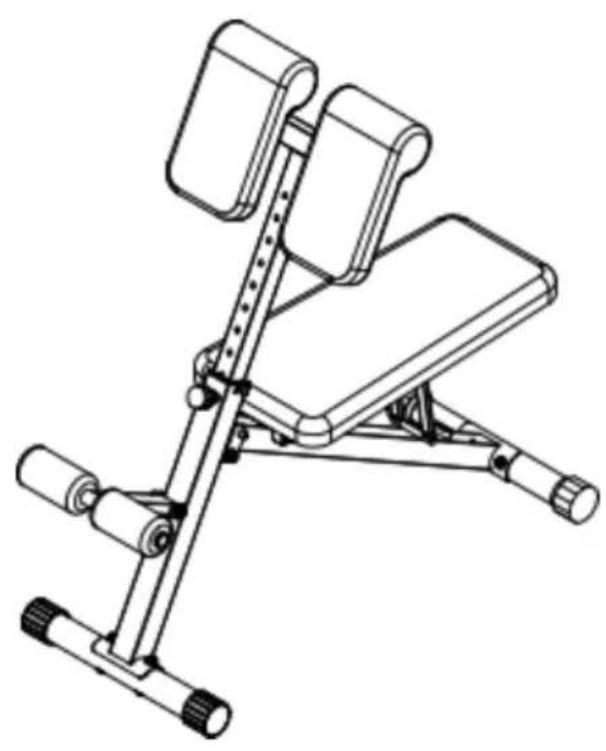

THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assembly is complete.

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

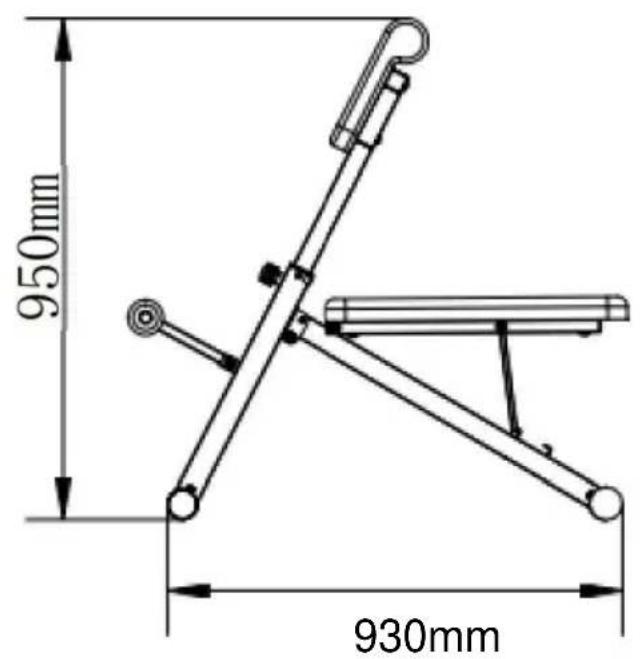

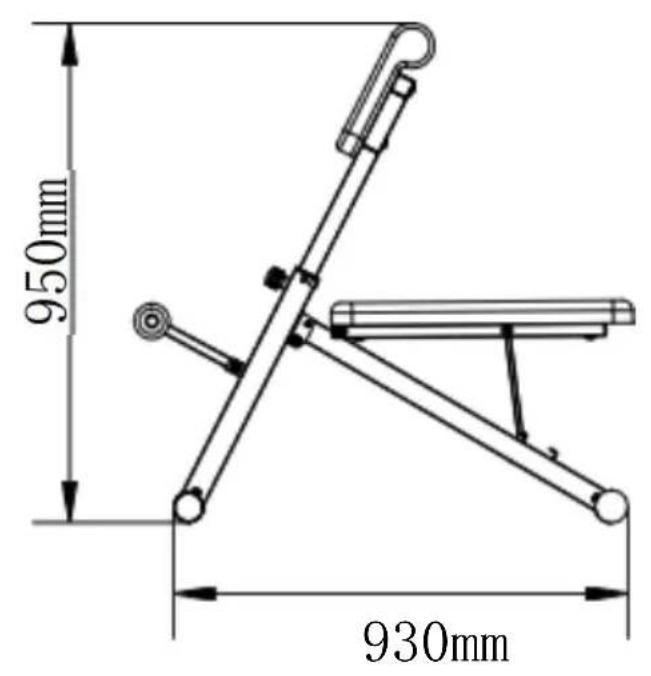

950mm 930mm

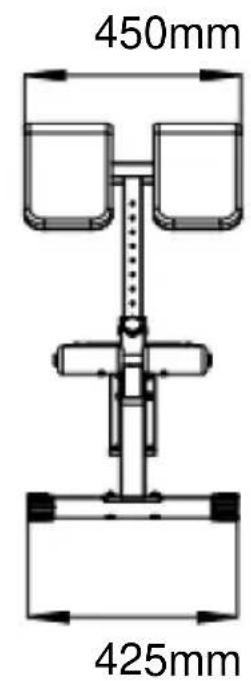

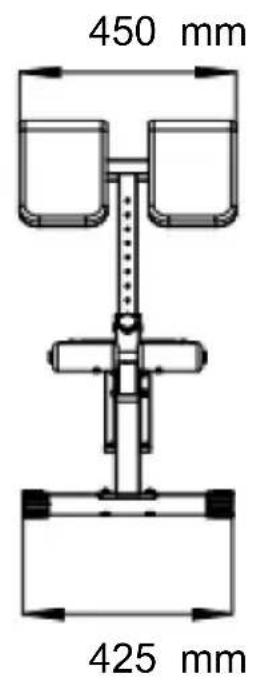

450mm 425mm

NOTE : The Maximum Weight Capacity for this product is 330 lbs o 150kgs. Only one person should use this piece of equipment at one time.

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Liste des pièces

Technical diagram of a mechanical assembly with numbered components and labeled parts

Étape

Technical diagram of a mechanical linkage system with numbered components and assembly details

Étape 3 :

Technical diagram of a mechanical exercise setup with labeled components and numbered parts

LE PROCESSUS D'ASSEMBLAGE EST MAINTENANT TERMINÉ.

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930 mm

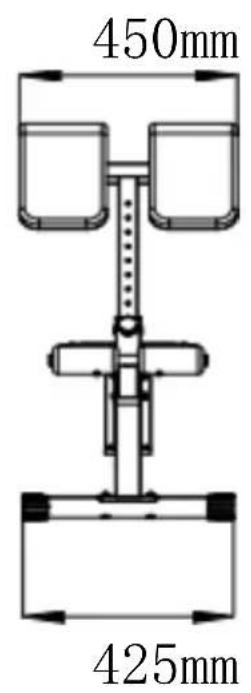

450 mm 425 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited

Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Stückliste

Technical diagram of a mechanical assembly with numbered components and labeled parts

Schritt

Technical diagram of a mechanical assembly with numbered components and labeled parts

Schritt 3:

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930 mm

450 mm 425 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

Sgabello corto sedia romana

MODELLO: SJ1016

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Elenco delle parti

1.1 pz.	2.1 pz.	3.2 PZ	4.2 PZ
5.1 pz.	6.1 pz.	7.1 pz.	8.2 PZ
9.1 pz.	10.[3DSY]4 PZ	11.2 PZ	12.2 PZ
13.4 PZ	14.1 pz.	15.2 PZ	16.1 pz.
17.4 PZ 2 PZ	18.20.2 PZ	19.	1 pz.
21.4 PZ	22.4 PZ 8 PZ	23.[002Z]8 PZ	24.

Elenco delle parti

(D732)4 PZ

26.25.[GTZH]4 PZ

27.[KZZ4]4 PZ

28.2 PZ

Technical diagram of a mechanical assembly with numbered components and labeled parts

Fase 2:

Technical diagram of a mechanical linkage system with numbered components and structural details

Fase 3:

Technical diagram of a mechanical exercise setup with labeled components and numbered parts

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930mm

450mm 425mm

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli

USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Lista de piezas

Technical diagram of a mechanical assembly with numbered components and labeled parts

Paso 2:

Technical diagram of a mechanical assembly with numbered components and labeled parts

Paso 3:

Technical diagram of a mechanical exercise setup with labeled components and numbered parts

EL PROCESO DE MONTAJE YA ESTÁ COMPLETO.

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930 mm

450 mm 425 mm

London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Lista czę sci

Technical diagram of a mechanical assembly with numbered components and labeled parts

Krok 2: A)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Krok 3: A)

Technical diagram of a mechanical exercise setup with labeled components and parts

PROCES MONTAŻU ZOSTAŁ ZAKOŃCZONY.

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930 mm

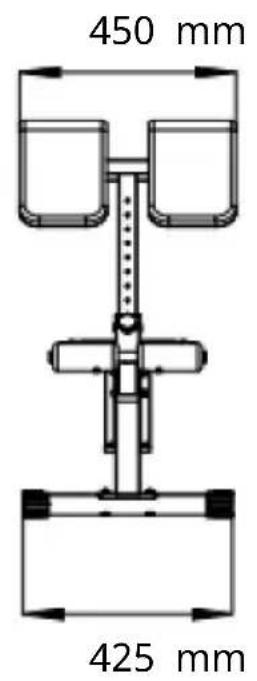

450 mm 425 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Onderdelenlijst

1.1 stuk	2.1 stuk	3.2 STUKS	4.2 STUKS
5.1 stuk	6.1 stuk	7.1 stuk	8.2 STUKS
9.1 stuk	10.4 STUKS	11.[T99C]2 STUKS	12.2 STUKS
13.4 STUKS	14.1 stuk	15.2 STUKS	16.1 stuk
17.4 STUKS	18.2 STUKS	19.2 STUKS	20.1 STUK
21. 24.4 STUKS	22.4 STUKS	23.[524B]8 STUKS	[XX82]8 STUKS

Onderdelenlijst

26. 28.27.25.[BA02]4 STUKS4

STUKS 4 STUKS

2 STUKS

Technical diagram of a mechanical assembly with numbered components and labeled parts

Stap 2:

Technical diagram of a mechanical linkage system with numbered components and structural details

Stap 3:

Technical diagram of a mechanical exercise setup with labeled components and numbered parts

HET MONTAGEPROCES IS NU VOLTOOID.

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

950mm 930mm

450mm 425mm

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfort aan de Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Kort pall romersk stol

MODELL: SJ1016

Line drawing of a mechanical exercise apparatus with adjustable legs and feet (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Prohibition symbol of a person crossing a diagonal line, enclosed in a circle (no text or numbers present)

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

Dellista

1.1 PC	2.1 PC	3.2 st	4.2 st
5.1 PC	6.1 PC	7.1 PC	8.2 st
9.1 PC	10.4 st	11.[OXYW]2 st	12.2 st
13.4 st	14.ZA7C]1 PC	15.2 st	16.1 PC
17.4 st 2	18.20.2 st	19.	1 st
21.4 st	22.4 st 8	23.[340W]8 st	24.

Dellista

[Y870]4 st

26.25.[YZXY]4 st 2

27.[TZXX]st

28.4 st

Technical diagram of a mechanical assembly with numbered components and labeled parts

Steg

Technical diagram of a mechanical linkage system with numbered components and assembly details

Steg 3:

Technical diagram of a mechanical exercise setup with labeled components and numbered parts

MONTERINGSPROCESSEN ÄR NU AVSLUTAD.

Line drawing of a mechanical exercise apparatus with adjustable arms and legs (no text or symbols)

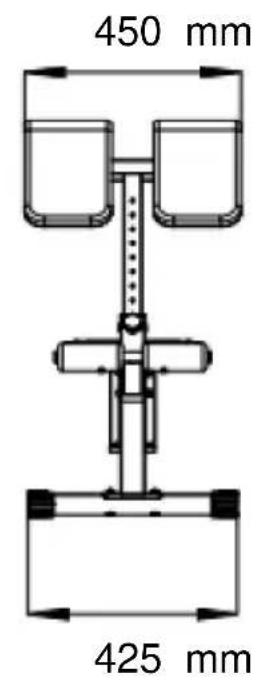

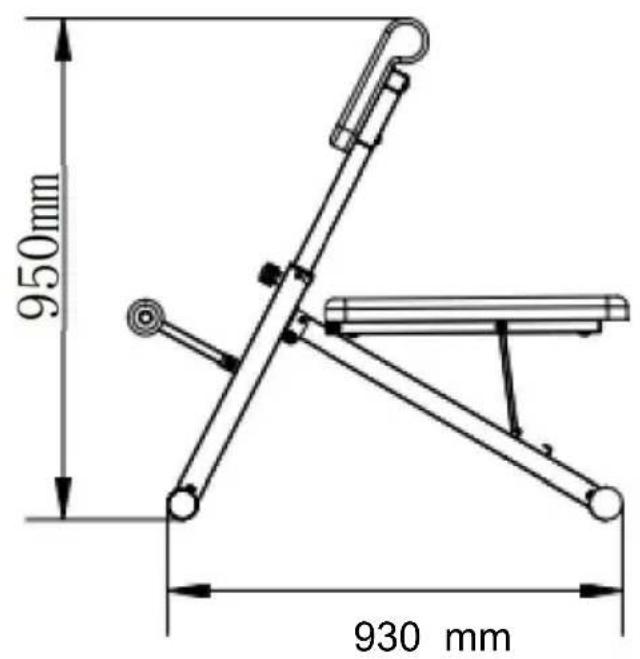

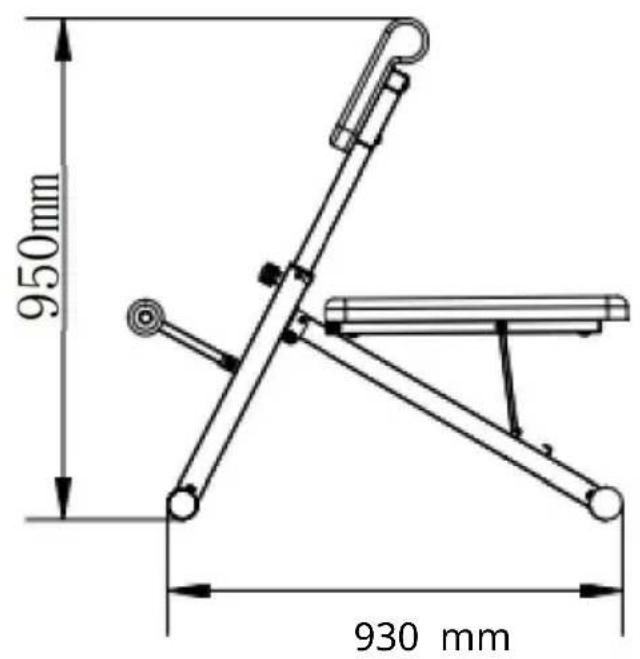

950mm 930 mm

450 mm 425 mm

YH CONSULTING LIMITED. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE
