HVAC AIR PURIFIER

MODEL:UV-218HP/UV-317HPC

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:UV-218HP/UV-317HPC

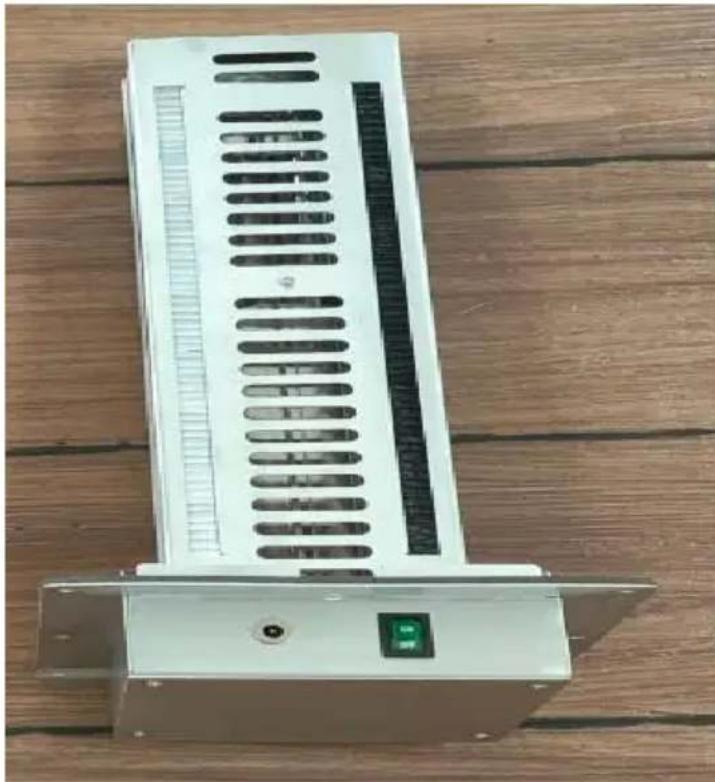

White rectangular electronic device with vertical slots and a green control panel, placed on a wooden surface (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Air Purifier.

2. The installation should be done by an adult, and children should not it without supervision.

3. UV lights are harmful to exposed skin and eyes, causing temporary permanent blindness. Never look straight at the UV light.

4. Disconnect the power before installing or replacing the UV bulb, otherwise may cause shock and death.

5. Please wear gloves and install the HVAC Air Purifier to avoid cuts installation.

6. Transportation Attention : During transportation, the package should be upright, handled with care, prevent strong impact, vibration, extrusion.

7. Do not modify the unit in any way. Any modification could damage device or render it dangerous to others.

8. Repair or maintenance should only be carried out by a qualified pe 9. Only the rated voltage specified in this manual can be used.

9. Do not use this product in the kitchen, where the oily fume may the lifetime of the lamps.

10. Do not use this product in acidic, alkaline or other organic gas are where may cause fire.

11. Do not use this product in flammable and explosive places, other will cause fire.

List of kit parts

Electronic device with printed text and a green control panel, mounted on a wooden surface

HVAC Air Purifier×1p

Black electronic device with attached cable and connector, placed on wooden surface (no visible text or symbols)

Connect Bracket×1pc

Close-up of several metal screws on a wooden surface (no text or symbols visible)

Self-drill tail screw×6pcs

Install the hole template×1pc

Instructions×1pc

PARAMETER LIST

Model	UV-218HP	UV-317HPC
Adapter Input	100-240V~ 50/60Hz1A	100-240V~ 50/60Hz1A
Power	12W	24W
Lights tube length	212mm	313mm
Light wavelength	254nm	254nm
Additional purification function	PCO (Tio2)	PCO (Tio2) and acti carbon coating
Using Lifetime	3years	3years

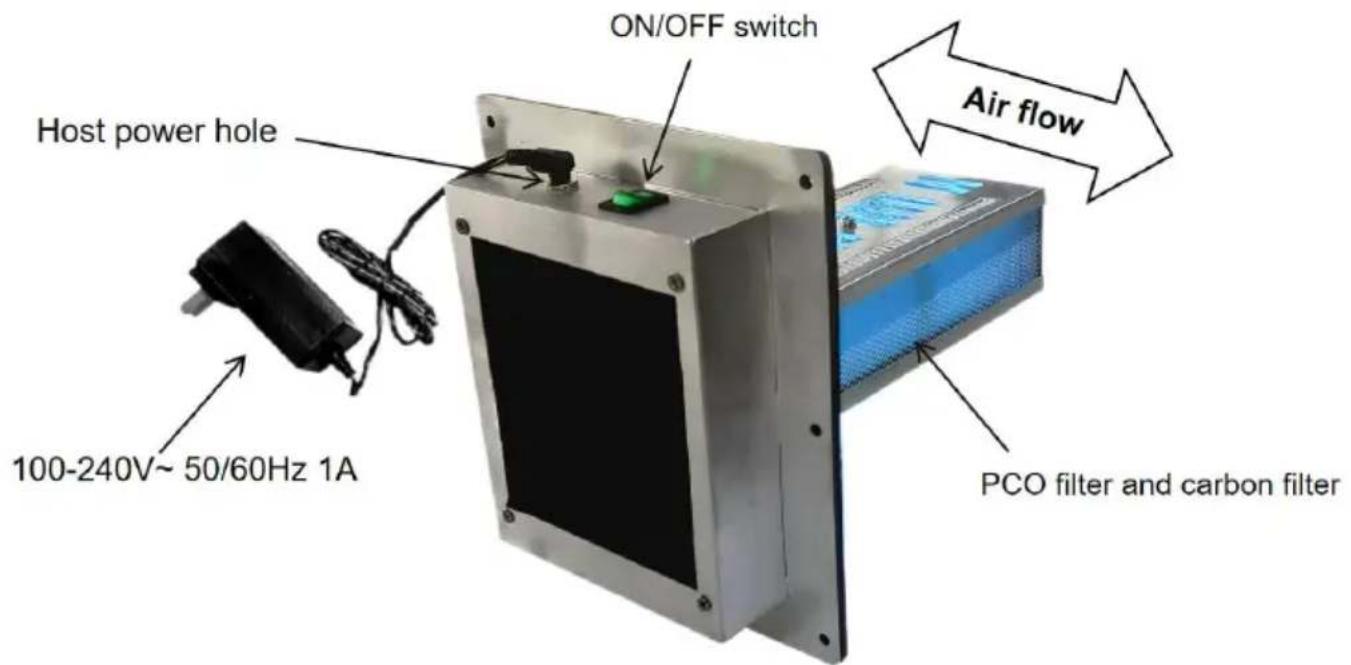

ON/OFF switch Host power hole 100-240V~ 50/60Hz 1A Air flow PCO filter and carbon filter

Note: The above shows UV-317 HPC, UV-218HP is no active carbon.

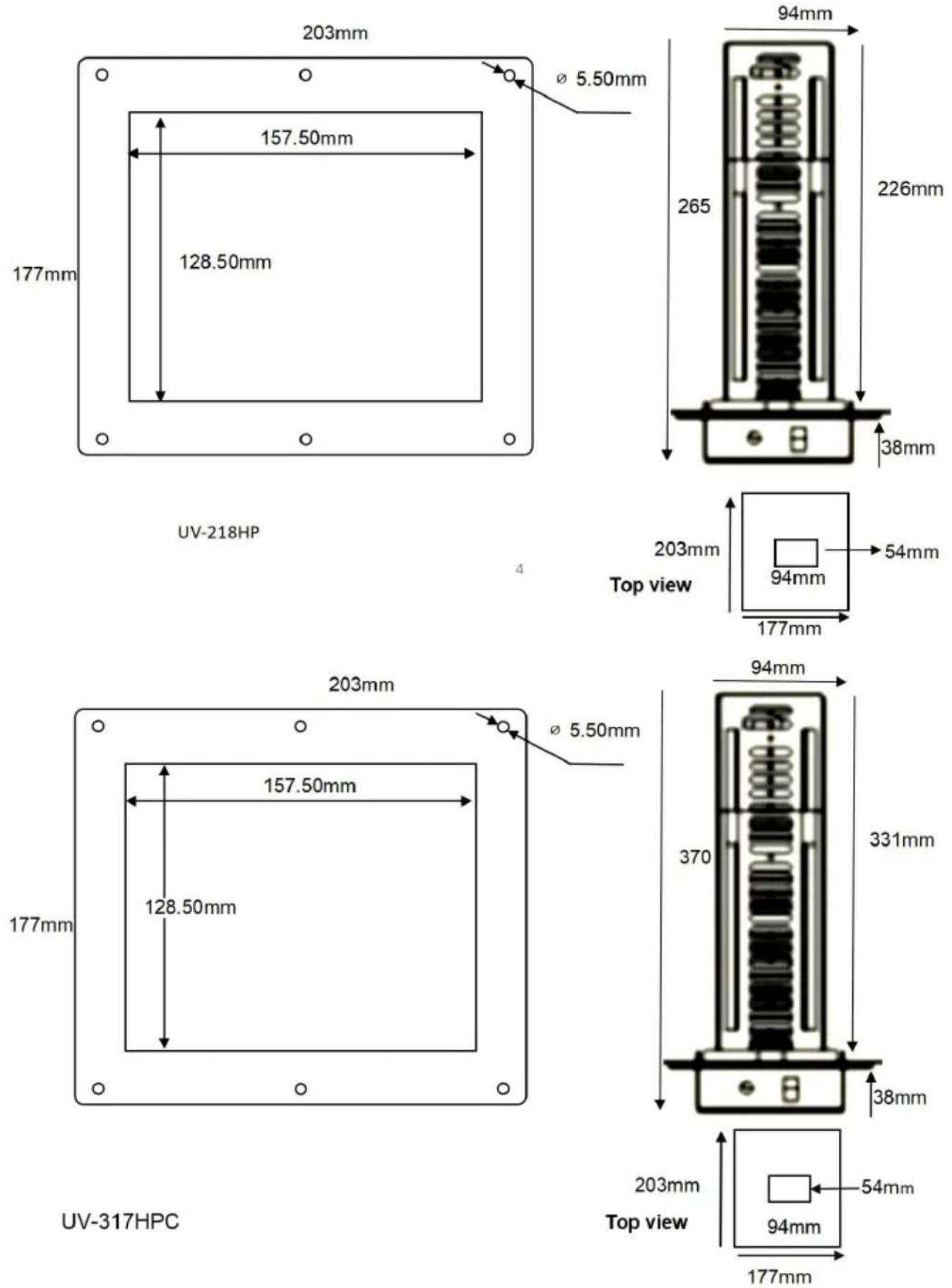

product size

Note: Please note whether the interior space of the HVAC pipe can

accommodate the product.

Installation Instructions

Thank you for your purchase of HVAC Air Purifier .

The HVAC Air Purifier adopts of UVC with PCO "photocatalytic" (Tio2) technology, which is designed to be installed into an existing HVAC system, and used as a virtually maintenance-free air purification. This can effectively kill up common microorganisms in the air ducts, and achieve the effect of air disinfection.

Locate a suitable area of duct for installation, near a power source. Such as one unit can be installed in the air conditioner outlet and room outlet to protect the air conditioner, or installed it near the middle of and the room Air Conditioner outlet to ensure that each room has from One unit can suit for 20-30sqm room.

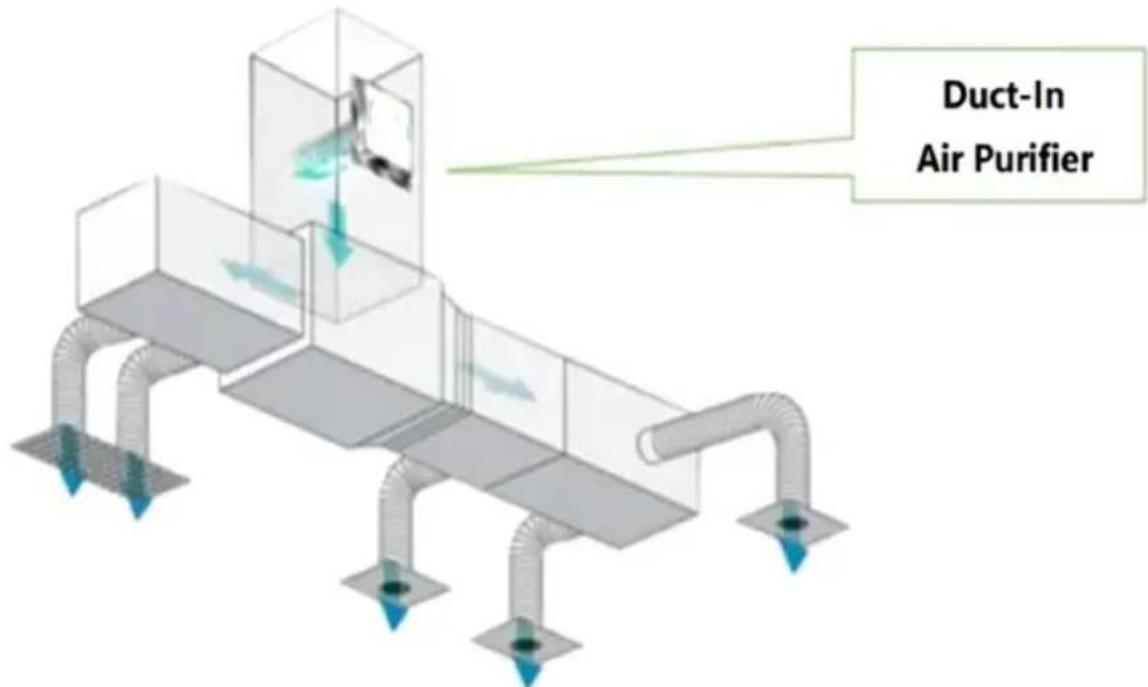

Duct-In Air Purifier

operational principle

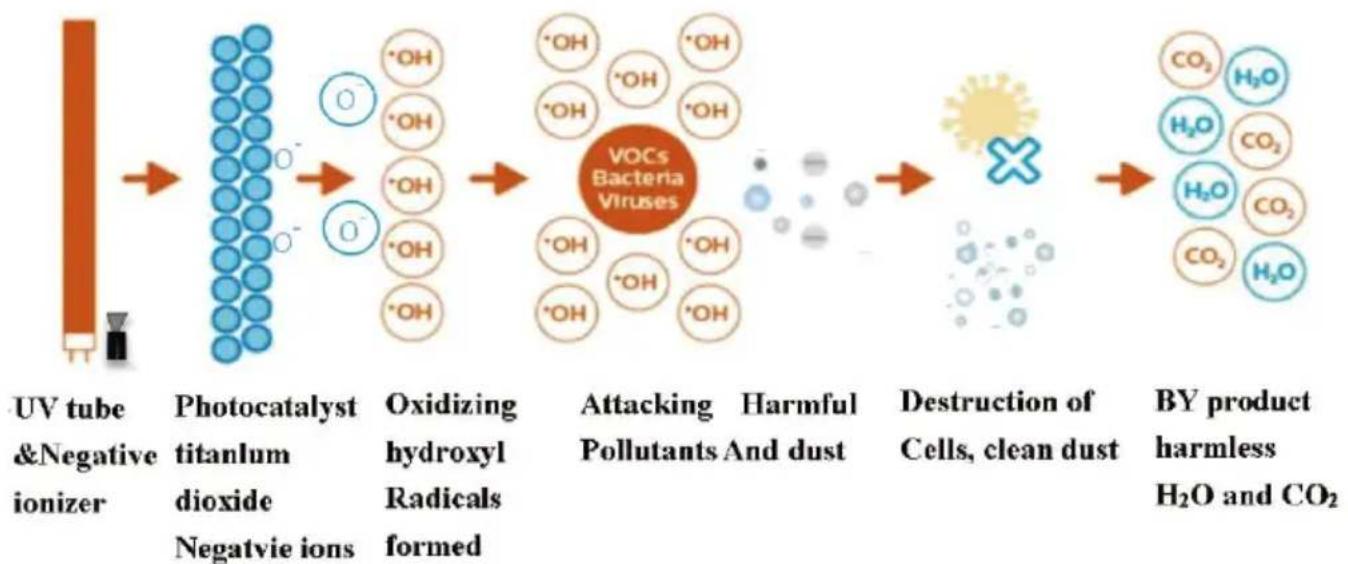

UV light reacted with PCO (Tio2) Filters by using water particles and oxygen from the air to create highly reactive compounds, such as hy

radical OH, hydrogen peroxide H2O2, negative ions and pure oxygen Ozone to actively purify air and inactive molds, bacteria, etc.

Installation steps

1. Find a suitable plumbing installation area near the power supply. Op 159 * 130mm square hole in the pipe according to the flange size. Note: Please find this sticker in the box to help you opening the hole duct properly; Referring to the diagram, watch out for the direction of hole position and the direction of the air flow.

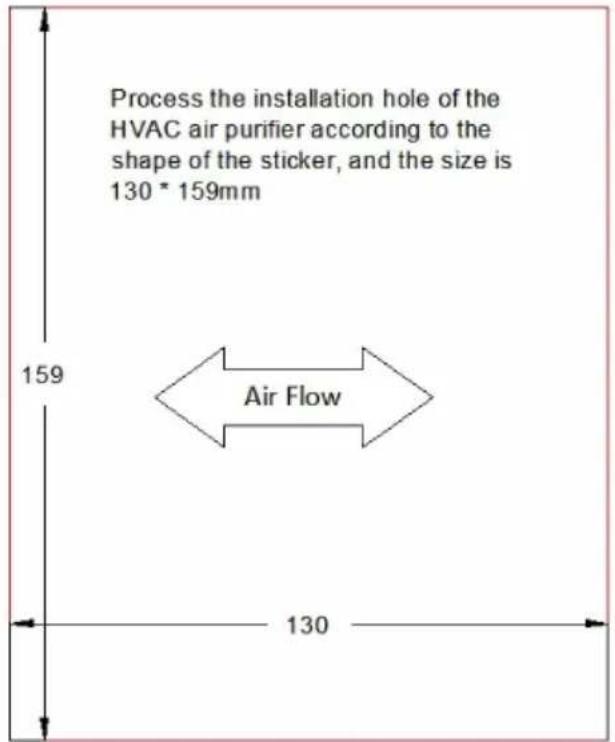

Process the installation hole of the HVAC air purifier according to the shape of the sticker, and the size is 130 * 159mm 159 Air Flow 130

1. Insert the product into the opening of Air Ducts, making sure the s enough and the air will pass the unit in the air duct.

Top-down schematic of a device layout with no visible text, numbers, or symbols

Note: before installation, connect the adapter to the power supply to confirm that the product is operational.

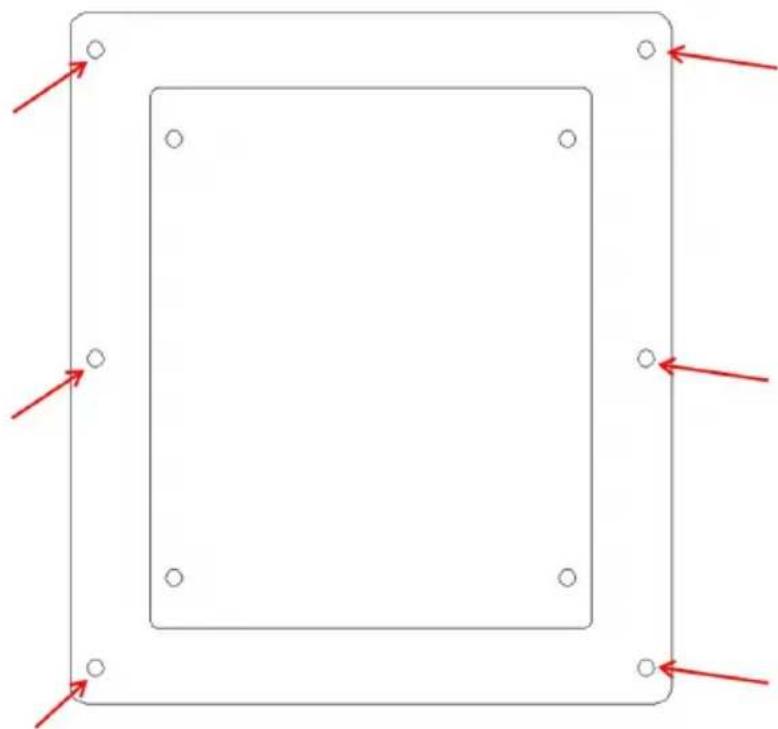

1. Attach the product to the HVAC pipe using 6 self-drill screws.

Pure geometric diagram with arrows and circles inside a square frame (no text or symbols)

4.Plug in the unit into a proper power source, and switch it on.

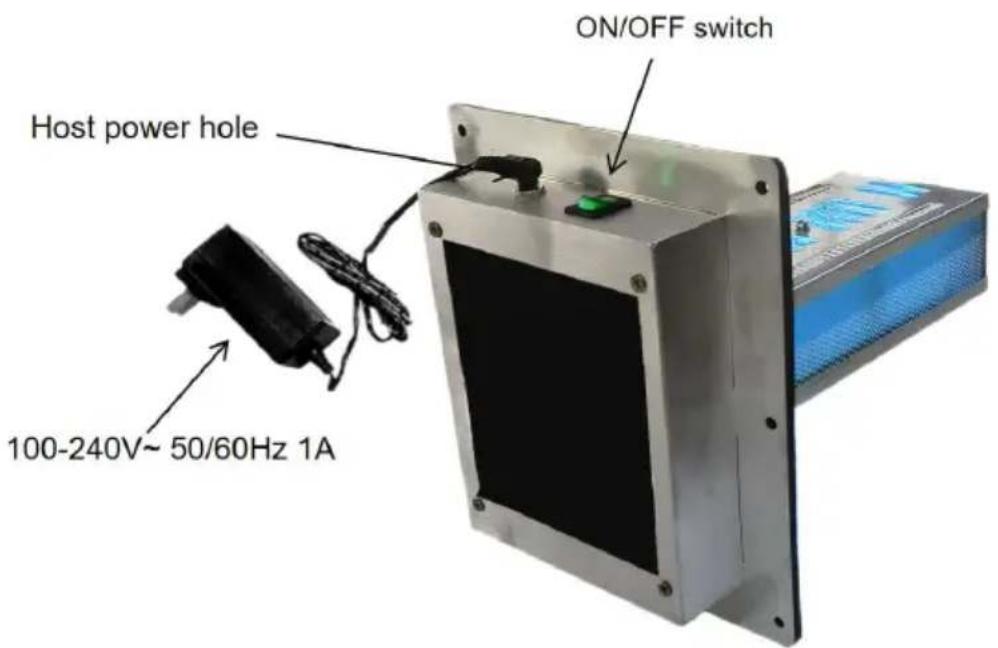

ON/OFF switch Host power hole 100-240V~ 50/60Hz 1A

Adaptive power supply

1. The power supply for this product is: 110-240VAC transferring to 24VDC/1.6A. Make sure DC plug is firmly inserted to DC jack, and the end DC wire into the DC24V power supply, firmly inserted.

2. Press the switch on the side of the base, it will light up for normal working.
