USER MANUAL LD-YG-P24 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Marine Fuel Tank 24L

User Manual

Model: LD-YG-P24

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Marine Fuel Tank 24

Model: LD-YG-P24

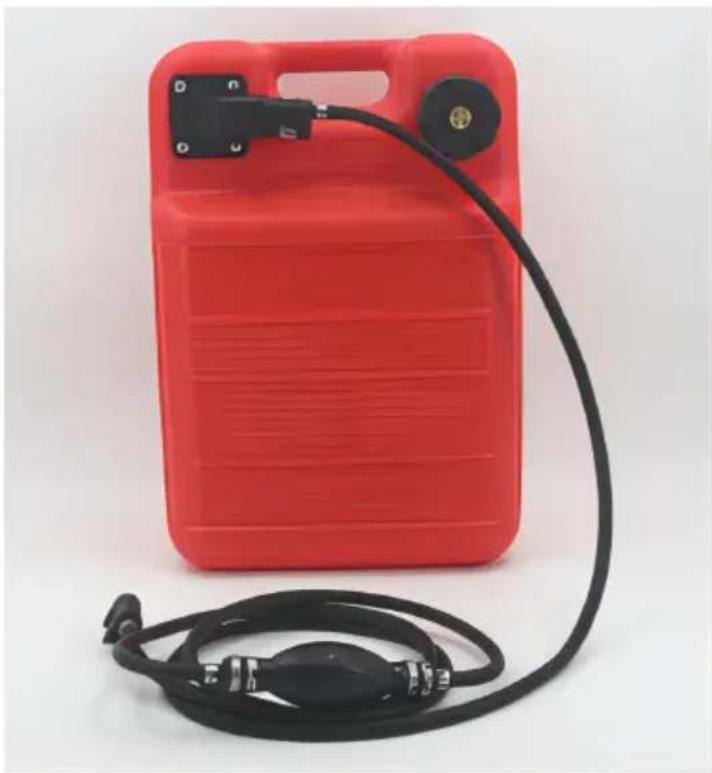

Red portable fuel can with black hose and connector, isolated on white background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. 2.Failure to follow the safety rules and other basic safety precaution may result in serious personal injury.

GENERAL SAFETY RULES

Please read the entire operating instructions before using the products the first time. They contain important information about the correct operation.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. Liability for any and all consequential damage is excluded!

We do not assume any liability for damage to property or personal in caused by improper use or the failure to observe the safety instruction such cases the guarantee/warranty will be void.

The unauthorized conversion, modification, or disassembly of the product is inadmissible because of safety and approval reasons (CE).

The product is not a toy and must be kept out of children's reach. Particular care must therefore be exercised if children are present.

Do not leave packing materials unattended. They may become dangerous playing material for children.

Never position the fuel tank in the vicinity of combustible or easily inflammable materials.

The fuel stored in this product is flammable and explosive material; p attention to fire prevention and anti-static.

The type of fuel stored in this product should be only one to reduce mixed storage of different fuels. When switching is necessary, it needs

be completely emptied. To prevent engine damage after mixing different fuels.

If the fuel is stored in the fuel tank for a long time, there will be a please clean it regularly.

When filling fuel for the first time, please check the tightness of the to prevent fuel leakage. In serious cases, please contact us for consultation and after-sales service.

During use, please check the joints carefully and tighten them to prevent fuel leakage.

Do not overfill, please reserve expansion space. When fixing this process bind it with a strap that is firm and reliable, and beware of being d by external dumping.

If the fuel cap is not used for a long time or the environment is half, please clean it before opening the fuel cap to prevent foreign matter being brought into the fuel tank

After refueling, please tighten the fuel cap, otherwise the fuel will be and spill, which will cause a certain degree of risk.

During the transfer process, prevent sharp objects from puncturing the tank and causing fuel leakage.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	LD-YG-P24
Volume	24L
Quantity/ carton	1 PCS
Material	HDPE

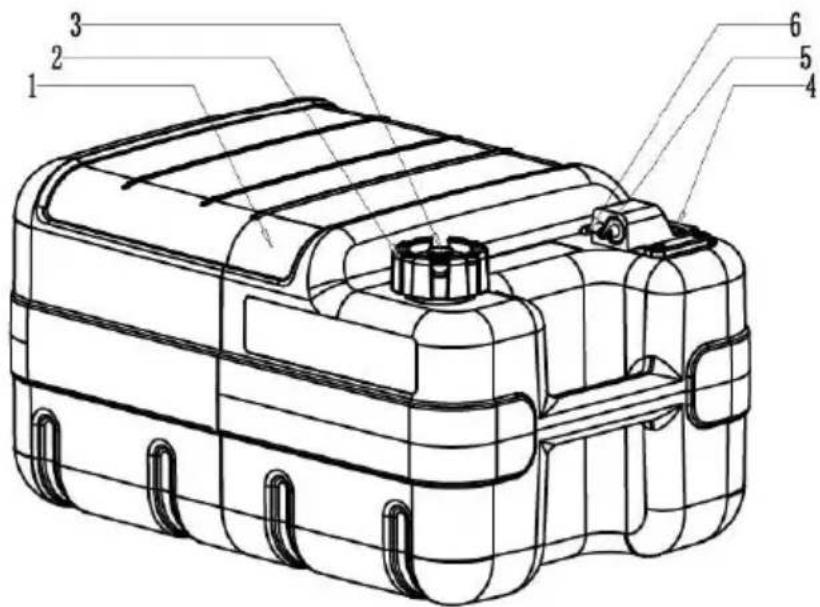

STRUCTURE DIAGRAM

Technical diagram of a portable gas storage unit with numbered components labeled 1 through 6

1	Fuel tank body	2	Fuel cap
3	Vent bolt	4	Fuel level display
5	Outlet valve	6	Locating pin

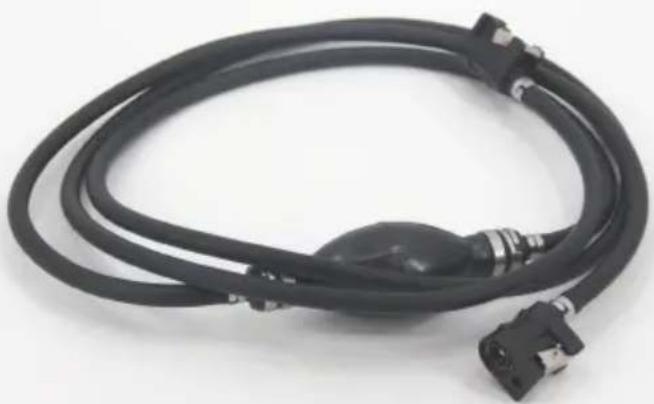

COMPONENTS

Coiled black electrical plug with connector and terminal (no text or symbols visible)

OPERATING INSTRUCTIONS

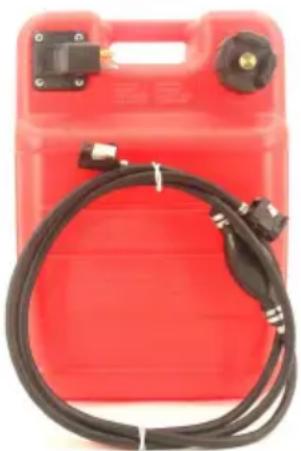

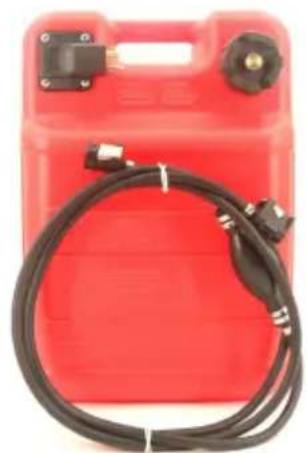

1. Fuel tank body.

Red portable fuel storage container with black cable and connector (no visible text or symbols)

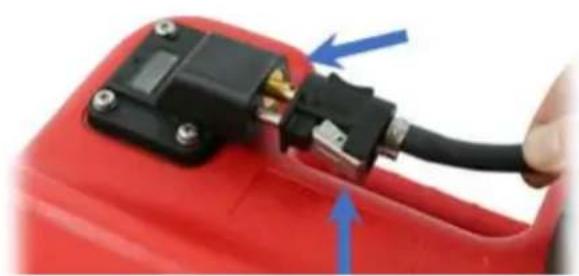

1. Press the safe lock of the fue hose, insert it in the right direct hear the lock sound, and then i locks.

Close-up of a red battery pack with a black connector and blue directional arrows indicating cable or connection (no text or symbols visible)

1. Arrow forward outside as left connecting fuel tank, arrow forwa inside as right is connecting eng

Close-up of a black mechanical component with a blue upward arrow indicating direction (no text or symbols visible)

Close-up of a black mechanical component with a metallic top and blue arrow indicating direction (no text or symbols)

1. The arrow on the pump for engine.

Black oval-shaped object with internal cutouts and metallic ends, resembling a medical or laboratory device (no visible text or symbols)

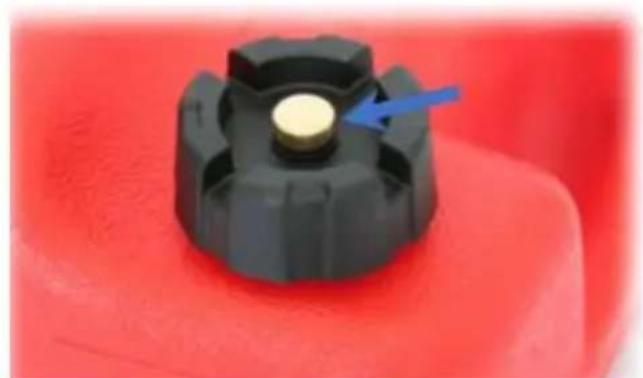

1. Before fuel filling, open the bolt.

Close-up of a black mechanical knob with a yellow center and blue arrow pointing to it, placed on a red surface (no text or symbols visible)

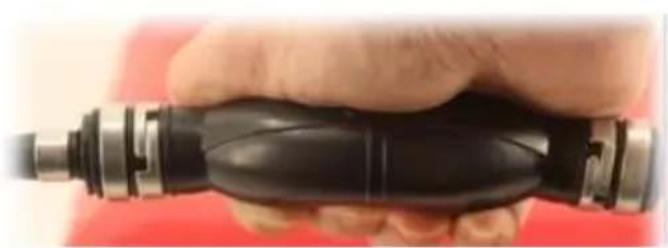

1. Press the pump 4-5 times, n need to continue to press after fuel flows out.

Close-up of a hand holding a black handheld device with metallic buttons (no visible text or symbols)

MAINTENANCE

1. When the product is finished, it is recommended to dry the product put it away.
2. Do not use damaged products.
3. Do not expose the product or its accessories to damp or extremely or low temperatures.
4. Dropping, falling, pressure or tensile forces could destroy or at least lir the function of the product.
5. Never store the fuel tank in the vicinity of combustible or easily inflammable materials.
