Product Type	Wall-mounted bike rack
Brand	Vevor
Model	JC24-ZXCZJ009
Maximum load capacity	300 lb (136 kg)
Number of bikes supported	Up to 6 bikes
Number of rails	5 rails
Total rail length	85 inches (216 cm)
Length of each rail	17 inches (43 cm)
Mounting hole spacing	16 inches (40.6 cm)
Number of 4.4-inch tire hooks	1 hook
Number of 2.5-inch tire hooks	5 hooks
Other hooks	5 hooks
Material	Powder-coated steel, rubber sleeves
Coating	Rust-proof, scratch-resistant, non-slip
Installation type	Wall-mounted, on brick or wood wall
Included hardware	Rails, hooks, screws, wall anchors
Tools required	Electric drill, level (not included)
Maintenance	Clean with a damp cloth, periodic lubrication of screws and connectors
Safety	Do not exceed maximum load; regularly check the mounting; alternate front/rear wheels
Recommended applications	Garage, workshop, basement
Warranty	Technical support and electronic warranty certificate available
Dimensions (total length)	85 inches (216 cm)

Frequently Asked Questions - JC24-ZXCZJ009 Vevor

How to install this wall-mounted bike rack?

Installation requires an electric drill and a level (not included). Fix the rails to the wall using the provided screws and wall anchors. For brick walls, pre-drill holes and use expansion anchors. For wood walls, use self-tapping screws. Make sure the wall is solid (brick or thick wood). Refer to the installation guide in the manual.

What type of wall is needed for installation?

The bike rack must be installed on a solid wall made of brick or wood of sufficient thickness. It is not recommended on drywall, thin wood panels, or other weak structures that could not support the weight of the bikes.

What is the maximum load capacity?

The total load capacity is 300 lb (136 kg). Each hook supports a maximum of 50 lb (22.7 kg). Do not exceed these limits to ensure safety.

How many bikes can I hang?

This model can accommodate up to 6 bikes. It is recommended to alternate the front and rear wheels of adjacent bikes to prevent handlebars from interfering.

What types of bikes are compatible?

The hooks fit tires up to 4.4 inches (112 mm) wide. Thus, it is compatible with mountain bikes, road bikes, folding bikes, hybrids, adult and children's bikes, scooters, etc.

How to maintain the bike rack?

For maintenance, regularly clean with a damp cloth to remove dust and dirt. Apply lubricant to the screws and connectors to ensure smooth operation. Check the installation status every few months to ensure stability.

What if the hooks are too small for my tires?

This model includes hooks for 4.4-inch and 2.5-inch tires. If your tires are wider, check the specifications. For larger tires, it is advisable to choose another suitable bike rack model.

Can I install it on drywall?

No, installation on drywall or thin panels is not recommended due to the low strength of the structure. The bike rack must be mounted on a solid brick or wood wall to ensure safety.

Is the product delivered with all necessary hardware?

Yes, the package contains all the rails, hooks, screws, and wall anchors needed for installation. You will need an electric drill and possibly a level, which are not included.

How to clean the bike rack?

Use a damp cloth to wipe the surface. Avoid abrasive products that could damage the coating. For difficult areas, a mild detergent can be used, then rinse with clean water and dry.

USER MANUAL JC24-ZXCZJ009 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

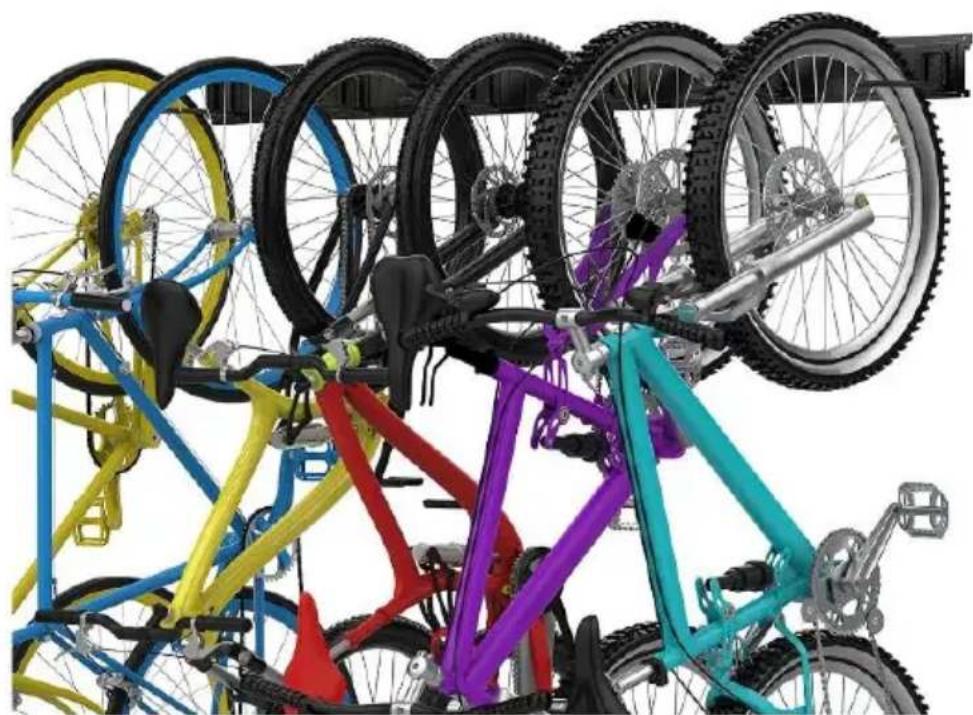

Stack of colorful bicycles displayed in a storage rack (no text or symbols visible)

(The picture is for reference only; please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. Warning-

1.1 Wall Installation Only: Please ensure the bike rack is correctly installed on solid wall to ensure safety. It should only be installed on brick walls or wood walls of sufficient thickness, choosing the appropriate hole spacing for the gut rails.
1.2 Installation is not recommended on plasterboard, thin wood panels, and c locations due to the weak structure being unable to bear the weight of hang bicycles.
1.3 Do Not Overload: Each bike rack has a limited maximum load capacity. Please do not hang bicycles that exceed the weight limit or the number of it can safely hold.
1.4 Placement Method: It is recommended to alternate the front and rear wh of adjacent bicycles to avoid handlebars obstructing each other.
1.5 Avoid Collision: Avoid collisions between the bicycle and other objects du installation and use to prevent damage.
1.6 Regular Inspection: Periodically check the bike rack's screws and connect to ensure its stability.

2. Product introduce

Wall mounted bike racks are storage and organization tools installed on the to allow bicycles to be lifted off the floor and hung vertically on the wall. 1 facilitates the organization and cleaning of your home and garage and effecti saves space. They are widely used for organizing and storing bicycles in ga shops, basements, and other scenarios.

3. Main Feature

3.1 CUSTOMIZED BIKE STORAGE SOLUTIONS - Featuring an elegant rail interlcd design, these bike storage solutions seamlessly combine rails. Rails and hooks ca separated or interlocked for wall mounting to display or hang your bike. The sna design allows for easy attachment to the rails and adjustable hook spacing.
3.2 WALL-MOUNTED SPACE-SAVING - Our bike wall racks are perfect for garage organizers, lifting bikes off the floor to facilitate organization and cleaning in your and garage. The wall-mounted bike rack efficiently saves space.

3.3 WIDE SIZE HOOKS for BIKE HANGER - Capable of hanging up to 4.4-inch bike tires, making it suitable for mountain bikes, road bikes, folding bikes, hybrid adult bikes, kids bikes, scooters, etc. Wide-size hooks simplify the task of hangin and taking down your bike.
3.4 DURABLE MATERIAL - Constructed with powder-coated rails and rubber-coated sleeves for exceptional durability. It features anti-rust, anti-crack, anti-scratch, and anti-slip functions, ensuring safety. EASY TO INSTALL - Installation requires only electric drill, and possibly a level to ensure proper alignment. Intended for mounti wall studs, suitable for drywall or other paneled wall sheeting, but must be affixed solid structures. Includes all necessary installation hardware.

1. Product parameter

Item	Model	Total Load Limit / Ibs	Store Bike Qty / pcs	Rail				Hook
				Total Length / inch	Length of each rail / inch	Hole distance / inch	Qty / pcs	For 4.4inch Tire / pcs	For 2.5inch Tire / pcs	Other Hook
1	JC24-ZXCZ J001	100	2	17	17	16	1	1	1	×
2	JC24-ZXCZ J002	200	4	32	16	15	2	1	3	2
3	JC24-ZXCZ J003	200	3+1	36	18	16	2	1	3	2
4	JC24-ZXCZ J004	300	3+3	48	16	15	3	1	5	3
5	JC24-ZXCZ J005	300	3+3	51	17	16	3	1	5	3
6	JC24-ZXCZ J006	300	5+1	64	16	15	4	1	5	5
7	JC24-ZXCZ J007	300	6	68	17	16	4	1	5	6
8	JC24-ZXCZJ008	400	5+3	72	18	16	4	1	7	7
9	JC24-ZXCZJ009	300	6	85	17	16	5	1	5	5
10	JC24-ZXCZJ010	300	3+3	48	16	15	6	1	5	3
Item	Model	Total Load Limit /Ibs	Store Bike Qty /pcs	storage racks				Hook
				Total Length /inch	Length of each rail /inch	Hole distance /inch	Qty /pcs	For 4.4inch Tire /pcs	For 2.5inch Tire /pcs	Other Hook
11	JC24-ZXCZJ011	500	4	63	31.5	/	2	1	3	20
Note:1. Item 10 additionally has 3pcs storage racks.2. The max load capacity of Single hook is 50lbs.3. If the “Store Bike Qty” shows “3+1”, that means 3 adult bikes + 1 child bike, a total of 4 bikes.4. Easily use an 8mm drill bit to drill holes in the wall for installation on the rail.5. Pre-drill holes in brick walls and install them with expansion tubes;6. for wooden walls, use self-tapping screws.7. Bicycle placement method: Alternate hanging of the front and rear wheels of adjacent b recommended.

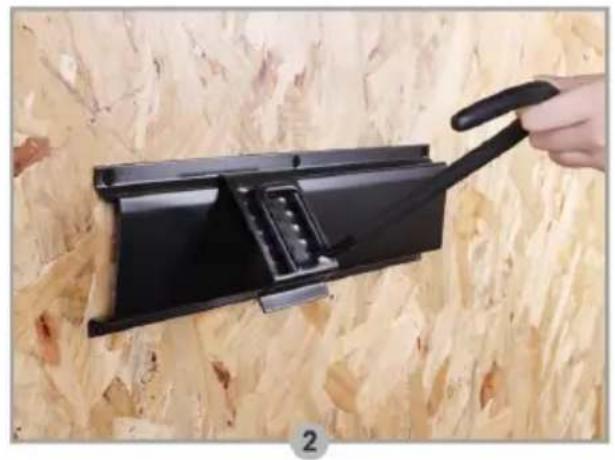

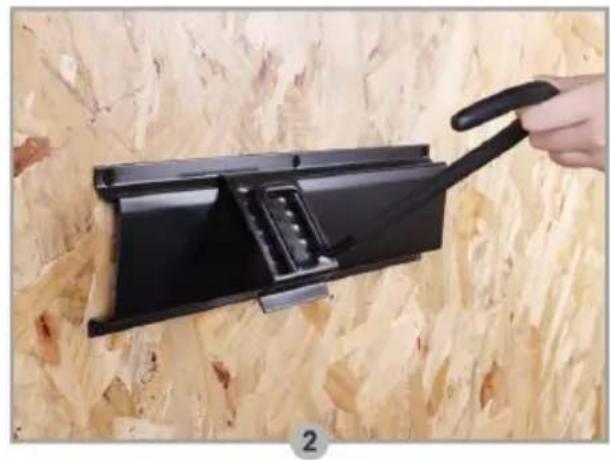

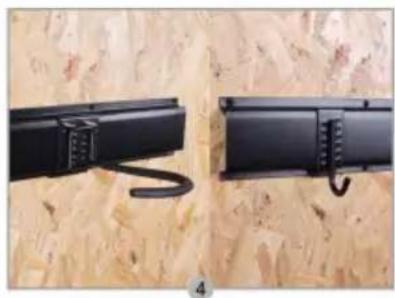

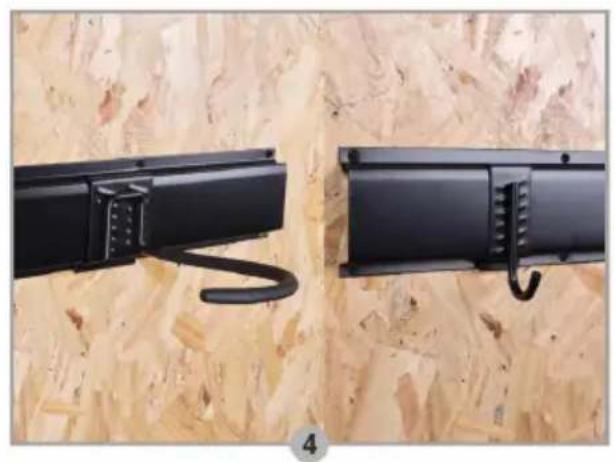

5. Installation Guide for itme1 - item9

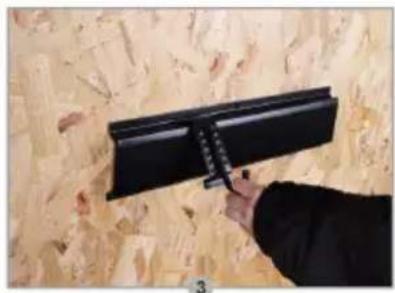

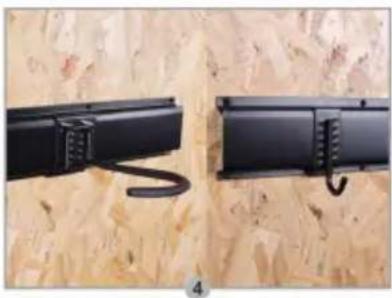

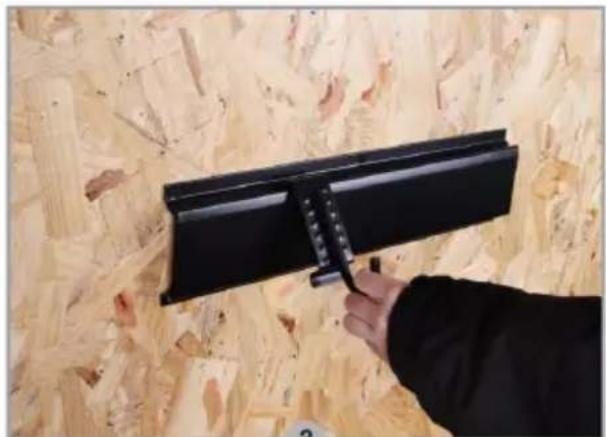

You can use screws to fix the track on the wall, as shown here:

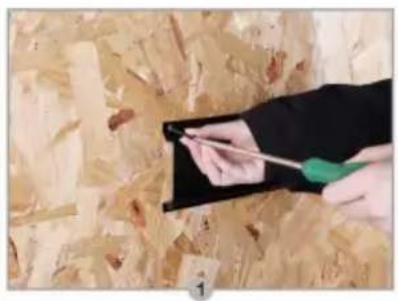

Person using a tool to cut wood shavings on a wooden surface (no text or symbols visible)

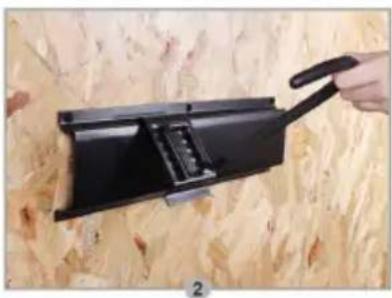

Hand holding a black device with a handle, placed on a wooden surface (no visible text or symbols)

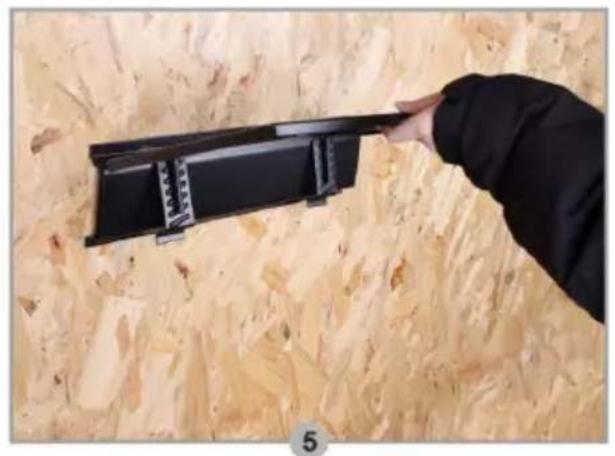

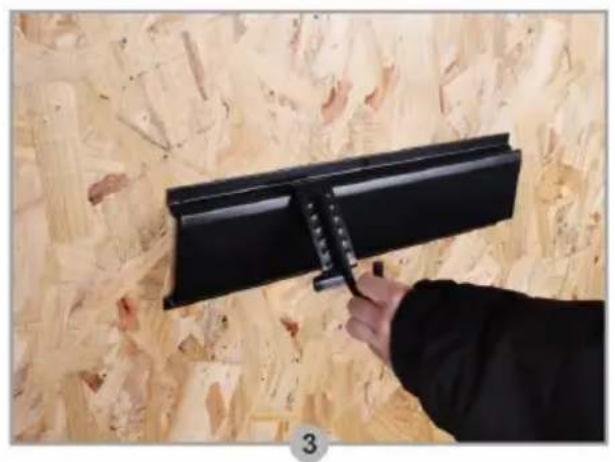

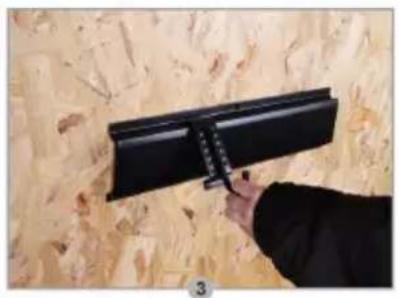

Hand holding a black metal bracket against a wooden wall (no text or symbols visible)

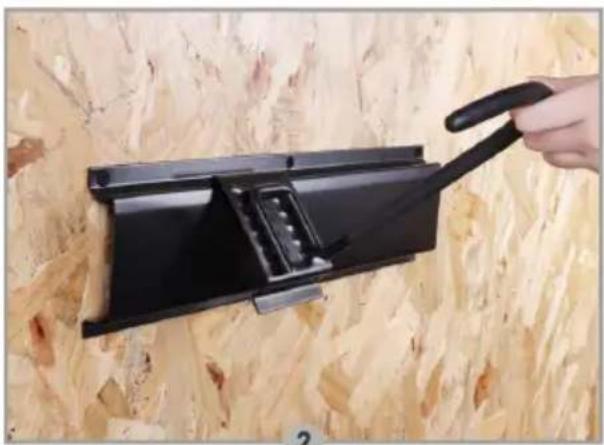

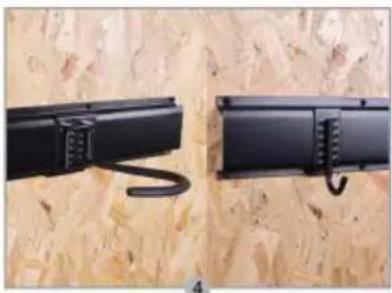

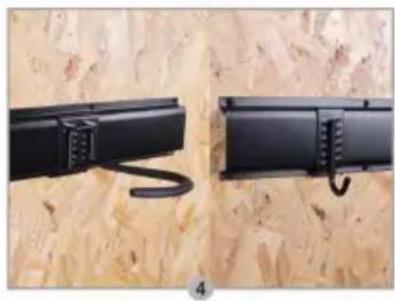

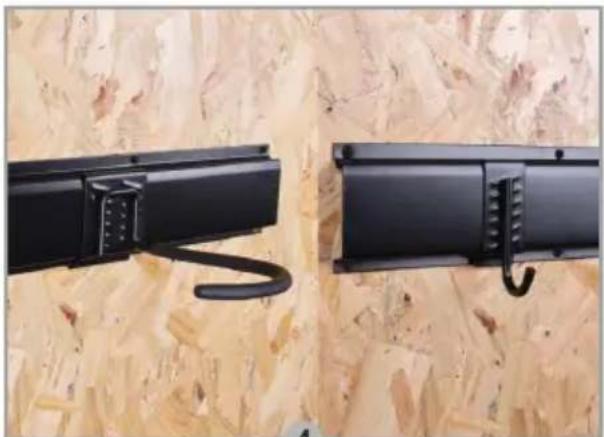

Two black metal objects with hooks placed on a wooden surface, no visible text or symbols

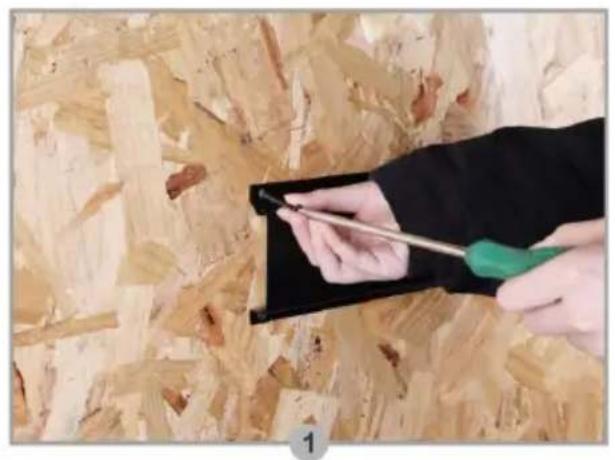

6. Installation Guide for item 10

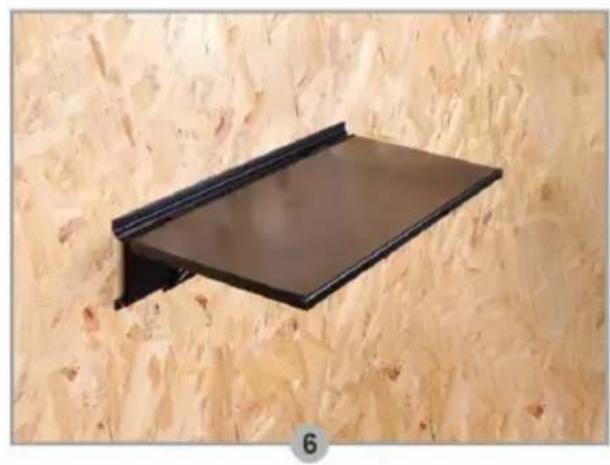

You can use screws to fix the track on the wall, as :shown here

Person using a screwdriver to clean wood shavings in a wooden panel (no text or symbols visible)

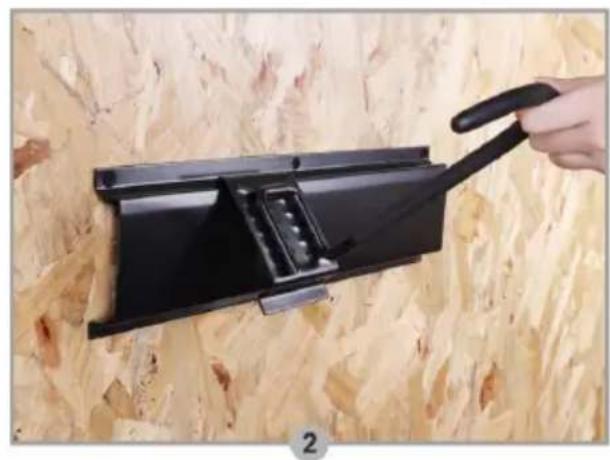

Hand holding a black device with a handle, placed on a wooden surface (no text or symbols visible)

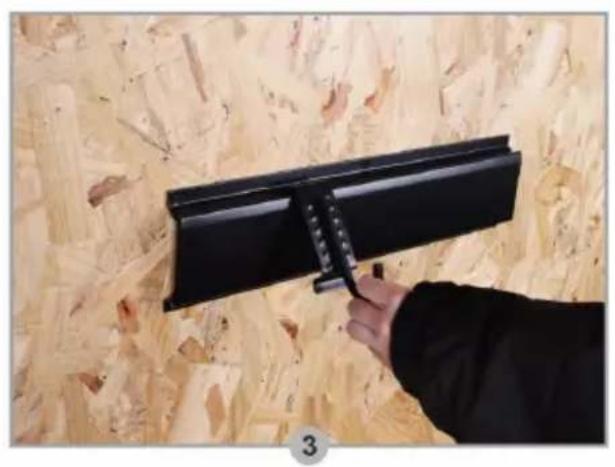

Hand holding a black metal bracket mounted on a wooden panel wall (no visible text or symbols)

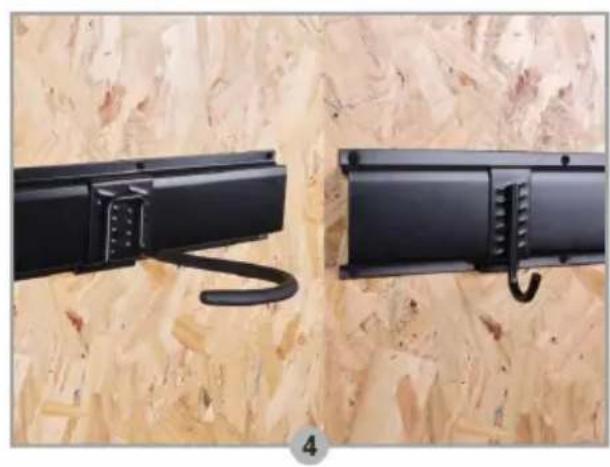

Two black metal wall-mounted sensors mounted on a wooden surface, one with a curved hook, against a textured wooden wall (no text or symbols visible)

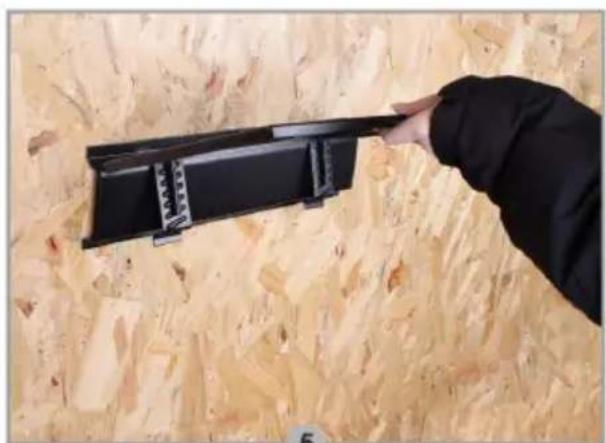

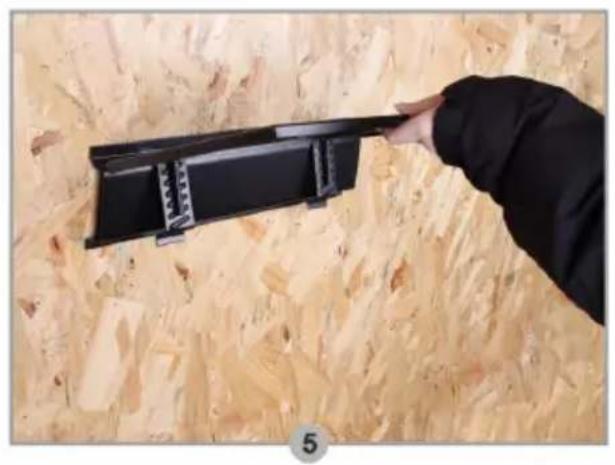

Hand holding a black electronic device against a wooden panel background (no visible text or symbols)

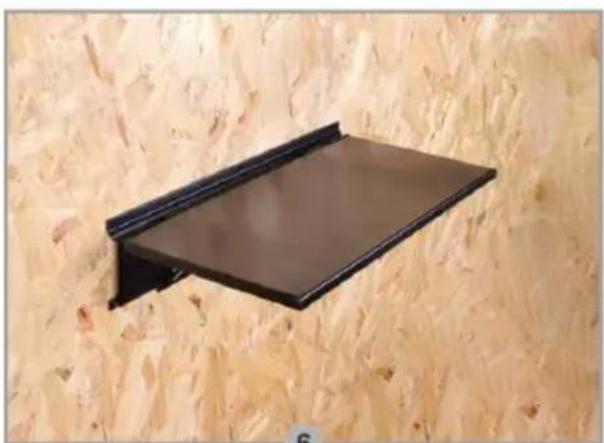

Exterior view of a black metal shelf mounted on a wooden wall (no text or symbols visible)

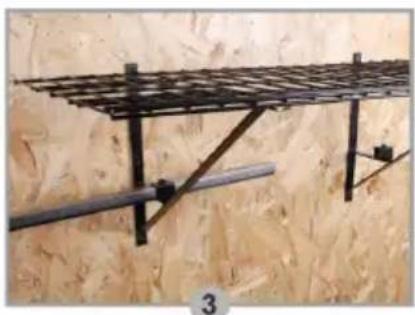

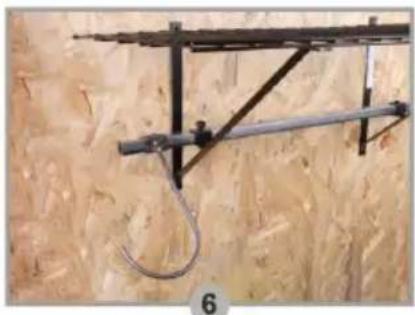

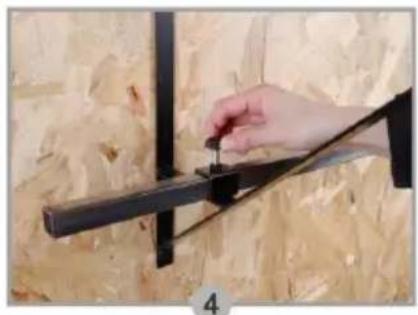

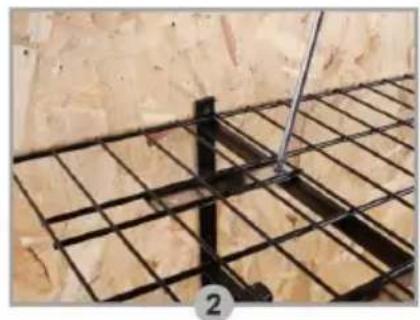

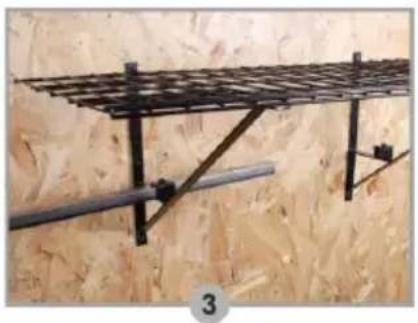

7. Installation Guide for item11

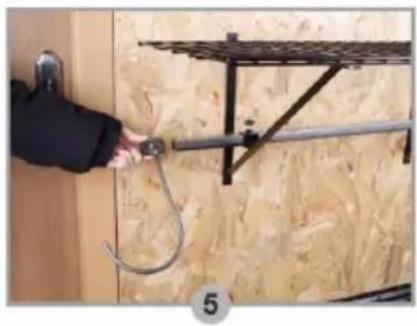

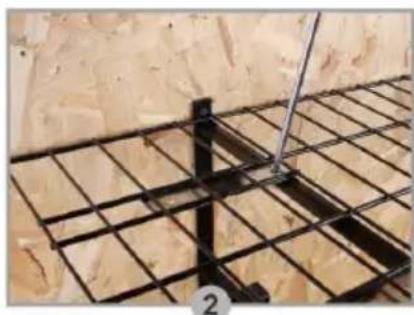

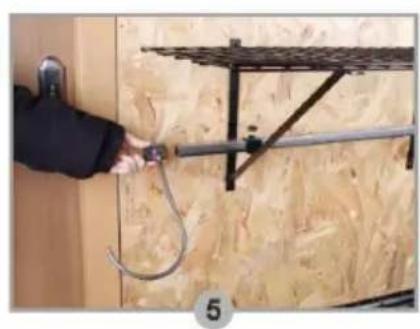

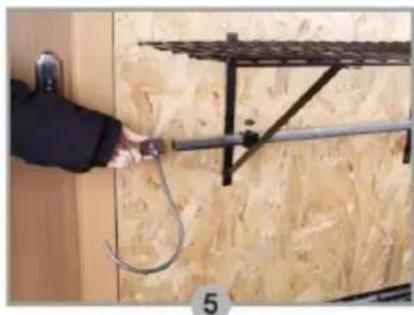

You can use screws to fix the track on the wall, as :shown here

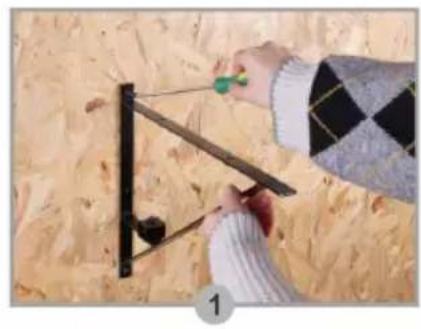

Person using a wooden ruler on a wooden surface, no visible text or symbols

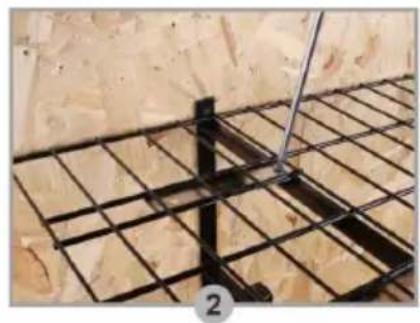

Close-up of a metal grid structure with a metal rod inserted, against a textured wall background (no text or symbols visible)

Metal cage structure mounted on a metal rod against a wooden wall (no text or symbols visible)

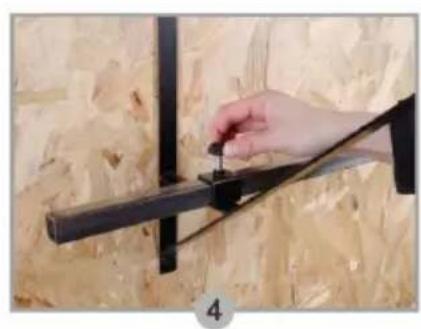

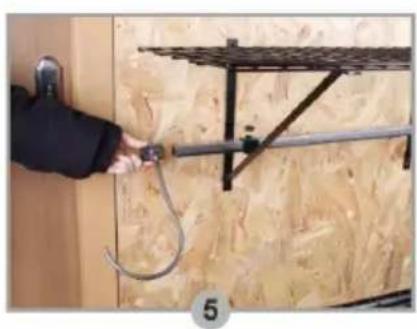

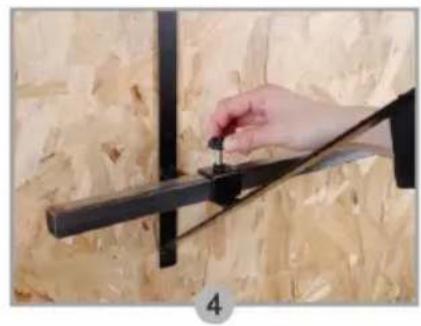

Hand using a tool to measure a metal beam against a wooden wall background (no text or symbols visible)

Hand holding a metal hook attached to a wall-mounted shelf, no visible text or symbols

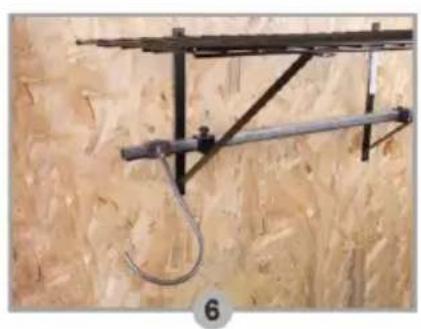

Industrial metal support structure mounted on a wall, no visible text or symbols

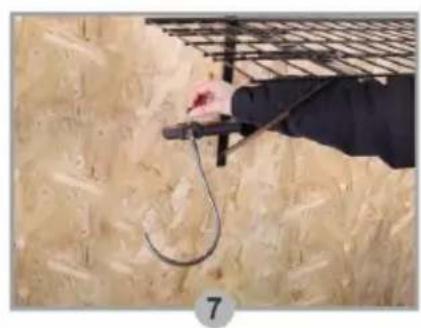

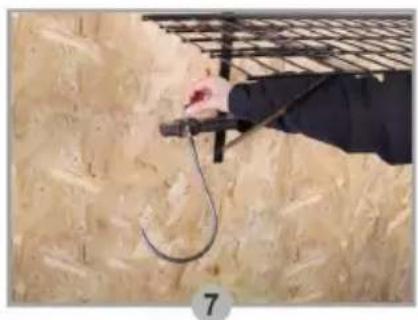

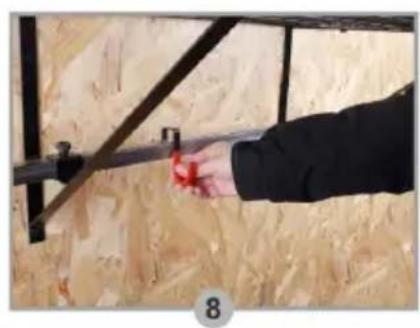

Close-up of a hand holding a metal hook attached to a textured beige wall, with a wire mesh structure in the background (no visible text or symbols)

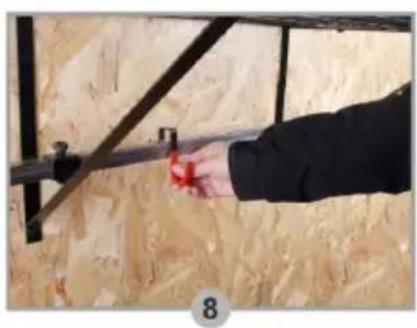

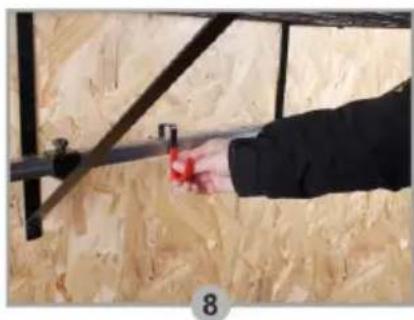

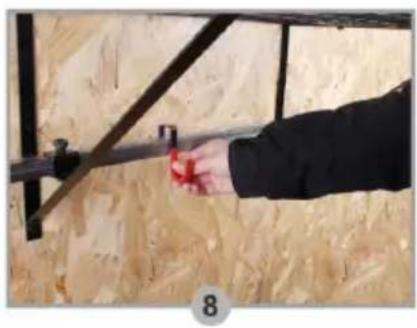

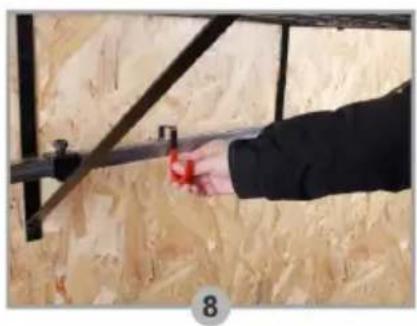

Hand adjusting a metal rod against a wooden wall (no text or symbols visible)

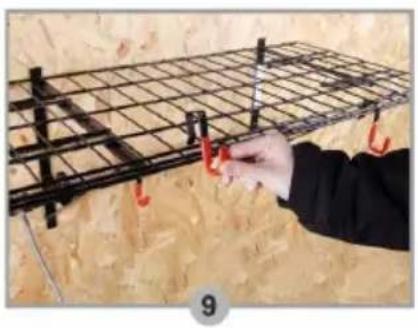

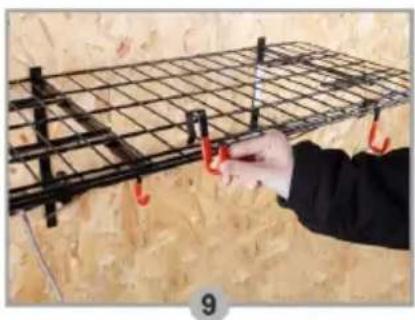

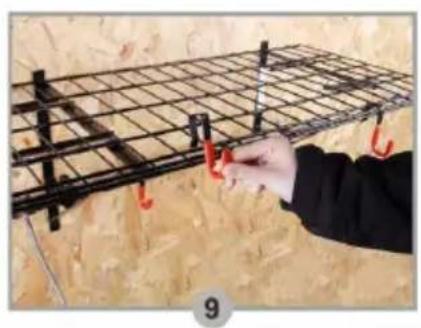

Person using a tool to install a metal grid structure on a wooden surface (no text or symbols visible)

8. Maintain

8.1 Cleaning: Use a damp cloth to wipe the surface of the bike rack to remove and dirt.
8.2 Lubrication: Regularly apply lubricant to the screws and connectors of the bike rack to ensure its smooth operation.
8.3 Inspection: Check the installation status of the bike rack every few months to ensure its stability.
