USER MANUAL FS26 Vevor

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STAND

MODEL:FS26

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSAL TV STANI

MODEL:FS26

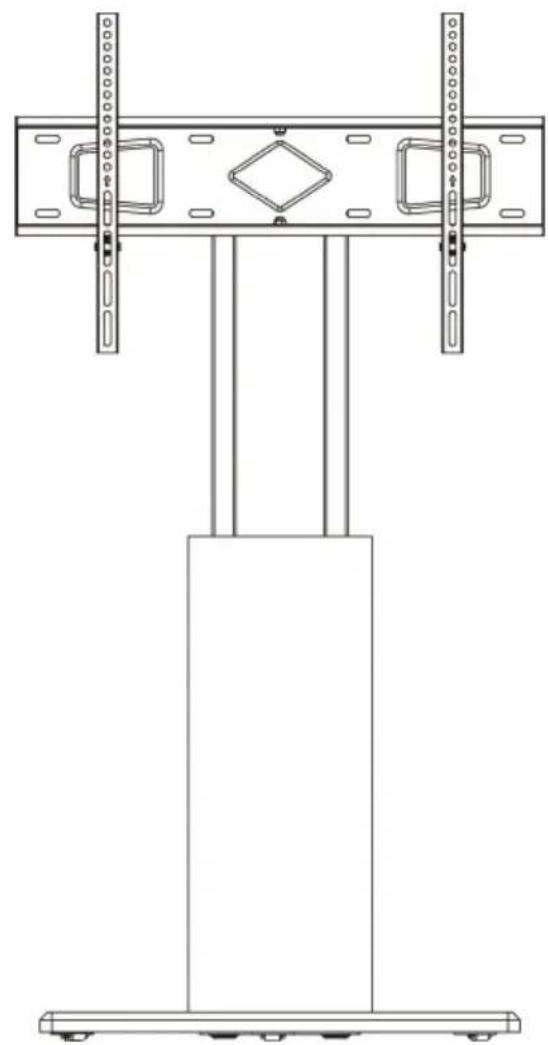

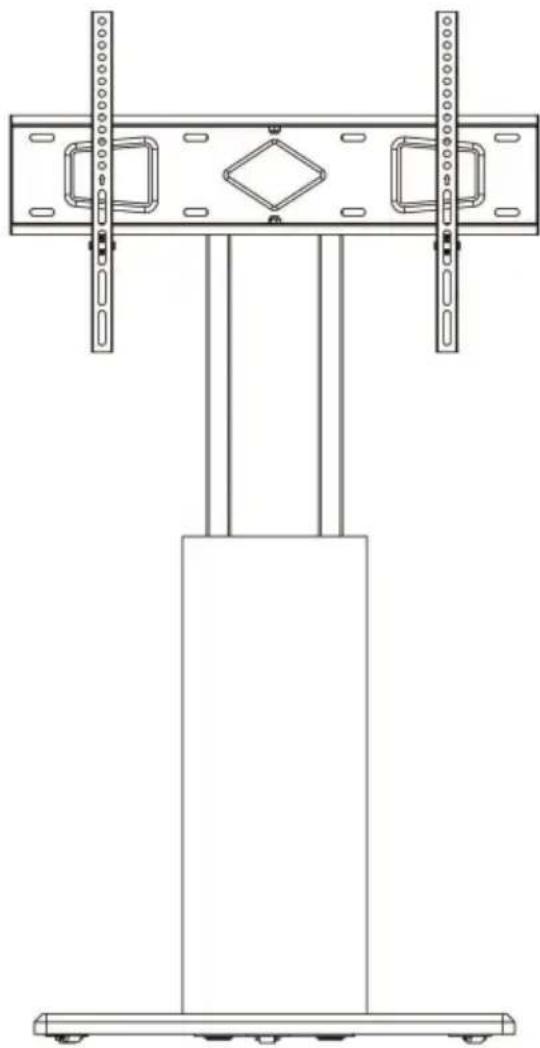

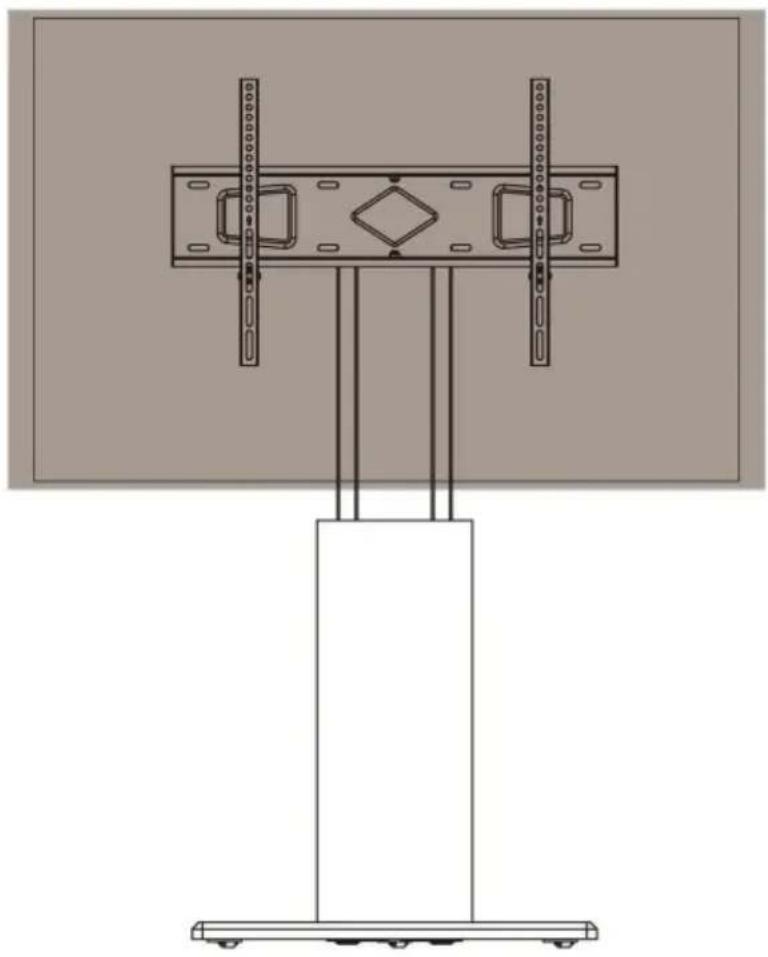

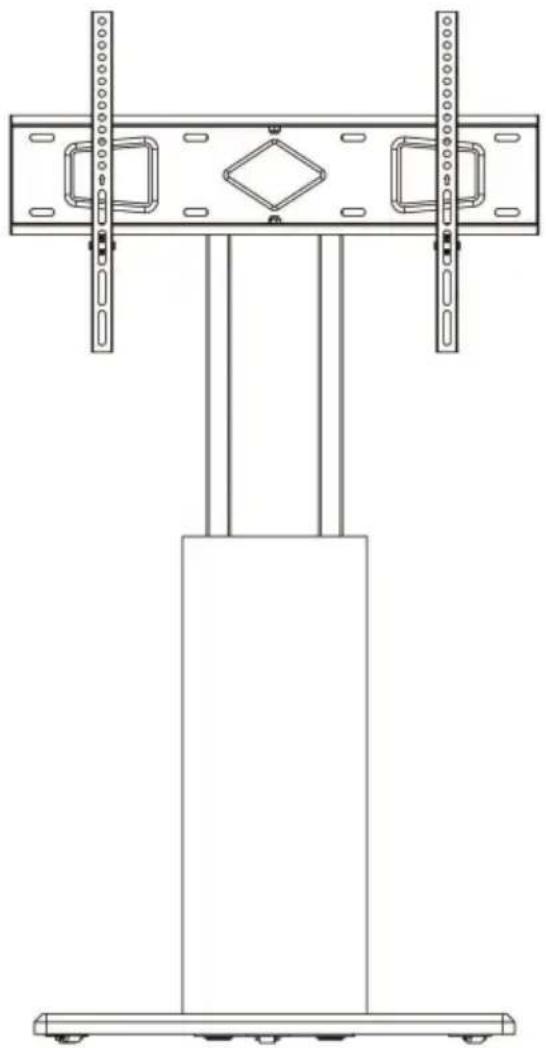

Technical line drawing of a structural support frame with vertical supports and central diamond-shaped component (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Before installation, please ensure that your TV stand mounting ho dimensions, and weight can meet the specifications and standards the TV stand. If you have any questions or questions about the instructions and warnings, please contact us for help..

Important:

1. When installing the support, please use professional safety devices and tools in accordance with the requirements of the assembly instructions. Improper installation may cause the TV to fall or serious injury.
2. Before installation, ensure that the support surface can safely support the weight of the device and all accessories.
3. Please do not exceed the intended load capacity, otherwise it may cause serious injury or property damage.
4. This product contains small parts, swallowing them may cause choking hazards. Please keep out of reach of children.
5. This product is only suitable for indoor use, outdoor use may cause product damage and personal injury risk.

Maintenance:

Please check the connection between the bracket and the TV periodic to ensure it remains stable, and verify that the screws have not loos fallen off due to long-term use (at least once every three months). If security risks are identified, replace or reinforce the parts promptly.

SAVE THIS MANUAL

PARTS LIST

PART LIST

Plastic Washer

Steel Washer

Technical line drawing of a mechanical frame assembly (no text or symbols)

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

① X1

⑥ X5

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

Technical line drawing of a rectangular electronic component with two square cutouts and a central diamond shape (no text or symbols)

③ X1

④ X2

Pure line drawing of a horizontal bar with evenly spaced circular markings (no text or symbols)

⑤ X1

D X2
EX2
M4
F X1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

1

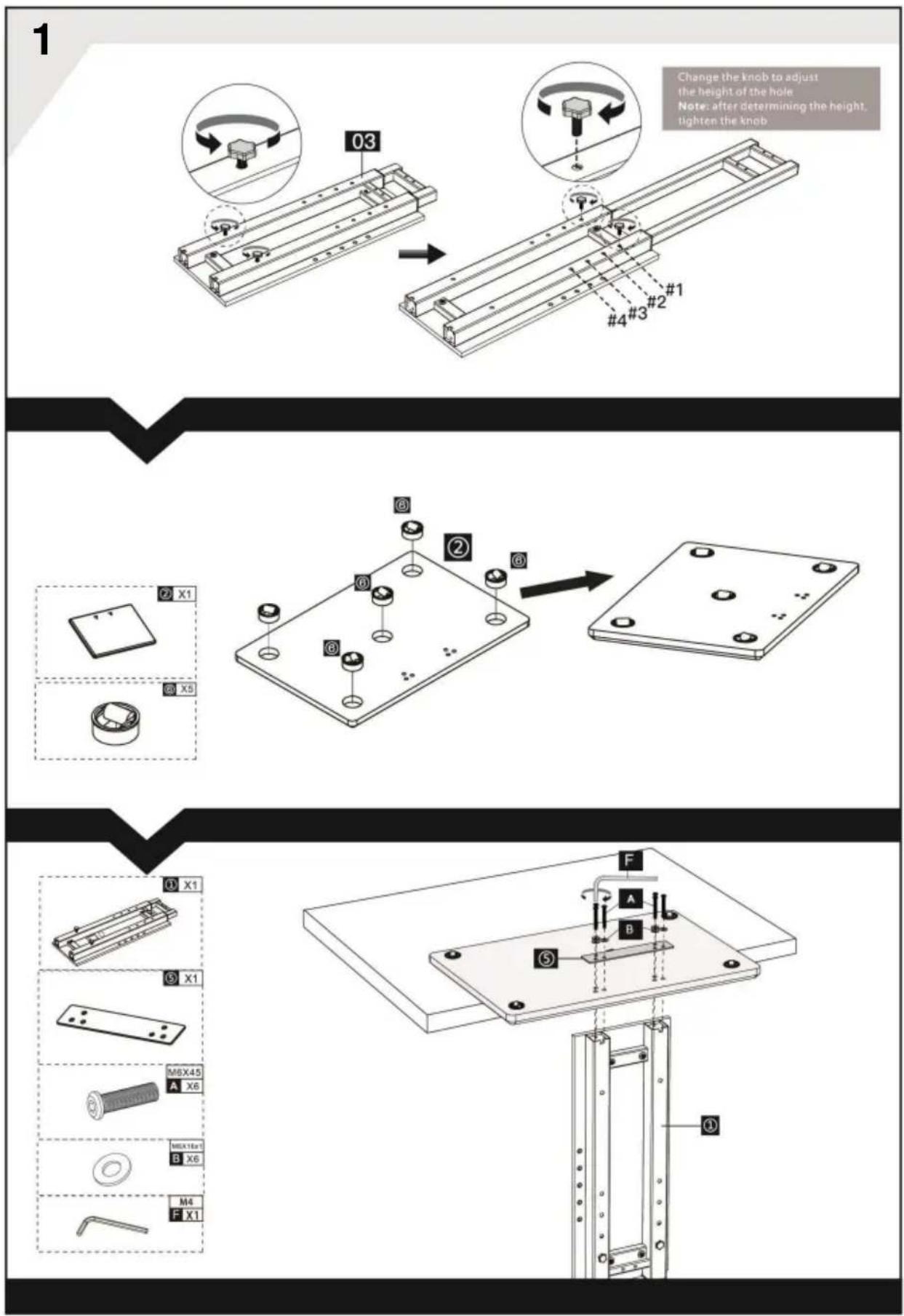

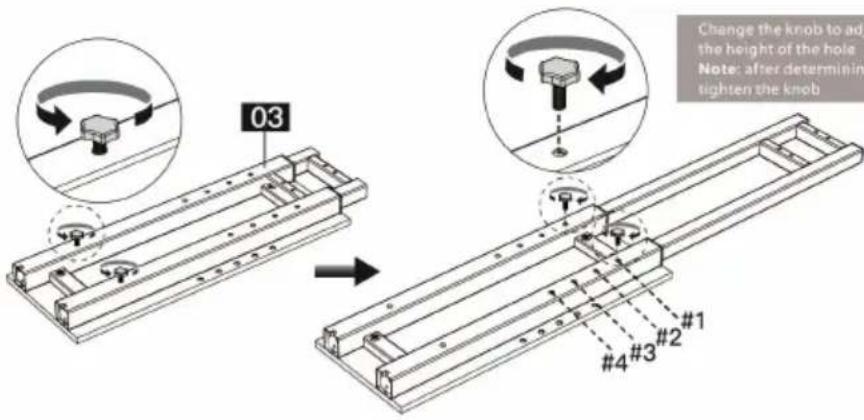

03 Change the knob to adjust the height of the hole Note: after determining tighten the knob #4#3#2#1

Two technical diagrams showing a rectangular object and a cylindrical component, both without any text or symbols.

Diagram showing a device with labeled components and an arrow indicating transformation from a base plate to a final panel.

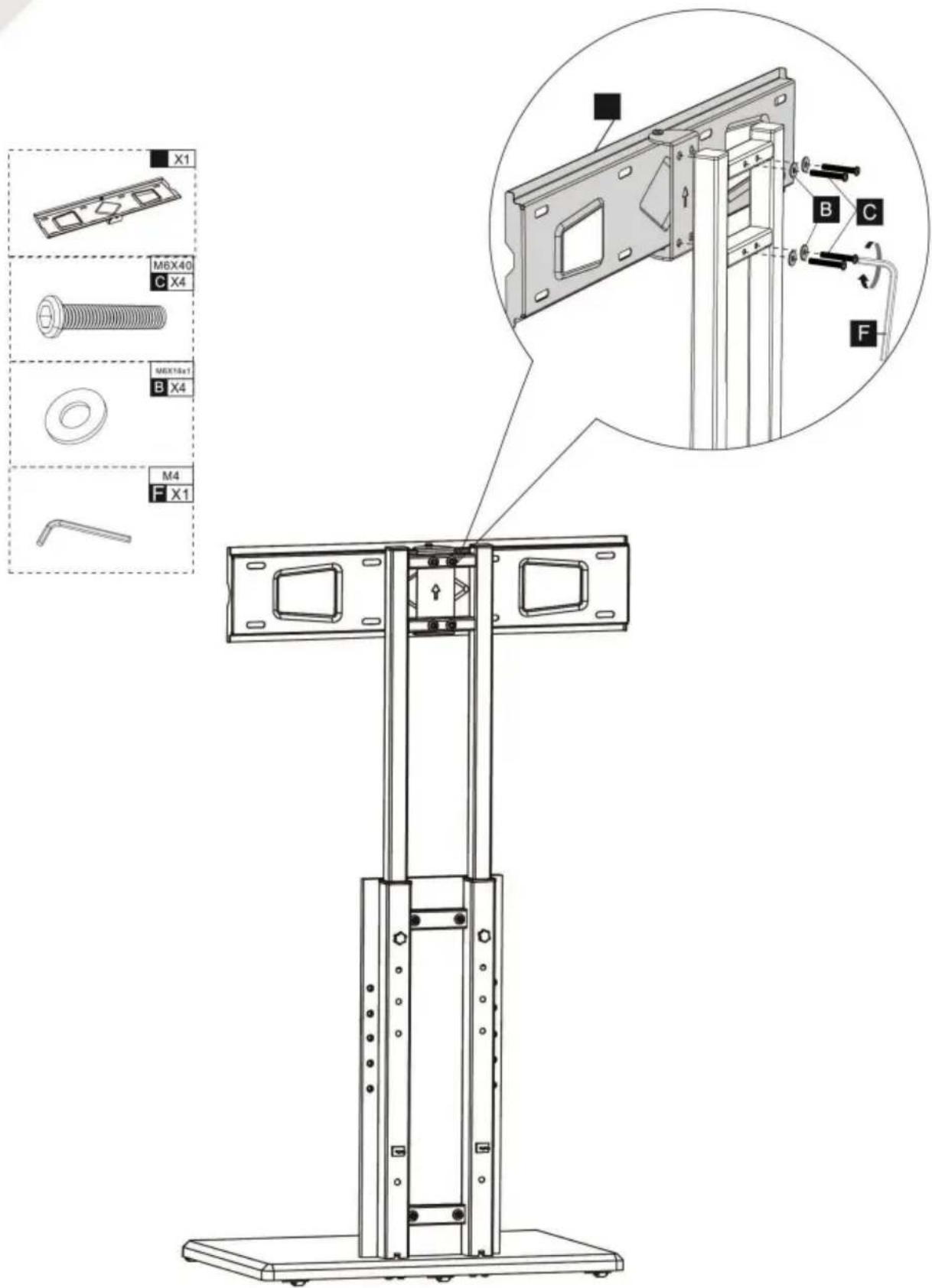

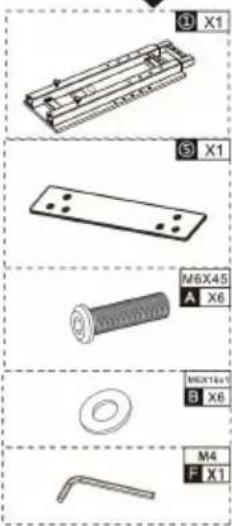

① X1 ⑤ X1 M6X45 A X6 M6X16+5 B X6 M4 F X1

F A B ⑤ ①

2

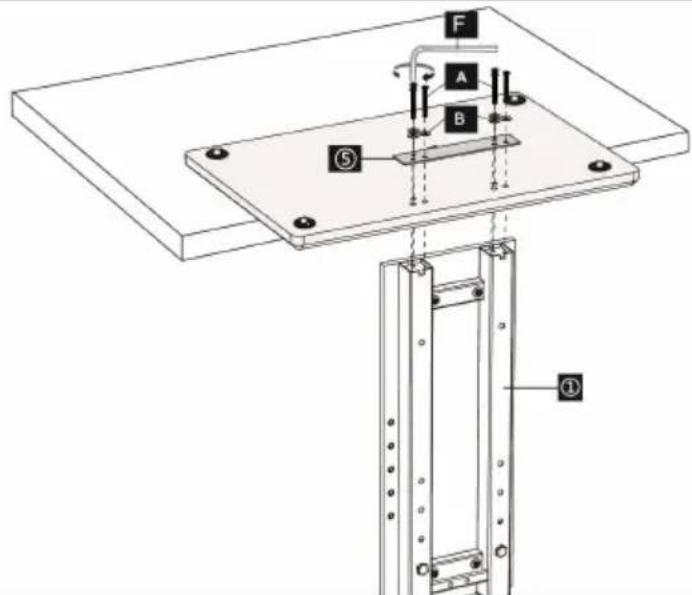

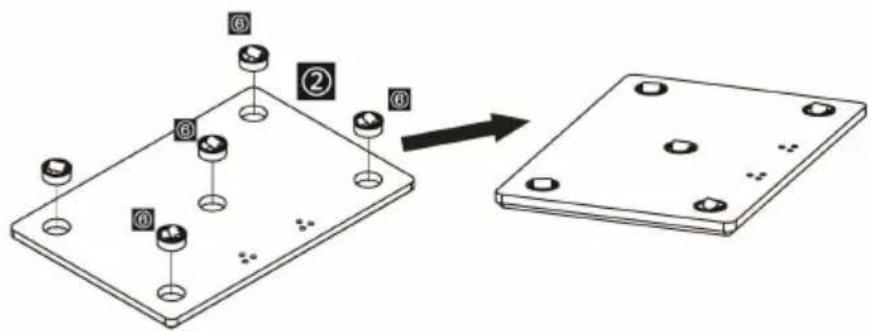

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3

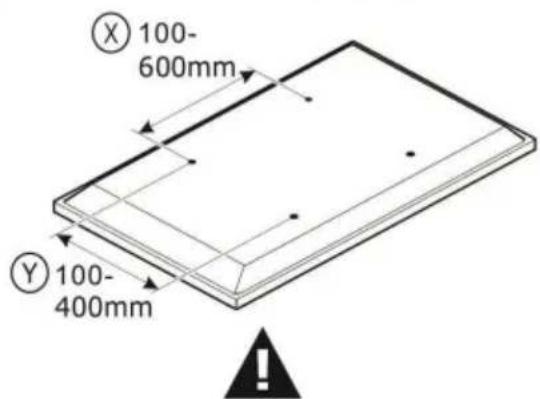

Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

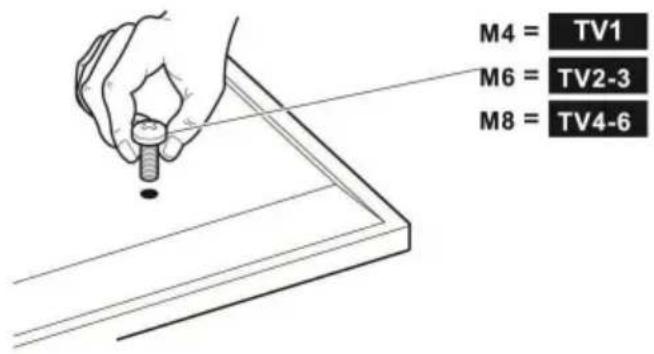

M4 = TV1 M6 = TV2-3 M8 = TV4-6

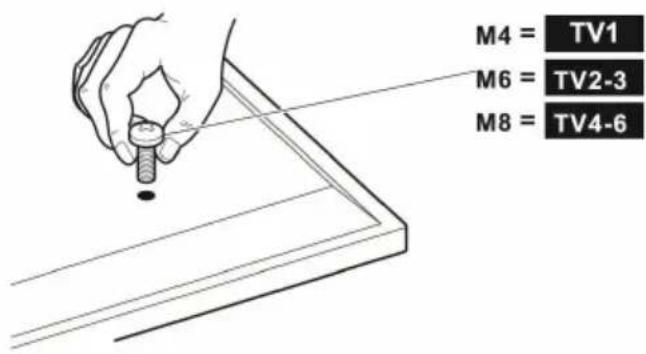

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and central slot (no text or symbols)

Isometric line drawing of a rectangular plate with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

please keep for future reference.

4

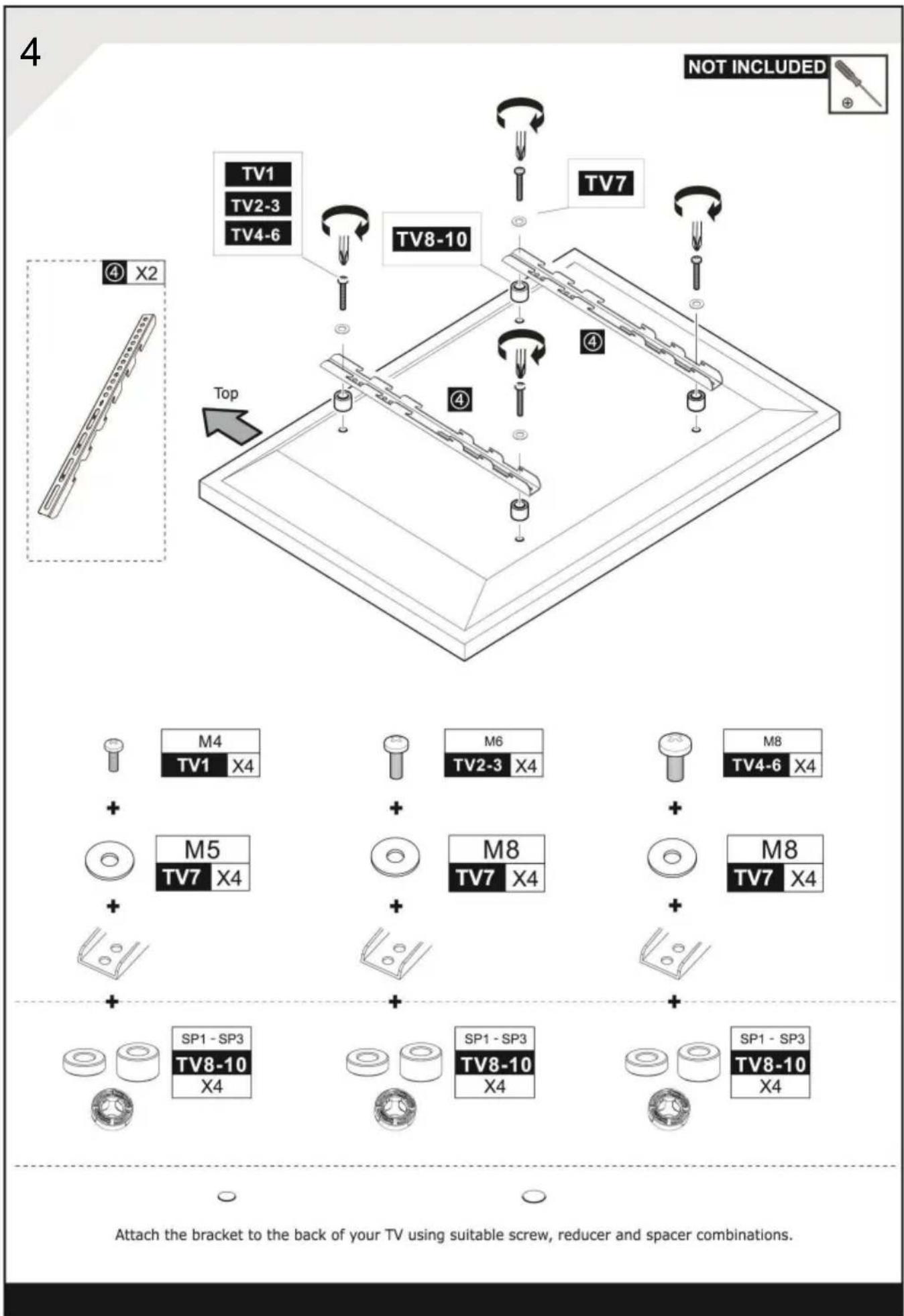

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M5 TV7 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4

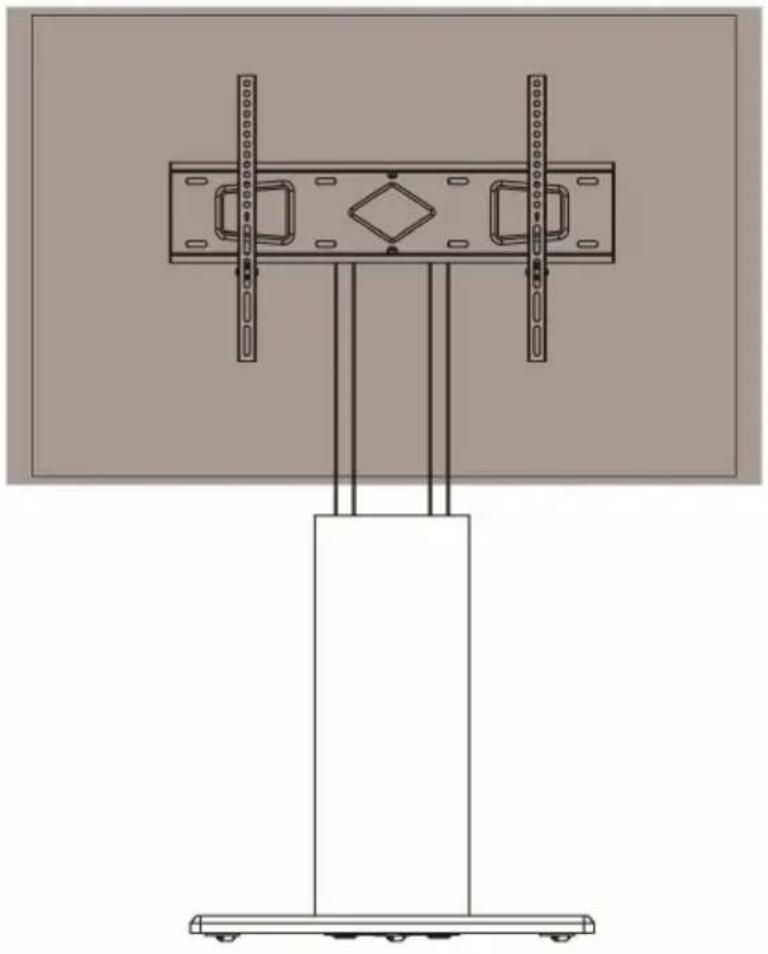

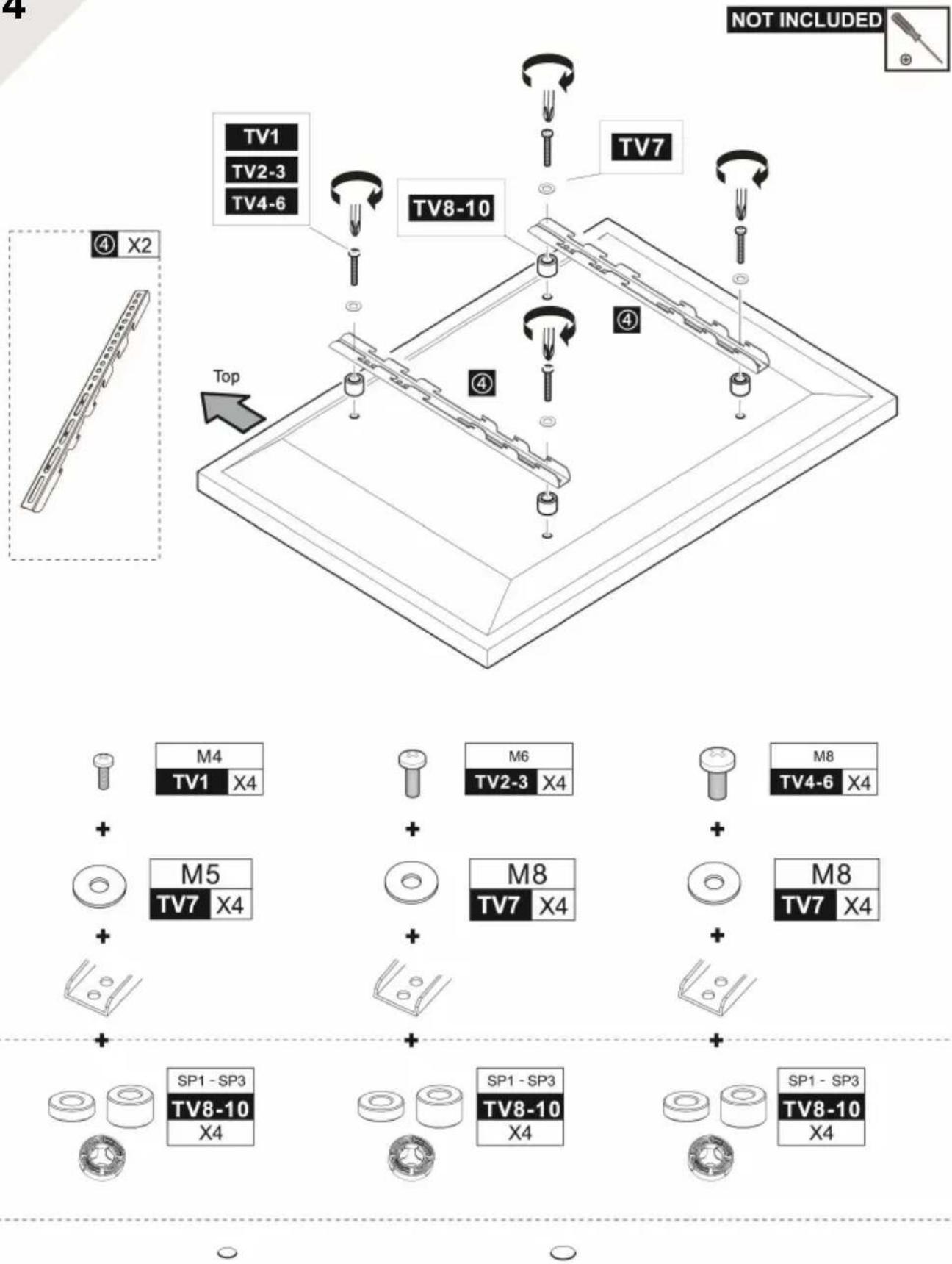

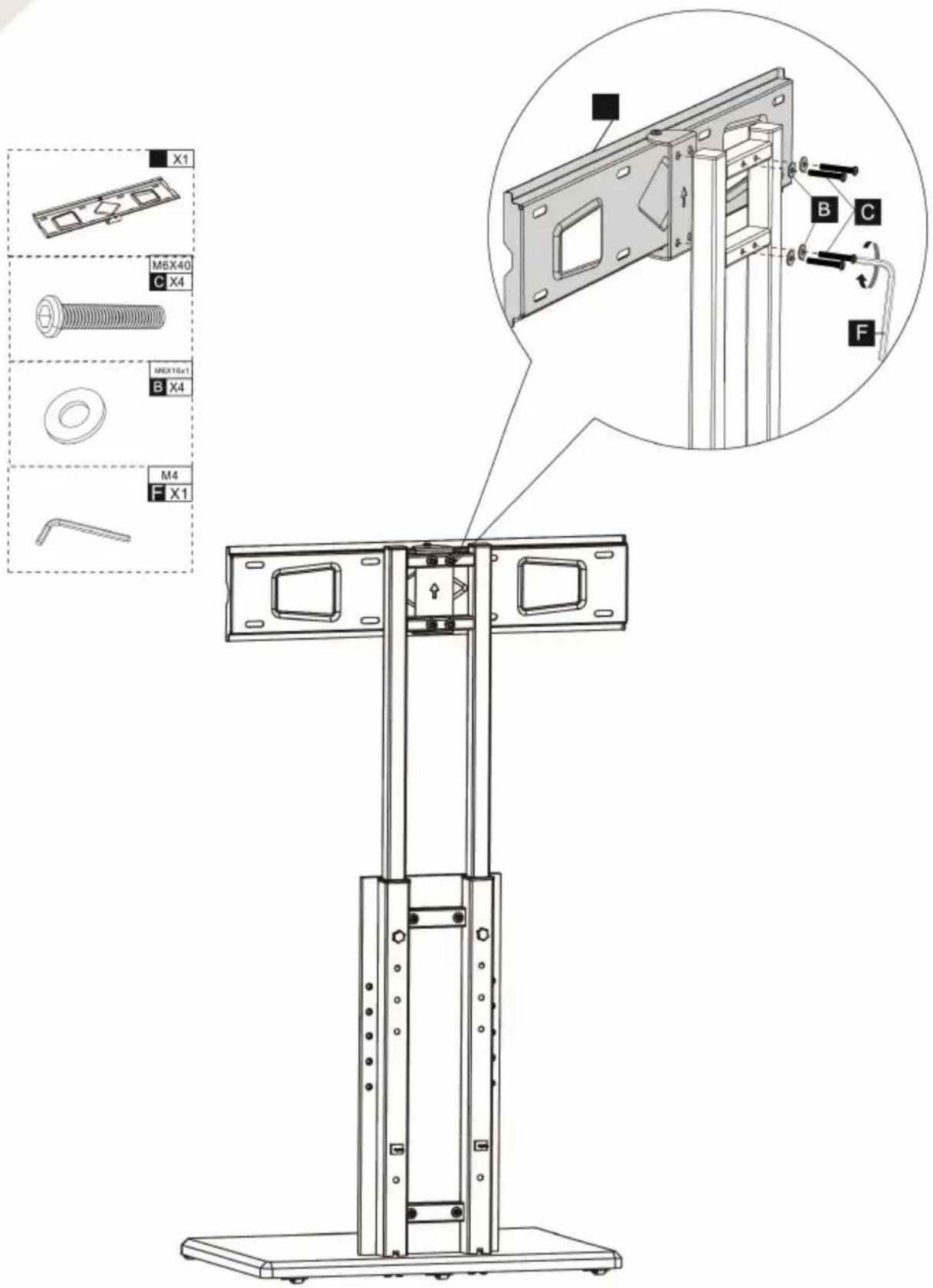

Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

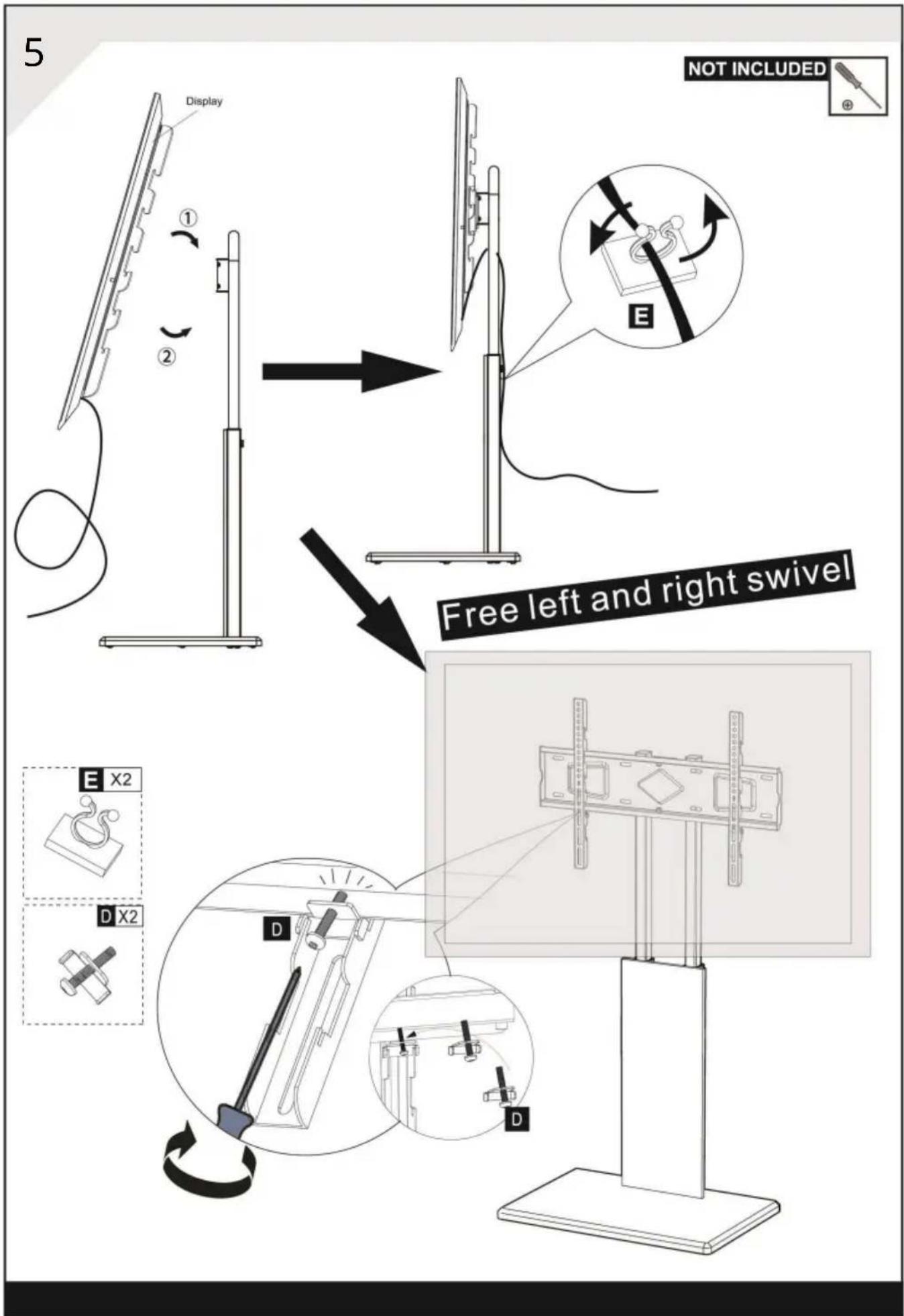

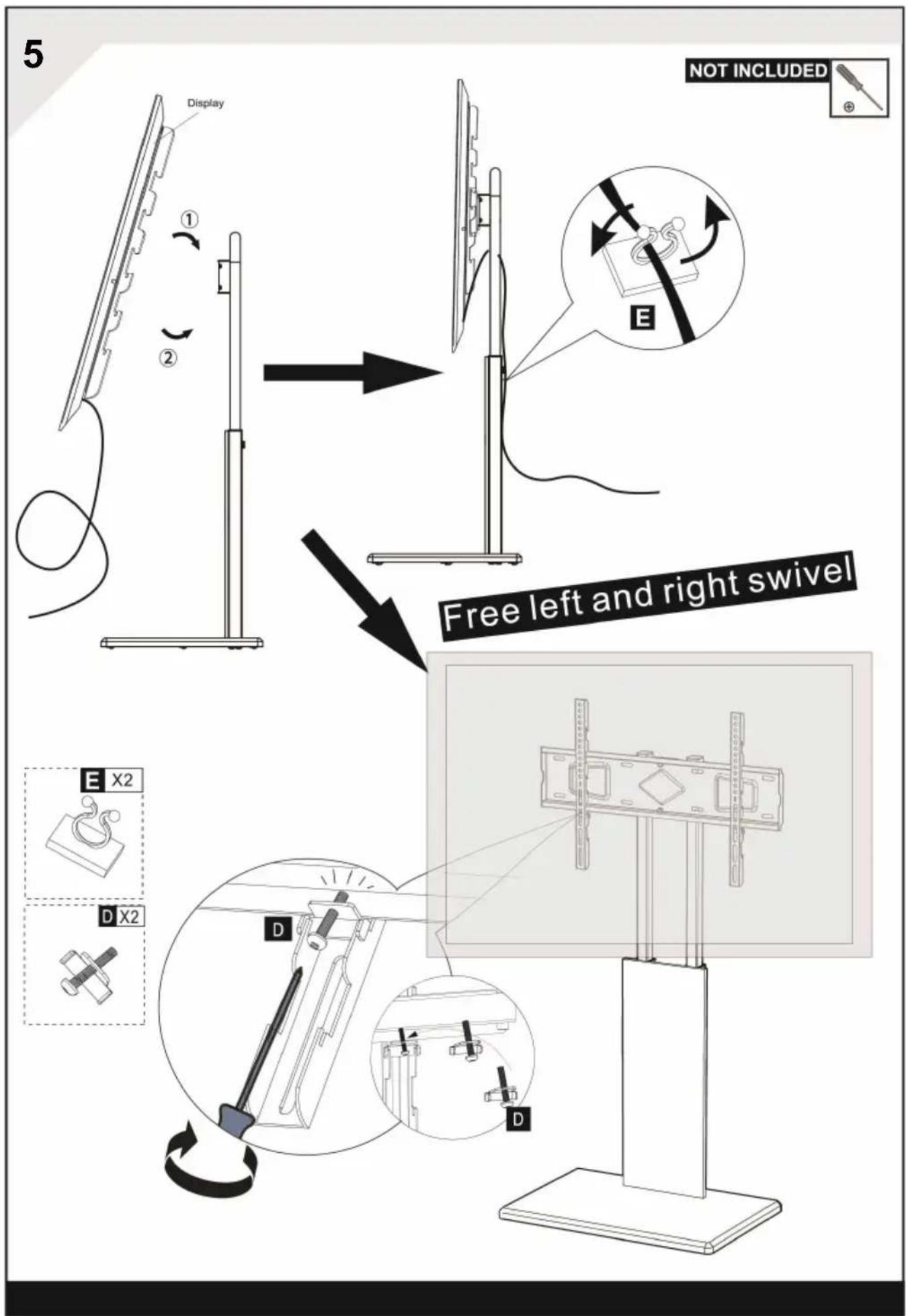

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

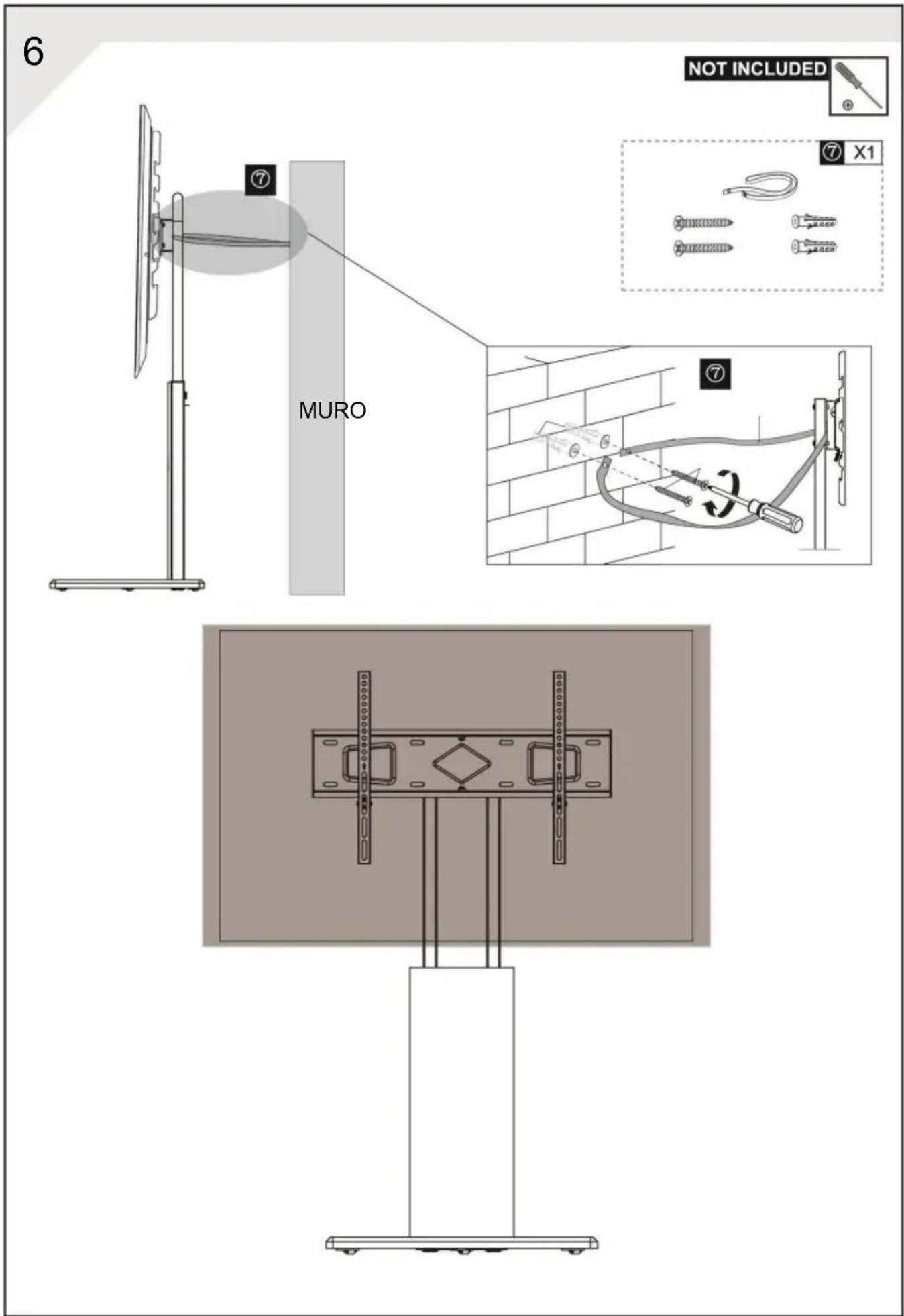

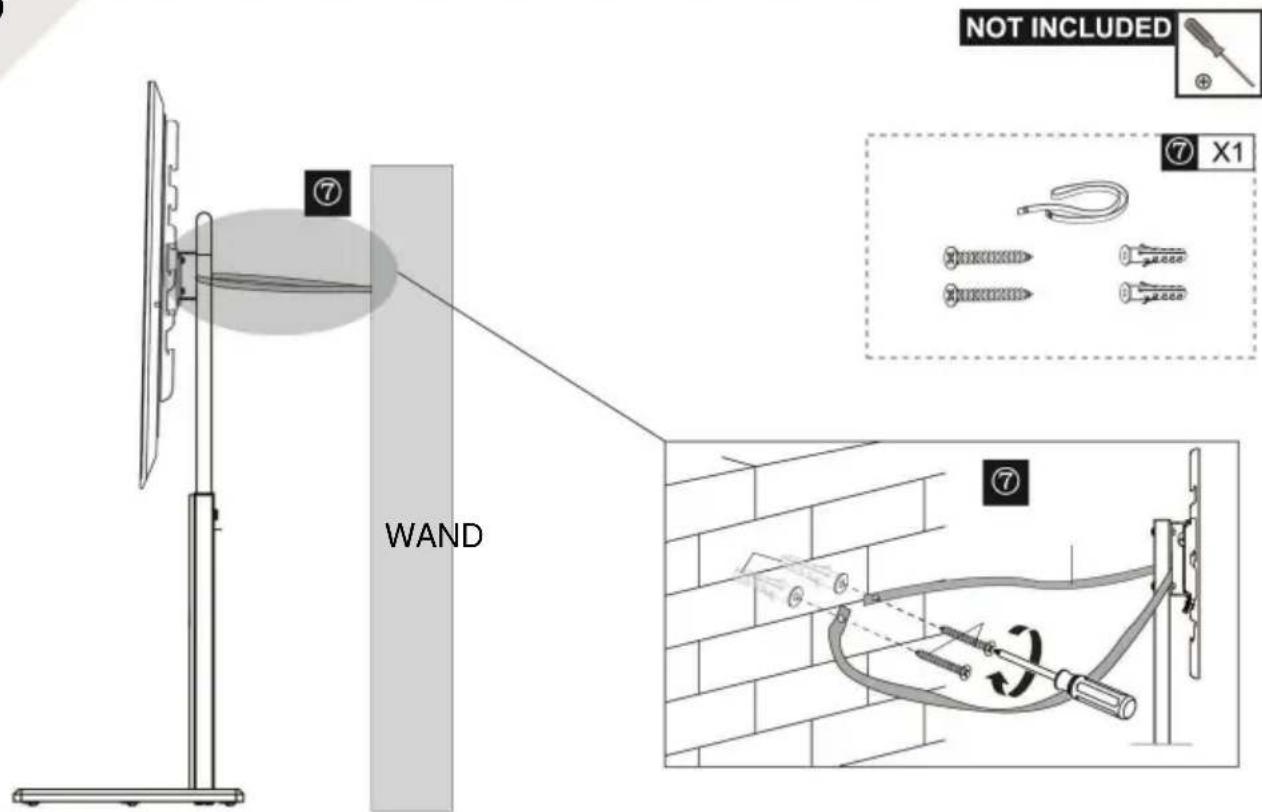

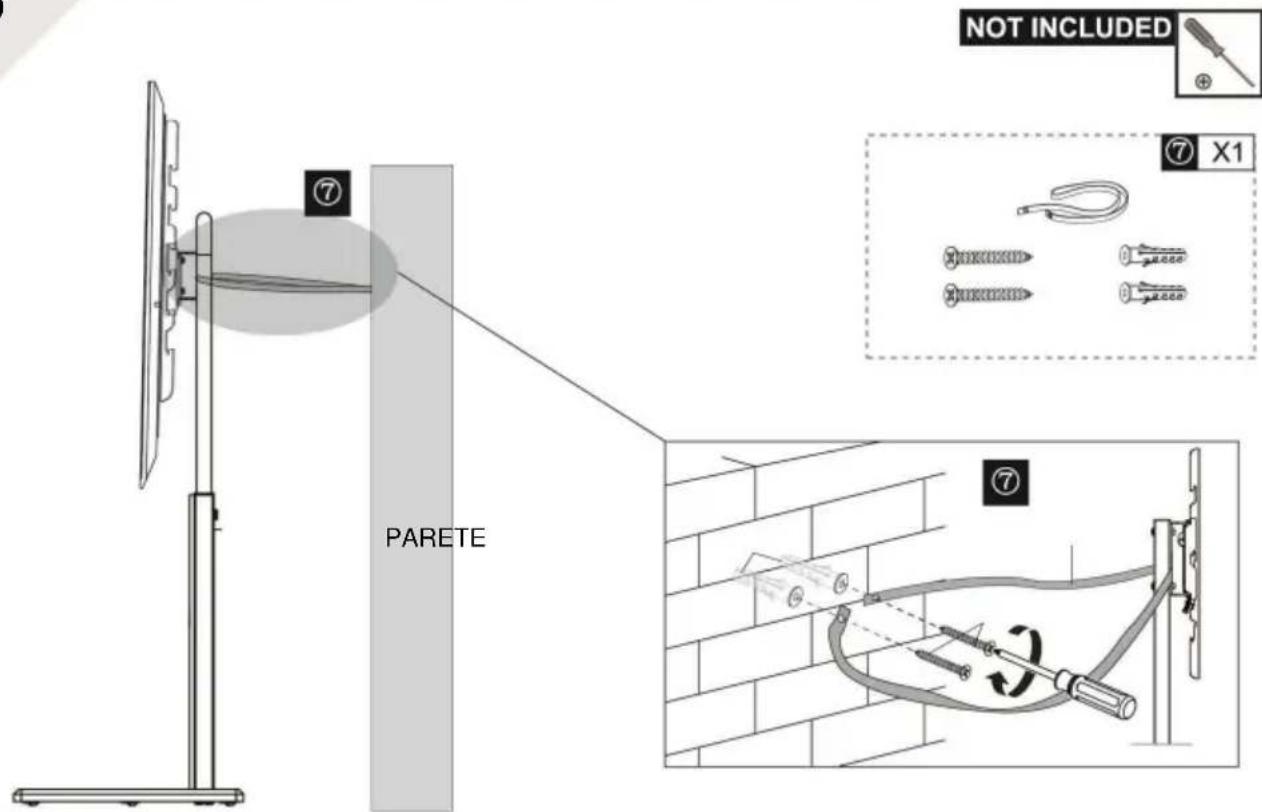

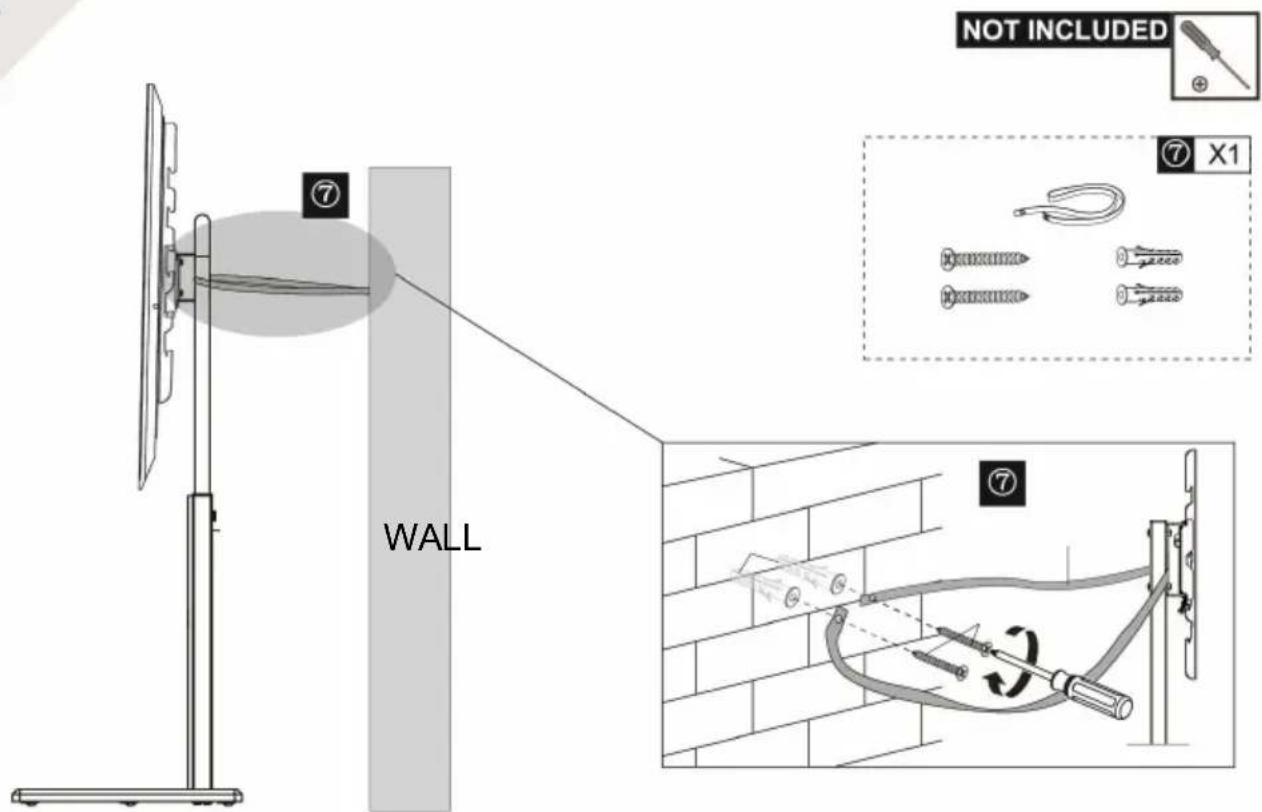

NOT INCLUDED ⑦ X1 WALL ⑦

Technical line drawing of a mechanical support structure with vertical supports and mounting base (no text or symbols)

PRODUCT PARAMETER

Model	FS26
Safe Loading Weight	99 LBS
Product Size	660*400*(1065-1340)mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : FS26

Affordable. Reliable. Home Improvement.

SUPPORT TV UNIVERSEL

MODÈLE : FS26

Technical line drawing of a structural support frame with vertical supports and a central base (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

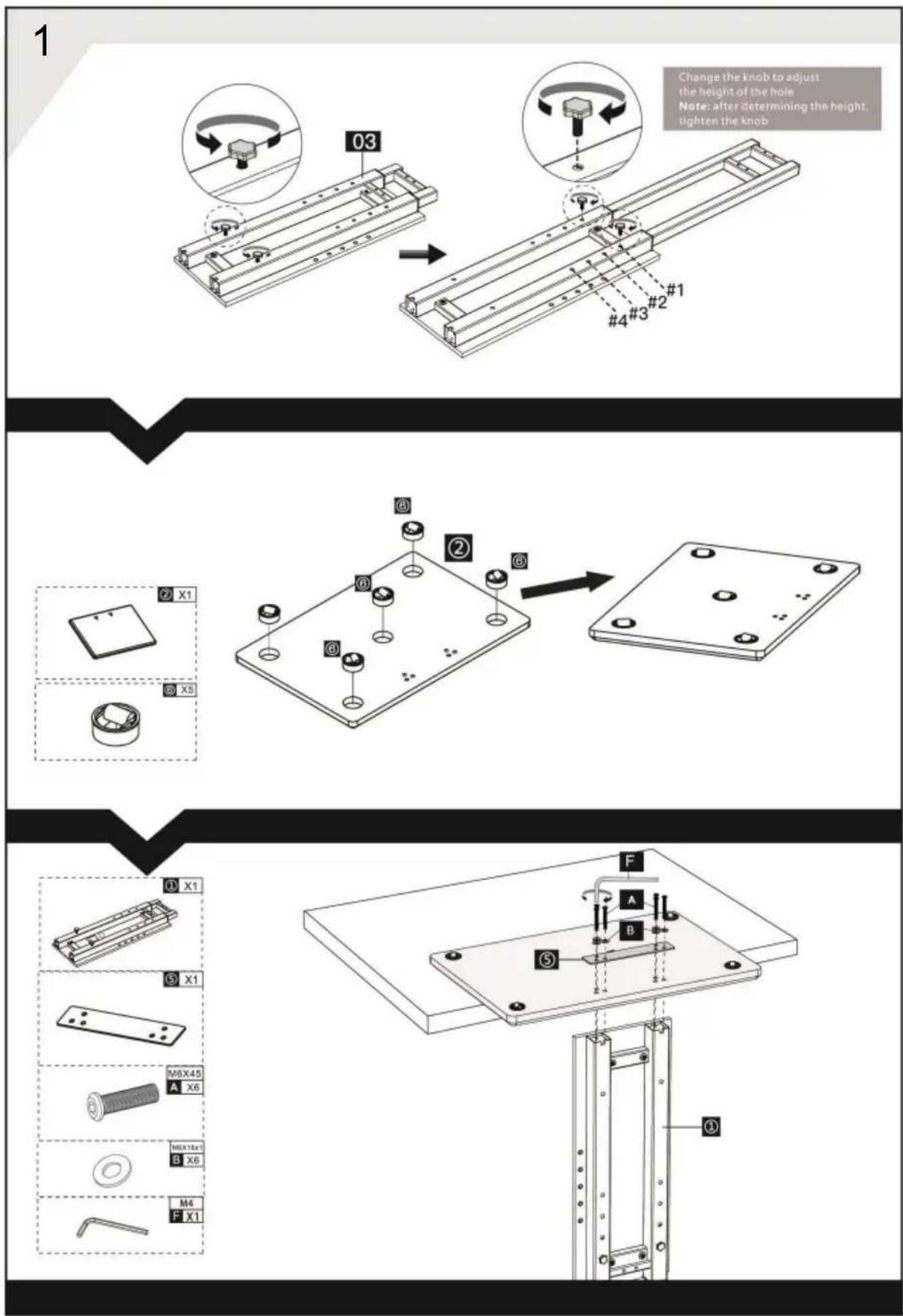

ÉTAPE D'ASSEMBLAGE

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

Please keep for future reference.

4

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6 ⑦ MUR NOT INCLUDED ⑦ X1

PARAMÈTRE DU PRODUIT

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

www.vevor.com/support

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

MONTAGESTRITT

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3

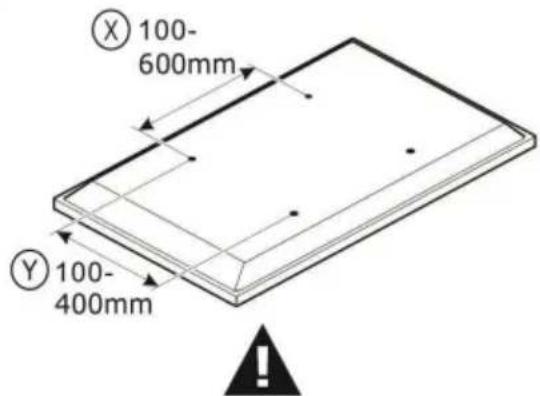

Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and central slot (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

NOT INCLUDED ⑦ WAND ⑦ X1

Technical line drawing of a vertical support structure with mounting feet and structural elements (no text or symbols)

PRODUKTPARAMETER

YH CONSULTING LIMITED. C/O YH Consulting

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:FS26

elettronica www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SUPPORTO TV UNIVERSALE

MODELLO:FS26

Technical line drawing of a structural support frame with vertical supports and a central column (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with no visible text or symbols

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

FASE DI MONTAGGIO

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

NOT INCLUDED ⑦ PARETE ⑦ X1

Technical line drawing of a vertical support structure with mounting feet and structural elements (no text or symbols)

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Strada, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:FS26

Affordable. Reliable. Home Improvement.

SOPORTE UNIVERSAL PARA TV

MODELO:FS26

Technical line drawing of a structural support frame with vertical supports and a central column (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with no visible text or symbols

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

PASO DE MONTAJE

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6 ⑦ MURO NOT INCLUDED ⑦ X1

PARÁMETRO DEL PRODUCTO

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:FS26

Affordable. Reliable. Home Improvement.

UNIWERSALNY PODSTAWKA POD TV

MODEL:FS26

Technical line drawing of a structural support frame with vertical supports and a central column (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with no visible text or symbols

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

KROK MONTAŻU

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular base with four circular holes on top (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

ŚCIANA ⑦ NOT INCLUDED ⑦ X1

Technical line drawing of a structural support frame with vertical supports and mounting base (no text or symbols)

PARAMETR PRODUKTU

YH CONSULTING LIMITED. C/O YH Consulting

Biuro Limited 147, Centurion House, Londyn

Droga, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:FS26

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELE TV-STANDAARD

MODEL:FS26

Technical line drawing of a structural support frame with vertical supports and a central column (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

MONTAGESTAP

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a rectangular plate with a central slot and mounting holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

NOT INCLUDED ⑦ MUUR ⑦ X1

Technical line drawing of a vertical support structure with mounting feet and structural elements (no text or symbols)

PRODUCTPARAMETER

Model	FS26
Veilig laadgewicht	99 pond
Productgrootte	660*400*(1065-1340)mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting

Beperkt kantoor 147, Centurion House, Londen

Weg, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL: FS26

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

UNIVERSELL TV-STÄLL

MODELL: FS26

Technical line drawing of a structural support frame with vertical supports and a central column (no text or symbols)

100x100 400x100 200x100 400x200 200x200 400x300 300x200 400x400 300x300 600x400

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

FS26

Technical line drawing of a mechanical assembly with no visible text or symbols

⑥ X5

② X1

Simple line drawing of a rectangular object with two small dots on top (no text or symbols)

⑦ X1

③ X1

Technical line drawing of a rectangular electronic component with two internal square cutouts and a central diamond shape (no text or symbols)

④ X2

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

⑤ X1

M6X45
A X6

M6X16x1
B×10

M6X40
C X4

D X2
EX2

M4
F×1

FOR TV INSTALLATION

M4*12

TV1 X4

M4*30

TV1 X4

M6*16

TV2 X4

M6*35

TV3 X4

M8x16

TV4 X4

M8x35

TV5 X4

M8x50

TV6 X4

M5

TV7 X4

M8

TV7 X4

SP1

TV8 X8

SP2

TV9 X4

SP3

TV10 X4

MONTERINGSTEG

2

Technical diagram of a mechanical assembly with labeled parts and an inset view showing a detailed component detail.

3
Measure the TV fixing holes Width and Height

X 100- 600mm Y 100- 400mm

If width Ⓕ is greater than 600mm or height Ⓨ greater than 400mm STOP installation now and contact the customer help line

M4 = TV1 M6 = TV2-3 M8 = TV4-6

You are provided with 4 diameters of TV fixing screws, M4, M6 and M8. Determine the screw diameter that fits.

Spacers

SP1

SP2

For TVs with irregular/obstructed back

Isometric line drawing of a mechanical component with a rectangular base and central slot (no text or symbols)

Isometric line drawing of a rectangular electronic component with a central square and two mounting holes (no text or symbols)

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

No Spacers

For TVs with flat/unobstructed back

Isometric line drawing of a rectangular plate with four circular holes (no text or symbols)

WARNING

Please keep for future reference.

4 NOT INCLUDED TV1 TV2-3 TV4-6 TV8-10 TV7 ④ X2 Top M4 TV1 X4 + M6 TV2-3 X4 + M8 TV4-6 X4 + M5 TV7 X4 + M8 TV7 X4 + M8 TV7 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 + SP1 - SP3 TV8-10 X4 Attach the bracket to the back of your TV using suitable screw, reducer and spacer combinations.

5 NOT INCLUDED Display ① ② E Free left and right swivel E X2 D X2 D D

6

VÄGG ⑦ NOT INCLUDED ⑦ X1 ⑦

Technical line drawing of a vertical support structure with mounting feet and structural elements (no text or symbols)

PRODUKTPARAMETER

Modell	FS26
Säker lastvikt	99 LBS
Produktstorlek	660*400*(1065-1340) mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu,

Shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
