INTRODUCTION

This meter is a hand-held EMF tester designed to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices. Users can make reasonable processing or take effective prevention measures toward the electromagnetic radiation according to the test result.

FEATURES

• Simultaneously measure and display electric field, magnetic field and radio frequency field
• Two magnetic field units to select from
  MAX recording mode
• Low battery indication
  Data hold
• Auto power off

APPLICATIONS

1. Detect electromagnetic field radiation in living environments such as residence, office, computer room, distribution room and transmission tower.
2. Test functions of electromagnetic field radiation protection products, including assessing the effectiveness of electromagnetic shielding in radiation protective clothing.
3. Detcet various RF radiation sources, including testing wireless communication devices such as mobile phone, router and microwave oven.

WARNING

• Do not tamper with the internal circuits of the instrument.
  Do not bump or drop the instrument. Keep the instrument clean and dry.
• Replace the battery as soon as the low battery indicator (
  appears on the display.
• If you do not use the instrument for a long period of time, remove
  the battery from the battery compartment to avoid damage.
• Do not expose the instrument to direct sunlight or to extreme
  temperatures and humidity.
• Before use, verify the instrument's operation by testing a device
• which is producing electromagnetic field. Do not use the instrument if it operates abnormally or it is damaged.

• Adhere to local and national safety codes.

• Use caution when working in the vicinity of powerful radiation sources. Long term exposure to electromagnetic field may be the cause of childhood leukemia and other forms of cancer. Persons with electronic implants (e.g. cardiac pacemakers) should avoid powerful radiation sources.

• Carefully read the operating instructions for equipment generating electromagnetic field that will be measured.
• Do not operate the instrument where explosive gas, vapor or dust is present.

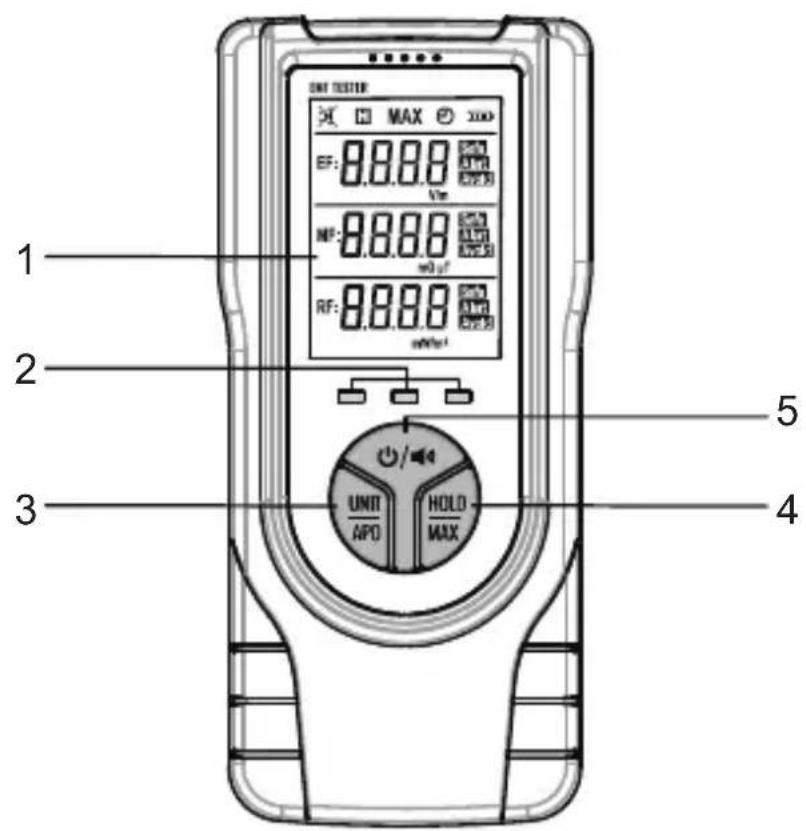

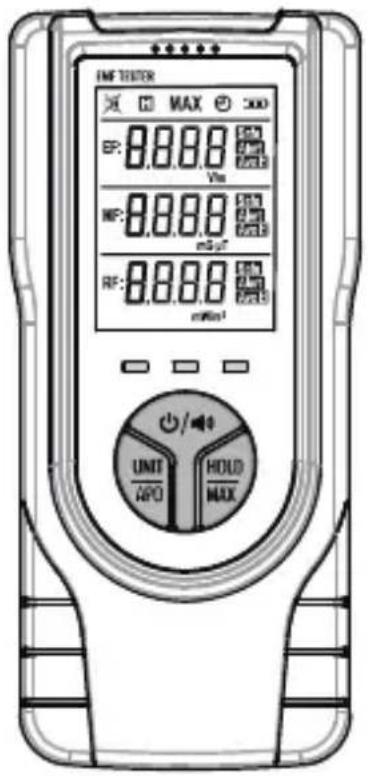

FRONT PANEL

1. Display
2. Radiation Strength Indicator LED

Green indicates a low level; Yellow indicates a medium level; Red indicates a high level.

1. " UNIT APO " Button

Short press to change the magnetic field unit.

Long press to enable or disable the automatic power-off feature.

1. " HOLD MAX" Button

Short press to lock or unlock the current readings.

Long press to enter or exit the MAX recording mode.

1. "按钮

Short press to enable or disable the audible alarm function. Long press to turn on or off the tester.

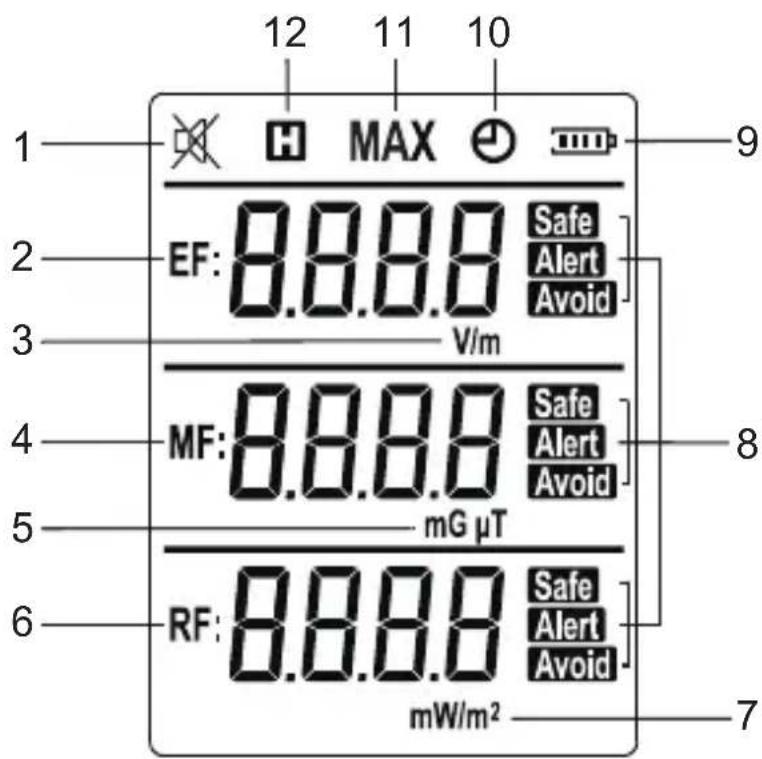

DISPLAY DESCRIPTION

No.	Symbol	Description
1	×	The buzzer sound is disabled.
	[ ]	The buzzer sound is enabled.
2	EF	Electric field indication area
3	V/m	Electric field unit: volts per meter
4	MF	Magnetic field indication area
5	mG μT	Magnetic field units:mG: milli Gauss; μT: micro Tesla
6	RF	RF field indication area
7	mW/m2	RF field unit:milliwatts per square meter
8	SafeAlertAvoid	Radiation intensity indicator:" Safe " indicates a low level;" Alert " indicates a medium level;" Avoid " indicates a high level.
9	[ ]	Battery level indicator
10	⊕	Auto power-off feature is enabled.
11	MAX	Maximum reading is displayed.
12	[ ]	The detector is in Data Hold mode.

1. Making measurements

1. Press and hold the " / 一 " button for about 2 seconds to turn on the tester. It defaults to enter the real-time measurement mode.

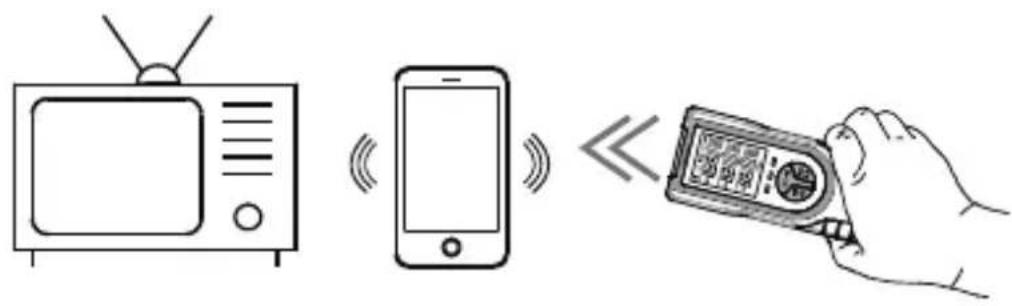

2. With the tester in hand, move the head of the tester slowly towards the object under test (as show in the above Figure). The display simultaneously shows the measurement results of electric field, magnetic field and radio frequency field. The tester also gives indications to indicate the intensity of measured radiation, as shown in the following table.

Note: The radiation intensity increases as the tester gets closer to a radiation source.

Range	Indicator LED	Symbol	Buzzer Sound
EF:< 40V/m	Green	Safe	No
MF:< 0.4μT
RF:< 5mW/m2
EF:40 ~ 80V/m	Yellow	Alert	Yes
MF:0.4 ~ 0.8μT
RF:5 ~ 10mW/m2			No
EF:> 80V/m	Red	Avoid	Yes
MF:> 0.8μT
RF:> 10mW/m2

Note:

1. Whenever any of the EF, MF or RF radiation intensities reaches the medium level (" Alert " appears), the yellow indicator LED will light up. If either EF or MF reaches the medium level, the buzzer will sound. Similarly, whenever any of the three radiation intensities reaches the high level (" Avoid " appears), the red indicator LED will light up and the buzzer will sound.

2. Move the tester a little left and right and change the tester's direction, the tester may change its radiation intensity indication. The highest reading displayed during the detection is the most accurate measurement result.

3. The detection sensor is positioned at the head of the tester. When making a measurement, you should hold the tester at the rear section (below the display and the buttons) to avoid hand obstruction which may affect the measurement results.

4. Hold the tester steadily in close proximity to the object being measured. Avoid rapid movements, as the tester requires reaction time.

5. During detection, ensure that there are no metals or other conductive materials in the vicinity of the measured object.

2. Data Hold

Briefly press the "HOLD MAX" button, the readings are held on the display.

The symbol "H" will appear as an indicator.

To exit the data hold mode, press this button again.

The symbol " 串 " disappears.

3. Audible Alarm Function

When the tester is turned on, the audible alarm function is on. The display shows the symbol " 品 " as an indicator.

To disable the audible alarm function, briefly press the "O/0" button.

The symbol " 品 " appears on the display.

4. MAX Recording Mode

When the tester is turned on, it defaults to enter the real-time measurement mode.

To switch to MAX recording mode, press and hold the "HOLD" button for about 2 seconds. The display will show the symbol "MAX".

In MAX recording mode, the display always shows the maximum readings of all readings taken since entering this mode. Whenever the tester detects a new value which is higher than the presently displayed reading, it replaces the presently displayed reading with this new value.

If you need to return to real-time measurement mode, long press the "HOLD" button until the symbol "MAX" disappears from the display.

5. Switching Units

The tester has two magnetic field units. You can briefly press the "UNIT" button to switch the MF unit between mG and T .

6. Automatic Power-off

Press and hold the " UNIT APO" button to enable or disable the automatic power-off feature. When the automatic power-off feature is enabled, the symbol " " will appear on the display.

If there is no button press for about 10 minutes, the tester will turn off automatically.

7. Turning off the tester

To turn off the tester, press and hold the " button for about 2 seconds.

BATTERY CHARGING/REPLACEMENT

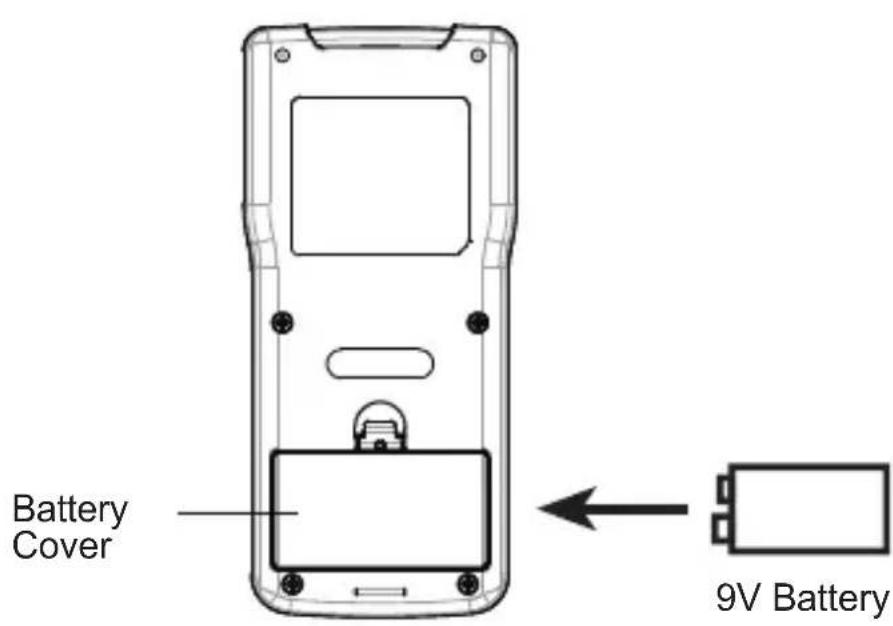

When the symbol " " appears on the display, replacement of the battery is needed. To replace the battery, open the battery cover on the back of the tester. Replace the old battery with a new one of the same type, make sure that the polarity connections are correct. Close the battery cover until it is secured in place.
