USER MANUAL 5016 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

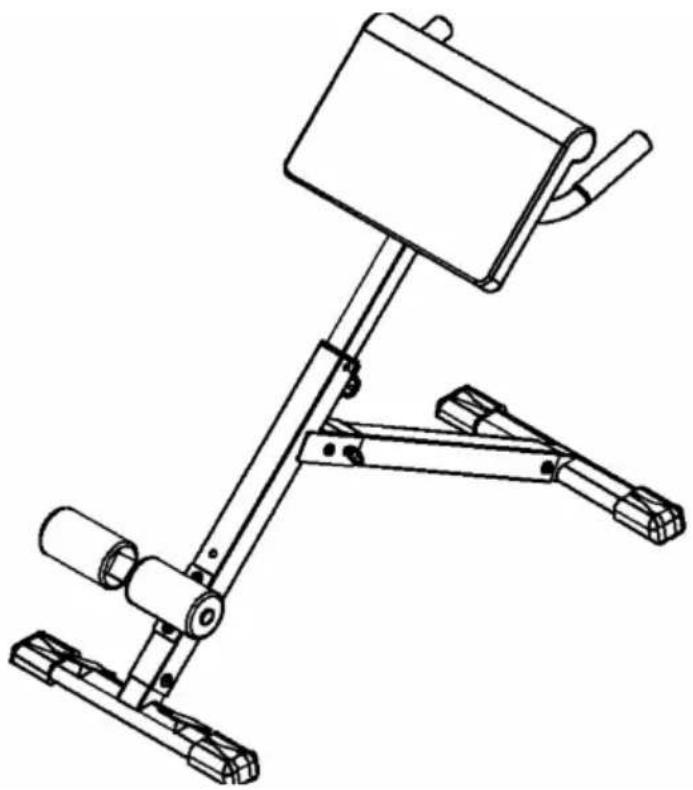

No chair Roman chair

MODEL:5016

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:5016

Line drawing of a mechanical device with articulated arms and a flat top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

- Do not use it if you are pregnant

·Before beginning any exercise program consult your physician.

-Read all instruction before using this product.

- Keep children and pets away from product while in use. Children should not use. The product. without adult supervision.

- Inspect and tighten all parts each time before using this sit-up bench

- Please clean this machine using damped wipes only.Do not use any cleansers.Please Consult with customer service if you have any question

- This product should be placed on a flat surface when using. Place an anti-slippery mat under the machine if needed.

- Please wear proper clothes when using this product.

- Do not use it if it is not functional or parts are not well-assembled.

·If you feel any chest pains, nausea, dizziness, or short of breadth, you should stop exercising immediately and consult your physician before continuing.

·Before use, always ensure that your product is positioned on a solid hard-flat surface.

- Store idle equipment out of reach of children and do not allow any unfamiliar with the equipment to use it. This tool is dangerous in the of untrained users.

- When using the product, the crowd of onlookers must keep adistan meters to avoid accidental injury.

Prohibition sign showing a pictogram of a person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour sleep.
3. Please make exercise plans.

Part List

	PICTURE	NAME	QUANTITY
1		Main frame	1
2		Front foot	1
3		Rear foot	1
4		Leg lever	1
5		Adjustment frame	1
6		Left handle	1
7		Right handle	1
8		Foam frame	1
9		Pad	1
10		Foam	2

Hardware List

	Picture	Name	Dimension	Quantity
11		Hex screw	M8*25	4
12		Hex screw	M10*15	6
13		Hex screw	M10*55	2
14		Hex screw	M10*65	2
15		Lock nut	M10	4
16		Washer	8	4
17		Washer	10	8
18		Washer	30* 10*t3	2
19		Lock pinwith ring	8	1

NOTE: To avoid misalignment due to over-tightening, please do not use wrench at this time.

Hand-tightening for now will help ensure easy assembly.

Wrench-tightening should be performed after all parts are assembled to ensure all nuts, bolts, and parts are tightly secured before use.

With the help of an assistant.

Assembly

Step 1:

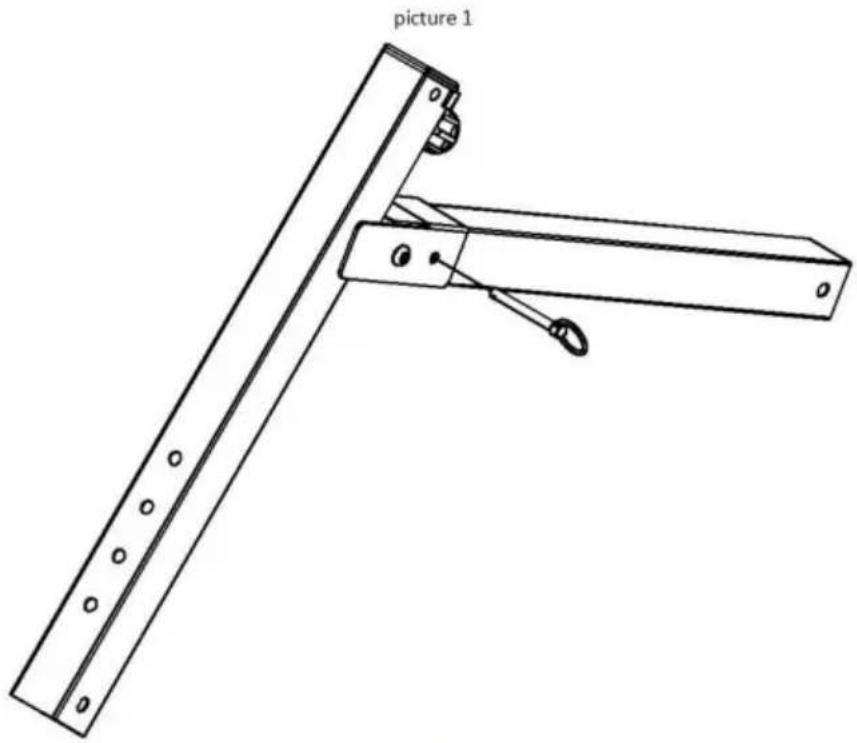

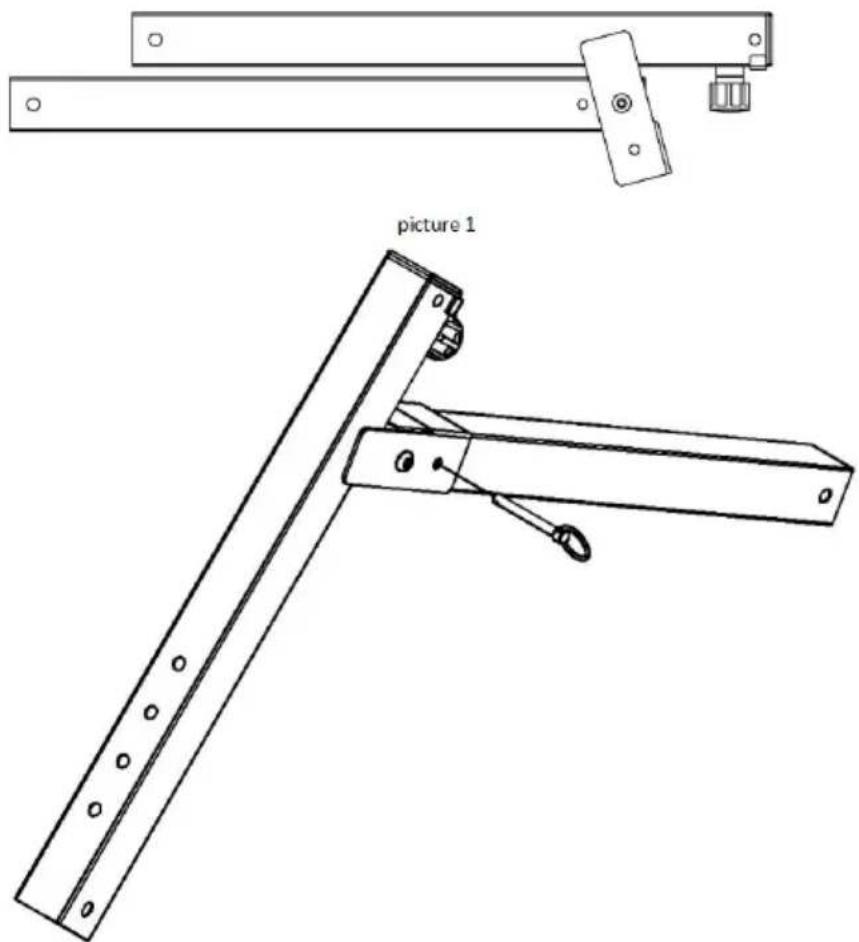

1. Unfold main frame (picture1) into picture 2;

2. Insert lock pin with ring as picture 2.

Technical line drawing of a mechanical assembly with two views: top shows a horizontal bar with mounting holes, bottom shows a vertical L-shaped bracket with a handle and adjustment knob (no text or symbols)

picture 2

Step 2:

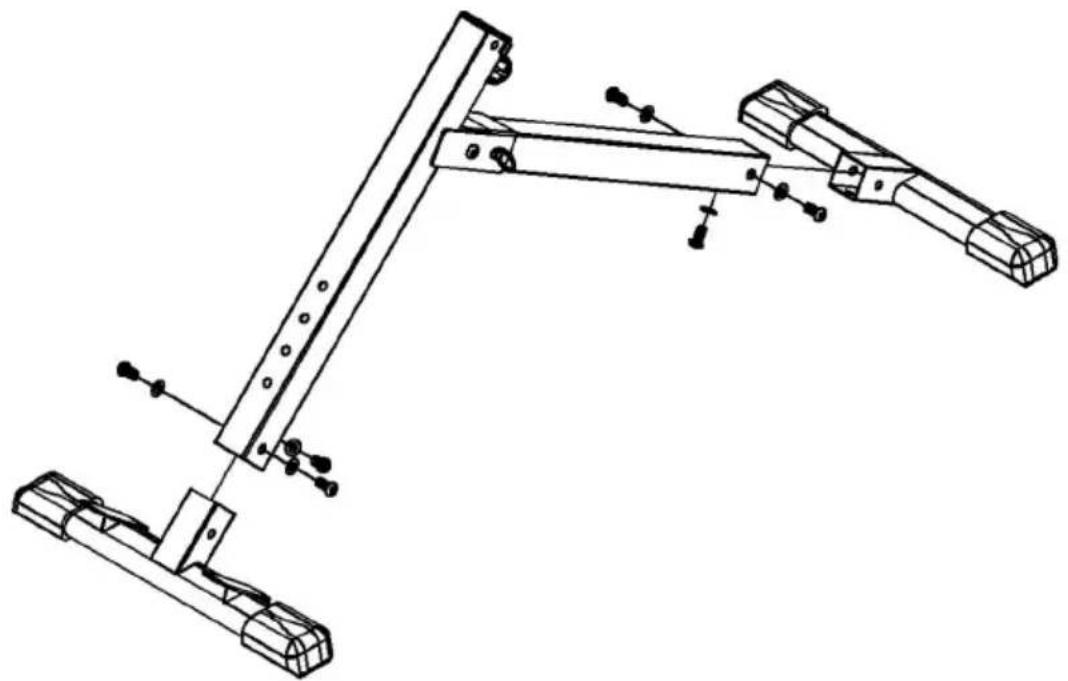

1. Use hex screw(12) and washer(17) to connect front foot(2) and react foot(3) and tighten them.

Technical line drawing of a mechanical support structure with no visible text or symbols

picture 3

Step 3:

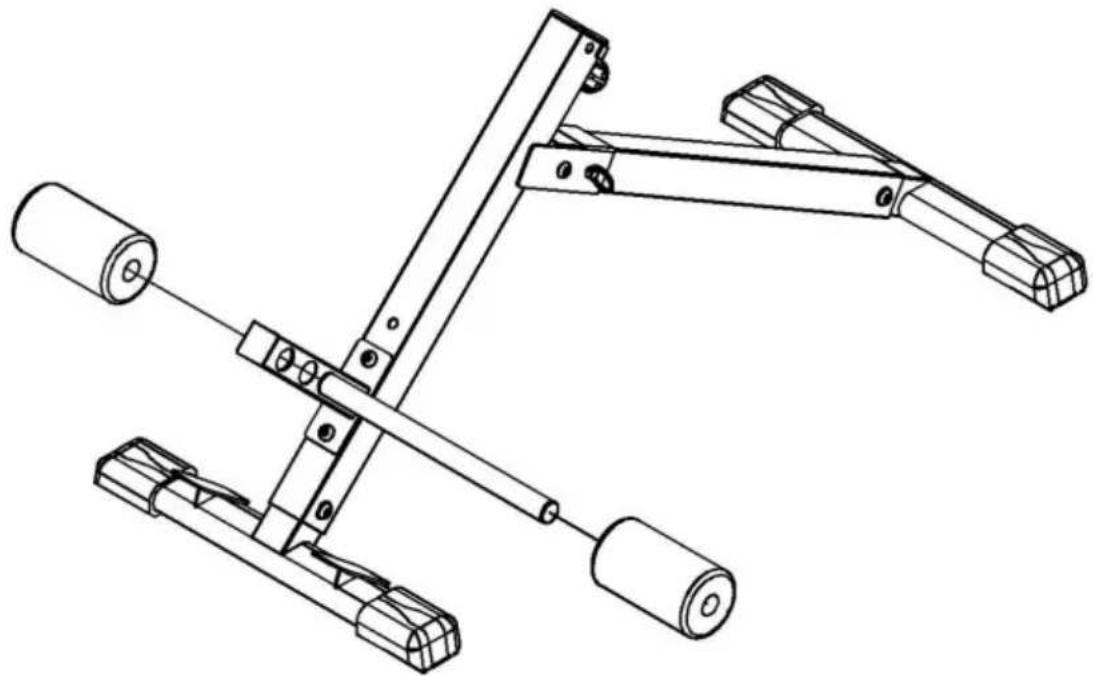

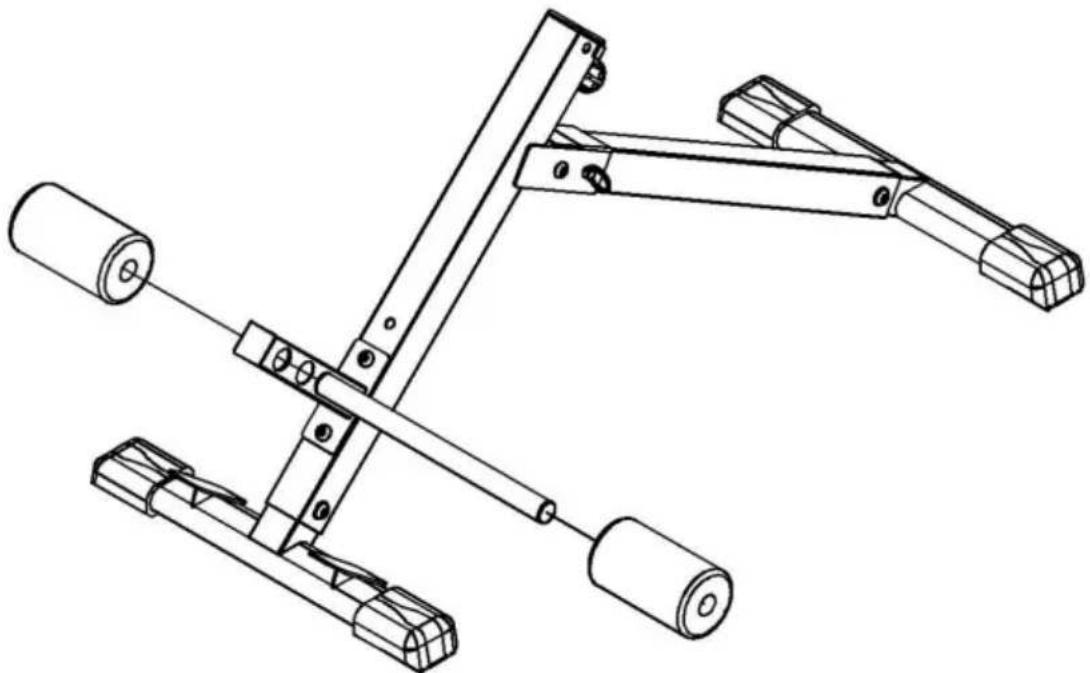

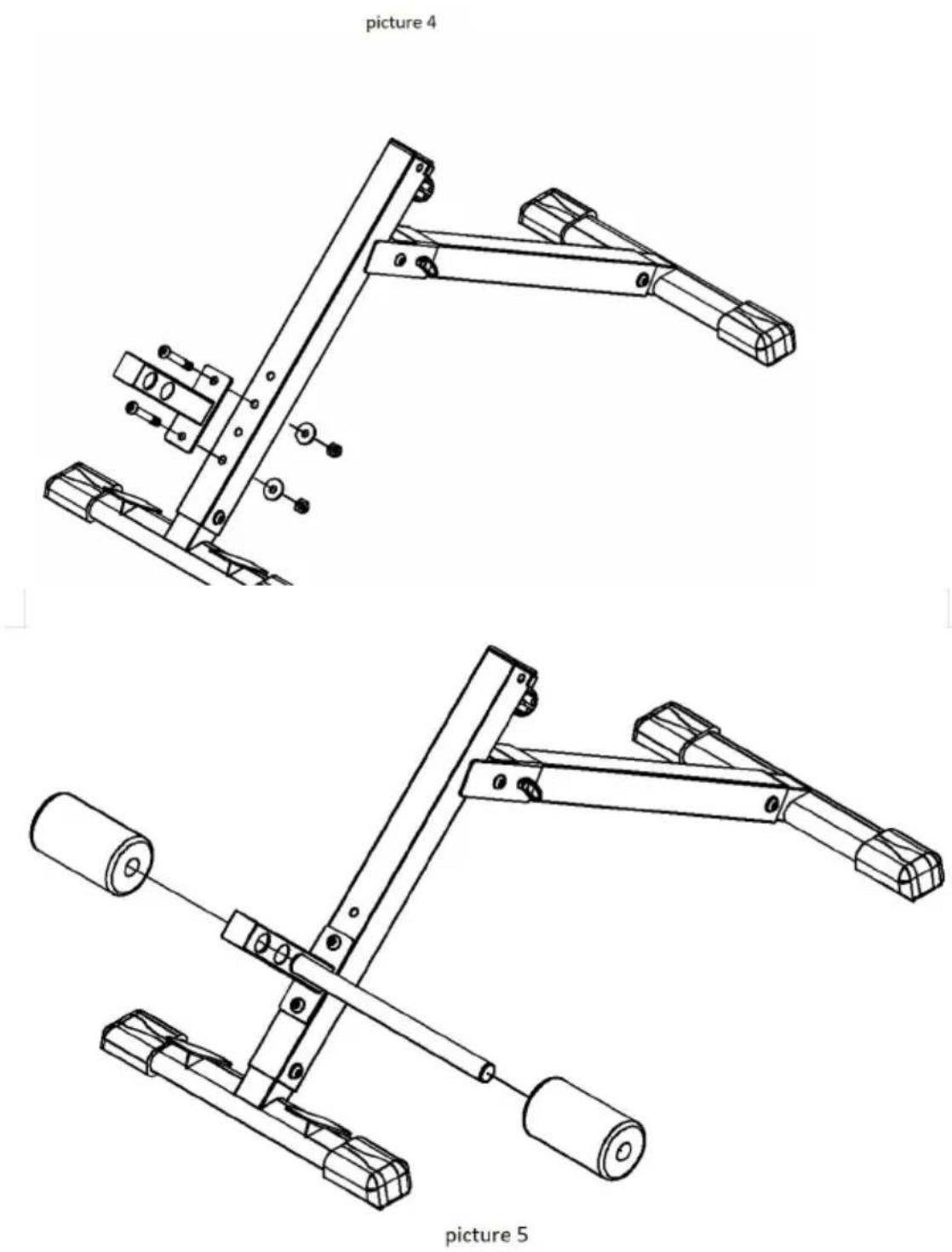

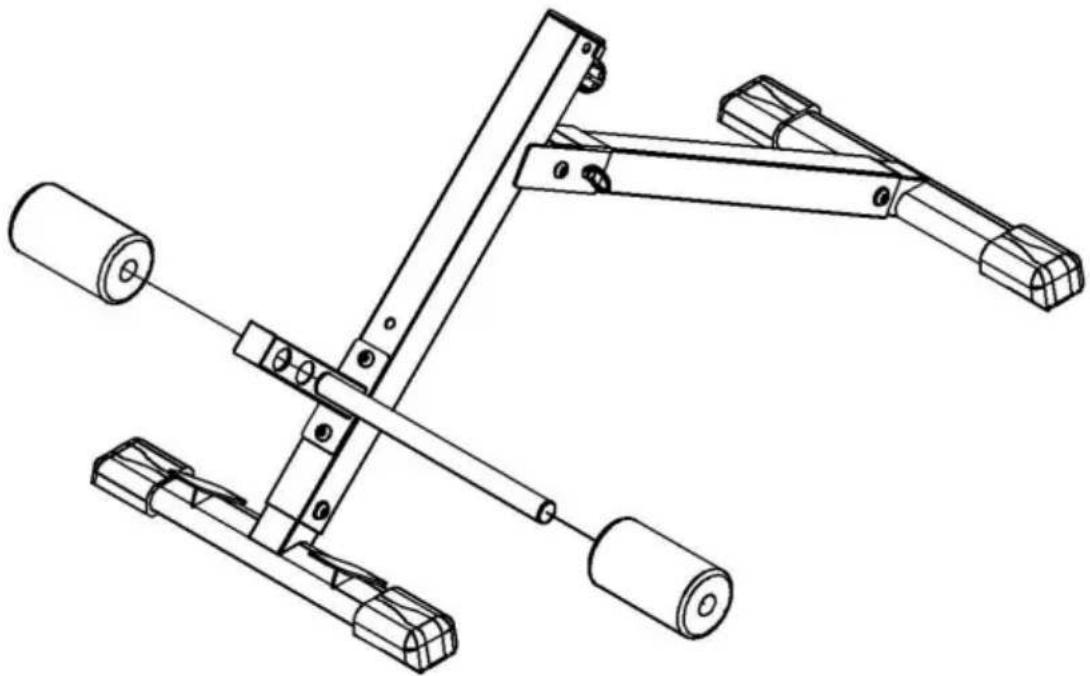

1. Use hex screw(14) and washer(18) to connect leg lever(4) and tigl them as picture 4.
2. Insert foam(10) into foam(8) frame as shown in picture5.

Technical line drawings of two mechanical components, labeled 'picture 4' and 'picture 5', showing assembly details without any text or symbols.

Step 4:

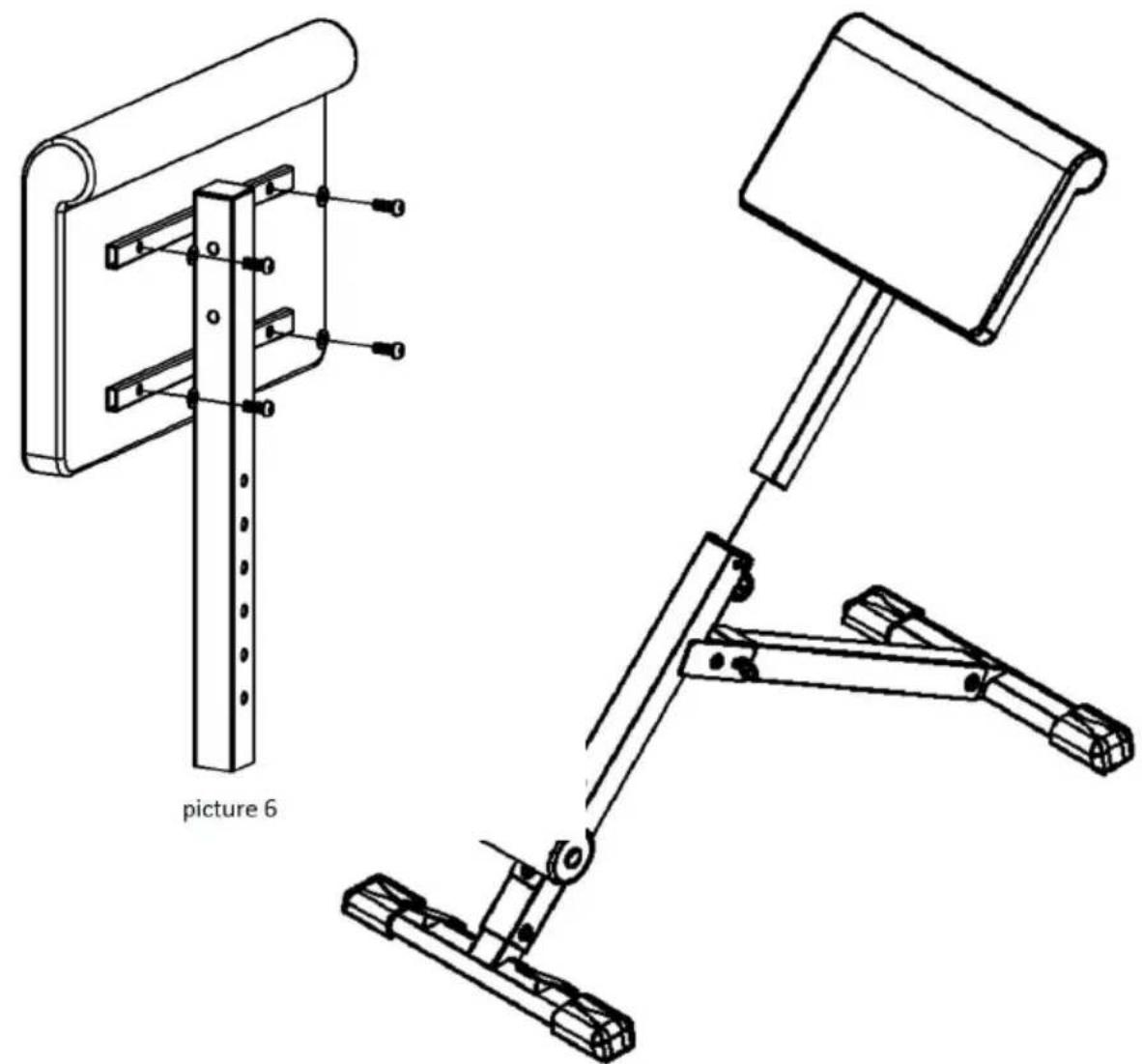

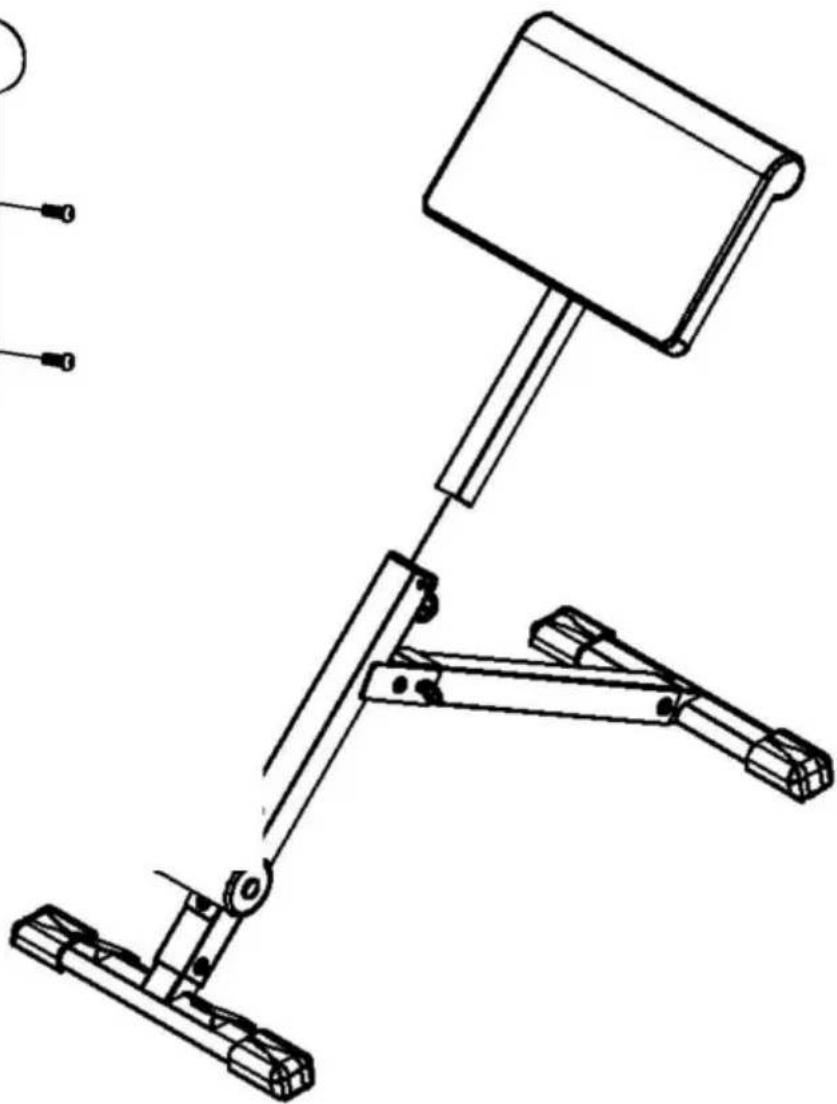

1. Use hex screw(11) and washer(16) to attach pad(9) into adjustment frame(5) as picture 6.
2. Insert adjustment frame into main frame and tighten it with knob as picture7;

]

Technical line drawings of two mechanical device assemblies, one with a vertical support and labeled 'picture 6', the other with a horizontal support and labeled 'picture 6' (no text or symbols on the devices themselves)


Step 5:

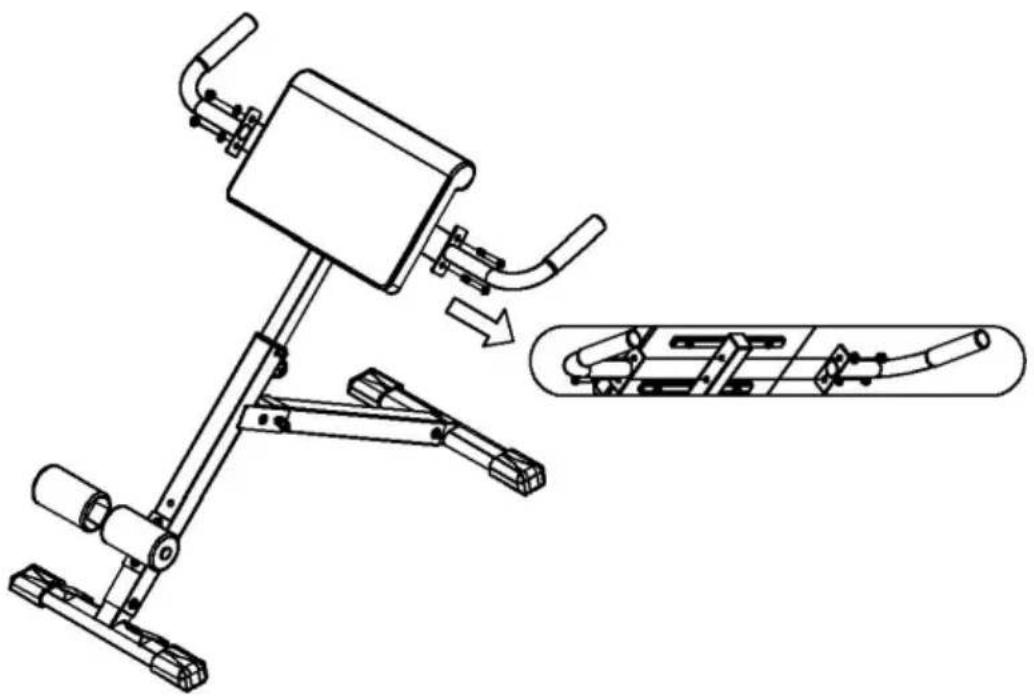

1. Use hex screw(13), washer(17) and lock nut(15) to tighten left hand and right handle(7) as picture 8.

2. Finish.

Technical line drawing of a stationary exercise machine with an inset showing its internal components (no text or symbols present)

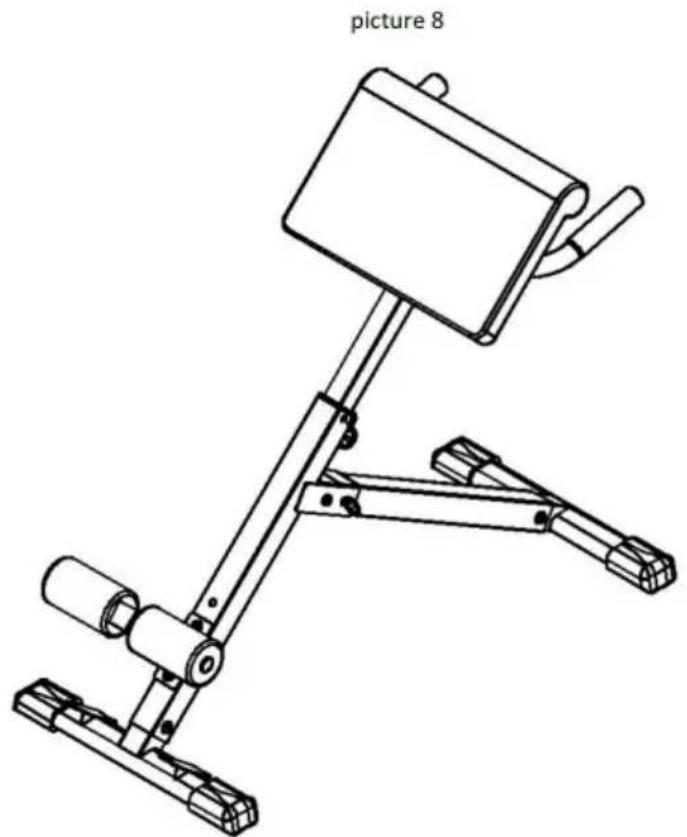

Line drawing of a mechanical device with articulated legs and a flat top, labeled 'picture 8' (no text or symbols on the diagram itself)


THE ASSEMBLY PROCESS IS NOW COMPLETE.

For your safety, Please tighten the screw and adjust it to the appropriate position.

Please visually and functionally inspect and test the unit after assemb complete.

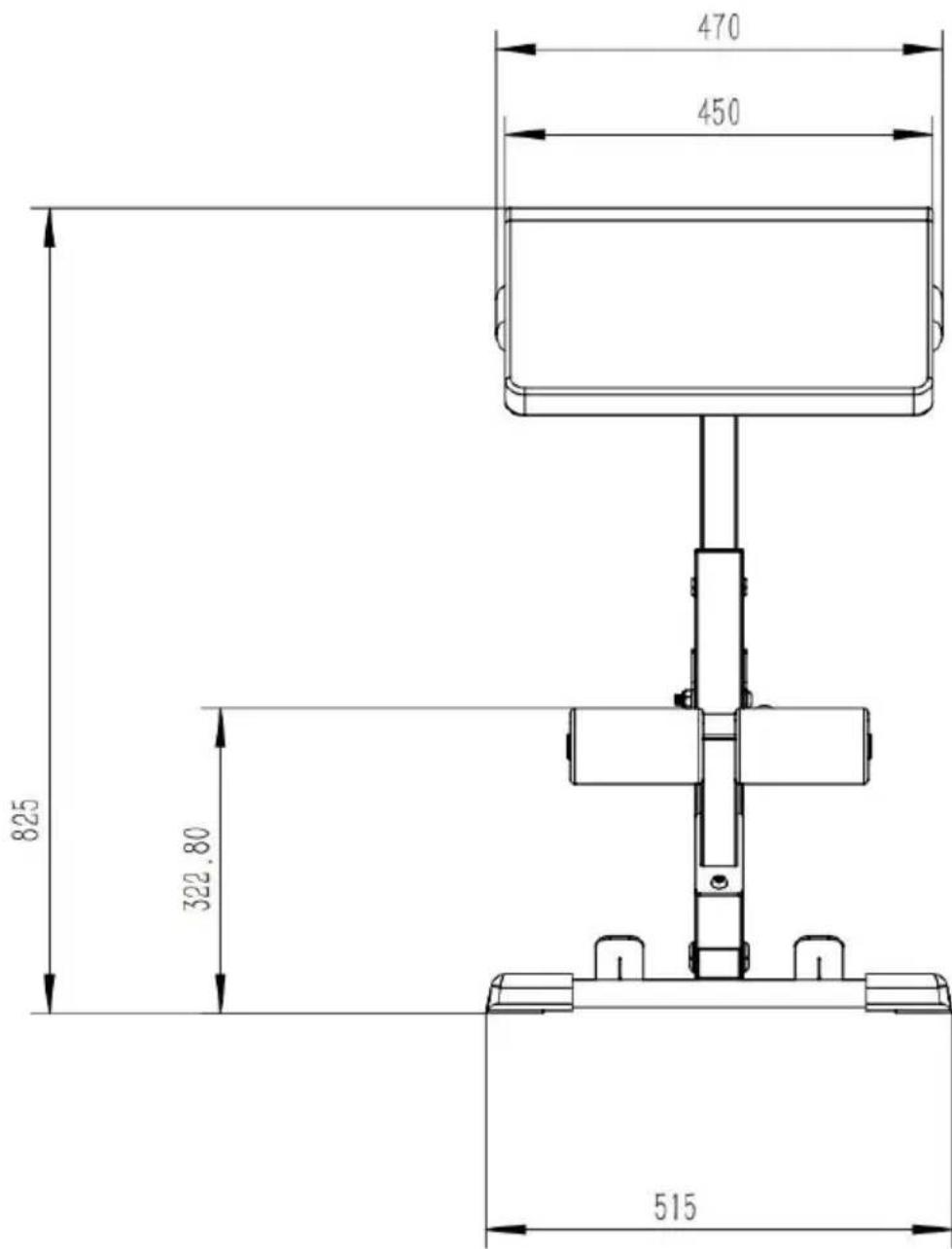

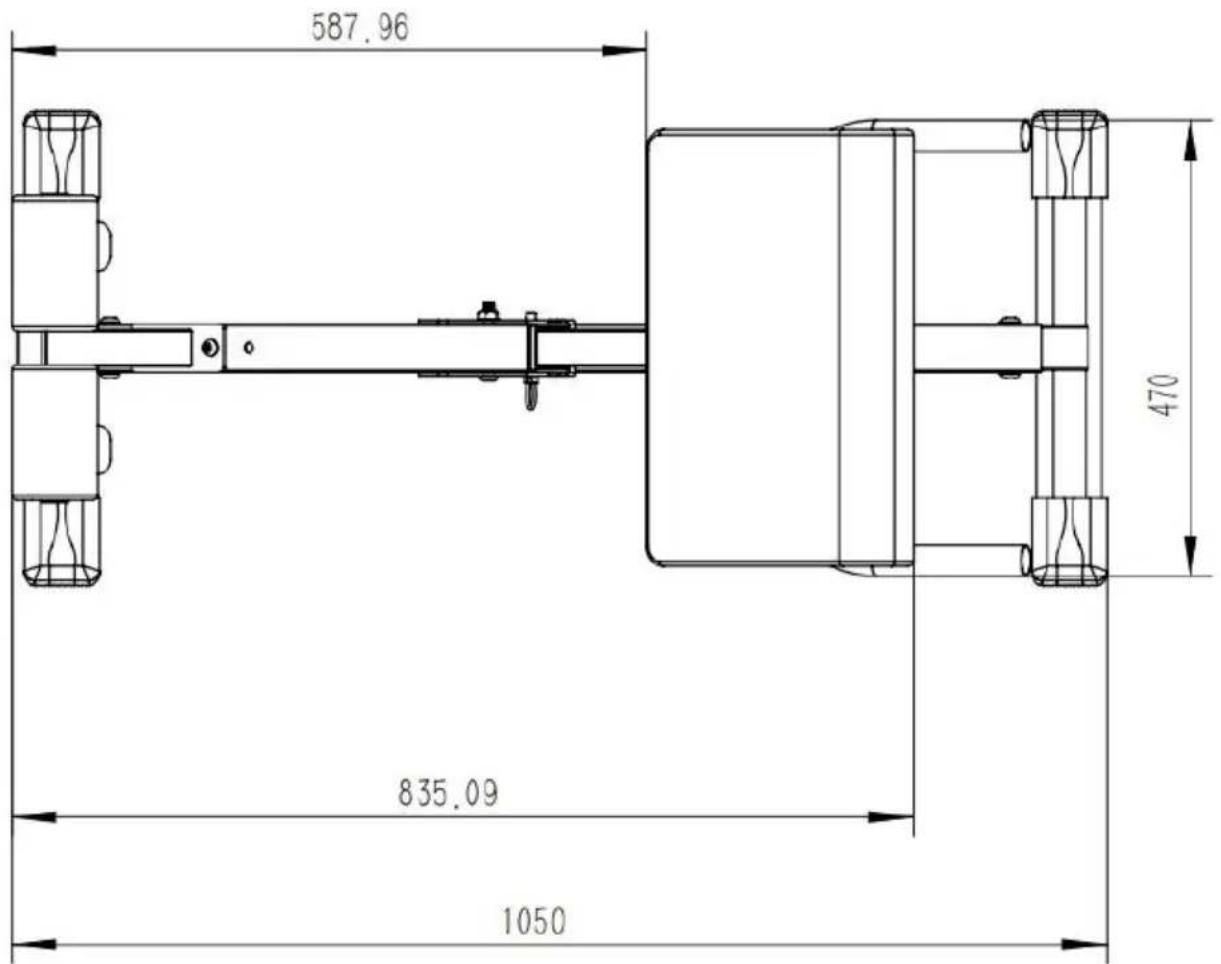

Product size chart

470 450 825 322.80 515

587.96 470 835.09 1050

NOTE : The Maximum Weight Capacity for this product is 250 lbs or 113kgs. Only one person should use this piece of equipment at one time.
