USER MANUAL CPA365 Chief

INSTALLATION INSTRUCTIONS

INSTRUCTIONS D'INSTALLATION

MONTAGEANLEITUNG

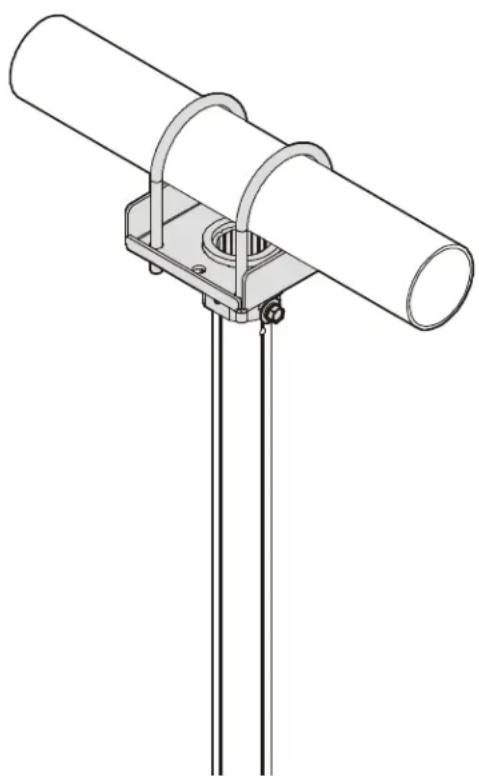

Technical line drawing of a mechanical clamp or bracket assembly mounted on a vertical pole (no text or symbols)

Truss Ceiling Adapter Accessory Accessoire d'adaptateur de plafond à armature Adapterzubehör für Decken mit Auslegern

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary product designed by Chief® to mount the projector or display.

ACCESSORY: An ACCESSORY is any product designed by Chief® to complement the primary mounting system either by mounting any supporting components or enhancing the mounting capabilities of the primary mounting system.

COMPONENT: A COMPONENT is any secondary product to be mounted to an accessory, i.e. speakers, CPU's, cameras, tablets, additional displays.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all mounting systems/accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located within the mounting system of the CPA365 does not exceed 500 lbs (226.8 kg).

- The weight capacity of the CPA365 may be LIMITED to the lowest weight capacity of any other mounting system or accessory located between the ceiling plate and the projector/display.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The CPA365 accessory is designed for installation to a 1" (minimum) steel supporting truss or pipe.

NOTE: The CPA365 may be used with the UL Listed CPA Extension Column series; the LCM2X2U, LCM2X2UP, LCM3X2U, LCM3X2UP and LCM3X3U ceiling mounted video walls; and the UL Listed LCM1U, LCM1UP, LCM2X1U, LCM2X1UP, LCM3X1U, LCM3X1UP, LCM5X1U, MCM1U, XCM1U, XCM7000, LCB1U, LCB1UP, LCB1X2U, LCB2X1U, LCB2X1UP, MCB1U, MCB1X2U, XCB1U, XCB7000, FCA3U and FCA4U (not included).

NOTE: The LCM2X2U, LCM2X2UP, LCM3X1U, LCM3X1UP, LCM3X2U, LCM3X2UP and LCM3X3U require 2 CPA365 ceiling plates (not included). The LCM5X1U requires 3 CPA365 ceiling plates (not included).

--SAVE THESE INSTRUCTIONS--

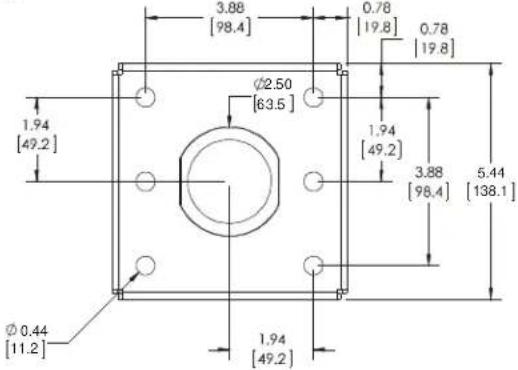

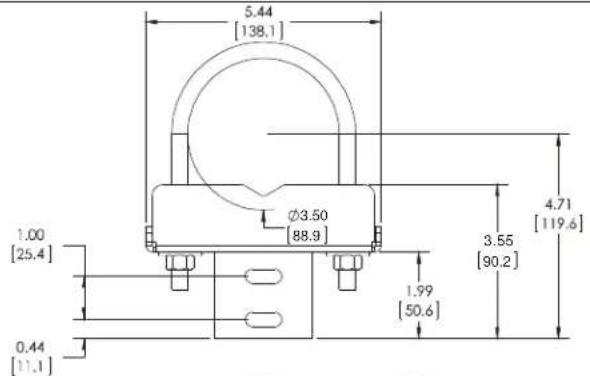

DIMENSIONS

5.44 [138,1] Ø3.50 [88,9] 1.00 [25,4] 0.44 [11,1] 1.99 [50,6] 3.55 [90,2] 4.71 [119,6]

PIPE SHOWN FOR REFERENCE ONLY (NOT INCLUDED) COLUMN SOLD SEPARATELY

3.88 [98.4] 0.78 [19.8] 0.78 [19.8] Ø2.50 [63.5] 1.94 [49.2] 1.94 [49.2] 3.88 [98.4] 5.44 [138.1] Ø0.44 [11.2] 1.94 [49.2]

Pure technical line drawing of a mechanical bracket or frame (no text or symbols)

DIMENSIONS: INCHES [MILLIMETERS]

LEGEND

	Tighten Fastener
	Apretar elemento de fijación
	Befestigungsteil festziehen
	Apertar fixador
	Serrare il fissaggio
	Bevestiging vastdraaien
	Serrez les fixations

	Open-Ended Wrench
	Llave de boca
	Gabelschlüssel
	Chave de bocas
	Chiave a punte aperte
	Steeksleutel
	Clé à fourche

	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

	Socket Wrench
	Llave de cubo
	Steckschlüssel
	Chave de caixa
	Chiave a brugola
	Dopsleutel
	Clé à douilles

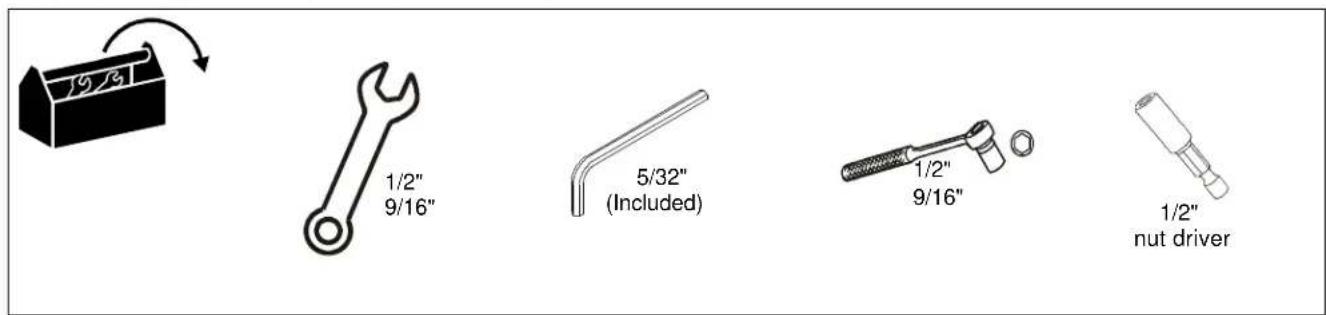

TOOLS REQUIRED FOR INSTALLATION

1/2" 9/16" 5/32" (Included) 1/2" 9/16" 1/2" nut driver

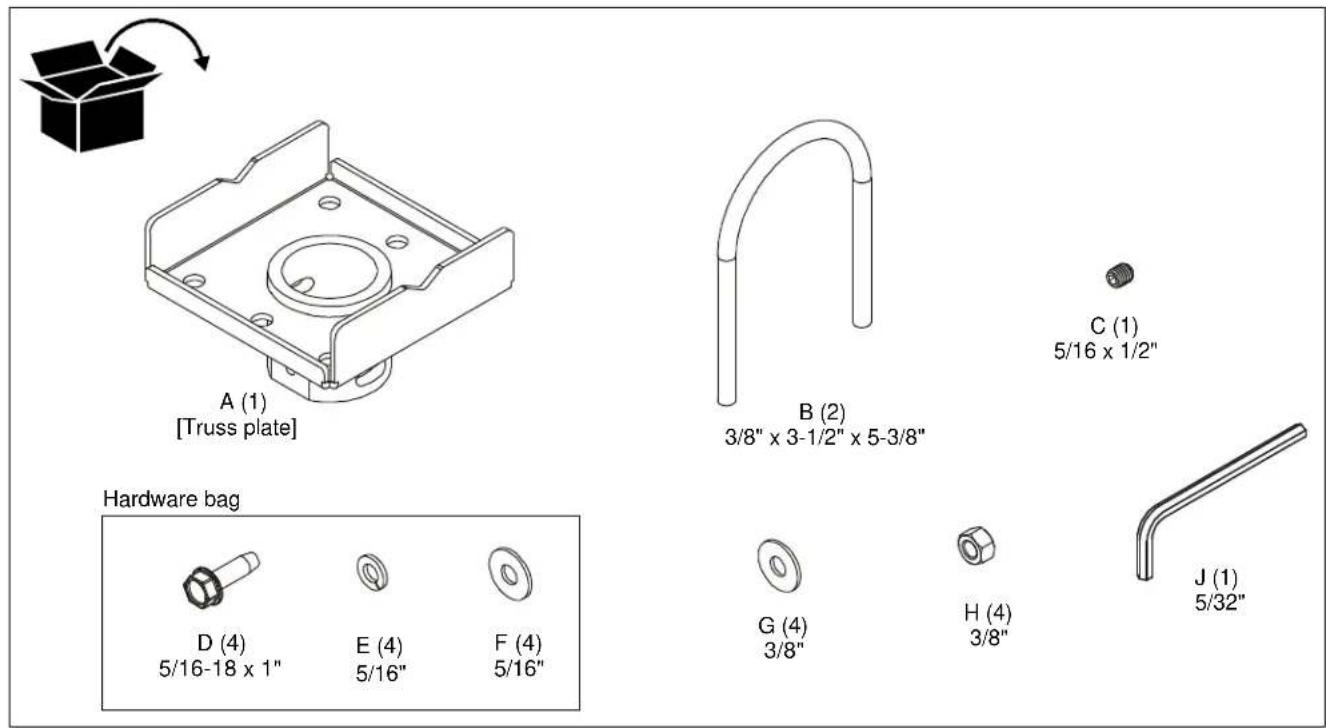

PARTS

A (1) [Truss plate] B (2) 3/8" x 3-1/2" x 5-3/8" C (1) 5/16 x 1/2" Hardware bag D (4) 5/16-18 x 1" E (4) 5/16" F (4) 5/16" G (4) 3/8" H (4) 3/8" J (1) 5/32"

ASSEMBLY AND INSTALLATION

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

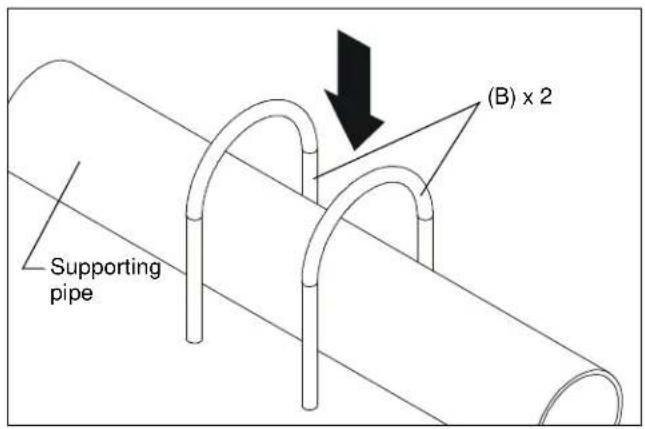

1. Place two U-bolts (B) over 1" (minimum) steel supporting truss or pipe. (See Figure 1)

Supporting pipe (B) x 2

Figure 1

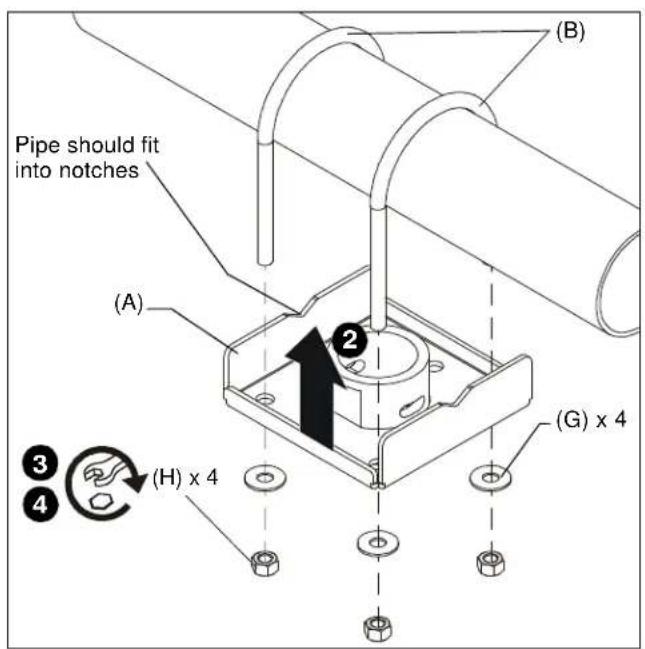

1. Raise truss plate (A) up and insert U-bolts through holes in truss plate. (See Figure 2)

NOTE: If installing truss plate (A) to pipe, ensure that pipe fits into notches in plate. (See Figure 2)

Pipe should fit into notches (A) 2 (G) x 4 (H) x 4 3 4

Figure 2

1. Loosely install 3/8" nuts (H) and 3/8" washers (G).
2. Level mount and tighten nuts (H). (See Figure 2)

Installing Extension Column

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located within the mounting system of the CPA365 does not exceed 500 lbs (226.8 kg).

1. Route cables through extension column (not included).
2. Install UL Listed CPA Extension Column Series (not included) into CPA365.

NOTE: Installation of hex head self-tapping screws will be easier when screws are carefully aligned with holes in extension column, and a drill and nut driver is used. If a drill will NOT be used, a small amount of pressure will be needed to get the self-tapping screws started.

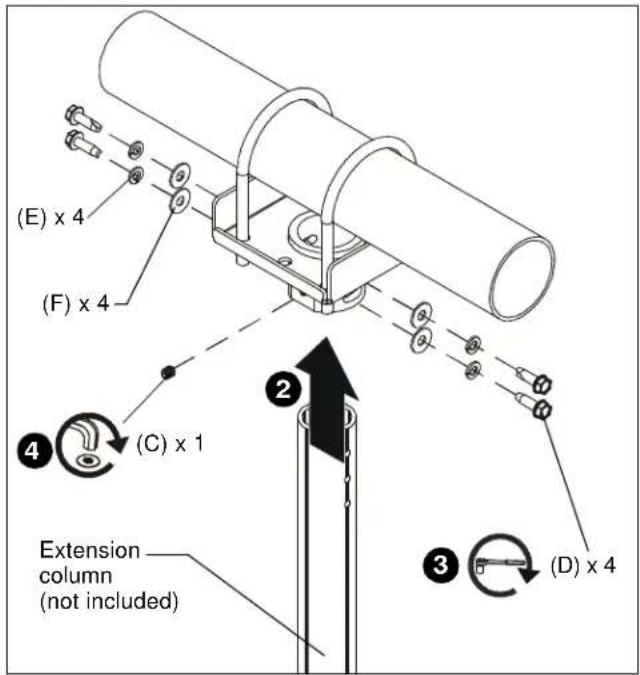

1. Secure extension column to CPA365 using four 5/16-18 x 1" hex head self-tapping screws (D), four 5/16" split lock washers (E) and four 5/16" flat washers (F) through holes in extension column. (See Figure 3)
2. Install one 5/16" x 1/2" set screw (C) into threaded hole, tightening firmly against column. (See Figure 3)

(E) x 4 (F) x 4 ④ (C) x 1 Extension column (not included) ③ (D) x 4

Figure 3

1. Complete installation following appropriate mount installation instructions.

CLAUSES DE NON-RESPONSABILITÉ

Pure mechanical part diagram without any text, numbers, or symbols

DIMENSIONS : POUCES [MILLIMÈTRES]

OUTILS NÉCESSAIRES À L'INSTALLATION

PIÈCES

Technical line drawing of a mechanical housing component with mounting flanges and central bore (no text or symbols)

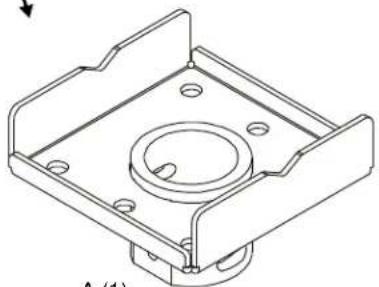

A (1) [Plaque armature]

Simple line drawing of a U-shaped pipe or tube with two vertical tubes, labeled B (2) below (no text or symbols on the diagram itself)

B (2) 3/8" × 3-1/2" × 5-3/8"

C (1) 5/16 x 1/2"

Sac contenant le matériel

D (4) 5/16-18 x 1"

E (4) 5/16"

F (4) 5/16"

G (4) 3/8"

H (4) 3/8"

J (1) 5/32"

MONTAGE ET INSTALLATION

Tuyau de support (B) x 2

Figure 1

Technical line drawing of a mechanical housing or bracket component with mounting holes and a central circular feature (no text or symbols)

A (1) [Auslegerplatte]

Simple line drawing of a U-shaped pipe or tube with two vertical tubes (no text or symbols)

B (2) 3/8" × 3 1/2" × 5 3/8"

C (1) 5/16 x 1/2"

Materialtasche

D (4) 5/16-18 x 1" E (4) 5/16" F (4) 5/16"

G (4) 3/8"

H (4) 3/8"

J (1) 5/32"

MONTAGE UND INSTALLATION
