| Product Type | Fastening Accessory |
| Brand | Chief |
| Model | KRA231 |
| Compatible Mounting Systems | K1C and K2C Series Column Mounts |
| Weight Capacity (per display) | 25 lbs (11.34 kg) |
| Weight Capacity (total assembly) | 50 lbs (22.68 kg) |
| Number of Displays Supported | 2 (center mount with even distribution) |
| Material | Steel |
| Color | Black (typical) |
| Mounting Hole Standard | VESA compatible (M4 screws) |
| Included Screws | 4x M4x14mm (flush) and 4x M4x25mm (recessed) with spacers |
| Faceplate Rotation | 90° both directions (landscape/portrait) with optional lock |
| Tools Required | Phillips screwdriver, hex key (3/16 in) |
| Installation | Slides onto column, secured with screws |
| Quick Release | Faceplate with quick release tab for easy display attachment |
| Use | Indoor only |
| Warranty | Refer to original mount instructions |
| Certifications | Not specified; meets safety standards |
Frequently Asked Questions - KRA231 Chief
User questions about KRA231 Chief
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fastening accessory in PDF format for free! Find your manual KRA231 - Chief and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KRA231 by Chief.
USER MANUAL KRA231 Chief
INSTALLATION INSTRUCTIONS

Kontour™ Extreme Tilt Column Mount Accessory
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
DEFINITIONS
WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.
MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary product designed by Chief® to mount the projector or display.
ACCESSORY: An ACCESSORY is any product designed by Chief® to complement the primary mounting system either by mounting any supporting components or enhancing the mounting capabilities of the primary mounting system.
COMPONENT: A COMPONENT is any secondary product to be mounted to an accessory, i.e. speakers, CPU's, cameras, tablets, additional displays.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located on the KRA231 accessory does not exceed 25 lbs (11.34 kg). In addition, when the KRA231 accessory is attached to a K1C or K2C Series mounting system, the listed weight capacity of that assembly becomes the weight capacity listed in Table 1.
Table 1: Weight Capacity
| MODEL(Original K1 or K2 Series mounting system) | Max Weight for EACH Display | Max Weight Capacity of Mounting System WITH KRA231 Attached |
| K1C120 | 25 lbs(11.34 kg) for original mount | 50 lbs*(22.68 kg)[total of ALL displays] |
| K2C120 | 40 lbs(18.14 kg) for original mount | 50 lbs*(22.68 kg)[total of ALL displays] |
* The total of 50 lbs (22.68 kg) should be evenly distributed between displays.
* 25 lbs (11.34 kg) maximum individual display weight.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.
IMPORTANT ! : The KRA231 accessory is designed to be a center monitor mount for K1C and K2C Series column mounts.
--SAVE THESE INSTRUCTIONS--

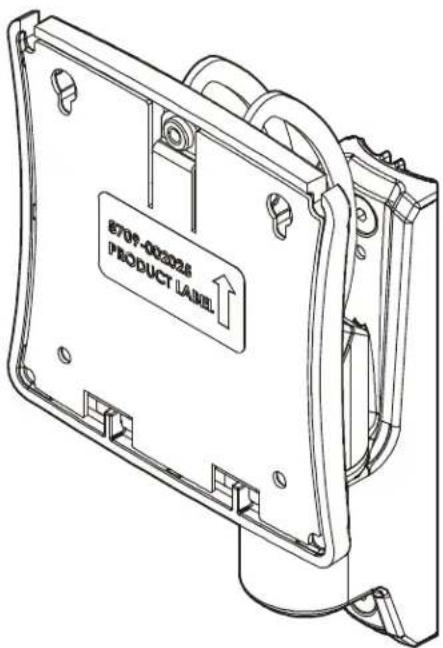

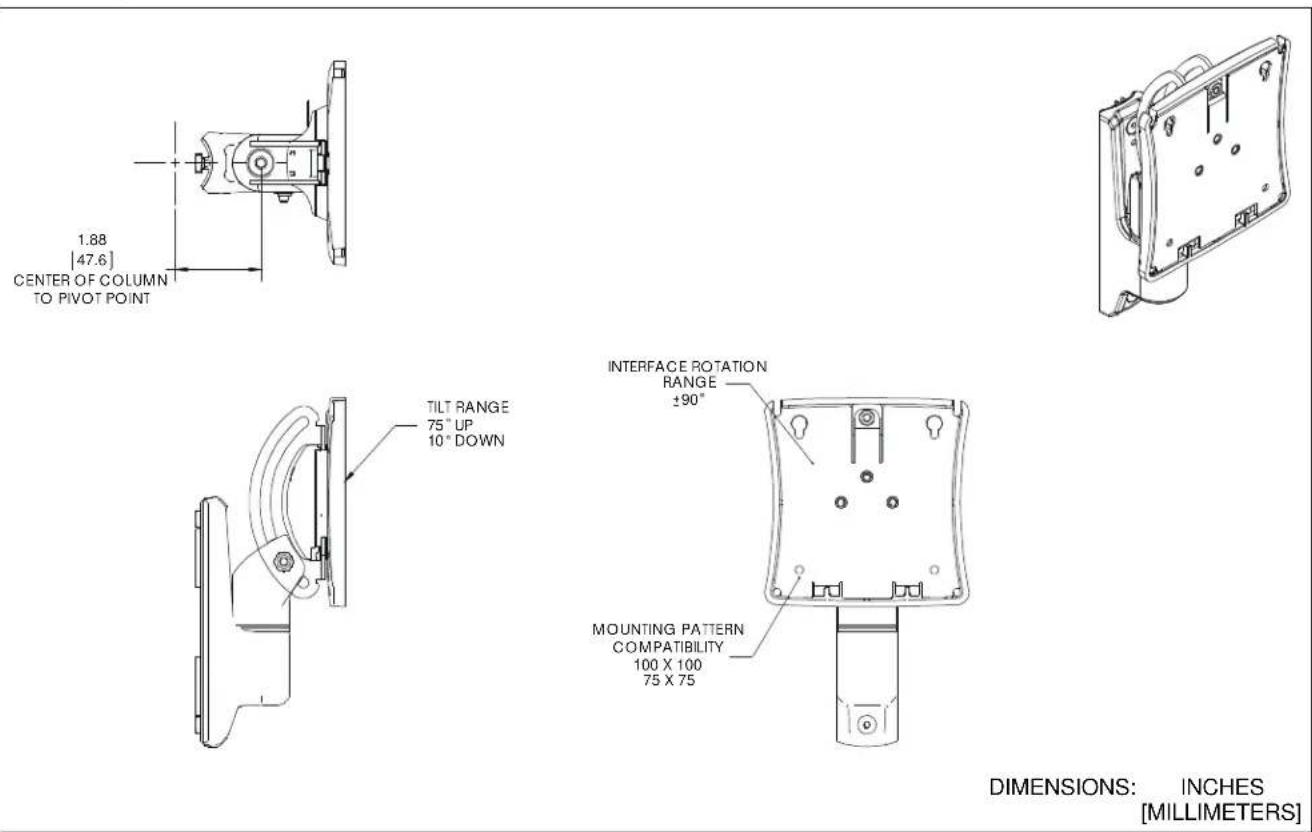

DIMENSIONS

DIMENSIONS: INCHES [MILLIMETERS]
LEGEND
![]() | Tighten Fastener | ![]() | Pencil Mark |
| Apretar elemento de fijación | Marcar con lápiz | ||
| Befestigungsteil festziehen | Stiftmarkierung | ||
| Apertar fixador | Marcar com lápis | ||
| Serrare il fissaggio | Segno a matita | ||
| Bevestiging vastdraaien | Potloodmerkteken | ||
| Serrez les fixations | Marquage au crayon | ||
![]() | Loosen Fastener | ![]() | Drill Hole |
| Aflojar elemento de fijación | Perforar | ||
| Befestigungsteil lösen | Bohrloch | ||
| Desapertar fixador | Fazer furo | ||
| Allentare il fissaggio | Praticare un foro | ||
| Bevestiging losdraaien | Gat boren | ||
| Desserrez les fixations | Percez un trou | ||
![]() | Phillips Screwdriver | ![]() | Adjust |
| Destornillador Phillips | Ajustar | ||
| Kreuzschlitzschraubendreher | Einstellen | ||
| Chave de fendas Phillips | Ajustar | ||
| Cacciavite a stella | Regolare | ||
| Kruiskopschroevendraaier | Afstellen | ||
| Tournevis à pointe cruciforme | Ajuster | ||
![]() | Open-Ended Wrench | ![]() | Remove |
| Llave de boca | Quitar | ||
| Gabelschlüssel | Entfernen | ||
| Chave de bocas | Remover | ||
| Chiave a punte aperte | Rimuovere | ||
| Steeksleutel | Verwijderen | ||
| Clé à fourche | Retirez | ||
![]() | By Hand | ![]() | Optional |
| A mano | Opcional | ||
| Von Hand | Optional | ||
| Com a mão | Opcional | ||
| A mano | Opzionale | ||
| Met de hand | Optie | ||
| À la main | En option | ||
![]() | Hex-Head Wrench | ![]() | Security Wrench |
| Llave de cabeza hexagonal | Llave de seguridad | ||
| Sechskantschlüssel | Sicherheitsschlüssel | ||
| Chave de cabeça sextavada | Chave de segurança | ||
| Chiave esagonale | Chiave di sicurezza | ||
| Zeskantsleutel | Veiligheidssleutel | ||
| Clé à tête hexagonale | Clé de sécurité |

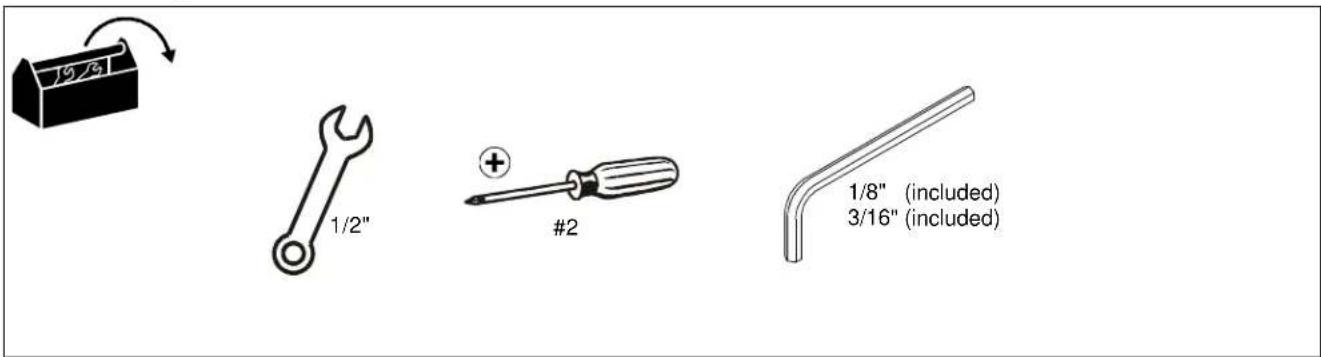

TOOLS REQUIRED FOR INSTALLATION

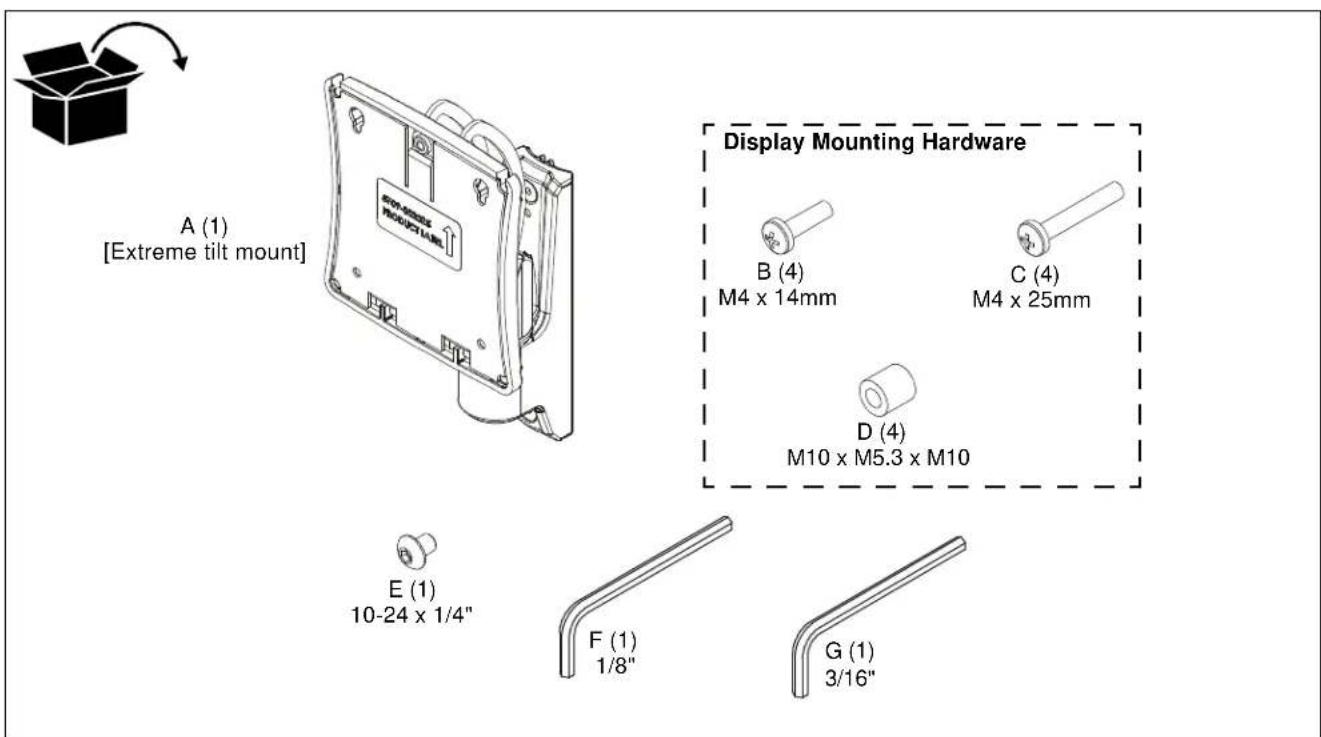

PARTS
![A (1) [Extreme tilt mount] Display Mounting Hardware B (4) M4 x 14mm C (4) M4 x 25mm D (4) M10 x M5.3 x M10 E (1) 10-24 x 1/4" F (1) 1/8" G (1) 3/16"](/content/2026/06/1202731/images/6a8541d10d6a5a9105e22d5f78a407ec7e026e80295462bc7f396c24bfaadcda.jpg)
ASSEMBLY AND INSTALLATION

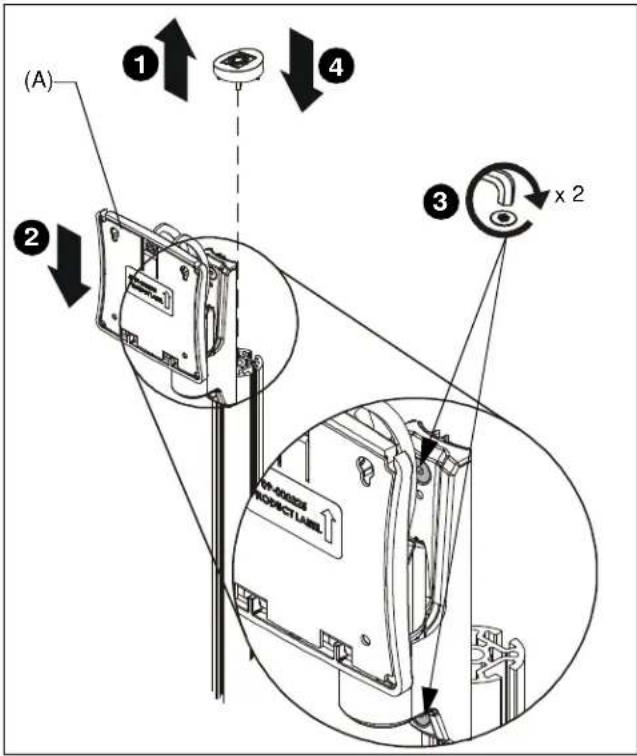

- Remove cap from K1C or K2C column. (See Figure 2)
- Slide KRA231 accessory (A) onto front of the column. (See Figure 1)
-
Tighten screws to secure accessory to column at desired mounting height. (See Figure 1)
-
Replace cap on top of column. (See Figure 1)

Figure 1
DISPLAY INSTALLATION

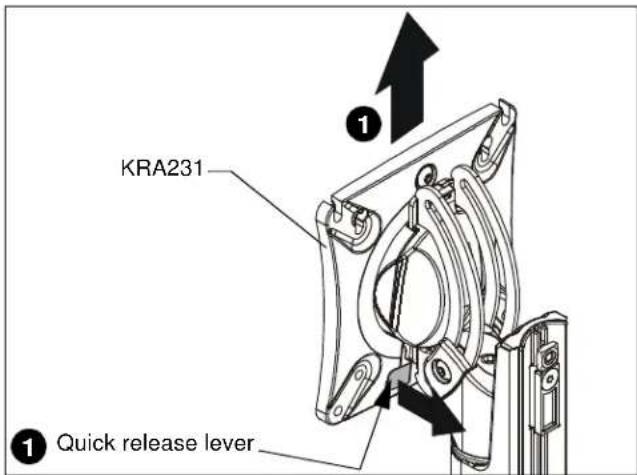

- Remove quick release faceplate from KRA231 by pulling quick release lever and sliding faceplate off. (See Figure 2)

Figure 2
-
Carefully place display face down on protective surface.
-
Connect faceplate to display.

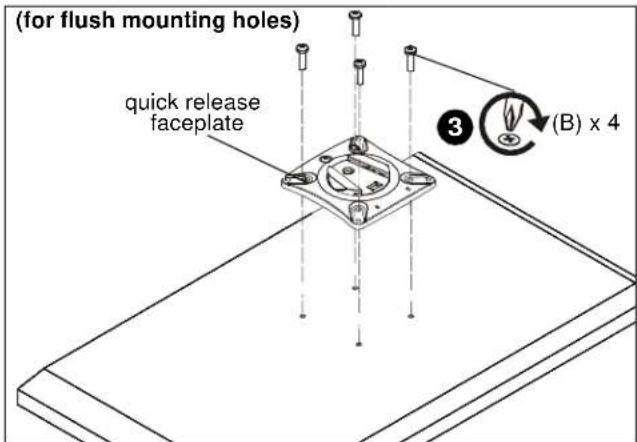

For flush mounting hole installation:
- Using Phillips screwdriver, carefully install four M4x14mm screws (B) through corresponding holes on faceplate and into the mounting holes on the display. (See Figure 3)

Figure 3

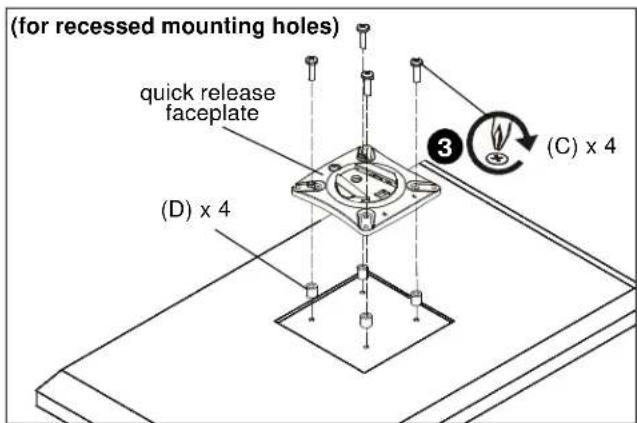

For recessed mounting hole installation:
- Place four spacers (D) on top of mounting holes on back of display. (See Figure 4)
- Using Phillips screwdriver, carefully install four M4x25mm screws (C) through corresponding holes on faceplate, spacers (D) and into the mounting holes on the display. (See Figure 4)

Figure 4

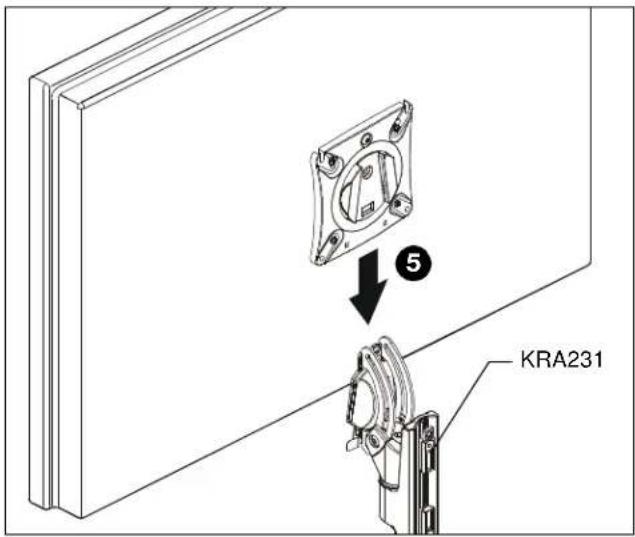

- Position display with faceplate attached above KRA231. (See Figure 5)
- Slide faceplate onto KRA231 head until quick release tab clicks into place. (See Figure 5)

Figure 5
Adjusting Rotation of Faceplate
The faceplate may be rotated 90^ in either direction for either landscape or portrait use.

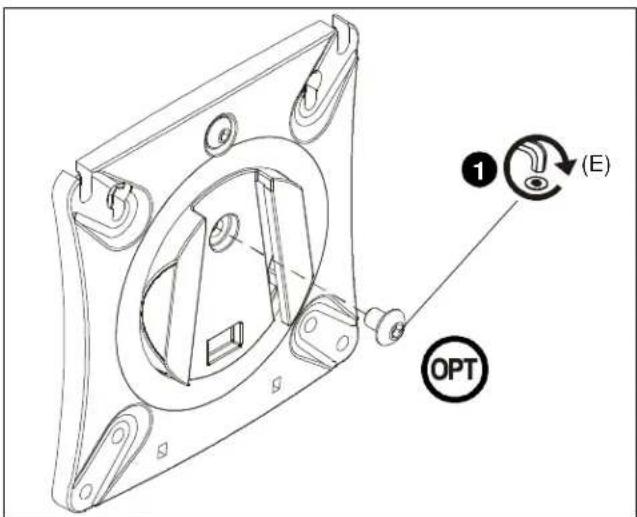

- (Optional) Rotational adjustment may be locked by fastening face plate in place using one 10-24 x 1/4" button head cap screw (H) into back of faceplate. (See Figure 6)
- Use the 3/16" hex key (N) on the button head cap screw to adjust rotational tension, as necessary.

Figure 6
- Refer to Adjustments and Cable Management information in the original mount installation instructions for further information.
