Product Type	Fastening Accessory
Model	Fusion FHB5078
Brand	Chief
Compatible VESA Pattern	Up to 800mm
Included Components	4 brackets, 5/16" washers, 5/16" hex nuts
Interface Adapter	800mm width
Material	Metal (steel)
Installation Tools Required	Wrench for 5/16" hex nuts
Weight Capacity	Determined by mount; structure must support 5x combined weight
Safety Warning	Ensure adequate structural strength; indoor use only
Intended Use	Indoor, attach to compatible mount uprights
Compliance	Milestone AV Technologies
Manual Languages	English

Frequently Asked Questions - Fusion FHB5078 Chief

What is the maximum VESA pattern the FHB5078 supports?

The FHB5078 is designed for displays with mounting patterns up to 800mm.

What is included in the FHB5078 kit?

Each FHB kit includes 4 brackets, 5/16" washers, and 5/16" hex nuts. The interface adapter is not included.

Can the FHB5078 be used outdoors?

No, this product is intended for indoor use only as stated in the safety instructions.

How much weight can the FHB5078 support?

The weight capacity depends on the mount it is attached to. Ensure the combined weight of all components does not exceed the mount's weight limit. The supporting structure must hold 5 times the total weight.

What tools are needed for installation?

You will need a wrench to tighten the 5/16" hex nuts. No other tools are specified.

How do I install the FHB5078?

Attach the adapters to the top and bottom of the mount's static or tilt uprights using the provided washers and hex nuts. Then follow the mount's installation instructions.

Is the FHB5078 compatible with all Chief mounts?

It is designed to attach to mount uprights that accept 5/16" hardware. Check compatibility with your specific mount model.

What should I do if the accessory appears damaged?

Never operate a damaged accessory. Return it to a service center for examination and repair.

Can I use non-Chief accessories with the FHB5078?

Only use attachments recommended by the manufacturer to ensure safety and proper fit.

Where can I find the full installation instructions?

The full installation manual is available for free download from notice-facile.com or the Chief website.

USER MANUAL Fusion FHB5078 Chief

INSTALLATION INSTRUCTIONS

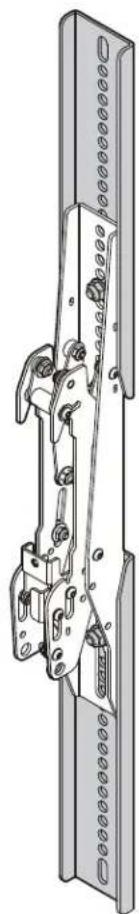

Technical line drawing of a mechanical lifting or bracket assembly (no text or symbols)

800mm Interface Adapter

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure this accessory is properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the FHB5078 does not exceed the weight limit of the mount to which it is being attached.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The FHB5078 is designed for use on displays with mounting patterns up to 800mm.

--SAVE THESE INSTRUCTIONS--

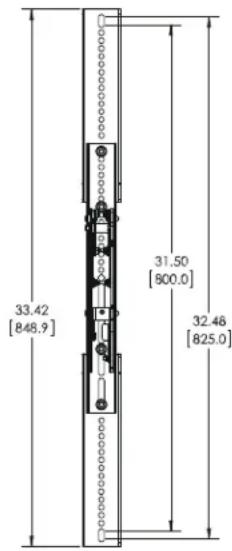

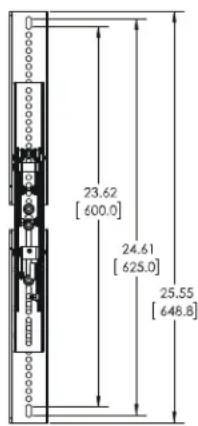

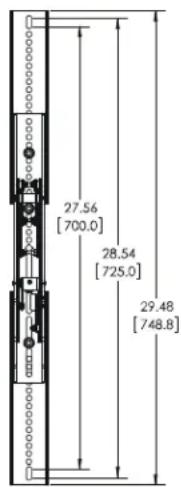

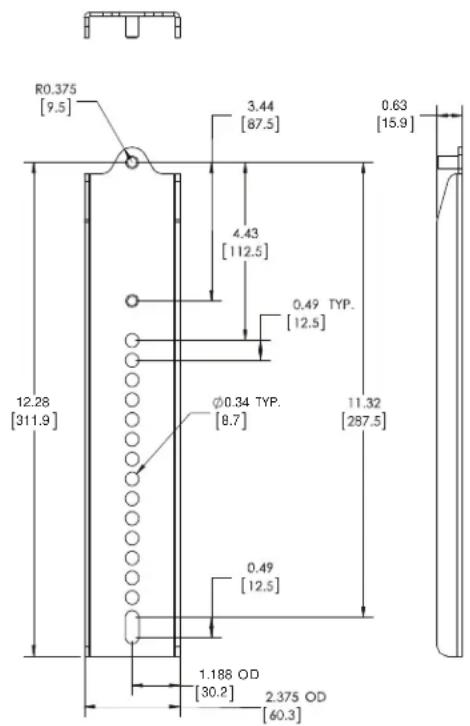

DIMENSIONS

4 BRACKETS INCLUDED WITH EACH FHB KIT

INTERFACE NOT INCLUDED WITH FHB KIT

DIMENSIONS: INCHES [MILLIMETERS]

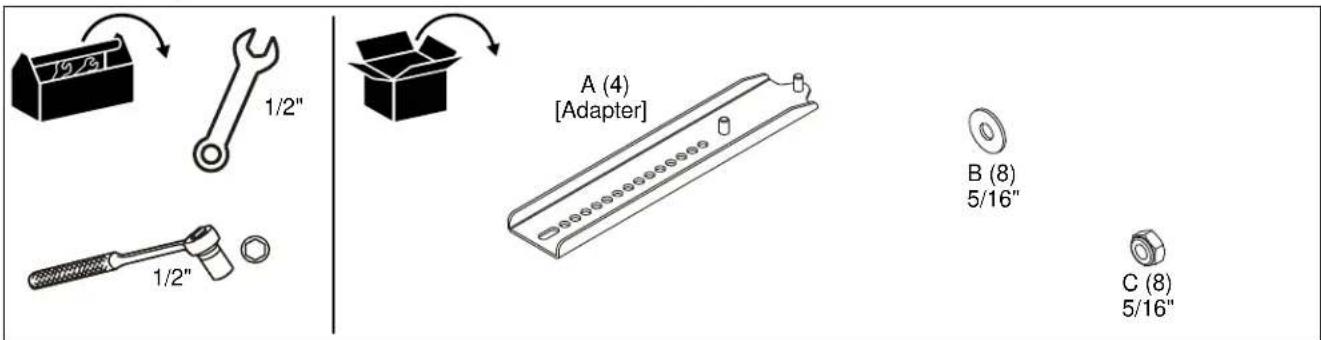

TOOLS REQUIRED FOR INSTALLATION / PARTS

ASSEMBLY AND INSTALLATION

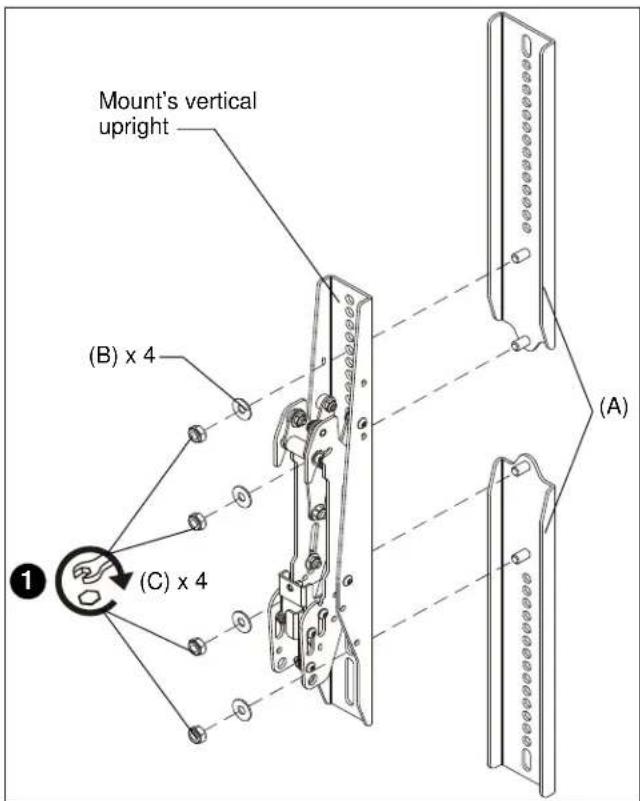

1. Attach the adapters (A) to the top and bottom of the mount's static or tilt uprights using two 5/16" washers (B) and two 5/16" hex nuts (C) on each adapter. (See Figure 1)

Figure 1

1. Complete the installation following the mount installation instructions.
