USER MANUAL GearPower 145W GPAWC145W IOGEAR

1xGPAWC145W
1 x USB-C to C Cable (4 ft.)
1 x Quick Start Guide
1 x Warranty card

System Requirements

• Up to 4 USB-C Device (Laptop, Tablet, Smartphone)

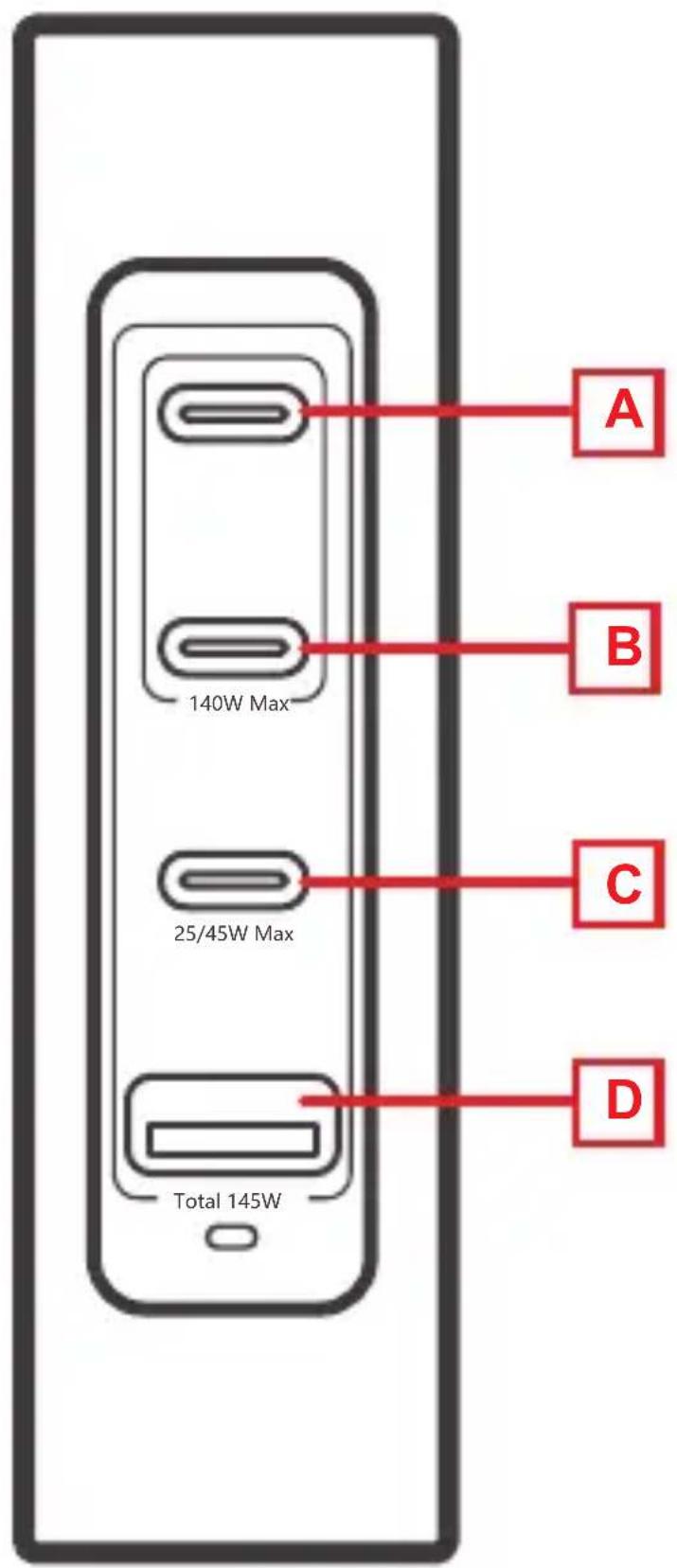

Product Overview

A. USB-C Port 1
B. USB-C Port 2
C. USB-C Port 3
D. USB-A Port 4

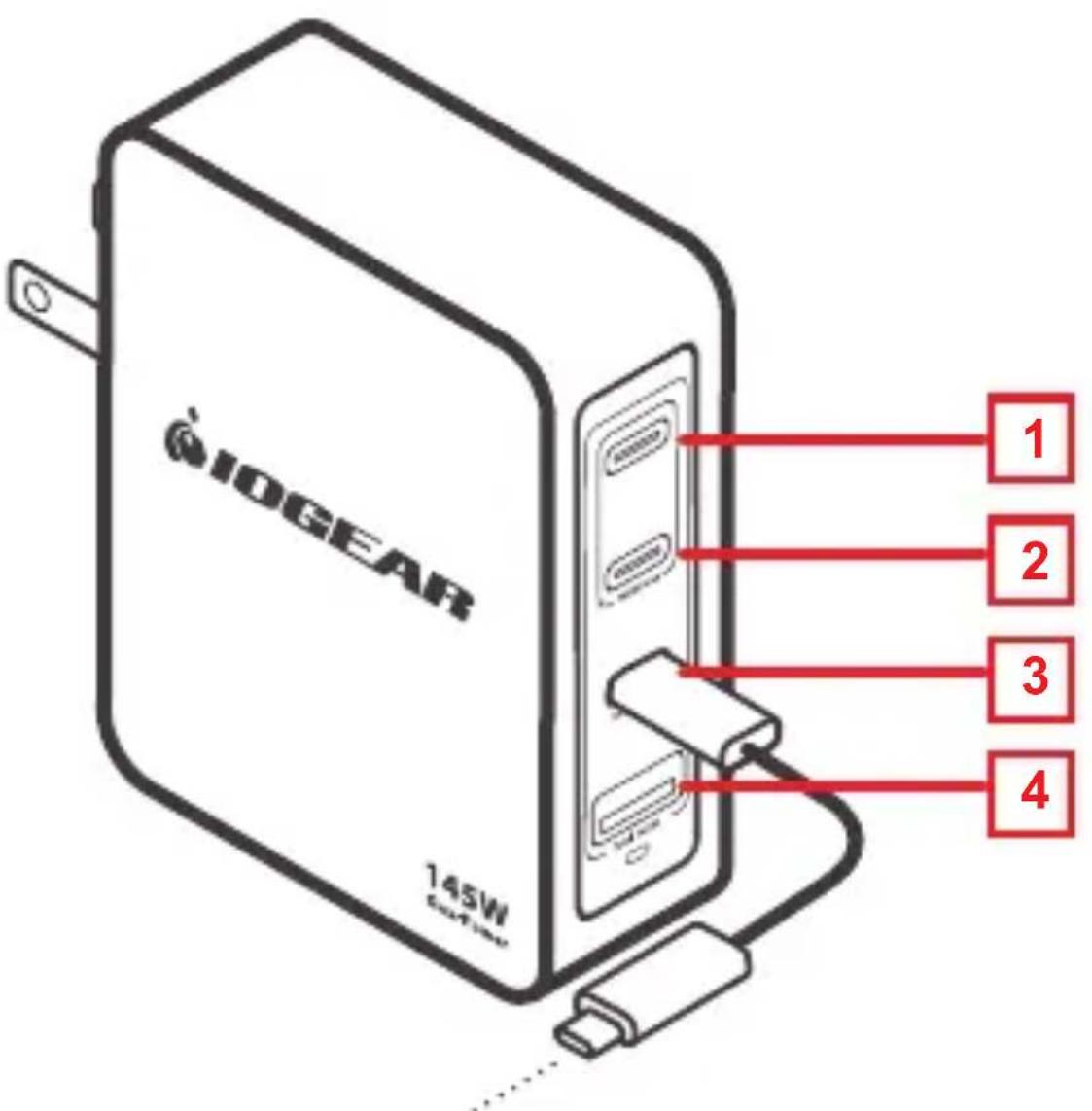

Hardware Installation

3

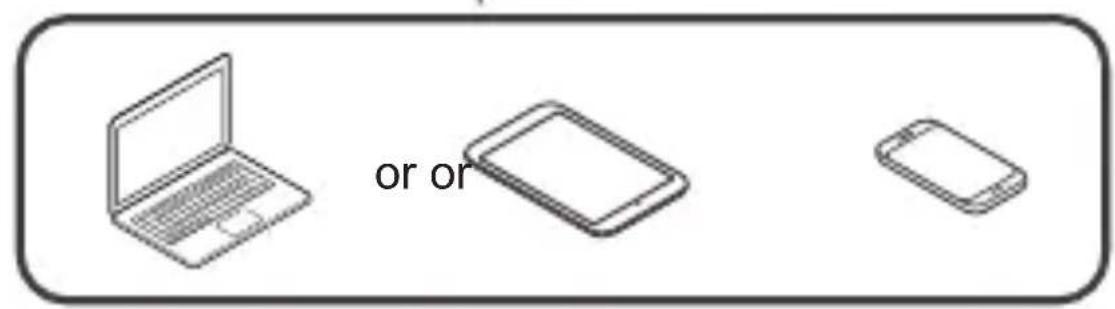

1. Connect your Laptop, tablet or smartphone to USB-C port 1.
2. Connect your Laptop, tablet or smartphone to USB-C port 2.
3. Connect your tablet or smartphone to USB-C port 3.
4. Connect your tablet or smartphone to USB-A port 4.

Single Port Used

• USB-C1/C2: 28V5A 140W Max

• USB-A4: 12V1.5A 18W Max

• USB-C3: 20V2.25A 45W Max

Two Ports Used

USB-C1/USB-C2+USB-C3 Used:

• USB-C1/C2: 20V5A 100W Max
• USB-C3: 20V2.25A 45W Max

USB-C1/USB-C2+USB-A4 Used:

• USB-C1/C2: 20V5A 100W Max
• USB-A4: 12V1.5A 18W Max

USB-C1+ USB-C2 Used:

• USB-C1/C2: 20V3.25A 65W Max USB-C3+USB-A4 Used:
• USB-C3: 9V2.77A 25W Max
• USB-A4: 12V1.5A 18W Max

Three Ports Used

USB-C1+USB-C2+USB-C3 Used:

• USB-C1: 20V3.25A 65W Max
• USB-C2: 20V1.5A 30W Max
• USB-C3: 20V2.25A 45W Max

USB-C1+USB-C2+USB-A4 Used:

• USB-C1: 20V3.25A 65W Max
• USB-C2: 20V1.5A 30W Max
• USB-A4: 12V1.5A 18W Max

USB-C1/USB-C2+USB-C3+USB

-A4 Used:

• USB-C1/C2: 20V5A 100W Max
• USB-C3: 9V2.77A 25W Max
• USB-A4: 12V1.5A 18W Max

Four Ports Used

• USB-C1: 20V3.25A 65W Max

• USB-C2: 20V1.5A 30W Max

• USB-C3: 9V2.77A 25W Max

• USB-A4: 12V1.5A 18W Max

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty.

For the terms and conditions of this warranty, please go to

https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information

Product Model

Serial Number

Contact

WE'RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

https://iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
