Dock Pro Universal Dual View - Computer Accessories IOGEAR - Free user manual and instructions

Product Type	Universal Dual View Docking Station
Brand	IOGEAR
Model	Dock Pro Universal Dual View
Dimensions (W x D x H)	12.5 cm x 7.5 cm x 2.5 cm
Weight	Approximately 280 g
Power Supply	USB-C PD 3.0 (up to 100W)
Video Output	Dual HDMI 2.0 (up to 4K@60Hz each)
USB Ports	2x USB-A 3.1 Gen1, 1x USB-C 3.1 Gen1, 1x USB-C with PD
Ethernet	1x Gigabit Ethernet RJ45
Audio	3.5mm headphone/mic combo jack
Card Reader	SD/MicroSD card slot
Supported OS	Windows, macOS, Chrome OS, Linux (with driver for dual view)
Compatible Devices	Laptops and tablets with USB-C or Thunderbolt 3/4
Maximum Resolution (Single)	8K@30Hz or 4K@120Hz
Maximum Resolution (Dual)	4K@60Hz per display
Maintenance	Wipe with a soft, dry cloth. Avoid liquids and abrasives.
Safety Precautions	Do not expose to water or extreme temperatures. Use only included power adapter.
Spare Parts & Repairability	No user-serviceable parts. Contact IOGEAR support for issues.
General Information	Allows connecting two external monitors for extended desktop or mirror mode.

Frequently Asked Questions - Dock Pro Universal Dual View IOGEAR

How do I set up the IOGEAR Dock Pro Universal Dual View?

Connect the dock to your laptop via the included USB-C cable. Then connect your monitors to the HDMI ports. The dock supports plug-and-play on most systems.

Does this dock work with MacBook Pro?

Yes, it works with MacBook Pro models that have USB-C or Thunderbolt 3/4 ports. Some features may require driver installation on macOS.

Can I charge my laptop through the dock?

Yes, if your laptop supports USB-C PD, the dock can deliver up to 100W of power delivery to charge your laptop.

What is the maximum resolution supported?

When using a single monitor, up to 8K@30Hz or 4K@120Hz. With dual monitors, each can run at 4K@60Hz.

Does it support Ethernet?

Yes, it has a Gigabit Ethernet port for wired internet connectivity.

How many USB ports does it have?

It includes 2x USB-A 3.1 Gen1, 1x USB-C 3.1 Gen1, and 1x USB-C with PD for data and charging.

Is the dock compatible with Linux?

Basic function works on Linux, but dual monitor support may require proprietary drivers. Check IOGEAR's website for details.

Can I use the dock with a Chromebook?

Yes, Chromebooks with USB-C support dual displays via this dock. Some features like Ethernet work natively.

How do I update the firmware?

Firmware updates can be downloaded from IOGEAR's support website. Connect the dock to your PC and run the update utility.

What is the warranty period?

The IOGEAR Dock Pro Universal Dual View comes with a 3-year limited warranty. Contact IOGEAR support for more details.

USER MANUAL Dock Pro Universal Dual View IOGEAR

Dock Pro™ Universal Dual View Docking Station

GUD3C4K2TAA

PART NO. Q1652

Package Contents

1 x GUD3C4K2TAA
1 x USB-C ^TM to C cable
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

System Requirements

Host device requirements

- USB-C (Thunderbolt 3/4 compatible) device

OS requirements

• Windows® 10, 11
• macOS® 10.13+
• DisplayLink Driver installation (http://www.displaylink.com/downloads)

NOTE: For M1 Mac Users, please check DisplayLink website for latest

Mac Displaylink driver: http://www.displaylink.com/downloads/macos

Overview

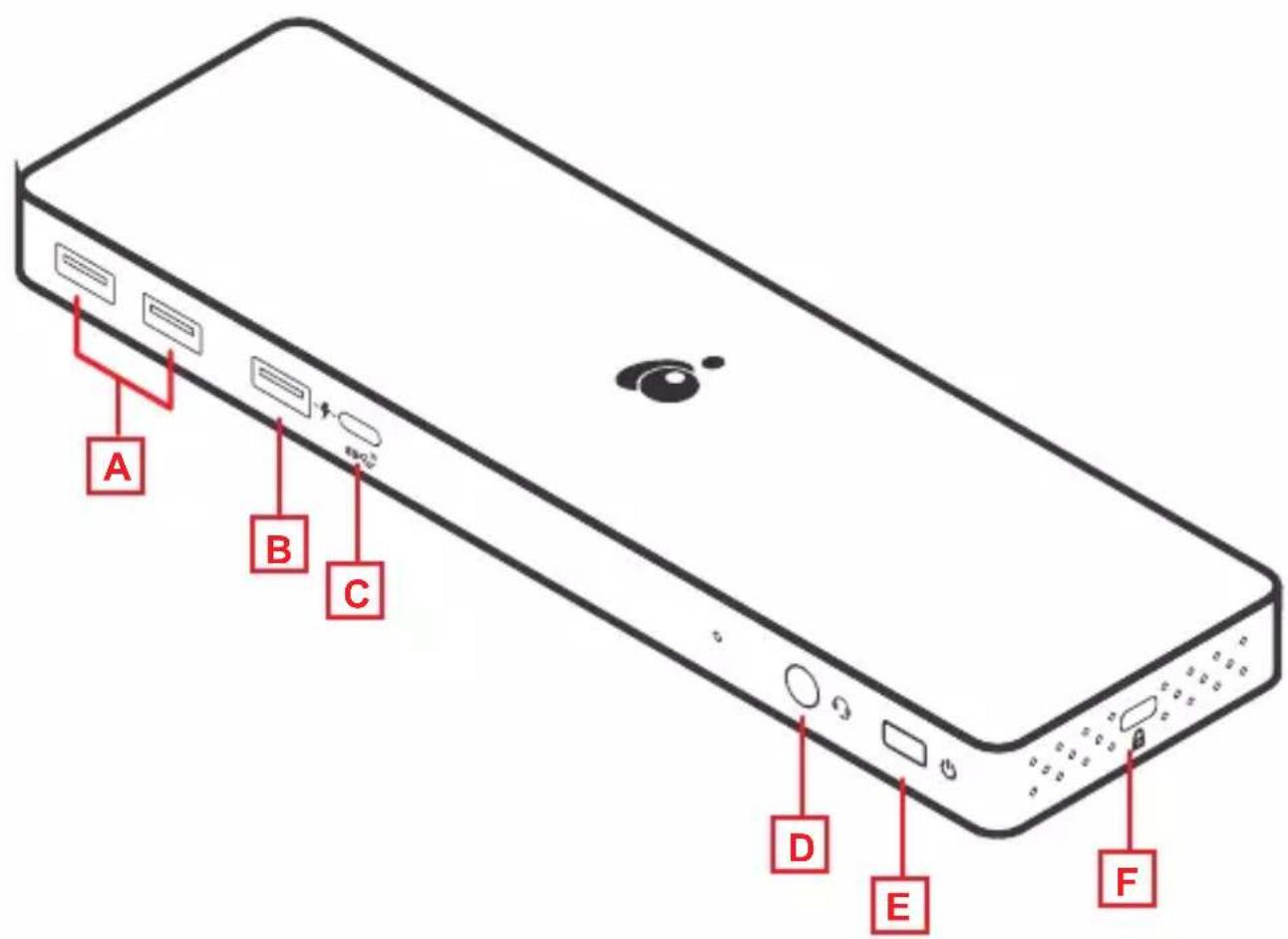

A. USB-A 3.1 port Gen 1 (5gbps)
B. USB-A 3.1 port Gen 1 (2.4amps)
C. USB-C 3.1 port Gen 2 (10gbps)
D. Headphone audio port
E. Power button
F. Security lock

2

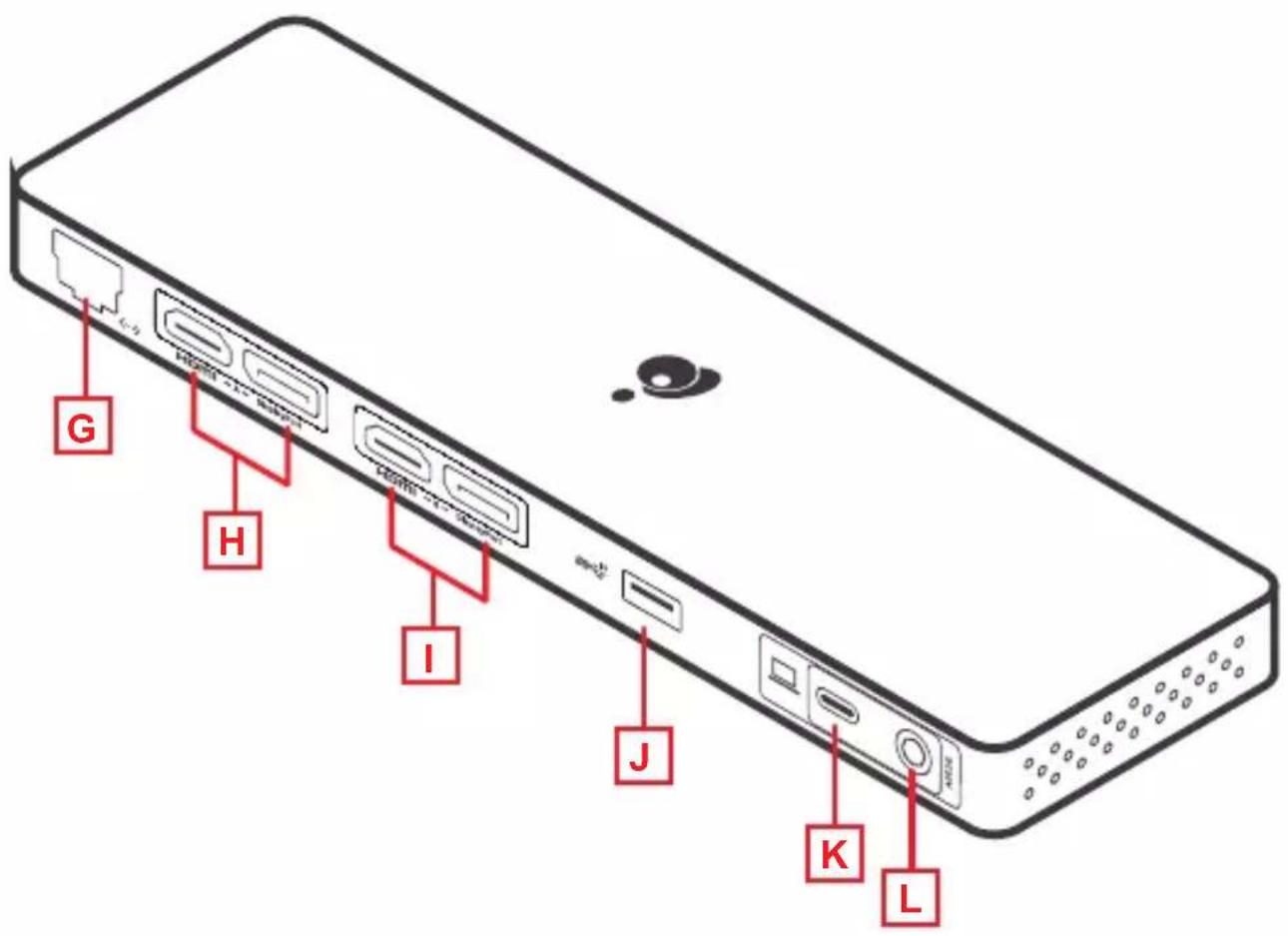

G. Gigabit Ethernet port

H. Video Stream A HDMI or DP (Up to 4K@60hz)

I. Video Stream B HDMI or DP (Up to 4K@60hz)

J. USB-A 3.1 port Gen 2 (10gbps)

K. USB-C connector to host laptop

L. Power adapter port

Hardware Installation

3

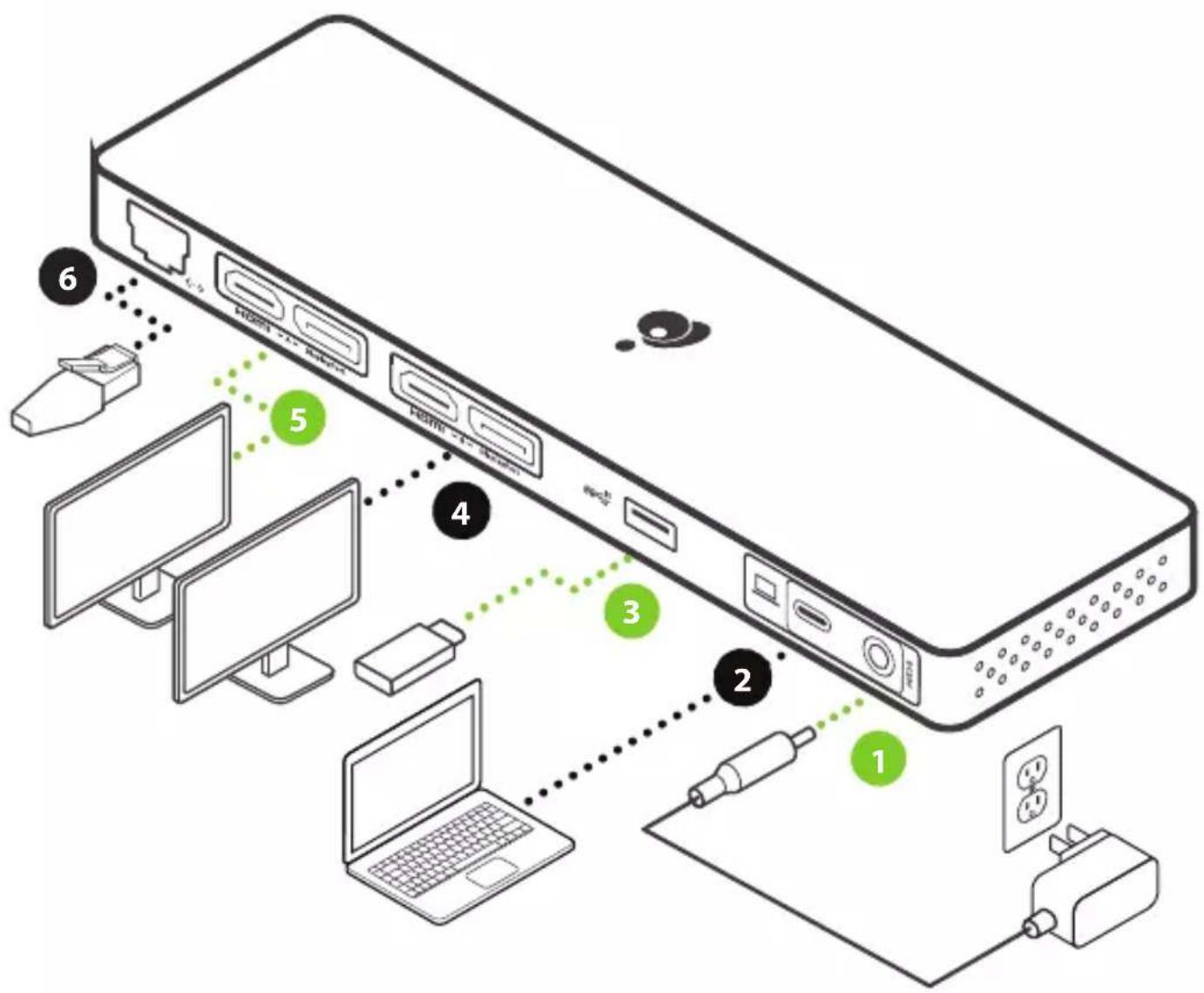

1. Connect barrel connector from power adapter into the power port
2. Connect USB-C host computer with included USB-C to C cable to USB-C host port
3. Connect a USB-A device into USB-A ports
4. Connect Video Stream 1 to Monitor 1 via HDMI or Displayport*
5. Connect Video Stream 2 to Monitor 2 via HDMI or Displayport*
6. Connect Ethernet cable to Ethernet port for network connectivity

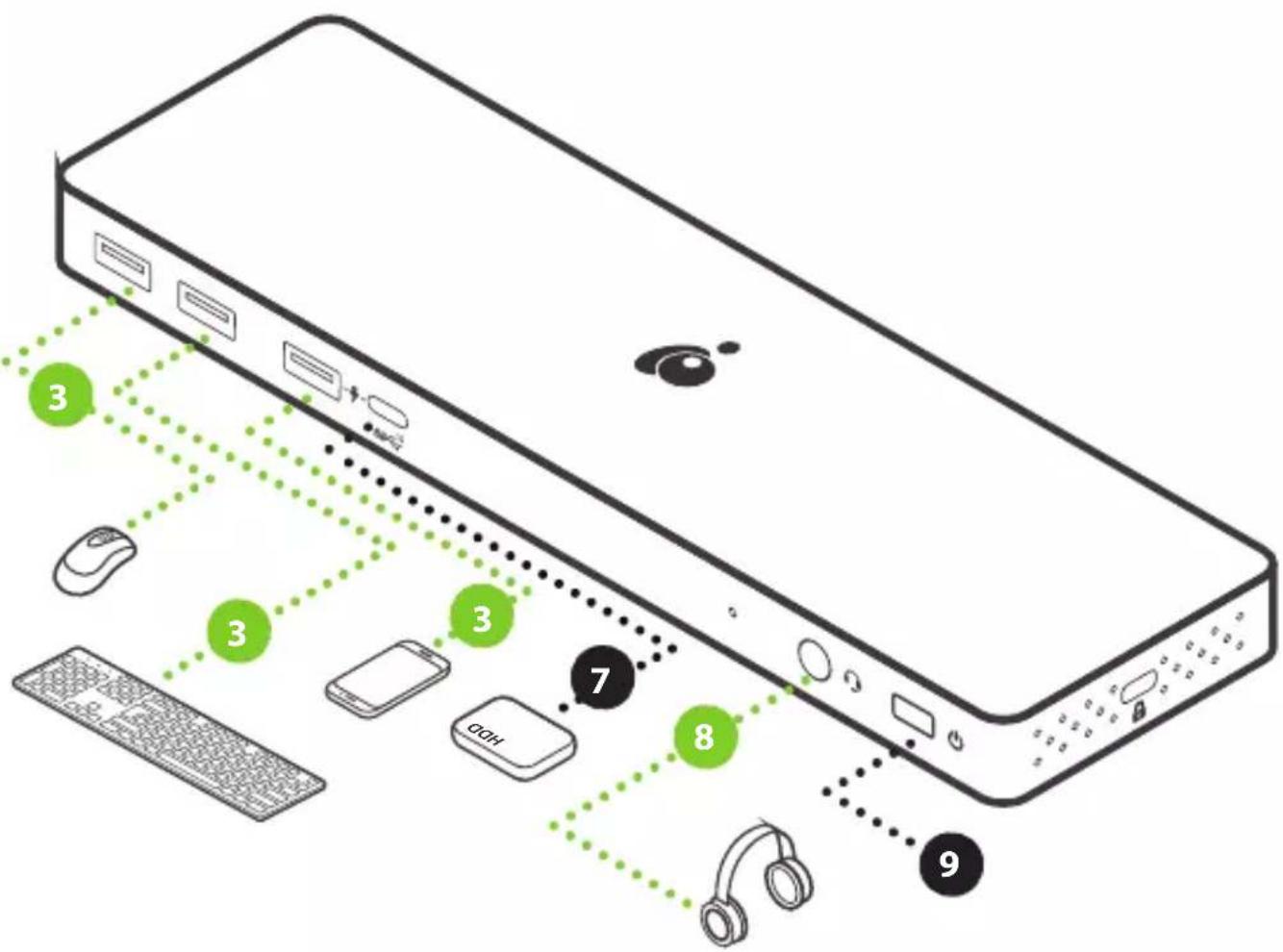

1. Connect a USB-C device into the USB-C 3.1 Gen 2 port
2. Connect headphones into headphone audio port
3. Press Power button to turn on system

Note\*

- Displaylink driver must be installed for Video Stream 1 and 2 to operate.

Video Tool Installation

4

Please download the latest driver for your respective computer (Mac or Windows) from the DisplayLink support website at: https://support.displaylink.com/

Single MonitorDual Moni	HDMI/DP 1
	macOS4096x2160 @60Hz
	Win OS4096x2160 @60Hz
	HDMI/DP 2
	macOS4096x2160 @60Hz
	Win OS4096x2160 @60Hz
	HDMI/DP 1
	macOS (mirror)4096x2160 @60Hz	macOS (extended)4096x2160 @60Hz
	Win OS (mirror)4096x2160 @60Hz	Win OS (extended)4096x2160 @60Hz
	HDMI/DP 2
	macOS (mirror)4096x2160 @60Hz	macOS (extended)4096x2160 @60Hz
	Win OS (mirror)4096x2160 @60Hz	Win OS (extended)4096x2160 @60Hz

Limited Warranty

This product carries a limited or lifetime manufacturer's warranty.

For terms and conditions visit https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information

Product Model

Serial Number

Contact Information

WE'RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information

2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement:

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
