USER MANUAL SPL5000MRC Mac Tools

If you have questions or comments, contact us.

English (original instructions) 1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. (Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

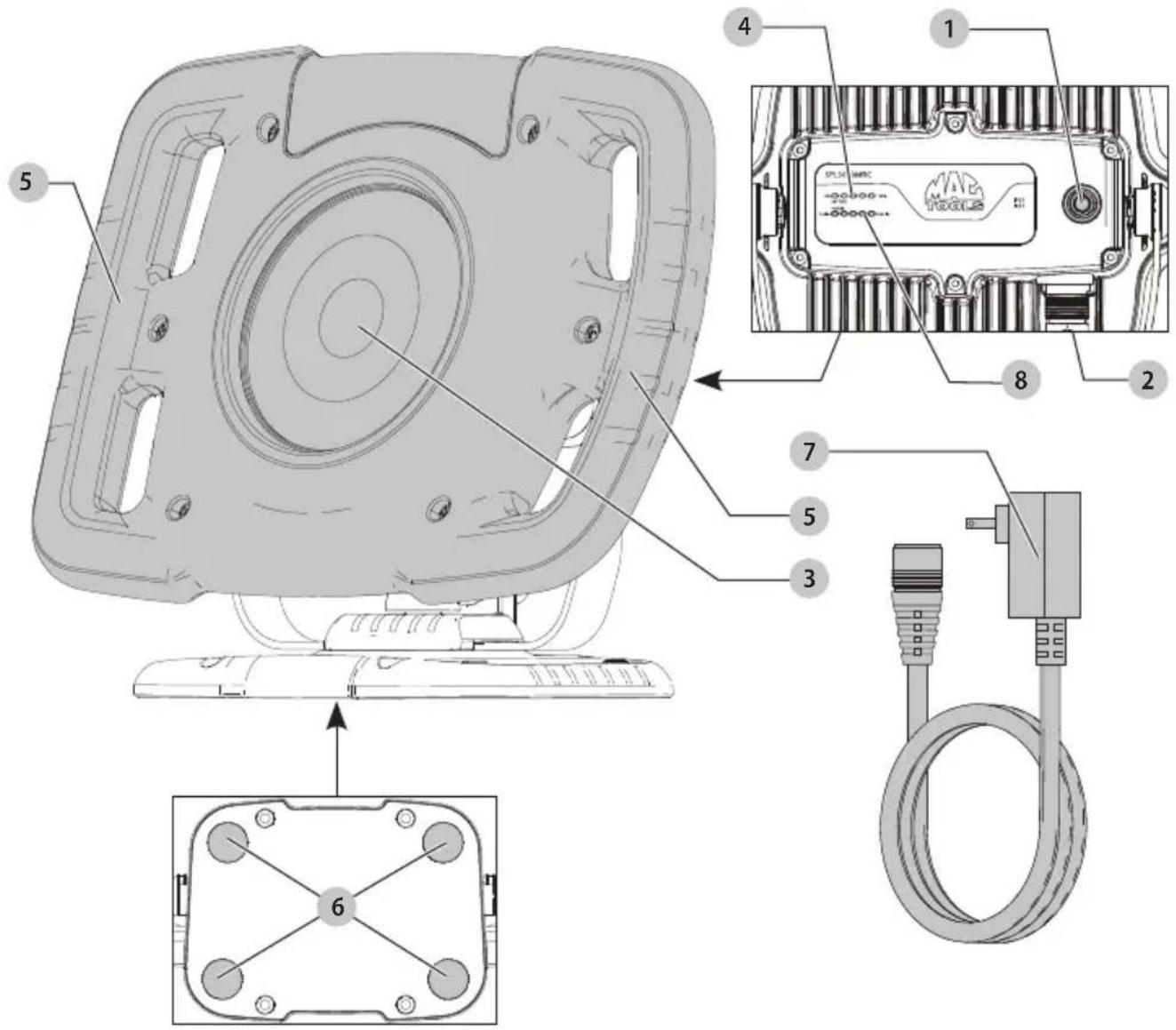

Fig. A

Technical diagram of an electronic device with labeled components including front panel, internal wiring, and cable connection.

1 On/Off/Brightness switch

2 DC input port

3 LED

4 Charging indicator

5 Handles

6 Magnets

7 Power supply adapter

8 Brightness indicator

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call Mac Tools toll free at: 1-800-MAC-TOOLS (1-800-622-8665).

5000 Lumen Rechargeable Area Light SPL5000MRC

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the light, basic precautions should always be followed, including the following:

a) Read all the instructions before using the light.
b) To reduce the risk of injury, close supervision is necessary when a light is used near children.
c) To reduce the risk of electrical shock, do not put light in water or other liquid. Do not place or store light where it can fall or be pulled into a tub or sink.
d) Only use attachments recommended or sold by the manufacturer.
e) Turn the light off when not in use.
f) Do not operate any light after it malfunctions or is dropped or damaged in any manner. Return light to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
g) To disconnect, turn all controls to the OFF position, then remove plug from outlet.
h) Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
i) Unplug from outlet when not in use and before servicing or cleaning.
j) Do not operate any appliance with a damaged cord or plug, or after the light has received a sharp blow, malfunctions or is dropped or damaged in any manner. Return light to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
k) Use only the charger supplied by the manufacturer to recharge.

SAVE THESE INSTRUCTIONS

Specific Safety Rules for Lights

WARNING: Do not place the light in a position which may cause anyone to intentionally or unintentionally stare into the light. Serious eye injury could result.

WARNING: Fire hazard. Do not operate light or charger near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.

Additional Safety Rules for Area Lights

WARNING: To reduce the risk of fire, do not place anything next to or on top of the lens during or after operation of the light.

CAUTION: Only use area light on stable surface. Do not raise above work space/personnel via lifting, hoisting, mounting, or suspension.

• To reduce the risk of electrical shock, do not put area light in water or other liquid. Do not place or store area light where it can fall or be pulled into a tub or sink.
• Risk of electric shock. Do not expose to rain. Store indoors.
• Do not submerge area light in any liquid.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Before using area light, read all instructions and cautionary markings on area light, charger and battery.
• Store the area light indoors when not in use. Keep out of reach of children.
• Make sure extension cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Use only a proper extension cord that is necessary to operate the area light on AC power (refer to Use of Extension Cords with Area Light). Use of an improper extension cord could result in risk of fire, electric shock, or electrocution.
• A proper extension cord will be marked with the suffix letter "W" and with a tag stating "Suitable for Use with Outdoor Appliances."
• Place the area light away from any heat source.
• Do not disassemble area light. Take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the area light from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
• Use type SJW, SJOW, SJTW, SJTOW, SW, SOW, STW and STOW cord when operating the Area light on AC power.

Use of Extension Cords with Area Light

Only use a grounded extension cord that is rated at least 12 amps and has a third-wire ground.

When a long extension cord is used to connect an area light or tool, a voltage drop occurs. The longer the cord, the greater the voltage drop. This results in less voltage being supplied to the area light or tool and increases the amount of current (amp) draw or reduces performance. A heavier cord with a larger wire size will reduce the voltage drop. Be sure to choose a cord that will supply enough voltage to operate your tool and/or task light.

WARNING: Risk of electric shock. Keep extension cord connection dry and off the ground.

WARNING: Keep electrical cords in good condition. Do not use worn, bare, or frayed cords because they can cause electrical shock.

WARNING: Operating equipment at low voltage can cause it to overheat. Using an excessively long extension cord can cause the cord to overheat.

For more information about extension cord size requirements, refer to the Minimum Gauge for Cord Sets chart found under Additional Safety Information.

Additional Safety Information

WARNING: Never modify the power lamp or any part of it. Damage or personal injury could result.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V		25 (7.6)	50 (15.2)	100 (30.5)	150 (45.7)
240V		50 (15.2)	100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0	6	18	16	16	14
6	10	18	16	14	12
10	12	16	16	14	12
12	16	14	12	Not Recommended

The label on your lamp may include the following symbols. The symbols and their definitions are as follows:

Read instruction manual before use.

European certification

Class 3 luminaire appliance

Canadian Standards Association, independently tested and certified.

Waste electrical and electronic equipment: Separate Collection.

Keep clear of magnets.

Magnetic hazard can disturb pacemaker operation and result in serious injury or death.

Hot surface

SAVE THESE INSTRUCTIONS FOR FUTURE USE

Intended Use

This area light is designed for workplace lighting use.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the lamp. Supervision is required when inexperienced operators use this lamp.

Specifications

	SPL5000MRC
Voltage V	AC	120
Battery type Li-Ion
Lumens** lm 500 / 1250 / 2500 / 3750 / 5000
Ingress protection rating IP67
Impact protection rating IK07
Charging conditions 32 °F–104 °F (0 °C–40 °C)
Operating conditions 32 °F–104 °F (0 °C–40 °C)
Storage conditions 14 °F–104 °F (-10 °C–40 °C)
Weight 5.77 lbs (2.62 kg)
** . Operating the light in high ambient temperatures may result in reduced lumen output.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Getting Started (Fig. A, B)

NOTE: For best results, make sure your area light is fully charged. Always charge the battery after long period of storage (such as 6 months) to prevent permanent capacity loss.

To charge the area light, insert the power supply adaptor 7 into the DC input port 2 and plug the unit into any 120 V AC power source, such as a wall receptacle. The charging indicator 4 will illuminate 100% when the area light is fully charged.

English

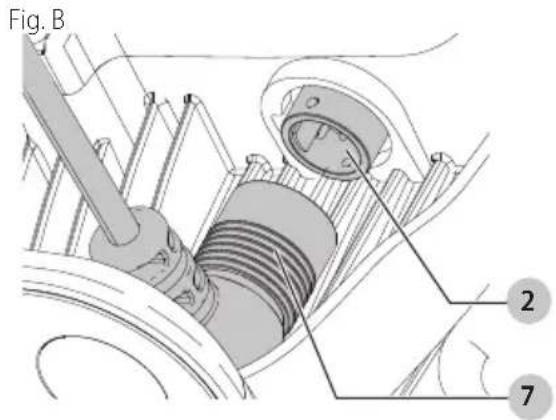

Fig. B 2 7

On/Off Switch (Fig. A)

CAUTION: Do not stare into area light lens. Serious eye injury could result.

To turn the area light on, press the on/off/brightness button 1 to one of the five brightness levels (roughly 500 lm / 1250 lm / 2500 lm / 3750 lm / 5000 lm).

To turn the area light off, press the on/off/brightness switch and cycle through to the off position.

Magnets (Fig. A)

CAUTION: When the area light hangs by the magnets, do not shake the area light or the object from which it hangs. Do not hang the area light from anything that is not secure. Personal injury or property damage may occur.

CAUTION: Only use the magnets for hanging the LED area light. The magnets are not intended to support additional weight. Do not attach or hang anything additional to the area light or risk of breakage may occur.

WARNING: Do not stand directly under the area light when it is being supported solely by the magnets.

The area light has four built in magnets 6 on the bottom of the base. These magnets are intended to hold the area light in place on metal surfaces.

Rotating and Pivoting the Area Light (Fig. C)

The area light can be rotated and pivoted to different positions allowing the light to be aimed.

- Use the handles 5 to rotate or pivot the light housing to your desired position.

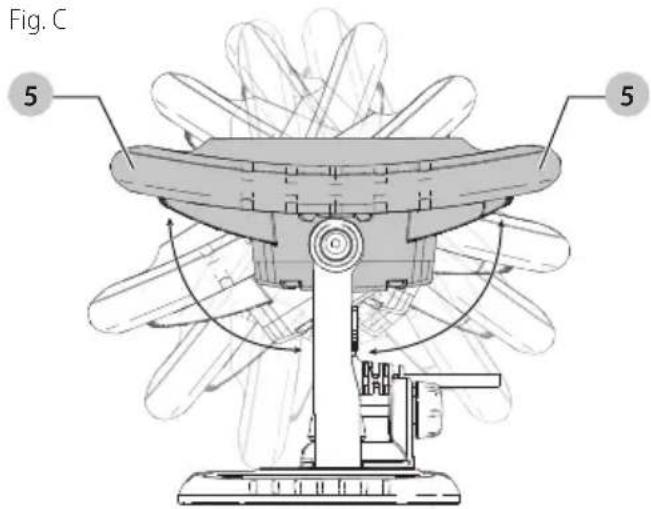

Fig. C 5 5

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Accessories

WARNING: Since accessories, other than those ordered by Mac Tools®, have not been tested with this product, use of such accessories with this lamp could be hazardous. To reduce the risk of injury, only Mac Tools® recommended accessories should be used with this product.

Recommended accessories for use with your lamp are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact Mac Tools®, call 1-800-MAC-TOOLS (1-800-622-8665) or visit our website: www.mactools.com.

Repairs

WARNING: To assure product SAFETY and RUBILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a Mac Tools® factory service center or a Mac Tools® authorized service center. Always use identical replacement parts.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the lamp. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the lamp; never immerse any part of the lamp into a liquid.

Register

Thank you for your purchase. Register your product now for:

• WARRAnTY sSERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

One Year Limited Warranty

MAC® area light are guaranteed for 1 year from the date of purchase against any defect or manufacturing fault, and wear parts are covered by the legally enforced guarantee. This guarantee does not cover the following cases: normal wear, non compliance of instructions of use and safety guidelines, nonconventional or abusive use of the lamp, tool overloading, lack of servicing or maintenance, intrusion of foreign bodies, tools which have been disassembled or modified, or featuring traces of shock (dents, cracks, broken covers, etc.), use with poor quality or non-compatible accessories.

To use the guarantee, provide: the lamp with its serial number as well as the legible and unmarked original invoice designating the product and its date of purchase.

Detailed conditions of application of the guarantee: call your distributor. This lifetime warranty is subject to the disclaimers and limitations described below, and is in lieu of all other warranties, express or implied, including the implied warranty of merchantability or fitness for a particular purpose.

This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

FREE WARning IABEI REPIACEMENT: If your warning labels become illegible or are missing, call 1-800-662-8665 for a free replacement.
