USER MANUAL RHODOS Sonnenkönig
Technical line drawing of a vertical cylindrical device with internal mesh structure and mounting feet (no text or symbols)4 Installation
MIN MAX 0 s 1 2 cFestnetz 14 Cent/Minute
SOMMAIRE
INDICE
IT
MIN MAX 0 s 1 2 cnatural_image
Black cylindrical device with internal panel showing a flame inside, no visible text or symbols on the device itself.text_image
Diagram of a two-tiered cylindrical device with numbered labels pointing to different components.3 Eigenschappen
Model ...... RHODOS
Spanning....230 V
Frequentie 50 Hz
Vermogen 1200 Watt
Afmetingen....23 x 23 x 60.6 cm
4 Installatie
NL
Mobiel network 42 Cent/Minute

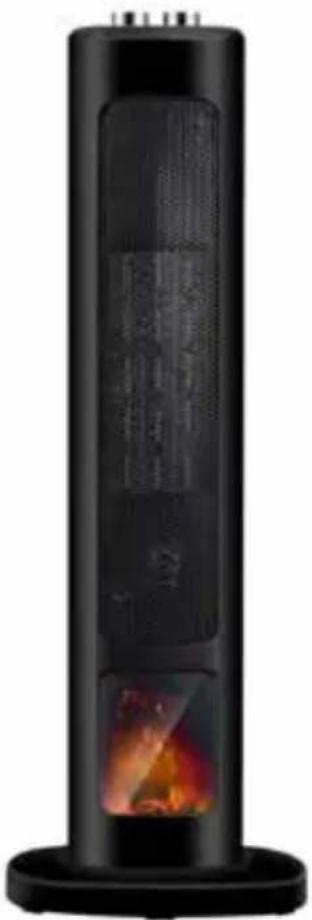

RHODOS
CERAMIC HEATER
User's manual
2 Part description ....47
3 Properties....47
4 Installation....48
5 Usage 48
6 Cleaning and maintenance....49
7 Warranty / disposal / technical change....50
1 Safety instructions
Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.
Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.
This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.
- Read all instructions before using the heater.
- Strictly prohibit to plug-in or off the plug instead of turn on or off the power switch.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION —Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
- Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface.
EN
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
- Strictly prohibit use the same socket-outlet with other big power appliance.
- Please put off the plug when nobody is nearby.
- Strictly prohibit use the heater in where be easy shocked or be toppled.
- If there is something wrong with the heater, please turn off the machine and put off the plug immediately and send to service agent.
- Warning: In order to avoid overheating, do not cover the heater.
- The heater must not be located immediately below a socket-outlet.
- The used heating wire treated by a special way, it has a long using life, please do not use any other heating wire instead of it.
- Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains, etc. At least 100cm away from the heater.
- Keep the air inlet and outlet free from objects: at least 1 m in front and 50 cm behind the heater.
- Only connect the fan heater to a single-phase socket with a main voltage as specified on the rating plate.
- Do not leave your home while the appliance is in function: ensure that the switch is in OFF(0) position and the thermostat is in minimum position. Always unplug the appliance.
- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
- This appliance may be operated under both 50Hz and 60Hz without any adjustment.
- KEEP OUT OF REACH OF CHILDREN. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
- Keep batteries out of the reach of children.
- Do not allow children to replace batteries without adult supervision.
- Do not short-circuit batteries.
- Do not heat batteries.
- Remove batteries from equipment if it is not to be used for an extended period of time unless it is for emergency purposes.
- Always select the correct size and type of battery most suitable for the intended use. Information provided with the equipment to assist correct battery selection should be retained for reference.
- Clean the battery contacts and also those of the equipment prior to battery installation.
- Ensure that the batteries are installed correctly with regard to polarity (+ and -).
- Remove exhausted batteries promptly.
- Do not dismantle batteries.
- Do not dispose of batteries in fire except under conditions of approved and controlled incineration.
- Batteries may be disposed of via communal refuse arrangements provided no local rules to the contrary exist.

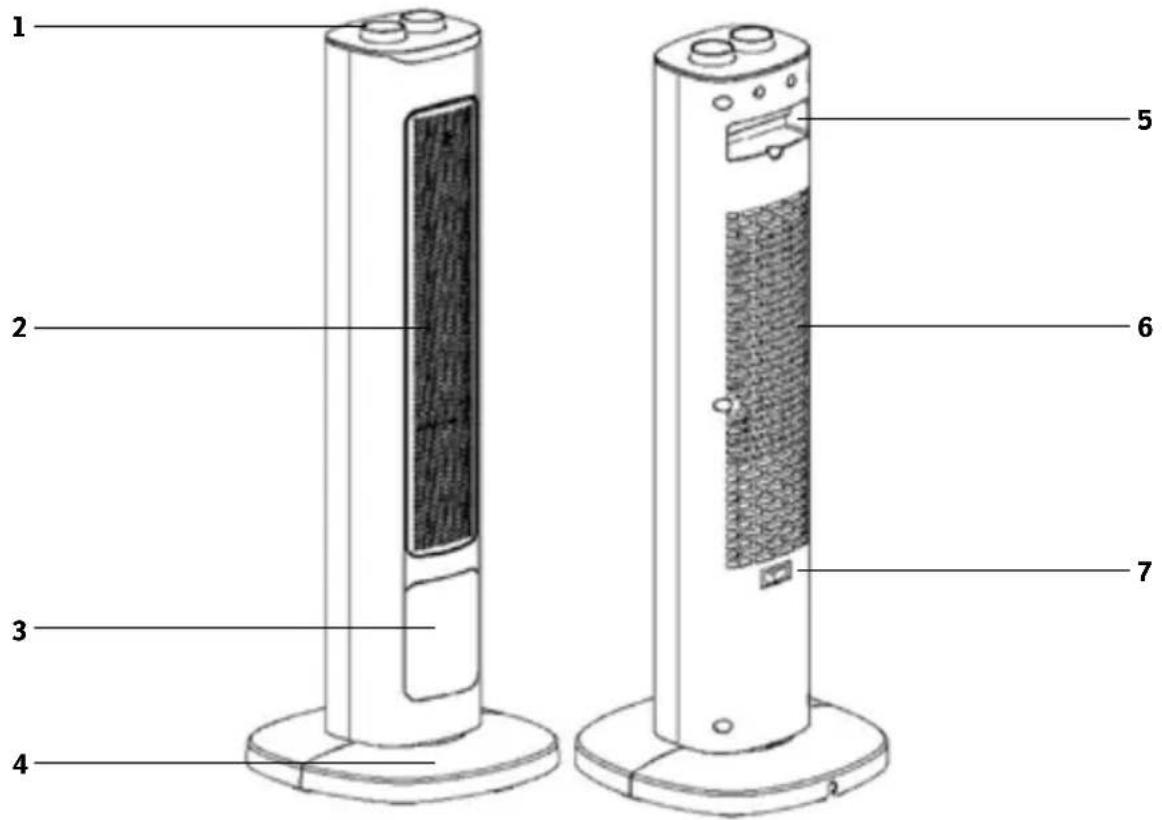

2 Part description
- Knob
- Air outlet
- Flame effect light
-
Base
-
Handle
- Air inlet
- Flame effect light Switch
EN
Modell....RHODOS
Spannung 220-240 V
Frequenz....50 Hz

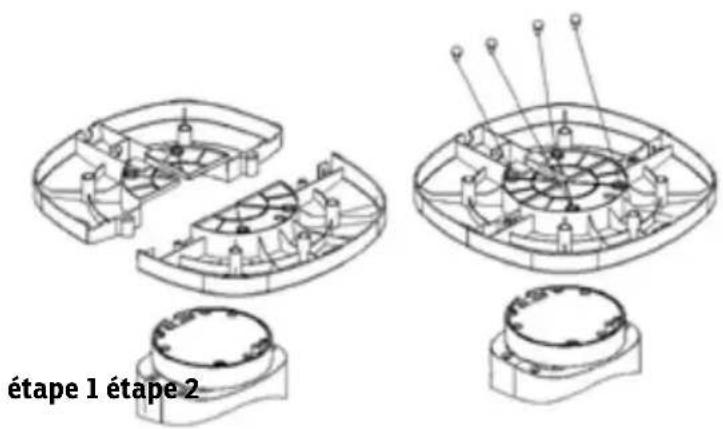

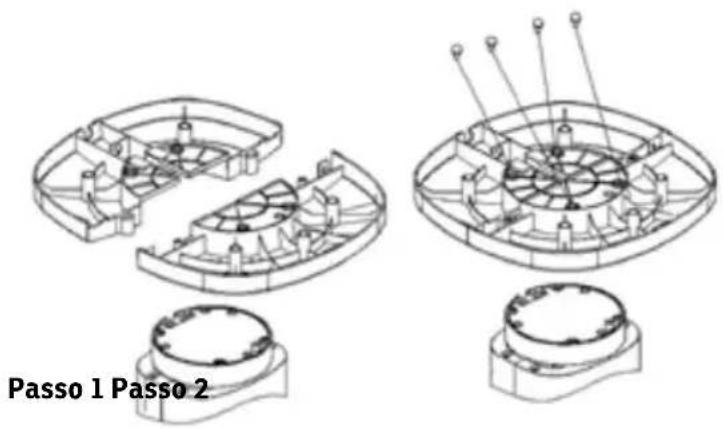

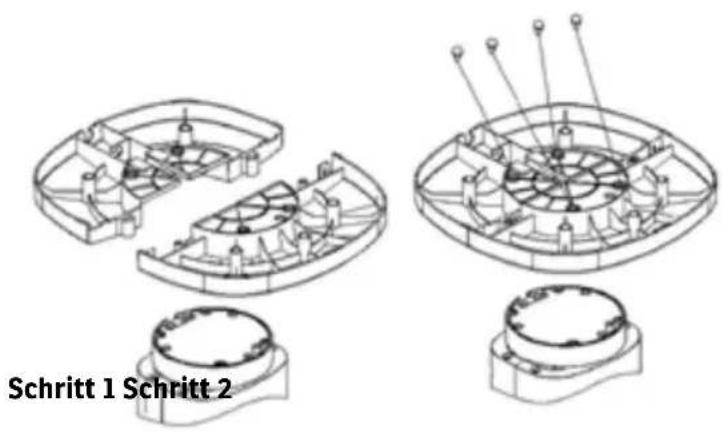

The base consists of two identical pieces. When using, please combine them in the correct order; and please keep the packaging materials properly for use in storage.
- First combine the front and rear 2 bases.
- Use 4 self-tapping screws to lock the body and the base with the assembled base.
5 Usage
- Connect the appliance to a socket with the rated power indicated on the rating plate.
- Place the heater on a stable ground and connect the power supply.

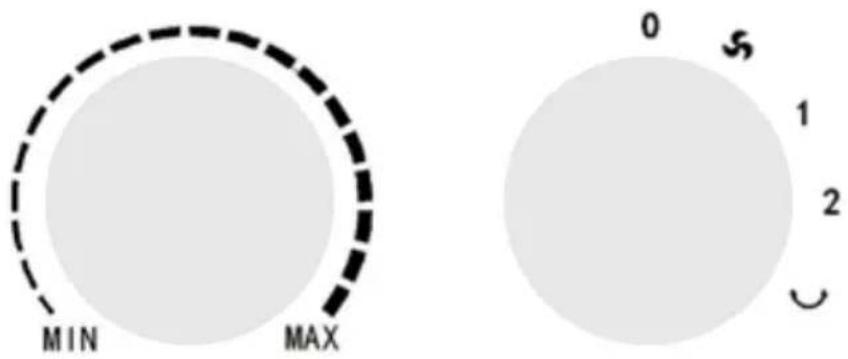

- Rotate the knob to select the heating model and temperature.
- Turn the flame effect switch on appliance back to use flame effect light.
- When want to turn off the appliance, rotate the knob to 0 state.
6 Cleaning and maintenance
Minor discoloration of the protective grating due to intensive operation is normal and does not constitute a defect.
EN
Ensure that the device is switched off before cleaning or maintaining it.
- Before maintaining, please pull out the plug, and make sure the heater has become cool.
- Please use a soft cloth to wipe dust off the surface of the heater. If the surface is too dirty, it is better to wipe it with water which is colder than 50^ C and mixed with a neutral detergent.
- Do not use gasoline, thinner or any other liquids which can easily damage the surface.
- Please let the heater cool and dry before packing it. Place it in a dry and ventilated place.
7 Warranty / Disposal / Technical change
EN
Warranty
The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.
Disposal
The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.
Technical changes
Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.
Please save the packaging materials of the unit.
CE Declaration of Conformity
This device complies with the following standards
LVD EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021
EN 60335-2-30:2009+A11:2012+A1:2020+A12:2020
EN 62233:2008
EMC EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019
ROHS 2015/863/EU
LVD 2014/35/EU
EMC 2014/30/EU
DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT
In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.
EN
The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.
DISPOSAL OF BATTERIES AND ACCUMULATORS
In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.
Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
