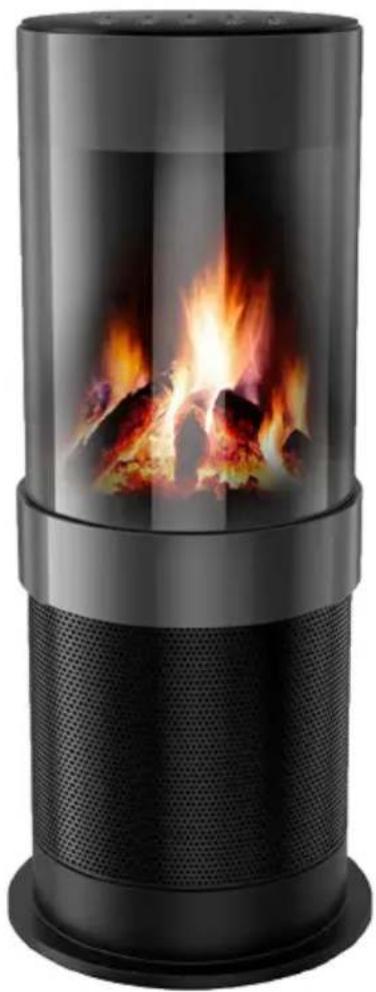

Modern portable gas stove with visible flames and smoke, mounted on a black cylindrical base (no text or symbols)

Festnetz 14 Cent/Minute

Modern portable gas stove with visible flames and smoke, mounted on a black perforated base (no text or symbols)

Article-nr.: 30302012

SOMMAIRE

Modifications techniques

Modern portable gas stove with visible flames and smoke, mounted on a black cylindrical base (no text or symbols)

Nr. articolo: 30302012

INDICE

Modern portable gas stove with visible flames and smoke, mounted on a black perforated base (no text or symbols)

Landline 14 Cent/Minute

Mobiel network 42 Cent/Minute

ECOMERO

CERAMIC HEATER

User's manual

Modern portable gas stove with visible flames and smoke, mounted on a black cylindrical base (no text or symbols)

1 Safety instructions ....39
2 Properties....41
3 Usage 41
4 About moving....42
5 Cleaning and maintenance....42
6 Warranty / disposal / technical change ....43

ERP 46

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• Read all instructions before using the heater.
• This product is only suitable for well insulated spaces or occasional use.
• Strictly prohibit to plug-in or off the plug instead of turn on or off the power switch.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION —Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.

EN

- Use this heater on a horizontal and stable surface. - If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

- Strictly prohibit use the same socket-outlet with other big power appliance.

- Please put off the plug when nobody is nearby.

- Strictly prohibit use the heater in where be easy shocked or be toppled.

- If there is something wrong with the heater, please turn off the machine and put off the plug immediately and send to service agent.

- Warning: In order to avoid overheating, do not cover the heater.

- The heater must not be located immediately below a socket-outlet.

- The used heating wire treated by a special way, it has a long using life, please do not use any other heating wire instead of it.

- Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains, etc. At least 100cm away from the heater.

- Keep the air inlet and outlet free from objects: at least 1 m in front and 50 cm behind the heater.

- Only connect the fan heater to a single-phase socket with a main voltage as specified on the rating plate.

- Do not leave your home while the appliance is in function: ensure that the switch is in OFF(0) position and the thermostat is in minimum position. Always unplug the appliance.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

- This appliance may be operated under both 50Hz and 60Hz without any adjustment.

- KEEP OUT OF REACH OF CHILDREN. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

2 Properties

Modell......ECOMERO

Spannung 220-240 V

Frequenz....50 Hz

• When you press ON/OFF the machine will start in low gear
• When you press POWER you can select two gears, low and high
• When you press OSC the machine will run osc function.
• When you press TEMP, it will have 3 temperature level for chose: 18 degree, 23 degree, 28 degree.
• When the electric heater reaches the setting temperature, the heating element will power off, oscillation function will turn off, fan will delay for 30 seconds before stopping.
  • LIGHT: three levels of flame brightness: low, medium, High.
  • Automatic shutdown function: The machine will automatically shunt down after working continually for 4 hours. In heating mode, after turn off, the fan run for another 30 seconds to reduce the temperature of the internal part of the product.

About the memory function

Memory function: press the shutdown button to turn on the heater, and all function have memory function except for the temp function. when unplug and power off, reset all the function and the default state is restored.

4 About moving

Stop operation and unplug the AC adapter from the outlet before moving the unit.

• Be sure to hold the handle and stand and move the product by lifting it.
• Be careful not to drag it.
• Be careful not to give a strong impact.Do not drag, hook, or step on the AC adapter cord.Please be careful.
• If the main unit falls on your hands or feet, you may get injured, or if you drop it on the floor, it may cause damage.

5 Cleaning and maintenance

Minor discoloration of the protective grating due to intensive operation is normal and does not constitute a defect.

Ensure that the device is switched off before cleaning or maintaining it.

• Before maintaining, please pull out the plug, and make sure the heater has become cool.
• Please use a soft cloth to wipe dust off the surface of the heater. If the surface is too dirty, it is better to wipe it with water which is colder than 50^ C and mixed with a neutral detergent.
• Do not use gasoline, thinner or any other liquids which can easily damage the surface.
• Please let the heater cool and dry before packing it. Place it in a dry and ventilated place.
• About the filter disassemble Remove the buckle, remove the cover.

6 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

LVD EN 60335-2-30:2009:A11:A1:A12

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Notizen | Notes | Nota

EN

Information requirement for the electric local space heaters (Model identifier: ECOMERO)
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8 kW		manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1.0 kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum contin-uous heat output	P_max,c	1.8 kW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	0.000 kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0.000 kW		single stage heat output and no room temperature control	No
In standby mode el	SB	0.00041 kW		Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	Firma Armin Schmid Olensbachstrasse 9-15 | 9631 Ulisbach | Switzerland
