Safety warnings1

Warning1.1

Warning sign depicting a flame symbol with hazard symbol and safety requirement

Warning: risk of fire/flammable materials

THIS appliance is intended to be used in household.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

CHILDREN should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

THE necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

FOR EU standard: This appliance can be used by children aged from 8 years and above and

persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  – Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. (See chapter 2.4 for lamp replacement)

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance

WARNING: Connect to potable water supply only. (Suitable for ice making machine)

TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

1.2 Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Electrical safety instructions showing installation of a switch and plug with checkmarks and no symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and equipment, no text or symbols present

Simple line drawing of a box with a small object on top and warning symbols (no text or labels)

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacturer-authorized maintenance stations.

- The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances on the top of the freezer, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pan.

1.4 Related warnings for use

Diagram showing a box with a magnified view and a prohibition symbol, accompanied by a crossed-out cross and a pencil.

• Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

• The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when open the freezer door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.

Illustration of a child climbing inside a cube with a falling object, marked with an exclamation mark (no text or symbols on the diagram itself)

• Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer.
• Do not spray or rinse the freezer with water, or place it in a damp, splash-prone position, and do not fill it with water. To avoid affecting the electrical insulation performance of the freezer, which in serious cases may lead to accidents such as electric shock and fire.

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

- Do not place heavy objects on the top of the freezer considering that objects may fall when open the door, and accidental injuries might be caused.

1.5 Warnings related to placing items

Illustration showing hands holding a tray with labeled items including a bottle, cheese, and a cross symbol

• Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.
• Do not place flammable items near the freezer to avoid fires.

Bread Drift Black milk

- This product is household freezer and shall be only suitable for the storage of foods. According to national standards, household freezer shall not be used for other purposes, such as storage of blood, drugs or biological products.

Diagram showing a hand holding a beer mug with stacked cans, indicating a warning or warning about the beer.

- Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

1.6 Warnings for energy

1) Freezer might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the freezer appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings related to disposal

The freezer's refrigerant and cyclopentane foam materials are combustible materials and discarded freezers should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 The correct usage of freezer

2.1 Names of each component

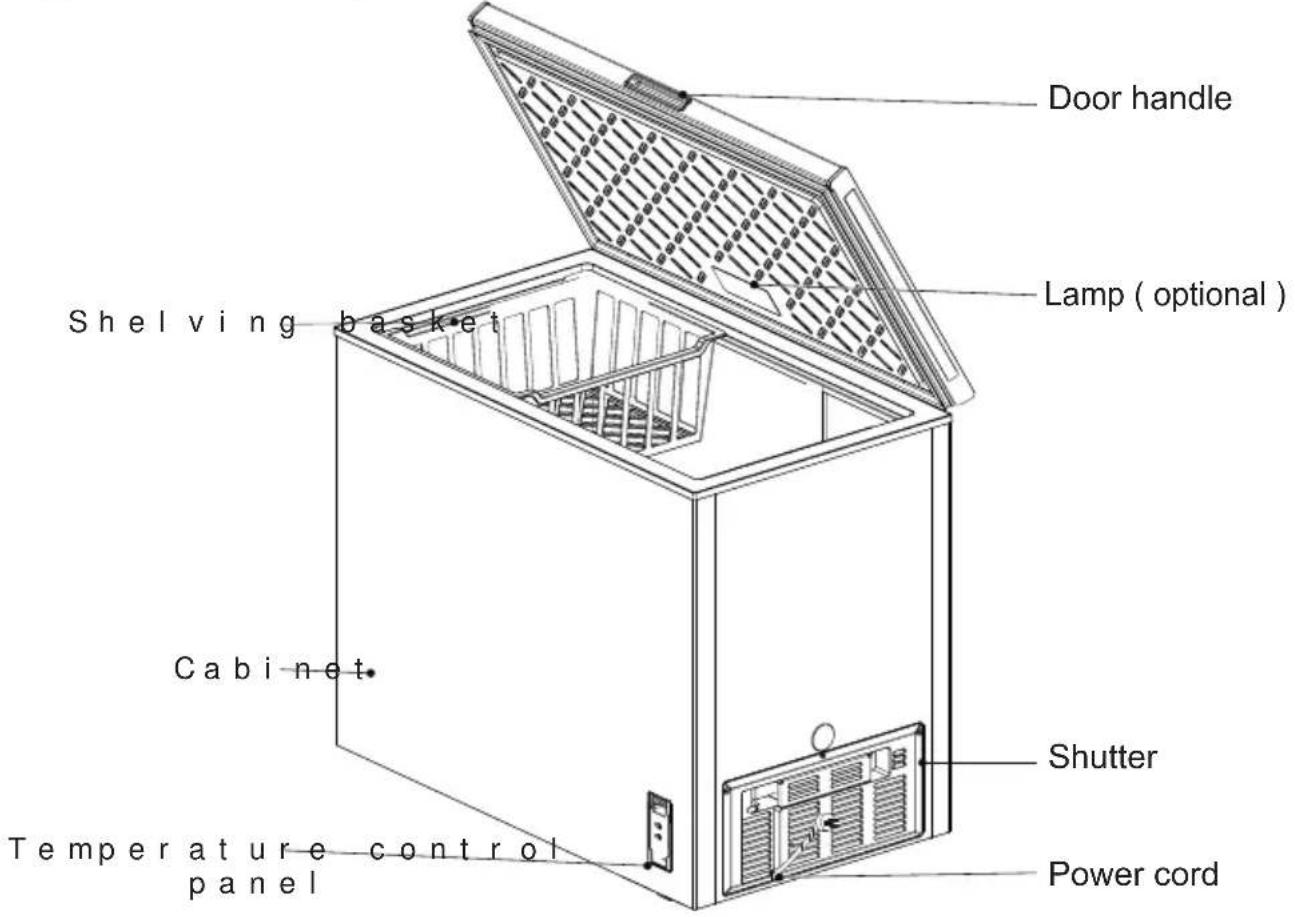

Door handle Lamp ( optional ) Shelving basket Cabinet Shutter Temperature control panel Power cord

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• The freezer can maintain the freshness of food for a long time at low temperatures. It is mainly used for storing frozen food and making ice cubes.
• The freezer is suitable for storing meat, fish, shrimp, and pastries that are not to be consumed in the short term. It is not suitable for storing fluids in bottled or sealed containers, such as bottled beer or beverages.
• Please note that the food should be consumed by its expiration date.
• The freezing speed of the product depends on the amount of food stored and the ambient temperature. If too much food at room temperature is placed at once, it is recommended to set the temperature controller to the maximum level and operate it for 24 hours in advance or use ice cubes for cooling. Moreover, large pieces of food should be divided into small pieces and stored separately to ensure proper freezing. Otherwise, certain parts of large or excessive food may not freeze properly, leading to potential spoilage.

Reminder:

Due to the wear and tear of the hinge during long-term opening and closing, the hinge's service life could be affected and noise may occur. It is recommended that users regularly apply lubricating oil to the hinges for maintenance, which can effectively eliminate noise and extend the service life of the hinges.

2.2 Temperature control panel

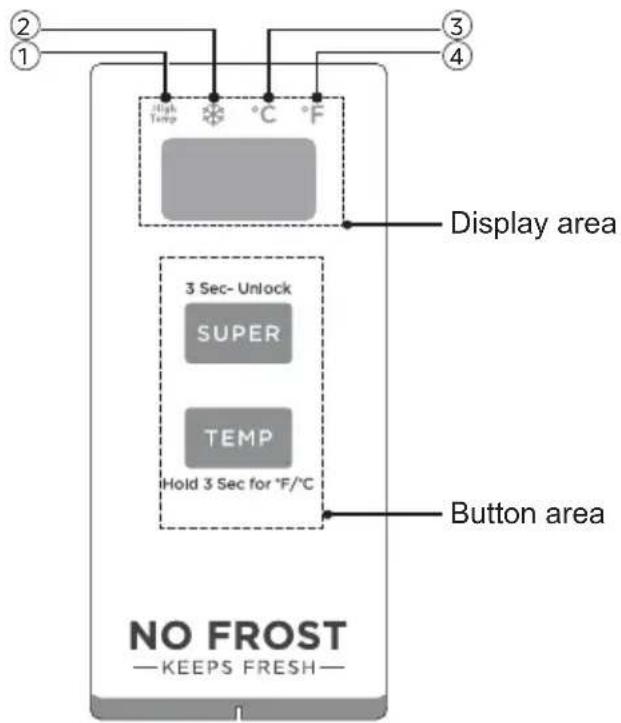

NO FROST —KEEPS FRESH— ① ② ③ ④ High Temp °C °F Display area 3 Sec- Unlock SUPER TEMP Hold 3 Sec for °F/°C Button area

	Display
1	The LED indicator shows the high temperature alarm
2	The LED indicator shows the super-freeze function
3	The LED indicator shows the temperature in Celsius (°C)
4	The LED indicator shows the temperature in Fahrenheit (°F)

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.3 How to instructions

▶ Display Control

• When powered on, the display window lights up for 3 seconds, then enters normal operation display, showing -20^ for the first power-on;
• Normal Operation Display: When there are no faults, it displays the set temperature; when there are faults, it displays the fault code.

▶Unlock/Lock Settings

• Press the unlock key "SUPER" for 3 seconds to u n lock, the display area will flash, then press "again to enter Quick Freeze Mode;
• After unlocking, press "TEMP" to adjust the temperature;
• When the display area is flashing, press " SUPER" for 3 seconds or do not operate for 30 seconds to enter the locked state.

Note: All button operations listed below must be performed in an unlocked state. If operated in a locked state, the display will flash rapidly for a few seconds, and the operation will be invalid.

▶ Sleep Function

- Display area sleep function: The sleep function is turned on by default after power-on, and the sleep state can be switched using a combination of buttons:

Press "SUPER" and "for 5 seconds, the temperature display area shows" indicating that the sleep function is turned on.

Press "SUPER TEMP" and "for 5 seconds, the temperature display area shows "O F " w function is turned off.

- Operation control: When the sleep function is turned on, after the settings are completed and locked, the display area will turn off after 30 seconds; when the sleep function is turned off, after setting the end and locking, the display area will not turn off and will remain lit.

Fahrenheit Celsius conversion

- Press "TEMP" for 3 seconds to convert Fahrenheit and Celsius. When the Celsius temperature is displayed, the Celsius temperature indicator in the display area is on; When the Fahrenheit temperature is displayed, the Fahrenheit temperature indicator in the display area is on.

▶Refrigeration/Freezing Temperature Setting

- Temperature setting ( if set to -30^ / -22^ , recommended temperature environment below 25^ / 77^ ):

Press the "TEMP" button, the display window will display the freezing temperature, and the freezing temperature will be lowered by 1°C/1°F for each time the "button is pressed 1 time; The display window shows the refrigeration temperature, and the refrigeration temperature is lowered by 1°C/1°F

for each press of the "TLMP" button.

Celsius temperature setting range:

Fahrenheit Temperature Setting Range:

▶Quick Freeze Function

- Enter Quick Freeze:

Press the "SUPER" button, the quick-freezing indicator light " " will be on; When the Celsius temperature is set, the temperature display area displays "-30", the compressor runs continuously and the Celsius temperature indicator " °C " is on; When the temperature is set to Fahrenheit, the temperature display area displays "-22", the compressor runs continuously and the Fahrenheit temperature indicator " °F " is on.

- Exit Quick Freeze:

① Power off and then power on again, the Quick Freeze mode has a memory function;
② If the quick-freezing mode runs continuously for more than 40 hours, it will automatically exit the quick-freezing mode. The operating temperature after withdrawal is:
a. the effective temperature set before the quick freezing is ≥-11 ^/ 1 2 ^ , then the effective temperature after the quick freezing is withdrawn will be run according to the default mode of -20 ^/ - 4 ^ ,
b. If the temperature set before quick-freezing is <-11^/ 1 2 °F, the quick-freezing will be withdrawn and run according to the set temperature before quick-freezing;

③ In Quick Freeze mode, press "SUPER" again to exit Quick Freeze mode.

▶ Power Off Memory

• After power is restored, the freezer operates in the mode it was in before the power was cut.

▶ Fault Indication

- When the display window shows the following prompts, it indicates that the freezer has malfunctioned. In some fault conditions, the freezer can still cool, but you should contact a repair service as soon as possible to ensure optimal operation.

Fault Code	Fault Code	Fault Description	Fault Description
E2	Freezer Temperature Sensor Fault	E6	Communication Fault
E5	Defrost Sensor Fault	E7	Ambient Temperature Sensor Fault
L3 L4	Freezer fan malfunction		Abnormal speed malfunction of the freezer fan

Note:

• The freezing speed of the product is related to the amount of food stored and the ambient temperature. If a large amount of food at room temperature is added at once, the freezer should be set to the maximum setting 24 hours in advance, and large pieces of food should be divided into smaller portions for storage; otherwise, large or excessive amounts of food may not freeze properly, leading to spoilage.
• Affected by the change of ambient temperature, the amount of food stored and the number of times the door is opened and closed, there is a certain deviation between the actual temperature in the box and the set temperature.
• When fully loaded, to achieve better cooling effects in the bottom area, the product is equipped with an internal refrigeration system at the bottom, achieving a dual-circulation cooling effect for rapid cooling. In conditions of high temperature and humidity, or frequent door openings, a thin layer of white crystals may form on the surface of this area, but this does not affect the normal cooling performance of the product, and can be cleaned as needed.

2.4 Placement

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

● Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

Simple line drawing of a box and a door (no text or symbols)

- The freezer should be placed on a flat surface and kept in a well-ventilated environment. - Do not place it on a mat, wooden floor or carpet, as this may cause condensation on the bottom.

- Do not move or drag the freezer around randomly, as this may damage the floor.

Cartoon illustration of a sad box character with a potted plant nearby, emitting sun and smoke (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

40.5 20.5

●The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate heat dissipation.

2.5 Changing the light (optional)

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

(Above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.6 Start to use

Simple line drawing of a rectangular box with a smiley face and a small plug attached to the side (no text or symbols)

• After transportation, please let the freezer stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the freezer.
• The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

(Above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

2.7 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Maintenance of freezer

3.1 Cleaning

- Please clean the dust behind and around the freezer on time to improve heat dissipation and save energy.

- Regularly inspect the door seal to ensure it is clean and free of debris. Clean the door seal with a soft cloth dipped in soapy water or diluted cleaning agent.

- The interior of the freezer should be regularly cleaned to avoid odor.

- Before cleaning the interior of the freezer, please turn the power off, take out all the food, hanging baskets and containers.

- Please use a soft cloth or sponge to clean the inner liner of the freezer. You can use two tablespoons of baking soda and one quart of warm water solution to clean it first, then clean it with clean water and wipe it clean. After cleaning, open the door and let it dry naturally before connecting to the power supply.

- For areas inside the freezer that are not easy to clean (e.g. gaps or corners), it is recommended to use soft cloths, soft brushes, etc. and some necessary aids (e.g. thin sticks, etc.) to carry out regular cleaning to ensure that there are no accumulation of pollutants or bacteria.

- Do not use soaps, detergents, spray cleaners, etc. to clean the liner as these may create odors or contamination.

- Clean the hanging basket with a soft cloth dipped in soapy water or diluted cleaning agent, and then dry it with a soft cloth or air dry naturally.

- Wipe the outside surface of the freezer with a soft cloth moistened with soapy water, detergent, etc., and then dry with a soft cloth.

- Do not use hard hairbrush, steel wire ball, steel wire brush, abrasive (such as toothpaste), organic solvent (such as alcohol, acetone, isoamyl acetate, etc.), boiling water, or acidic or alkaline substances during cleaning, as it may damage the surface and inner liner of the freezer. Organic solvents such as boiling water and benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuit or affecting electrical insulation performance after soaking.

When defrosting and cleaning the freezer, unplug the power supply first.

3.2 Defrost

- The freezer do not need to be manually defrosted.

3.3 When out of use

• In case of power failure: Even in the summer, food can still be stored for several hours; During this period, the number of opening door should be reduced, and fresh food should not be put in.
• When not in use for a long period of time: unplug the power supply, then clean the freezer and keep the freezer door open to prevent the freezer from generating odors.
• When moving the freezer: Do not invert, transport horizontally, or vibrate the freezer during transportation. The inclination angle during transportation should not exceed 45^ . Do not grab the door or hinge while moving.

Once the freezer is activated, it is best to use it continuously, and under normal circumstances, do not stop using the freezer, so as not to affect the service life.

Illustration of various alcohol and beverage items including bottles, spray bottles, and a kettle with a stop sign (no text or symbols on objects)

4 Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Not work	Whether the freezer is plugged and connected to power; Low voltage; Whether temperature control knob is in the work area; Failure power or tripping circuit.
Odor	Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of freezer door.
Light not work	Whether the freezer is connected to power, whether the light is damaged.
The freezer door can not be properly closed	The freezer door is stuck by food packages; Too much food; Unbalanced freezer.
Loud noises	Whether the floor is flat, whether the placement of freezer is stable; Whether the freezer accessories are properly placed.
Transient difficulty in door opening	After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in transient difficulty in door opening. This is a normal physical phenomenon.
Over heat on sidewall Surface condensation	The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Airflow sound Buzz Clatter	Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz will be generated by running compressor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

Table 1 Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard

- The ordered parts in the following table can be acquired from channel_:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

● The shortest period for providing after-sales spare parts is 15 working days.
- The model information and model identification in the product database can be obtained by scanning the web link on the QR code (if any) on the product energy efficiency label.

. aspes

Manual de Usuario

Congelador

ACHH2500ENFDC

Warning sign depicting a flame symbol in yellow and black on a white background

Electrical safety symbols showing hand holding a switch, with checkmarks and crossed-out electrical meters below

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a desk, no text or symbols present

Simple line drawing of a box with a small object on top and a warning triangle below (no text or symbols)

Simple line drawing of a box with an arrow and a pencil, no text or symbols present

Simple line drawing of a box with a star-shaped label and an exclamation mark (no text or symbols on the box itself)

Simple line drawing of a child climbing inside a box with a sad face, no text or symbols present

Cartoon illustration of a sad document character with a headboard and warning symbols (no text or labels)

Illustration showing a hand holding a tray with food items including a bottle, cheese, and milk, with an '×' symbol and a warning icon.

Bread Dress Baked product !

Diagram showing a hand holding beer cups with stacked cans, indicating a warning or warning about the use of beer.

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

2.1 Names of each component Door handle Lamp ( optional ) Shelving basket Cabinet Shutter Temperature control panel Power cord

Illustration of a person lifting a large box next to a smaller box (no text or symbols)

Cartoon illustration of a sad cube character with a sun and water droplet nearby (no text or symbols)

Simple line drawing of a box next to an open door (no text or symbols)

Simple line drawing of a box with a smiling face and a small plug, no text or symbols present.

2.6 Inicio de uso

Illustration showing various chemical and beverage items including gas, alcohol, and a kettle with a prohibition symbol

Warning sign depicting a flame symbol in yellow and black on white background

Illustration of three electrical switch symbols (no text or labels)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a desk, no text or symbols present

Simple line drawing of a box with a small object on top and a warning triangle below (no text or symbols)

Simple line drawing of a box with an arrow and a pencil, no text or symbols present

Simple line drawing of a box with a star-shaped label and an exclamation mark (no text or symbols on the box itself)

Simple line drawing of a child climbing inside a box with a sad face, no text or symbols present

Cartoon illustration of a sad document character with a frowning expression, surrounded by warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a container, and a cross symbol, alongside an exclamation mark.

Bread Dress Baked product !

Diagram showing a hand holding beer cups with stacked cans, indicating a warning or warning about the process.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Cartoon illustration of a sad cube character with a sun and water droplet beside it, next to a potted plant (no text or symbols)

Simple line drawing of a box next to an open door (no text or symbols)

Simple line drawing of a box with a smiling face and a small plug, no text or symbols present.

2.6 Início de uso

Warning sign depicting a flame symbol with hazard symbol and safety requirement

Electrical installation diagram showing three steps: switch, power plug, and socket with prohibition symbols

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room with a monitor and control panel (no text or symbols)

Diagram of a box with a labeled component and warning symbol, including an exclamation mark.

Diagram showing a box with a curved arrow and a magnified view of a pencil, alongside a prohibition symbol.

Simple line drawing of a box with a starburst and an exclamation mark (no text or symbols)

Illustration of a child climbing inside a cube with a broken object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, carrying a large stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a block, alongside a warning symbol.

Reduced Dried Dried Dried

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box and a door with a handle, no text or symbols present

Cartoon illustration of a sad box with a frowning face and a potted plant, surrounded by sun and smoke (no text or symbols)

40mm 20mm

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

Illustration of various household items including a gas stove, alcohol spray bottle, and a kettle with a smoke (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol and safety requirement

Electrical installation diagram showing hand holding socket, switch, and bulb with checkmark and no symbol indicating disassembly or disassembly.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room with a monitor and a door, no text or symbols present

Diagram of a box with a labeled component and warning symbol, including an exclamation mark.

Diagram showing a box with a curved arrow and a magnified view of a pencil, alongside a prohibition symbol.

Simple line drawing of a box with a starburst and an exclamation mark (no text or symbols)

Illustration of a child climbing inside a cube with a broken object, marked with an exclamation mark (no text or symbols on the diagram itself)

Cartoon character with a sad expression, carrying a large stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross, and food items including cheese and milk, with an exclamation mark and a warning symbol.

Reduced Dried Reduced mixed !

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box and a door with labeled parts (no text or symbols)

Cartoon illustration of a sad box character with sun and potted plant nearby (no text or symbols)

45mm 25mm

Simple line drawing of a rectangular box with a smiley face and a small plug, no text or symbols present.

Illustration showing various chemical products including gas, alcohol, and a kettle with a prohibition symbol
