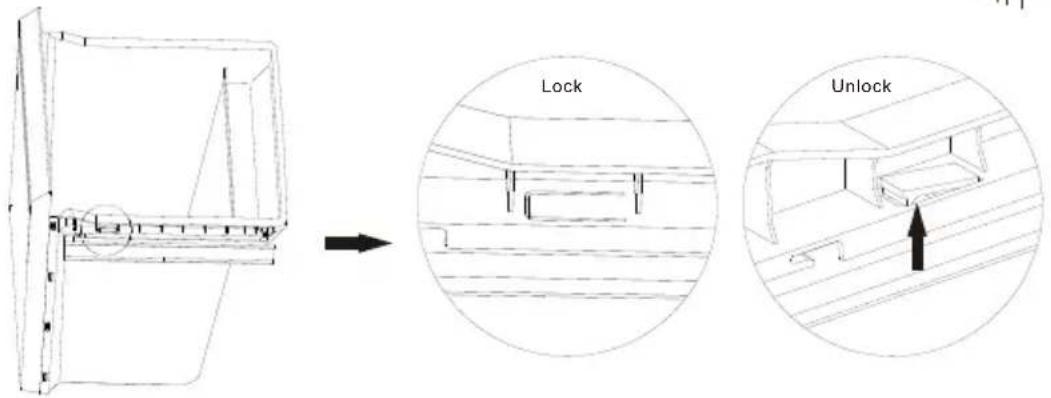

Technical diagram illustrating lock and unlock mechanism of a structural component, with labeled parts and directional arrows.

Consejos útiles

Imported by B73737553

Total No-Frost Freezer

ACV185602ENFD

ACV185602ENFDX

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

Safety information

CE

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out. ^1)

- Store pre-packed frozen food in accordance with the frozen foodmanufacture8s ^1) instructions.

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)

- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use aplastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

Safety information

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliancemarked by the symbol ⚙ a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

This refrigerating appliance is only intended for domestic use.

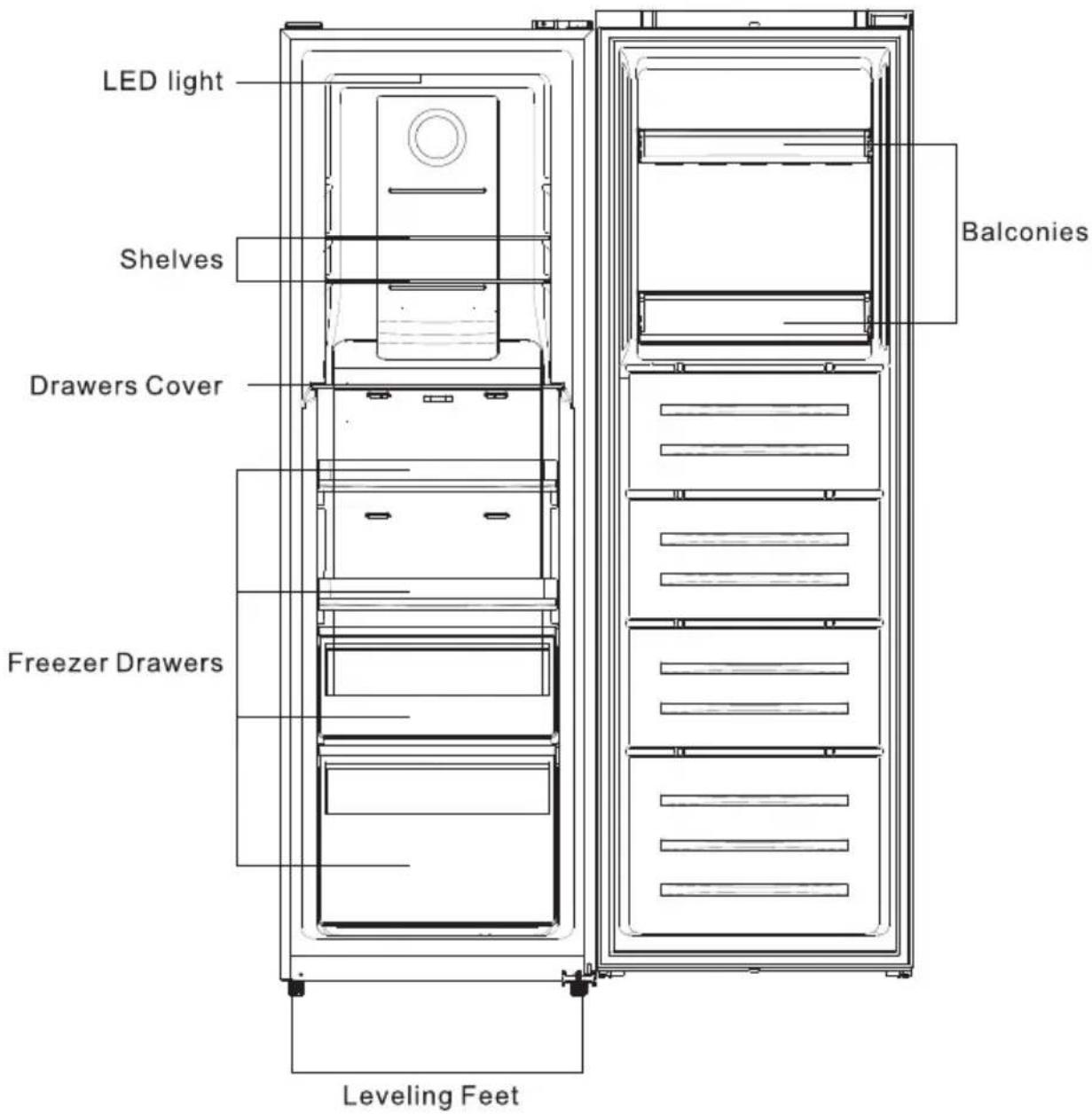

LED light Shelves Drawers Cover Freezer Drawers Balconies Leveling Feet

Note: Above picture is for reference only. Real appliance probably is different.

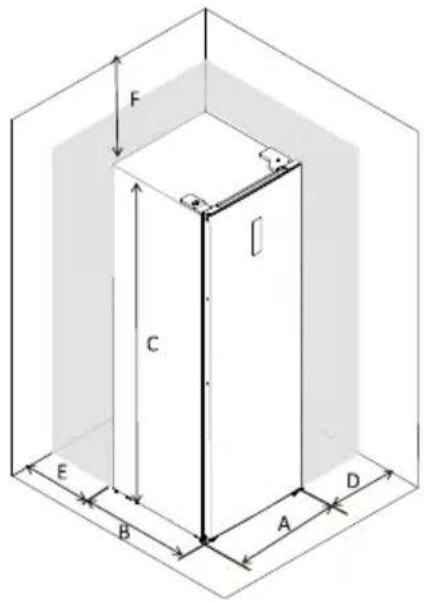

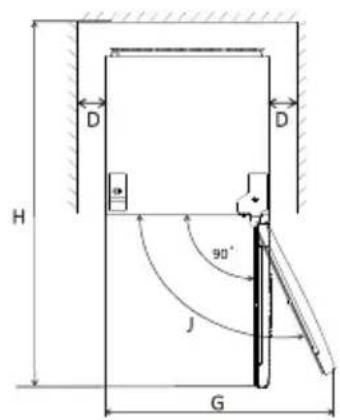

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;

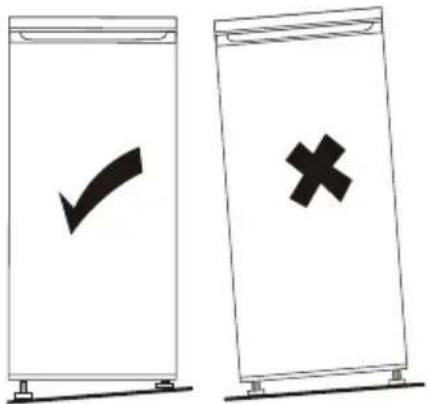

• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. 8his will help reduce power consumption and keep your energy bills lower.
• It is advisable to keep at least 10mm gap at two sides.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

- extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C;

- temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C;

- subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C;

- tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C;

Location

8he appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. 8o ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. 8he appliance must be earthed. 8he power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. 8he manufacturer declines all responsibility if the above safety precautions are not observed. 8his appliance complies with the E.E.C. Directives.

Installation

Door Reversibility

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag.

Pure technical line drawing of a vertical cylindrical component with mounting flanges (no text or symbols)

Easy open handle ×1

Handle Cover ×2 Screw ×2 Left Aid-Closer ×1 Left Top Hinge Cover ×1

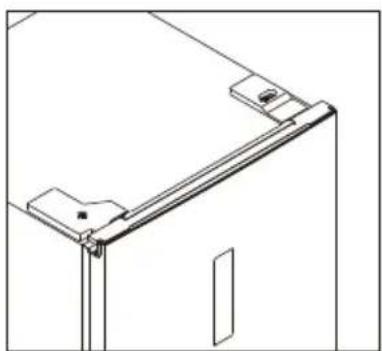

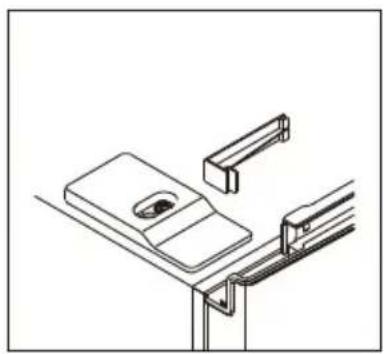

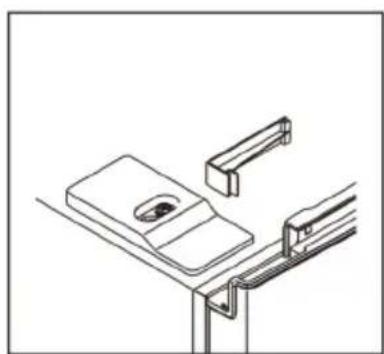

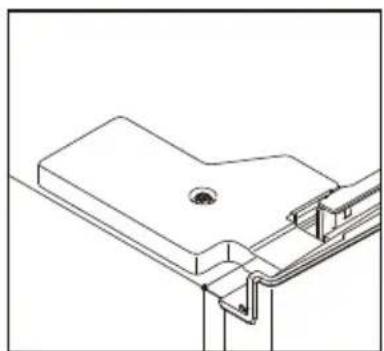

1. Remove upper wire box covers.

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

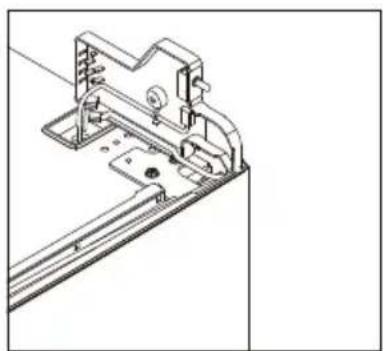

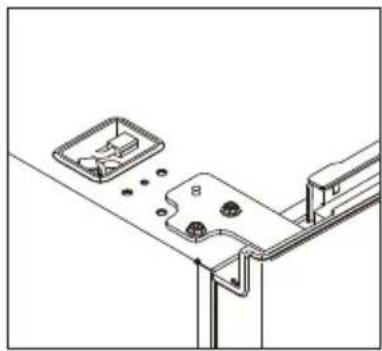

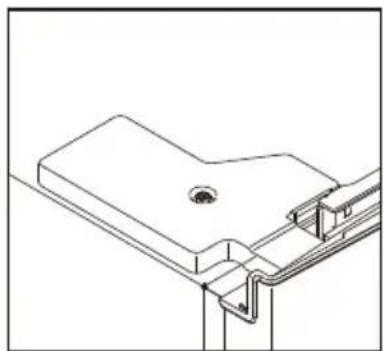

1. Unscrew right top hinge cover, and disconnect connectors of door switch and display.

Technical line drawing of a mechanical assembly with a vertical rod and bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

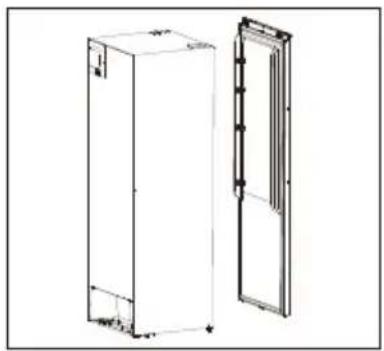

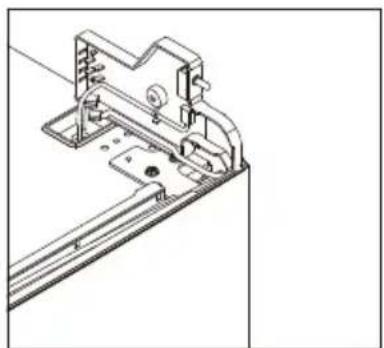

1. Unscrew and remove the top hinge, and then remove the door.

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Technical line drawing of a two-story refrigerator with a door open, showing front and side views (no text or symbols)

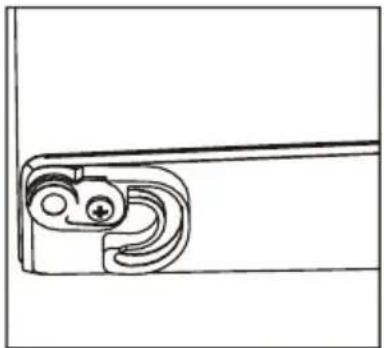

1. Remove the right aid-closer, and take out left aid-closer from accessories bag and install it at left side.

Simple line drawing of a door handle with a curved lock and plus button (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

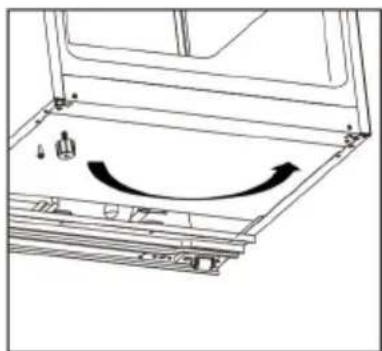

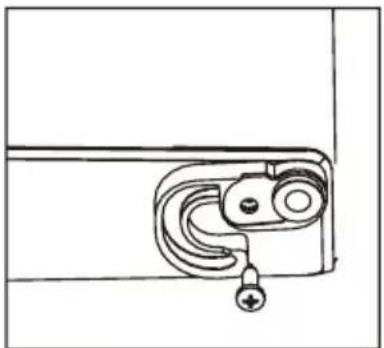

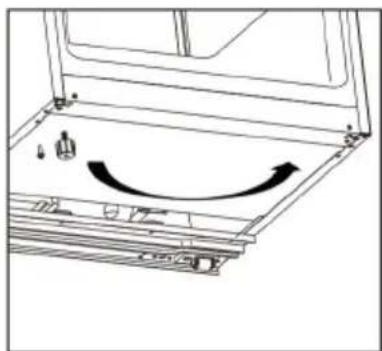

1. Unscrew the bottom hinge, and remove the adjustable foot from the left side to the right side.

Technical line drawing of a mechanical bracket with mounting holes and a separate bracket component (no text or symbols)

Diagram of a mechanical assembly with a curved arrow indicating motion or direction (no text or symbols present)

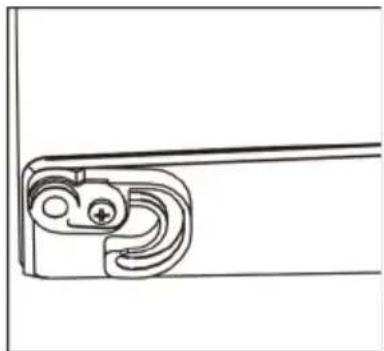

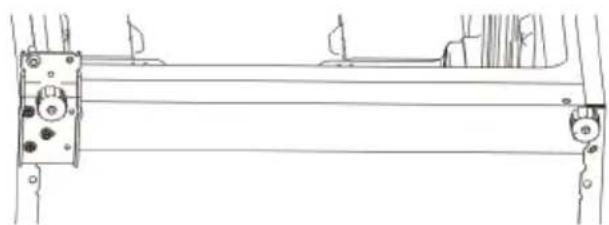

1. Unscrew and move the bottom hinge pin from the right side to the left side, then install the bottom hinge on the left side of the appliance.

Mechanical assembly diagram showing a shaft, bolts, and housing with an arrow indicating direction (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

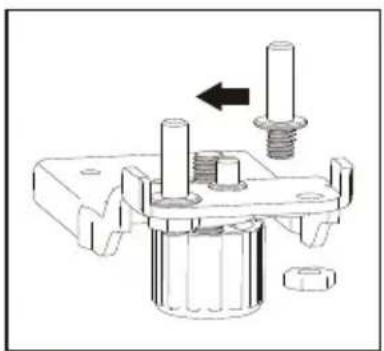

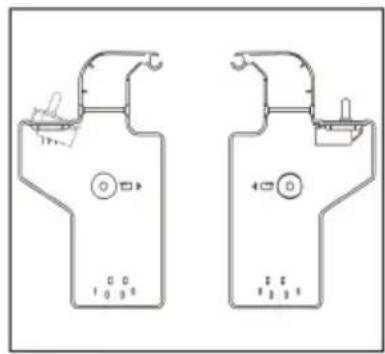

1. Unscrew and move the top hinge pin from bottom side to upper side. Remove door switch from right hinge cover and then install it in left hinge cover which is placed in accessory bag.

Technical line drawing of a mechanical bracket with two bolts and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing two identical mechanical or electrical component layouts with labeled ports and connections.

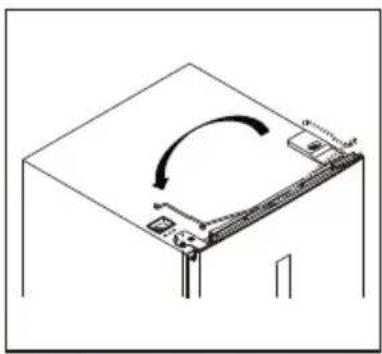

1. Unscrew and move the top decorative cover on the left side, and install it on the right side.

Simple line drawing of a mechanical bracket with a small inset detail (no text or symbols)

Line drawing of a window frame corner with a small object on top (no text or symbols)

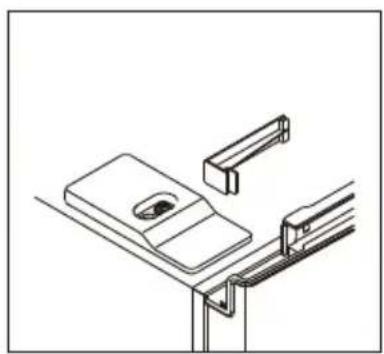

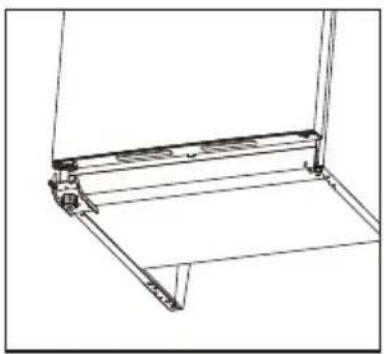

1. Install the door, and then move the connecting wires from right side to left side.

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Diagram of a computer monitor with an arrow indicating rotation or movement, no text or symbols present

Installation

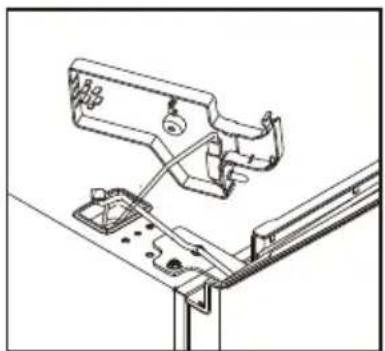

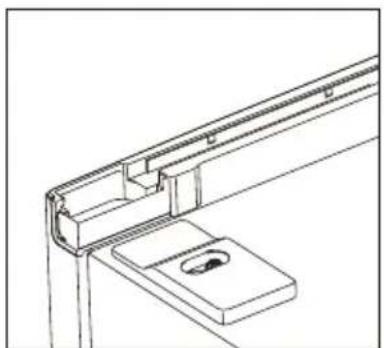

1. Install the top hinge to the left side, please slightly adjust the top hinge while installing to make sure gasket is well sealed.

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

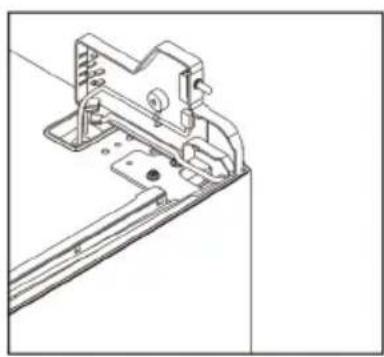

1. Connect connectors of door switch and display, and install the left top hinge cover.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

1. Install the upper wire box covers to the right side.

Technical line drawing of a metal bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Easy open handle installation

1. Remove the screw hole covers.

Simple circular diagram with two vertical lines and a central circular feature, labeled 'step 1' (no text or symbols within the diagram itself)

1. 8ake out the easy open handle which is placed in crisper drawer, and install it.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Install the easy open handle covers.

step 3 ② ①

Installation

Space Requirement

• Keep enough space of door open.
• It is advisable to keep at least 10mm gap at two sides.

F C E B A D

H D D 90° J G

A	600
B	660
C	1850
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Note: this refrigerating appliance is not intended to be used as a built-in appliance.

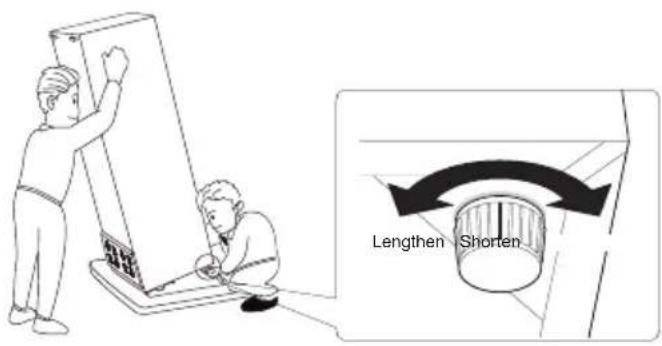

Levelling the unit

80 do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Lengthen Shorten

Diagram showing two labeled containers with checkmarks and a cross symbol, likely indicating approval or cancellation.

User interface

Using the Control Panel

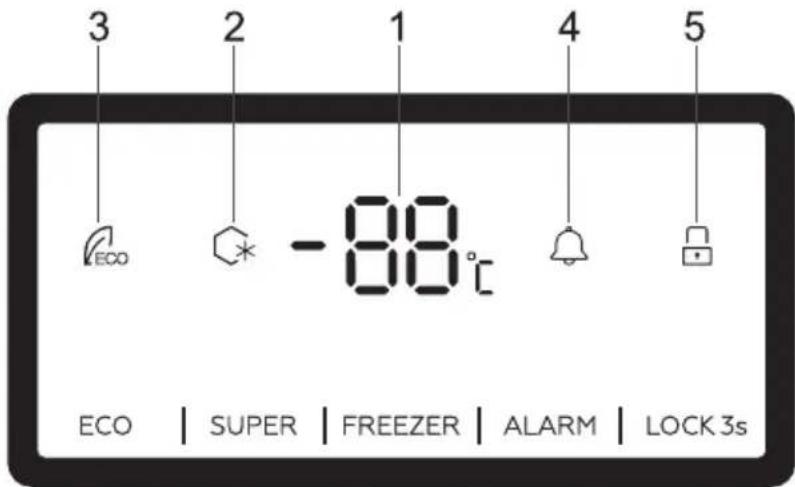

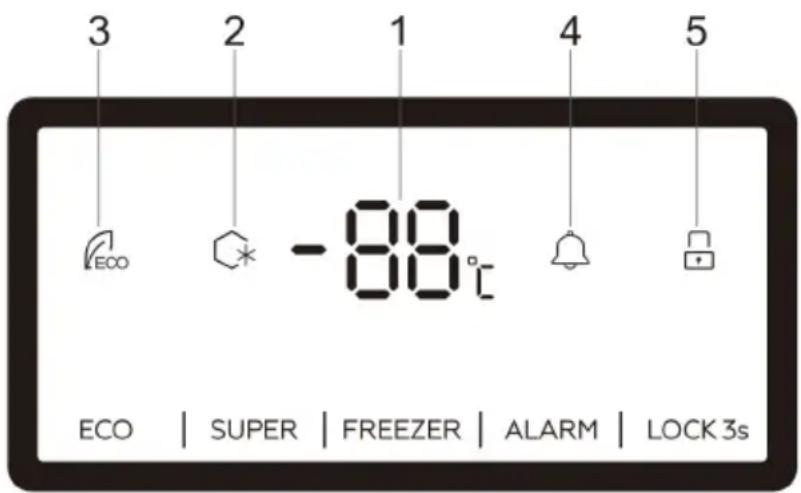

3 2 1 4 5 ECO | SUPER | FREEZER | ALARM | LOCK 3s

1.1 Operation Interface

ECO: Select and deselect ECO Mode

SUPER: Select and deselect super mode control

Temperature control of the appliance available only for user defined mode

FREEZER: Touching "FREEZER" button consecutively, the temperature will change in a circle from -14^ -22^ , stop touching and after 5 seconds flashing, temperature is set.

ALARM: Clear door opening alarm

LOCK: Touching "LOCK" button for 3 seconds to lock the control panel.

1.2 LED Display

1. Temperature display
2. Super mode
3. ECO mode
4. ALARM mode
5. LOCK

2.0 Illustrations of the buttons

The panel will be on when the door is opened or a certain button is pressed. After 1 minute without operations, the panel will be off and the appliance will be blocked automatically.

2.1 ECO: When ECO mode is selected, ECO mode icon will light on, and display window will show different preset temperatures.

2.2 SUPER:

• Press "SUPER" button to select super mode. After 5 seconds flashing of super mode icon, super mode is selected
• If the SUPER mode is turned on during the process of defrost, it will not enter into function until the defrost process is finished.
• If the last time of defrost has been operated more than 12 hours before, the process will be turned again at once, or the appliance will not defrost.
• When super mode is selected, super mode icon will light on, and display window will show -25°C.
• In super mode, touching "FREEZER" button, super mode icon will flash 3 times, but freezer temperature can not be changed.
• If the electricity is cut off during the SUPER mode, the mode will be off as well and the memory will be swiped out.
  ● Defrost mode will be ignored during the SUPER mode.
  How to quit SUPER mode:
• Press "SUPER" button to deselect Super mode,
• Or after 50 hours of super mode without any operation, the refrigerator will automatically stop it and enter to previous setting.
  ● The SUPER mode will last more than 50 hours.

2.3 High temperature alarm

If high internal temperature of the appliance is detected, high temperature alarm will sound, "ht" and detected temperature will display alternately on display window.

Short touching "ALARM" button to stop door opening alarm.

High temperature display will disappear automatically only if detected temperature goes back to normal.

2.4 Prolonged opened door alarm:

If the door keeps open for more than 90 seconds, the alarm will enter into function as below:

Five times of sounds with 1HZ frequency and then it will stop for 30 seconds and then continues until the door is closed.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Freezer drawer(s)/shelf

·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

Door balconies can be disassembled for cleaning. 80 make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

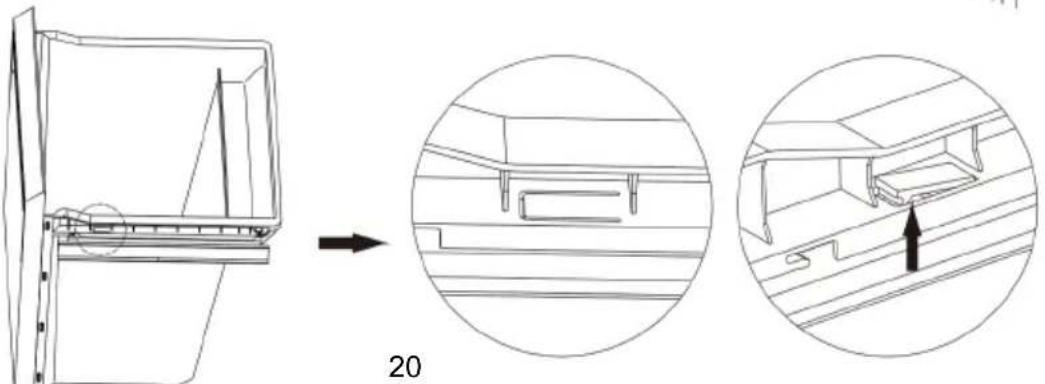

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Push up the elastic buckles on both sides of the bottom drawer.
3. Pull out the bottom drawer.

Line drawing of a hand holding a shelf with a wooden board (no text or symbols)

Diagram of a mechanical or electrical component with two upward arrows indicating direction (no text or symbols)

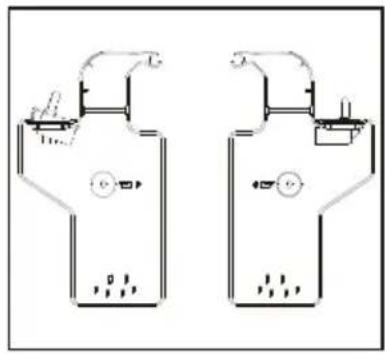

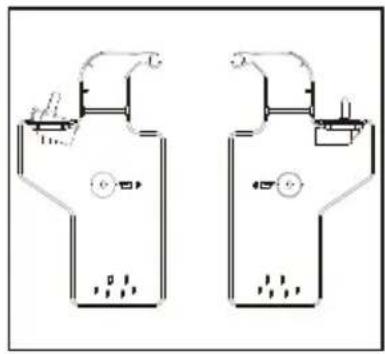

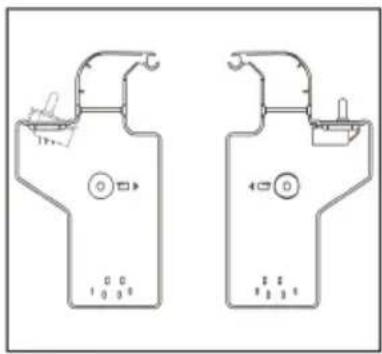

Lock Unlock

Helpful hints and tips

Hints for freezing

80 help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! 8he appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. 8he appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

- Do not allow such substances to come into contact the appliance parts.

- Do not use any abrasive cleaners

- Remove the food from the freezer. Store them in a cool place, well covered.

- Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

•After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cold or the appliance runs at SUPER mode.	Set temperature warmer.
The food is not frozen enough.	Temperature is not properly set.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Manual Leaflet

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours or

be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc.

Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

DISPOSAL OF PACKAGING AND PRODUCT.

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame work for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION: Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Imported by B73737553

MANUAL DE INSTRUÇÕES

CONGELADOR VERTICAL

ACV185602ENFD

ACV185602ENFDX

Imported by B73737553

ACV185602ENFD ACV185602ENFDX

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Line drawing of a mechanical assembly with a handle and base plate (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a bracket (no text or symbols)

Technical line drawing of two rectangular metal enclosure units, one upright and one tilted (no text or symbols)

Simple line drawing of a door handle with a clip and plus button (no text or symbols)

Pure mechanical component outline without any text, numbers, or symbols

Technical line drawing of a mechanical bracket and mounting bracket with four small components (no text or symbols)

Diagram of a mechanical assembly with a curved arrow indicating rotation or movement (no text or symbols present)

Mechanical assembly diagram showing a bolted joint with two threaded components and a central shaft (no text or labels)

Technical line drawing of a mechanical assembly with mounting brackets and joints (no text or symbols)

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing two identical mechanical or electrical component layouts with labeled terminals and connection points.

Simple line drawing of a mobile phone mounted on a wall corner, with no text or symbols present.

Line drawing of a corner-mounted device with a small inset component (no text or symbols)

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

Diagram of a computer monitor with an open lid and scroll wheel, showing no text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Diagram of a mechanical assembly with a labeled section 'Étape 2' and a central connector (no readable text or symbols)

H D D 90° J G

A	600
B	660
C	1850
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

3 2 1 4 5 ECO | SUPER | FREEZER | ALARM | LOCK 3s

Line drawing of a hand holding a shelf with a small object on top (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

Technical line drawing showing a structural component before and after assembly, with magnified views of internal components (no text or symbols)

Conseils utiles

Imported by B73737553

ACV185602ENFD ACV185602ENFDX

Technical line drawing of a vertical mechanical component with two protruding brackets (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a bracket (no text or symbols)

Technical line drawing of two rectangular metal enclosure units, one upright and one tilted (no text or symbols)

Simple line drawing of a door handle with a clip and plus button (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket with mounting holes and a separate mounting bracket (no text or symbols)

Diagram of a mechanical assembly with a curved arrow indicating rotation or movement (no text or symbols present)

Mechanical assembly diagram showing a bolted joint with two threaded pins and a central shaft (no text or labels)

Technical line drawing of a mechanical assembly with mounting brackets and joints (no text or symbols)

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing two identical mechanical or electrical component layouts with labeled ports and dimensions.

Simple line drawing of a mobile phone mounted on a wall corner, with no text or symbols present.

Line drawing of a window frame corner with a small object on the top edge (no text or symbols)

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

Diagram of a computer monitor with an open lid and scroll wheel, showing no text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

H D D 90° J G

A	600
B	660
C	1850
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Two identical diagrams showing a checkmark and a cross symbol inside vertical panels, likely indicating approval or rejection status.

3 2 1 4 5 ECO | SUPER | FREEZER | ALARM | LOCK 3s

Line drawing of a hand holding a shelf with a wooden board (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

Technical line drawing showing a structural component before and after assembly, with magnified views of internal components (no text or symbols)

Consigli utili

H D D 80° J G

A	600
B	660
C	1850
D	min=10
E	min=50
F	min=50
G	835
H	1323
J	115°

Two identical diagrams showing a checkmark and a cross symbol inside vertical panels, likely indicating approval or rejection status.

Uso quotidiano

Imported by B73737553

Imported by B73737553
