Product Type	American refrigerator with freezer and water and ice dispenser
Dimensions (W x D x H)	91 x 73 x 190 cm (approx.)
Power supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST (from +10°C to +38°C)
Refrigerant	R600a (freon-free)
Freezing capacity	13 kg/24h
Lighting	LED (professional replacement)
Water dispenser	Cold water, ice cubes, crushed ice
Ice maker	Automatic, removable reservoir
Water filter	Yes, replacement recommended every 6 months
Control panel	Touch screen with child lock
Special modes	Super Freeze, Vacation, Eco
Convertible zone	Adjustable temperature from -3°C to 5°C
Open door alarm	Yes, after 1 minute
Defrost	Automatic (No-Frost)
Warranty	3 years
Materials	Cyclopentane insulating foam (eco-friendly)
Installation	Not built-in, free space of at least 5 cm around
Included accessories	Water filter, water hose with connectors, drip tray
Customer service	wisberghome.com

Frequently Asked Questions - WBSBSWID576DZ Wisberg

How to adjust the refrigerator temperature?

Use button A to select the refrigerator zone, then button B to adjust the temperature from 2°C to 8°C. The recommended temperature is 4°C.

How to activate Super Freeze mode?

Press the Mode (C) button to select Super Freeze. The symbol flashes for 5 seconds then lights up. The freezer goes to -25°C for a maximum of 50 hours.

What to do if the dispenser water is not cold?

Add ice cubes to the cup before removing it. If you pour more than 800 ml of water at once, wait half an hour for a cold drink.

How to clean the ice cube reservoir?

Turn off the ice maker. Grasp the reservoir by the loop, lift it 10 mm and remove it. Remove ice cubes manually, clean with clear water, dry thoroughly before replacing.

Why is the alarm sounding?

The alarm triggers if the refrigerator door remains open for more than one minute. Close the door to stop it.

How to change the water filter?

The Water filter replacement indicator lights up after 6 months. Replace the filter, then press the corresponding button for 3 seconds to reset.

The refrigerator makes an abnormal noise, what to do?

Check that the appliance is level (adjust the feet) and that it is not in contact with the wall or other objects. A motor noise during ice dispensing is normal.

How to save energy with this appliance?

Use Eco mode for optimized settings. Do not leave the door open unnecessarily, thaw frozen food in the refrigerator, and replace the gasket if necessary.

Can I freeze fresh food in large quantities?

Yes, the freezing capacity is 13 kg in 24 hours. Activate Super Freeze mode to freeze quickly. Pack food in small airtight portions.

How to lock the control panel?

Press the Lock (C) button for 3 seconds. The lock symbol lights up. Repeat to unlock.

USER MANUAL WBSBSWID576DZ Wisberg

American refrigerator

Wisepick Productions B.V.

Weena 664

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

3. Dispenser water tray

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

Z

INSTRUCTIONS FOR USE

AMERICAN REFRIGERATOR

WBSBSWID576DZ

WBSBSWID576DB

WISBERG

TABLE OF CONTENTS

FOREWORD

24

1. SAFETY 25

1.1 Intended use and anticipated unintended use 25
1.2 Safety warnings and regulations 25
1.3 Safety instructions: installation 26
1.4 Safety instructions: use 27

2.PRODUCT FEATURES 28

2.1 Dimensions 28
2.2 Accessories included 29
2.3 Guarantee 29
2.4 Technical Data 29

3. INSTALLATION 30

3.1 Installing the appliance 30
3.2 Fitting water pipes 31
3.3 Replacing the LED lighting 32

4. OPERATION 33

4.1 Control panel 33
4.2 Operating the appliance 33
4.3 How do you use the dispenser? 34
4.4 Daily use 35

5. MAINTENANCE AND CLEANING 37

5.1 Defrosting 37
5.2 Interior and exterior cleaning 37
5.3 Cleaning the water and ice dispenser 37

6. TROUBLESHOOTING 39

7.TAKING OUT OF SERVICE 41

8.SAFE DISPOSAL 42

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
  The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
DANGER!	Fire hazard and/or flammable materials
WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
• This appliance is not intended for use as a built-in appliance.
• This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.
• This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

• Keep the power cable away from heat, oil, sharp edges or moving parts.

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
• Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8g / m3 . The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4 SAFETY INSTRUCTIONS: USE

1 CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2.PRODUCT FEATURES

2.1 DIMENSIONS

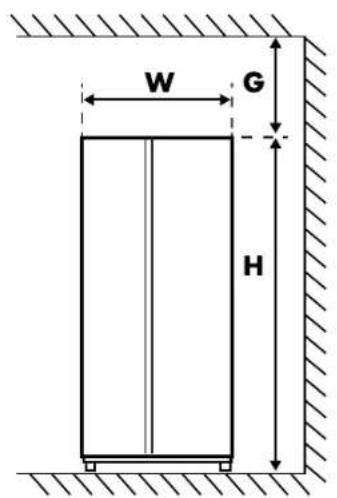

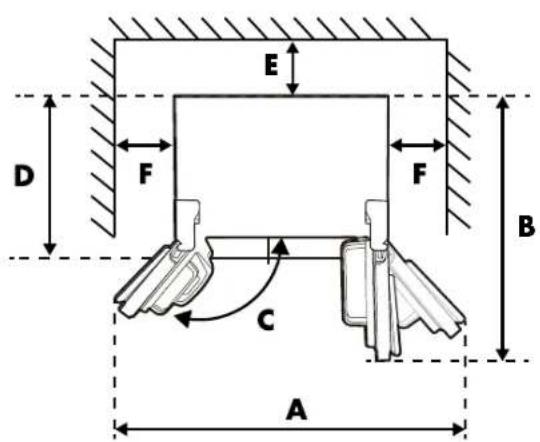

Figure 1. Front view - Figure 2. Top view

WDHABC(°) EFG
91cm 73cm 1	77cm 190cm	160cm 135	min. 5cm min.	5cm	min	5cm

*Figures 1 and 2 illustrate the space required for the appliance.

2.2 ACCESSORIES INCLUDED

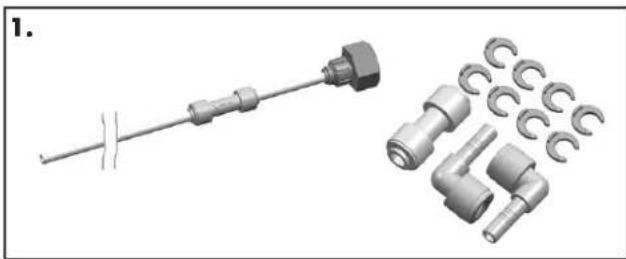

1. Water hose with connectors

Connects the dispenser to the water pipe.

2. Water filter

The water filter prevents your water and ice cubes from becoming cloudy or smelling or tasting like chlorine.

3. Dispenser water tray

This container catches the water coming out of the dispenser.

2.3 GUARANTEE

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service.

2.4 TECHNICAL DATA

Does not contain freon

The freon-free freezzerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5cm clearance on the top, at least 5cm on both sides and at least 5cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
  Always place the appliance on a moisture-resistant and dry surface.
• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories: door compartments and shelves

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

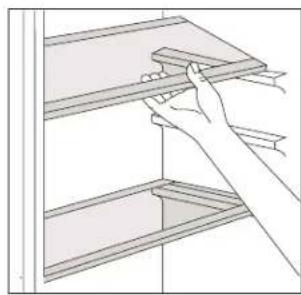

The walls of the refrigerator are equipped with a series of guide profiles so that the shelves can be inserted if desired. To remove the shelf, lift it first and then pull it out. To put the shelf back in place, push it into place before lowering.

For the two-piece shelf, first push back the first part and then pull out the second part.

Raise the rear edge of the shelf to prevent food coming into contact with the wall lining. Hold the shelf firmly when removing or replacing it and take care to avoid damage.

8. Storing food

See Section 4 "Use".

3.2 FITTING WATER PIPES

To use the water and ice dispenser, you must first install the water pipe. You do this in the following steps:

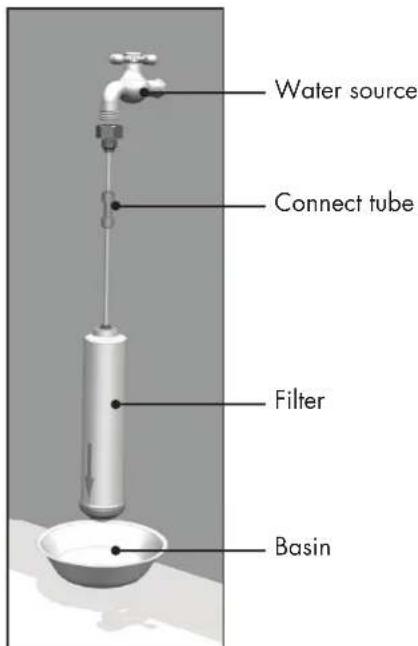

1. Before installing the filter, rinse it for five minutes or until 5 litres of water have passed through to remove any toner.

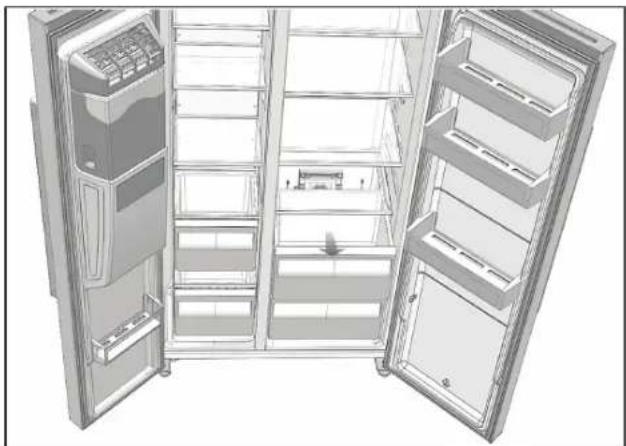

2. Open the fridge door and take out the fresh food drawers.

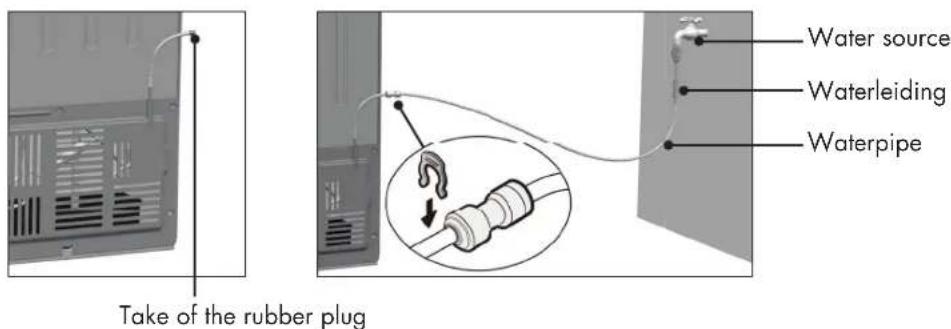

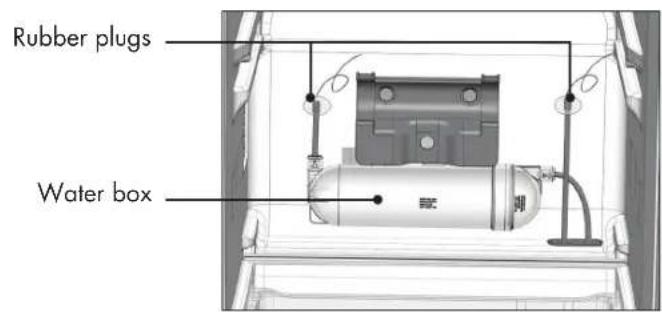

1. Remove the rubber plugs on both sides of the water box.

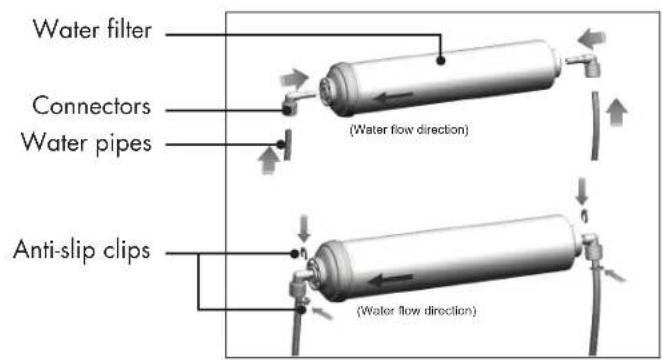

2. Remove the water filter from the accessory bag, insert the connectors on both sides of the filter, then connect the water pipe and clamp it into the anti-slip clips (note the direction of the arrow on the filter). Connect the water pipe and clamp it into the anti-slip clips (note the direction of the arrow on the filter).
3. Mount the water filter parts with the mounting bracket above the water box and connect the water pipes from the water box to the water filter.

1. Remove the rubber plug. Connect the water pipe section with the connector to the main valve on the compressor cover and remember to fit the anti-slip clips, then connect the end of the water pipe to the water source with the nut.

How to use the dispenser can be found in chapter 4.4: "How to use the dispenser?"

3.3 REPLACING THE LED LIGHTING

Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualified person.

4. OPERATION

Carefully review the safety information (Section 1) before you start using the appliance.

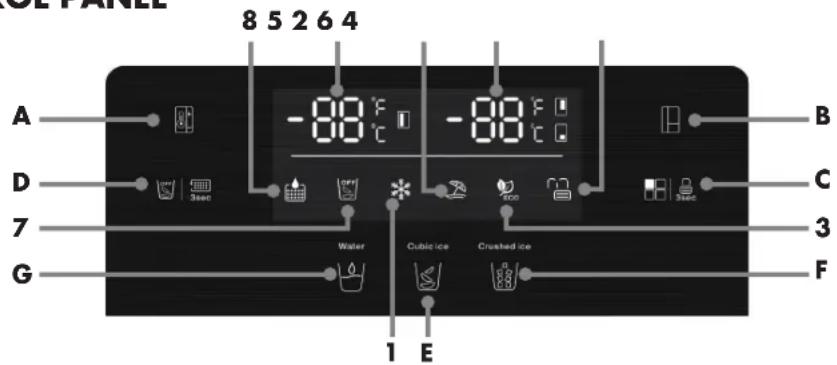

4.1 CONTROL PANEL

ID FUNCTION

A	Select compartment
B	Setting the temperature of the refrigerator, freezer and convertible zone
C	Mode: Super Freezing / Vacation / Eco mode
D	Ice maker
E	Ice cubes
F	Finely crushed ice
G	Chilled water

ID FUNCTION

1	Super Freezing. The freezer compartment switches to the lowest setting. After 50 hours, it automatically returns to the default set temperature.
2	Vacation mode.
3	Eco mode. The refrigerator and freezer cool on the most energy-efficient setting.
4	Lock. This symbol lights up when the display is locked.
5	Freezer compartment temperature.
6	Refrigerator compartment temperature.
7	ICE OFF. This symbol lights up when you touch the button to close the ice maker. This means the refrigerator stops making ice.
8	Water filter replacement. This symbol comes on when the water filter has been used for six months to remind you to change the water filter. It stays on until you change the filter and press and hold the button for three seconds.

4.2 OPERATING THE APPLIANCE

Locking or unlocking controls

Press and hold the 'lock' button (C) for three seconds to activate or deactivate the lock function.

Setting the temperature

Use button A to select the desired zone to adjust, choosing between refrigerator, freezer and convertible zone.

Use button B to adjust the temperature of the selected zone.

Setting the refrigerator temperature

Press button A to select the refrigerator zone. And then press button B to set the temperature of the refrigerator. With each press of button B, the temperature changes by 1 degree Celsius. The minimum refrigerator temperature to be set is 2 degrees Celsius,

the maximum temperature to be set is 8 degrees Celsius.

The recommended refrigerator temperature is 4 degrees Celsius.

Setting the freezer temperature

Press button A to select the freezer zone. And then press button B to set the temperature of the freezer. With each press of button B, the temperature changes by -1 degree Celsius. The minimum freezer temperature to be set is -24 degrees Celsius,

the maximum adjustable temperature to be set is -16 degrees Celsius.

The recommended freezer temperature is -18 degrees Celsius.

Setting the temperature of the convertible zone

Press button A to select the convertible zone. This is a zone that can be set as both a refrigerator and a freezer. And then press button B to set the temperature of the convertible zone. With each press of button B, the temperature changes by 1 degree Celsius. The minimum convertible zone temperature to be set is -3 degrees Celsius, the maximum temperature to be set is 5 degrees Celsius.

Mode

With button C (mode) you can choose between 3 additional programmes: Super Freeze, Vacation and Eco.

Mode - Super Freeze

When this function is selected, the freezer is additionally cooled; the temperature is temporarily reduced to -25 degrees. This function can be used if many products are placed in the freezer at the same time. Press button C (mode) to select the 'Super Freeze' mode.

After the Super Freeze symbol flashes for 5 seconds, the Super Freeze mode is on and the 'Super Freeze' symbol appears on the display.

The 'Super Freeze' mode switches off automatically after 50 hours. To deactivate the 'Super Freeze' mode yourself, press button C, the 'Super Freeze' symbol on the display disappears. The freezer automatically returns to the last set temperature.

Mode - Vacation

Press button C (mode) to select vacation mode. After the vacation symbol flashes for 5 seconds, the vacation mode is on and the 'Vacation' symbol appears on the display.

This function can be used during long-term absence. When vacation mode is enabled, the refrigerator's cooling is set to 17 degrees.

To deactivate the vacation mode, unlock the display first. Then press button C (mode) to manually deactivate vacation mode. The 'Vacation' symbol on the display disappears.

Mode - ECO

Press button C (mode) to select ECO mode. After the ECO symbol flashes for 5 seconds, ECO mode is on and the 'ECO' symbol appears on the display.

This function can be used to use the most energy-efficient setting. Refrigerator and freezer temperatures are set automatically and as energy-efficiently as possible.

To deactivate the ECO mode, unlock the display first. Then press button C (mode) to manually deactivate the ECO mode. The 'ECO' symbol on the display disappears.

Door alarm

If the refrigerator door remains open for more than one minute, the door alarm goes off. You can turn this off by closing the door.

4.3 HOW DO YOU USE THE DISPENSER?

You can get ice cubes, crushed ice and chilled water by pressing the selector switch that appears when the control panel is displayed.

Attention! If pressed continuously for more than three minutes, the dispenser stops working to protect the electrical components.

If you need more chilled water or ice, you can release and press the dispenser again.

Getting chilled water

Select the chilled water mode, place the cup in the centre of the dispenser. Press the dispenser to receive water and stop pressing after you have taken the right amount of water. The water automatically stops flowing.

ATTENTION!

• Wait two seconds before removing the cup to prevent the water from splashing out.
  If you need cooler water, fill the glass with ice before taking it;
• If more than 800ml of water is taken at once, higher-temperature water can come out. In this case, it is recommended to wait half an hour for a cold drink.

Taking ice

Select the ice cube or crushed ice mode to obtain the desired type of ice.

Place the cup in the centre of the dispenser and press to receive ice. Stop pressing when you have enough ice.

ATTENTION!

• Wait two seconds before removing the cup to prevent the water from splashing out.
• Place the cup as close as possible to the dispenser outlet to prevent ice from falling out.
• While taking ice, the internal motor runs to churn and break ice, which may produce some noise.
• Use the ice as soon as possible to avoid melting ice.

4.4 DAILY USE

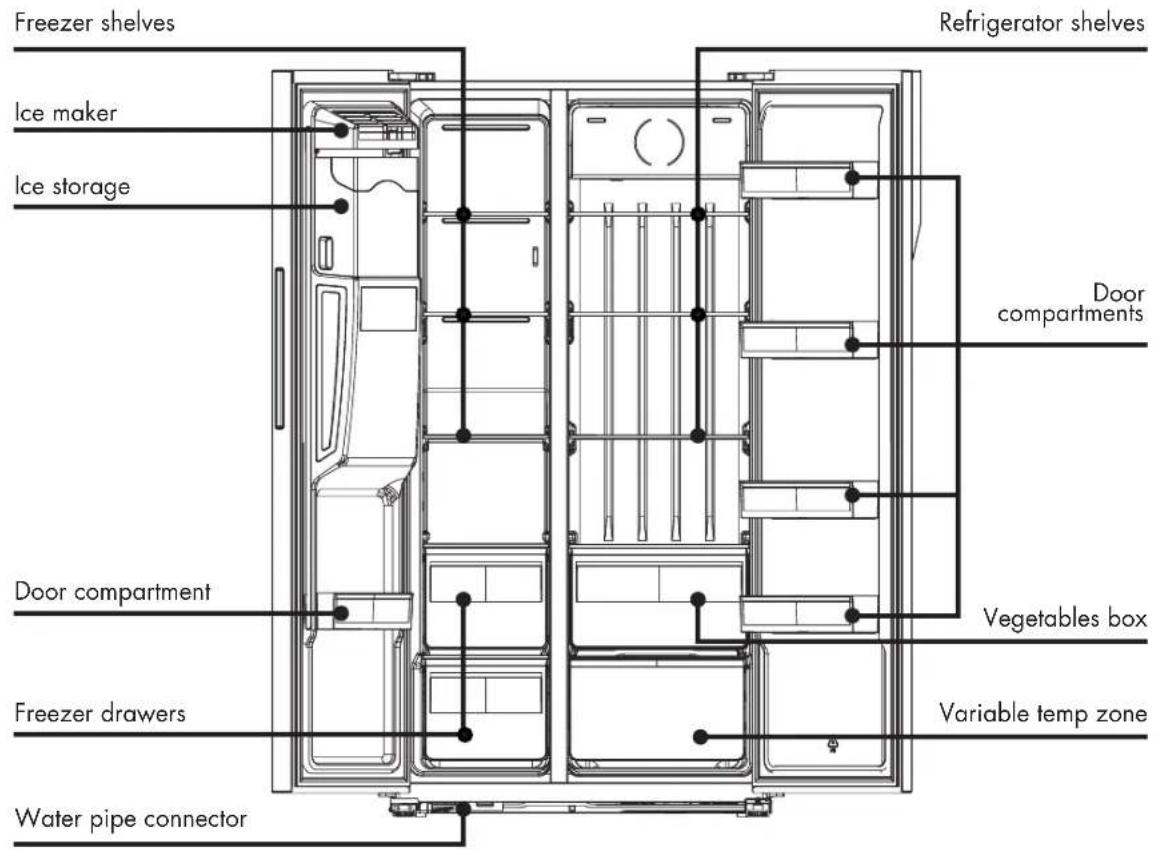

Compartments

• Due to the circulation of cold air in the appliance, the temperature in each part of the appliance is different. Therefore, different types of food should be placed in different places.
• Do not place the food close together as this hinders air circulation. Divide food into several compartments according to the table below:

REFRIGERATOR COMPARTMENTS TYPE OF FOOD
Door compartments in the refrigerator compartment	Food with natural preservatives such as jam, juice, drink, spices. Do not store any products with a limited shelf life here.
Crisper drawer	Place fruit, herbs and vegetables separately in the crisper drawer. Do not put bananas, onions, potatoes or garlic in the refrigerator.
Refrigerator shelf - centre	Dairy products, eggs.
Refrigerator shelf - top	Food that does not require preparation such as ready meals, cold cuts, leftovers.
Freezer drawer(s)/shelf	Food for long storage. Bottom drawer for raw meat, poultry, fish. Middle drawer for frozen vegetables, fries. Top drawer for ice cream, frozen fruit, deep frozen pastries.

Cooling food

• Always refer to the expiry date of the products to know how long they can be stored.
• Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.
• Store raw meat and fish in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.
• Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.
  Cooked food that has cooled sufficiently must be covered and can then be placed on any shelf.
• Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.
• It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours.

Freezing food

• The freezer compartment is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours for this refrigerator is: 13kg .
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• Only freeze fresh and thoroughly cleaned foods.
• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.
• Pack the food in aluminium foil or freezer bags and make sure the packets are airtight.
• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.
• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.
  It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.

Storing frozen food

On first use or after a long period of downtime: run the appliance for at least two hours at the higher settings before putting products in the freezer compartment. The most efficient use of energy is ensured in the configuration with the drawers in the lower part of the appliance and with the shelves evenly distributed. The position of the door trays does not affect energy consumption.

Tips for buying frozen goods

• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.
• Ensure that frozen food packaging is in perfect condition.
• Always buy frozen products at the end of your shopping trip or visit to the supermarket.
  Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.
• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.
• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.
  Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control button to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

Saving energy

• Do not open the door more often, or leave it open for longer, than strictly necessary.
• Do not set the temperature too high to save energy unless the characteristics of the food require it.
• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully filled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to defrost the evaporator and thus save energy.
• Ensure proper ventilation. Do not cover the vents or holes.
• Place frozen food in the fresh food compartment to defrost: the low temperature of the frozen food helps to cool the fresh food and thus saves energy.
• Replace the door seal in good time to prevent poor door closing.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

1 CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this
  may cause grazes or frostbite.
• Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

5.1 DEFROSTING

This appliance has a No-Frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

5.2 INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
  If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

5.3 CLEANING THE WATER AND ICE DISPENSER

Use a soft towel to clean the fridge and make sure you turn off the power before cleaning. When cleaning, use clean water and a little washing-up liquid. Do not spray detergent directly on the screen, or the text on the screen may fall off.

1. Regularly remove the water container from the dispenser. Pour out the water and wipe the container clean.
2. Clean the ice storage cabinet regularly.

If the freezer is not used for an extended period or the door is frequently opened, the ice in the storage cabinet may melt and refreeze, causing a blockage in the distributor outlet. The ice has to be removed manually. When cleaning the ice tray, switch off the ice maker to prevent the ice from falling into the fridge or onto the floor.

1. Assembling and disassembling the ice compartment.

Hold the ice maker by the buckle with both hands, lift it approximately 10mm with some force, then pull it out of the fixed buckle. After removing the ice storage cabinet, carefully take out the internal ice by hand and rinse it with clean water. After cleaning, install the ice storage cabinet using the reverse process.

2

1 ATTENTION!

• Do not use acid, chemical solvents (alcohol, washing-up liquid) or other abrasives;
• After cleaning, dry the icebox thoroughly before placing it in the fridge to prevent the ice from freezing;
• Use a clean towel to clean the ice outlet, do not press too hard on the internal structure to avoid damaging the internal mechanism;
• Do not place anything else in the ice outlet to avoid blocking the ice outlet;
• Do not let children climb on the fridge, otherwise it may fall down and injure people.
• Do not insert fingers, hands or other inappropriate objects into the icebox or ice bucket. This may cause personal injury or material damage.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service:wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all.	- The control knob for the temperature is wrong. - The plug is not inserted properly. - There is no voltage on the socket. - The fuse is blown or defective. - The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room. - The power has failed. - The holiday mode is switched on.	- Set the thermostat to another position. - Insert the plug properly. - Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician. - Check the fuse and replace if necessary. - Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly. - Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored. - Turn off the holiday mode, refer to section 4.2 for the instructions.
The temperature in the appliance is too low/high.	- The temperature is not set correctly. - The door is not closed properly. - The temperature of the food is too high. - Many products are stored at the same time. - The door has been opened too often. - The 'Super Cool' or 'Super Freeze' function is enabled.	- Set a higher/ lower temperature. - Find the cause of the door not closing properly, remove or move possible obstacles. - Allow the food to cool to room temperature before preserving. - Preserve fewer products at the same time. - Only open the door if necessary. - Turn off the 'Super Cool' and/or 'Super Freeze', refer to section 4.2 for the instructions.
Strange smell in the appliance.	- There is spoiled food in the appliance. - The appliance is not clean. - Food with a strong smell is present in the appliance.	- Throw away spoiled food. - Clean the appliance. - Pack food with a strong smell.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
The compressor works continuously.	- Too many products are stored at the same time. - The room temperature is too high. - The food placed in the appliance was too hot. - The door is not closed properly.	- Wait a few hours and then check the temperature again. - Please refer to Section 4. - Allow food to cool to room temperature before storing. - See the next section.
The side panels are hot.	- This is normal. The heat exchanger components are on the side of the appliance. Immediately after installation, the sides become hot, after the fridge reaches its internal temperature, the temperature of the side panels will decrease.
Abnormal noise	- The appliance is not stable/level. - The appliance is making contact with the wall or other objects. - 'Super Freeze' mode has been turned on.	- Readjust the appliance's adjusting legs. - Move the appliance slightly. - This is normal. 'Super Freeze' mode uses the maximum power of the appliance.
The temperature cannot be set.	- 'Super Cool' or 'Super Freeze' mode has been turned on. - The control panel is locked.	- See Section 4 'Use' to deactivate 'Super Freeze' and set the temperature. - Turn off the control lock, refer to section 4.2 for the instructions.
The appliance freezes too much.	- The temperature of the appliance is set too high. - 'Super Freeze' mode has been turned on.	- See Section 4 for information on how to set the temperature. The recommended temperature setting for this appliance is -18°C. - See Section 4.3 for information on how to turn off 'Super Freeze' mode.
The alarm goes off.	- The door is open. - The temperature in the appliance is too high.	- Close the door and make sure that the door remains properly closed. Remove any blockages. The alarm goes off when the door is closed.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
• Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

F

MANUEL D'UTILISATION

RéFRIGÉRATEUR AMÉRICAIN

WBSBSWID576DZ

WBSBSWID576DB

TABLE DES MATIÈRES

AVANT-PROPOS

45

1. SECURITE 46

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1 UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

2. CARACTERISTIQUES DE PRODUIT

2.1 DIMENSIONS

2.2 ACCESSORIES FOURNIS

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

GEBRAUCHSANLEITUNG

Wisepick Productions B.V.

Weena 664

Wisepick Productions B.V.

Weena 664

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
