WBTTKK55CW - Fridge Wisberg - Free user manual and instructions

Product type	Refrigerator
Brand	Wisberg
Model	WBTTKK55CW
Dimensions (L x D x H)	55 cm x 58 cm x 85 cm
Weight	Not specified
Electrical supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST
Refrigerant	R600a
Temperature setting	Thermostat from 1 (warm) to 7 (cold), recommended 4
Door reversal	Possible (tools required: Phillips screwdriver, flathead screwdriver, Allen key)
Shelves	Multiple adjustable shelves and door bins
Defrosting	Automatic
Cleaning	Warm water and neutral soap; no abrasive products
Safety	Do not use extension cord; do not damage the cooling circuit; grounding required
Warranty	3 years
Spare parts	Available at wisberghome.com
Intended use	Domestic and similar (staff kitchens, farms, hotels, etc.)
Internal volume	Not specified
Energy consumption	See the provided energy label

Frequently Asked Questions - WBTTKK55CW Wisberg

How to adjust the temperature of the Wisberg WBTTKK55CW refrigerator?

Turn the thermostat knob from 1 (warmest) to 7 (coldest). The recommended setting is 4. To turn off the appliance, set the knob to 0. In summer, set to 3-4; in winter, set to 5-6.

Can the door opening direction be reversed?

Yes, door reversal is possible. You will need a Phillips screwdriver, a flathead screwdriver, and an Allen key. Follow the steps in the manual (chapter 3.2). Unplug the appliance and empty it before starting.

How to clean the inside of the refrigerator?

Unplug the appliance. Remove drawers, shelves, and door bins. Clean them with a soft cloth or sponge soaked in warm water and neutral soap. Do not use abrasive products or solvents. Dry thoroughly.

What to do if the appliance does not cool?

Check that the thermostat is not set to 0, that the plug is properly connected, that the outlet has power, and that the fuse has not blown. If the appliance is installed in a place where the ambient temperature is below 10°C, move it to a warmer room.

Why is there abnormal noise?

Make sure the appliance is level by adjusting the leveling feet. Check that it is not in contact with the wall or other objects. If the noise persists, contact customer service.

How to save energy with this refrigerator?

Do not open the door unnecessarily. Do not set the temperature too low. Ensure good ventilation around the appliance. Replace the door gasket if worn. See tips in chapter 4.3.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt. For more information, visit wisberghome.com. The warranty is void if the appliance is used at an ambient temperature below the minimum temperature.

Where to find spare parts?

Spare parts are available on the wisberghome.com website. You can order online or contact customer service for more information.

What to do in case of strange odor in the refrigerator?

Throw away spoiled food. Clean the inside of the appliance. Wrap strong-smelling foods in airtight containers.

How to put the appliance out of service for a long period?

Turn off and unplug the appliance. Clean the inside thoroughly and dry it. Leave the door slightly open to prevent mold. Store the appliance in a dry, ventilated place, away from heat sources.

USER MANUAL WBTTKK55CW Wisberg

Climatic Category	SN / N / ST
Electric shock classification Class I
Rated Voltage 220-240V–
Rated Frequency 50Hz
Rated current 0.7A
Total Input Power 75W
Refrigerant R600a (29g)
Total Volume 126L
The Insulation Blowing Gas Cyclopentane
Product ID 958430

Serial Number:

Batchcode:

Wisepick Productions B.V.
Weena 664
3012CN, Rotterdam, The Netherlands
www.wisberghome.com
[e-mail]
Made in China

WBTTKK55CB

WISBERG

WBTTKK55CB

Refrigerator

Climatic Category	SN / N / ST
Electric shock classification Class I
Rated Voltage 220-240V~
Rated Frequency 50Hz
Rated current 0.7A
Total Input Power 75W
Refrigerant R600a (29g)
Total Volume 126L
The Insulation Blowing Gas Cyclopentane
Product ID 958431

Serial Number:

Wisepick Productions B.V.
Weena 664
3012CN, Rotterdam, The Netherlands
www.wisberghome.com
[e-mail]
Made in China

Climate Classification :	Klimaatcategorie / Catégorie climatique / Klimakategorie
Electric Shock Classification :	Classificatie Elektrische Schok / Classification Des Chocs Électriques / Klassifizierung Des Elektrischen Schlags
Rated Voltage :	Nominale Spanning / Tension nominale/ Nennspannung
Rated Frequency :	Nominale Frequentie / Fréquence nominale / Nennfrequenz
Rated Current :	Nominale spanning / Tension nominale / Nennspannung
Total Power Input :	Totale ingangsvermogen / Puissance d'entrée totale / Gesamte Eingangsleistung
Refrigerant :	Koelmiddel / Réfrigérant / Kältemittel
Total Storage Volume :	Totale opslagvolume / Volume de stockage total / Gesamtes Speichervolumen
The Insulation Blowing Gas :	Isolatie blaasgas/ Gaz de soufflage d'isolation / Isolierblasgas
Product Code :	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

Voorwoord 4

1. Veiligheid 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

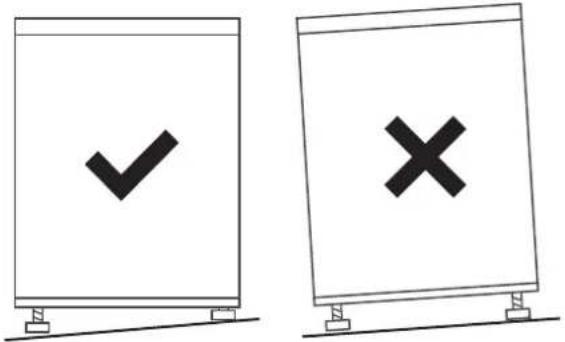

Simple line drawing of a rectangular frame with a black 'X' symbol on the top and two small blocks at the bottom (no text or labels)

Simple line drawing of a rectangular frame with a black checkmark on the top and two small blocks at the bottom (no text or symbols)

4. Reinig

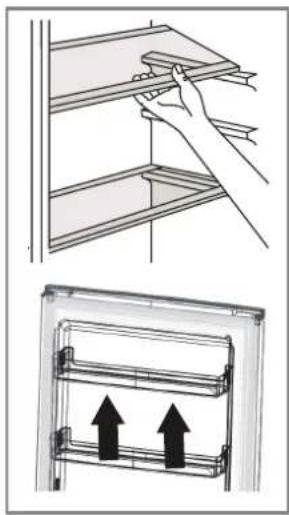

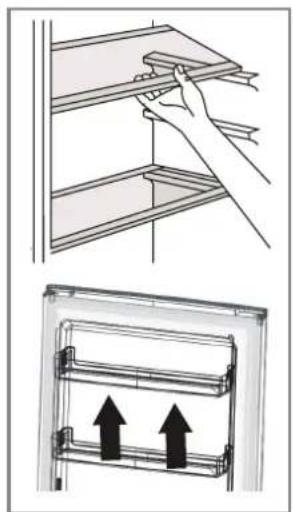

Illustration showing a hand installing or adjusting a shelf panel and its internal structure with two upward arrows (no text or symbols)

3.2 DE DRAAIRICHTING VAN DE DEUR OMKEREN

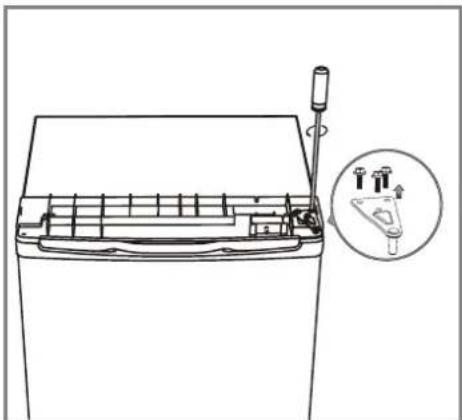

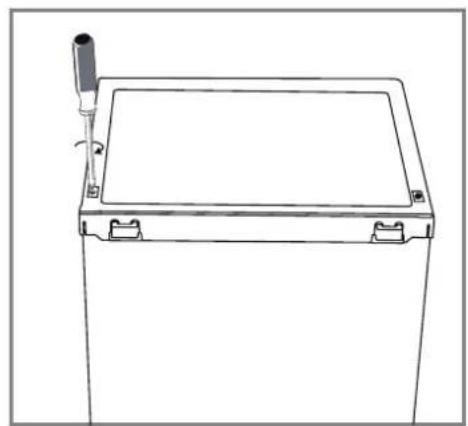

Line drawing of a mechanical device with a screwdriver inserted, showing a base plate and mounting brackets (no text or symbols)

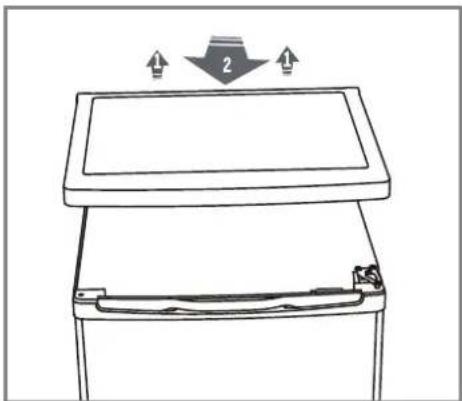

Simple line drawing of a device with a top panel and a base, no text or symbols present

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

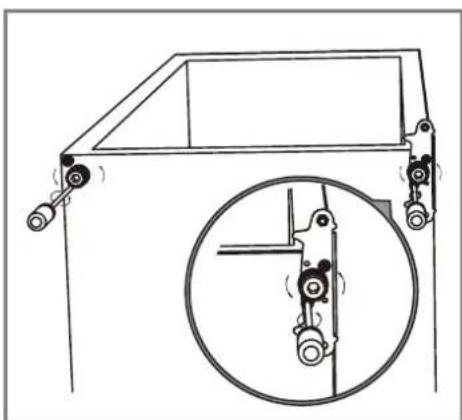

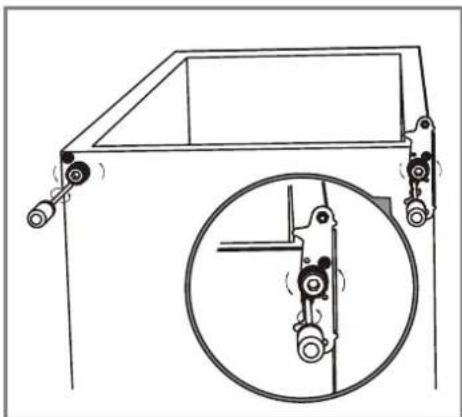

Technical line drawing of a mechanical frame with a circular inset showing a pulley mechanism (no text or symbols)

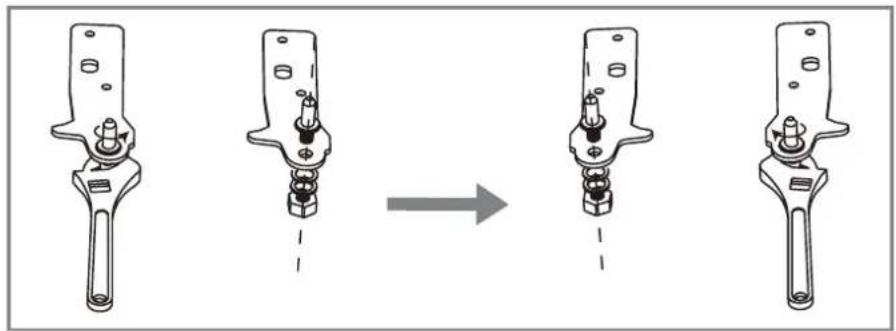

Diagram showing four views of a mechanical clamp or connector being adjusted, with no text or symbols present.

Technical line drawing of a mechanical frame with a circular inset showing a pulley mechanism (no text or symbols)

Line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

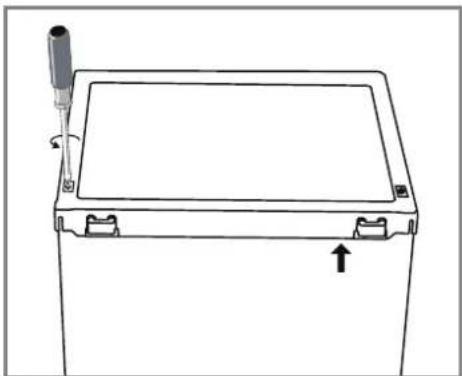

Line drawing of a rectangular electronic device with a screwdriver inserted, no text or symbols present

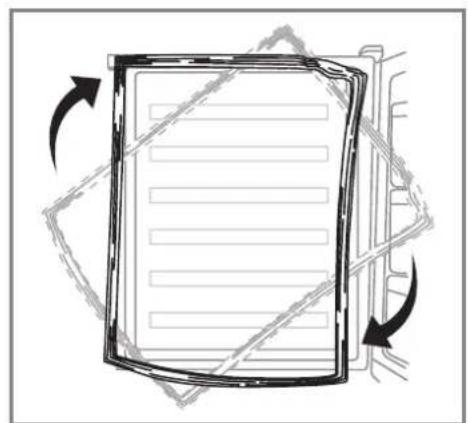

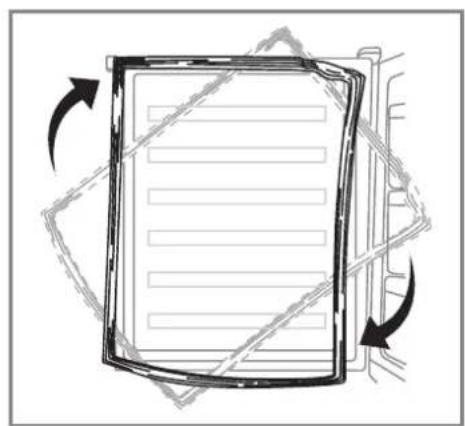

Diagram of a document being rotated with arrows indicating rotation, no text or symbols present

4. GEBRUIK

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

INSTRUCTIONS FOR USE

REFRIGERATOR

WBTTKK55CW

WBTTKK55CB

WISBERG

TABLE OF CONTENTS

Foreword 21

1. Safety 22

1.1. Intended use and anticipated unintended use 22
1.2. Safety warnings and regulations 22
1.3. Safety instructions: installation 23
1.4. Safety instructions: use 24

2. Product features 25

2.1. Dimensions 25
2.2. Guarantee 26
2.3. Technical Data 26

3. Installation 26

3.1. Installing the appliance 26
3.2. Door reversal instructions 27

4. Use 30

4.1. Setting the temperature 30
4.2. Tips for daily use 30
4.3. Saving energy 30

5. Maintenance and cleaning 31

6. Troubleshooting 32

7. Taking out of service 34

8. Safe disposal 34

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1. INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2. SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off.
  Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.
• Keep the power cable away from heat, oil, sharp edges or moving parts.
• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself.

The power cable may only be replaced by an authorised service technician.

- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket.

Damage caused by faulty voltage is not covered by the guarantee.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

- Do not use the appliance if any of its components are damaged or faulty.

Replace a damaged or faulty appliance immediately.

Remove the plug from the earthed socket and contact customer service.

• Always place the appliance on a moisture-resistant and dry surface.
- Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
- Do not touch the appliance or power cable with wet hands.

1.3. SAFETY INSTRUCTIONS: INSTALLATION

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit,
  onsider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time.

Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct).

This type of refrigerator has climate range SN, N, ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4. SAFETY INSTRUCTIONS: USE

! CAUTION!

• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1. DIMENSIONS

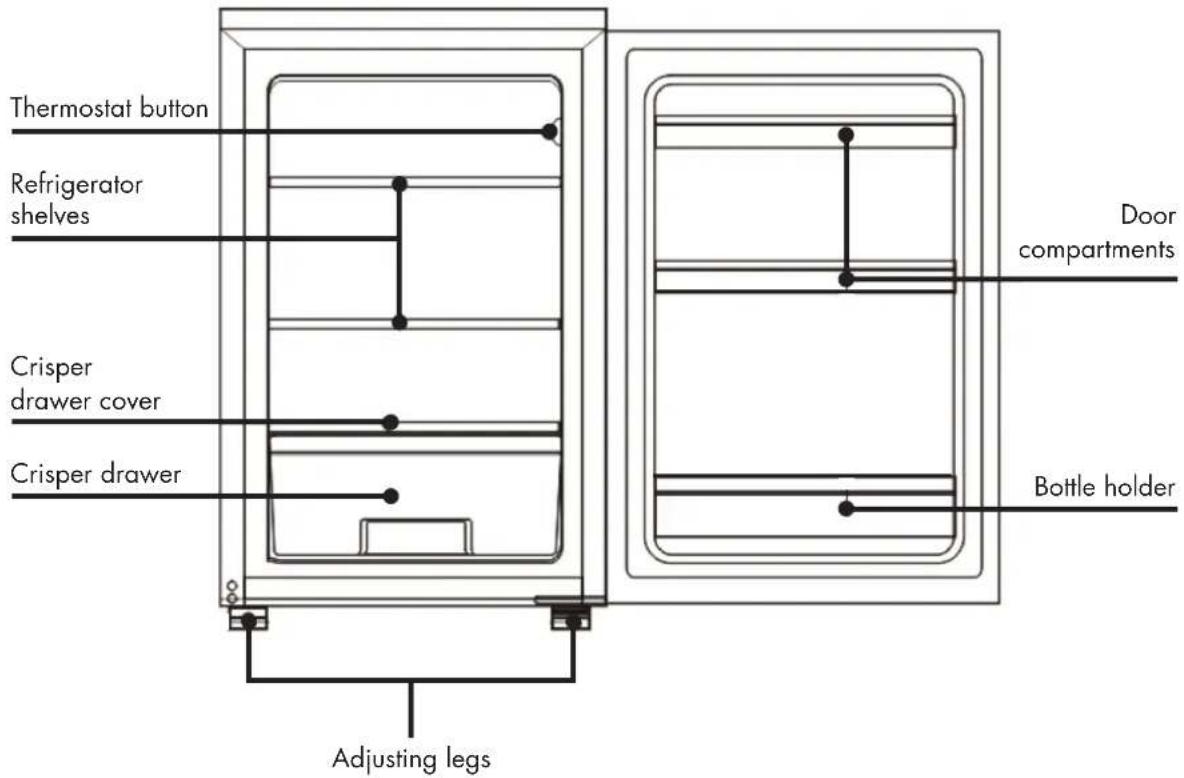

Thermostat button Refrigerator shelves Crisper drawer cover Crisper drawer Adjusting legs Door compartments Bottle holder

W G H

E D F F B C A

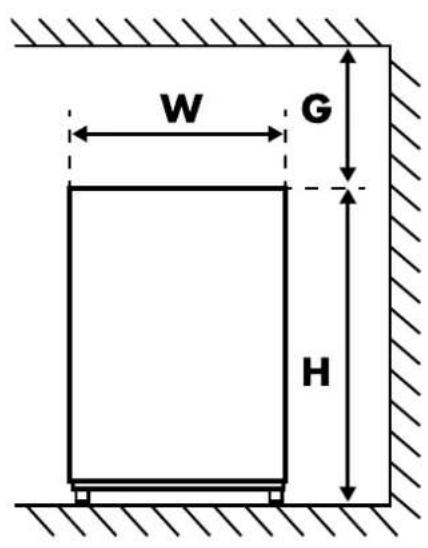

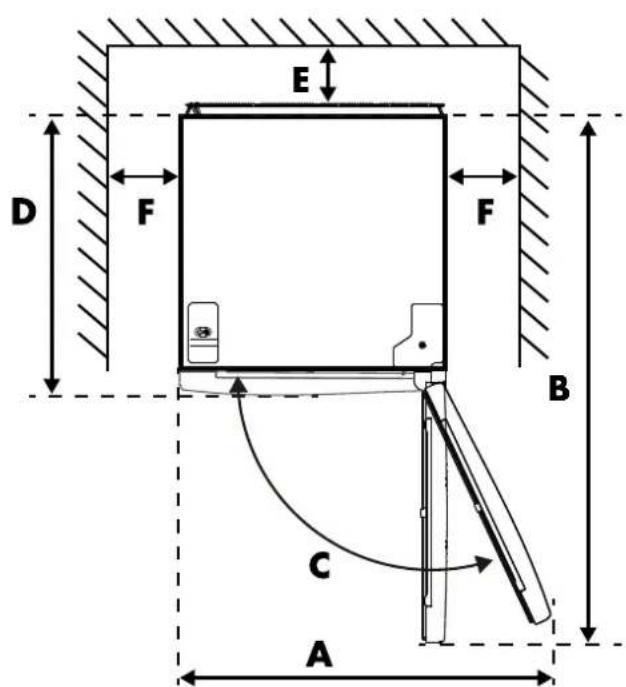

• Figure 1. Front view • Figure 2. Top view

WDHABC(°) EFG

*Figures 1 and 2 illustrate the space required for the appliance.

2.2. GUARANTEE

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit wisberghome.com

2.3. TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1. INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 10 cm clearance on the top, at least 10 cm on both sides and at least 7.5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.

• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

Two identical diagrams showing checkmark and cross symbols on a stand, likely indicating approval or cancellation status.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

8. Storing food

See Section 4 "Use".

Illustration showing a hand placing a wooden shelf onto a wall, and a close-up of a mechanical device with two upward arrows indicating motion (no text or symbols present)

3.2. DOOR REVERSAL INSTRUCTIONS

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.
• Do not lay the appliance down flat. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.
• Keep all removed parts to remount the door later.

Necessary tools:

• Crosshead screwdriver

- Flat head screwdriver - Allen key

1. Unplug and empty the appliance. Remove the two screws at the back of the top.

1. Remove the top cover and set it aside.

2. Unscrew the top hinge and then remove the door; place it on a soft surface to avoid scratching.

3. Unscrew the bottom hinge. Then remove the adjusting legs on both sides.

Line drawing of a rectangular electronic device with a screwdriver inserted, showing no text or symbols

Line drawing of a mechanical device with a top panel and base, no text or symbols present

Line drawing of a battery pack with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

1. Unscrew and remove the pin on the bottom hinge, turn the bracket over and replace it.

Diagram showing four sequential views of a mechanical clamp or lever mechanism, with no text or symbols present.

1. Mount the bottom hinge pin bracket. Mount both adjusting legs.

Technical line drawing of a mechanical device with a circular inset showing a pulley mechanism (no text or symbols)

1. Replace the top cover and secure it with two screws at the back.

Line drawing of a rectangular device with a pipette inserted, no text or symbols present

1. Mount the door. When fitting the door, make sure the top of the door is level with the top of the cabinet. Otherwise the rubber gasket does not seal the cabinet properly, which can cause the appliance to malfunction.

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

1. Remove the door gaskets from the appliance, rotate and re-attach them.

Diagram of a document being rotated with arrows indicating rotation, no text or symbols present

4. USE

Carefully review the safety information (Section 1) before you start using the appliance.

4.1. SETTING THE TEMPERATURE

You can set the temperature of the appliance by turning the thermostat button.

• The thermostat can be set between 1 and 7.
  • 1 is the warmest setting.
• 7 is the coldest setting.
  • The recommended setting is 4.
• Turn the dial to 0 to turn the appliance off.

4 5 3 6 2 7 1 0

The internal temperature of the appliance may vary due to the ambient temperature, the amount of products stored and the frequency with which the door is opened.

Under normal operating conditions we recommend setting the temperature to 4.

In summer, when the ambient temperature is high, we recommend setting the temperature to 3-4.

In winter, when the ambient temperature is low, we recommend setting the appliance to 5-6.

NOTE

The thermostat setting '6' or '7' is suitable when the ambient temperature is below 16°C, but this can lead to ice formation if the appliance continues to run at such a setting for a long time below the normal ambient temperature, which is a normal phenomenon. In this case we recommend setting the appliance to a higher temperature (position 1-5) provided that the articles in the appliance allow this.

4.2. TIPS FOR DAILY USE

Cooling food

• Always refer to the expiry date of the products to know how long they can be stored.
- Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.
- Store raw meat and fish in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.
- Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.
- Cooked food that has cooled sufficiently must be covered and can then be placed on any shelf.
- Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.
- It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours.

4.3. SAVING ENERGY

- The most efficient use of energy is ensured in the configuration with the drawers in the lower part of the appliance and with the shelves evenly distributed.

The position of the door trays does not affect energy consumption.

• Do not open the door or leave it open more often than necessary.
• Do not set the temperature too high to save energy unless the characteristics of the food require it.
• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully filled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to enable automatic defrosting to save energy.
• Ensure proper ventilation. Do not cover the vents or holes.
• Replace the door gasket in good time to prevent poor door closing.

ATTENTION!

• The manufacturer's storage recommendations must be strictly followed. Please refer to the respective instructions.
• Do not keep the door open for too long; this can cause a sharp increase in temperature in the compartments of the appliance.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance.

The appliance may only be opened for maintenance by an authorised service technician.

• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
  • The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual.

Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS
The appliance does not cool at all	- The thermostat is set to '0'.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room.	- Switch the thermostat to another setting (e.g. 4)- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
Abnormal noise - The appliance is not stable/level.- The appliance is in contact with the wall or other objects.		- Readjust the appliance's adjusting legs.- Move the appliance slightly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Check whether something is stopping the door from closing. Remove or move possible obstacles- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Check whether something is stopping the door from closing. Remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service (or visit the nearest Coolblue shop).- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side of the appliance. Just after installation, the side panels will become hot, after the fridge reaches its internal temperature, the temperature of the side panels will decrease.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable.
  When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care.
  When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

MANUEL D'UTILISATION

RÉFRIGÉRATEUR

WBTTKK55CW

WBTTKK55CB

WISBERG

TABLE DES MATIÈRES

Avant-propos 37

1. Sécurité 38

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1. UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

Diagram showing two labeled panels with checkmarks and an 'X' symbol, next to a black 'FR' label.

Illustration showing a hand installing or adjusting a shelf panel above a device with two upward arrows (no text or symbols present)

3.2. INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a rectangular electronic device with a screwdriver inserted, showing no text or symbols

Line drawing of a mechanical device with a top panel and base, no text or symbols present

Line drawing of a battery casing with internal circuitry and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Diagram showing four sequential views of a mechanical clamp or lever mechanism, with no text or symbols present.

Technical line drawing of a vehicle frame with a circular inset showing mechanical components (no text or symbols)

Line drawing of a rectangular electronic device with a screwdriver inserted, no text or symbols present

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram of a document being rotated with arrows indicating rotation, no text or symbols present

4. UTILISATION

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

GEBRAUCHSANLEITUNG

KÜHLSCHRANK

WBTTKK55CW

WBTTKK55CB

WISBERG

INHALTSVERZEICHNIS

Vorwort 53

1. Sicherheit 54

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

1. SICHERHEIT

Simple line drawing of a rectangular frame with a black checkmark symbol on the top (no text or labels)

Simple line drawing of a rectangular frame with a black 'X' symbol on the top and two small blocks at the bottom (no text or labels)

5. Warten

Illustration showing a hand installing or adjusting a shelf panel and its internal structure with two upward arrows (no text or symbols)

Line drawing of a rectangular electronic device with a screwdriver inserted, showing no text or symbols

Line drawing of a mechanical device with two arrows pointing to top and bottom views (no text or symbols)

Line drawing of a battery with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical frame with a circular inset showing a gear mechanism (no text or symbols)

Diagram showing four views of a mechanical clamp or lever mechanism, illustrating a step-by-step assembly (no text or labels present)

Technical line drawing of a mechanical assembly with a circular inset showing a pulley mechanism (no text or symbols)

Line drawing of a rectangular electronic device with a screwdriver inserted, no text or symbols present

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram of a door frame with directional arrows indicating rotation or movement (no text or symbols)

4. BENUTZUNG

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

Wisberg contact details

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
