Product type	Equipment stand (storage cabinet)
Brand	Vollrath
Model	40740
Width	61.0 cm (24 in)
Adjustable shelf height	20.3 cm (8 in) from the floor (recommended position)
Adjustable feet	Yes, for leveling
Material	Stainless steel
Intended use	To receive Vollrath gas appliances of matching width
Main functions	Stable support for cooking equipment, storage with bottom shelf
Cleaning	Damp cloth or sponge with soapy water, daily cleaning
Safety	Use the stand properly leveled; do not allow items to overhang; reserved for Vollrath appliances
Spare parts and repairability	No user-serviceable parts; contact Vollrath customer service
Warranty	1 year (12 months) from initial installation
After-sales service	Vollrath: 1-800-628-0832
General information	Keep original packaging for shipping if repair needed; register warranty online at www.Vollrathco.com

Frequently Asked Questions - 40740 Vollrath

How to assemble the 40740 equipment stand?

Insert each leg (A) into the support collar (B) until it touches the top (F). Tighten the Allen screws (C). Slide the shelf (G) onto the legs (A) and position the shelf clip (D) so that the shelf is 20.3 cm (8 in) from the floor. Tighten all screws (H). Level the stand by adjusting the feet (E).

What is the recommended shelf height?

For optimal structural integrity, the shelf should be positioned 20.3 cm (8 in) from the floor. Ensure all screws are tight.

Can I use this stand with an appliance from a brand other than Vollrath?

No, this stand is intended only for Vollrath gas appliances of matching width.

How to clean the stand?

Clean daily with a damp cloth or sponge soaked in soapy water. Make sure the appliance is unplugged before cleaning.

What is the warranty on the 40740 stand?

The warranty is 12 months from the date of initial installation, covering defects in materials and workmanship. Register your warranty online at www.Vollrathco.com.

Where to find the serial number and model?

The model number is 40740. The serial number is on a label on the stand. Note this information for any service requests.

Can I repair the stand myself?

No, this appliance contains no user-serviceable parts. For any repair, contact Vollrath technical service at 1-800-628-0832.

How to adjust the feet to level the stand?

Turn the feet (E) to adjust the height. Perform adjustment when the stand is empty (no appliance or objects on top or shelf).

Which Vollrath appliances can be installed on this stand?

All Vollrath gas appliances with a width of 61 cm (24 in) (model 40740). For widths 91.4 cm (36 in) and 1.2 m (48 in), use models 40741 and 40742 respectively.

What to do if the stand seems unstable?

Check that all legs are properly inserted and screws are tight. Ensure the shelf is at the recommended height (20.3 cm). Level the stand by adjusting the feet. Do not use the stand if any screws are missing.

USER MANUAL 40740 Vollrath

English, Spanish, French

EQUIPMENT STAND

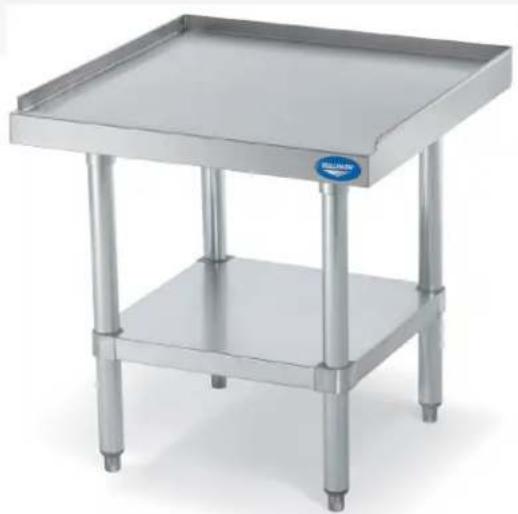

Exterior view of a stainless steel kitchen stand with four legs and a top tray (no text or symbols visible)

Item Description

40740 Equipment Stand ~ 24" Wide

40741 Equipment Stand ~ 36" Wide

40742 Equipment Stand ~ 48" Wide

Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.

SAFETY PRECAUTIONS

To ensure safe operation, read the following statements and understand their meaning. Please read carefully.

WARNING

Warning is used to indicate the presence of a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored.

To reduce risk of injury or damage to the equipment:

■ Use this equipment stand in a flat, level position.
Items must not protrude or hang off the edge of this equipment stand
This equipment stand is designed to be used only with Vollrath branded gas appliances.

FUNCTION AND PURPOSE

This equipment is intended to be used for supporting Vollrath gas appliances with corresponding widths.

Before using this equipment it must be cleaned and dried thoroughly.

UNPACKING THE EQUIPMENT AND INITIAL SETUP

When no longer needed, dispose of all packaging and materials in an environmentally responsible manner.

1. Remove all packing material and tape, as well as any protective plastic from the equipment.
2. Clean any glue residue left over from the plastic or tape.
3. Insert the leg (A) into the support collar (B) until it makes contact with the top (F). It may be necessary to loosen the Allen screw (C) in order to slide leg completely into support collar (B). Repeat for all the legs. See Figure 1.
4. Tighten the screws (C) into the support collars (B).
5. Slide the shelf (G) onto the legs (A). It may be necessary to loosen the Allen screws (H) in order to slide the shelf (G) onto the legs (A).
6. Position the shelf clamp (D) so that the top surface of the shelf (G) is 8" (20.3 cm) from the floor.

WARNING

The shelf is to be positioned between 8" (20.3 cm) from the floor for the best structural integrity. Make sure that all screws are in place and tight. Do not use the stand if any screws are missing.

1. Tighten all the screws (H) into all shelf clamps (D).
2. Level the equipment stand by adjusting the feet (E).

WARNING

Level or adjust the stand when there is no equipment or items on the top (F) or shelf (G).

CLEANING

To maintain the appearance and increase the service life, clean your equipment daily. Unplug the equipment.

1. Using a damp cloth, sponge dipped in soapy water to clean the outside of the equipment stand.

SERVICE AND REPAIR

There are no user serviceable parts within this appliance. To avoid serious injury or damage, never attempt to repair the equipment or replace a damaged power cord yourself. Do not send equipment directly to the Vollrath Company. Please contact the qualified professional repair service listed below. Vollrath Technical Service • 1-800-628-0832

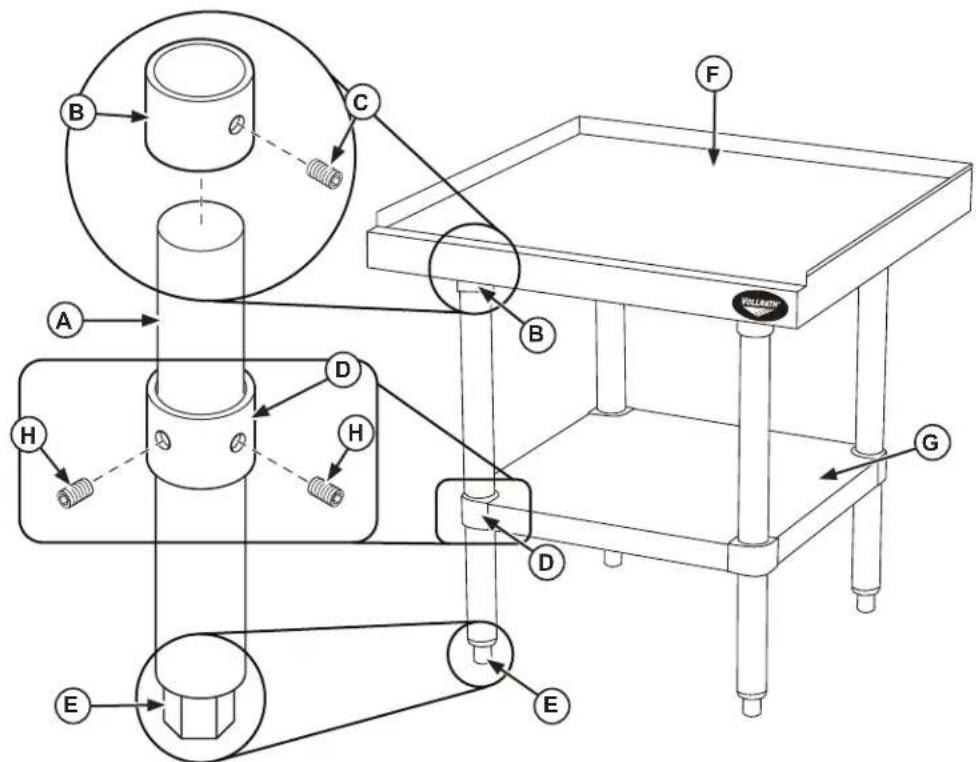

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Figure 1. Equipment Stand Assembly.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

The Vollrath Company LLC warrants the products it manufactures and distributes against defects in materials and workmanship for a period of one year, except as specifically provided below. The warranty runs 12 months from the date of original installation. (End user receipt)

1. Refrigeration compressors – The warranty period is 5 years.
2. Replacement parts – The warranty period is 90 days.
3. Fry pans and coated cookware – The warranty period is 90 days
4. EverTite™ Riveting System – The warranty covers loose rivets only, forever.
5. Cayenne® Heat Strips – The warranty period is 1 year plus an additional 1 year period on heating element parts only.
6. Ultra and Professional Induction Ranges – The warranty period is 2 years.
7. Mirage and Commercial Induction ranges - The warranty period is 1 year.
8. ServeWell® Induction Workstations – The warranty period is one year on the workstation table and 2 years on induction hobs.
9. Slicers – The warranty period is 10 years on gears and 5 years on belts.
10. Mixers – The warranty period is 2 years.
11. Extended warranties are available at the time of sale.
12. Boxer Mixers – 1 Year exchange Warranty.
13. Vollrath – Redco products – The warranty period is 2 years.
14. Optio / Arkadia product lines – The warranty period is 90 days.
15. All non-stick products (i.e. fry pans and surfaces) are 90 days for the non stick surfaces.

All products in the Jacob's Pride® collection, including the following, have a lifetime warranty:

• NSF Certified One-Piece Dishers
• NSF Certified Spoodle ^® Utensils
  • NSF Certified Heavy-Duty Spoons with Ergonomic Handle
• NSF Certified Heavy-Duty Basting Spoons
• Heavy duty Turners with Ergonomic handle
• One-Piece Tongs*
  • Heavy-Duty One-Piece Ladies*
• Nylon Handle Whips
  • One-Piece Skimmers
• Tribute ^® , Intrigue ^® , and Classic Select ^® Cookware ^*

*Jacob's Pride® warranty does not cover Kool-Touch®, non stick coatings and silicone handles.

Items sold having no warranty:

• Meat Grinder Knives
  • Light Bulbs in Convection Ovens and Hot Food Merchandiser
• Oven Door Seals
• Oven Door Glass
  • Hot Food Merchandisers / Display Case Glass
  • Calibration and set up of gas equipment
• Slicer / Dicer blades (table top food prep) – Redco and Vollrath

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

As The Vollrath Company LLC's only responsibility and the purchaser's only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the defective product or part without charge, except as otherwise provided below:

• For refrigeration compressors and the second year of the warranty on Cayenne® Heat Strips and mixers, The Vollrath Company LLC will provide the repaired or replacement part only; and the buyer will be responsible for all labor charges incurred in performing the repair or replacement.

• To obtain warranty service, the buyer will be responsible to return to The Vollrath Company LLC any product (other than gas equipment that is permanently installed) weighing less than 110 lbs. or located outside of a 50-mile radius of a certified technician designated by The Vollrath Company LLC to perform warranty repairs. If a Vollrath Technician cannot be contacted check the website for service contact points. (Please refer to the Product Catalogue for weights and sizes of product)

• No remedy will be available for products that have been damaged by accident, carelessness, improper installation, lack of proper setup or supervision when required, neglect, improper use, installation or operation contrary to installation and operating instructions or other causes not arising out of defects in materials or workmanship. At the buyer's request, The Vollrath Company LLC will repair and or replace such products at a reasonable cost.
  • No remedy will be available for slicers where blade has not been sharpened (Refer to owner's manual for sharpening instructions)

• No remedy will be available for mixers damaged by changing gears while unit is running or overloading, in either case as determined by a Vollrath Certified Technician
• Warranty work must be authorized in advance by The Vollrath Company LLC. See the operating and safety instructions for each product for detailed warranty claim procedures.
• No remedy will be available for product returned and found to be acceptable to the product specification.
• No remedy will be available under any warranty not registered as required below.

LIMITATION OF LIABILITY:

THE VOLLRATH COMPANY LLC SHALL HAVE NO LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER BASED UPON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY, OR ANY OTHER THEORY.

WARRANTY PROCEDURE

On all warranty calls, the following process and information is required:

• All warranty claims will start with a call to Vollrath Technical Service support line.(800-628-0832).
  • A technical support professional will work to diagnose the issues, and provide the details for the service solution.
  • Name and phone number of person calling
  • Business name, street address, city, state and zip
  • Model and serial number
  • Date of purchase and proof of purchase (Receipt)
  • Name of dealer where unit was purchased
  NOTE: Vollrath will not accept products sent without the proper procedure being followed.

Important:

TO MAKE A CLAIM FOR ANY REMEDY UNDER THIS WARRANTY, YOU MUST REGISTER YOUR WARRANTY.

REGISTER TODAY

ONLINE: Register your warranty on-line now at www.Vollrathco.com

NO WEB ACCESS: If you do not have access to the web, kindly register by completing the warranty registration form and faxing it to The Vollrath Co. LLC office in the country of purchase.

WARRANTY REGISTRATION

BUSINESS NAME
KEY CONTACT NAME	EMAIL
STREET ADDRESS
CITY STATE ZIP CODE
COUNTRY PHONE FAX
MODEL ITEM NUMBER
SERIAL NUMBER -
OPERATION TYPE
Limited Service RestaurantFull Service RestaurantBars and TavernsSupermarketConvenience StoreRecreationHotel/LodgingAirlinesBusiness/IndustryPrimary/Secondary SchoolColleges/UniversityHospitalsLong-Term CareSenior LivingMilitaryCorrectionsREASON FOR SELECTING OUR PRODUCT
AppearanceFull Service RestaurantAvailabilitySellers RecommendationEase of OperationVersatility of UsePriceBrandWould You Like to Receive Our Full-Line Catalog and Remain on Our Mailing List?YesNo

Setting the Standard ^TM

www.vollrathco.com

The Vollrath Company, L.L.C.

1236 North 18th Street

Sheboygan, WI 53081-3201

U.S.A.

Main Tel: [phone]

Fax: [phone]

Technical Services: 800.628.0832

Service Fax: [phone]

Canada Service: 800.695.8560

© 2010 The Vollrath Company, L.L.C.

Manual del operador

PEDESTAL PARA EQUIPOS

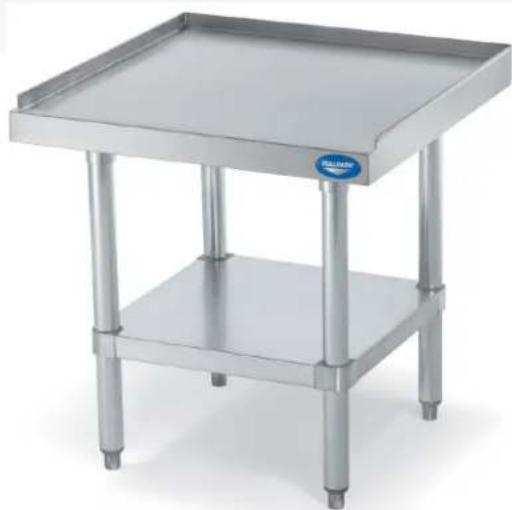

Exterior view of a stainless steel kitchen stand with four legs and a top shelf (no text or symbols visible)
