Product type	Countertop or built-in induction plate
Brand	Mirage (manufactured by Vollrath)
Model	59601
Intended use	Commercial food service (not household)
Power supply	220-240 V AC, 50/60 Hz, dedicated circuit required
Plug type	NEMA 5-15P (for US models) / Schuko (for EU models)
Maximum power	Not specified, adjustable from 1 to 100
Temperature range	Display in °C or °F, adjustment via rotary knob
Timer	1 to 180 minutes, automatic shut-off
Compatible cookware diameter	12.1 to 30.5 cm (built-in model) / 12.1 to 26.0 cm (countertop model)
Compatible cookware materials	Ferrous stainless steel, iron, cast iron (flat bottom)
Incompatible materials	Earthenware, glass, aluminum, bronze, copper, non-flat bottom or < 12.1 cm
Dimensions (countertop)	Not specified, rear clearance 10 cm, bottom 1.3 cm
Weight	Not specified
Cooking surface material	Ceramic glass (non-porous, durable)
Main functions	Induction cooking, variable power, temperature control, timer, automatic shut-off
Safety	Overheat protection, pan detection, shut-off after 10 min without a pot
Maintenance and cleaning	Clean with a damp cloth after cooling; do not use abrasive products
Spare parts and repairability	Parts available on Vollrath.com; repairs by authorized service technician
Warranty	Vollrath warranty against defects in materials and workmanship (commercial use)
Standards	Compliant with FCC Part 18 (radio interference)

Frequently Asked Questions - 59601 Mirage

What type of cookware to use with this induction plate?

Use utensils with a flat bottom with a diameter of at least 12.1 cm, made of ferrous stainless steel, cast iron or iron. Pots made of aluminum, glass, earthenware or copper do not work.

Can I use an extension cord?

No, the use of extension cords, power strips or surge protectors is prohibited. Plug directly into a dedicated grounded outlet.

How to clean the cooking surface?

Let the appliance cool down, then wipe with a clean damp cloth. Do not use abrasive products, scouring pads, or spray cleaners.

What to do if the appliance turns off after 10 minutes?

This is normal: the appliance automatically shuts off if no pot is detected. Place a suitable pot on the cooking zone.

How to adjust temperature or power?

Turn the control knob clockwise to increase, counterclockwise to decrease. Press the Power/Temp button to switch between power (1-100) and temperature modes.

Can I use aluminum pots with a metal disc on the bottom?

No, this will damage the appliance and void the warranty. The disc may detach at high temperatures.

How to use the timer?

Press the Timer button, turn the control knob to set the time between 1 and 180 minutes. Once the time is up, the appliance turns off.

What does code F2 on the display mean?

Code F2 indicates that the overheat protection has activated. Let the appliance cool down before using it again.

Where to find spare parts?

Parts are available on Vollrath.com. For repairs, contact technical support – do not attempt to repair yourself.

Can the appliance be built-in?

Yes, some models (like the 59601S) are designed for built-in installation. Follow the specific installation instructions provided in the data sheet on Vollrath.com.

USER MANUAL 59601 Mirage

Mirage® CountertopandDrop-inInductionRanges

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• Plugonlyintogroundedelectricaloutletsthatmatchthevoltageon theratinglabel.
  • This equipment requiresadedicated circuit.
• Donotuseextensioncords, powerstripsorsurgeprotectors with this equipment.
• Unplugthisequipmentfromthewalloutletwhennotinuse.
• Usethisequipmentonlyinaflat,levelposition.
• Toprotectagainstelectricalshockdonotimmersethecordorplug inwater.Keepthecordawayfromheatedsurface.Donotletthe cordhangovertheedgeoftableorcounter.
• Asaprecaution, persons using apacemakers should standback 12 ^® (30cm) from an operating unit. Studies have shown that the induction element will not disrupt apacemaker.
• Keepallcreditcards, driverlicenses and other items with amagnetic strip away from an operating unit. The unit's magnetic field will damage the information on these strips.
  •Theheatingsurfaceismadeofastrong,non-porousmaterial. However,shoulditcrackorbreak,stopusingandimmediately unplugtheunit.Cleaningsolutionsandspillscouldpenetratethe brokencook-topandcreateariskofelectricalshock.
• Donotoperatethisequipmentwithadamagedcordorplugorifitis notfunctioningproperly.
• Donotoperateunattended. Closelysuperviseunitsoperatingin publicareasand/oraroundchildren.
• Donotplaceanyobjectsinsidetheairintakeorexhaustpanels.
• Donotattachanyaccessoryobjectstothisequipment.

Exterior view of a modern electric heating appliance with a circular top and digital display (no visible text or symbols)

Exterior view of a portable electronic device with a control panel and power cord (no visible text or symbols)

ItemNo.	Description	Plug
59500	Mirage ^ CountertopInductionRange,US	NEMA5-15P
59510	Mirage ^ CountertopInductionRange, US,Canada
59650	Mirage ^ CountertopInductionRange	Schuko
59651UK
59652China
59655AU
59501	Mirage ^ Drop-inInductionRange	NEMA5-15P
59601Schuko
59602UK
59603China
59605AU

FUNCTIONANDPURPOSE

This equipment is intended for use in commercial food service operations only. It is not intended for household, industrial or laboratory use. It is intended to be used within induction-ready cookware.

COOKWAREREQUIREMENTS

Compatible

Simple line drawing of a cooking pot with two handles and a central height dimension (no text or symbols)

• Drop-inRanges: Flatbase 4¾"to12"(12.1to30.5cm)in diameter
• CountertopRanges: Flatbase 4 34 "to 10 14 " (12.1 to 26.0 cm) indiameter
  •Ferrousstainlesssteel, iron, castiron

Incompatible

lessthan4 ^3/4

• Baseisnotflat
• Baseislessthan4 ^3/4 " (12.1cm) indiameter
  •Pottery, glass, aluminum, bronzeorcoppercookware
  •Metaldiskonbottomofpan

Note: Cookwarewithininferiorconstructionormaterialmaynotperform well. Cookwarewithalargerbasediametercanbeused, howeveronly theareaofthecookwareabovetheinductioncoilwillheat. Themore cookwareextendspastthecoil, themoretheoverallperformancewill bereduced.

NOTICE:EquipmentDamageHazard

Notintendedforusewithaluminumpanswithametaldisk onthebottom.Underhighheat,themetaldiskwillseparate fromthepan.Thesepansmaydamageyourunitandvoid yourwarranty.

FCCSTATEMENT

This equipment has been tested and found to comply with Part 18 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiater radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference or radiocommunications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference or radioortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna
- Increase these separation between the equipment and receiver
- Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

COUNTERTOPRANGEINSTALLATION

ClearanceandEnvironmentRequirements

NOTICE: This unit is not designed to be enclosed or built into any area. Sufficient airflow must be allowed around the unit. Blocking the airflow could cause the unit to overheat.

•Rearoftherangetoanysurroundingsurface:4"(10cm)
- Bottomoftherangetoanysurroundingsurface: 12 " ( 2 c m )
- Indooruseonly.
- Donotplacetheequipmentonornearheat-producingequipment.

Installation

1. Placetheinductionrange/warmeronaflatstablesurface.
2. Plug the power cord into a grounded electrical outlet that match the voltage on the rating label.

NOTICE: This equipment requiresadedicated circuit.

NOTICE: Usingavoltageotherthanthenameplateratedvoltage willcausedamagetotheunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewarranty.

DROP-INRANGEINSTALLATION

Pure diagram of a rectangular electronic component with internal circuit-like structure and two side connectors (no text or symbols)

Beforeyoubegin

1. Downloadthespecificationsheetforyourdrop-infrom Vollrath.com.Youwillneedtorefertothisdocumentfor dimensions,clearance,ventingandpowerrequirements.
2. Verify the properelectrical outlet is available at the installations site.

NOTICE: This equipment requiresadedicated circuit.

NOTICE: Do NOT modify the chordor plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. Seethespecificationsheet on Vollrath.com forelectrical specifications.

3.Knowthecountertopmanufacturer'srequirementsforpreparingand installingequipmentintothecountertopprioritostartinginstallation.

PreparetheCountertopandCabinet

NOTICE: Refertothedrop-inspecificationsheetforcutout dimensions, airflow and venting requirements, minimum clearance distances and environment requirements.

NOTICE: Countertopmaterials requires specific preparation. Referto the countertop manufacturer for instructions regarding proper installation of equipment into thematerial.

NOTICE: Exposedwoodorparticleboardedgesmustbesealedwith anappropriatewaterproofingmaterial.Sealtheedge betweentheglassandthecountertopwithsiliconeor similarmaterial.Failuretodosomayresultindamageto thecountertop.

1. Cutrequiredopeningsinthecountertopandcabinet.
2. Cleandebrisfromthecutoutarea(s).
3. Reinforcethecountertopsupportasneededperthecountertop manufacturerguidelinesandtheweightoftheequipment.

MounttheDrop-in

1. Choose a flat, level countertop for themountings surface.
2. Measure the area for the cutout, including the countersink area. The unit is designed to be countersunk. The depth of the surface around the cutout must be reduced to allow for the countersink. Seethe specifications sheet.

MounttheControlBox

1. Measure the area for the control box cut out.
2. Apply sealant to the space between the control box and the mountingsurface to prevent moisture penetration.
3. Secure the control box to themountingsurface.
   4.PlugtheUSBcablefromthecontrolboxintothebottomofthe range.

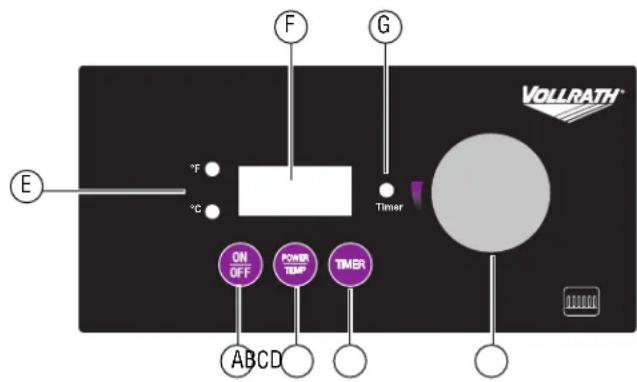

FEATURESANDCONTROLS

Drop-inRangeControlPanel

CountertopRangeControlPanel

AOn/Offbutton.

BPower/Tempbutton. Presstotogglebetweenpowerlevel(1-100) and temperaturecontrol, and Fahrenheit and Celsius.

CTimerbutton.Startsthetimer.

DControlknob. Selectsthetemperature, powerlevelortime, dependingonthemode.

E°Fand°CLEDs. Illuminatetoindicate which temperature is displaying.

FDisplaypanel.Displaysthepowerlevel,temperature,timertime oranerrorcode.

GTimerLED. Illuminateswhentimerfunctionisoperating.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Donotpreheatemptycookware. Because of the speed and efficiency of the induction range, cookware can very quickly overheat and bedamaged.

NOTICE: Donotdropcookingutensilsorotherobjectsontothe cookingsurface. Thestrong, non-porous surface will break. Thewarranty does not cover this type of a base.

NOTICE: Donotleaveanemptypanonanoperatingunit.

NOTICE: Donotheatsealed cansorcontainersastheymay explode.

TurnonthelnductionRange

Pressandrelease.

AdjustthePowerLevelorTemperature Increaseordecrease

Rotatethecontrolknob.

•Clockwiseincreasessthenumbers.
- Counterclockwisedecreasesthenumbers.

Switchbetweenpowerandtemperaturemodes

Pressandrelease.

SwitchbetweenFahrenheitandCelsius

Pressandrelease.tv

CookFood

Thedisplayshouldremainconstantduringoperation.Ifthedisplayis flashing,seetheTroubleshootingsectioninthismanual.

Removingcookwarefromthecookingsurfaceformorethanten minuteswillcausetheunittoautomaticallyturnoff.Removing cookwareforlessthantenminuteswillnotinterruptoperation.

UsetheTimer

1. Pressandrelease. Thetimer LED will flash.
2. Rotatethecontrolknobtosethetimeinfullminutes(1-180).
3. Whenthetimercycleiscomplete,therangeturnoff.
4. Tocancelthetimer, press. The angewillreturntopoweror temperaturemode.

CLEANING

Tomaintaintheappearanceandincreasetheservicelife,cleanyour inductionrangedaily.

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Allow equipment to cool before removing or cleaning.

NOTICE: The cookingsurfaceremainshotevenwhenthisequipment isturnedoff.

NOTICE: Donotuse abrasivematerials, scratching cleanser scouring padstoclean the equipment. These can damage the finish.

1. Pressandrelease.

1. Unplugthecordfromthewalloutlet.

2. Allow the equipment to cool.

3. Wipethe exterior with acle and amp cloth.

5.Thoroughlywipeoffanymildsoaporchemicalcleaners.

NOTICE: Residue could corrode the surface of the unit.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Theunitturnedoffafter10minute(s).	Thereisnotapot/panontheinductionrange orthepot/panisnotinduction-readycook-ware.Theinductionrangeturnedoff.Thisis normal.	Makesurethepot/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
Theunitison,butnotheating.	Thecookwaremaybetoosmallormaynot beinduction-ready.	Makesurethepot/panisinductionready.SeetheFunctionand Purposesectionofthismanual.
ThedigitaldisplayisflashingF2.	Theoverheat-protectionfeaturemayhave activated.	Removecookware.Letcookingsurfacecool.
Theunitsuddenlystoppedworking.	Theunitmaybetooclosetoanexternalheat sourceortheairintakemayberestricted.	Relocatetheunitawayfromanyexternalheatsource.Clearany obstructionstotheairintake.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

The VollrathCompany, L.L.C. Headquarters

1236North18thStreet

Sheboygan, Wisconsin

53081-3201USA

MainTel:800-624-2051or920-457-4851

MainFax:800-752-5620or920-459-6573

CanadaCustomerService:800-695-8560

TechServices:[e-mail]

www.vollrath.com

Pujadas

Ctra.deCastanyet.

132P.O.Box121

17430SantaColomadeFarners

(Girona)-Spain

Tel.[phone]

[e-mail]

VollrathofChina

VollrathShanghaiTrading

Limited

23A, TimeSquarePlaza|500

ZhangYangRoad

Pudong, Shanghai200122

Tel:[phone]

Simple line drawing of a cooking pot with two handles and a central height dimension (no text or symbols)

Pure diagram of a rectangular electronic component with two side ports and internal circuit-like structures (no text or symbols)

Avantdecommencer

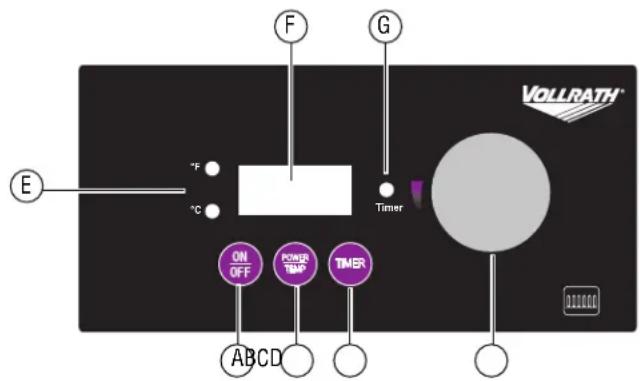

FONCTIONSETCOMMANDES

Panneaudecommandedelaplaqueencastrable

ABoutonOn/Off.

The VollrathCompany, L.L.C. Headquarters

1236North18thStreet

Sheboygan, Wisconsin

53081-3201USA

MainTel:800-624-2051or920-457-4851

MainFax:800-752-5620or920-459-6573

Main: ax.600-752-362681926-459-6575 CanadaCustomerService:800-695-8560

CanadaCustomerService.800-695-8300 TechServices:techservicareng@vollrath

[e-mail]

www.vollrath.com

Puiadas

Ctra.deCastanyet.

132P.O.Box121

17430SantaColomadeFarners

(Girona)-Spain

Tel.[phone]

[e-mail]

VollrathofChina

VollrathShanghaiTrading

Limited

23A.TimeSquarePlaza|500

ZhangYangRoad

Pudong.Shanghai200122

Tel:[phone]

Exterior view of a modern electric heating appliance with a circular top and control panel (no visible text or symbols)

Simple line drawing of a cooking pot with two handles and a central height dimension (no text or symbols)

• Emoptrada: Baseplanade 12, 1a 30,5cm (4¾"to12") dediámetro
  •Mostrador:Baseplanade12.1a 26.0cm(4 ^3/4 "to10 ^1/4 ")dediámetro
• Aceroinoxidableferroso, hierro hierrofundido

Incompatible

menosde4 ^3/4 (12,1cm)

Pure diagram of a rectangular electronic component with three terminals and internal circuit-like structures (no text or symbols)

ABotóndeencendido/apagado(On/Off).

BBotóndepotencia/temperatura(Power/Temp).Púlselopara alternarentreelcontroldepotencia(1-100)ytemperatura,yentre Fahrenheitcentigrados.

The VollrathCompany, L.L.C. Headquarters

1236North18thStreet

Sheboygan, Wisconsin

53081-3201USA

MainTel:800-624-2051or920-457-4851

MainFax:800-752-5620or920-459-6573

CanadaCustomerService:800-695-8560

CanadaCustomerService.000 000 000 TechServices:techservicarens@vollrathc

[e-mail]

www.vollrath.com

Puiadas

Ctra.deCastanyet.

132P.O.Box121

17430SantaColomadeFarners

(Girona)-Spain

Tel.[phone]

[e-mail]

VollrathofChina

VollrathShanghaiTrading

Limited

23A.TimeSquarePlaza|500

ZhangYangRoad

Pudong.Shanghai200122

Tel:[phone]
