USER MANUAL ERSC3878n Essentiel B

Black and gold portable electronic device with sound waves and control buttons (no visible text or symbols)

Ce produit ne peut être utilisé que dans des pièces bien isolées ou de manière occasionnelle. This product may only be used in well-insulated rooms or occasionally. Dieses Produkt darf nur in gut isolierten Räumen und nur gelegentlich verwendet werden. Dit product mag alleen incidenteel gebruikt worden in goed geïsoleerde ruimtes.

Notice d'utilisation / User guide / Bedienungsanleitung / Gebruiksaanwijzing

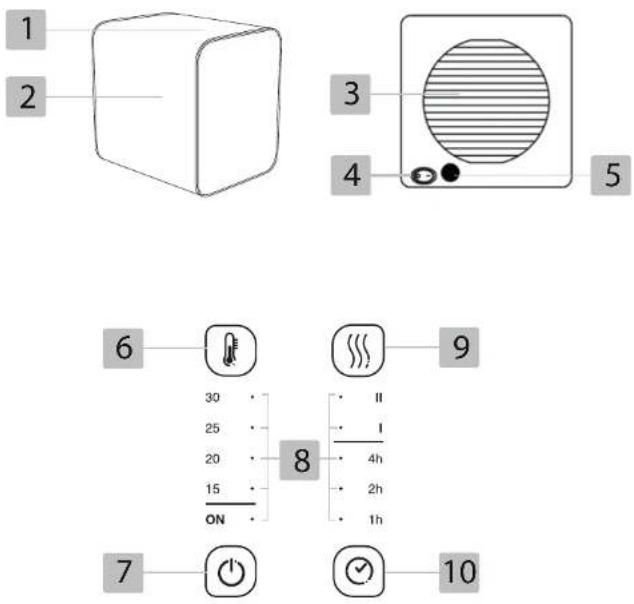

1 2 3 4 5 6 7 8 9 10

	FR EN DE NL
1	Bandeau de commande avec touches tactiles	Control panel with touch-sensitive button	Bedienfeld mit Touch-Tasten	Bedieningspaneel met touchbuttons
2	Sortie de l'air Air vent Luftauslass Luchtuitlaat
3	Grille de protection Protective cover Schutzgitter		Beschermrooster
4	Interrupteur principal	Main switch	Haupt-schalter	Hoofd-schakelaar
5	Cable d'alimentation Power cord Stromkabel Voedingskabel
6	Bouton de réglage de la température	Temperature control knob	Taste für Temperatureinstellung	Knop voor het instellen van de temperatuur
7	Bouton de veille	Standby button	Standby-Taste	Knop waakstand
8	Voyants indicateurs	Indicator lights	Leuchtanzeigen	Indicatorlampjes
9	Bouton de réglage de la puissance	Power selection button	Taste für Leistungsauswahl	Knop voor het instellen van het vermogen
10	Bouton de réglage de la minuterie	Timer control button	Taste für Timereinstellung	Knop voor het instellen van de timer

You have just purchased an Essential branded product, and we thank you for your purchase. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope you will be completely satisfied with this Pan heben

your product

Box contents

- 1 fan heater

- 1 user manual

Technical characteristics

- Supply voltage: 220-240 V\~

• Power frequency: 50-60Hz

- 2 heating levels: 900 & 1800W

- Adjustable temperature control

- Adjustable timer (up to 7 hours)

• Fan mode for optimal air flow

- Touch-sensitive buttons

• Power cord length: 1.30m

- Weight: 1.4 kg

• Not bathroom-compatible

• Suitable for an area of 18 m²

datasheet

Information requirements for electric local space heaters (UE 2024/1103)

Contact details Sourcing & CréationAvenue de la Motte 59810 LESQUIN - [e-mail]
Model(s) Identifi er 8009993 Fan heater ERSC3878n
Item Symbol Value Unit Item Unit
Heat output					Type of heat output / room temperature control (select one)
Nominal heat output	Pnom 1.800 kW				Single stage heat output and no room temperature control	no
Minimum heat output (indicative)	Pmin 0.900 kW				Two or more manual stages, no room temperature control	no
Maximum continuous heat output	Pmax,c 1.800 kW				With mechanic thermostat room temperature control	no
Power consumption					With electronic room temperature control	yes
In off mode	Po	N/A	W		Electronic room temperature control plus day timer	no
In standby mode	Psm	0,20	W		Electronic room temperature control plus week timer	no
In idle mode	Pidle	0,34	W		Other control options (multiple selections possible)
In network standby	Pnsm	N/A	W		Room temperature control, with presence detection	no
Standby mode with display of information or status			no		Room temperature control, with open window detection	no
Seasonal space heating energy effi ciency in active mode	Ne,on	91,5	%		Distance control option	no
					Adaptive start control	no
					Working time limitation	yes
					Black bulb sensor	no
					Self-learning functionality	no
					Control accuracy	no

use

IMPORTANT: before using the appliance, it must be placed on a fl at and stable surface, otherwise the tilt protection system will switch it off. Do not use the appliance if it has been dropped or shows visible signs of damage.

Step Indicator
1	/	Plug the power cable (5) into a power outlet that complies with the specifi cations.
2		Set the main switch (4) to position -There is a beep sound and the standby indicator light comes on.
3		Press the standby button (7) to switch on the heating, and there is a beep sound.
4	/	Select the temperature, power and the timer, if necessary. Check out the following sections.
5		Press the standby button (7) to switch off the heating, and there is a beep sound.The fan of the appliance will run for a few moments to cool down, and then switch off.
6		Set the main switch (4) to position 0 and unplug the power cord from the outlet.

Thermal safety:

In the event of overheating, the safety device is automatically activated and the appliance will shut down. Put the main switch (4) in position0, unplug the appliance and let it cool down. Then restart the appliance normally.

Setting the temperature

Press the temperature setting button (6) to select the temperature you want in the room. The corresponding indicator lights up and there is a beep each time you press it.

Each press of the button increases the temperature setting:

15^ C > 20^ C > 25^ C > 30^ C

NOTE:

When the 4 temperature indicators (15 + 20 + 25 + 30°C) are active, this means that the appliance is in continuous heating mode: it will work for 12 hours continuously, and then automatically switch to standby. The temperature sensor does not work when this mode is active.

Power adjustment

Press the power adjustment button (9) to select the operating power. There is a beep sound with each press of the button.

Each press of the button switches to a different power setting: 900W > 1800W > Ventilation

TEMPERATURE AND POWER ADJUSTMENT

If the appliance:

• is not unplugged; or
• is not switched off using the main switch (4); or
• is not moved (tilt protection), it retains the previous setting in the memory.

Operating mode	Lights on
900 W	• || * |
1800 W	* || • |

Fan / Cold No lights

Timer function

Press the timer setting button (10) to set the operating time before the appliance switches off automatically. There is a beep sound with each press.

Number of button presses Ⓤ	Running time	Lights on
1 1 h		4 h\\2 h\\+1 h
2 2 h		4 h\\2 h\\+1 h
3 3 h		4 h\\2 h\\+1 h
4 4 h		4 h\\2 h\\+1 h
5 5 h		4 h\\2 h\\+1 h
6 6 h		4 h\\2 h\\+1 h
7 7 h		4 h\\2 h\\+1 h
8	No timer Runs continuously	No lights

cleaning and maintenance

IMPORTANT:

- Always unplug the power cord from the electrical outlet and allow the appliance to cool before cleaning or servicing.

- Do not immerse the appliance in water or any other liquid.

To work optimally, the appliance requires regular maintenance:

- Wipe the exterior surfaces of the appliance with a soft, slightly damp cloth to remove dust and dirt. Never use abrasive cleaning products on this appliance (alcohol, solvent, etc.)

- Use a vacuum cleaner to remove dust from the vent grille.

- Check that the appliance is completely dry before plugging it in again.

- If the appliance is not going to be used for a prolonged period, switch it off, unplug it, and store it in a clean, dry place.

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and

recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz

* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

* In unseren Labors getestet

SERVICE RELATION CLIENTS / Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte CS 80137 59811 Lesquin cedex

Art. 8009993 Ref. ERSC3878n

FABRIQUÉ EN R.P.C. / Made in China / Hergestellt in VR China / Gefabriceerd in VRC.
