TF 0149 - Fan Orbegozo - Free user manual and instructions

Product type	Pedestal fan
Brand	Orbegozo
Model	TF 0149
Power supply	Mains 220-240 V ~ 50 Hz
Speeds	Off, low, medium, turbo, silent
Oscillation	Yes, with oscillation button
Indicator light	Operation LED
Protection grille	Front and rear grille
Assembly	Assembly of rear grille, blade, and front grille
Cleaning	Unplug, clean blades and grilles monthly with water, dry thoroughly
Safety	Do not use near water, do not insert objects, stable and flat surface
Compliance	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU
Warranty	Legal warranty according to current legislation, keep the purchase receipt
Technical service	https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - TF 0149 Orbegozo

How to assemble the Orbegozo TF 0149 fan?

Make sure the fan is unplugged and the speed control is on 0. Insert the rear grille onto the motor shaft and secure it with the provided nut. Place the blade on the shaft and tighten the corresponding nut. Manually check that the blade turns correctly. Place the front grille and install the plastic ring around the grilles, then tighten the grille screw. For the oscillation button, screw it into place if necessary.

How to clean the fan?

Unplug the fan. Disassemble the front grille, blade, and rear grille in reverse order of assembly. Clean the blades and grilles with water and dry them thoroughly before reassembling. Do not use oil, alcohol, or chemical products. Clean once a month for optimal performance.

What to do if the fan does not turn on?

Check that the power cord is properly plugged in and that the outlet works. Make sure the speed control is not on 0. If the problem persists, contact an authorized Orbegozo technical service via https://orbegozo.com/asistencia-tecnica/.

The fan makes an abnormal noise, what to do?

Turn off and unplug the fan. Check that the blade is properly secured and not rubbing against the grille. Make sure the grille screws are tight. If the noise persists, contact technical service.

Can I use the fan near a window?

No, never use the fan near a window. Rain can create an electrical hazard. Do not let the fan operate where water might accumulate.

How to activate oscillation?

To activate oscillation, press the oscillation button (reference 6). To stop oscillation, gently pull the oscillation button to avoid damaging it.

What speeds are available?

The Orbegozo TF 0149 fan offers 5 positions: off (0), low, medium, turbo and silent. Select the desired speed using the speed control. The LED lights up when the fan is running.

Is the fan guaranteed?

Yes, this device is covered by the legal warranty in accordance with current legislation from the date of purchase. Keep the purchase receipt to assert your right. For any assistance, contact https://orbegozo.com/asistencia-tecnica/.

Can I leave the fan on all night?

The fan is designed for domestic use. You can leave it running while you sleep, but ensure it is placed on a stable and flat surface, and that nothing obstructs the grilles. Turn it off if you are away for a long time.

What to do if the power cord is damaged?

If the power cord is damaged, contact an authorized technical service. Do not use it and do not attempt to repair it yourself. Contact Orbegozo technical service.

USER MANUAL TF 0149 Orbegozo

Exterior view of a modern office desk fan with blue blades and white casing (no text or symbols visible)

Black and white photo of a 15-inch electric fan with mesh grille and base (no visible text or symbols)

TF 0138 - TF 0139

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

2. MONTAJE

Technical line drawings of a fan assembly showing five different fan components with no text or symbols

3. FUNCIONAMIENTO

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- Never insert fingers, pencils or any other object through the grille when fan is running.

- Disconnect the plug when moving from one location to another.

- Be sure fan is on a stable, even surface when operating to avoid overturning.

- DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

- Avoid contacting moving parts.

- Do not hang or mount fan on a wall or ceiling.

- While cleaning, be sure to not splash water and do not use oil, alcohol or chemical articles as they may cause distortion of fan body and cause electrical hazards.

- Make sure to keep the fan far away from humidity, chemical articles and oil.

• Keep away from curtain, clothing or other something may affect the fan's working.
• Turn off all switches and pull out power supply plug when you go out for long time.

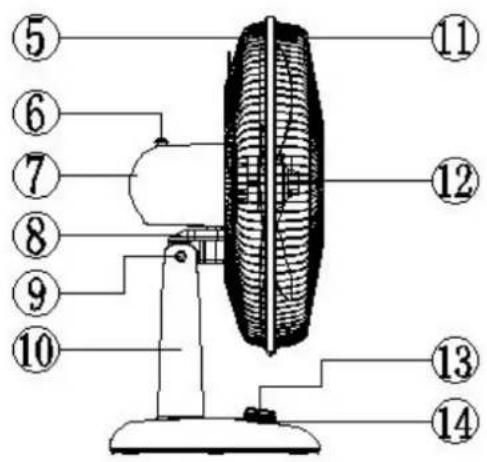

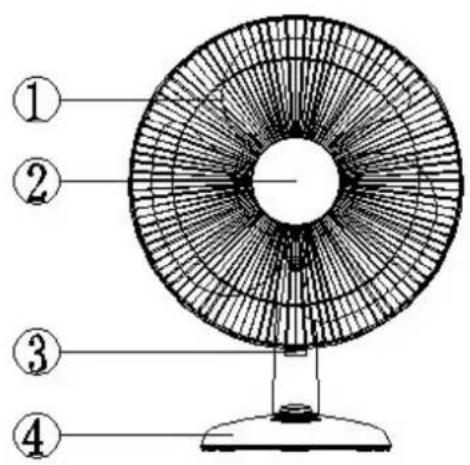

1. DESCRIPTION

1. Fan blade
2. Axis
3. Closing of the grille
4. Base
5. Rear grille
6. Oscillation button
7. Engine housing
8. Support tilt
9. Axis tilt
10. Body
11. Front grille
12. Nut blade
13. Speed control
14. LED indicator

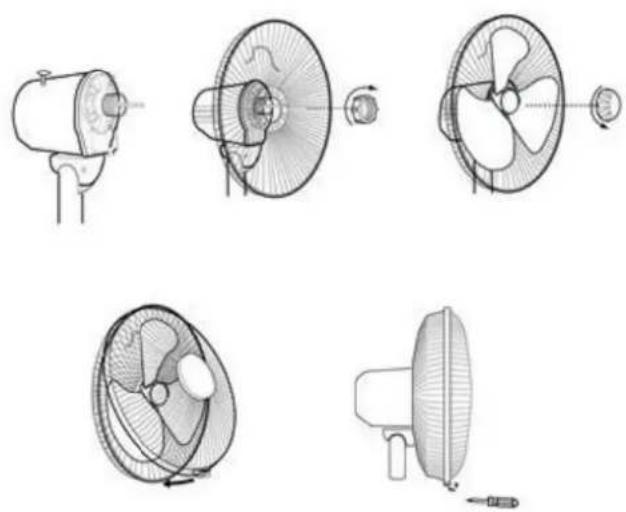

2. ASSEMBLY

• Please, check that the fan is unplugged and speed control to position 0.
• Insert the rear grille to the axis motor, place the supplied nut to secure the rear grille.
• Place the blade on the axis and place the corresponding nut. Check manually that the blade rotates correctly. For TF 0123 place the blade on the shaft and push until it clicks.
• Place the front grille and install the plastic ring around the grids. Tighten the screw of the grid to set the ring.
• In the TF 0123, oscillation button must be mounted with the supplied screw, screw it into place.

Five technical line drawings of a fan assembly, showing front, side, top, and side views with no text or symbols.

3. OPERATION

- Place the fan in the desired location. Check that the speed control is set to 0. Connect the fan to the power supply.

- Select in the speed control, the desired speed (off; low; medium; Turbo; Silent). When the fan is running the LED will light.

To connect the option oscillation, press the oscillation button (6). To stop oscillation pull oscillation button (6). Carefully pull the button to avoid damage it.

4. CLEANING AND MAINTENANCE

- To keep the fan in top condition we recommend cleaning the blades and grilles once a month (when used).

- Make sure the fan is switched off when you are ready to clean. To dismount follow the reverse process to that described in the installation section.

- Clean the blades and grilles rinsing with water and dry thoroughly before reassembling.

- Save the mounted fan in a cool dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).
