USER MANUAL SF 1340 Orbegozo

Exterior view of a modern office desk fan with visible blades and control panel (no text or symbols)

SF 1240 - SF 1340

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- Make sure to keep the fan far away from humidity, chemical articles and oil.

- Use fan only for intended use as described in instruction manual

- Do not hang or mount fan on a wall or ceiling.

- While cleaning, be sure to not splash water and do not use oil, alcohol or chemical articles as they may cause distortion of fan body and cause electrical hazards.

- Keep away from curtain, clothing or other something may affect the fan's working.

- Never use the fan before finishing assembly to avoid any hurts.

- Never insert fingers, pencils or any other object through the grille when fan is running.

- Disconnect the plug when moving from one location to another.

• Be sure fan is on a stable, even surface when operating to avoid overturning.
• DO NOT USE fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

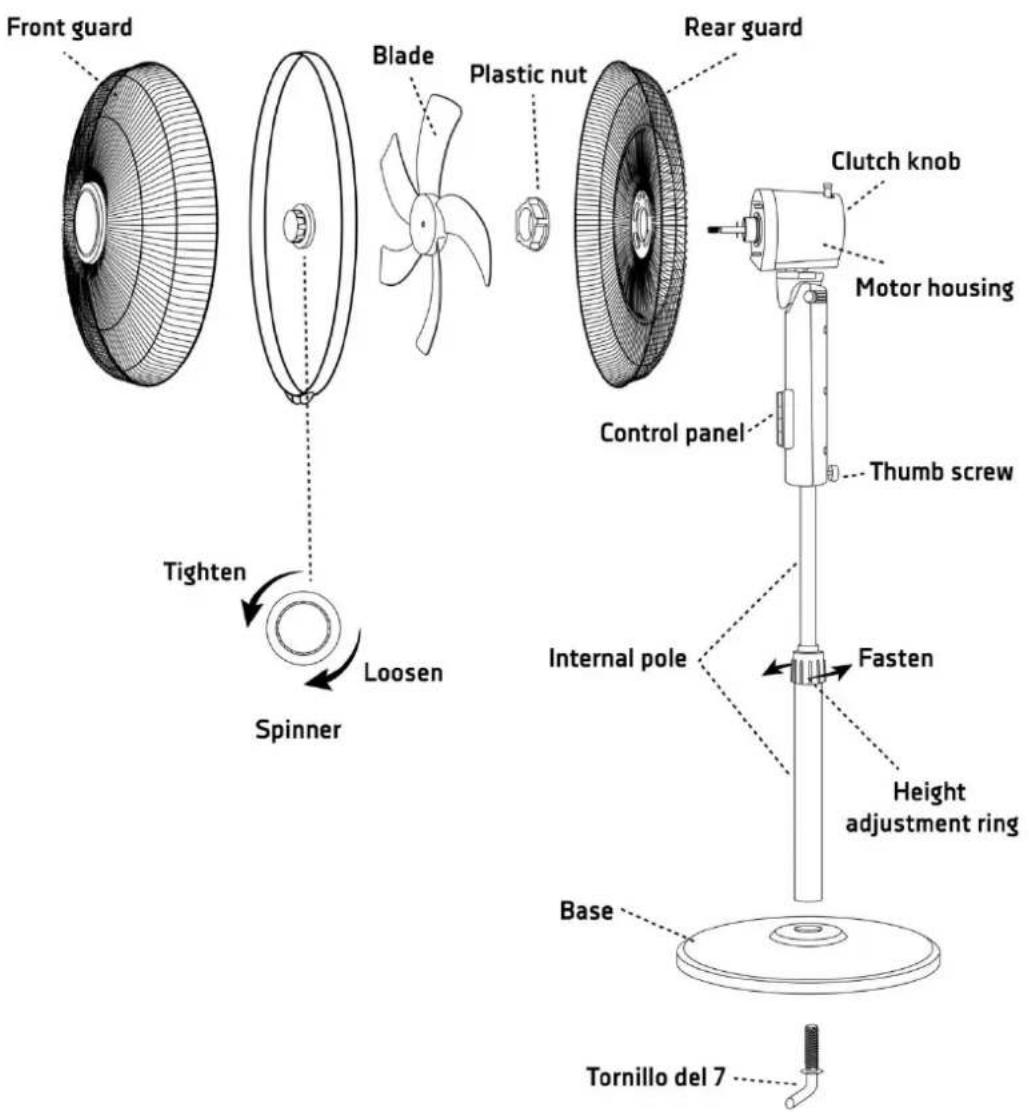

STRUCTURE

Front guard Blade Plastic nut Rear guard Clutch knob Motor housing Control panel Thumb screw Tighten Loosen Spinner Internal pole Fasten Height adjustment ring Base Tornillo del 7

ASSEMBLY INSTRUCTIONS

1. Install the post onto the base and secure with screw 7. Choose the desired height of the inner post and adjust it by tightening the height adjustment ring.
2. Insert the inner pole into the fan body and tighten the thumb screw to secure it to the pole.
3. Place the rear grille over the front of the motor with the handle facing up. Tighten the plastic nut to secure the grille. Insert the blade into the motor shaft and screw in the spinner. Place the retaining ring on the front grille and then join the two grilles together using it. Tighten the retaining ring screw to secure both grilles.

- TIMER Timer. Each time you press this button, the timer will increase by 1 hour, from a minimum of 1 hour to a maximum of 12 hours. When the selected time elapses, the fan will turn off.

Oscillation. To activate the oscillation function, press this button; to deactivate it, press it again.

- SPEED Speed. This button selects the speed type: low (F1), medium (F2), and high (F3).

- ON/OFF Power. Press this button to turn the fan on or off.

CARE, CLEANING AND MAINTENANCE

• The blades and grilles should be cleaned regularly for best performance. Unplug the fan and reverse the assembly instructions to remove the blades and grilles before cleaning. Wipe with a damp cloth and dry with a dry towel.
• Never immerse any part in water. Only clean the fan with a damp cloth and dry it immediately with a dry towel.
  • Always store your fan in a cool, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
