Product type	Electric insect killer
Brand	Orbegozo
Model	MQ 5530
Approximate dimensions	25 x 25 x 45 cm
Approximate weight	1.5 kg
Power supply	220-240 V / 50 Hz
Power	10 W (UV lamp)
Lamp type	Attractive UV tube
Elimination method	High voltage electric grid
Usage	Indoor only
Minimum suspension height	2 meters from the ground
Collection tray capacity	Approx. 500 ml
Maintenance	Clean the tray regularly, dust the grid with a brush
Exterior cleaning	Slightly damp cloth
Lamp replacement	By technical service only
Materials	Plastic and metal
Protection rating	IPX0 (not waterproof)
Certifications	Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Warranty	Legal warranty (see conditions on orbegozo.com)
Included accessories	User manual, collection tray

Frequently Asked Questions - MQ 5530 Orbegozo

How to install the device?

You can hang the device from the ceiling (at least 2 meters from the ground) or place it on a stable shelf. Make sure it is out of reach of children and pets.

Can the device be used outdoors?

No, this device is designed for indoor use only. Do not expose it to rain or humidity.

How to clean the collection tray?

Before any operation, unplug the device. Remove the tray by pulling it outward, empty it and clean it with a damp cloth. Put it back after drying.

How to clean the electric grid?

Use a small brush to remove insects and dust. Never touch the grid with your fingers and do not pour water inside.

What to do if the lamp does not turn on?

First check that the device is plugged in. If the lamp remains off, contact Orbegozo technical service for replacement. Do not attempt to replace the lamp yourself.

Does the device make noise?

The only noticeable sound is the crackling when an insect is electrocuted on the grid. Normal operation is silent.

Is it dangerous for children or pets?

Yes, the high-voltage grid poses a risk. Place the device out of reach of children and pets. Do not let fingers or metal objects get near the grid.

Can the device be left on all day?

Yes, the device can operate continuously. However, it is recommended to turn it off during cleaning or if you leave the room for a long time.

What types of insects are attracted?

The UV light attracts flies, mosquitoes, moths and other flying insects, nocturnal or diurnal.

Where can I find spare parts?

For spare parts (collection tray, lamp), contact Orbegozo after-sales service via orbegozo.com.

USER MANUAL MQ 5530 Orbegozo

Exterior view of a CB Phingolera vacuum cleaner (no signage or text visible on body)

MQ 5516

Exterior view of a portable electric vacuum cleaner (no visible text or symbols)

MQ 5530

Exterior view of a CB PheAgreza vacuum cleaner with blue LED array (no text or symbols visible)

MQ 5545

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. IMPORTANT: Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. △WARNING: High voltage.

16. It must no be used in places where it could be flammable steam or explosive dust.

17. This appliance is not suitable for using in stables or similar places.

18. This appliance is only suitable for indoor use.

19. Do not open the appliance neither try to manipulate the inner sides.

20. Do not insert the fingers neither metallic parts through the grid.

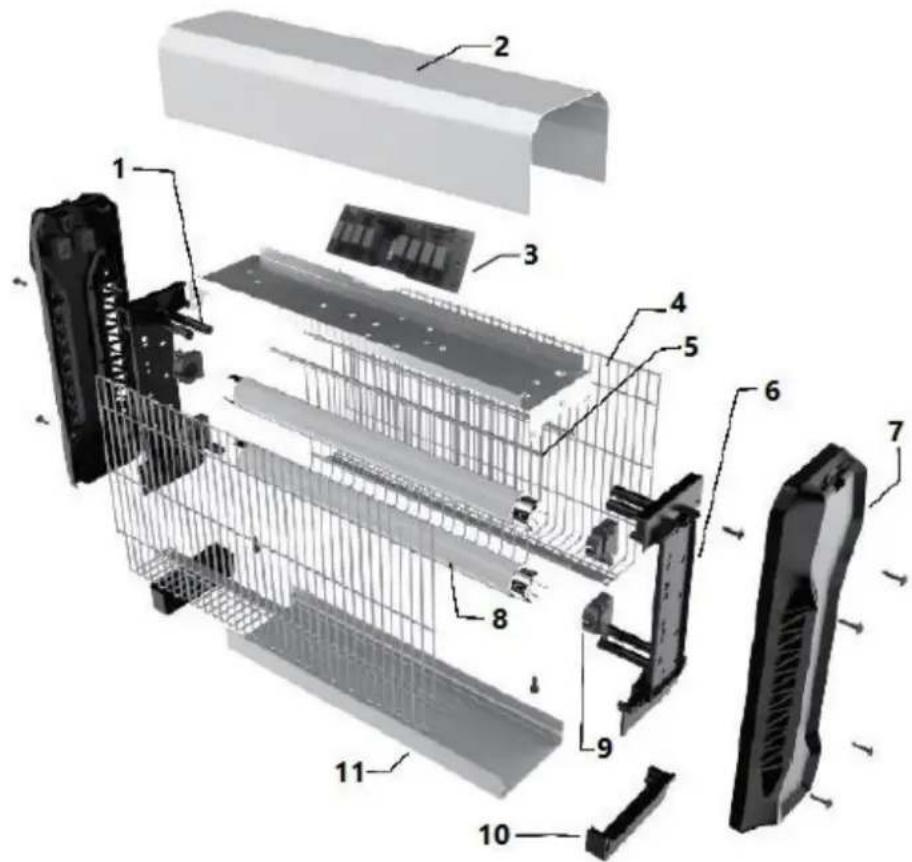

1. High voltage grid support
2. Top cover
3. PCB
4. Mesh
5. High voltage grid

6. Inner cover plate

7. Outer cover plate

8. Lamp
9. Lamp holder
10. Collection tray fixing
11. Collection tray

INSTRUCTIONS FOR USE

The insecticide is used to attract insects such as flies, moths, mosquitoes and other pests by light. The high voltage metal grids will electrocute the insects.

Hang the unit or place it on a shelf. If you hang it from the ceiling, the unit should not be lower than 2 meters from the floor. If you place it on a shelf, make sure that the unit is out of reach of children.

Connect the unit to the mains and the lamps will light up.

MAINTENANCE AND CLEANING

Before any operation, make sure that the unit is disconnected from the mains.

Use a slightly damp cloth to clean the outside.

Clean the insect tray frequently. To do this, remove it by pulling it outwards.

Clean the interior areas and the grid once a week. Use a small brush to do this.

Do not use chemical or abrasive products, metal scouring pads or other items that may damage the surface to clean it.

LAMP REPLACEMENT

For reasons arising from the technology used in these appliances, the lamps must be replaced by our technical service.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link:

https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
