Product type	Electric insect killer lamp (mosquito killer)
Brand	Orbegozo
Model	MQ 4516
Usage	Indoor only
Capture method	UV light attraction + high voltage grid
Light source	UV LED tubes
Power supply	Mains 220-240 V ~ 50 Hz
Power	6 W (estimated)
Dimensions (approx.)	30 x 20 x 10 cm
Weight (approx.)	0.8 kg
Installation	Suspension (height ≥ 2 m from floor) or shelf placement
Collection tray	Removable, regular cleaning recommended
Cleaning	Damp cloth for the exterior, small brush for the interior
Lamp replacement	By authorized technical service
Safety	High voltage – do not open or insert objects
Minimum user age	8 years (under supervision)
Standards	Low Voltage Directive 2014/35/EU, EMC 2014/30/EU
Warranty	Legal warranty (keep the purchase receipt)

Frequently Asked Questions - MQ 4516 Orbegozo

How does the device work?

The device attracts insects (mosquitoes, flies, moths) using UV light. The insects are then electrocuted by a high voltage metal grid.

Where to install the MQ 4516?

Place it in an indoor room, on a shelf or hang it. If hanging, ensure it is at least 2 meters from the floor and out of reach of children.

Can I use the device outdoors?

No, this device is designed for indoor use only. Do not use it in damp areas or where water splashes.

How to clean the collection tray?

Unplug the device, remove the tray by pulling it outward, empty its contents and clean it with a damp cloth. Put it back before plugging in again.

What to do if the lamp does not light up?

First, check that the device is properly plugged in. If the lamp remains off, contact Orbegozo's authorized technical service for replacement. Do not open the device yourself.

Is the device dangerous for pets?

The high voltage grid can be dangerous. Place the device in a location inaccessible to dogs and cats, for example high up or out of their reach.

Should you clean the inside of the device?

Yes, it is recommended to clean the inside once a week with a small brush to remove insect residues. Always unplug first.

What is the recommended hanging height?

If you hang the device, make sure it is at least 2 meters from the floor for optimal effectiveness and to avoid accidental contact.

Can I clean the device with chemical products?

No, use only a slightly damp cloth for the exterior and a brush for the interior. Avoid abrasive products or solvents.

How to claim the warranty?

Keep the purchase receipt as proof of purchase. For any claim, contact technical service via the website https://orbegozo.com/asistencia-tecnica/.

USER MANUAL MQ 4516 Orbegozo

Exterior view of a portable electric vacuum cleaner (no visible text or symbols)

MQ 4510

Exterior view of a rectangular electronic device with blue internal structure and black frame (no visible text or symbols)

MQ 4516

Exterior view of a CB Pampata electric shock absorber (no text or symbols visible)

MQ 4520

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. Tapa superior

2. Tapa lateral

3. Malla

4. Rejilla de alto voltaje

5. Tubos LED

6. Bandeja recoge mosquitos

7. Cepillo

INSTRUCCIONES DE USO

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. IMPORTANT: Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. △WARNING: High voltage.

16. It must no be used in places where it could be flammable steam or explosive dust.

17. This appliance is not suitable for using in stables or similar places.

18. This appliance is only suitable for indoor use.

19. Do not open the appliance neither try to manipulate the inner sides.

20. Do not insert the fingers neither metallic parts through the grid.

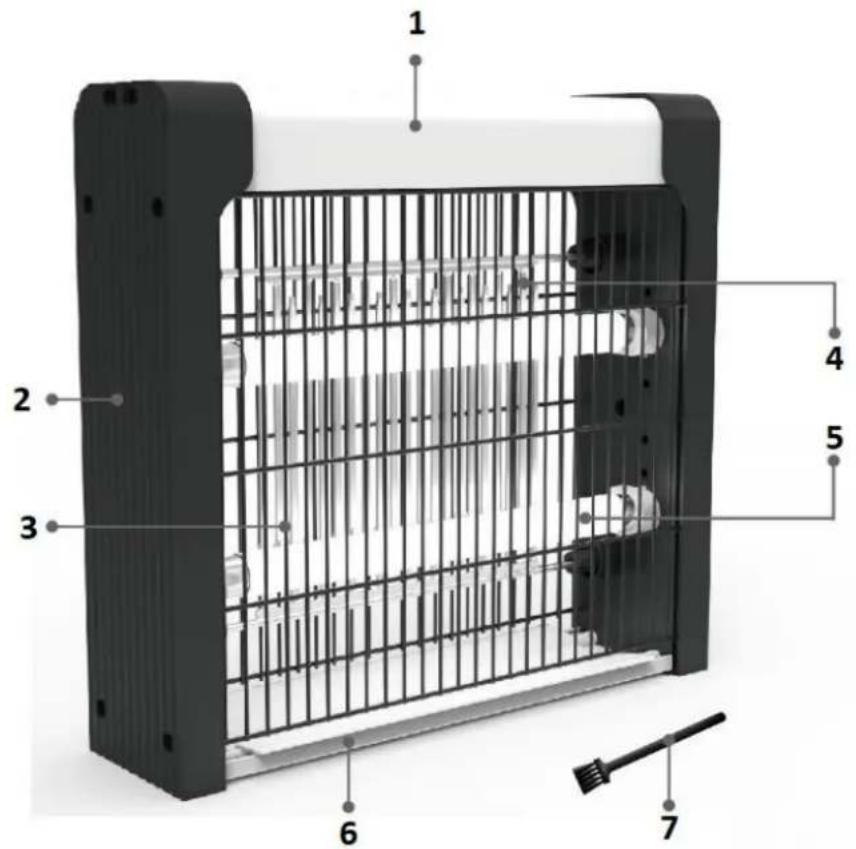

1. Top cover
2. Side cover
3. Mesh

4. High voltage grid

5. LED tubes

6. Mosquito collecting tray
7. Brush

INSTRUCTIONS FOR USE

The mosquito killer is used to attract insects such as flies, moths, mosquitoes and other pests by means of light. The high voltage metal grids will electrocute the insects.

Hang the device or place it on a shelf. If you hang it from the ceiling, the device should not be lower than 2 metres from the floor. If you place it on a shelf, make sure that the device is out of reach of children.

Connect the device to the mains and the lamps will light up.

MAINTENANCE AND CLEANING

Before any operation, make sure that the unit is disconnected from the mains.

Use a slightly damp cloth to clean the outside.

Clean the insect collecting tray frequently. To do this, remove it by pulling it out.

Clean the interior areas and the grille once a week. Use a small brush to clean them.

Do not use chemical or abrasive products, metal scouring pads or other items that may damage the surface.

LAMP REPLACEMENT

For reasons arising from the technology used in these appliances, the lamps must be replaced by our technical service.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link:

https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
