USER MANUAL MQ 7500 Orbegozo

Black industrial lamp with heat source and fan-shaped top, no visible text or symbols on body

MQ 7500

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Simple line drawing of a rectangular device with two pins and a coiled cable, labeled with number 5 (no text or symbols on the device itself)

1. ON/OFF
2. ADAPTADOR
3. CEPILLO

Line drawing of a brush tip with textured base and labeled point 6 (no text or symbols beyond label)

TEMPORIZADOR

330mm 225mm

MANTENIMIENTO Y LIMPIEZA

Line drawing of a hand cleaning a cylindrical device with a cloth (no text or symbols)

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. IMPORTANT: Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. It must no be used in places where it could be flammable steam or explosive dust.

16. This appliance is not suitable for using in stables or similar places.

17. This appliance is only suitable for indoor use.

18. Do not open the appliance neither try to manipulate the inner sides.

19. Do not insert the fingers neither metallic parts through the grid.

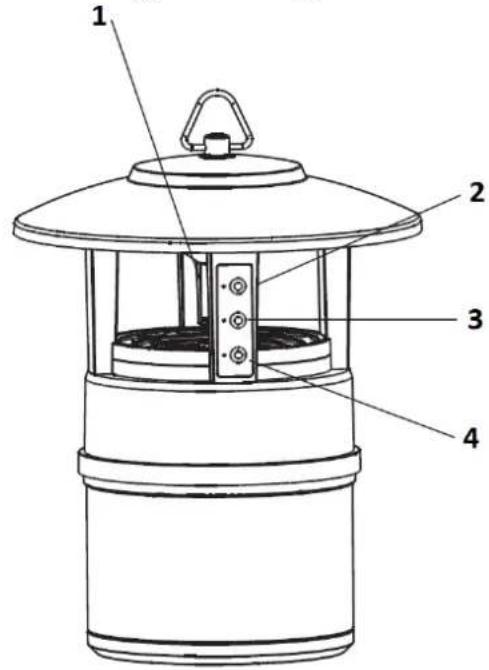

Technical diagram of a mechanical device with numbered parts labeled 1 to 4

1. LED

2. TIMER

3. MODE

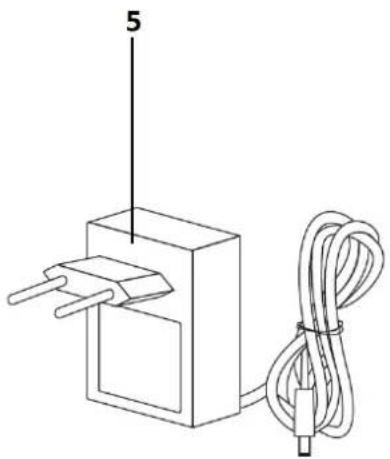

Simple line drawing of a small electrical component with a coiled cable and labeled part 5 (no text or symbols beyond the label)

Line drawing of a brush tip with bristles and a numbered label (6), no text or symbols present.

TIMER

Press the timer button to activate the function.

Press once and a blue light will appear and the timer will be set to 8 hours. Press it again, a white light will appear and the timer will be set to 12 hours.

MODE

Pressing the ON/OFF button will automatically activate normal mode and a white light will turn on. Press the MODE button and it will switch to NIGHT MODE. The light will change to blue and the fan speed and noise will be reduced.

For indoor and outdoor use.

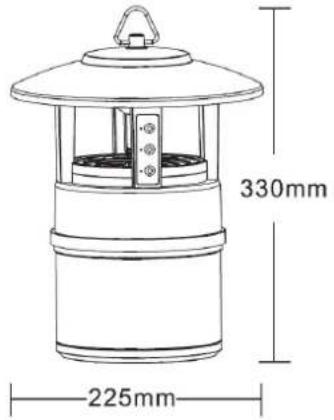

APPLIANCE DIMENSIONS

330mm 225mm

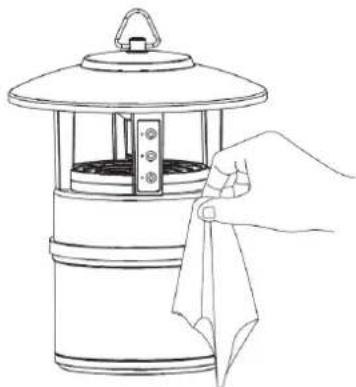

MAINTENANCE AND CLEANING

Clean mosquitoes regularly and avoid unnecessary environmental pollution.

This product is not completely waterproof. When cleaning, please do not wash it with water, it can be properly cleaned with a wet towel.

Before any operation, make sure that the unit is disconnected from the mains.

Use a slightly damp cloth to clean the outside.

Clean the insect tray frequently. To do this, remove it by turning it slightly anti-clockwise and pulling it out.

Clean the interior areas and the grill once a week. Use a small brush to do this.

Do not use chemical or abrasive products, metal scouring pads or other items that may damage the surface when cleaning.

Line drawing of a hand cleaning a cylindrical lamp with a cloth (no text or symbols)

LAMP REPLACEMENT

For reasons arising from the technology used in these appliances, the lamps must be replaced by our technical service.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
