MQ 5516 - Insect repellent Orbegozo - Free user manual and instructions

Product type	Electric insect killer with UV lamp
Brand	Orbegozo
Model	MQ 5516
Approximate dimensions	25 cm x 20 cm x 15 cm
Approximate weight	0.8 kg
Power supply	220-240 V ~ 50/60 Hz
Capture technology	UV lamp attracting insects + high voltage grid
Target insects	Flies, mosquitoes, moths, night butterflies, etc.
Usage area	Indoor only
Recommended hanging height	Minimum 2 meters from the ground
Installation	Suspended from ceiling or placed on a shelf
Removable collection tray	Yes, for easy cleaning
Operation	Plug into mains; lamps turn on automatically
Routine maintenance	Clean tray and grilles with a small brush (device unplugged)
Lamp replacement	By authorized technical service only
Exterior cleaning	Slightly damp cloth, without abrasive products
Safety	High voltage — do not open or insert objects into the grid
Warranty	Legal warranty according to applicable legislation
Country of origin	Made in China (estimated)
Environment	Do not dispose of with household waste — WEEE recycling

Frequently Asked Questions - MQ 5516 Orbegozo

How to install the Orbegozo MQ 5516 insect killer?

The device can be hung from the ceiling or placed on a shelf. If hanging, make sure it is at least 2 meters from the ground. Then plug it into a wall outlet.

What types of insects are attracted to the UV lamp?

The UV lamp mainly attracts flies, mosquitoes, moths and other nocturnal flying insects.

How to clean the insect collection tray?

Before cleaning, unplug the device. Remove the tray by pulling it outward. Empty it and clean with soapy water, then dry thoroughly before replacing.

Can I replace the UV lamp myself?

No, for safety reasons, lamp replacement must be done by our authorized technical service. Contact Orbegozo after-sales service.

Is the device safe for domestic use with children?

The device delivers high voltage in the grid. It must not be accessible to children. Keep it out of their reach and never let them play with it.

Can the device be used outdoors?

No, this device is designed for indoor use only. Do not expose it to rain or humidity.

Does the UV lamp attract insects all day?

The lamp is more effective at night or in darkness, as insects are attracted to light. During the day, its effectiveness is reduced.

What to do if the device stops working?

First check that the wall outlet works. If the device still does not turn on, contact Orbegozo technical service for diagnosis.

How to maintain the high voltage grids?

Unplug the device. Use a small brush to gently remove dead insects and debris from the grids. Never touch the grids with your fingers.

Where to find Orbegozo after-sales service?

You can find the nearest technical service on the official website: https://orbegozo.com/asistencia-tecnica/ or contact us via our online form.

USER MANUAL MQ 5516 Orbegozo

Exterior view of a CBP 8000 electric shock absorber (no text or symbols visible)

MQ 5516

Exterior view of a portable electric vacuum cleaner (no visible text or symbols)

MQ 5530

Exterior view of a CB PheAgreza electric shock absorber (no text or symbols visible)

MQ 5545

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. IMPORTANT: Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.
15. △WARNING: High voltage.
16. It must no be used in places where it could be flammable steam or explosive dust.
17. This appliance is not suitable for using in stables or similar places.
18. This appliance is only suitable for indoor use.

19. Do not open the appliance neither try to manipulate the inner sides.

20. Do not insert the fingers neither metallic parts through the grid.

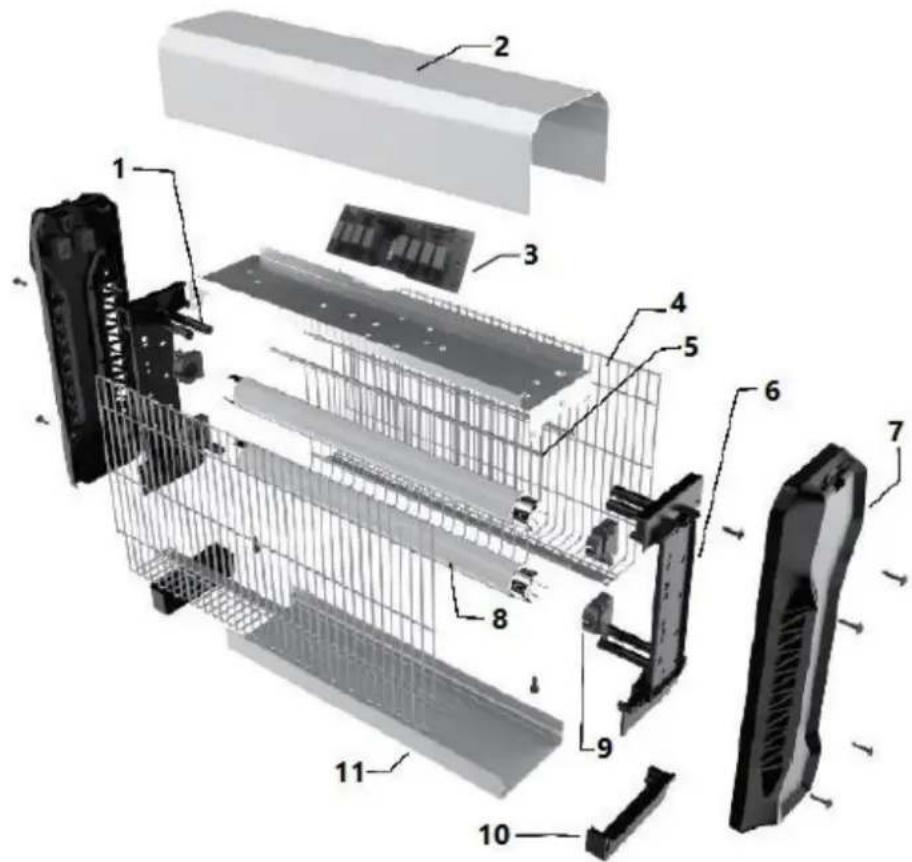

1. High voltage grid support
2. Top cover
3. PCB
4. Mesh
5. High voltage grid

6. Inner cover plate

7. Outer cover plate

8. Lamp
9. Lamp holder
10. Collection tray fixing
11. Collection tray

INSTRUCTIONS FOR USE

The insecticide is used to attract insects such as flies, moths, mosquitoes and other pests by light. The high voltage metal grids will electrocute the insects.

Hang the unit or place it on a shelf. If you hang it from the ceiling, the unit should not be lower than 2 meters from the floor. If you place it on a shelf, make sure that the unit is out of reach of children.

Connect the unit to the mains and the lamps will light up.

MAINTENANCE AND CLEANING

Before any operation, make sure that the unit is disconnected from the mains.

Use a slightly damp cloth to clean the outside.

Clean the insect tray frequently. To do this, remove it by pulling it outwards.

Clean the interior areas and the grid once a week. Use a small brush to do this.

Do not use chemical or abrasive products, metal scouring pads or other items that may damage the surface to clean it.

LAMP REPLACEMENT

For reasons arising from the technology used in these appliances, the lamps must be replaced by our technical service.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and

the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link:

https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
