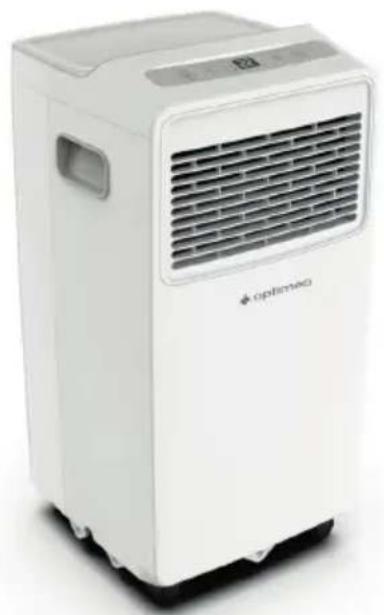

Mobile type air conditioner

User manual

Item : OPC-B01- 050

OPC-B01-070

OPC-B01-090

QR code image containing encoded data, no visible human-readable text

More info

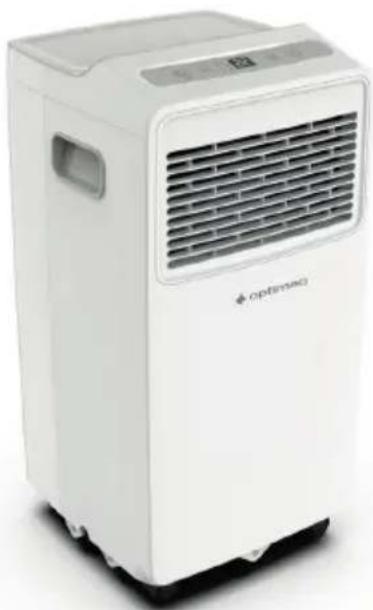

White portable air conditioner unit with ventilation grille and brand logo (no visible text or symbols on body)

Thank you for choosing our product.

For proper operation of the device, please Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. If you lose this User Guide, please contact your reseller, or send an e-mail to [e-mail] to obtain the electronic version.

Table of Contents

1. Safety precautions ____ 1

2. Installation instructions

2.1 Preparation 13

2.2 Design Notice 14

2.3 Ambient Temperature Range For Unit Operating ____ 14

2.4 Exhaust Hose Installation 14

2.5 Choosing The Right Location 14

2.6 Energy Rating Information 15

1. Operating instructions

4.1 Control Panel Features 17

4.2 Operation Instructions 18

4.3 Other features 19

1. Maintenance

5.1 Safety Precautions 22

5.2 Air Filter Cleaning 22

5.3 Unit Cleaning 22

5.4 Store the unit when not in use 23

6.Troubleshooting tips 24

1. Impedance information 24

QR code image containing encoded data, no visible human-readable text

More info

1. Safety Precautions

Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

WARNING :

This symbol indicates the possibility of personnel injury or loss of life.

CAUTION :

This symbol indicates the possibility of property damage or serious consequences.

WARNING :

- Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or re.

- Use only the included accessories and parts, and specied tools for the installation. Using nonstandard parts can cause water leakage, electrical shock, re, and injury or property damage.

- Make sure that the outlet you are using is grounded and has the appropriate voltage. The power cord is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit.

- Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle.

- Install the unit on a at, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.

- The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.

- Do not modify the length of the power cord or use an extension cord to power the unit.

- Do not share a single outlet with other electrical appliances. Improper power supply can cause re or electrical shock.

- Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.

• Do not install the unit in a location that may be exposed to combustible gas, as this could cause re.
• The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping.
• Do not operate a unit that it has been dropped or damaged.
• The appliance with electric heater shall have at least 1 meter space to the combustible materials.
• Do not touch the unit with wet or damp hands or when barefoot.
• If the air conditioner is knocked over during use, turn o the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut o to avoid damage to the machine due to lightning.
• Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
• All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
• The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
• When the water drainage function is not in use, keep the upper and the lower drain plug rmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent children from choking.

CAUTION :

• This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the unit at all times.(be applicable for other countries except the European Countries).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
• Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from trac area and where it will not be tripped over.
• Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for examination and/or repair.
• To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.
• The appliance shall be installed in accordance with national wiring regulations.
• Contact the authorised service technician for repair or maintenance of this unit.
• Contact the authorised installer for installation of this unit.
• Do not cover or obstruct the inlet or outlet grilles.
• Do not use this product for functions other than those described in this instruction manual.
• Before cleaning, turn o the power and unplug the unit.
• Disconnect the power if strange sounds, smell, or smoke comes from it.
• Do not press the buttons on the control panel with anything other than your ngers.

• Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.

• Do not operate or stop the unit by inserting or pulling out the power cord plug.

• Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of in ammable substances or vapour such as alcohol, insecticides, petrol, etc.
• Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
• Always contact a qualified person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired.
• Hold the plug by the head of the power plug when taking it out.
• Turn o the product when not in use.
• How to x the appliance to its support, please refer to the installation instructions.

Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)

1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO2 equivalent in tonnes of the uorinated greenhouse gas (on some models), please refer to the relevant label on the unit itself.

2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.

3. Product uninstallation and recycling must be performed by a certified technician.

Sociable Remark :

When using this appliance in the European countries, the following information must be followed:

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

- The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.

- When buying a new product, the retailer will take back the old product at least free of charge.

- The manufacture will take back the old appliance for disposal at least free of charge to the user.

- As old products contain valuable resources, they can be sold to scrap metal dealers. Wild disposal of waste in forests and landscapes endangers your health when hazar do us substances leak into the ground-water and nd their way into the food chain.

WARNING for Using R32/R290 Refrigerant

ENG

- Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

- The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

- Do not pierce or burn.

- Be aware that the refrigerants may not contain an odour.

- Appliance should be installed, operated and stored in a room with a floor area according to the amount of refrigerant to be charged. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself. When there are differences between the lable and the manual on the Min. room area description, the description on label shall prevail.

amount of refrigerant (kg)	Min. room area( m^2 )	amount of refrigerant (kg)	Min. room area( m^2 )
0.0836 4 0.1881	and 0.2090	10
0.0836 and 0.1045 5 0.2090 and 0.2299 11
0.1045 and 0.1254 6 0.2299 and 0.2508 12
0.1254 and 0.1463	7 0.2508 and 0.2717	13
0.1463 and 0.1672 8 0.2717 and 0.2926 14
0.1672 and 0.1881	9 0.2926 and 0.3040	15

- Compliance with national gas regulations shall be observed. Keep ventilation openings clear of obstruction.

- The appliance shall be stored so as to prevent mechanical damage from occurring.

- A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.

- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

- Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard. When maintaining or disposing

the air conditioner, the refrigerant (R290) shall be recovered properly, shall not discharge to air directly.

- No any open fire or device like switch which may generate spark/arcing shall be around air conditioner to avoid causing ignition of the flammable refrigerant used. Please follow the instruction carefully to store or maintain the air conditioner to prevent mechanical damage from occurring.

- The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and potential ignition sources (for example an operating electric heater).

Note :

Do not use thawing agents or cleaning products other than those recommended by the manufacturer.

The appliance must be stored in an area without a continuously operating ignition source (e.g. open flame, running gas appliance or running electric heater).

Do not pierce or burn.

Caution : Refrigerants may be odourless..

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Caution: Risk of fire/ flammable materials

Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):

	WARNING	This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

1. Transport of equipment containing ammable refrigerants

See transport regulations

1. Marking of equipment using signs

See local regulations

1. Disposal of equipment using ammable refrigerants

See national regulations.

1. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

1. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

1. Information on servicing

1) Checks to the area

Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a ammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance sta and others working in the local area shall be instructed on the nature of work being carried out. Work in con ned spaces shall be avoided. The area around the workspace shall be sectioned o . Ensure that the conditions within the area have been made safe by control of am- mable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially am- mable atmospheres. Ensure that the leak detection equipment being used is suitable for use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of re extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate re extinguishing equipment shall be available to hand. Have a dry powder or CO2 re extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigeration system which invol-

ves exposing any pipe work that contains or has contained ammable

refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be t for the purpose and to the correct speci cation. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using ammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to

avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

1. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is a ected. This shall include damage to cables, excessive number of connections, terminals not made to original speci cation, damage to seals, incorrect tting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer's speci cations.

Note : the use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

1. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts speci ed by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

9.Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

1. Detection of ammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame) shall not be used.

11. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing ammable refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is con rmed. Leak detection uids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked —ames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut o—valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since ammability is a consideration. The following procedure shall be adhered to:

Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.

When the nal OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the

system with refrigerant. Label the system when charging is complete (if not already).

Extreme care shall be taken not to over ll the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

14. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not over ll cylinders. (No more than 80 % volume liquid charge). i) Do not exceed the maximum working pressure of the cylinder, even temporarily. j) When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed o . k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains am-mable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled

for that refrigerant (i.e. special cylinders for the recovery of refrigerant).

Cylinders shall be complete with pressure relief valve and associated shut-off

valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of ammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release.

Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

2. Installation instructions

2.1 Preparation :

Note :

All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller. This manual does not include Remote Controller Operations, see the <> packed with the unit for details.

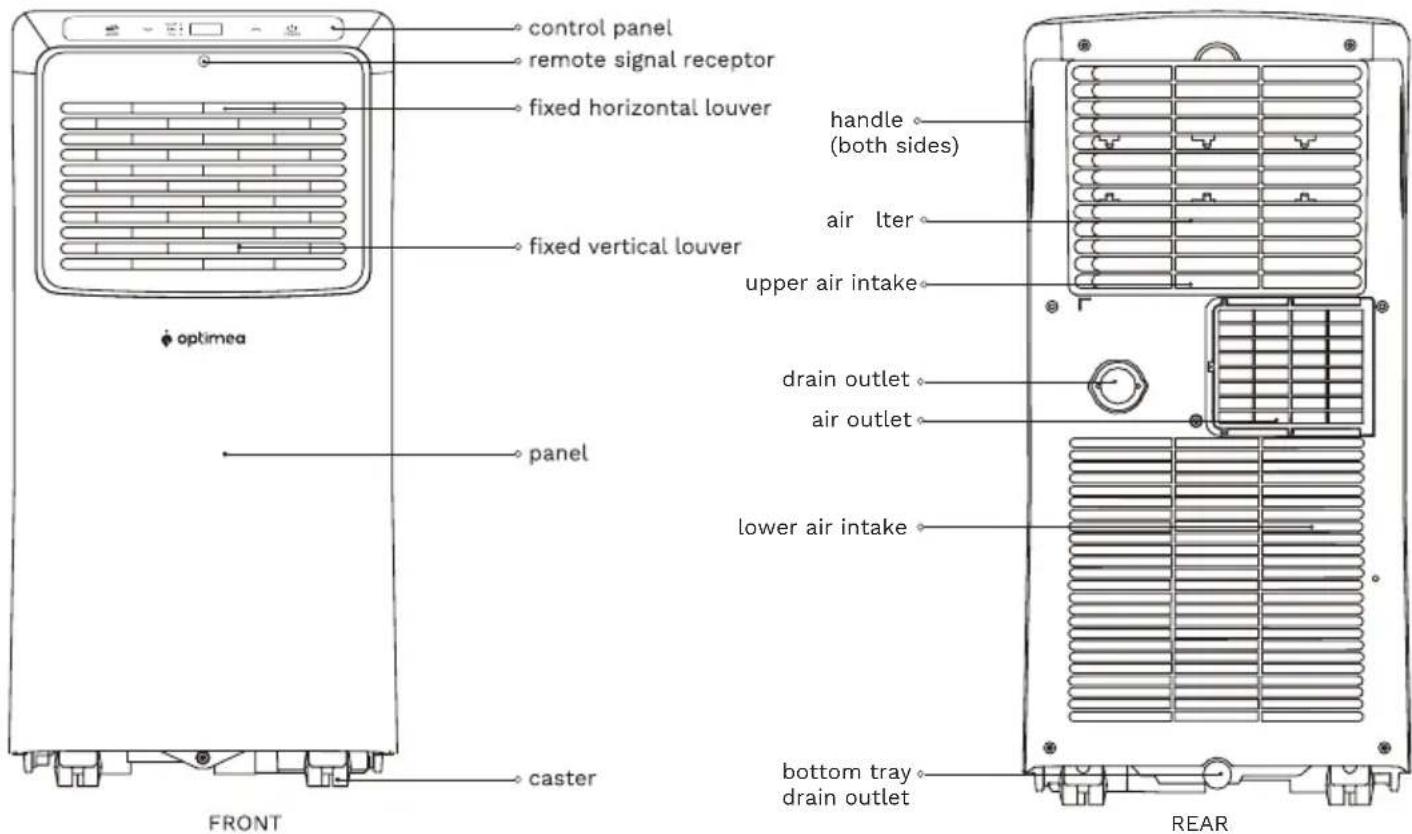

control panel remote signal receptor fixed horizontal louver handle (both sides) air liter fixed vertical louver upper air intake drain outlet air outlet lower air intake caster FRONT ReAR

2.2 Design notice :

In order to ensure the optimal performance of our products, the design specifications of the unit and remote control are subject to change without prior notice.

2.3 Ambient temperature range for unit operating :

MODE Temperature Range

Cool 17 – 35 °C (62 – 95 F)

Dry 13 – 35 °C (55 – 95 F)

2.4 Exhaust hose installation :

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT (electrical heat type) mode must be removed exhaust hose.

2.5 Choosing the right location :

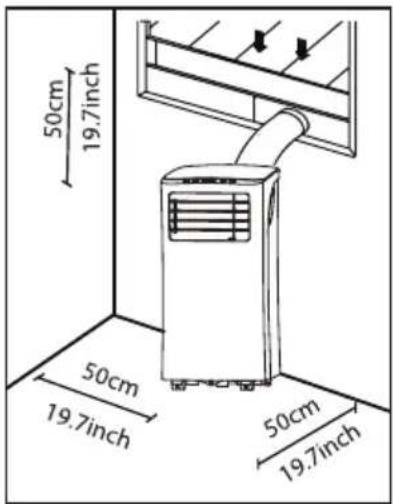

50cm 19.7inch 50cm 19.7inch 50cm 19.7inch

Your installation location should meet the following requirements:

-Make sure that you install your unit on an even surface to minimize noise and vibration.

-The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.

-The unit should be located at least 30cm (12") from the nearest wall to ensure proper air conditioning. The horizontal louver blade should be at least 50cm (19.7") away from obstacles.

-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could cause damage to the unit.

2.6 Recommend installation :

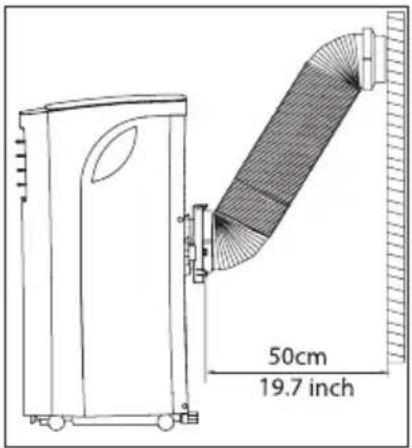

50cm 19.7 inch

2.7 Energy rating information :

The energy rating and noise information for this unit is based on the standard installation using an un-extended exhaust duct without window slider adaptor (as shown in the Installation section of this manual). At the same time, the unit must be operate on the COOL MODE and HIGH FAN SPEED by remote controller.

- What should I look for first when purchasing a portable air conditioner? - The right air conditioner helps you cool a room efficiently. An undersized unit won't cool adequately while one that's too large will not remove enough humidity, leaving the air feeling damp. To find the proper air conditioner, determine the square footage of the room you want to cool by multiplying the room length by its width. You also need to know the air conditioner's BTU (British Thermal Unit) rating, which indicates the amount of heat it can remove from a room. A higher number means more cooling power for a larger room. (Be sure you are comparing only newer models to each other- older models may appear to have a higher capacity, but are actually the same). Be sure to “size up” if your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room with high ceilings.

- After you've found the right cooling capacity or your room, you can look at other features.

2.8 Tools needed :

-Medium Philips screwdriver;
-Tape measure or ruler;
-Knife or scissors;
-Saw (optional, to shorten window adaptor for narrow windows)

2.9 Accessories :

Note :

Items with (*) are on some models. Slight variations in design may occur.

Shape Name of Accessories Qty. Shape Name of Accessories Qty.
[7TS2]	Unit Adaptor 1 pc
[HTSA]	Exhaust Hose 1 pc Security Bracket and 2			Screws	1 set (*)
[3WDO]	Window Slider Adaptor 1 pc (*) Drain		Hose 1 pc
	Window Slider A 1 pc (*) Bolt 1 pc(*)
	Window Slider B 1 pc (*) Remote		Controller and	Battery 1 set(*) (only for remote control models)	1 set (*)
	Foam Seal A (Adhesive)	2 pc (*)
	Foam Seal B (Adhesive)	2 pc (*)		Wall Exhaust Adaptor B(with cap) (only for wall installation models)	1 pc (*)
	Foam Seal C (Non-adhesive)	1 pc(*)		Screw and anchor (only for wall installation models)	4 set (*)
	Exhaust Hose Adaptor	1 pc (*)

3.Conformity

Optimea Mobil air conditioner OPC-B01-050, OPC-B01-070 et OPC-B01-090 comply with European directives :

• 2014/35/EU - Low Voltage (LVD)
• 2014/30/EU Electromagnetic Compatibility (EMC)

Electrical waste should not be disposed of with household waste. Please find out about recycling opportunities near you. Contact local authorities or your dealer for recycling advice. Do not dispose of these products with municipal household waste.

Please sort this waste for proper treatment if necessary. The batteries used to operate the remote control contain materials that are hazardous to the environment. End-of-life batteries must be removed from the remote control and disposed of or recycled in an environmentally responsible manner.

4. Operating instructions

4.1 Control panel features :

Note :

The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail.

MODE

POWER

Power button Power switch on/off.

Up ( ) and Down ( ) buttons

Used to adjust (increasing/decreasing) temperature settings in 1^ C/ 2^ F (or 1^ F) increments in a range of 17^ C/ 62^ F to 30^ C/ 88^ F (or 86^ F).

Note : The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.

MODE button

MODE Selects the appropriate operating mode. Eachtime you press the button, a mode is selected in a sequence that goes from COOL, FAN, DRY, HEAT (on some models), and AU-TO(on some models). The mode indicator light illuminates under the different mode setting.

Note: On above modes, the unit operates the auto fan speed automatically.

LED display

Shows the set temperature while on cool, heat or auto mode. While on DRY and FAN modes, it shows the room temperature.

Shows Error codes :

• E0-EEPROM error.
• E1-Room temperature sensor error.
• E2-Evaporator temperature sensor error.
• E3-Condenser temperature sensor error (on some models).
• E4-Display panel communication error.
• EC-Refrigerant leakage detection malfunction(on some models).

Timer indicator light(only set by remote controller) Wireless indicator light(only for the unit with wireless controll featu

Shows protection code:

• P1-Bottom tray is full--Connect the drain hose and drain the collected water away.
• If protection repeats, call for service.

Note : When one of the above malfunctions occurs, turn off the unit, and check for any obstructions. Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similar qualified person for service.

4.2 Operation instructions :

COOL operation

• Press the "MODE" button until the "COOL" indicator light comes on.
• Press the ADJUST buttons 🔊" or "♥" to select your desired room temperature. The temperature can be set within a range of 17°C\~30°C/62°F\~88°F(or 86°F).
• Press the "FAN SPEED" button to choose the fanspeed.

DRY operation

• Press the "MODE" button until the "DRY" indicator light comes on.
• The fan speed or the temperature cannot be adjusted. The fan motor operates at LOW speed.

Note : Keep windows and doors closed for the best dehumidifying effect. Do not put the duct to window.

FAN operation

• Press the "MODE" button until the"FAN " indicator light comes on.
• Press the "FAN SPEED" button on the remote controller to choose the fan speed. The temperature can not be adjusted.
• Do not put the duct to window.

4.3 Other features :

SLEEP/ECO operation

This feature can be activated from the remote control ONLY. To activate SLEEP feature, the set temperature will increase(cooling) or decrease(heating) by 1^ C/ 2^ F (or 1^ F) in 30 minutes. The set temperature will then increase(cooling) or decrease(heating) by another 1^ C/ 2^ F (or 1^ F) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed.

Note :

This feature is unavailable under FAN or DRY mode.

AUTO-RESTART

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

AIR FLOW DIRECTION ADJUSTMENT

Adjust the air ow direction manually:

• The louver can be set to the desired position manually.
• Do not place any heavy objects or other loads on the louver, doing so will cause damage to the unit.
• Ensure the louver is fully opened under heating operation.
• Keep the louver fully opened during operation.

WAIT 3 MINUTES BEFORE RESUMING OPERATION

After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

POWER MANAGEMENT feature(on some models)

Under cooling operation, when the ambient temperature is lower than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor stop but the fan motor do not stop. When the ambient temperature is higher than the setting temperature, the unit will be automatically quit the power management feature. The compressor and (or) fan motor run.

WATER DRAINAGE

- During dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4" hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor.

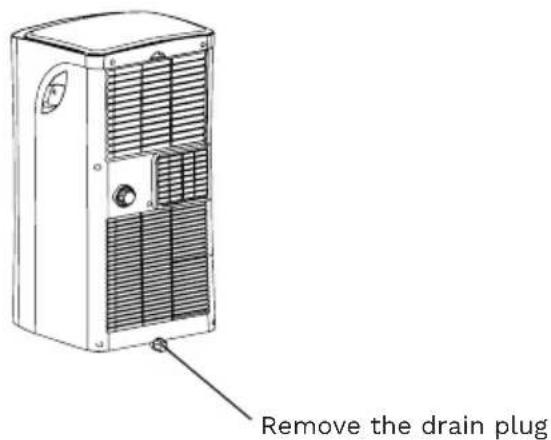

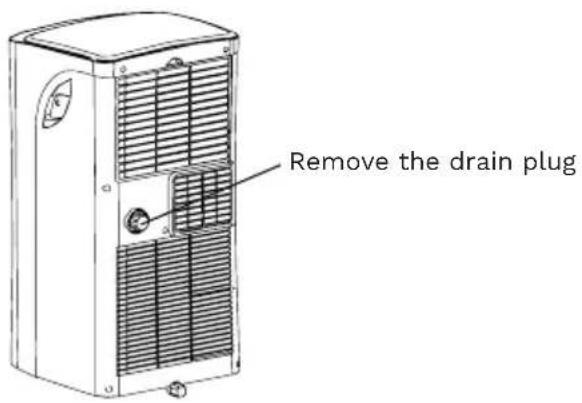

Remove the drain plug

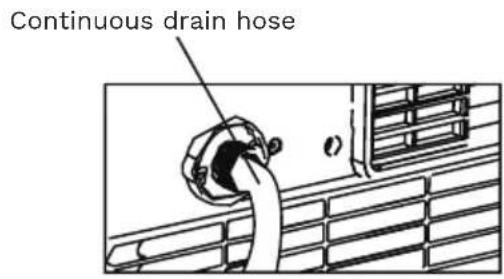

Continuous drain hose

Note :

Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. When the continuous drain hose is not used, ensure that the drain plug and knob are installed firmly to prevent leakage.

- During heating pump mode, remove the lower drain plug from the back of the unit, install the drain connector(5/8" universal female mender) with 3/4" hose(locally purchased). Carefully move the unit to a drain location, and let the water drain away.

Remove the drain plug

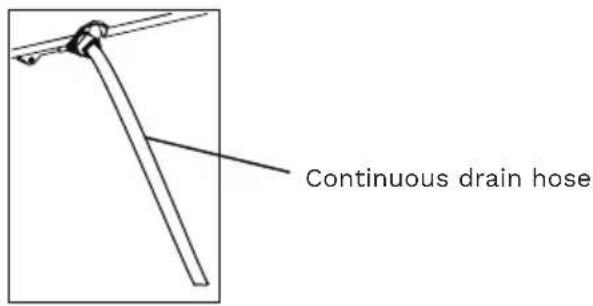

Continuous drain hose

Note :

Make sure the drain hose is lower than the bottom tray drain outlet.

- When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows "P1". At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the "P1" symbol disappears. If the error repeats, call for service.

Note :

Be sure to reinstall the bottom drain plug firmly to revent leakage before using the unit.

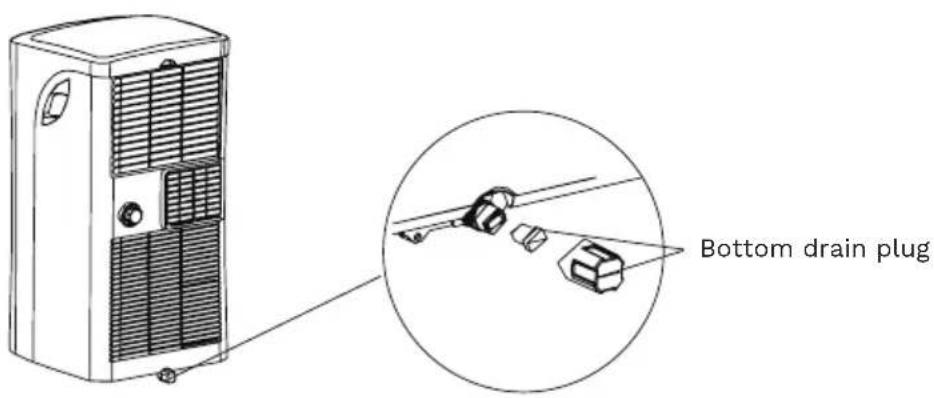

Bottom drain plug

5.Maintenance

5.1 Safety precautions :

• Always unplug the unit before cleaning or servicing.
• DO NOT use ammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.

5.2 Air filter cleaning :

CAUTION

DO NOT operate the unit without filter because dirt and lint will clog it and reduce performance.

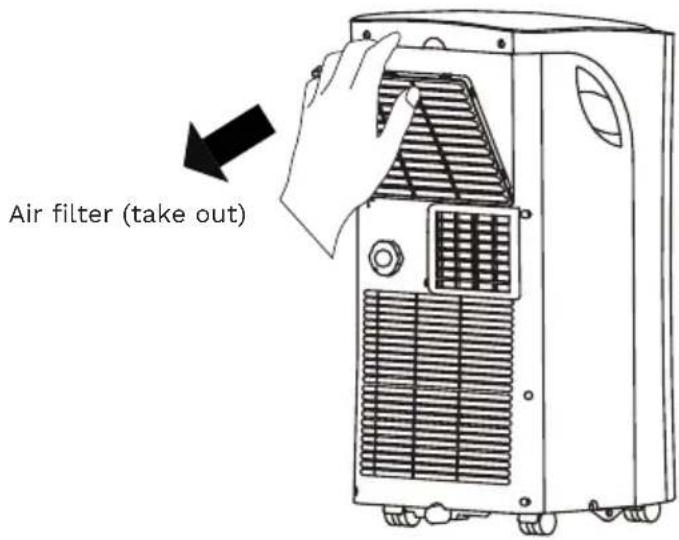

Air filter (take out)

Remove the air filter

Maintenance Tips

• Be sure to clean the air - liter every 2 weeks for optimal performance.
• The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
• In households with animals, you will have to periodically wipe down the grill to prevent blocked air ow due to animal hair.

5.3 Unit cleaning :

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.

5.4 Store the unit when not in use :

Drain the un it's water collection tray according to the instructions in the following section.

• Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
• Turn o the appliance and unplug it.
• Clean the air liter according to the instructions in the previous section. Reinstall the clean, dry liter before storing.
• Remove the batteries from the remote control.

Note :

Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit.

Note :

The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.

6.Troubleshooting tips

Problem Possible Causes Solution
Unit does not turn on when pressing ON/OFF button.	P1 Protection Code. The Water Collection	Tray is full. Turn off the unit, drain the water from the Water Collection Tray and restart the unit.
	In COOL mode: room temperature is lower than the set temperature.	Reset the temperature.
	E0 EEPROM error. Contact the manufacturer or its service agents or a similar qualified person for service.
Unit does not cool well.	The air filter is blocked with dust or animal hair.	Turn off the unit and clean the filter according to instructions.
	Exhaust hose is not connected or is blocked.	Turn off the unit, disconnect the hose check for blockage and reconnect the hose.
	The unit is low on refrigerant. Call a service technician to inspect the unit and top off refrigerant.
	Temperature setting is too high. Decrease the set temperature.
	The windows and doors in the room are open.	Make sure all windows and doors are closed.
	The room area is too large. Double-check the cooling area.
	There are heat sources inside the room. Remove the heat sources if possible.
The unit is noisy and vibrates too much.	The ground is not level. Place the unit on a flat, level surface.
	The air filter is blocked with dust or animal hair.	Turn off the unit and clean the filter according to instructions.
The unit makes a gurgling sound.	This sound is caused by the flow of refrigerant inside the unit.	This is normal.

7. Impedance information

To be in compliance EN 61000-3-11, the product OPC-B01-050 / OPC-B01-070 /OPC-B01-090 shall be connected only to a supply of the system impedance: |Zsys|=0.451 ohms or less. Before connect the product to public power network, please consult your local power supply authority to ensure the power network meet above requirement.

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version.

Optimea

Please find our product range on our website www.optimea.fr :

QR code image containing encoded data, no visible human-readable text

More info
