Product type	Camera lens
Brand	Fujifilm
Model	XF 35mm f/1.4 R
Mount	X Mount (Fujifilm X series)
Focal length	35 mm (53 mm equivalent in 35 mm)
Maximum aperture	f/1.4
Minimum aperture	f/16
Optical construction	8 elements in 6 groups (including 1 aspherical element)
Angle of view	44.2°
Diaphragm	7 blades, circular diaphragm, 1/3 EV steps (22 positions)
Minimum focusing distance	28 cm
Maximum magnification	0.17x
Filter diameter	52 mm
Dimensions (Diameter × Length)	65.0 × 50.4 mm
Weight (without accessories)	187 g
Supplied accessories	Front cap, rear cap, lens hood, protective cloth
Control rings	Focus ring and aperture ring
Electrical contacts	Lens signal contacts (keep clean)
Maintenance	Use a blower to remove dust, then a soft cloth with ethanol or lens cleaner. Do not use organic solvents.
Safety	Do not disassemble, do not immerse, avoid shocks, do not look at the sun through it, do not expose to steam or excessive humidity.
Storage	Cool, dry place away from direct sunlight, without naphthalene or mothballs.
Compatibility	Fujifilm X-mount cameras
Warranty	Contact the dealer or a FUJIFILM authorized representative for repair, inspection, or testing.

Frequently Asked Questions - XF 35mm f/1.4 R FUJIFILM

How to properly attach the lens to the camera?

Align the lens mounting index with the camera mount index, then turn the lens clockwise until it clicks into place. Consult the camera manual for details. Never force the rotation.

What is the best way to clean the lenses?

First use a blower to remove dust and lint. For stains, use a soft, clean cloth slightly moistened with ethanol or lens cleaner, wiping from the center outward in circular motions. Avoid touching the glass with fingers. Never use organic solvents like thinner or benzene.

Can I use a lens hood from another Fujifilm lens?

Lens hoods are dedicated to the lenses they are supplied with. Using a non-fitting hood can cause vignetting (darkening of the image corners). Use only the hood supplied with the XF 35mm f/1.4 R.

What is the minimum focusing distance?

The minimum focusing distance is 28 cm from the sensor. This allows photographing relatively close subjects with a maximum magnification of 0.17x.

Is this lens compatible with mount adapters?

The XF 35mm f/1.4 R is designed for Fujifilm's X mount. Adapters exist for other mounts, but compatibility is not guaranteed and some features (like autofocus) may be limited. For best results, use it on a Fujifilm X body.

How to store the lens when not in use?

Put the front and rear caps back on. Store the lens in a cool, dry place away from direct sunlight. Avoid storing it with naphthalene or mothballs. For long-term storage, a humidity-free environment is recommended to prevent mold.

What to do if mold appears on the lens?

If you notice mold, do not attempt to clean it yourself inside the lens. Contact a FUJIFILM authorized service provider or dealer for professional cleaning. Improper storage can promote mold.

Can I use filters on this lens?

Yes, the filter diameter is 52 mm. You can screw on UV, polarizing, neutral density filters, etc., as long as they are this size.

Does the lens have image stabilization?

No, the Fujifilm XF 35mm f/1.4 R does not have optical image stabilization. Stabilization must be provided by the camera body or by stable shooting technique.

What are the available apertures?

The maximum aperture is f/1.4 and the minimum aperture is f/16. The 7-blade circular diaphragm provides pleasing bokeh. Increments are in 1/3 EV steps (22 positions).

USER MANUAL XF 35mm f/1.4 R FUJIFILM

レンズフードの取り付け方

付属品一覧

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNINGS
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
	CAUTIONS
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

CAUTIONS

Keep out of the reach of small children. This product could cause injury in the hands of a child.

Do not handle with wet hands. Failure to observe this precaution can cause electric shock.

Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.

When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.

Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

EN-2

ENGLISH

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  • Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian C-Tick

N705

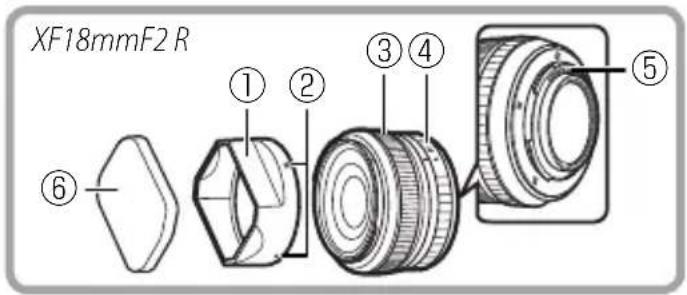

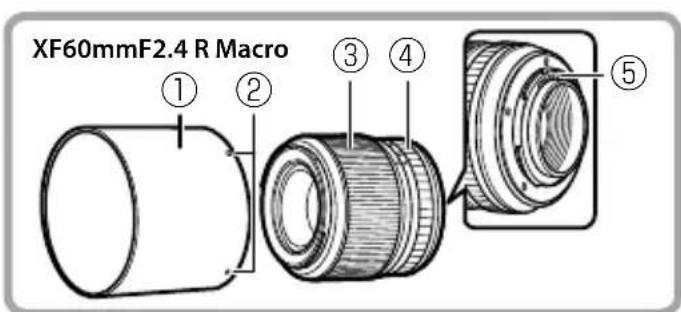

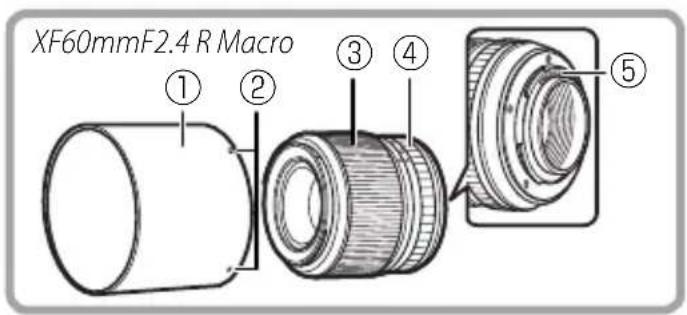

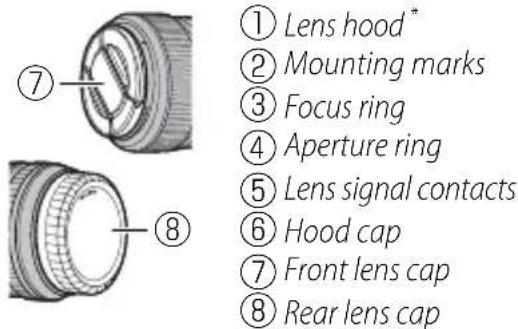

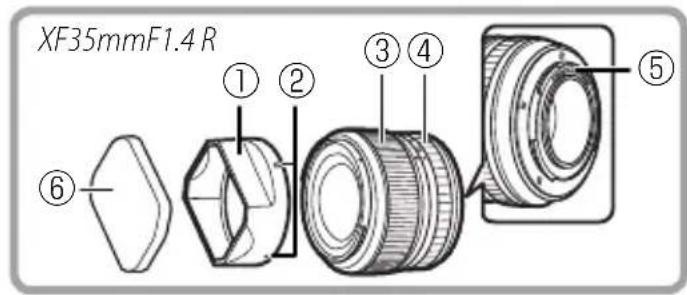

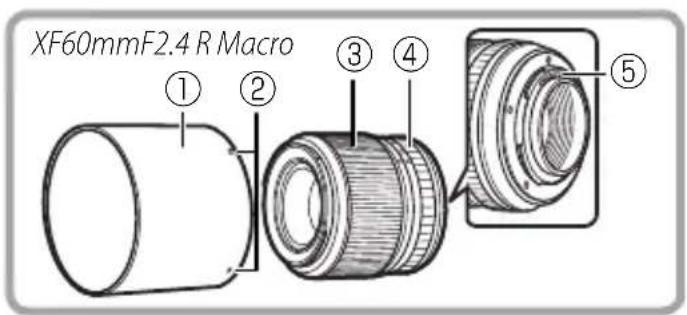

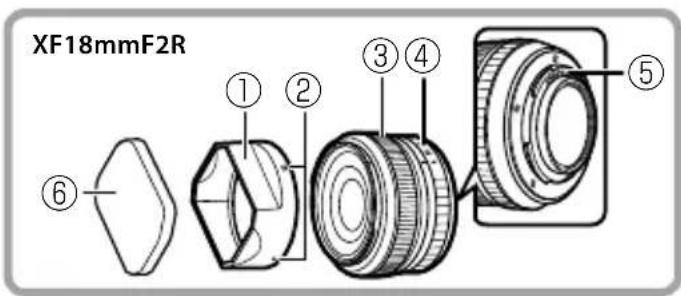

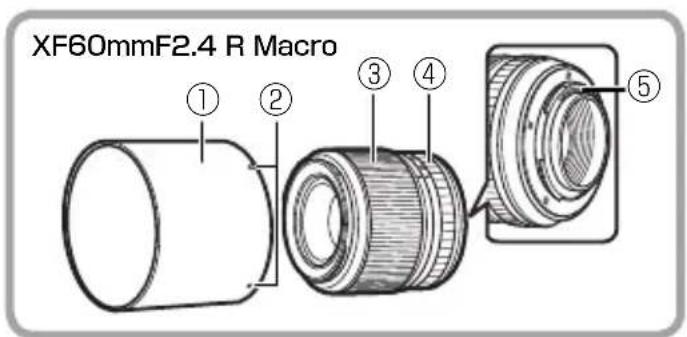

Parts of the Lens

* Lens hoods are for use only with the lenses of the type with which they are supplied, and may cause vignetting when matched with other lenses.

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras.

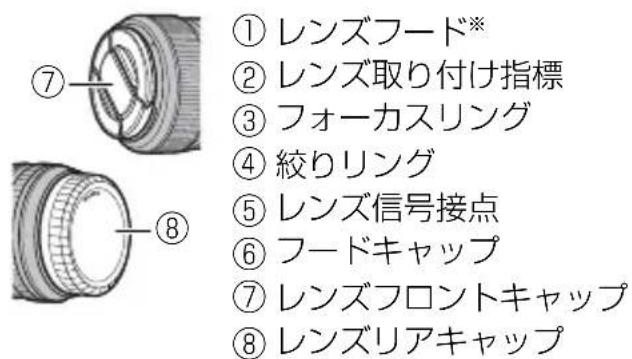

Removing the Caps

Remove the caps as shown.

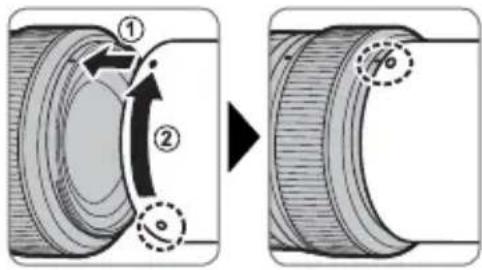

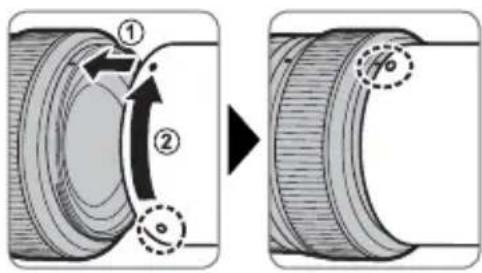

Attaching the Hood

Lens hoods reduce glare and protect the front lens element.

Supplied Accessories

• Front lens cap
• Rear lens cap
• Lens hood
• Cloth wrapping
• Hood cap (XF18mmF2 R and XF35mmF1.4 R only)

EN-5

ENGLISH

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.
• Keep the lens signal contacts clean.
• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
• Leaving the lens in extremely hot locations could cause damage or warping.

Specifications

Type	XF18mmF2 R	XF35mmF1.4 R	XF60mmF2.4 R Macro
Lens construction	8 elements in 7 groups(includes 2 aspherical elements)	8 elements in 6 groups(includes 1 aspherical element)	10 elements in 8 groups (includes 1 aspherical and 1 abnormal dispersion element)
Focal length (35 mm format equivalent)	F=18 mm (27 mm)	F=35 mm (53 mm)	F=60 mm (91 mm)
Angle of view 76.5° 44.2° 26.6°
Max. aperture f/2.0 f/1.4 f/2.4
Min. aperture f/16 f/16 f/22
Aperture controlNumber of bladesStop size	7 (rounded diaphragm opening)1⁄3 EV (19 stops)	7 (rounded diaphragm opening)1⁄3 EV (22 stops)	9 (rounded diaphragm opening)1⁄3 EV (20 stops)
Focus range	18 cm -∞	28 cm -∞	26.7 cm -∞
Max. magnification	0.14 ×	0.17 ×	0.5 ×
External dimensions: Diameter x Length*(approx.)*distance from camera lens mount flange	∅64.5 × 33.7 mm	∅65.0 × 50.4 mm	∅64.1 × 63.6 mm
Weight* (approx.)*excluding caps and hoods	116 g	187 g	215 g
Filter size	∅52 mm	∅52 mm	∅39 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

EN-7 ENGLISH

Pour votre sécurité

Accessoires fournis

DE-5

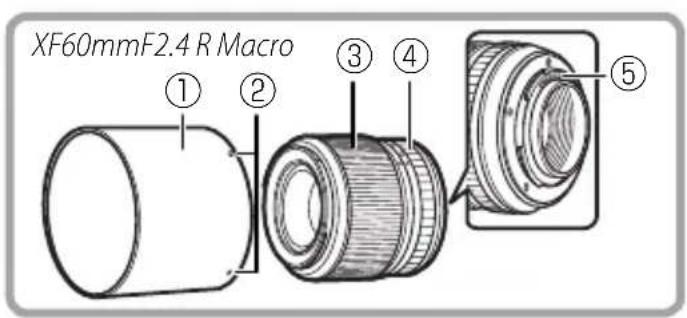

① Zonnekap*
② Bevestigingsmarkeringen
③ Scherpstelring
④ Diafragmaring
⑤ Lenssignaalcontacten
⑥ Zonnekap
⑦ Voorste lensdop
⑧ Achterste lensdop

De zonnekap bevestigen

Zonnekappen verminderen schittering en beschermen het voorste lenselement.

Meegeleverde accessoires

• Voorste lensdop
• Achterste lensdop
  • Zonnekap
  • Omslagdoek
  • Zonnekap
  (alleen XF18mmF2 R and XF35mmF1.4 R)

NL-5

NEDERLANDS

Productverzorging

① Motljusskydd*
② Monteringsmarkeringar
③ Fokusring
④ Bländarring
⑤ Objektivsignalkontakt
⑥ Lock för motljusskydd
⑦ Främre objektivlock
⑧ Bakre objektivlock

① Solblender*
② Monteringsmerker
③ Fokusring
④ Blenderring
⑤ Objektivets signalkontakter
⑥ Solblenderdeksel
⑦ Fremre objektivdeksel
⑧ Bakre objektivdeksel

Установка бленды

Montaggio paraluce

PL-5

Dołączone akcesoria

安装遮光罩

附带配件

• 镜头前盖
• 镜头后盖
• 镜头遮光罩
• 包装布
• 遮光罩盖 (仅限 XF18mmF2 R 和 XF35mmF1.4 R)

中文简

ZHS-5

产品保养

安裝遮光罩

随附配件

· 鏡頭前蓋
· 鏡頭後蓋
· 鏡頭遮光罩
· 包裝布
- 遮光罩蓋 (僅限 XF18mmF2 R 和 XF35mmF1.4 R)

產品保養

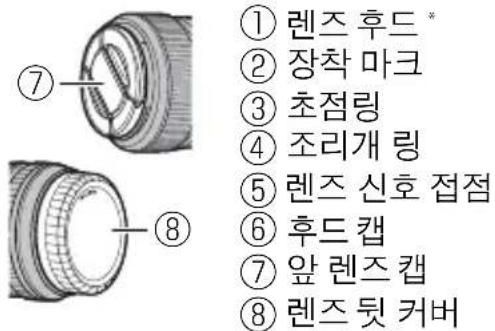

후드부착

▶
