Thank you for purchasing the Xblitz AIRMASTER portable mini electric pump. The device will allow you to quickly inflate a variety of vehicle tyres, balls and other items, as well as check the pressure at any time thanks to the built-in pressure gauge. The compressor is equipped with a rechargeable battery which will allow you to conveniently pump wirelessly.

Please read the enclosed instructions and precautions before use to avoid product damage or danger

01. PRODUCT DESCRIPTION

SEE FIG. A

1. Current pressure
2. Pressure unit indicator
3. Set pressure
4. Battery charge indicator
5. Operating mode
6. Increase pressure button
7. Pressure relief button
8. Changing the operating mode
9. Changing the operating mode
10. Power/start button

11. LED torch/ pressure unit change button

12. Charging socket

13. LED

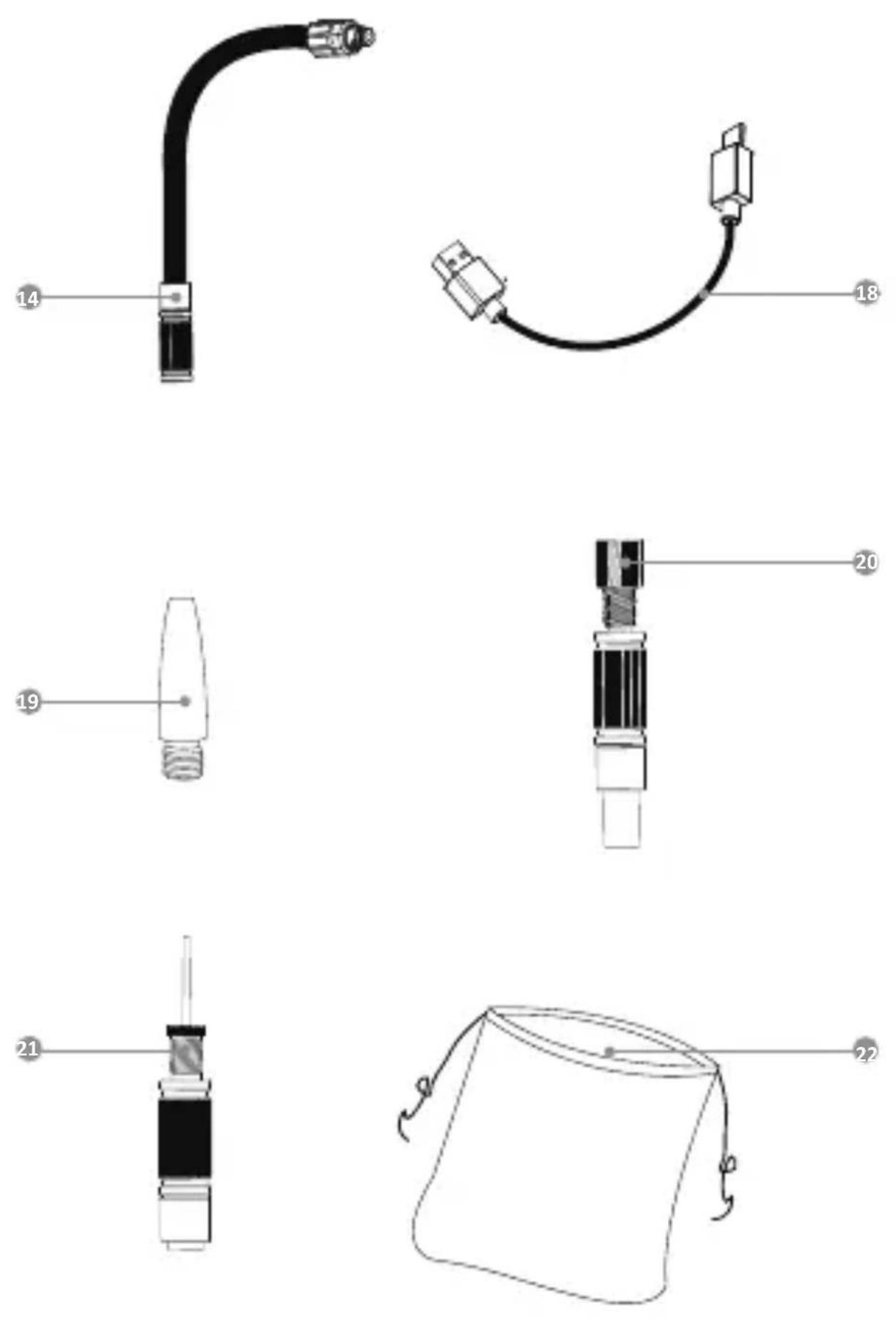

14. Air hose with Schrader coupling + storage compartment
15. USB output (powerbank)
16. Air hose connector
17. Air hose storage
18. USB-C cable
19. Air nozzle adapter
20. Presta adapter
21. Ball needle
22. Cover

02. ACTION

1. Switching on and off

Switching on: Press and hold the power button for 3 seconds to switch on.

Switching off: Press and hold the power button for 3 seconds to switch off.

2. Battery indicator

The different colours of the indicator on the battery indicator bar show the different levels of charge:

Green: 70%-100%

Yellow: 30-70%

Red: 5%-30%

Red flashing (<5%) - requires charging

3. Start/stop button

After switching on the power, press the Start/Stop button to start pumping. The unit will automatically stop pumping when the set pressure value is reached.

4. Charging

Type-C charging input 5V / 2A. Connect the charging cable to the pump and power supply to charge the device.

Battery indicator bar in charging state: indicator bar flashing: charging. When the indicator bar shines with a steady light: full.

Note: Do not use the pump while charging.

5. Installation of air hose and adapters

The product is equipped with an air hose with Schrader adapter, an additional Presta adapter, an air nozzle and a ball needle for ball inflation. Depending on the type of tyre or object you are pumping, you will need to select the appropriate adapter:

Schrader valve: to inflate a tyre with a Schrader valve you need to:

Connect the air hose with the Schrader adapter to the connector on the inflator and then connect it to the tyre valve.

Presta valve: to inflate a tyre with a Presta valve you need to:

I. Connect the air hose with a Schrader adapter to the connector on the pump and then fit a Presta adapter to it.

II. Unscrew the valve cap, then connect the hose with the adaptor to the tyre valve.

Balls/mattresses: use a ball needle or air nozzle when inflating balls, mattresses or other objects. To inflate you should:

I. Connect the air hose with a Schrader adapter to the connector on the pump and then fit a Presta adapter or air nozzle to it.
II. Push the needle or nozzle firmly into the bore of the ball or other object to be pumped.

6. Checking air pressure

When the pump is switched on, when connected to the object to be pumped, the number at the top of the pump display is the current pressure value while the number at the bottom of the display is the target set value.

7. Changing the operating mode

Press the change mode button (SEE FIG. A) to select from the five available modes: car, motorbike, bike, balls and individual settings.

8. Change of pressure unit

Press and hold the LED torch/change pressure unit button (SEE FIG. A) to change the pressure display unit. The unit conversion formula is as follows: 1PSI=6.89KPA; 1BAR=14.5PSI/100KPA; 1Kg/cm2=98KPA.

9. LED light

Briefly press the LED torch/pressure unit change button (SEE FIG. A) to switch the torch on, briefly press a second time to activate flashing mode, briefly press a third time to activate SOS mode, briefly press a fourth time to switch off.

10. Pressure sensor resetting and calibration

Switch on the pump, if the device is not connected to any object and the displayed pressure value is not 0.0 BAR/PSI, hold down the “+ and -” button for 2 seconds until the screen fully illuminates and the value returns to normal.

Please note: the pump will automatically switch off after 3 minutes of inactivity. The device is factory reset before shipment. Differences in altitude or sensors can cause measurement deviations - manual resetting improves accuracy. Calibration is not recommended at high temperatures.

11. Reference pressure values during pumping

To ensure safety, read the instruction manual to check the recommended air pressure for your item before pumping. Over-inflation can lead to explosions and injuries.

Tyres - the range of pressures they can withstand is indicated on the sidewall of the tyre. The pressure should be matched to the weight of the load. Sports balls (e.g. football, basketball, volleyball) - the recommended pressure is usually marked around the inflation valve. As with tyres, the pressure should be adapted to the conditions of use.

Reference pressures:

Car: 26-43 PSI
• Motorbike: 30-45 PSI
• Road bike: 100-120 PSI
• Mountain bike: 38-55 PSI
• Sports balls: Basketball: 7-9 PSI; Football: 10-12 PSI; Volleyball: 4-6 PSI.

12. Precautions at high temperatures

When unscrewing the air valve, both the valve and the connector can reach a high temperature due to the long operation of the device.

Caution: Do not touch the cable and the air connector with your bare hands for an extended period of time!

03. TECHNICAL DATA

■ Battery: Li-Ion 4000mAh (7.4V/14.8Wh) ■ Output pressure: 2\~150PSI / 0.1\~10.3BAR ■ Airflow: 25 l/min ■ Battery charge time: \~3h ■ Run time: \~25min ■ Air hose: 15cm ■ Auto STOP ■ Electronic pressure gauge with LED display ■ 5 operating modes ■ LED torch ■ USB-A (powerbank) output: 5V 2A= ■ USB Type C input: 5V 2A= ■ Operating temperature: -10\~45 °C ■ Dimensions: 68x48x154mm ■ Weight: 450g

04. PRECAUTIONS

1. Do not leave the pump unattended while pumping.
2. Do not place it near flammable or explosive materials.
3. Avoid contact with moisture, dust and falls.

4. Keep out of the reach of children.

5. Do not store the device in areas of extreme temperature and humidity.

5 The product contains a built-in lithium battery - do not dispose of it in a fire or in an uncontrolled manner.

05. SOLVING

Problem Possible causes Method of solution
Slow pumping	1. Low battery charge. Check the charge level.
	2. Air leakage from hose. Check the air hose for leaks.
	3. Loose hose connections.	Check and tighten the connections at both ends of the air hose.
	4. Air leakage from the pumped object.	Check that the item being pumped has no leaks.
Unit is switched on but not pumping	1. Low battery charge. Check the charge level.
	2. the tyre pressure is higher than the set value.	Set a higher pressure value.
The set pressure cannot be increased or decreased	Wrong pumping mode selected.	Select a custom mode to set a value from 2 to 150 PSI.
Pumping works, but pressure shows 0	1. Products with low pressure (e.g. balloons) are not within the measuring range.	Check that the object to be pumped is supported by the device.
Problem Possible causes	Method of solution
	2. When the tyre is empty, the pressure value will only appear after a short inflation time.	Inflate the tyre for a while to read the pressure.
When the nozzle is unscrewed, the device automatically switches off	The device has an automatic switch-off function after 3 minutes.	Press and hold the start button to restart.
Air leakage during hose connection	Leaky air hose connection. Tighten the air hose.
The colour of the power indicator changes during pumping	In the process of discharging a lithium battery, there is a voltage drop, which leads to a change in the colour of the indicator.	This phenomenon is normal and does not indicate a fault.
Power indicator does not light up after charging	Incorrect charging cable or adapter.	Use a compatible charging cable and adapter.

06. WARRANTY/COMPLAINT CARD

The product comes with a 24-month warranty. Warranty terms and conditions can be found at: https://xblitz.pl/gwarancja/

Claims should be made using the claim form found at: http://reklamacje.kgktrend.pl/Details, contact and service address can be found at: www.xblitz.pl

Technical specifications and kit contents are subject to change without notice, we apologise for any inconvenience.
