USER MANUAL FC-6HC-03120 Vollrath

Hot/ColdWellModularDrop-ins

(NSF7ColdFoodHoldingandNSF4HotFoodHolding)

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcancause minorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment

• Useonlygroundedelectricaloutletsmatchingthenameplaterated voltage.
• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
• Keepequipmentandpowercordawayfromopenflames,electric burnersorexcessiveheat.
• Donotoperateifequipmentisdamagedorismalfunctioninginany way.
  • Use this equipment only in a flat, level position.
  •Donotoperatethehotwellwithoutwater.
• Donotusefoodpansdeeperthan6"(15.2cm).
• Donotplaceanyhotitemsonthetopsurface.

FUNCTIONANDPURPOSE

This equipment is intended to keep food at properties serving temperatures. It is intended for use in locations with an ambient temperature below 86°F (30°C). Using it locations with warm temperatures will take the equipment out of NSF compliance. Modifying refrigeration parameters may avoid the warranty.

Hotfoodstationsarenotintendedtocookrawfoodortoreheatprepared food.Coldfoodstationsarenotintendedtocoolorchillfood.Foodmust bepreparedandplacedinfoodstationsatproperservingtemperatures. Refrigeratedcoldstationsarebestusedforholdingperiodsuptofour hours.Forbestperformance,stainlesssteelcontainersarerecommended.

This equipment is not intended for household, industrial or laboratory use.

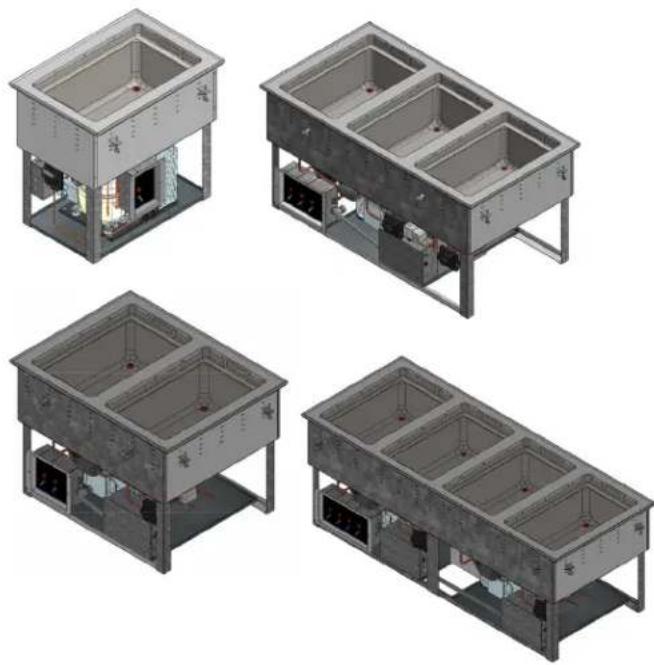

Four isometric technical drawings of industrial equipment or storage tanks, showing internal compartments and structural supports (no text or symbols visible)

ItemNo.	Wells	Drain	Voltage
FC-6HC-01120-AD	1	Auto	120
FC-6HC-01208-AD			120/208-240
FC-6HC-02120	2	Manual	120
FC-6HC-02120-ADAuto
FC-6HC-02208Manual			120/208-240
FC-6HC-02208-ADAuto
FC-6HC-03120	3	Manual	120
FC-6HC-03120-ADAuto
FC-6HC-03208Manual			120/208-240
FC-6HC-03208-ADAuto
FC-6HC-04208	4	Manual
FC-6HC-04208-ADAuto

INSTALLATION

Refertotheincludedinstallationinstructionsandthespecification sheetwhichcanbefoundonVollrath.com

BEFOREFIRSTUSE

Before using this equipment it must be cleaned and dried thoroughly.

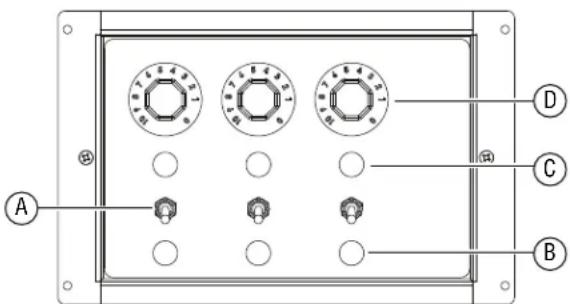

CONTROLS

A B C D

ASelectorSwitch(es).Oneperwell.

UP

Hotmode.Auto-draincloses.

Middle

Off. Auto-draincloses.

Down

Coldmode.Auto-drainopens.

BColdModeIndicatorLight. Illuminateswhentheequipmentis incoldmode.

CHotModelIndicatorLight.Illuminateswhentheequipmentisin hotmode

DTemperatureControlDial.(Hotmodeonly).Usedtoadjustthe temperatureofthewell.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Donotoverfillpansortrays.Liquidcouldcontactthe electricalcomponentsandcauseashortcircuitoranelectrical shock.

NOTICE:Forbestperformance,Forbestperformance,prevent draftsorroomaircurrentsfromflowingoverthefoodpans.

NOTICE:Drainthewaterinthewell(s)beforeswitchingfromhot modetocoldmode.

NOTICE: Donotusefoodpansdeeperthan6"(15.2cm).

NOTICE: Donotplaceanyhotitemsonthetopsurface.

ColdMode

Pre-chilltheWell

1.Fliptheselectorswitchdown.

- Autodrainmodels: this willlopenthedraintoallowanywaterin thewelltodrain.

- Manualdrainmodels:removethedrainplugtoallowanywaterto drain.

1. Allow the equipment tor un for approximately 60 minutes.

Tip: When using ice, for best performance unthe equipment for approximately 2 hours before adding ice. This will help the ice remains solid.

HoldColdFood

1. Placecontainers of properly chilled food into the pre-chilled well.

NOTICE: Do NOT mound the food in the pans are elevated the food pans. This will remove the protection provided by the blanket of cold air and nullify NSF compliance.

1. For best temperature maintenance and food quality, regularly check the food temperature and stir the food.

NOTICE: Monitor food temperature closely for foods safety. The United States Public Health Service recommendation that cold food beheld at a maximum of 41°F (5°C) to help prevent bacteriagrowth.

When Finished Using the Equipment

1. Fliptheselectorswitchtothecenterpositiontoturnoffthe well.

2. Removethefoodcontainers.

Hotwaterandsteaminthewellcanburnskin. Useprotective gloves, mittsorpotholderswhenremovingfoodcontainerors covers. Hotfoodcanalsocauseburns. Handlehotfood carefully.

NOTICE: Do NOT operate in hot modewithout water in the well.

Pre-heattheWells

1. Pourclean, freshwater into the bottom of the well to a depth of about 1" (2.5cm).
   NOTICE: Always maintain water in the well. Donotoverfill.

2.Fliptheselectorswitchup.

1. Coverthewellwithemptyfoodcontainersorcovers.Turntheheat controltothemaximumheatsetting.Preheatfor60minutes.

HoldHotFood

1. Placecontainersofhotfoodproduct, above 140^ F( 60^ C), intothe preheatedwell.
2. Reducetheheatsettingtoalevelthatwillmaintainasafeholding temperatureandmaintainfoodquality.

NOTICE:Monitorfoodtemperaturecloselyforfoodsafety. The UnitedStatesPublicHealthServicerecommendsthathot foodbeheldataminimumof140°F(60°C)tohelp preventbacteriagrowth.Maintaincorrectwaterlevel andtemperaturesetting.Periodicallyremovefood containerandcheckthewaterlevel.Addwaterif needed.

1. Maintainthewaterlevel. Approximately every 2 hours, remove the containers of food and check the water level in the well. Add hot watertothewell if needed.

WhenFinishedUsingtheEquipment

1. Flptheselectorswitchtothecenterpositiontoturnoffthe well.
2. Removethefoodcontainers. Use gloves, mittsorpotholdersto protecthands.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Allow equipment to cool before removing or cleaning.

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals,steelwool, scratchingcleansersorcommerciallimeremovalproducts tocleantheequipment.

WellWasOperatingIn
HotModeColdMode
1.Removethefoodcontainers.
2.Fliptheselectorswitchtothecenterpositiontoturnoff powertothewell.
3.Allowtheequipmentandwater tocool.	3.Useadampclothorsponge dippedinsoapywaterto cleantheinsideofthewell andtheoutsideofthe equipment.
4.Drainthewell.•Auto-draindrop-ins:Flipselectorswitch downtoopenthedrain.Manualdraindrop-ins:removethedrainplug.	4.Thoroughlyrinsethe equipmentwithcleanwater.
5.Afterhewaterhas drained,fliptheselector switchtothemiddleposition toturnoffthewell.
6.Useadampclothorsponge dippedinsoapywatertoclean theinsideofthewellandthe outsideoftheequipment.
7.Thoroughlyrinseequipment withwateraftercleaning.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Thedrop-indoesnothavepower.	Equipmentisnotpluggedin.Plugintheequipment.
	Circuitbreakeristripped.Resetthecircuitbreaker.
	Defectivecircuitorin-adequatepowersupply.Calllicensedelectrician.
Thedrop-inhaspowerbutisnotoperating.Unknow	wn.ContactVollrathTechnicalServices.
Thewellsdonotheatorchillcorrectly.	Draftsorroomaircurrentsmaybeimpacting performanceoftheequipment.	Forbestperformance,preventdraftsorroom aircurrentsfromflowingoverthefoodpans.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832
