USER MANUAL OCEAISHDC1500W OCEANIC

Blank white image with no visible content, text, or symbols

CONDITIONS DE GARANTIE

PLEASE READ SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT AND SAVE IT.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 ye shall only switch on/off the appliance if it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children aged from 3 years and less than 8 ye shall not plug in, regulate and clean the applan or perform user maintenance.

- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

- The appliance should not be placed immediately below a socket-outlet.

WARNINGS: In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, tim separate remote-control system or any other device that turns on the heater automatically because there is a risk of fire if the device is covered or placed incorrectly.

- CAUTION: To avoid hazard due to inadvertent resetting of the thermal cutout, this appliance must not be powered via an external switch, su as a timer, or connected to a circuit that is regularly switched on and off by the electricity supplier.

- This heater must not be disposed of with household waste; it must be taken to a local cer of recovery and recycling of electrical appliances.

- The heater must be installed so that switches a other control devices cannot be touched by a person in the bath or shower.

- A means of disconnection from the power supply having a contact opening distance of all poles must be included in the fixed wiring in accordance with the installation requirements.

- WARNING: If this device is installed in a bathroom, it must be installed at least 60 cm from a bath

shower, in accordance with the requirements of the French electrical standards NFC15-100.

• The device must be powered through a Residual Current Device (RCD) having a rated differential operating current not exceeding 30 mA.
• If being fitted in a bathroom, a 30mA RCD mu used.
• With respect to the details of how to install the appliance onto the wall, refer to part "INSTALLATION".
• Regarding the detailed information on the connection of the electric cable, refer to the section "ELECTRICAL CONNECTION".
  • Information on the meaning of the compliance marking Ⓒ ∈

The marking CC indicates that the product meets the main requirements of the European Directive 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (Reduction of use of certain hazardous substance in Electrical and Electronic Equipment).

INSTALLATION

IMPORTANT RECOMMENDATIONS TO READ BEFORE INSTALLATION

- Do not install the unit directly below a socket. - Do not install the unit in a damp room or near water source.

• Do not use the appliance outdoors.
• Do not install the unit in an air current that could disrupt its regulation.
• Do not place the unit near a barrier limiting the airflow around it.
• Attach the heater vertically to the wall as describ below.
• Choose screws and plugs suitable for the wall material and weight of the unit.

RECOMMENDATIONS FOR WALL MOUNTING

Do not make any changes to the unit or its mount bracket on the wall!

Before installing the device, check the condition of wall on which it will be fixed: the wall must be in condition, it must not show any damage (cracks, sagging, humidity, ...).

Do not drill holes near old holes, even when they closed.

It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate for the material that constitutes your wall, as well as the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual.

Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device of the wall. Tighten them if necessary.

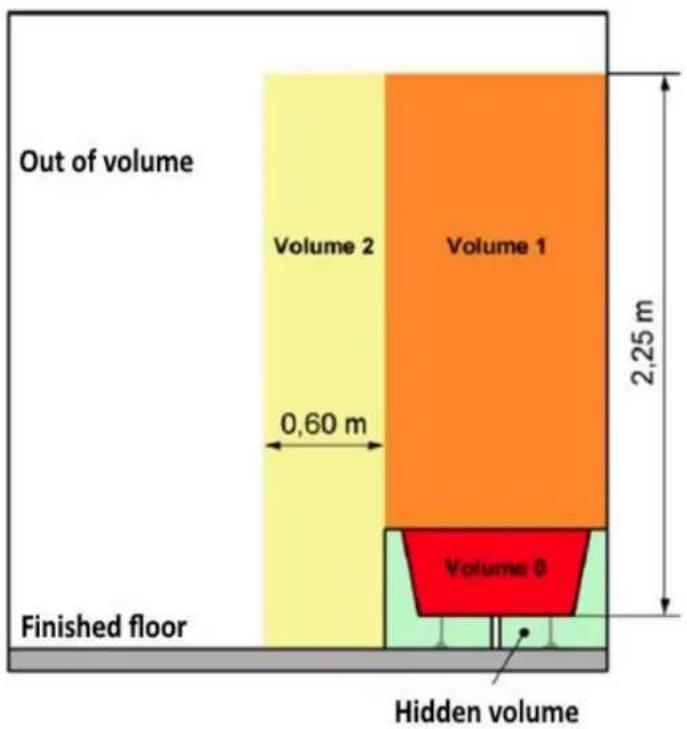

INSTALLATION IN THE BATHROOM

Warning: This appliance must be only installed in volume 2 or out of volume of the bathroom, as stain in the French standard NF C 15-100 for electrical installation inside the house.

Note: The drawing is for reference only.

We suggest that you to contact a professional electrician for assistance.

Out of volume Volume 2 Volume 1 0,60 m 2,25 m Volume 8 Finished floor Hidden volume

ELECTRICAL CONNECTION

CAUTION: Before any intervention, turn off the electricity at the main circuit breaker.

- The installation must be carried out according to requirements and meet the standards enforced in the country (NF C 15-100 in France).

• The unit must be connected to a standard wall b placed at least 25 cm from the floor.
• The appliance must not be connected to an outlet with a power plug.
• The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The appliance must not be connected to the earth wire (yellow and green wire).

ELECTRICAL CONNECTION

Blue or light gray wire connect to Neutral (230V)

Brown or red wire connect to Phase (230V)

Black wire connect to pilot wire. (Optional function use in case of control by pilot wire box)

WARNING! Do not connect the black wire to the e connection.

- In the absence of pilot wire, insulate the bare end of the black wire to prevent electrical contact with the other wires or earth. Use an insulating adhesive or connector to isolate the bare part of the black wire

Content :

Fixed electric radiator x1

Long Screw x5

WALL-MOUNTED KITS

Description	Drawing	Spec	QTY
Screw		3.9 x 30 m	5
Wall plug (not provided)		Φ8mm	4

INSTALLATION

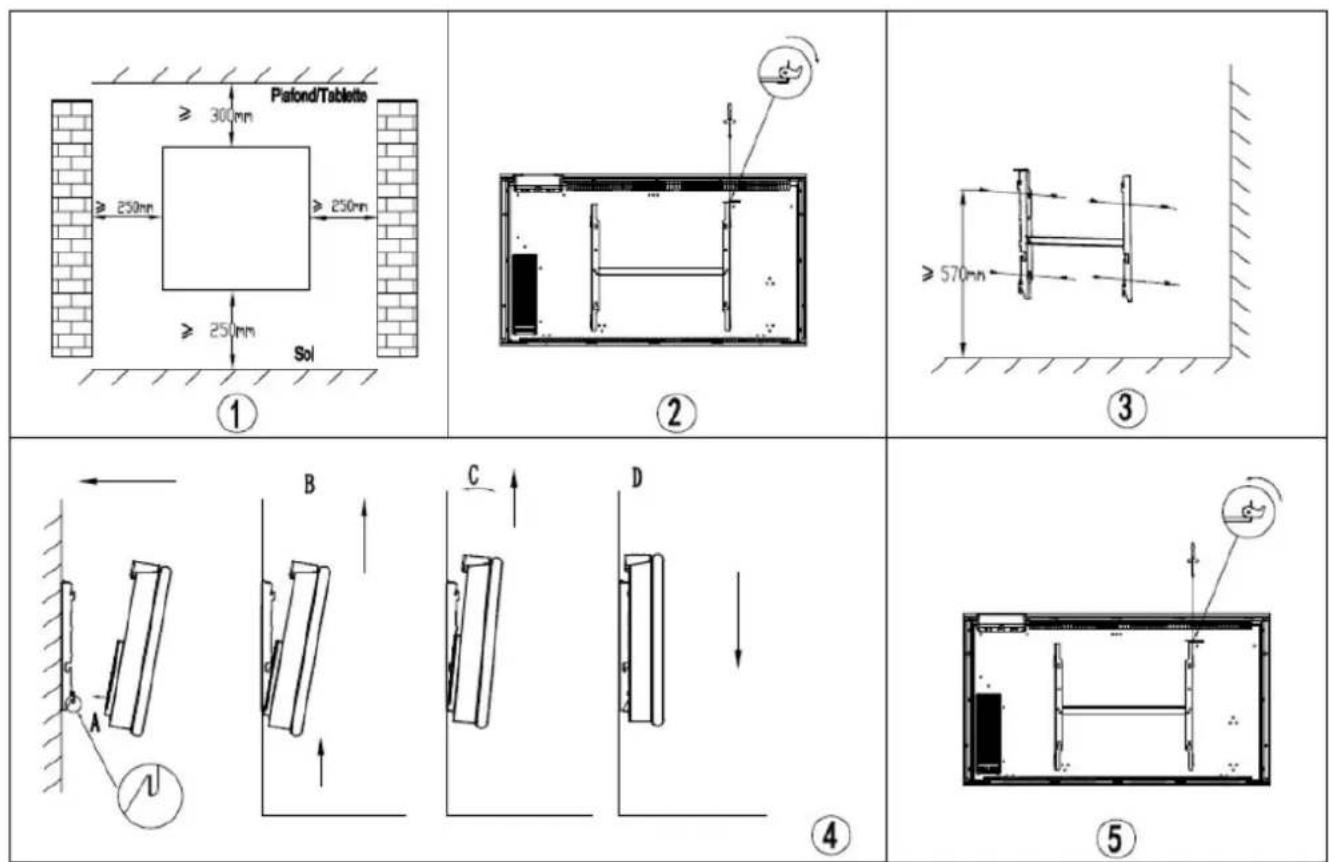

To hang the heater on the wall:

1. Choose a suitable installation location for the heater. (Fig 1)
2. Disassemble the wall bracket by loosening the screw (do not remove, only loosen) and slide the metal plate out of the hole. Take out the bracket by

pulling down. (Fig 2)

1. Verify that the bracket is horizontal with a spirit level and mark the location of 4 holes on the wall. Drill 4 holes in the wall using a drill adapted to the diameter of wall plug. Insert the wall plug into the holes, then screw securely wall mount bracket onto the wall. (Fig 3)

2. Place the heater against bracket (Fig 4):

A : Align the heater on the 2 lower hooks that are downwards.
B : Pull the heater upwards whilst retaining it in the
2 lower hooks.
C : Align the heater on the 2 upper hooks that are upwards.
D : Pull the heater down.

1. Slide the metal plate into the hole, and fasten the screw to lock the wall mount bracket. (Fig 5)

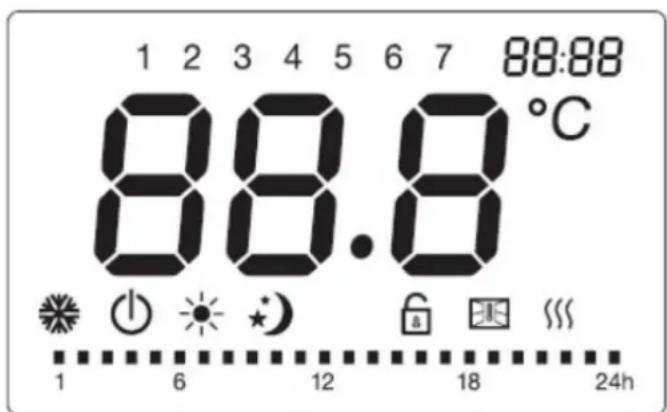

LCD display

1 2 3 4 5 6 7 88:88 88.8°C 1 6 12 18 24h

Symbol	Function
	Stand-by mode (the appliance will not work but will receive power)
	Anti-freeze mode (the appliance maintains a temperature around 7 C)
	Comfort mode (desired set temperature)
	Eco mode (ECO maintains a temperature ^ £.5lower than the selected Comfort temperature. This mode reduces the temperature without changing the selected Comfort Temperature)
P	Pilot wire mode (to set the programs via pilot wire programmer)
	Window detector function
	Child lock
	Heating indicator (When appliance is heating up, this icon be displayed at the screen. The icon will disappear when room temperature reaches the selected temperature)
°C	Temperature (centigrade)
Weekly personalized modes:
	Comfort mode enabled
	Eco mode enabled

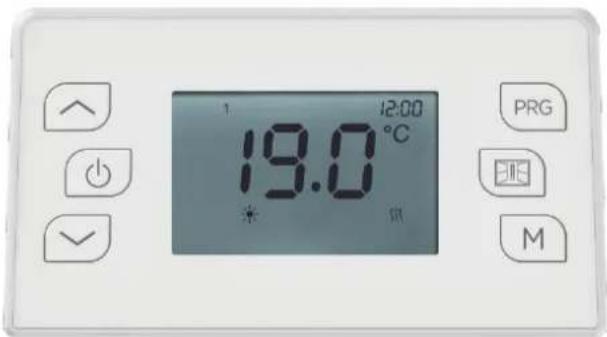

Control panel

12:00 19.0°C PRG M

Touch	Function
	Stand-by
PRG	Personalized programs
	Window detector function
M	Comfort modeEconomy modeAnti-freeze modeP1/P2/P3/P
Touch ↗ ↙	Set the time, day of the week, the temperature; or under weekly personalized programs, to choose between comfort mode, or eco

OPERATION

When you first use the appliance, there might be some slight smell which is normal. Allow the appliance to work for one hour to make it disappear.

1. Setting the time and turning on the device

To be able to use the preset programs (P1 / P2 / P3 / Personalized programs), the date and must have been set on the device.

For more details on the content of the preset programs (P1 / P2 / P3) refer to the followir

Two different methods to set the time:

1. If the appliance was not connected to the power supply, after connection the time will app on the screen for setting. Press to toggle between hours / minutes / day of the week. Press the button to set the hours / minutes / day of the week. Press the button to complete the setting and return to Stand-by mode, otherwise after 10 seconds without acti the device will automatically return to stand-by mode as if it was the first time you use the device.

2. If the appliance is in operation and you want to change the time setting, press the device at the same time to enter the time setting. Press to toggle between hours / minute day of the week (1-7). Press the button to set the hours / minutes / day of the week. Press any button other than or to save the setting, otherwise after 10 seconds without the setting will be saved automatically.

2. Press M

Press M button to toggle among the modes: Comfort mode ⚙, Economy mode ⚙, Anti-freeze mode ⚙, the 3 pre-set programs (P1 / P2 / P3), and Pilot wire mode P.

In Pilot wire mode P, set the heating using the external timer. When the external programmer is set to another mode, the display shows:

External Mode Setting	Icon Displayed
Comfort mode
Comfort mod
Comfort mode
Economy mode
Anti-freeze mode
Stand-by mode

The 3 Preset programs are detailed below :

P 1	Mon-Sun	00:00 08:00
P 2	weekdays	00:00 05:00 19:00
	weekends	00:00 08:00 13:00 20:00
P 3	weekdays	00:00 05:00 12:00 18:00
	weekends	00:00 05:00

3. Press PRG

Press the PRG button to choose one of the programs.

In PRG mode, Press PRG button to select between "day (1 for Monday -7 for Sunday)" and "heating mode of different periods (00:00-24:00)".

Select the desired day (1-7) by pressing / buttons.

Press the PRG button to set the "heating mode of different period (00:00-24:00)"

When you set the "heating mode of different period (00:00-24:00)", press button to choose hours, and to choose among function: comfort, or economy mode □ After 30 seconds it will automatically save.

For example: to select the day 1, temperature of 19^ C, comfort mode for 24 hours:

1. Press PRG, then / buttons to choose day 1.

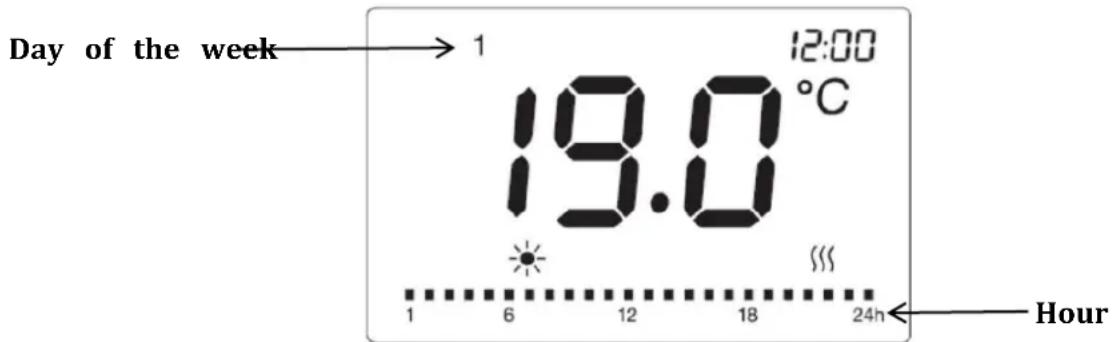

Day of the week → 1 12:00 19.0 °C Hour 1 6 12 18 24h

1. Press the PRG button again, press to choose the hour, to choose comfort mode and then repeat for the entire 24 hours.

2. After 30 seconds without action, the setting is saved.

4. Temperature setting

In comfort mode ⚙, or Pilot wire mode P or Eco mode ⚡ (excluding anti-freeze mode ⚠), press ∧ or ∨ to select the desired set temperature. The temperature range for comfort mode and Pilot wire mode is between 5°C and 29°C and for Eco mode is between 1.5°C and 25.5°C temperature difference between the ECO mode and the COMFORT mode must be at least 3.5°C. Each time you press the buttons to adjust the temperature, you increase or decrease the temperature by 0.5°C. Press any other button except ∧/ ∨ to finish the setting, otherwise after 5 seconds without action the setting is automatically saved. When the room temperature is the same or higher than the selected temperature, the heater will stop heating.

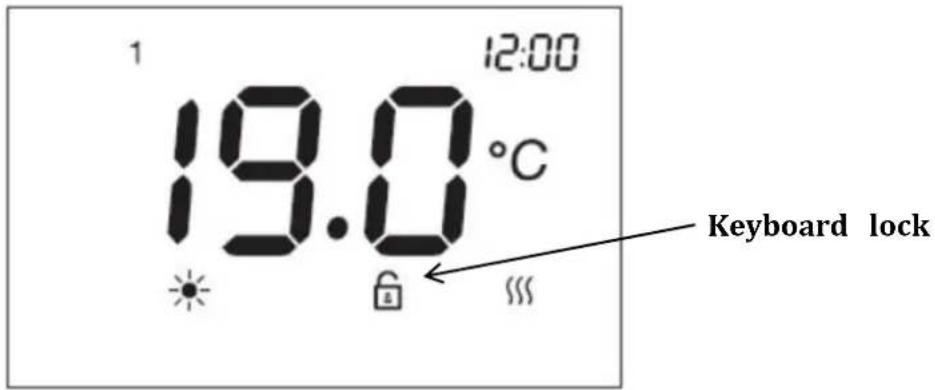

5. Keyboard lock

Press M button for three seconds to activate the keyboard lock function 🔒, to unlock, press M button again for three seconds.

1 12:00 19.0°C Keyboard lock

Remarks:

1. The keyboard lock function does not lock the standby button.
2. The keyboard lock function will automatically be deactivated under the below circumstance. 1) the appliance suffers power disconnection.
   If you want this option to be activated again you will need to press the M button for 3 seconds.

6. Window detector function

Press ☐ to enter window detector function. Then press “^/√” to choose “ON” or “OFF”. If “ON” is selected, the window detection function is activated and 📋 icon will show on the screen. When temperature drop is detected, the appliance will automatically enter anti-freeze m with icon flashing. If temperature rises up, the appliance will go back to previous mode with 📋 icon on. You can choose “OFF” to disable the window detection function.

Remarks: the window detector function is not available under anti-freeze mode.

7. Temperature calibration function

In standby mode, press PRG and ☐ at the same time for 5 seconds to enter the temperature calibration setting. The default temperature is 0^ C . press or to set compensated temperature range from minus 5^ C to 5^ C . If there is no action after 10 seconds, setting will be saved automatically and go back to previous interface.

For example, the temperature displayed on your radiator is 20^ . The one displayed on your thermometer is 18^ , choose the calibration value -2^ .

- 2°C

8. In case of power failure

All of the above settings for temperature, time, date of the week, and programs remain valid the power is removed.

After a power failure, when power is restored, the device will go back to the mode and tem selected before the power failure.

In the event of a power failure, the device only saves the following parameters: temperature operating mode. When the power is restored, the date and time must be set in order to make various programs work correctly.

TECHNICAL CHARACTERISTICS

Model / Ref	HT10-23QEF/OCEAISHDC1000W	HT15-23QEF/OCEAISHDC1500W	HT20-23QEF/OCEAISHDC2000W
Nominal voltage	230 V ~	230 V ~	230 V ~
Rated frequency	50 Hz	50 Hz	50 Hz
Nominal power	1000 W	1500 W	2000 W
Class	II	II	II
IP	IP24	IP24	IP24
Pilot wire	6 orders	6 orders	6 orders
Recommended Room Size	10 m^2	15 m^2	20 m^2
Dimensions (W x H)(cm)	60 x 45	80x45	100x45
Power Cord Length(cm)	100	100	100

Model identifier(s): HT10-23QEF (Ref: OCEAISHDC1000W )
Item	Symbol	Value	Unit	Item	Value
Heat output				Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	1,000	kW	Single stage heat output and room temperature control	[No]
Minimum heat output (indicative)	Pmin	N/A	kW	Two or more manual stages, room temperature control	[No]
Maximum continuous heat output	Pmax,c	1,000	kW	With mechanic thermostat root temperature control	[No]
Power consumption				With electronic room temperature control	[No]
In off mode	Po	N/A	W	Electronic room temperature control plus day timer	[No]
In standby mode	Psm	0,13	W	Electronic room temperature control plus week timer	[Yes]
In idle mode	Pidle	0,13	W	Other control options (multiple selections possible)
In network standby	Pnsm	N/A	W	Room temperature control, with presence detection	[No]
Standby mode with display of information or status		yes		Room temperature control, with open window detection	[Yes]
Seasonal space heating energy efficiency in active mode	ηS,on	92,0	%	Distance control option	[No]
				Adaptive start control	[No]
				Working time limitation	[No]
				Black bulb sensor	[No]
				Self-learning functionality	[No]
				Control accuracy	[No]
Contact details	OCEANIC120/126 Quai de Bacalan 33000 Bordeaux - France [e-mail]
Model identifier(s): HT15-23QEF (Ref: OCEAISHDC1500W )
Item	Symbol	Value	Unit	Item	Value
Heat output				Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	1,500	kW	Single stage heat output and room temperature control	[No]
Minimum heat output (indicative)	Pmin	N/A	kW	Two or more manual stages, room temperature control	[No]
Maximum continuous heat output	Pmax,c	1,500	kW	With mechanic thermostat root temperature control	[No]
Power consumption				With electronic room temperature control	[No]
In off mode	Po	N/A	W	Electronic room temperature control plus day timer	[No]
In standby mode	Psm	0,13	W	Electronic room temperature control plus week timer	[Yes]
In idle mode	Pidle	0,13	W	Other control options (multiple selections possible)
In network standby	Pnsm	N/A	W	Room temperature control, with presence detection	[No]
Standby mode with display of information or status		yes		Room temperature control, with open window detection	[Yes]
Seasonal space heating energy efficiency in active mode	ηS,on	92,0	%	Distance control option	[No]
				Adaptive start control	[No]
				Working time limitation	[No]
				Black bulb sensor	[No]
				Self-learning functionality	[No]
				Control accuracy	[No]
Contact details	OCEANIC120/126 Quai de Bacalan 33000 Bordeaux - France [e-mail]
Model identifier(s): HT20-23QEF (Ref: OCEAISHDC2000W)
Item	Symbol	Value	Unit	Item	Value
Heat output				Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	2,000	kW	Single stage heat output and room temperature control	[No]
Minimum heat output (indicative)	Pmin	N/A	kW	Two or more manual stages, room temperature control	[No]
Maximum continuous heat output	Pmax,c	2,000	kW	With mechanic thermostat root temperature control	[No]
Power consumption				With electronic room temperature control	[No]
In off mode	Po	N/A	W	Electronic room temperature control plus day timer	[No]
In standby mode	Psm	0,13	W	Electronic room temperature control plus week timer	[Yes]
In idle mode	Pidle	0,13	W	Other control options (multiple selections possible)
In network standby	Pnsm	N/A	W	Room temperature control, with presence detection	[No]
Standby mode with display of information or status		yes		Room temperature control, with open window detection	[Yes]
Seasonal space heating energy efficiency in active mode	ηS,on	92,0	%	Distance control option	[No]
				Adaptive start control	[No]
				Working time limitation	[No]
				Black bulb sensor	[No]
				Self-learning functionality	[No]
				Control accuracy	[No]
Contact details	OCEANIC120/126 Quai de Bacalan - 33000 Bordeaux - [e-mail]

FAULTS AND SOLUTIONS

Problem	Solution
The appliance does not heat	Ensure that the circuit breakers are switched on the installation, or the shedder did not cut the pow supply (if the installation has one).
	Select the COMFORT mode.
	Increase the temperature setting.
The device heats permanently	Ensure that the device is not in a draft.
	Reduce the temperature setting.

CARE AND CLEANING

1. Disconnect the electrical supply at the electrical panel of the residence and allow it to cool down before carrying out any maintenance operations.
2. Use a damp cloth to clean the casing of the dev
3. Clean grill and air outlet regularly. Never immerse the appliance in water or allow water to enter the appliance.

WARRANTY TERMS

Your device is guaranteed by the manufacturer for a period of 24 months from the date of purchase (Use the dated invoice as proof).

EXCLUSIONS:

The warranty does not cover wear parts of the product, or problems or damage resulting from:

(1) surface damage due to normal product wear
(2) defects or deterioration due to contact of the product with food or liquids and due to corrosion

caused by rust

(3) any incident, abuse, misuse, unauthorized modification, disassembly or repair
(4) improper maintenance, use not in accordance with product instructions, or connection to incorrect voltage
(5) any use of accessories not supplied or approved by the manufacturer.

Information: The warranty will be invalidated if the nameplate and/or the serial number of the product are missing.

REPAIR SERVICES

In the event of a malfunction during the period of the manufacturer's warranty: any request for support must be made to the professional retailer from whom you purchased your product. It therefore guaranteed for 2 years from the date of purchase. Keep your receipt which will serve proof of purchase.

In the event of a malfunction, you must return your product to your point of sale.

ENVIRONMENTAL PROTECTION

This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.

Oceanic

120/126 Quai de Bacalan

33000 Bordeaux

France

Three black-and-white icons: a person walking with arrows, a document and paper, and a trash bin with a circular arrow (no text or symbols)
